ANENG SZ309pro Digital Multimeter, 600V 10A Voltage Tester with Backlit Display - Measures AC/DC, Resistance, Capacitance & Frequency

ANENG SZ309pro Digital Multimeter, 600V 10A Voltage Tester with Backlit Display - Measures AC/DC, Resistance, Capacitance & Frequency

Regular price $10.49 USD
Regular price $0.00 USD Sale price $10.49 USD
Sale Sold out
Shipping calculated at checkout.
Model

Shipping Icon Estimated Delivery: -

Features:

  • Wide Measurement Range: Measures AC and DC voltage from 0.1mV to 600V, AC and DC current from 0.1uA to 10A, resistance up to 20MΩ, capacitance from 2nF to 2mF, and frequency from 2Hz to 2MHz.
  • High Precision: Offers high-resolution measurements with a precision of ±(1.2% reading ±5 digits) for voltage, ±(2.5% reading ±5 digits) for current, and ±(3.0% reading ±5 digits) for frequency.

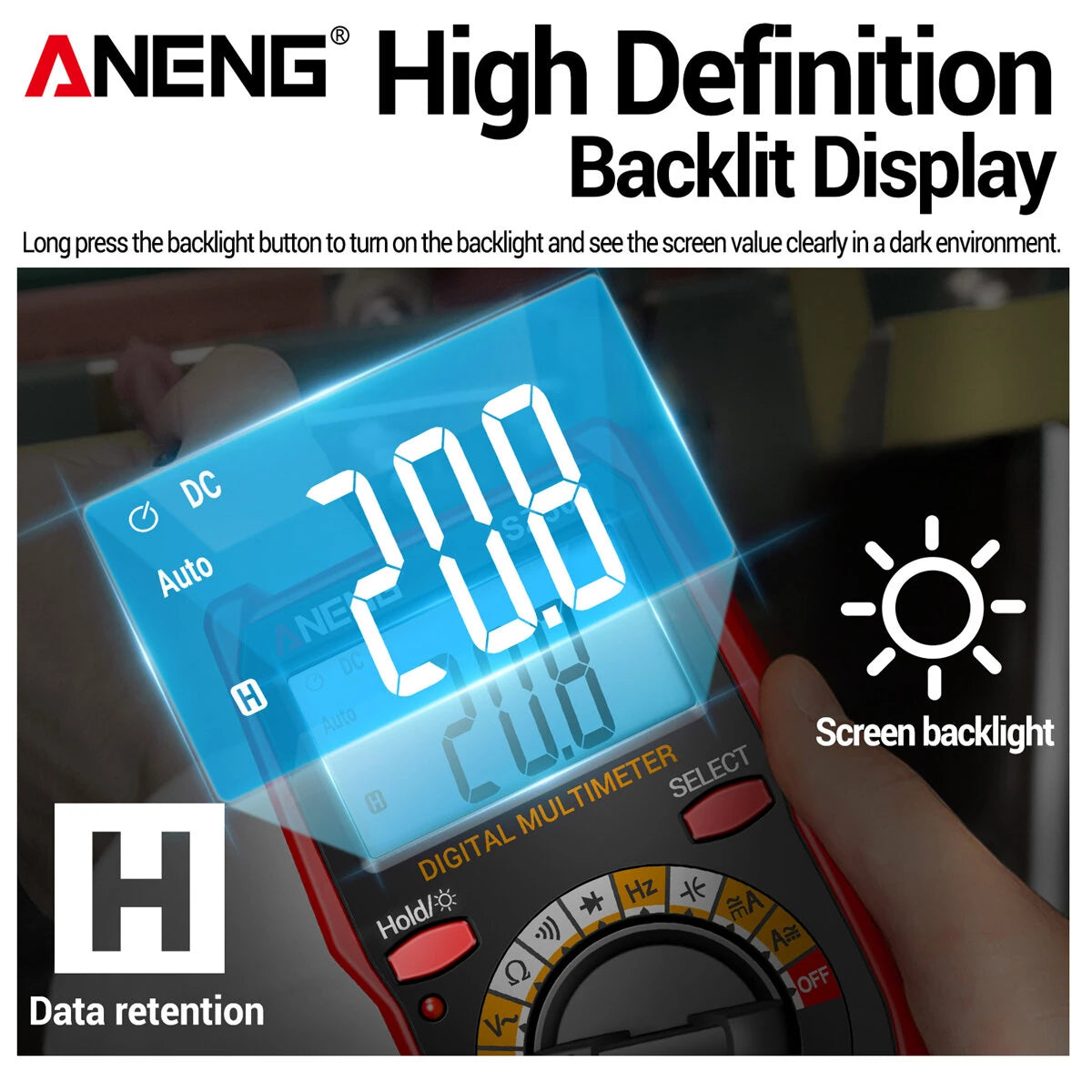

  • Backlit Display: Equipped with a bright backlit screen for clear readings, perfect for poorly lit environments.
  • Convenience Features: Includes a buzzer, diode test, data retention, low power indicator, auto power off, and a maximum display count of 1999.
  • Portable and Lightweight: Made with durable ABS material and weighing only 114g, it's ideal for on-the-go use.

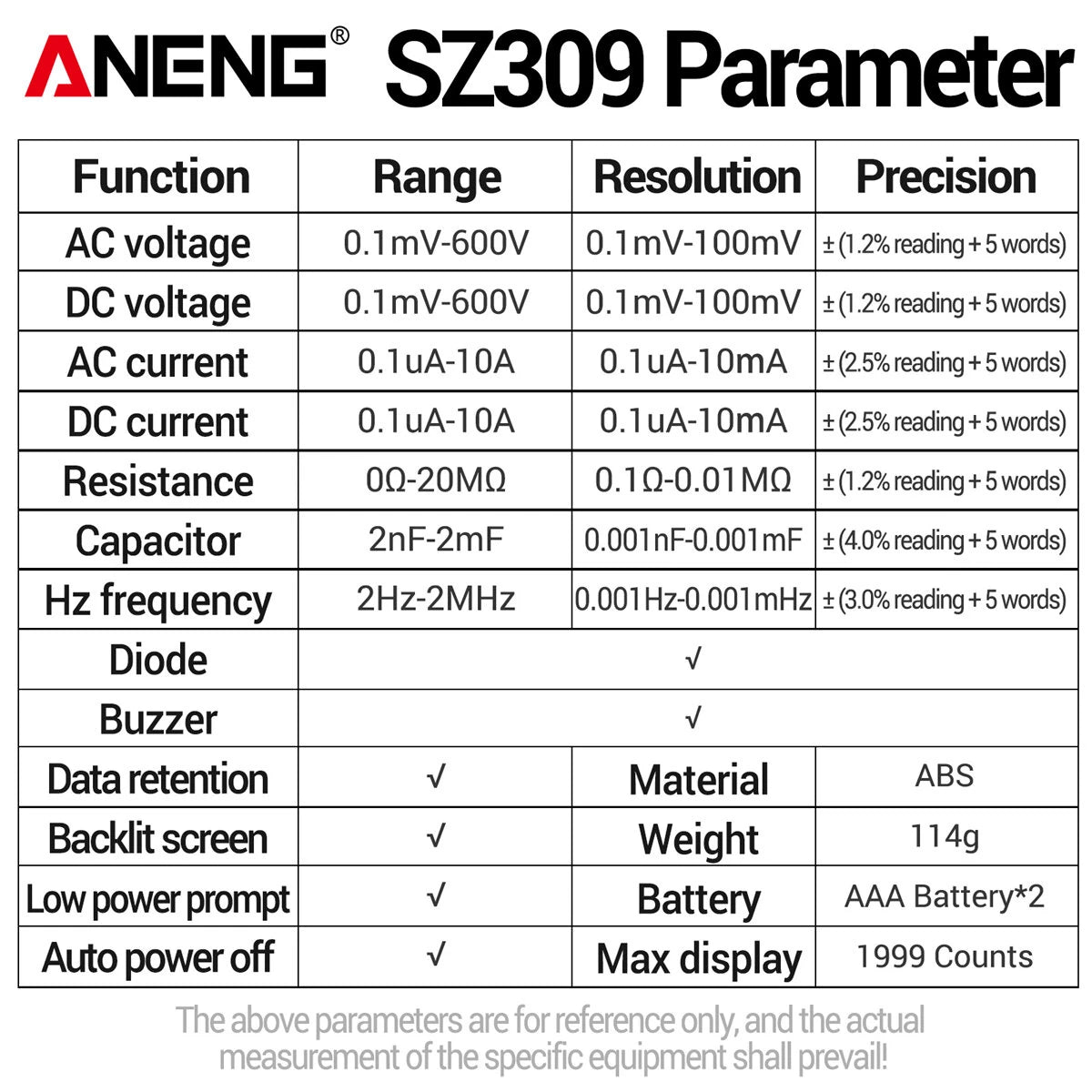

Specifications:

  • Brand: ANENG
  • Model: SZ309
  • AC Voltage: Range: 0.1mV-600V, Resolution: 0.1mV-100mV, Precision: ±(1.2% reading ±5 digits)
  • DC Voltage: Range: 0.1mV-600V, Resolution: 0.1mV-100mV, Precision: ±(1.2% reading ±5 digits)
  • AC Current: Range: 0.1uA-10A, Resolution: 0.1uA-10mA, Precision: ±(2.5% reading ±5 digits)
  • DC Current: Range: 0.1uA-10A, Resolution: 0.1uA-10mA, Precision: ±(2.5% reading ±5 digits)
  • Resistance: Range: 0Ω-20MΩ, Resolution: 0.1Ω-0.01MΩ, Precision: ±(1.2% reading ±5 digits)
  • Capacitance: Range: 2nF-2mF, Resolution: 0.001nF-0.001mF, Precision: ±(4.0% reading ±5 digits)
  • Frequency: Range: 2Hz-2MHz, Resolution: 0.001Hz-0.001MHz, Precision: ±(3.0% reading ±5 digits)
  • Material: ABS
  • Weight: 114g
  • Battery: 2 x AAA Battery
  • Max Display: 1999 Counts

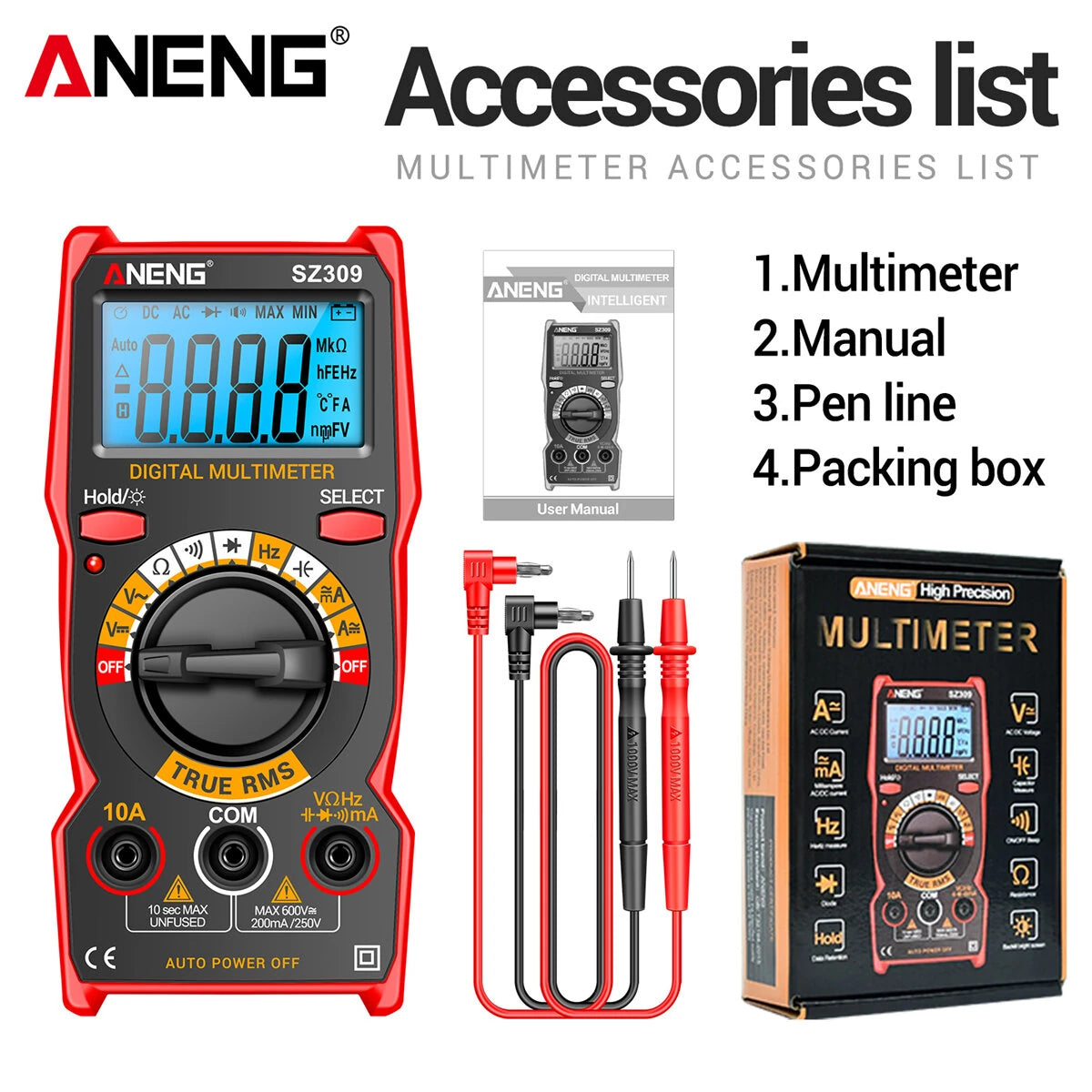

Package Included:

  • 1 x Multimeter
  • 1 x User Manual
  • 1 x Test Pen Line
  • 1 x Packing Box
