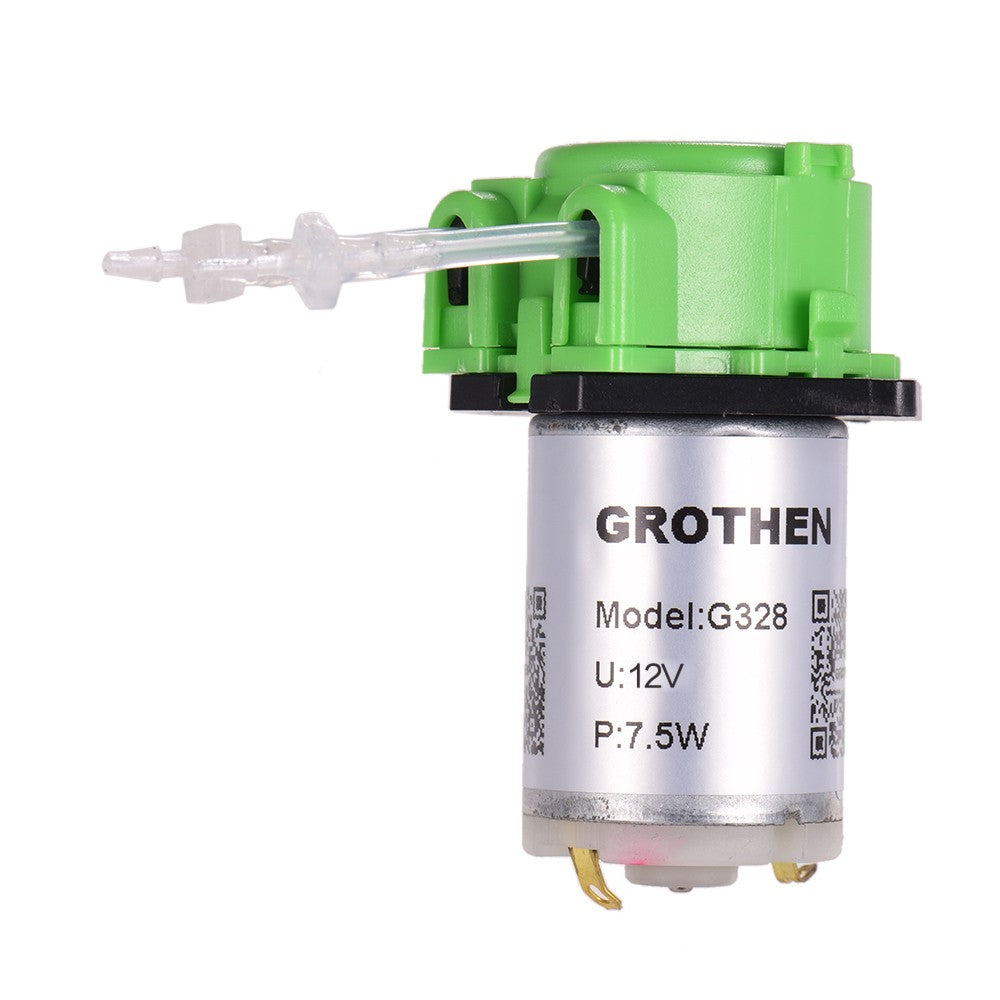

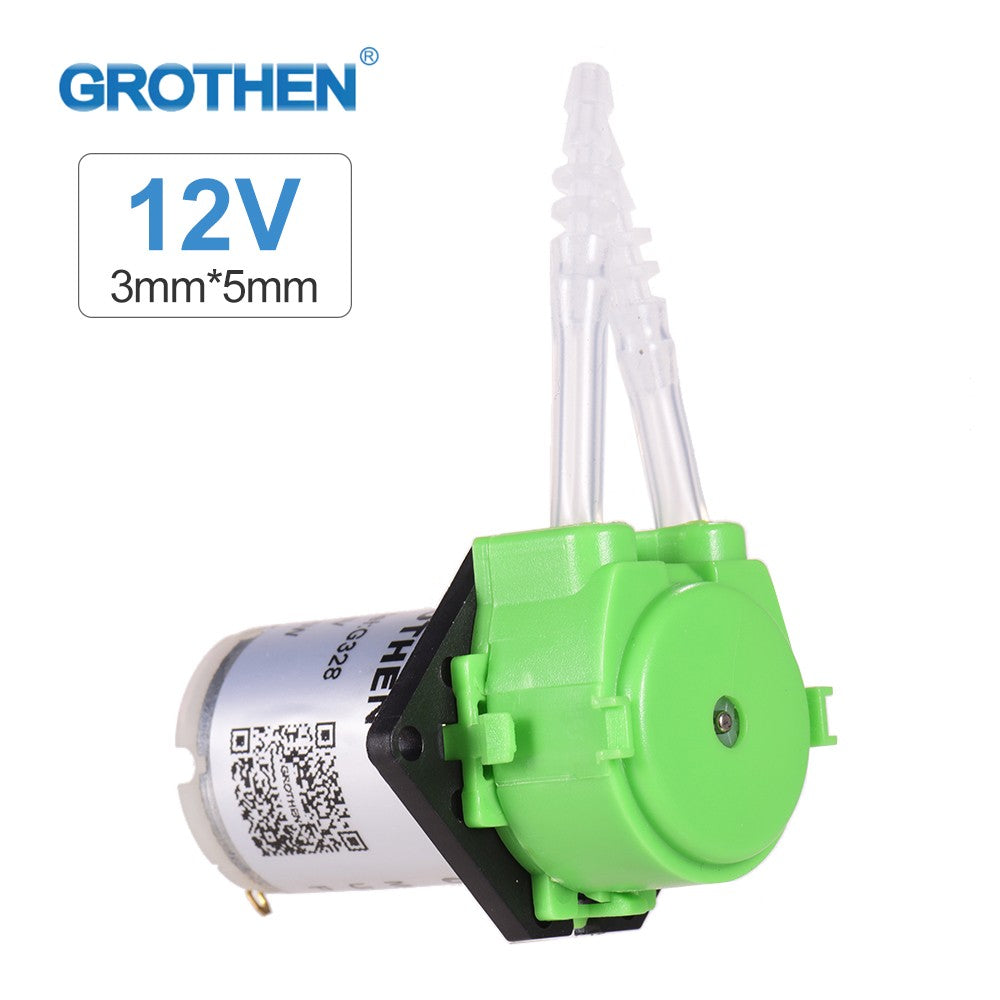

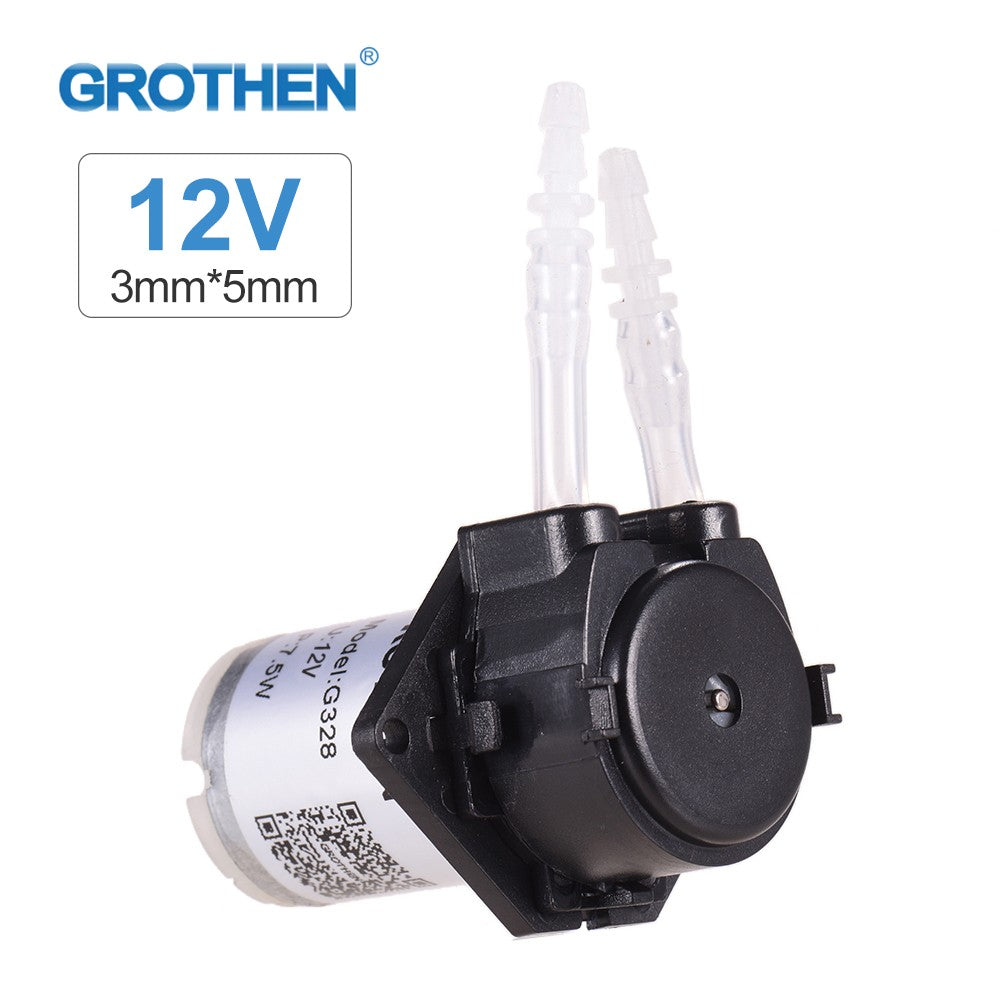

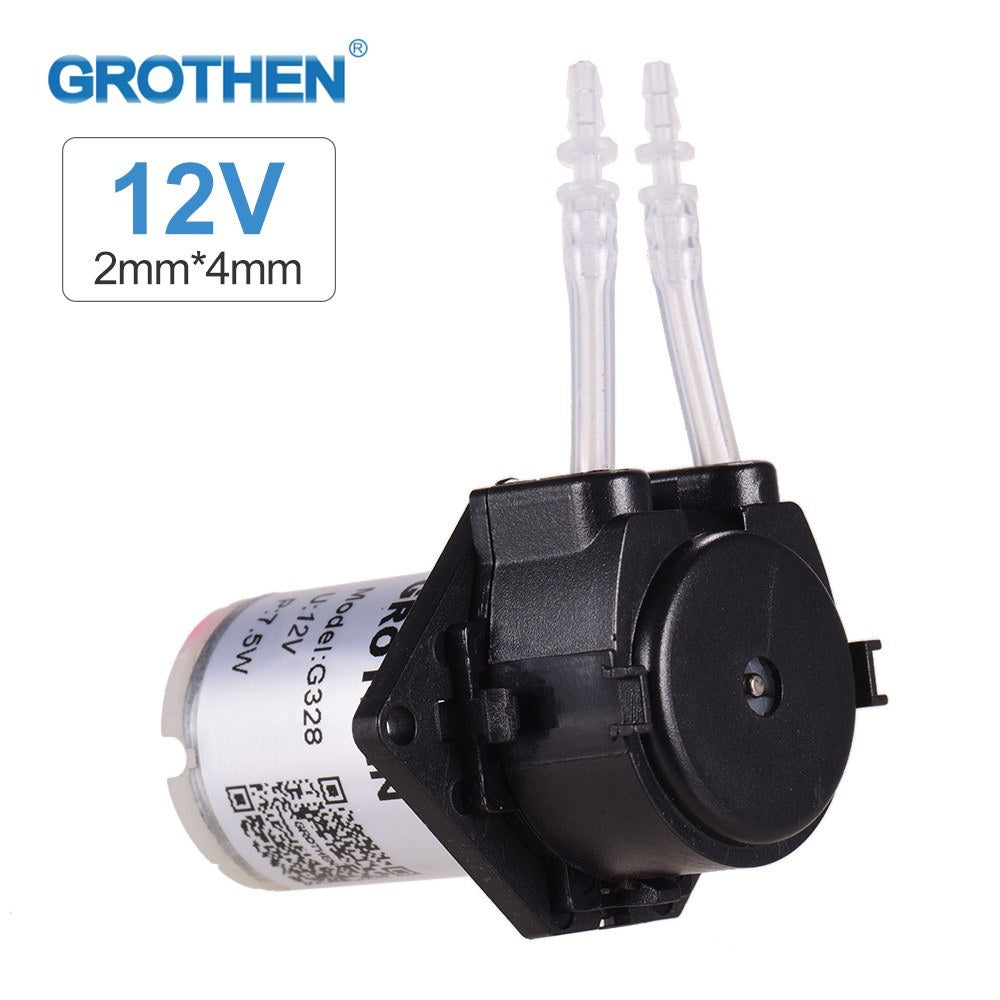

Grothen 12V DC Mini Dosing Pump

Features

• Easy-to-clean pump head with a unique buckle design—no screws needed! Simply press the buckles on both sides to remove for quick maintenance.
• Supports both Clockwise (CW) and Counter-Clockwise (CCW) operation. Switch the power supply’s positive and negative poles to change the pump head's direction.
• Control the flow direction effortlessly by adjusting the positive and negative connections.
• No valves or seals required, ensuring convenient hose replacement and easy upkeep. Features a self-priming function.
• Versatile for use in various fields including experiments, medical, biochemical analysis, pharmaceuticals, fine chemicals, biotechnology, food, environmental protection, and even for home use.

Specifications

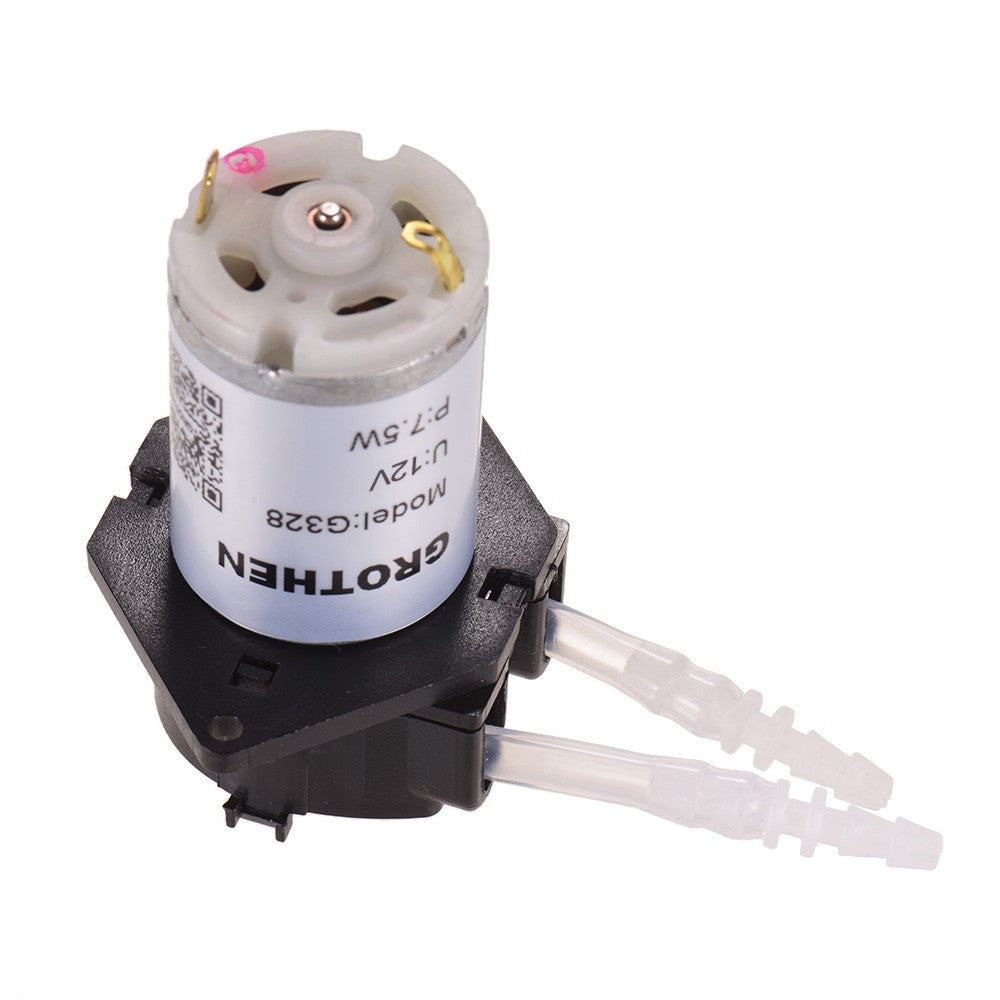

• Model: G328
• Color Options: Black/Green

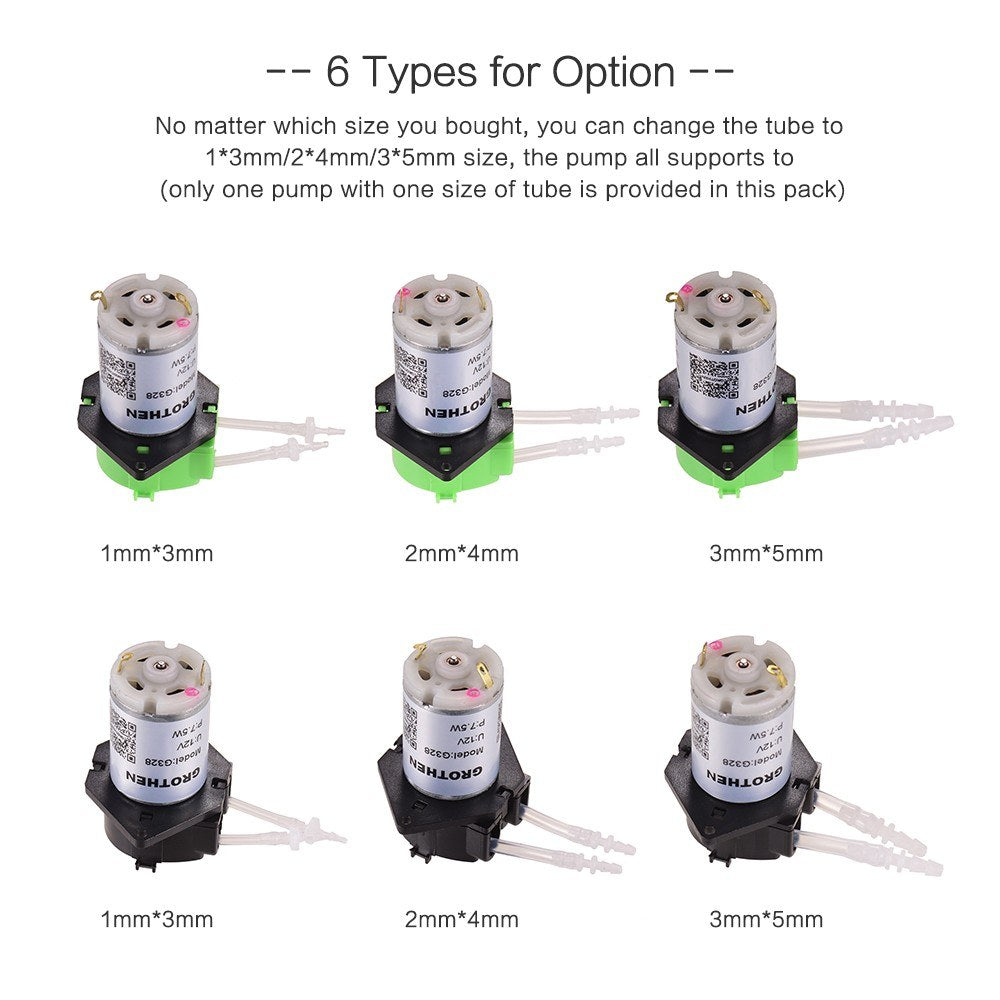

• Silica Gel Tube (internal dia. × outside dia.):

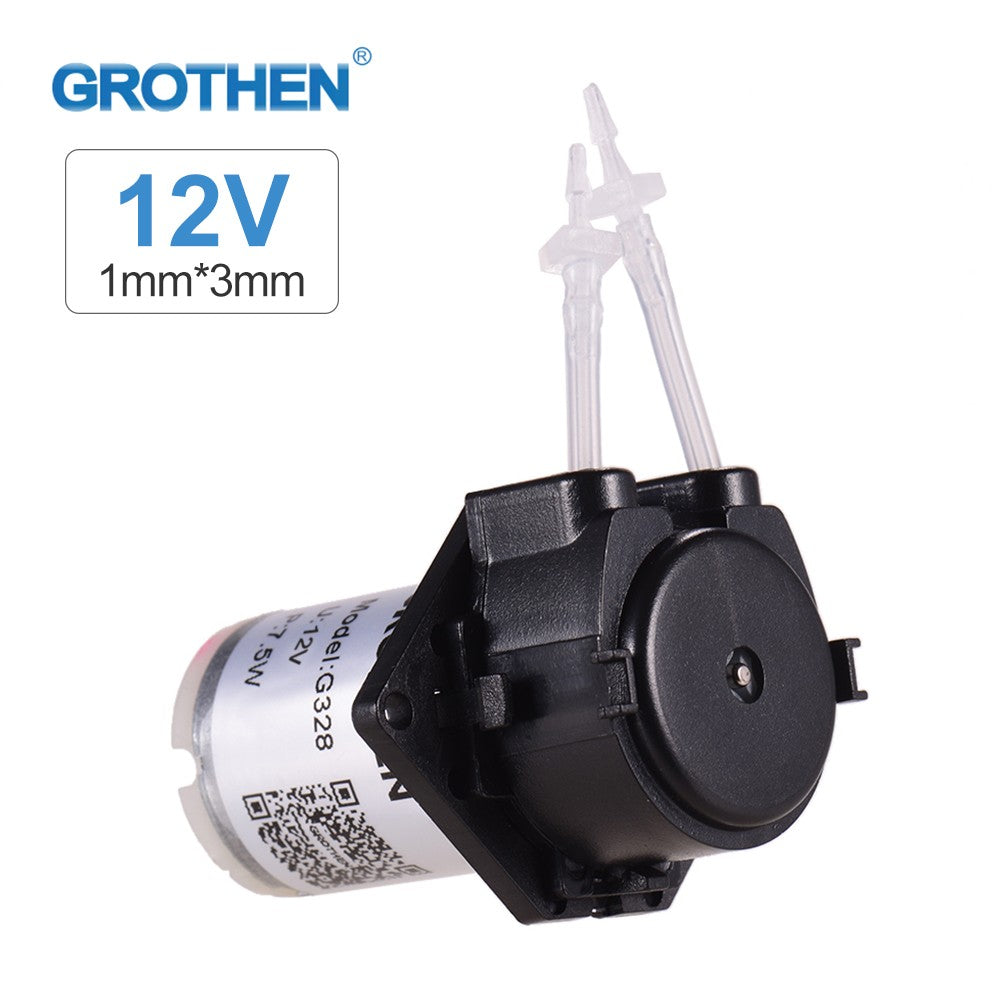

  • 1mm × 3mm

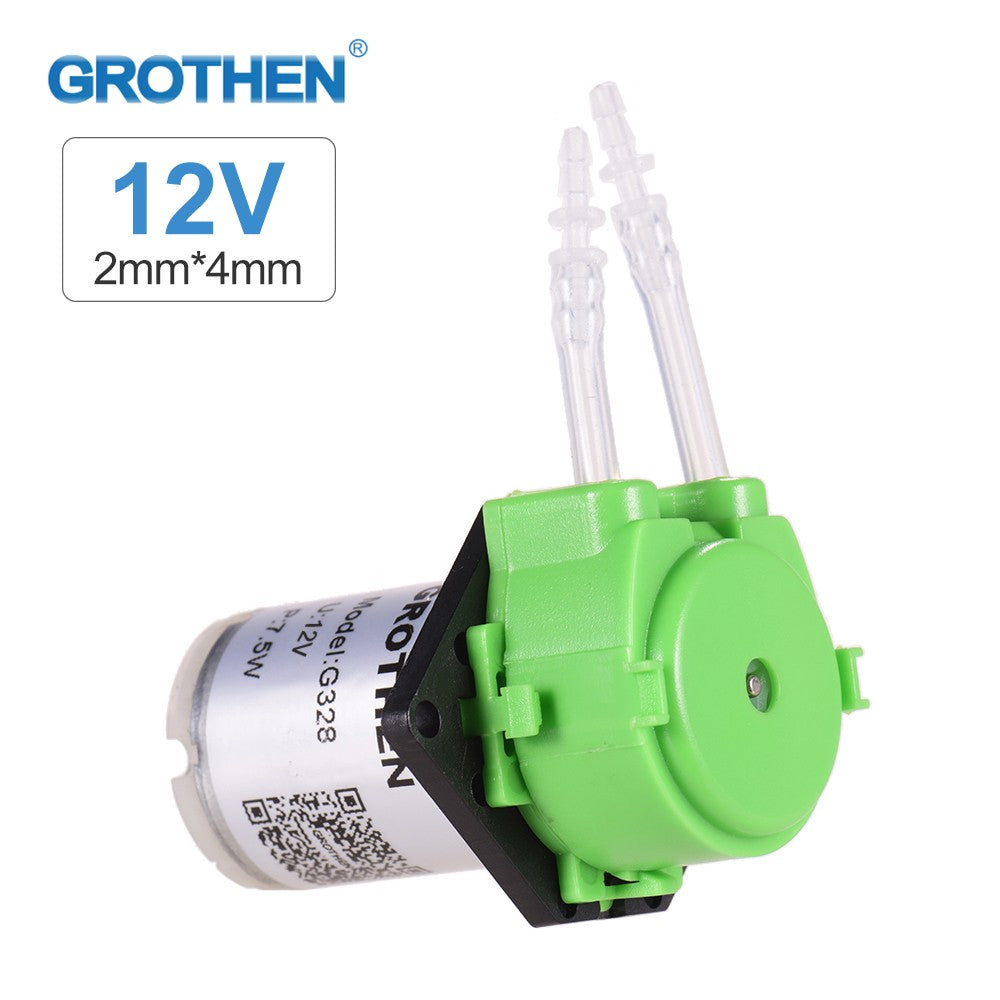

  • 2mm × 4mm

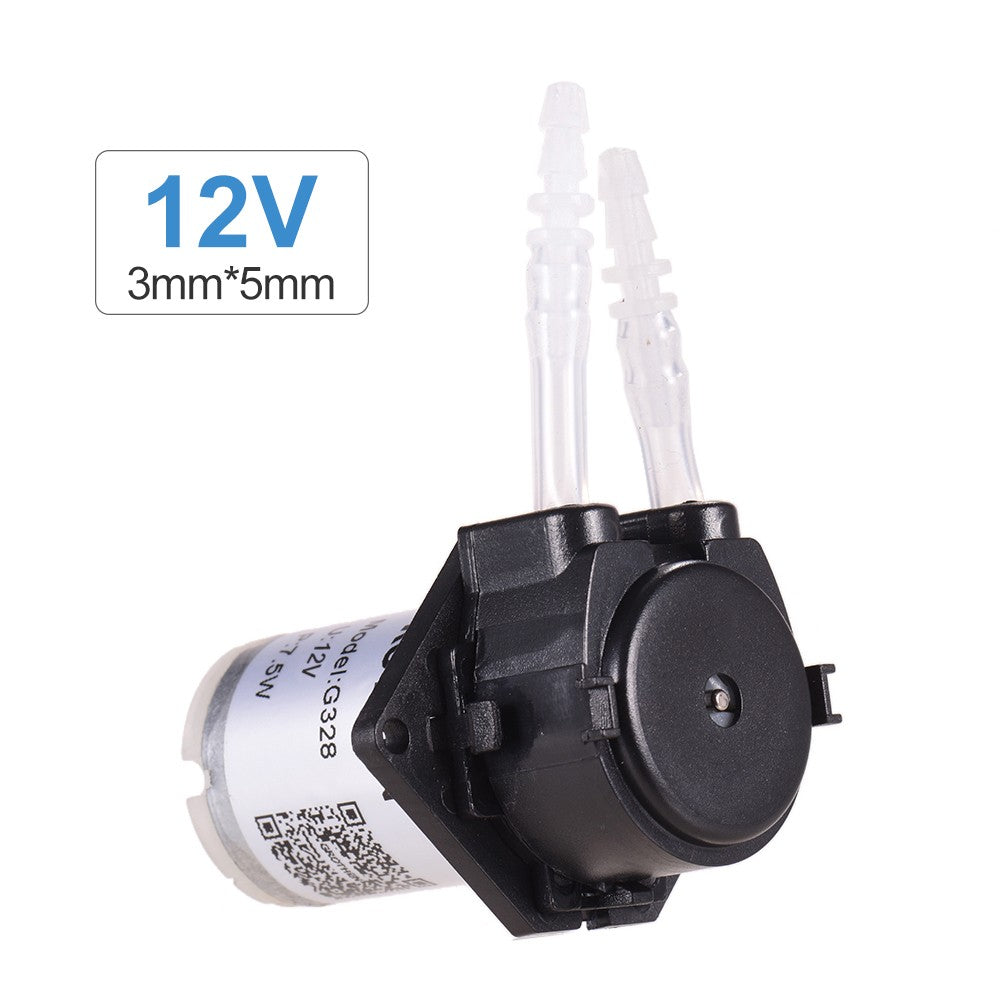

  • 3mm × 5mm
• Motors: DC12V
• Flow Rate:
  • 1 × 3 silica gel tube: >11ml/min
  • 2 × 4 silica gel tube: >39ml/min
  • 3 × 5 silica gel tube: >80ml/min
• Pump Head Material: ABS
• Pump Pipe: Transparent silicone pipe
• Pulsations: Three roller
• Package Size: 7.0 × 6.0 × 4.5cm / 2.8 × 2.4 × 1.8in
• Package Weight: 82g / 2.9oz

Package List

• 1 × Peristaltic Pump
