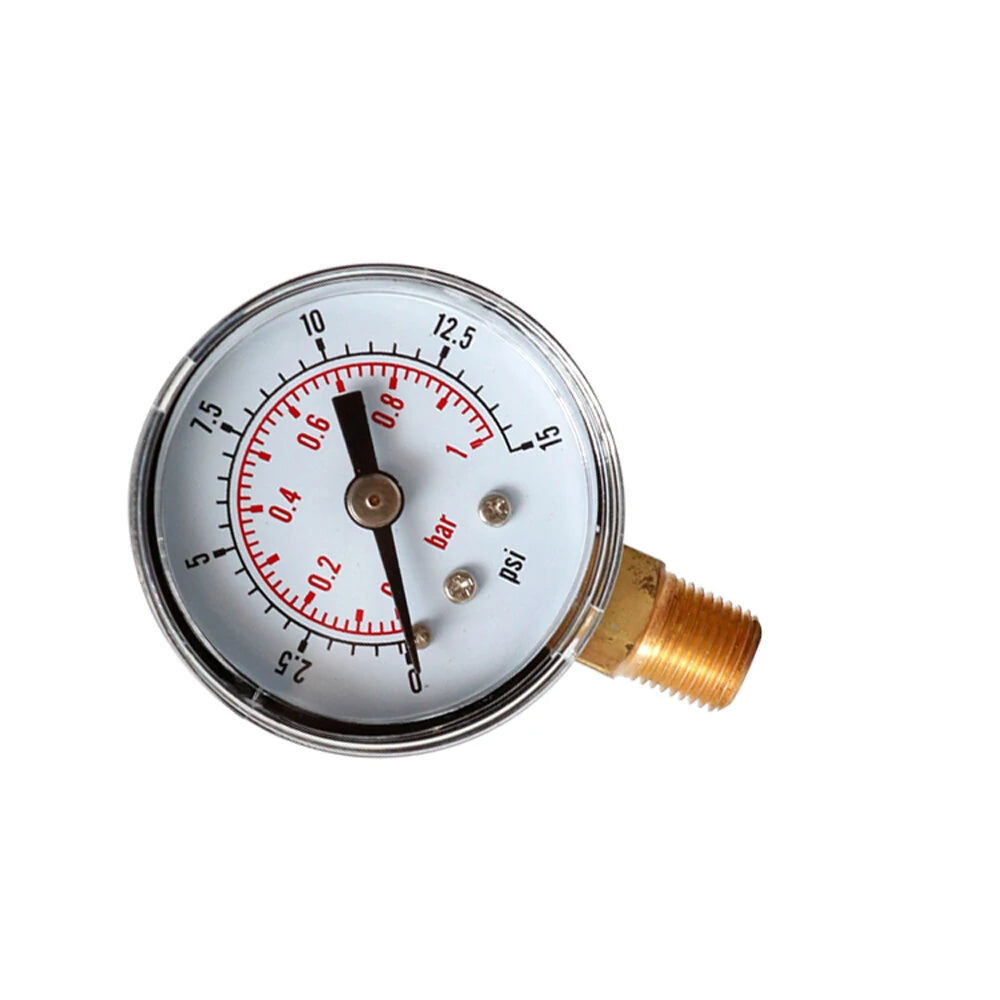

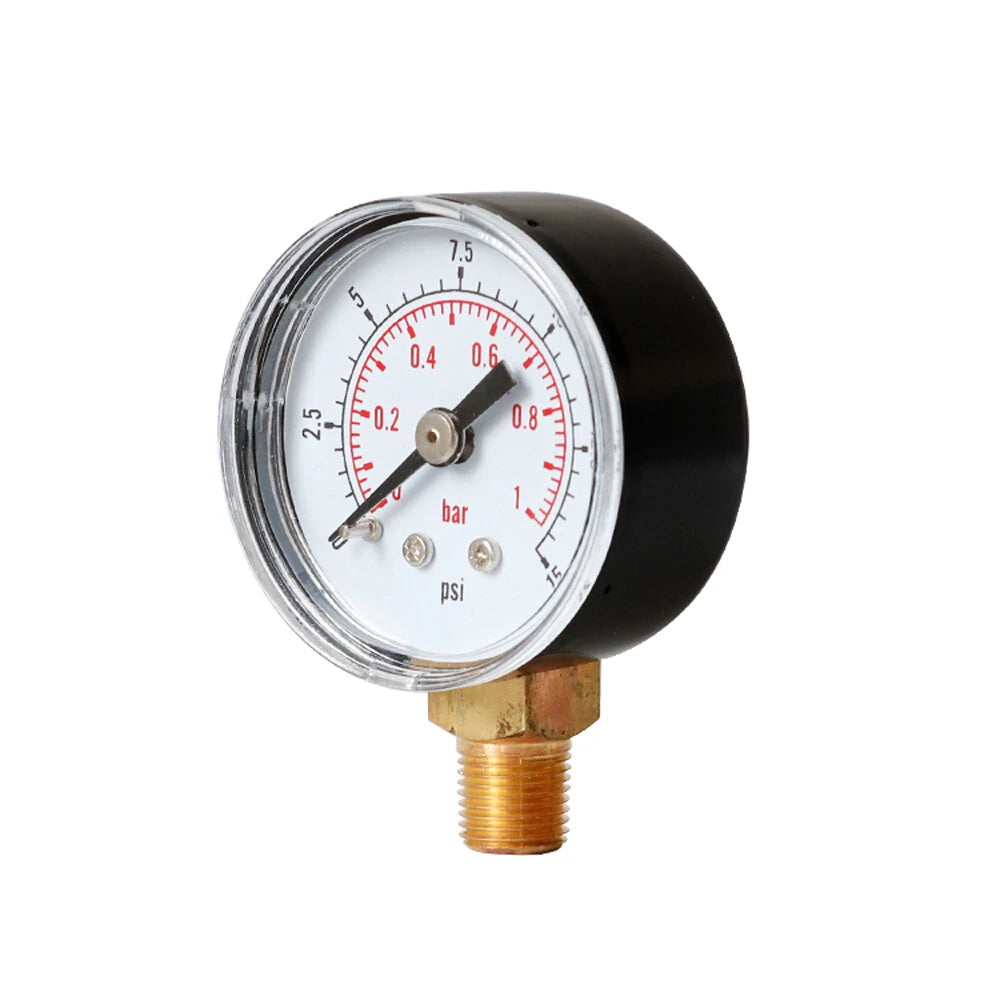

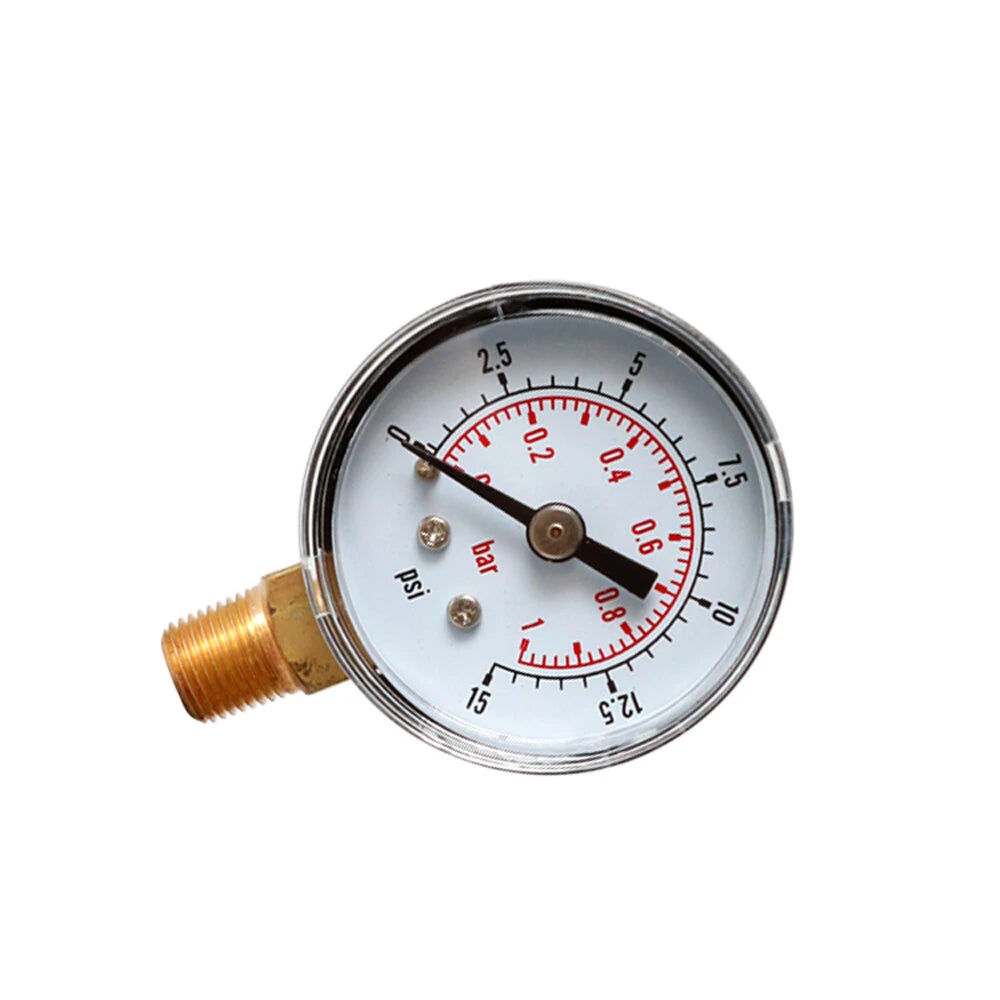

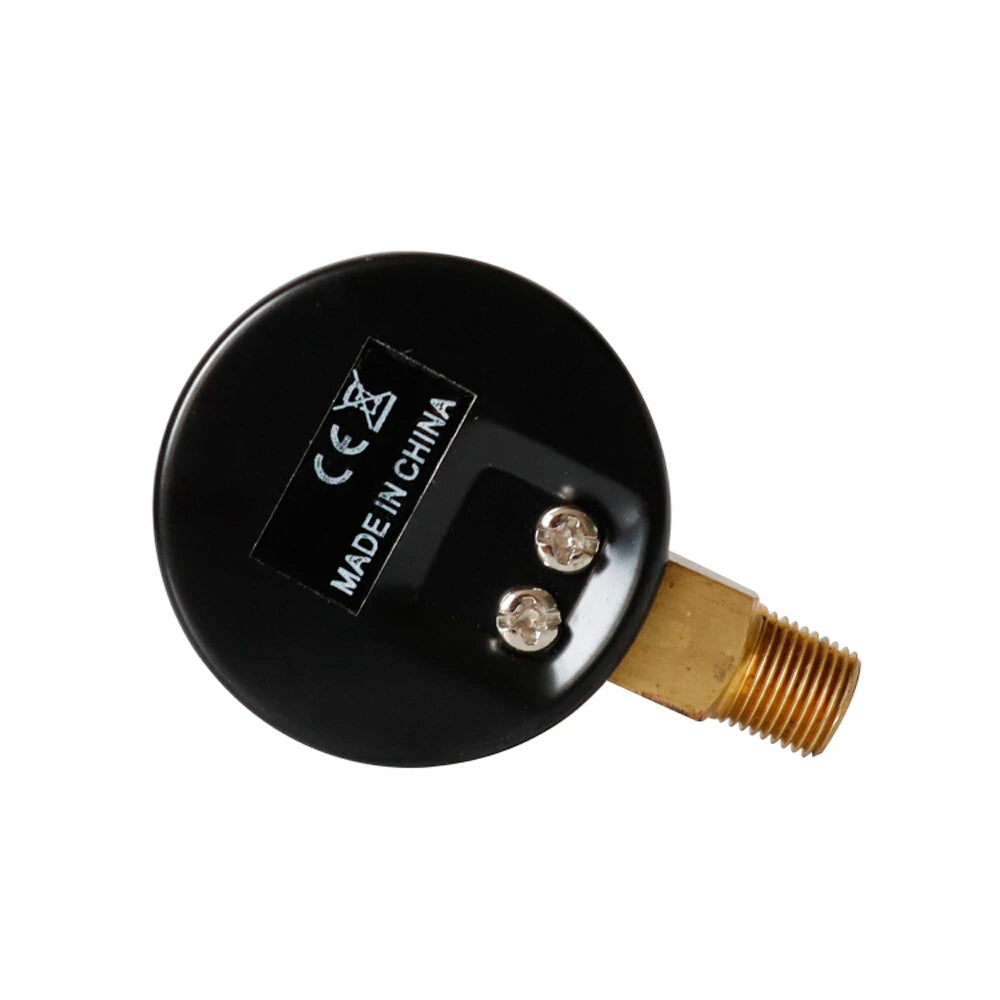

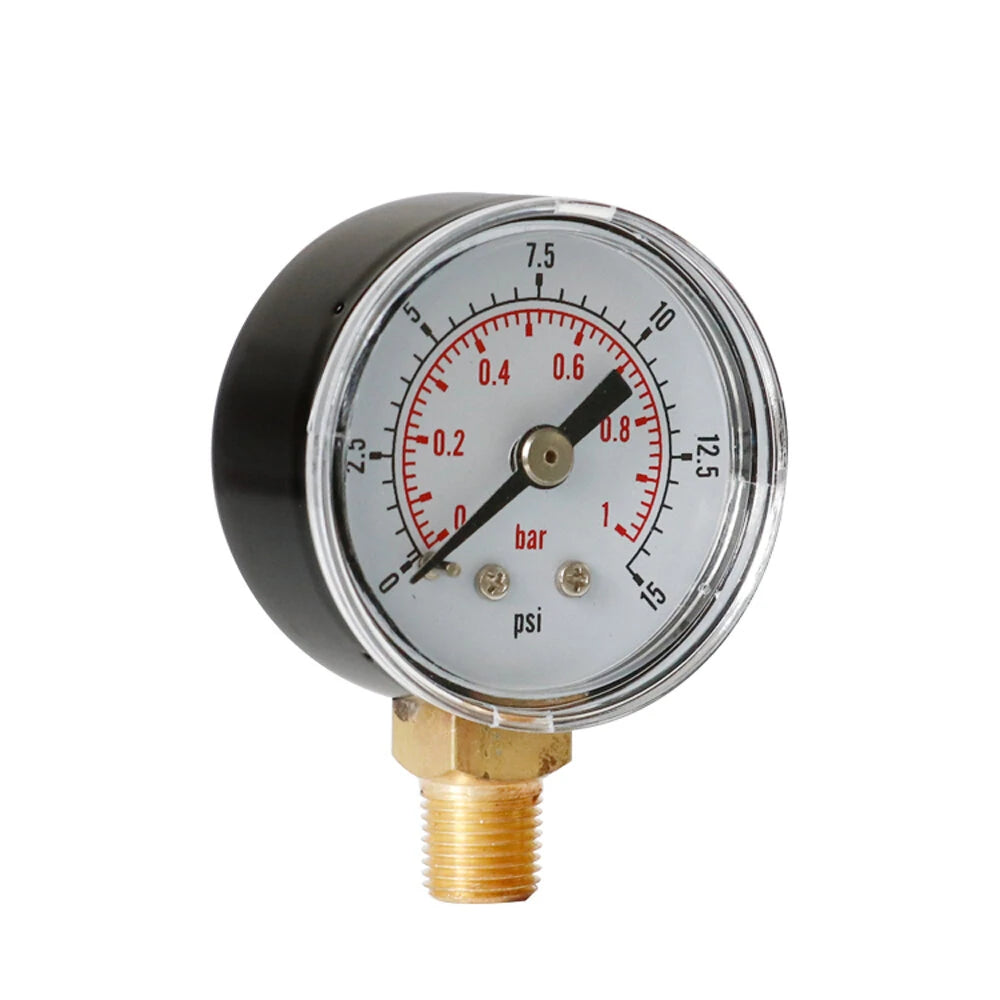

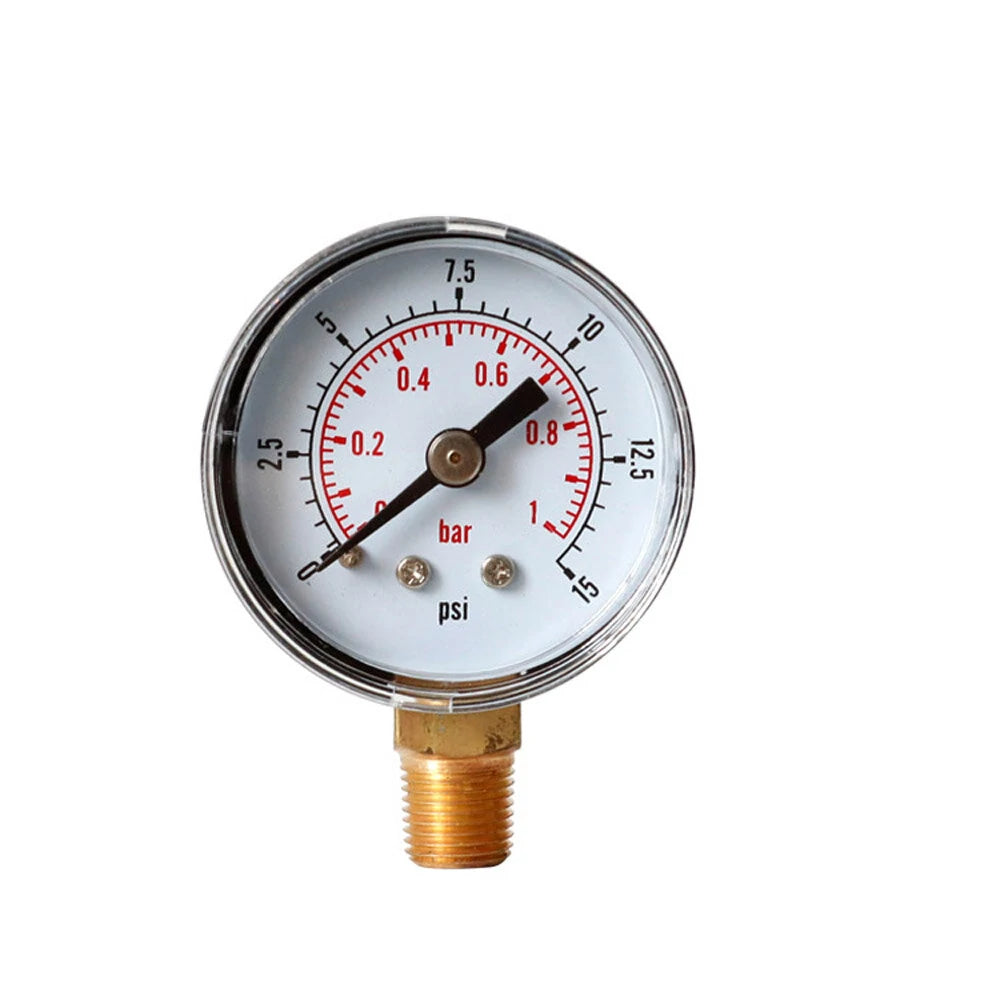

TS-Y408 Pressure Gauge 52mm Dial 1/8 BSPT 15-300psi Range

Product Specifications

• Diameter: 40.5mm
• Case: Black
• Window Material: Perspex
• Wetted Parts: Brass
• Maximum Process Temperature: 60°C
• Connection: 1/8 BSPT Back Connection
• Accuracy Class: 2.5%

Available Pressure Ranges

• A: 0/15 PSI & 1 Bar
• H05B: 0/30 PSI & 2 Bar
• C: 0/60 PSI & 4 Bar
• 2 Gaten: 0/100 PSI & 7 Bar
• E: 0/150 PSI & 10 Bar
• F: 0/200 PSI & 14 Bar
• G: 0/300 PSI & 20 Bar

Suitable For

Designed for use with air, gas, water, fuel, or any non-corrosive media.

Package Includes

• 1 x Pressure Gauge
