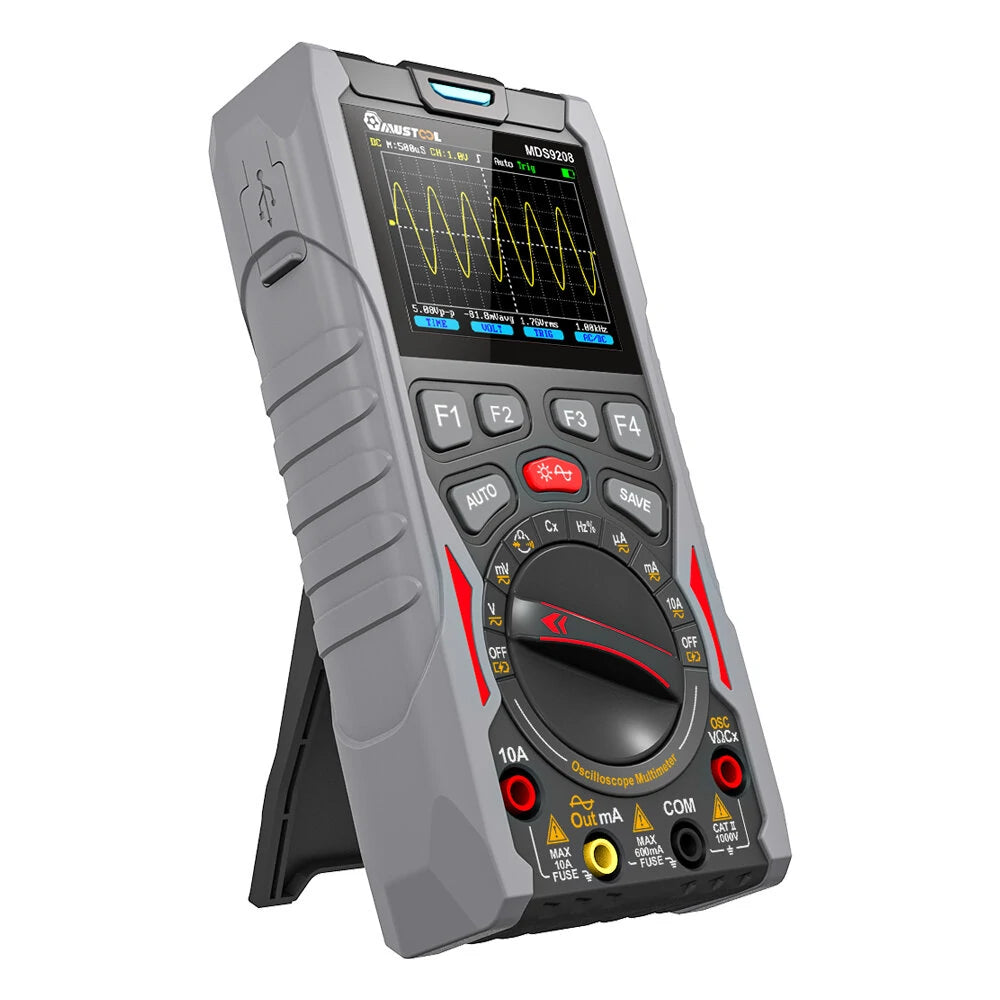

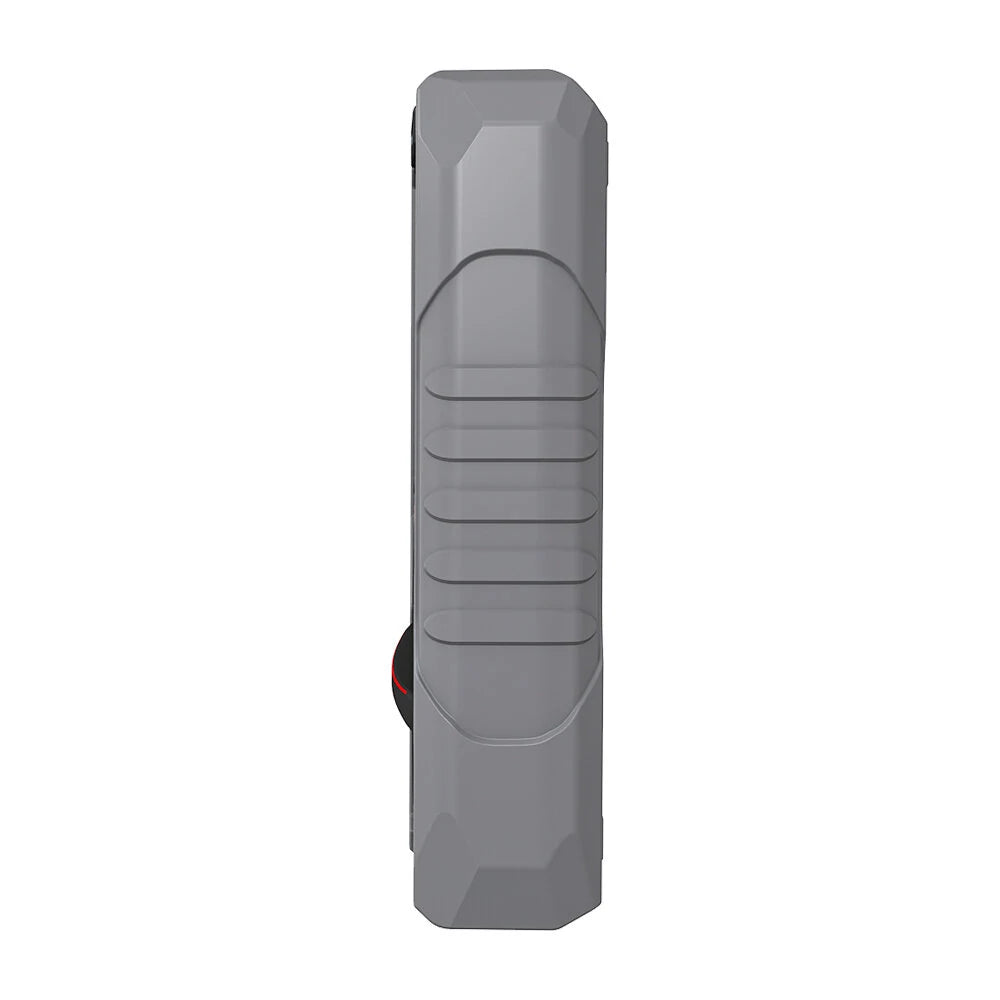

Portable MUSTOOL MDS9208 3-In-1 Oscilloscope, Multimeter & Signal Generator - 12MHz, 50Msps, High Storage, Low Power Consumption

Product Features

• 3-in-1 Functionality: Oscilloscope, Multimeter, Signal Generator
• 2.4-Inch Color Screen for Bright and Clear Display
• Enhanced Bandwidth: Upgraded to 12MHz with 50Msps Sampling Rate
• High Storage Capacity: Save 100 sets of multimeter data and 10 waveforms with a simple press of the "SAVE" key.
• Long-lasting Power: Equipped with a lithium battery that lasts up to 6 hours on a single charge. Includes low battery reminder and automatic shutdown feature to conserve power.

Model Information

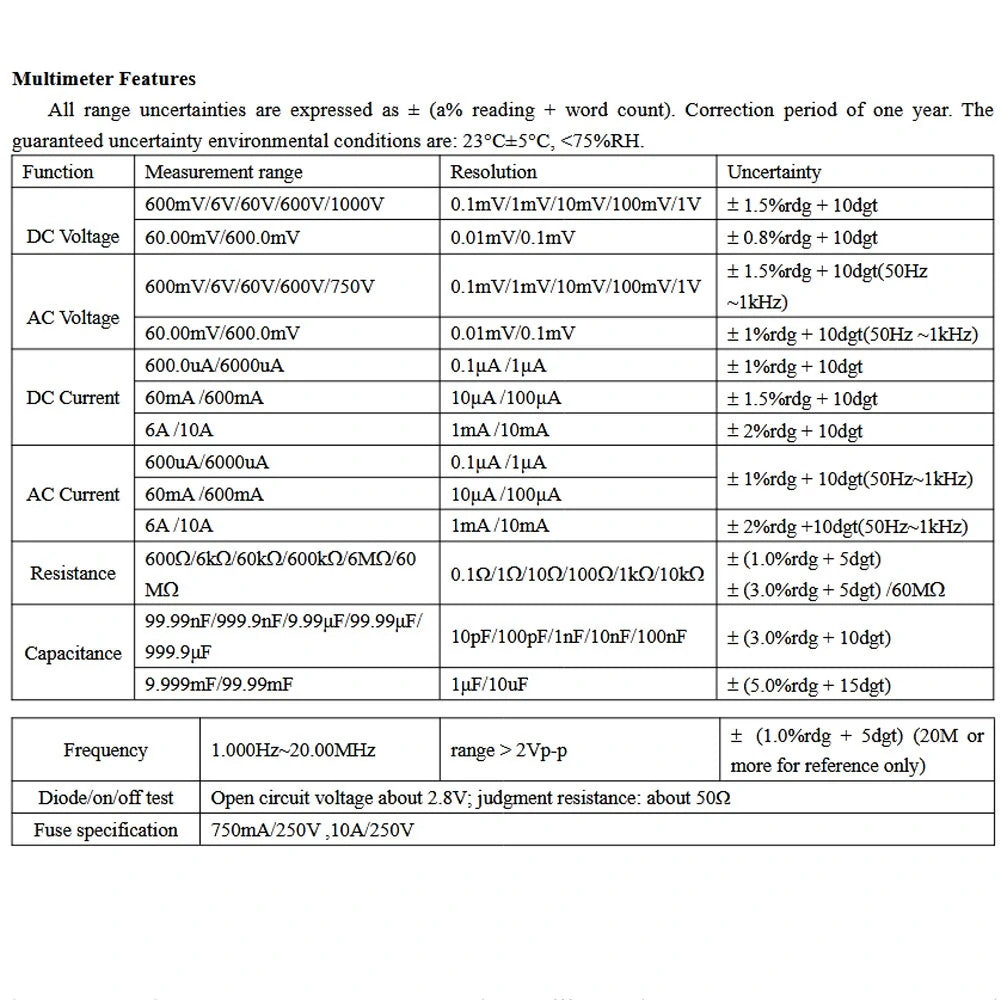

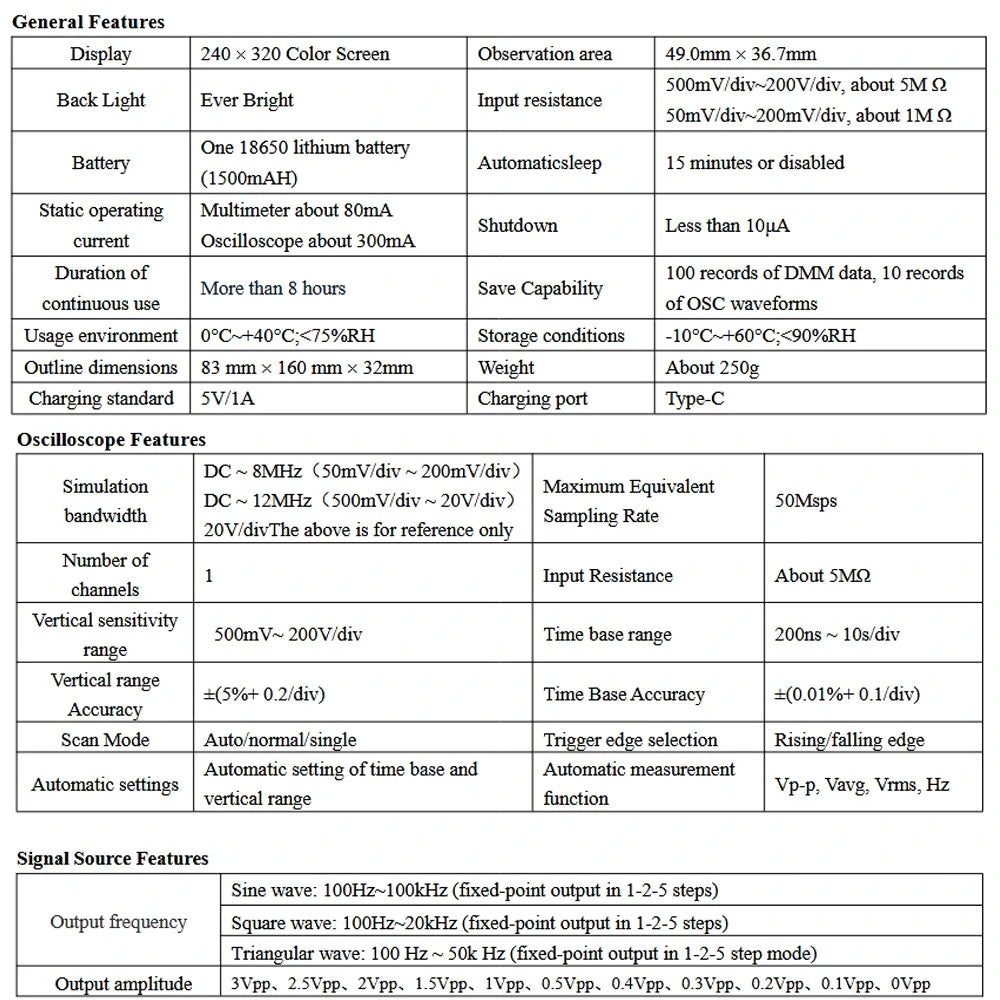

Specifications

• Display: 320x240 color LCM with white backlight
• Battery: Lithium, with low battery reminder
• Usage Time: Approximately 6 hours
• Usage Environment: 0℃ to +40℃
• Dimensions: 153mm x 75mm x 30mm
• Analog Bandwidth: ACV/DCV ≤ 12MHz
• Signal Source Output: Square wave, triangular wave, sine wave
• Observation Area: 2.4 inches
• Input Resistance: 10MΩ
• Power Consumption: About 250mA
• Storage Capacity: 100 sets of DMM data and 10 waveforms
• Storage Conditions: -10℃ to +60℃

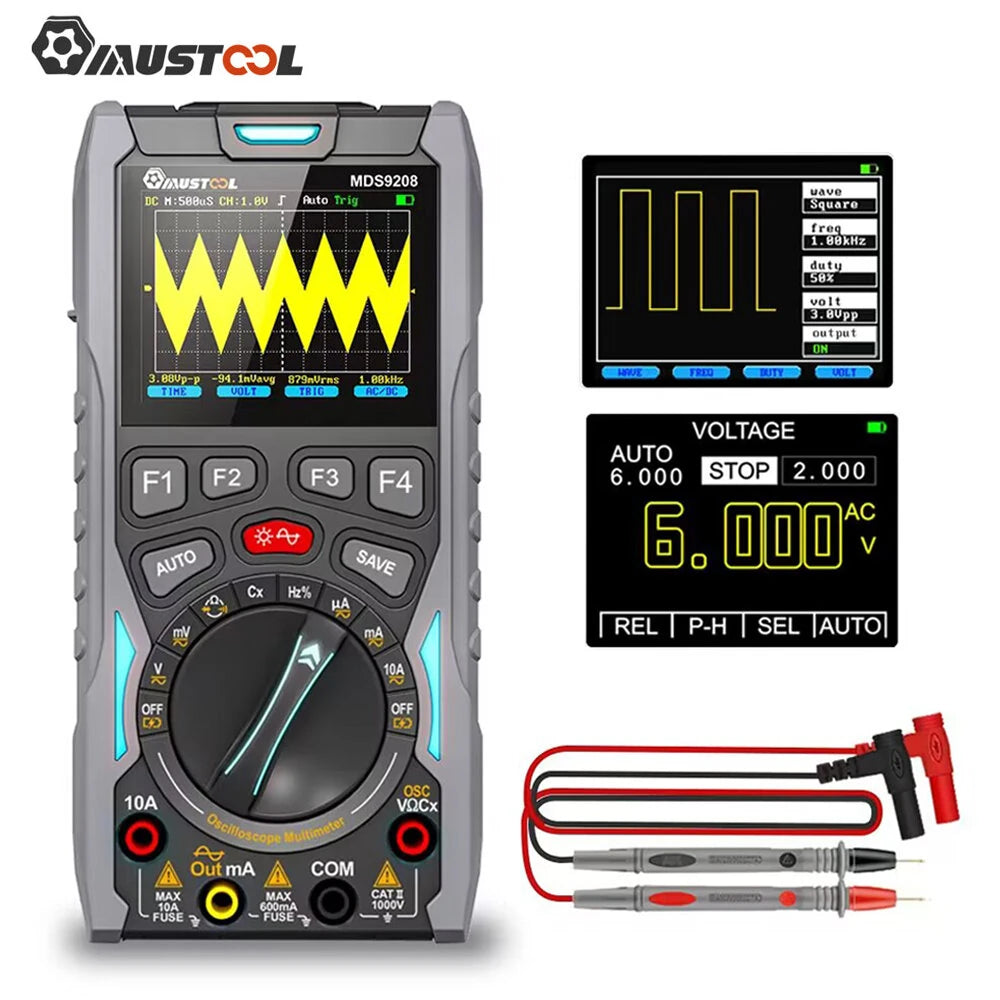

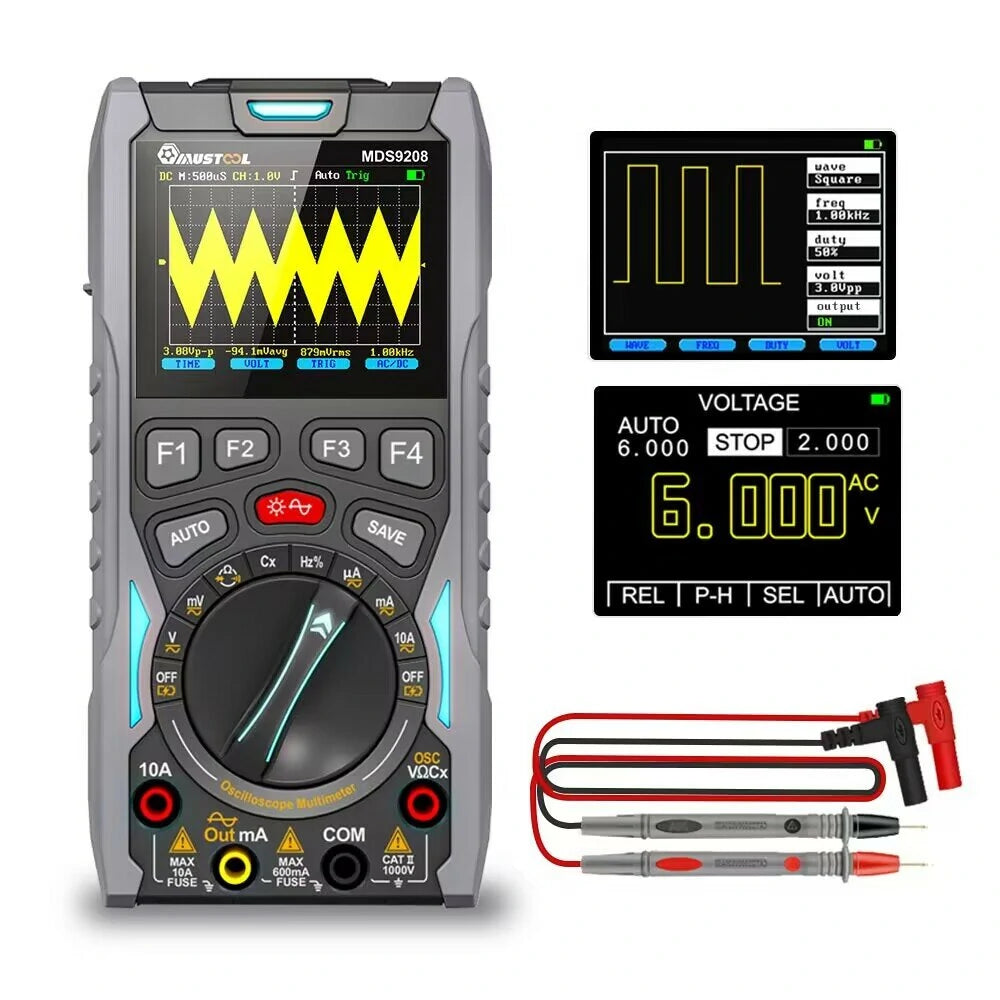

Package Includes

• 1 x 3-in-1 Oscilloscope/Multimeter/Signal Generator
• 1 x Test Probe
• 1 x USB Cable
• 1 x Manual
• 1 x Box
