Aluminum Alloy Shelf Pin & Hinge Jig Combo - 1/4in & 5mm Drill Bits Cabinet Hardware Guide

Features:
Experience unparalleled versatility with our 2-in-1 Multifunctionality tool that combines the efficiency of a Shelf Pin Jig and a Hinge Jig. This innovative design is perfect for seamlessly completing cabinetry projects, from drilling exact shelf pin holes to setting up concealed hinges. An essential tool for both DIY enthusiasts and professional woodworkers.

Cost-Effective Solution:
Say goodbye to multiple tools and hello to convenience with an all-in-one kit that includes everything you need—two sizes of hardened steel drill bits (1/4" [6mm] and 5mm) with a stop collar for consistent drilling depths. It's a cost-effective solution that meets all your cabinet and shelf installation needs.

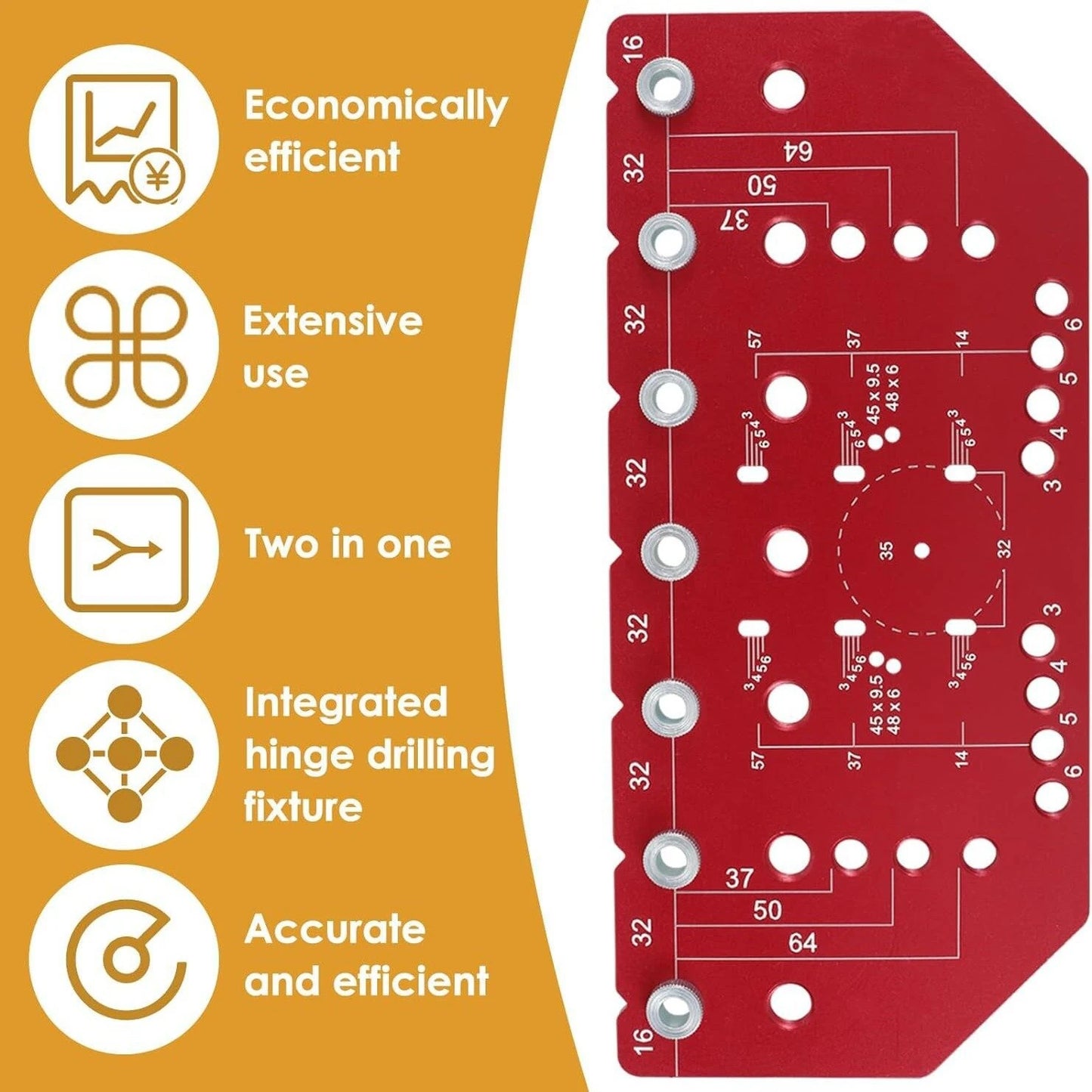

Precision and Efficiency:
Designed for accuracy and speed, the shelf pin jig allows you to drill seven 5mm or 1/4" (6mm) shelf pin holes at a 32mm distance in one go. With edge distance settings of 37mm, 50mm, and 64mm and an included positioning pin for extended drilling orders, you're assured high precision and consistency every time.

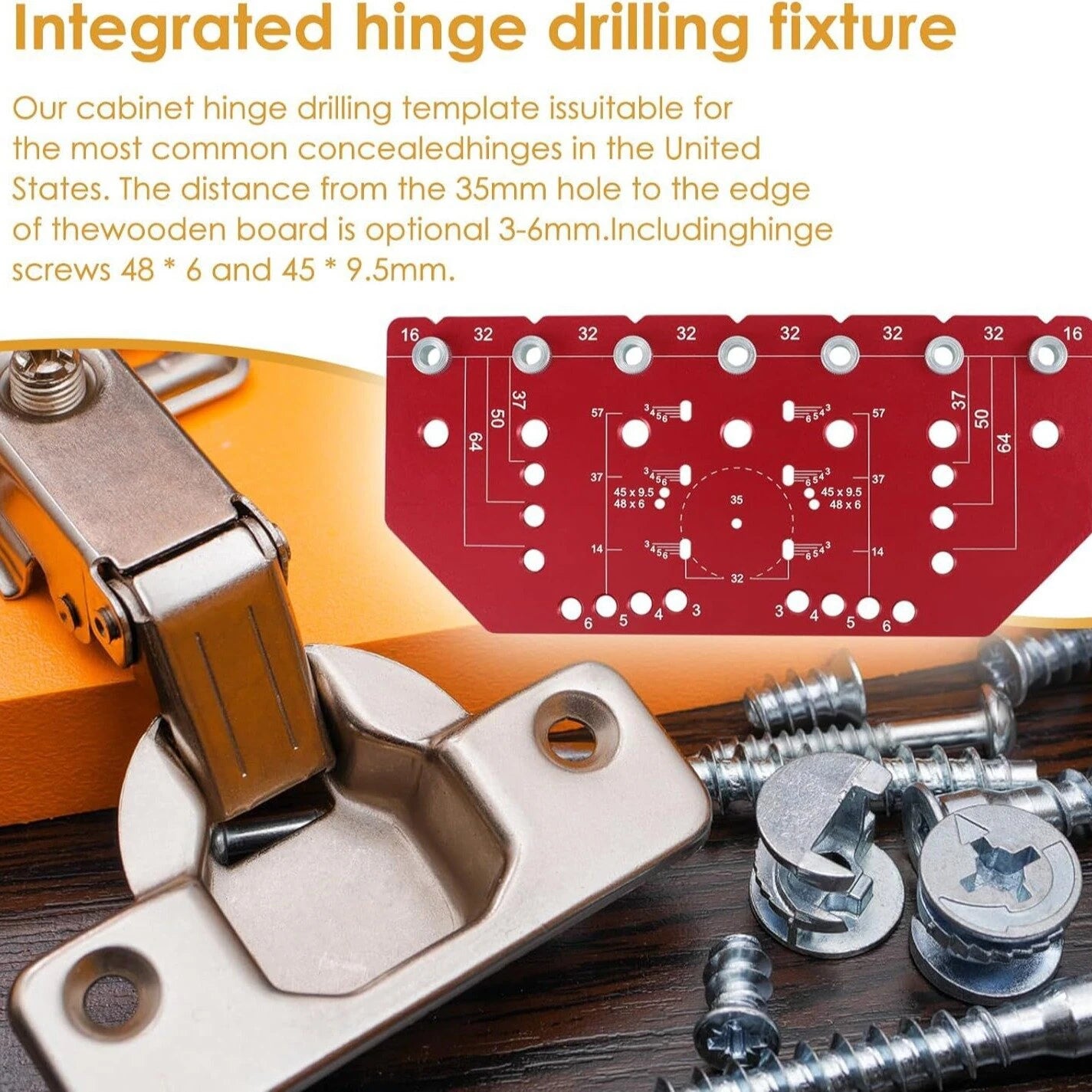

All-In-One Hinge Drilling Jig:
Specifically tailored for the most common concealed hinges used in the U.S., this component enables setting the distance from the 35mm hinge hole to the wood panel edge at 3-6mm. It comes with two sets of hinge screws (48 x 6mm and 45 x 9.5mm), making it a comprehensive choice for hinge installations.

Wide Application and Durability:
Constructed from high-quality aluminum alloy, our all-metal shelf pin and hinge jig offers reliability and durability. Suitable for various mounting sizes, it's the perfect tool for DIY projects, woodworking, and home improvement. Robust and multifunctional, it's a must-have in any woodworking toolkit.

Specifications:
Product Name: Shelf Pin Jig and Hinge Jig Two-In-One
Material: Aluminum Alloy
Drill Bit Sizes: 1/4" (6mm) and 5mm
Hole Spacing System: 32mm
Edge Distance Settings: 37/50/64mm
Hinge Screws: 48 x 6mm, 45 x 9.5mm
Deviation: 7/50/64mm

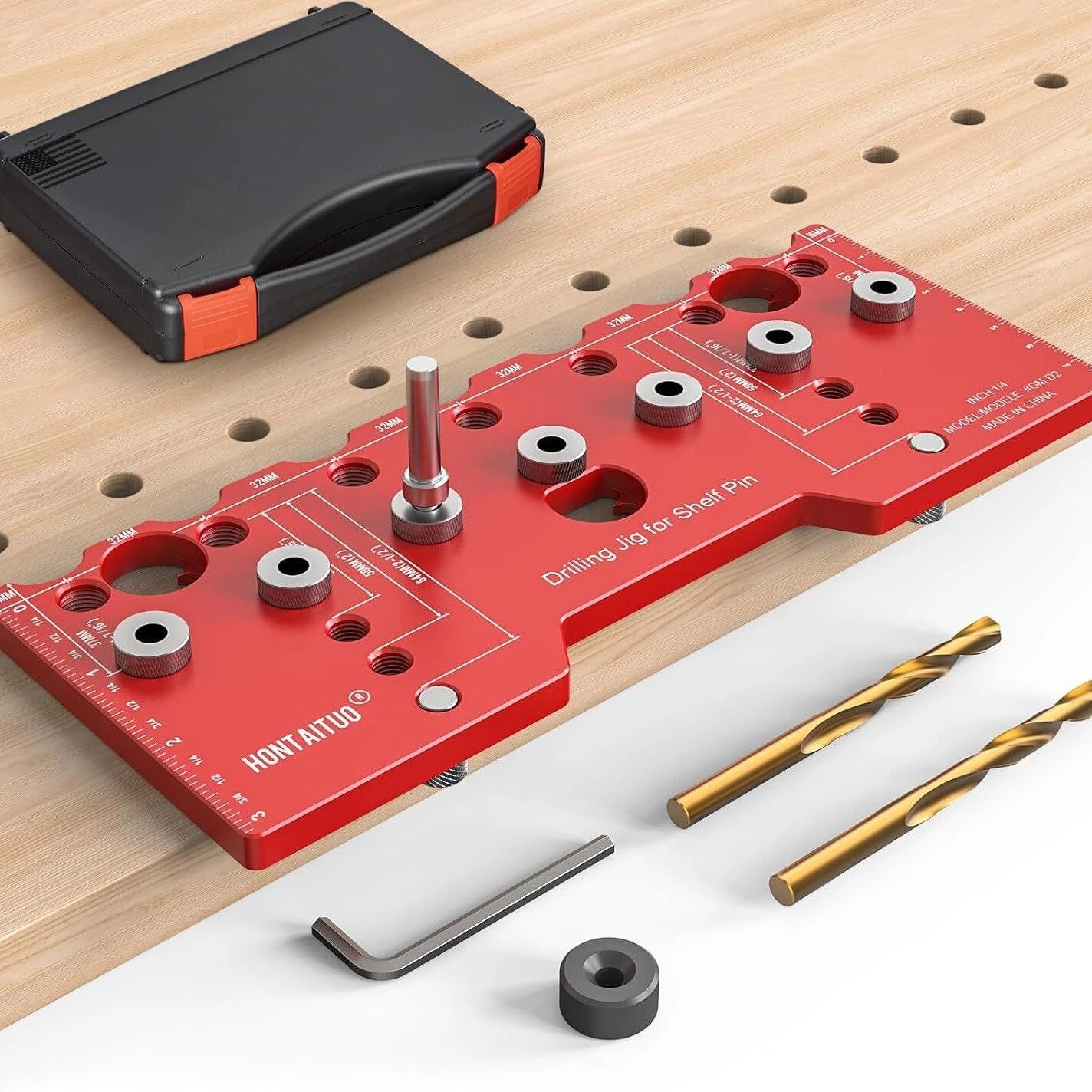

Package Included:
1 x Punching locator
1 x Limiting ring
1 x Positioning pin
1 x 5mm Drill bit
1 x 6mm Drill bit
7 x 6.5mm Guide pin
2 x screw
1 x Hexagonal wrench
