3S QPL Mini LCR Tester Tweezers with 1.14 Display, 100Hz-10kHz Frequency, Measures Capacitance, Inductance & Resistance, Durable Battery for Precision

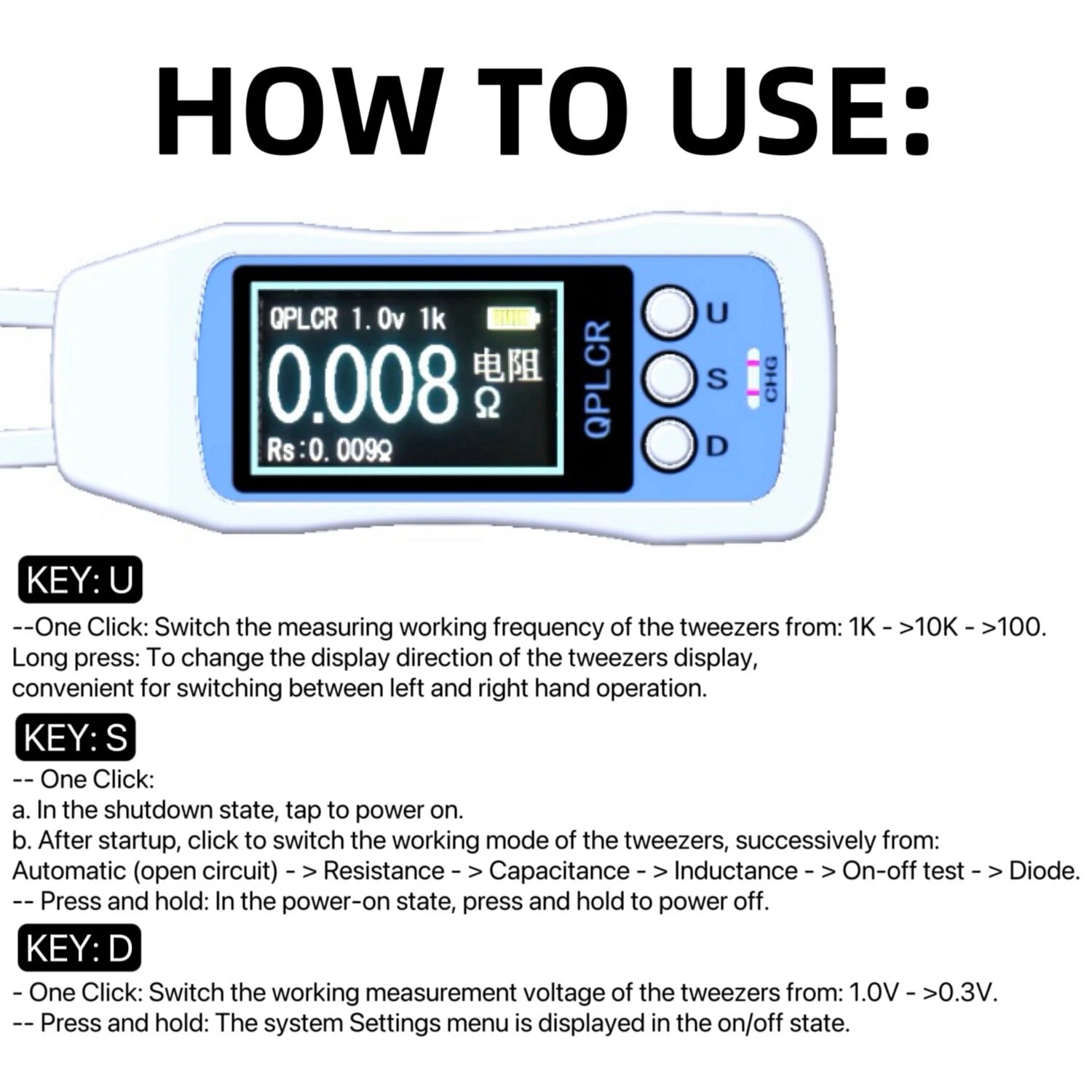

Please scan the QR code to download the instruction manual.

Features:

• Impressive Display: Equipped with a 1.14" IPS TFT display that offers a full viewing angle for quick and efficient readings.
• Long-lasting Battery: Features a built-in 300mA lithium battery with a standby time of up to 6 hours, ensuring continuous operation during prolonged measurements.
• High-Quality Material: Made of premium brass, the LCR tweezers ensure precise measurements.
• Multilingual Interface: Displays interface in both Chinese and English, with large measurement value fonts for enhanced readability.
• Versatility: Supports measurements of various components, including resistance, capacitors, inductance, and diodes.

Specifications:

• Display: 1.14-inch IPS TFT
• Battery: Built-in lithium battery, capacity 300mA
• Standby Time: About 6 hours
• Interface: Type C
• Operating Frequency: 100Hz, 1KHz, 10kHz
• Operating Voltage: 0.3V, 1.0V
• Measurement Range:
  • Capacitance: 1pF-10mF
  • Inductance: 1uH-1H
  • Resistance: 1mΩ to 10MΩ

Package Included:

• 1 x LCR Tweezers
• 1 x Storage Box
