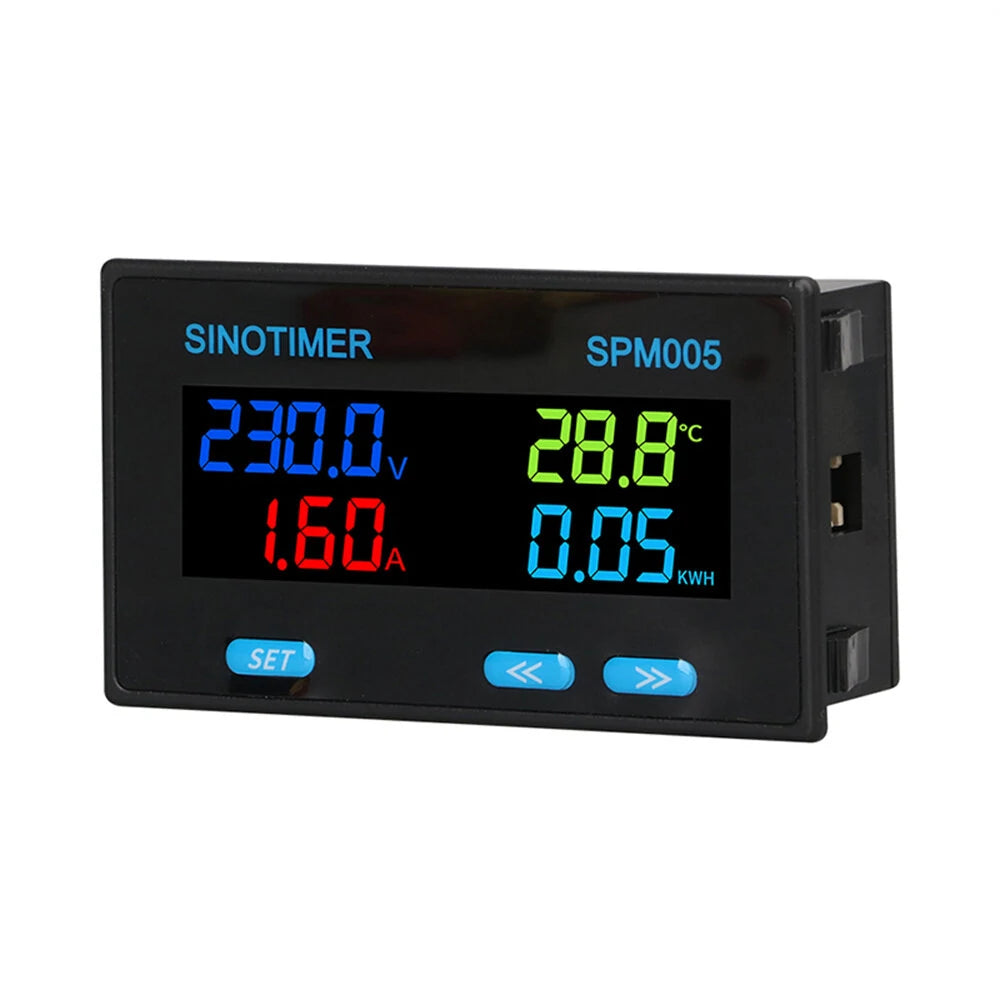

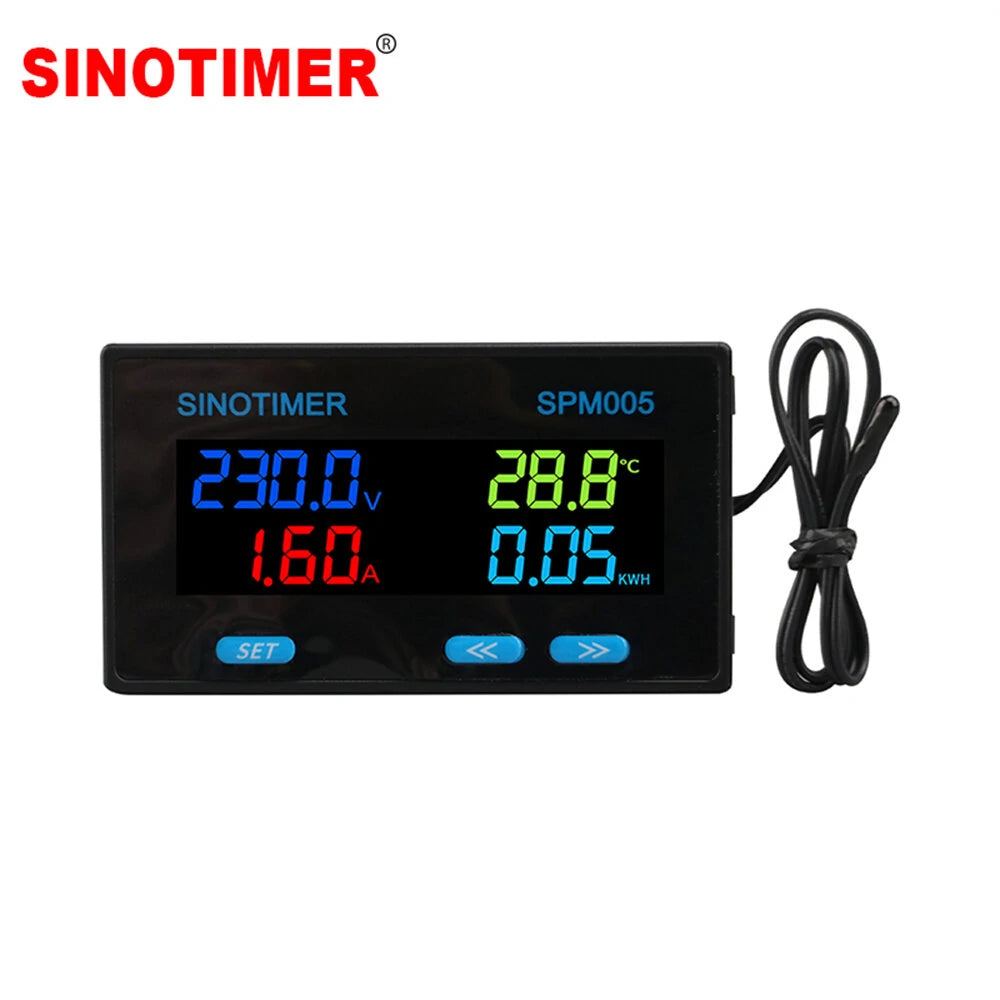

SINOTIMER SPM005 High-Accuracy Multifunction Power Meter with LCD Display, Measures Voltage, Current, Temperature, and Power with 32-Bit Operation

Features:

• Multi-Functional: The SPM005 is a comprehensive power instrument that displays eight crucial power parameters: Voltage, Current, Temperature, Power, Power Factor, Operate Time, Frequency, and Electric Energy.

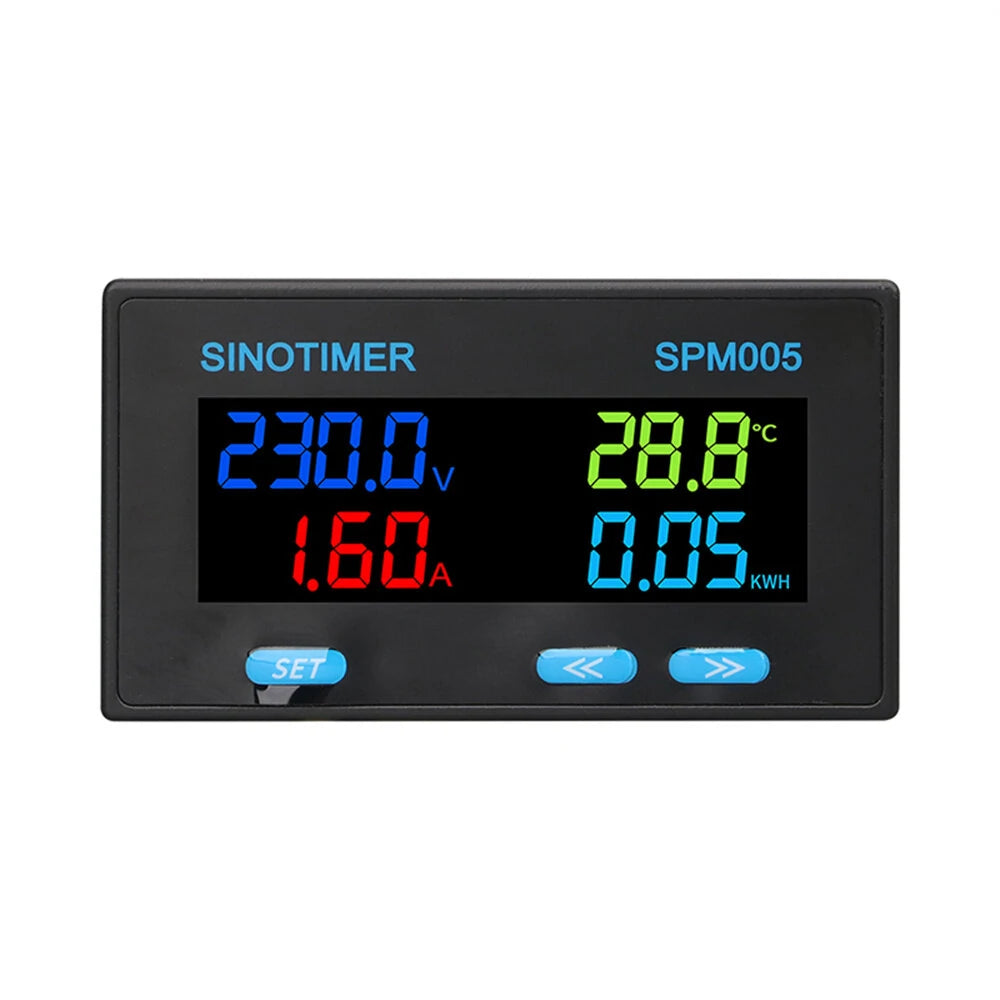

• High-Resolution Display: It comes equipped with a color LCD screen for a clear and comprehensive view of the power parameters.
• High Accuracy: Designed for high precision readings, this instrument allows for easy and convenient mode switches to accommodate different needs.
• Powerful Operation: Powered by a 32-bit single-chip computer, the instrument ensures quick responses and accurate performance.

Specifications:

• Brand: SINOTIMER
• Operating Voltage: AC60.0-300.0V
• Display Screen Size: 60x19mm
• Refresh Rate: Three times per second
• Voltage Scale: AC60-300V
• Current Scale: 0-20.00A; 0-100.0A; 0-200.0A
• Temperature Scale: -50.0℃ to 200.0°C
• Power Scale: 0.01W- 99999KW
• Frequency Accuracy: 0.01Hz
• Electric Energy Scale: 0.01KWH-99999 KWH
• Timer Scale: 0.01H (hour) - 9999D (day)
• Data Memory: Up to ten years
• Ambient Temperature: -10℃~ +60℃
• Humidity: Up to 85%RH (No condensation)

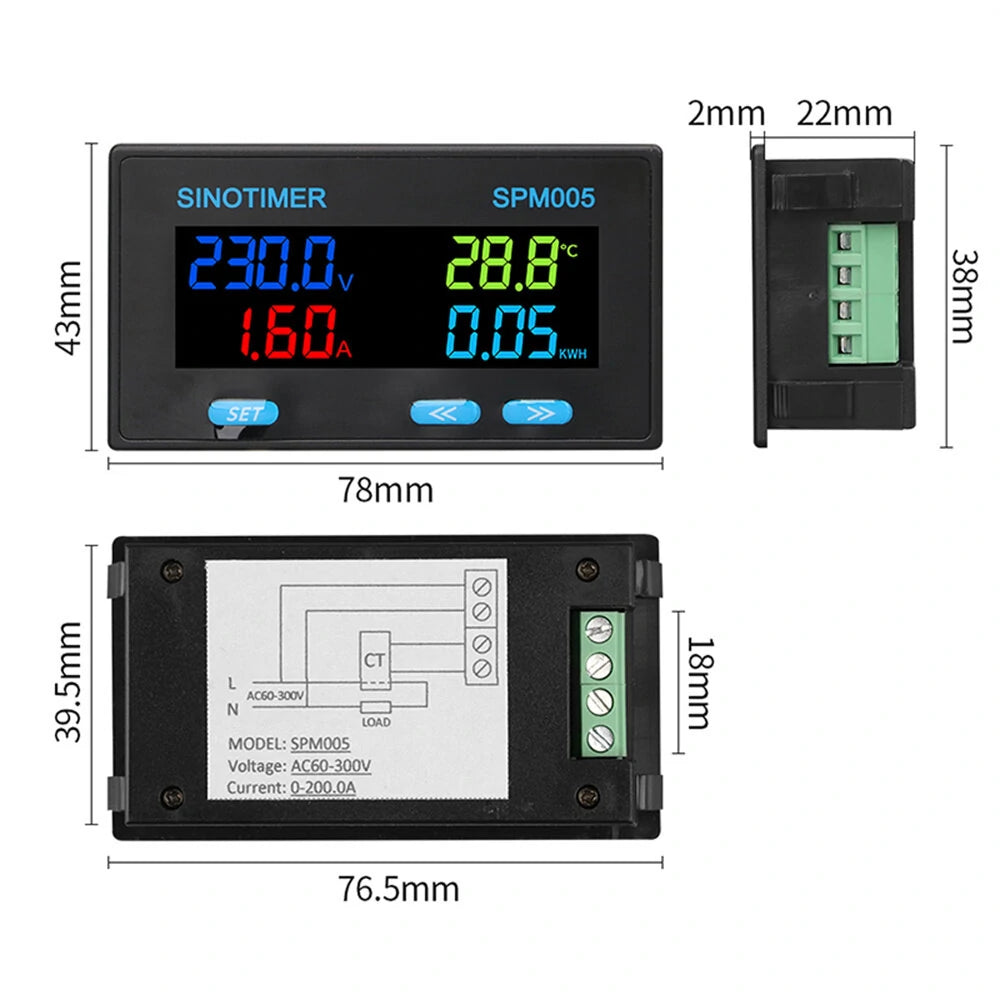

• Size: 78x43x23mm (rectangle)
• Opening Size: 76.5x39.5mm (rectangle)

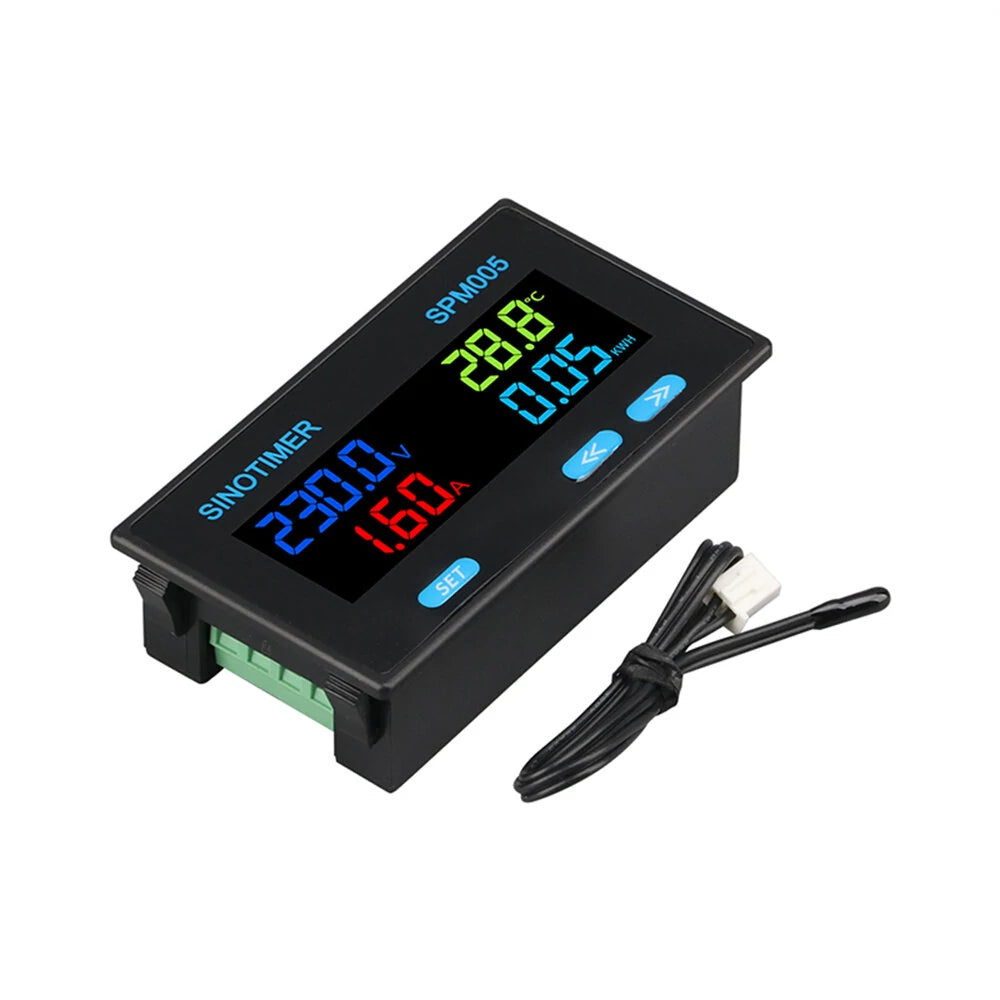

• Sensor Length: 30cm

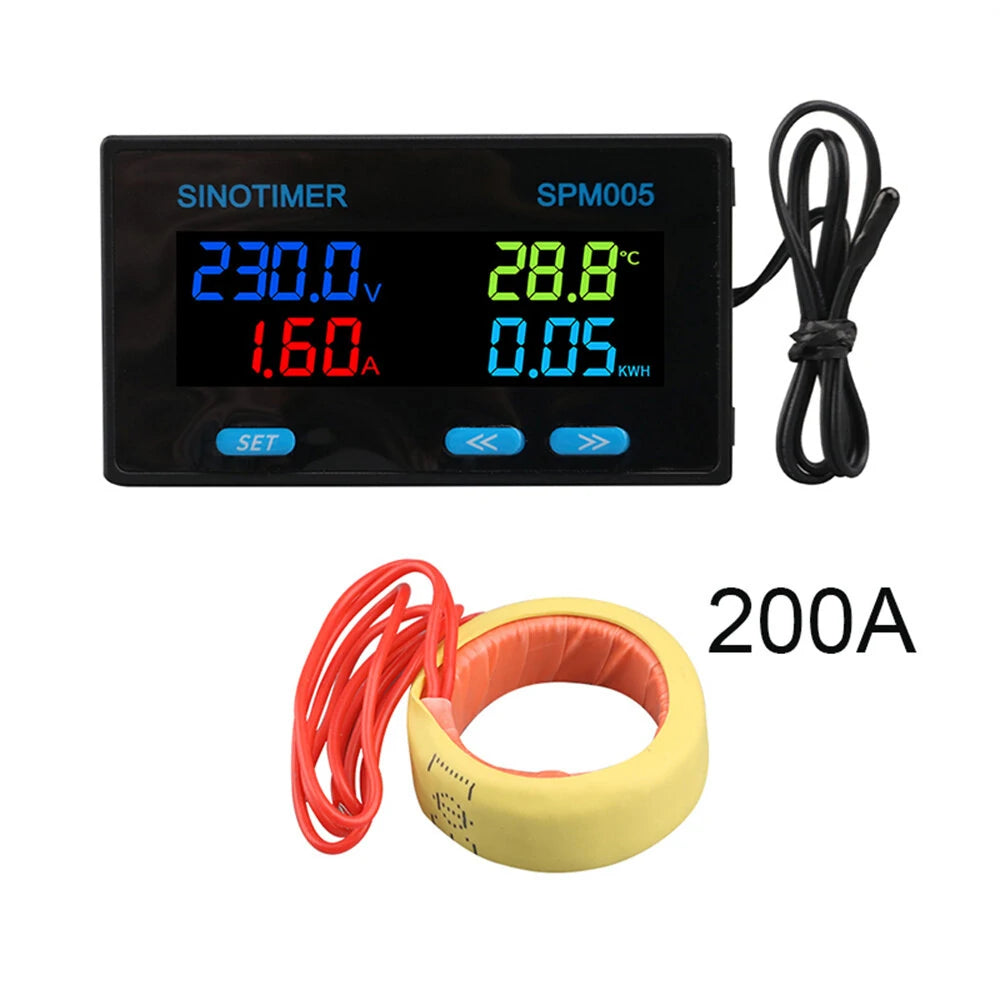

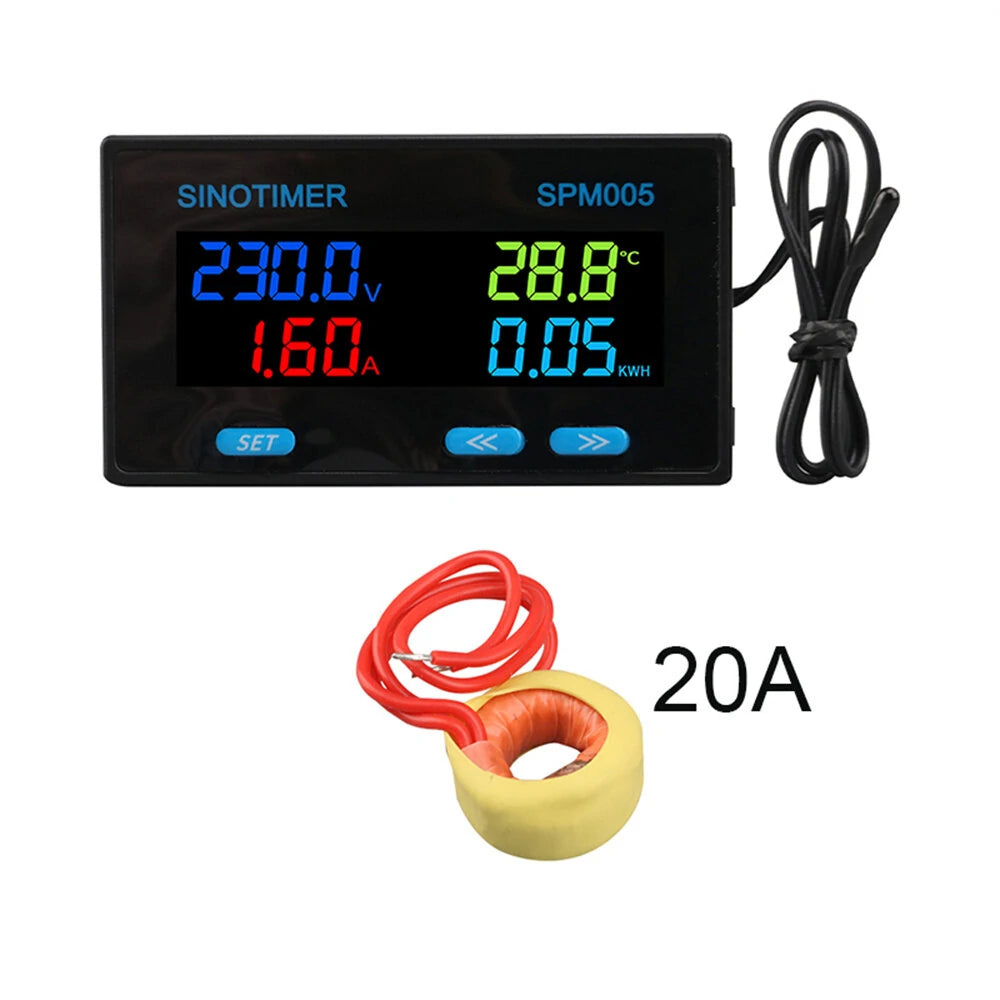

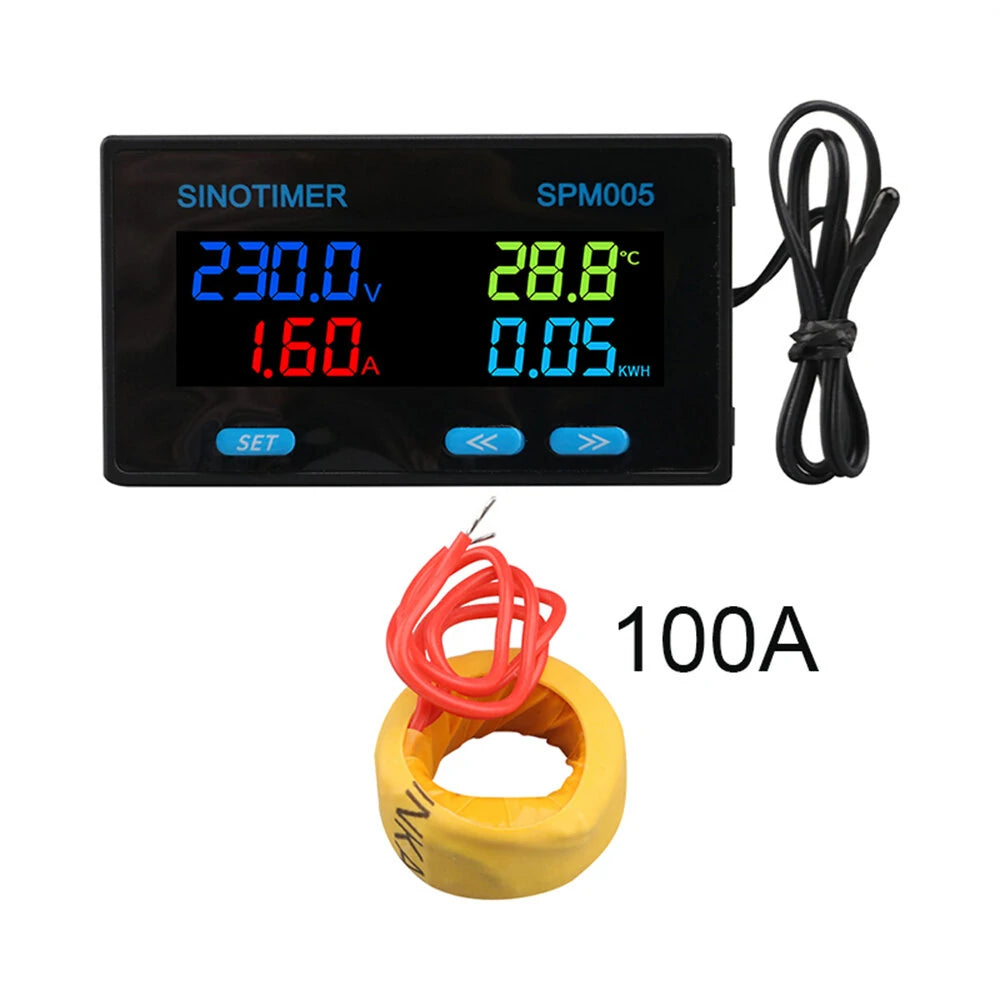

• Optional Current: 20A / 100A / 200A

Package Includes:

• 1 x SPM005 Meter (Choose current as per your requirement)
• 1 x Current Transformer
• 1 x English Instruction Manual

Note:

Due to manual measurements, slight deviations may occur. The actual product color may vary slightly from the online image due to monitor color settings. If you have any issues or need further assistance, please feel free to contact customer service.
