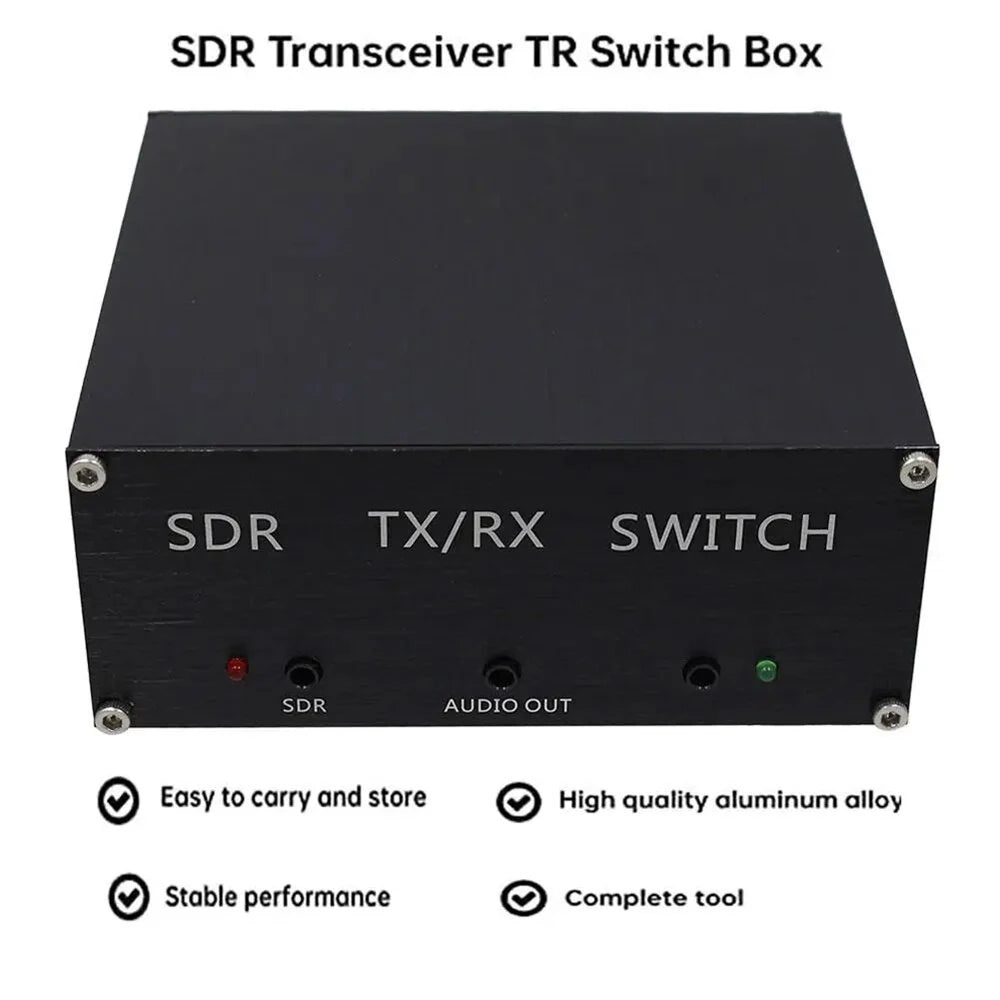

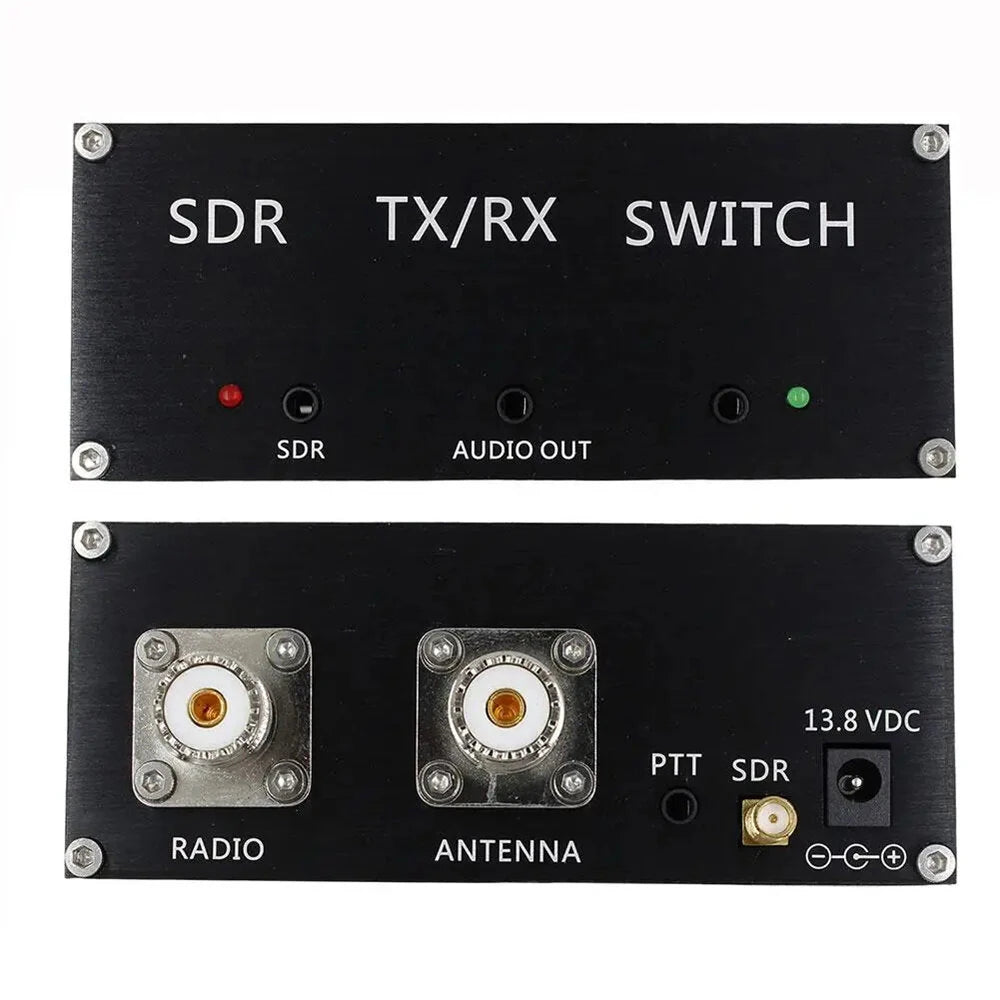

Transceiver Switch SDR

Specifications

• Product Name: Transceiver Switch SDR
• Material: Aluminum Alloy
• Frequency Range: D-160MHz
• Impedance: 50Ω
• Maximum TX Power: 100W
• Turn-on Time: 20ms
• Release Time: 190ms
• Insertion Loss: 0.3dB @ 144MHz (0.2dB typical)
• RX Isolation: 38dB @ 144MHz (40dB typical)
• RF Detection Threshold: N/A
• Discharge Protection: Gas discharge
• Power Supply: 12V 2A
• Net Weight: 430g
• Size: 125X112X51mm (excluding board part)
• Package Size: 20x13x6cm
• Package Weight: 580g

Features

• Compact and Portable: Small size makes it easy to transport and store, perfect for on-the-go use.

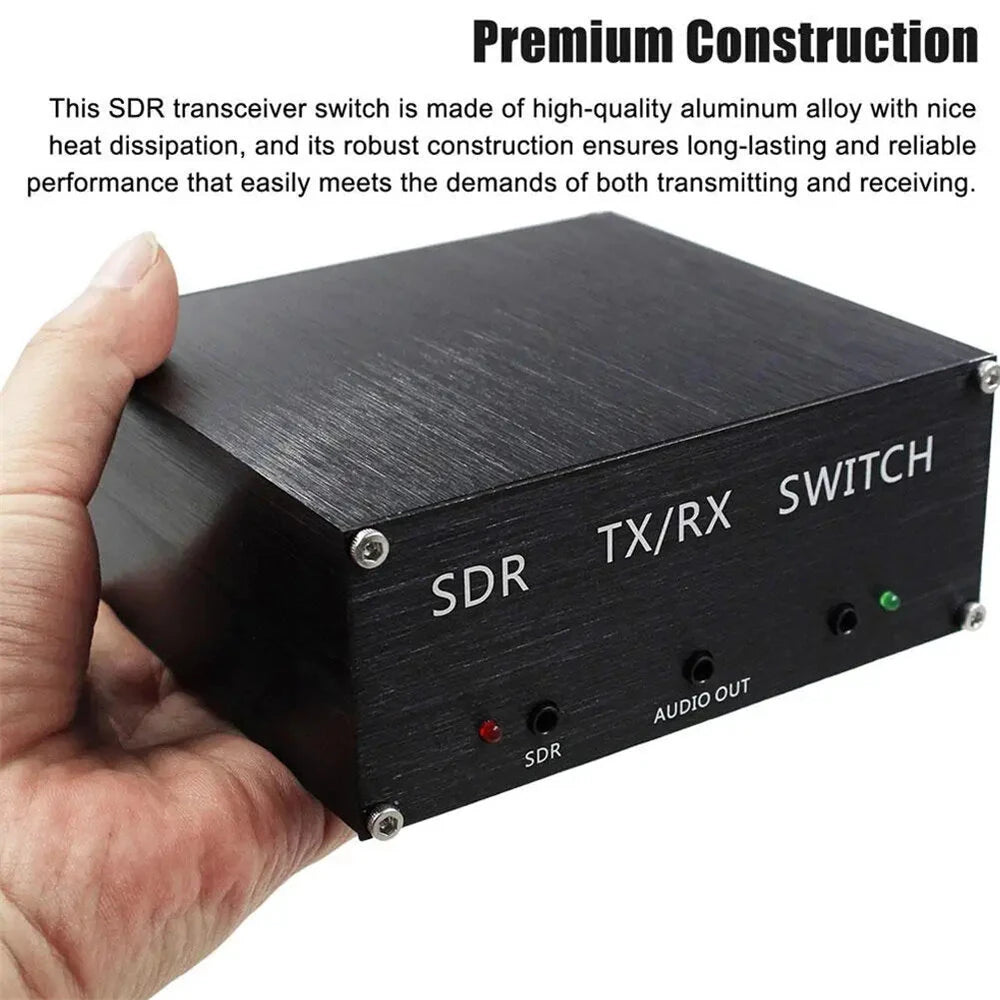

• Sturdy Construction: Housing made from high-quality aluminum alloy, ensuring longevity and excellent performance.
• High Power Handling: Can manage up to 100W TX power, suitable for diverse applications.
• Efficient Performance: Low insertion loss of 0.3dB and high RX isolation of 38dB at 144MHz, ensuring optimal signal quality.
• Complete Package: Includes all necessary accessories for easy setup, suitable for self-operation.

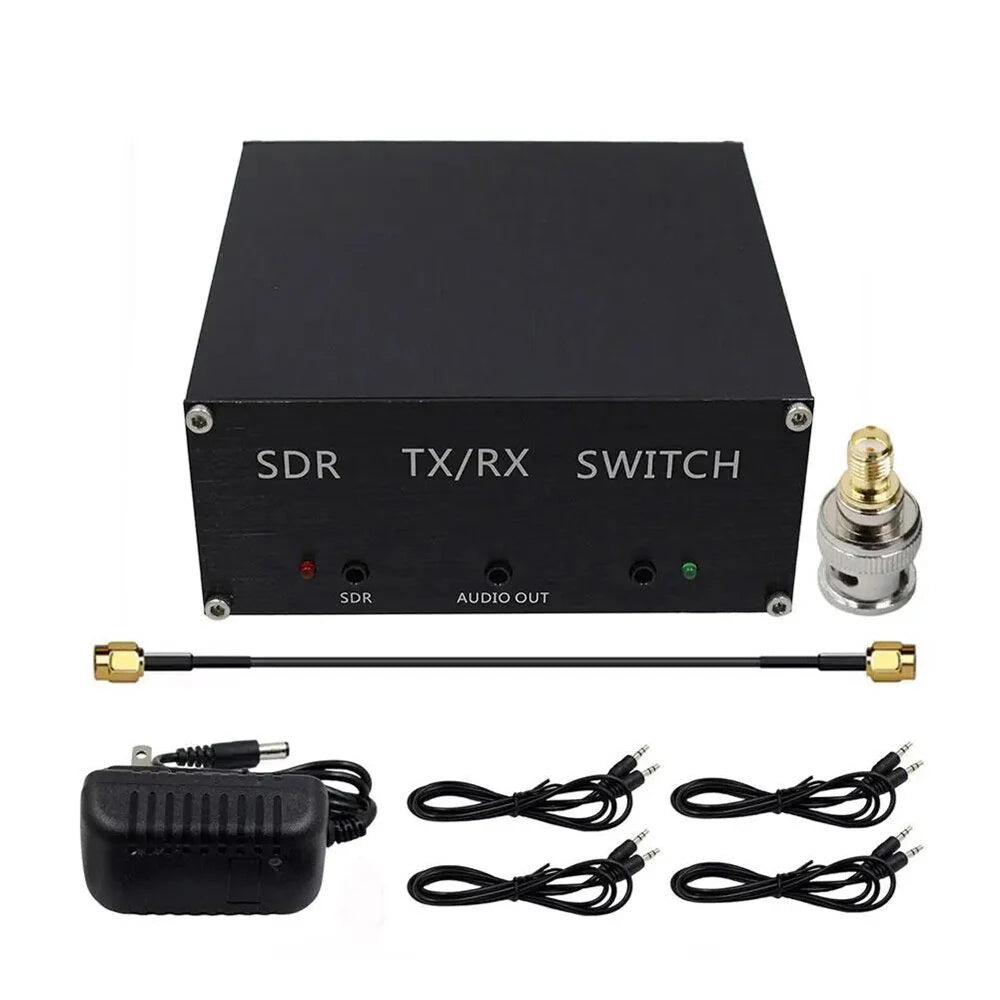

Package Included

Type A:

• 1 x Transceiver Switch
• 1 x Power Cable
• 1 x SMA to SMA Cable (60cm)
• 1 x PTT Control Cable
• 1 x EU Power Adapter
• 4 x Headphone Cables
• 1 x BNC Adapter

Type B:

• 1 x Transceiver Switch
• 1 x Power Cable
• 1 x SMA to SMA Cable (60cm)
• 1 x PTT Control Cable
• 1 x US Power Adapter
• 4 x Headphone Cables
• 1 x BNC Adapter
