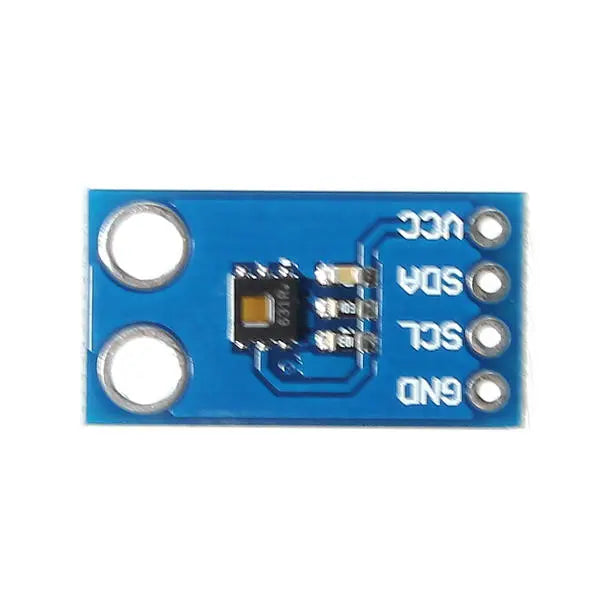

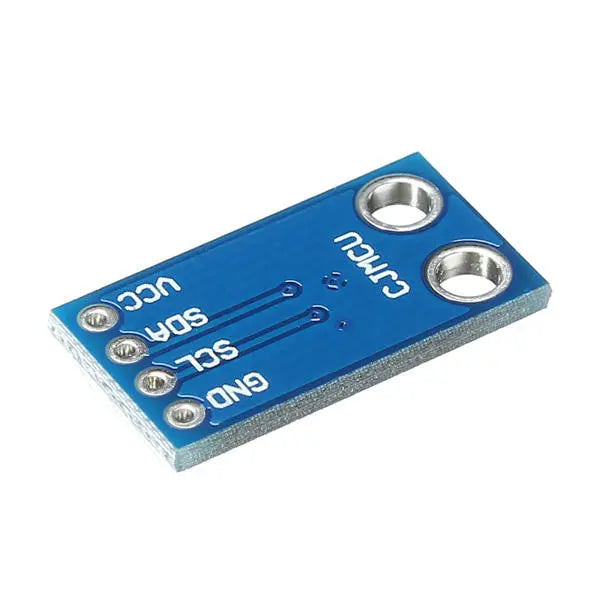

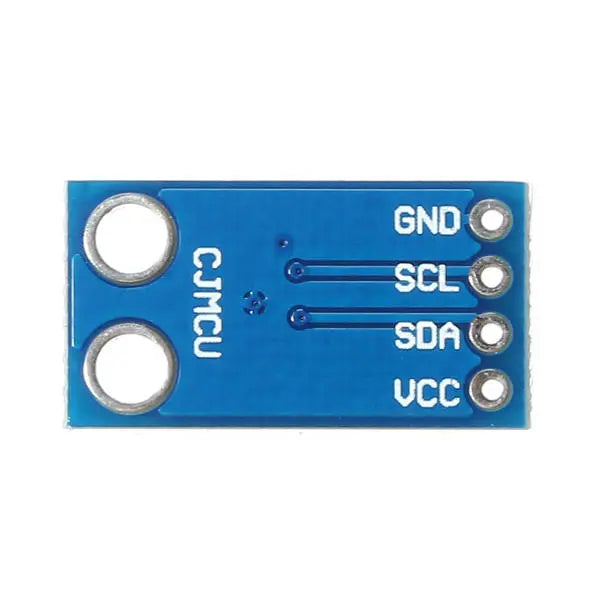

Temperature and Humidity Sensor Module

Description

The HDC1080 is a digital humidity sensor with an integrated temperature sensor, delivering excellent measurement accuracy at very low power consumption. It operates over a broad supply range and is a cost-effective, low-power alternative suitable for a variety of common applications. Both the humidity and temperature sensors come factory calibrated for precision.

Features

• Relative Humidity Accuracy: ±2% (typical)
• Temperature Accuracy: ±0.2°C (typical)
• Outstanding Stability at High Humidity Levels
• 14-Bit Measurement Resolution
• 100 nA Sleep Mode Current
• Average Supply Current:
• 710 nA @ 1sps, 11-bit RH Measurement
• 1.3 µA @ 1sps, 11-bit RH and Temperature Measurement
• Supply Voltage: 2.7 V to 5.5 V
• Compact 3 mm × 3 mm Device Footprint
• I2C Interface for Easy Integration

Applications

• HVAC Systems
• Smart Thermostats and Room Monitors
• White Goods
• Printers
• Handheld Meters
• Medical Devices
• Wireless Sensors (TIDA: 00374, 00484, 00524)

Package Includes

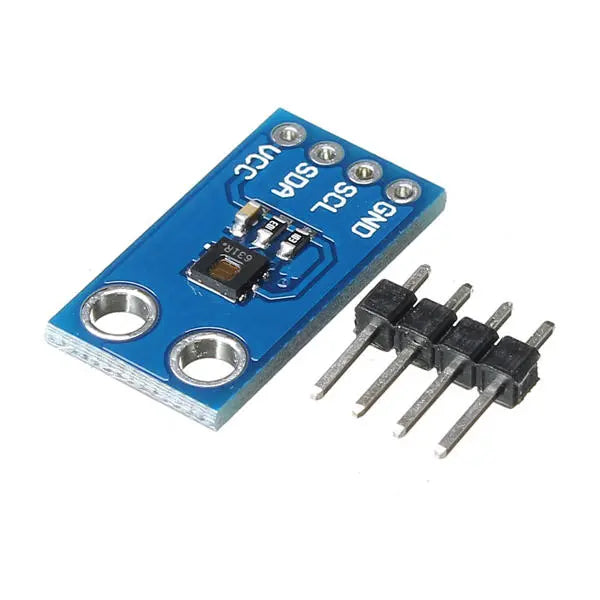

1 x Temperature and Humidity Sensor Module
