ANENG SZ305 Digital Multimeter 1999 Counts - Smart Voltmeter for AC/DC Voltage, Current, Resistance & Capacitor Testing

$11.99 USD

~~$0.00 USD~~ $11.99 USD

Sale Sold out

Shipping calculated at checkout.

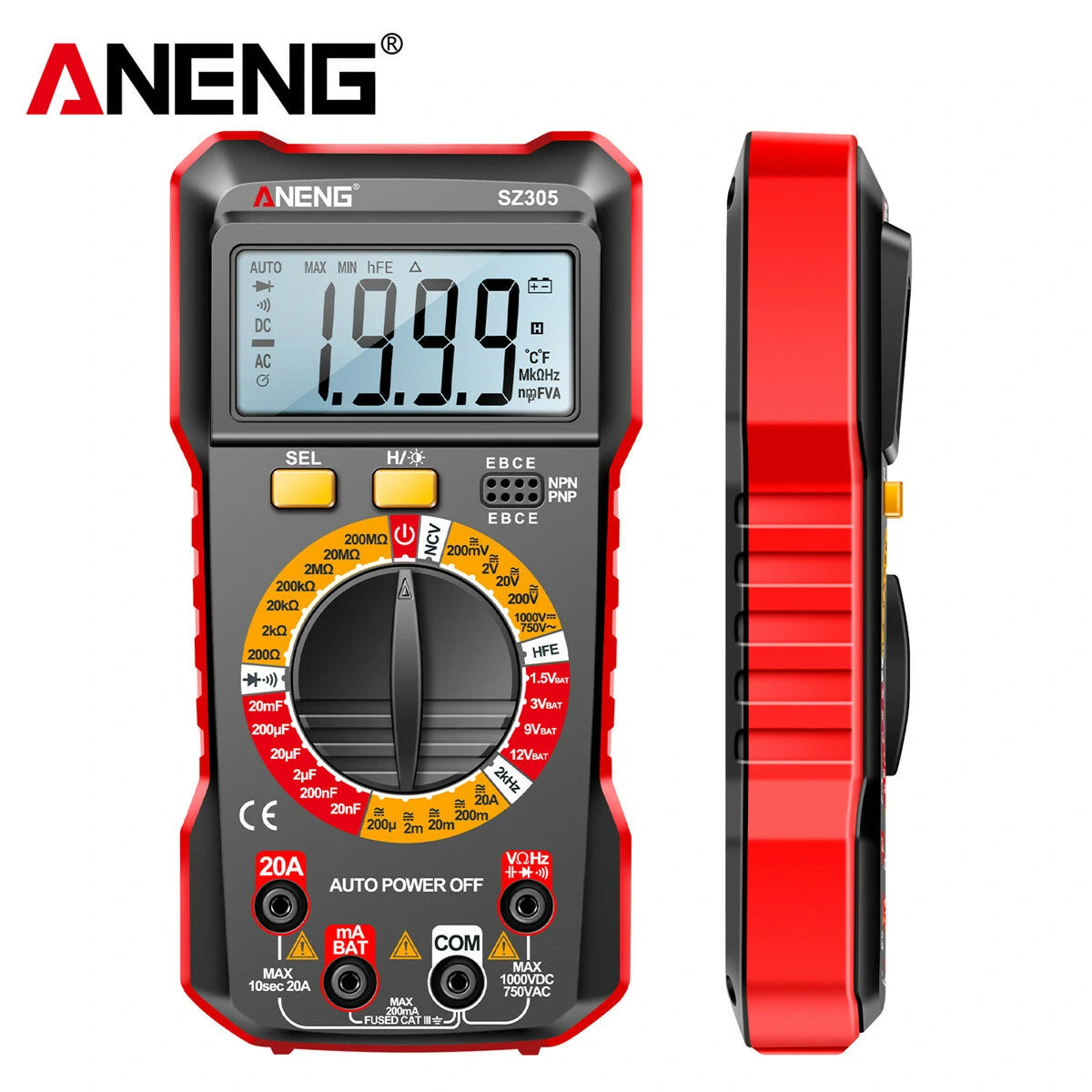

Color Black Red

Estimated Delivery: -

Quantity

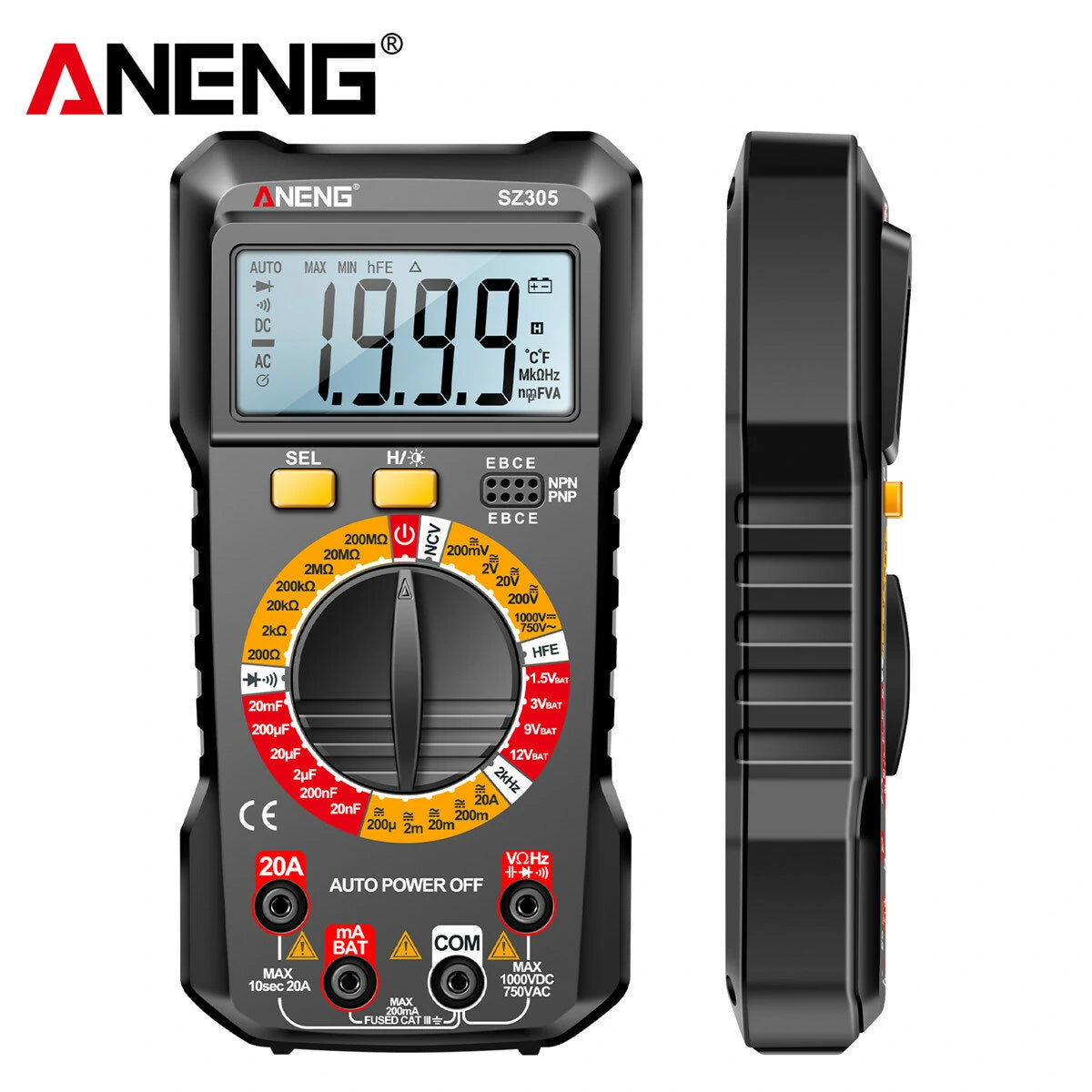

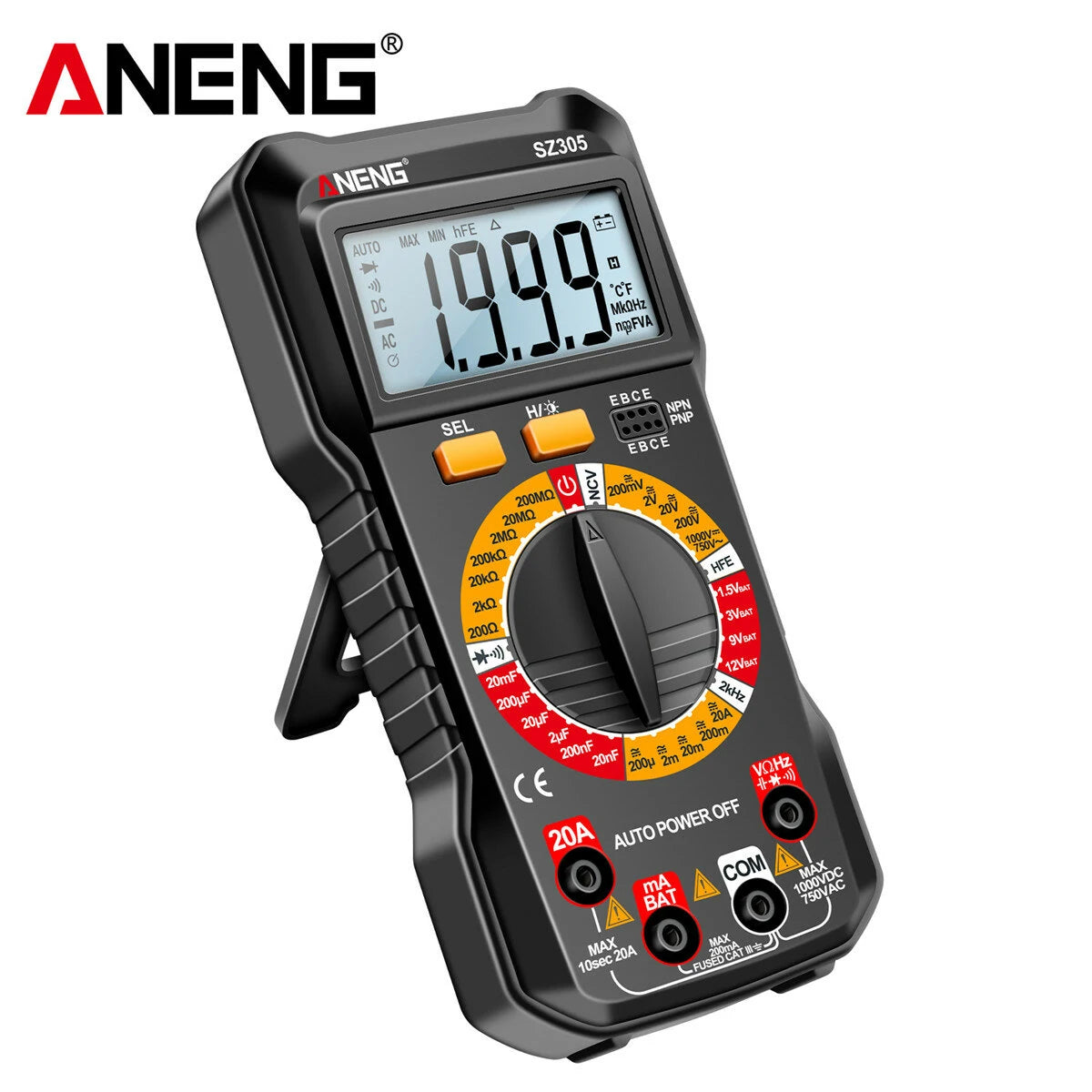

ANENG SZ305 Digital Multimeter

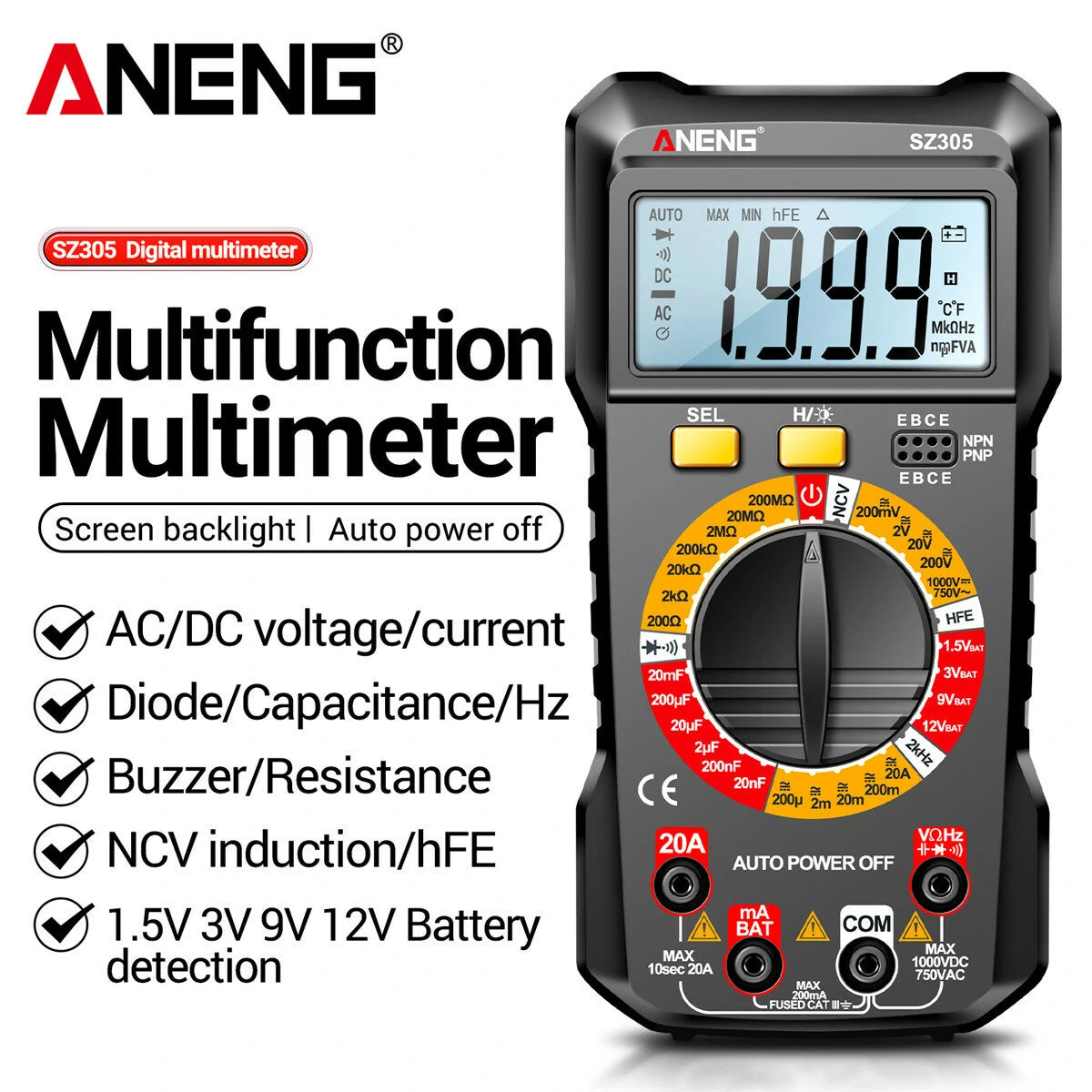

Comprehensive Measurement Capabilities: The ANENG SZ305 is a robust multimeter capable of measuring AC/DC voltage, AC/DC current, resistance, capacitance, and frequency for a wide range of electrical testing applications.
Enhanced Functionalities: Equipped with diode data retention, hFE triode, a buzzer, and non-contact voltage (NCV) detection. It also supports battery detection for 1.5V, 3V, 9V, and 12V batteries.

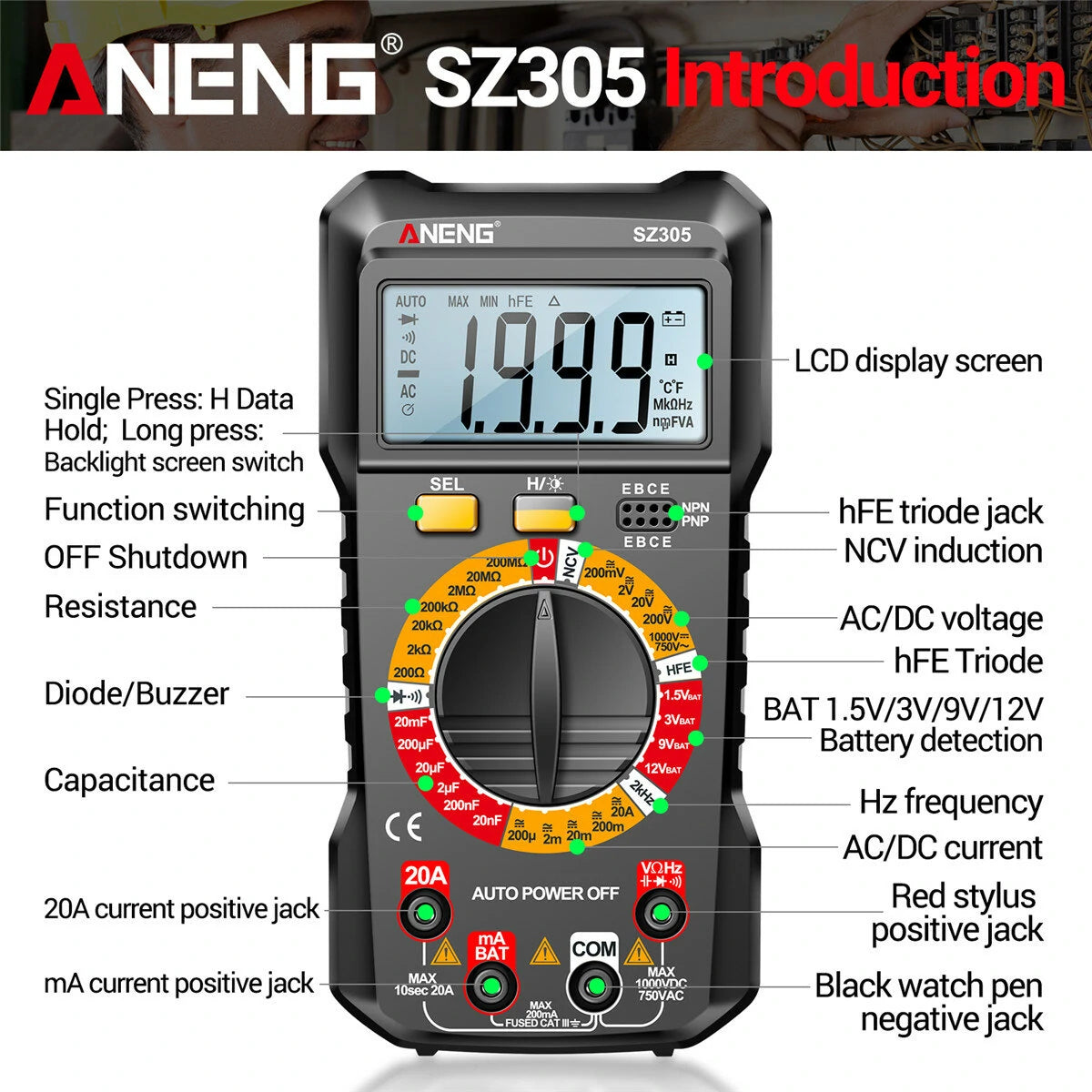

User-Friendly Design: Features a digital display with backlight for easy reading. It also includes automatic power-off for energy efficiency, data retention, and a low battery indicator for improved user experience.

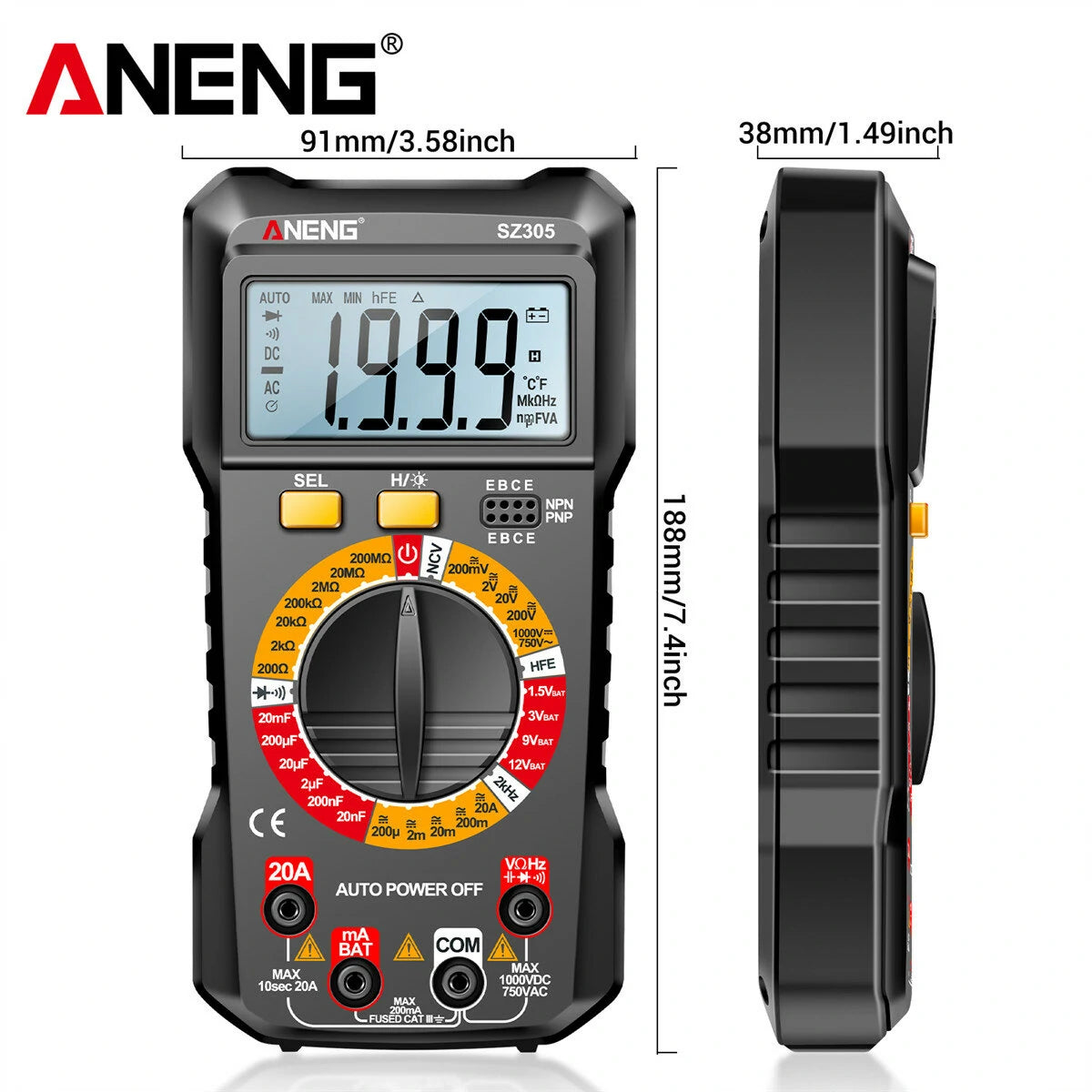

Durable and Lightweight: Constructed from durable ABS material and weighing just 158g, this multimeter ensures longevity and convenience for everyday use.

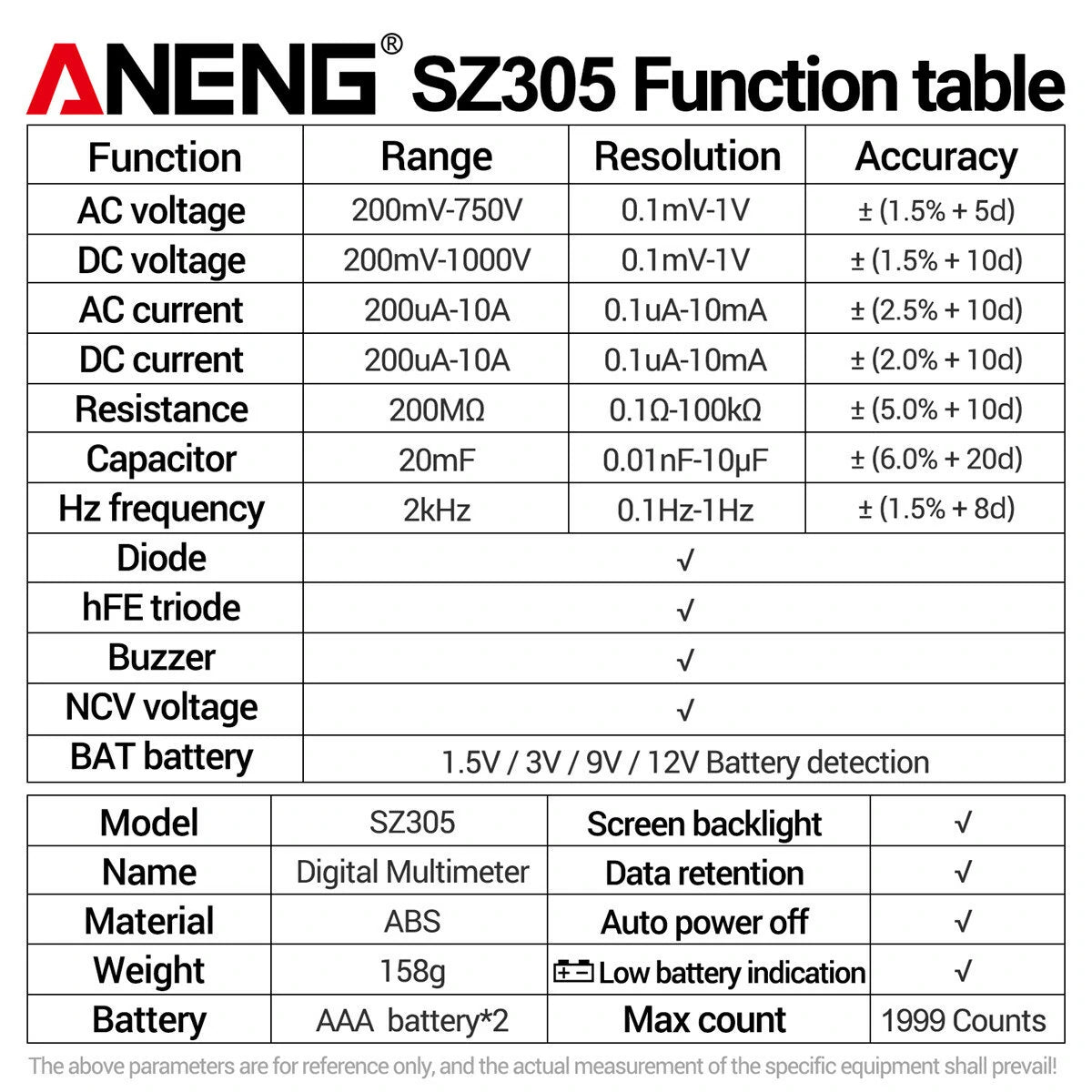

Function	Resolution	Range	Accuracy
AC Voltage	0.1mV-1V	200mV-750V	±(1.5%+5d)
DC Voltage	0.1mV-1V	200mV-1000V	±(1.5%+10d)
AC Current	0.1uA-10mA	200uA-10A	±(2.5%+10d)
DC Current	0.1uA-10mA	200uA-10A	±(2.0%+10d)
Resistance	0.1Ω-100kΩ	200MΩ	±(5.0%+10d)
Capacitance	20mF	0.01nF-10uF	±(6.0%+20d)
Frequency	0.1Hz-1Hz	2kHz	±(1.5%+8d)
