TOOLTOP 5-Channel Virtual Oscilloscope with Data Storage & 4 Switchable Measurement Modes

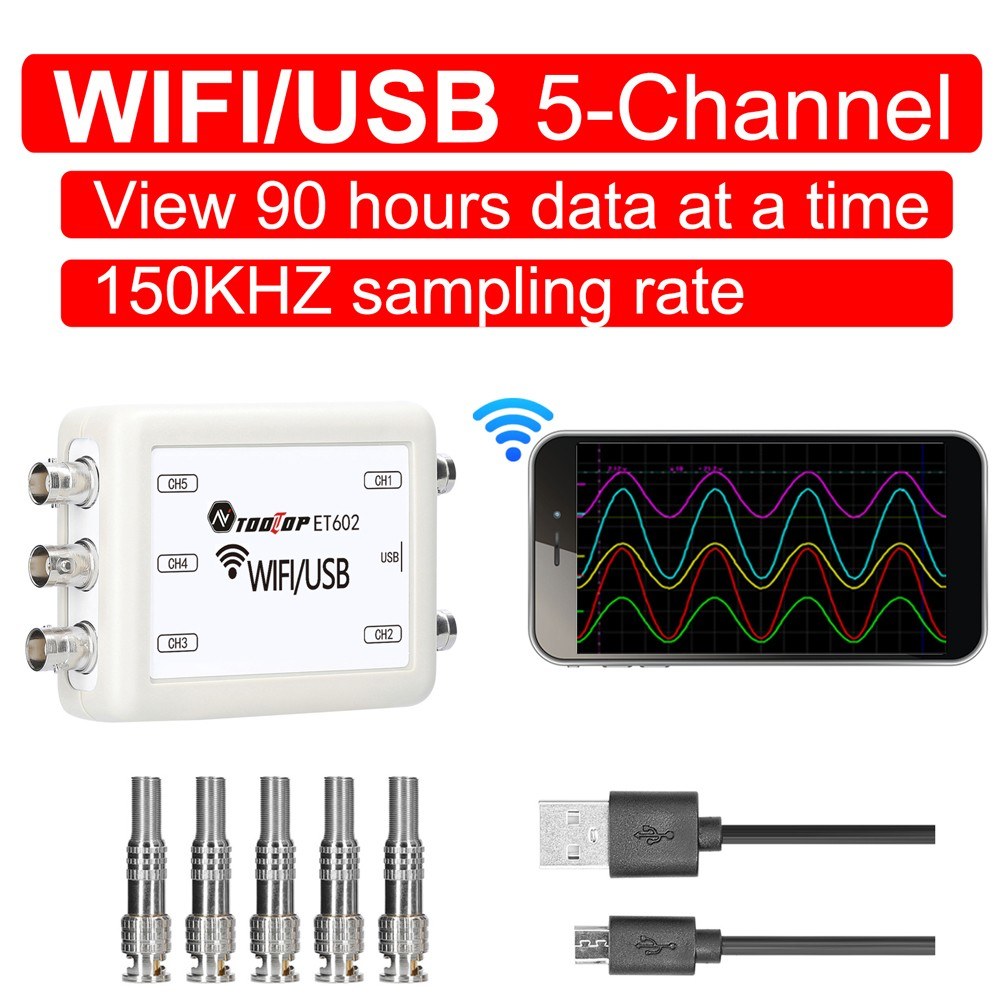

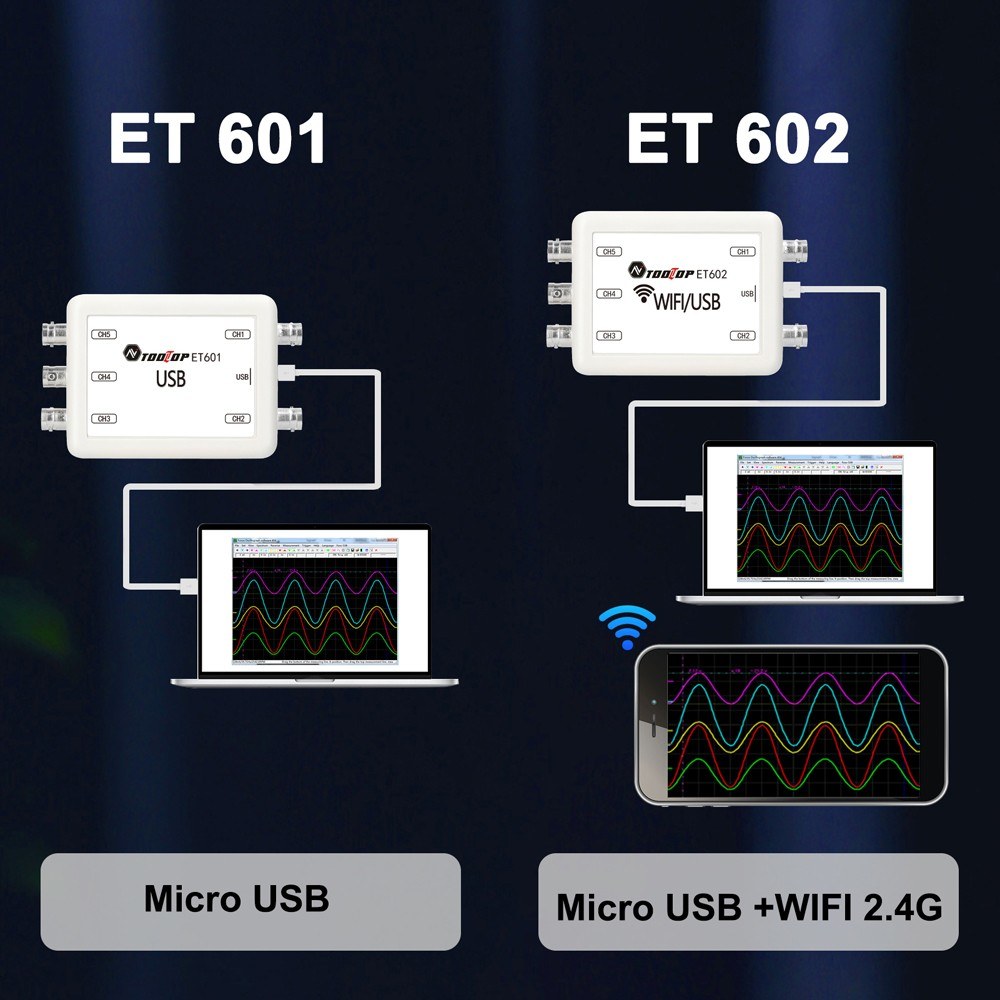

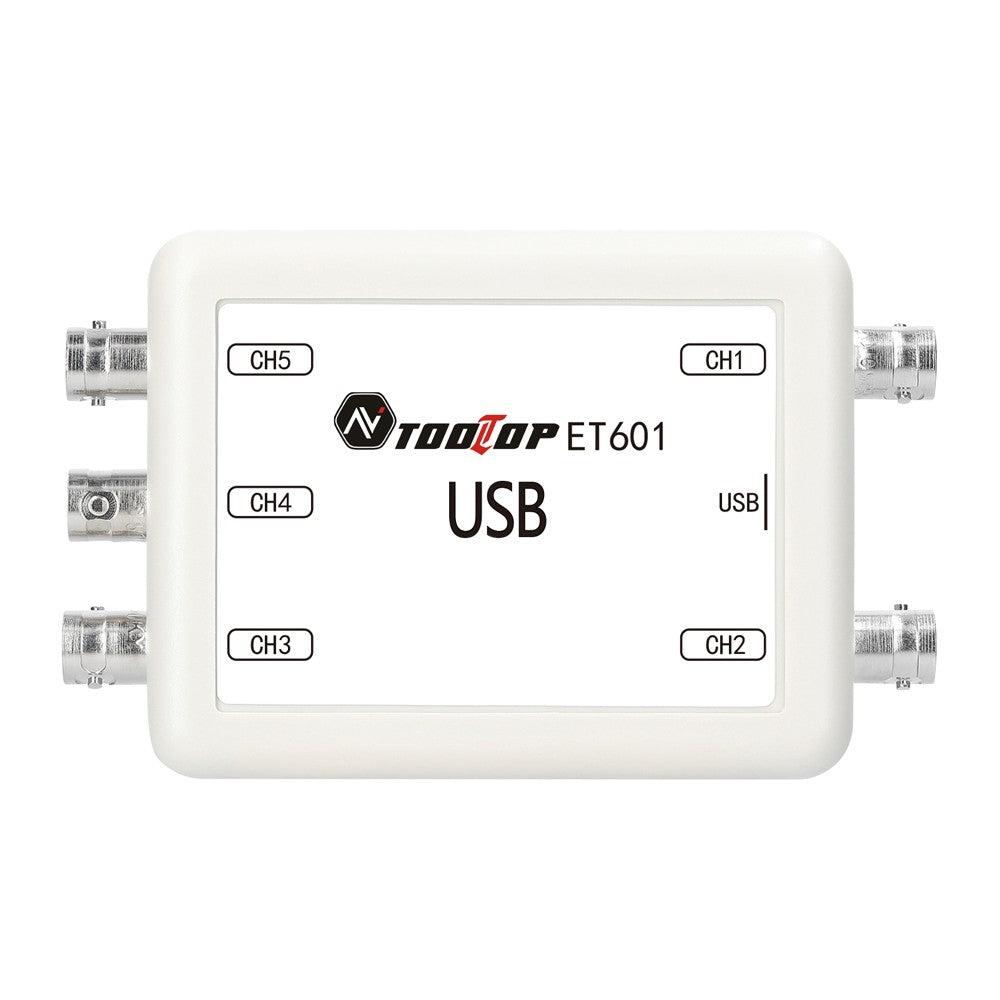

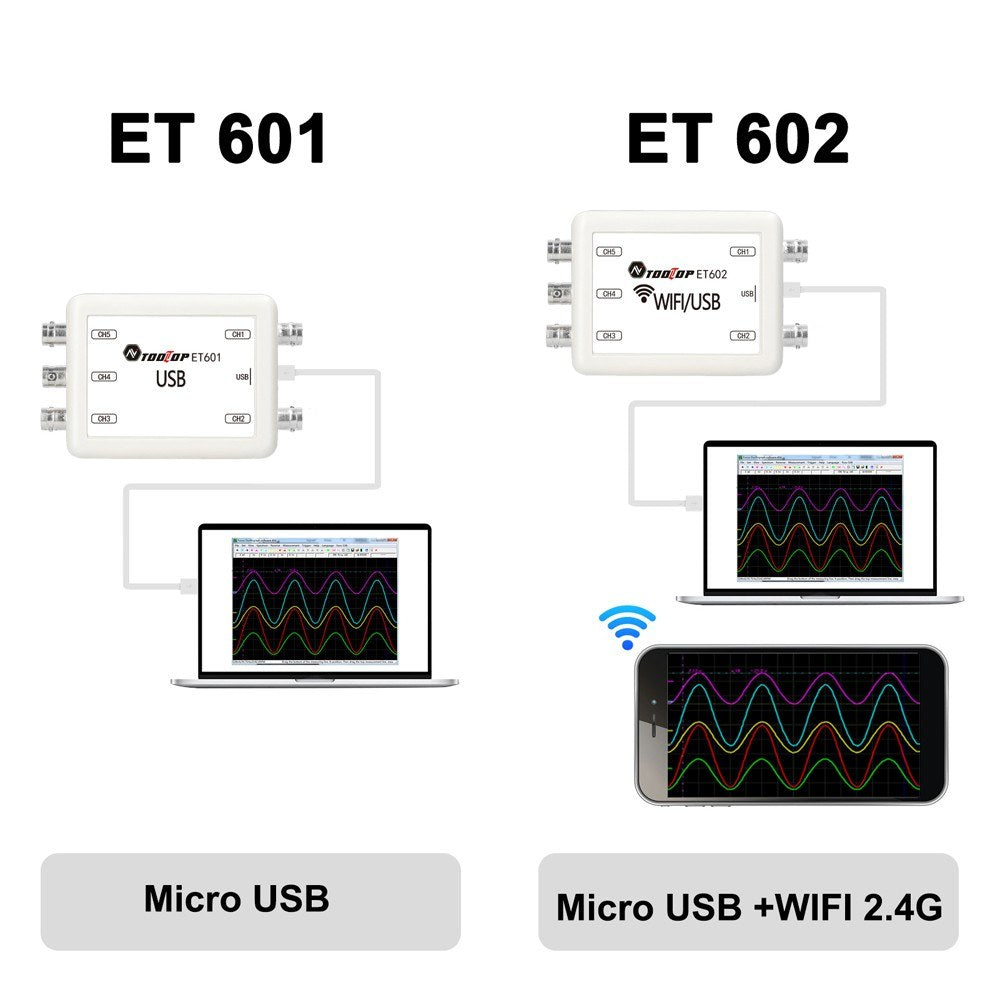

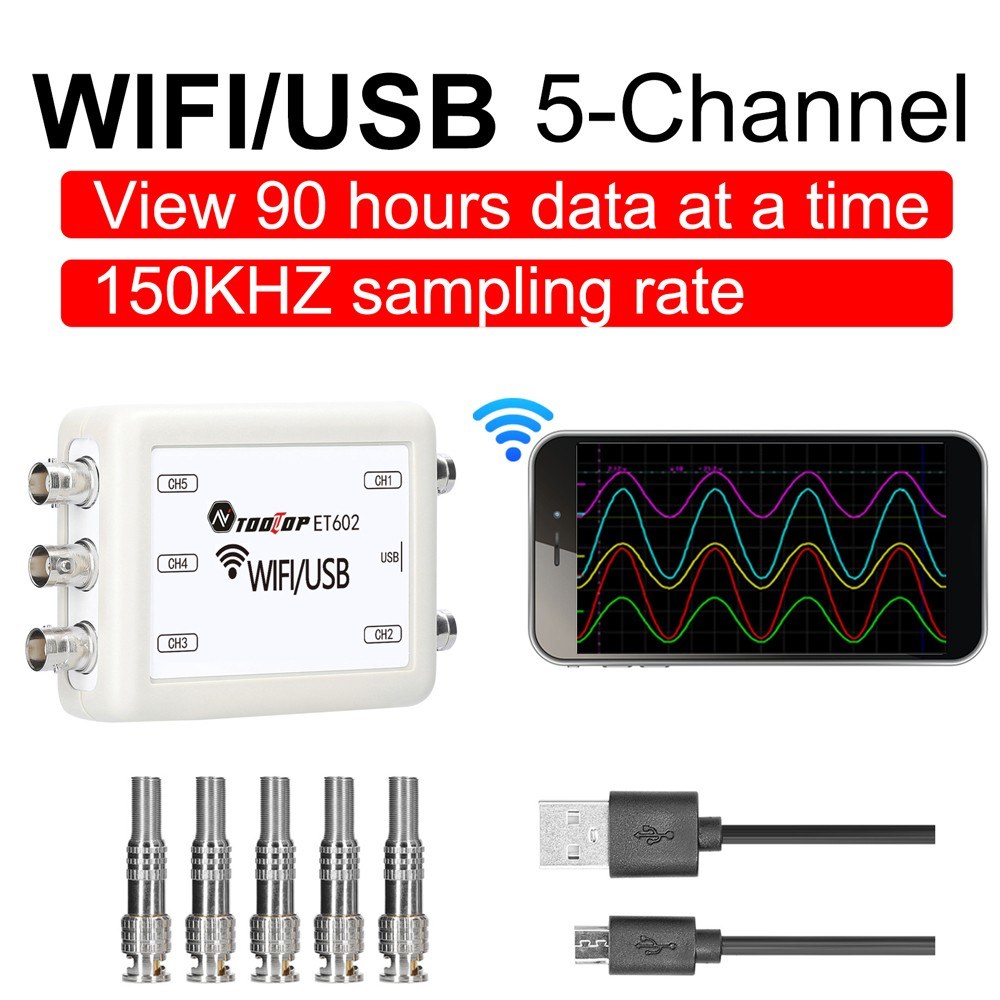

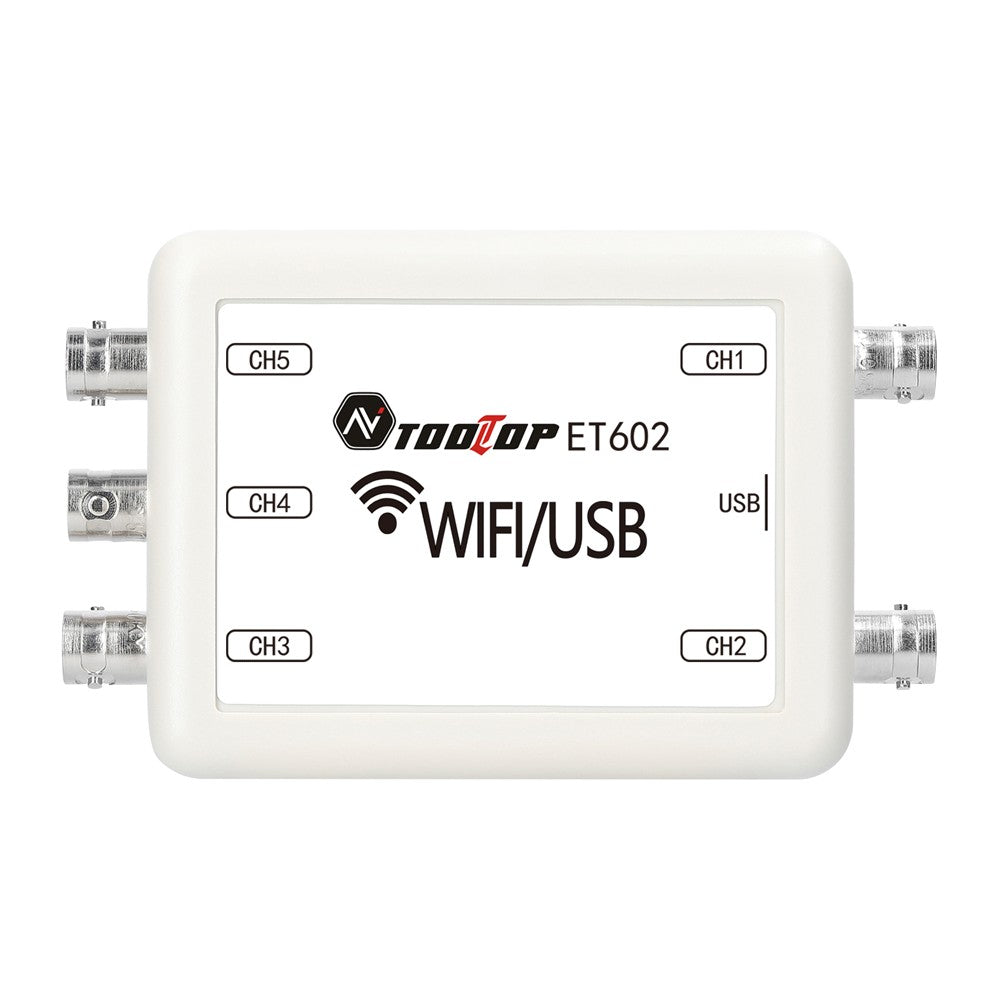

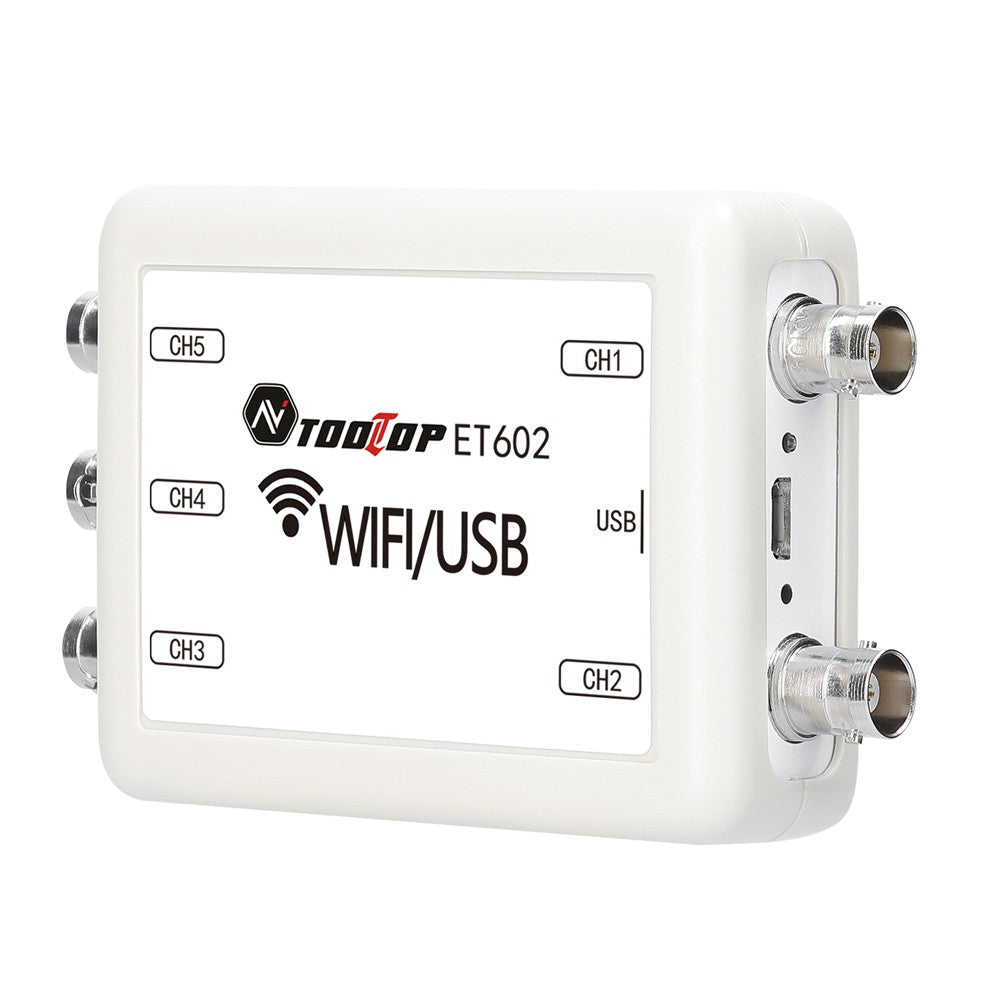

Explore the advanced capabilities of our Virtual Oscilloscope, designed for efficient long-term monitoring and archiving of electrical equipment performance. Choose between two versatile models to match your connectivity needs: ET601 offers USB support, while ET602 provides both USB and WiFi connectivity.

Features:

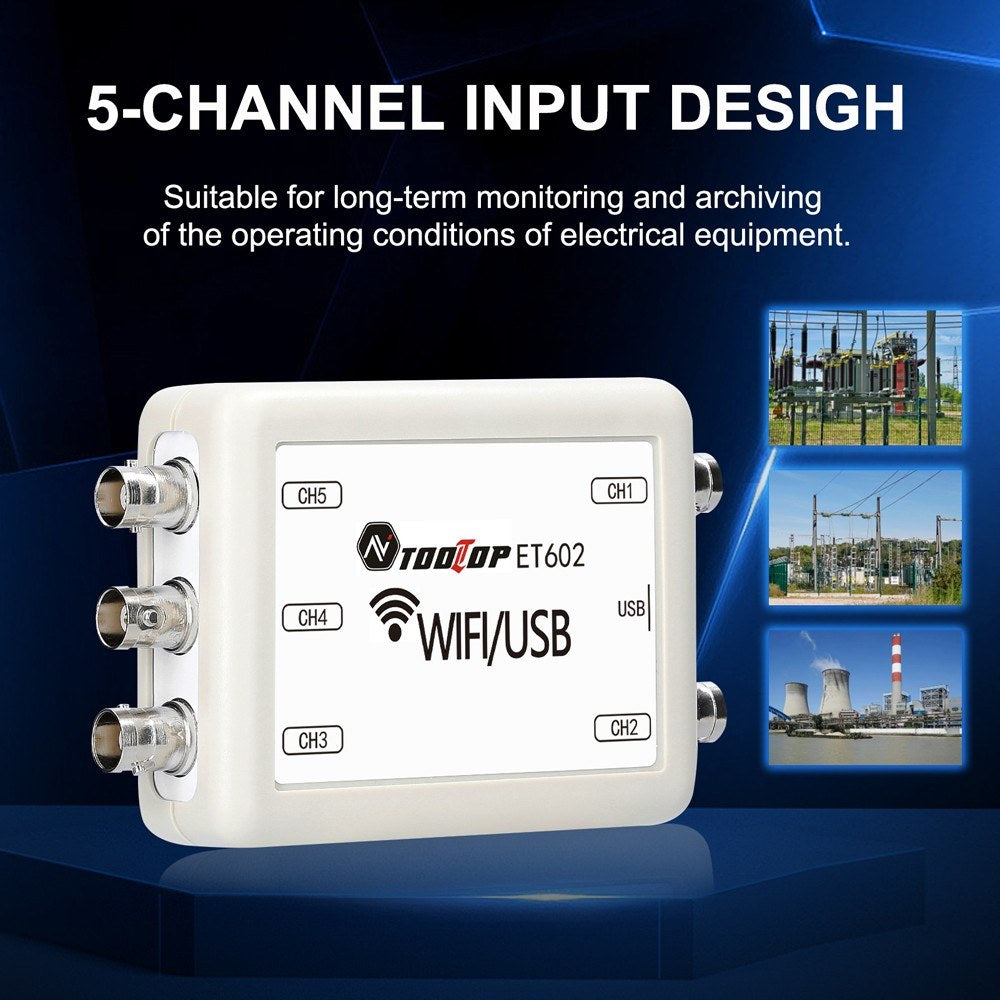

• 5-Channel Input Design: Simultaneously monitor five channels, ideal for comprehensive data logging over extended periods.

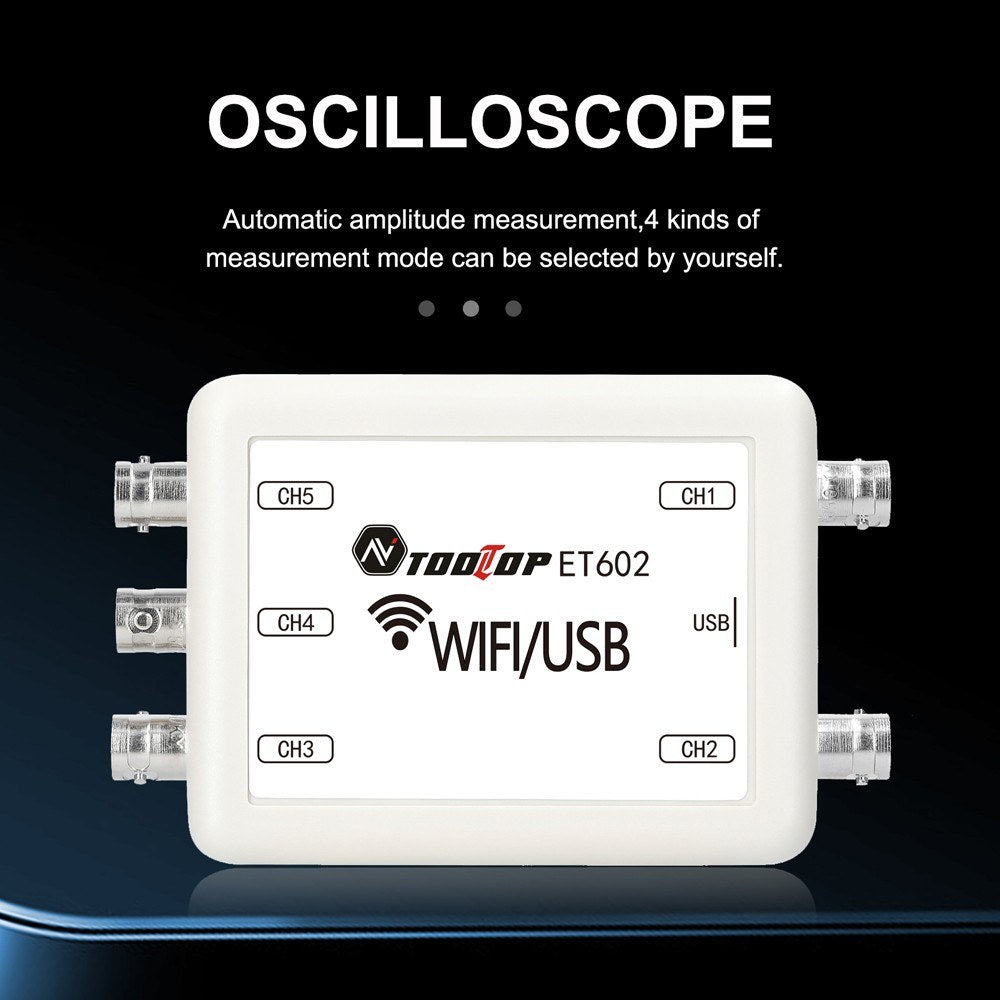

• Oscilloscope Function: Utilize automatic amplitude measurement with four selectable measurement modes, alongside time and frequency measurement capabilities for precise readings.
• Trigger Function: Offers both rising-edge and falling-edge triggers on any channel to customize your data capture.

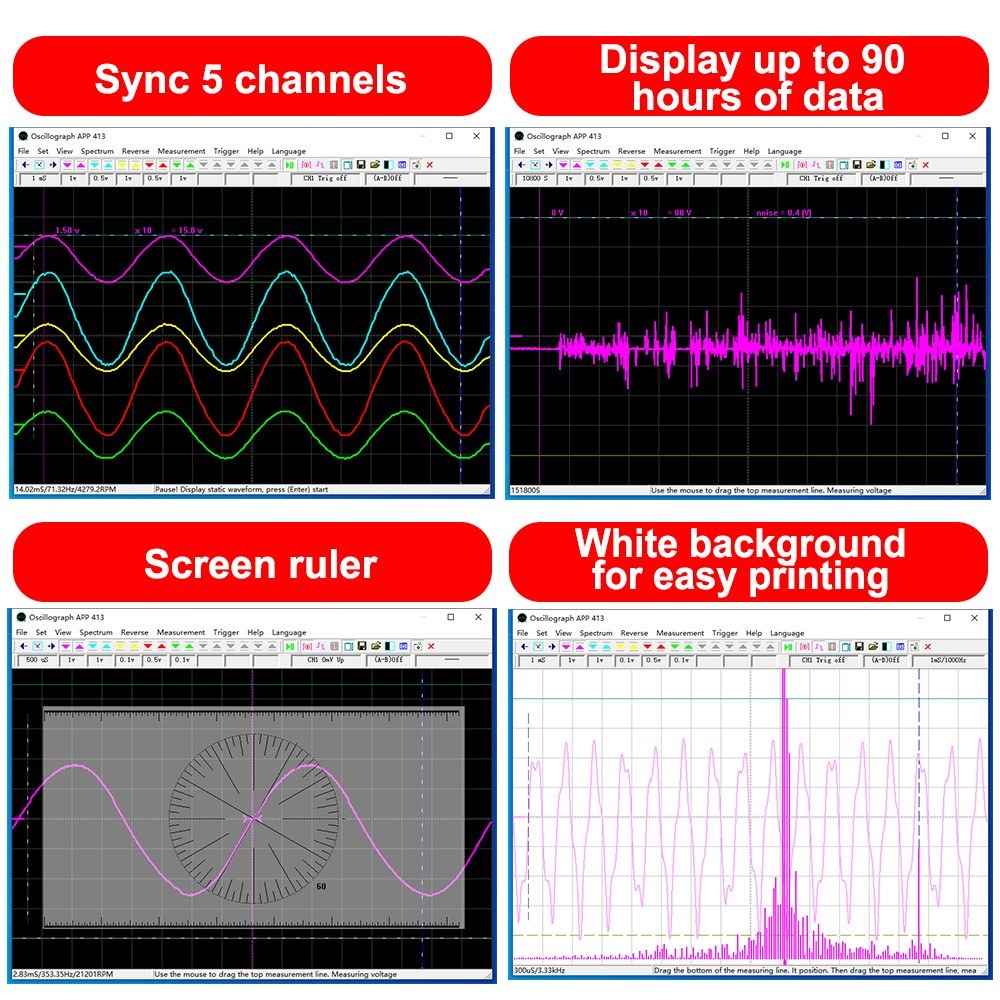

• Multifunctional Design: Benefit from differential analysis, reverse and custom displays, and advanced algorithms to track and display up to 90 hours of data.
• Auxiliary Function: Features spectrum analysis, an on-screen ruler, and a white background optimized for easy print conditions.

Specifications:

• Name: Virtual Oscilloscope
• Material: Plastic
• Maximum Sampling Rate: 150kHz
• Operating Voltage: 5V USB power supply
• Current Consumption: <170mAh
• Measurable Frequency Ranges: 0Hz-50kHz
• Amplitude Adjustment Ranges: 10 mV/DIV to 1 V/DIV
• Input Impedance: 1 MΩ(<0.5V/DIV);330kΩ(>0.5V/DIV)
• Maximum Measurement Voltage: ±8 V, ±80 V at probe X10
• Amplitude Error: ±2.5%
• Time Domain Ranges: 100 uS/DIV-10800 S/DIV
• Data Recording and Storage Depth: 8,388,608*5
• Maximum Data Recording and Storage Time: 93 hours

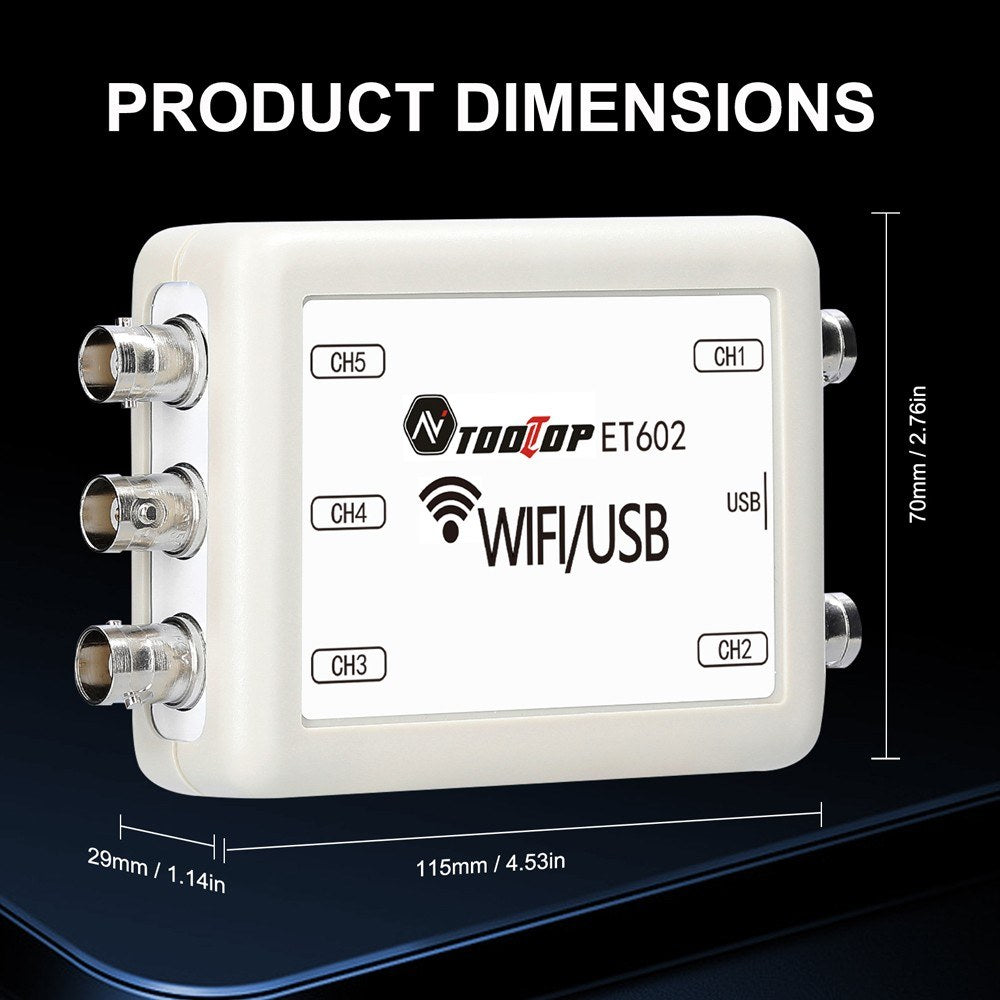

• Item Size: 115 * 70 * 29mm / 4.53 * 2.76 * 1.14in
• Package Size: 130 * 100 * 50mm / 5.12 * 3.94 * 1.97in
• Package Weight: 300g / 10.58 ounces

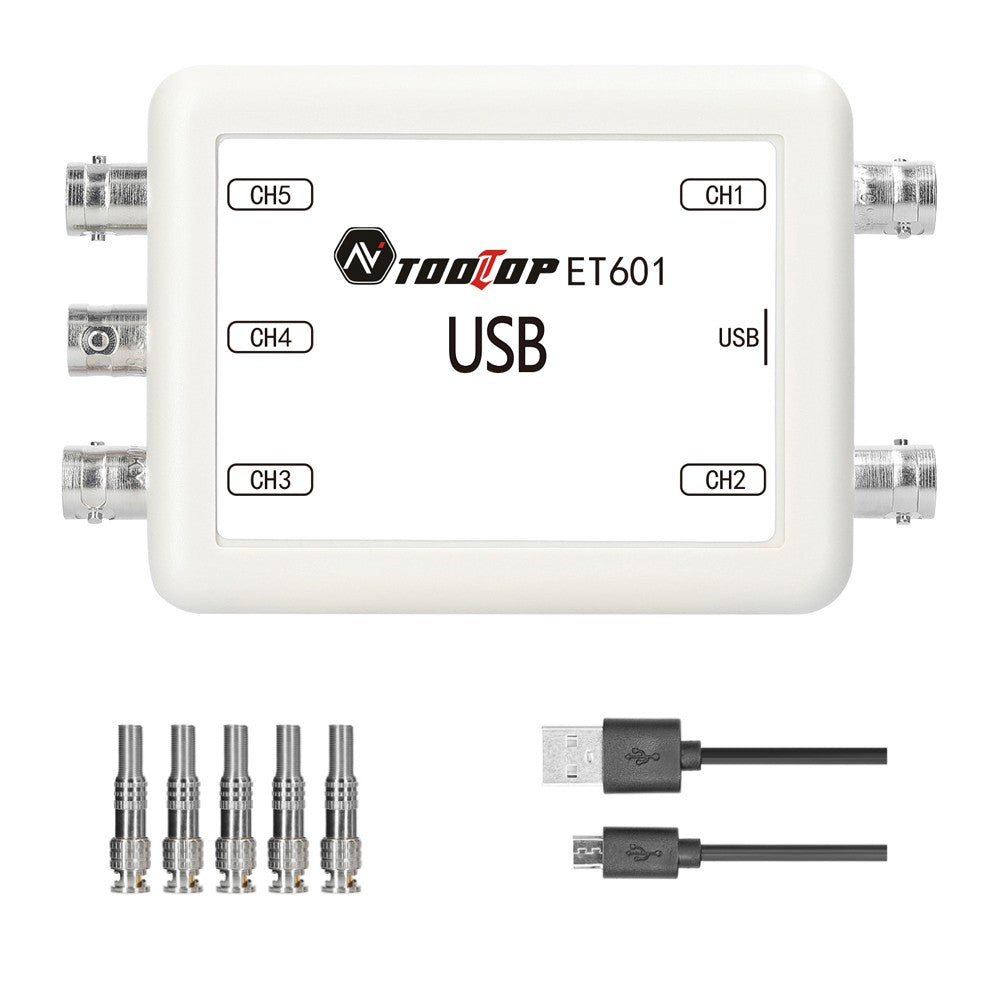

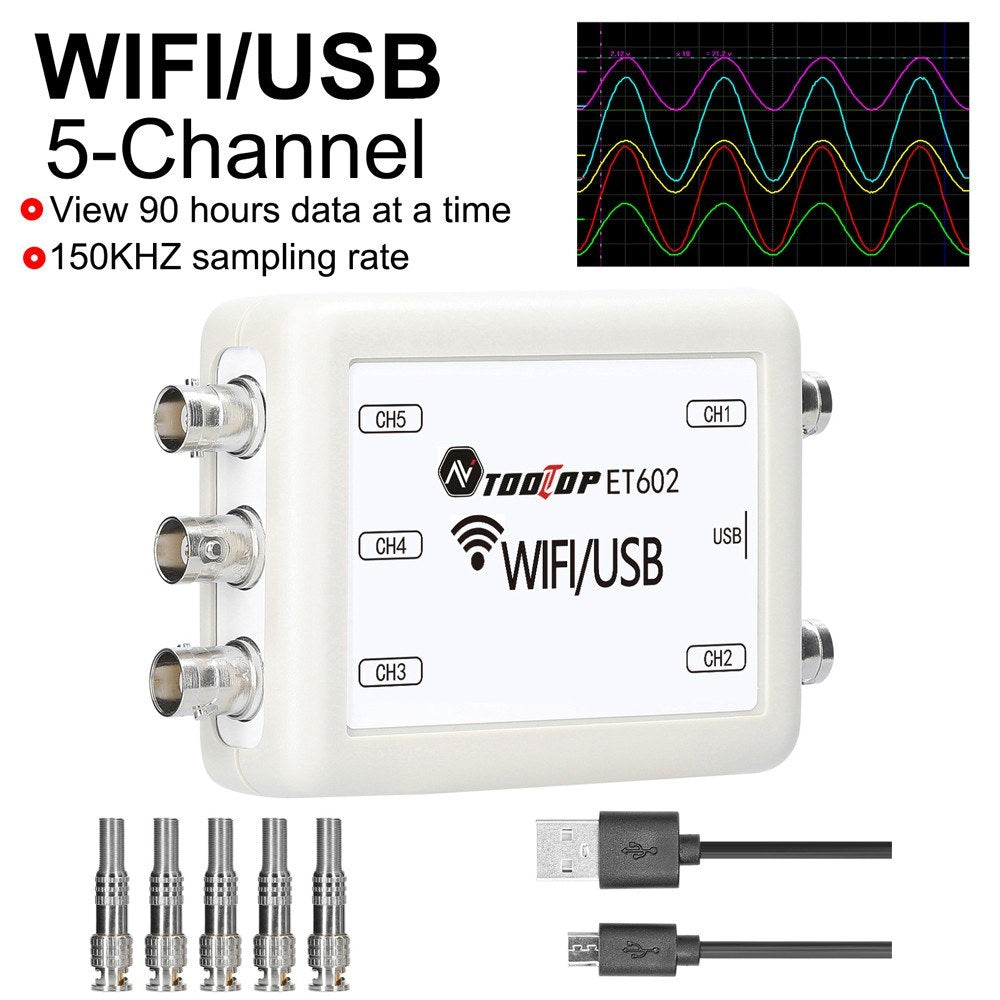

Packing List:

• 1 * Virtual Oscilloscope
• 1 * Cable
