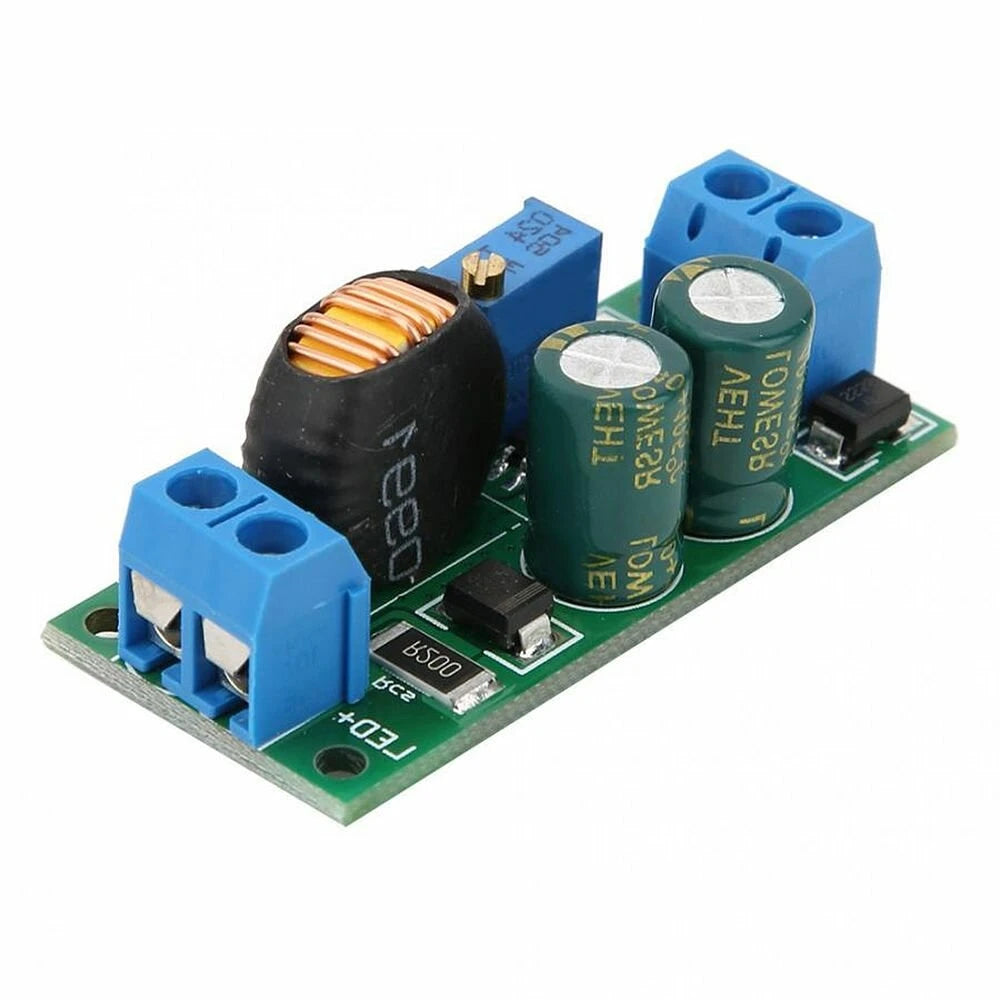

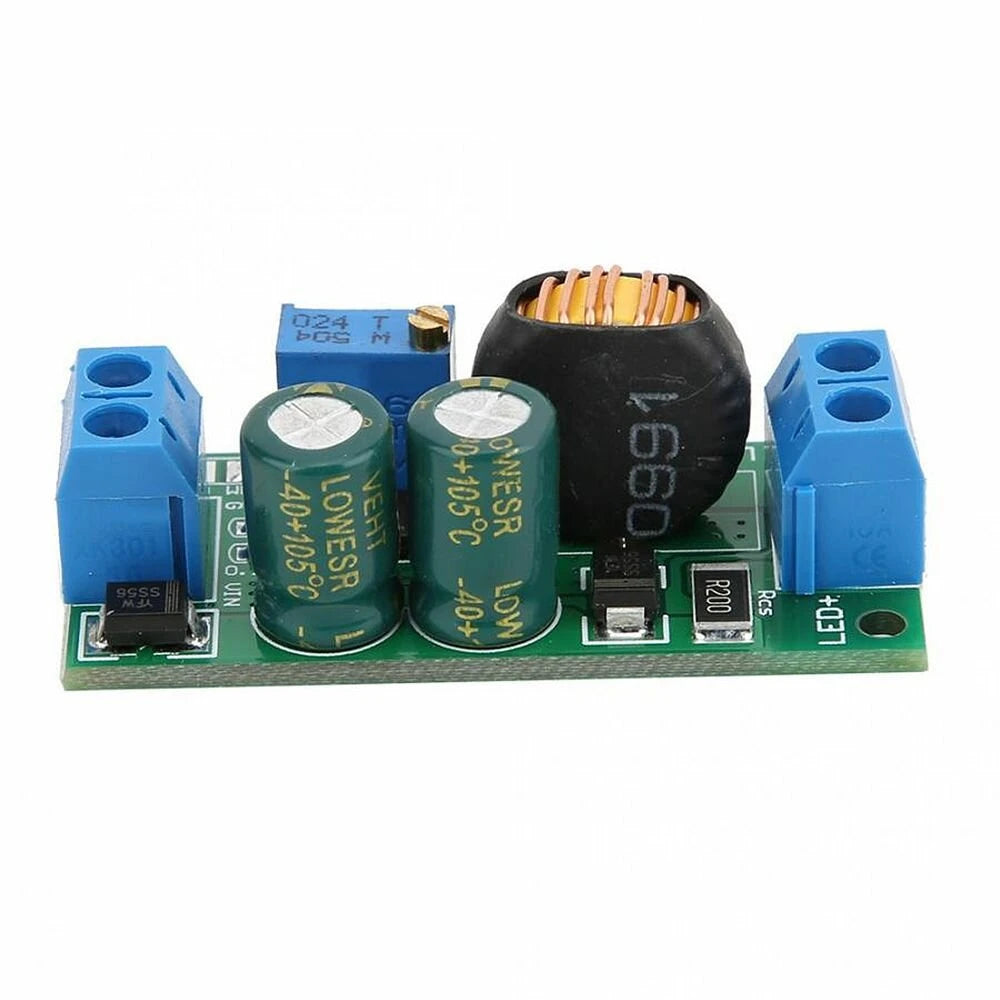

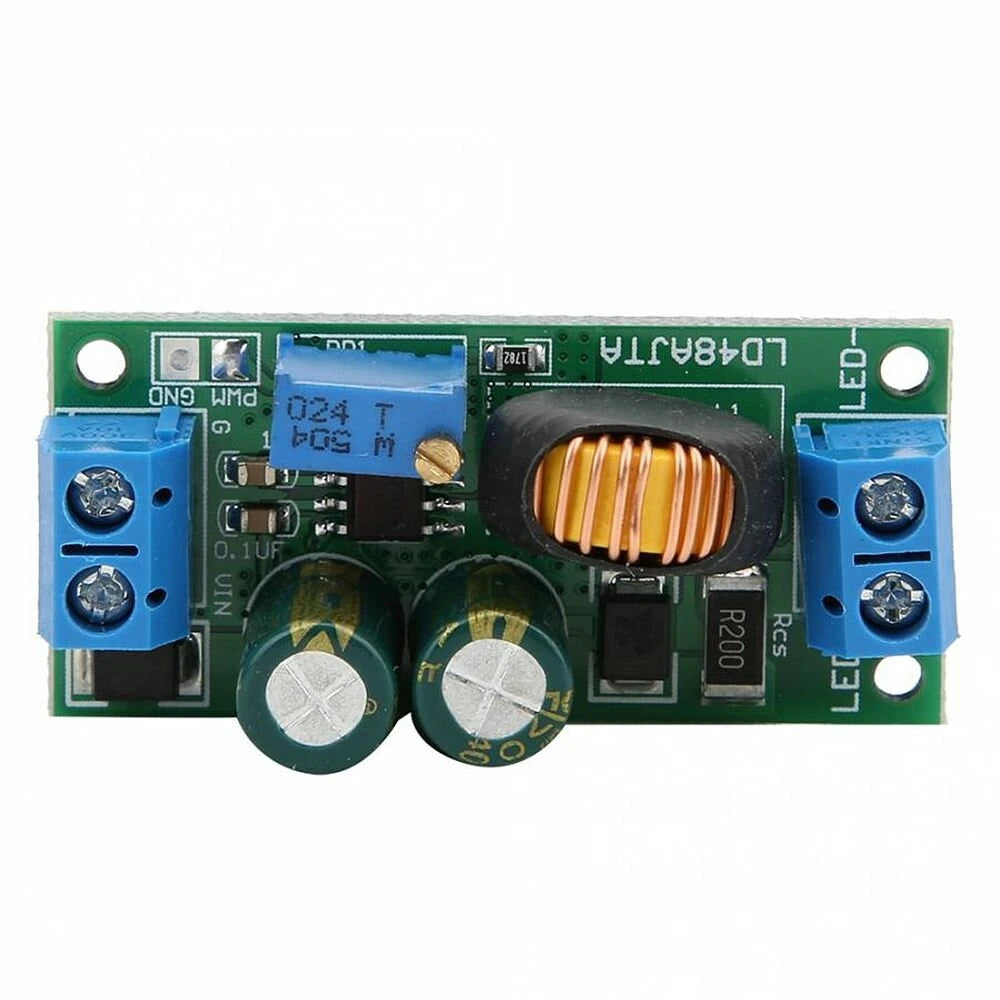

Adjustable 72W DC 8-25V 3A LED Driver Module with PWM Controller & Current Regulator

Product Features:

• High brightness LED driver with 5000:1 dimming function for practical applications.
• Supports a maximum output power of 72W (36V / 2A) with up to 1MHz switching frequency.
• Simple single-pin on/off and brightness control using either DC voltage or PWM.
• Inherent open LED protection ensures optimal operation with adjustable constant LED current, achieving up to 97% efficiency.
• Features high-end current detection for easy use in various applications.

Specifications:

• Working Voltage: H-type DC 8-25V
• Output Current: 3A (Maximum Current: 4A by changing RCS Resistance)
• Maximum Output Power: 72W (36V / 2A)
• Current Regulation: Adjustable via resistance or PWM control
• Switching Frequency: Up to 1MHz
• Current Accuracy: Typical 5% output
• Intrinsic Open LED Protection: Supported
• Efficiency: Up to 97%
• Size: Approx. 45 x 21 x 16mm (1.77 x 0.83 x 0.63 inches)

Package Includes:

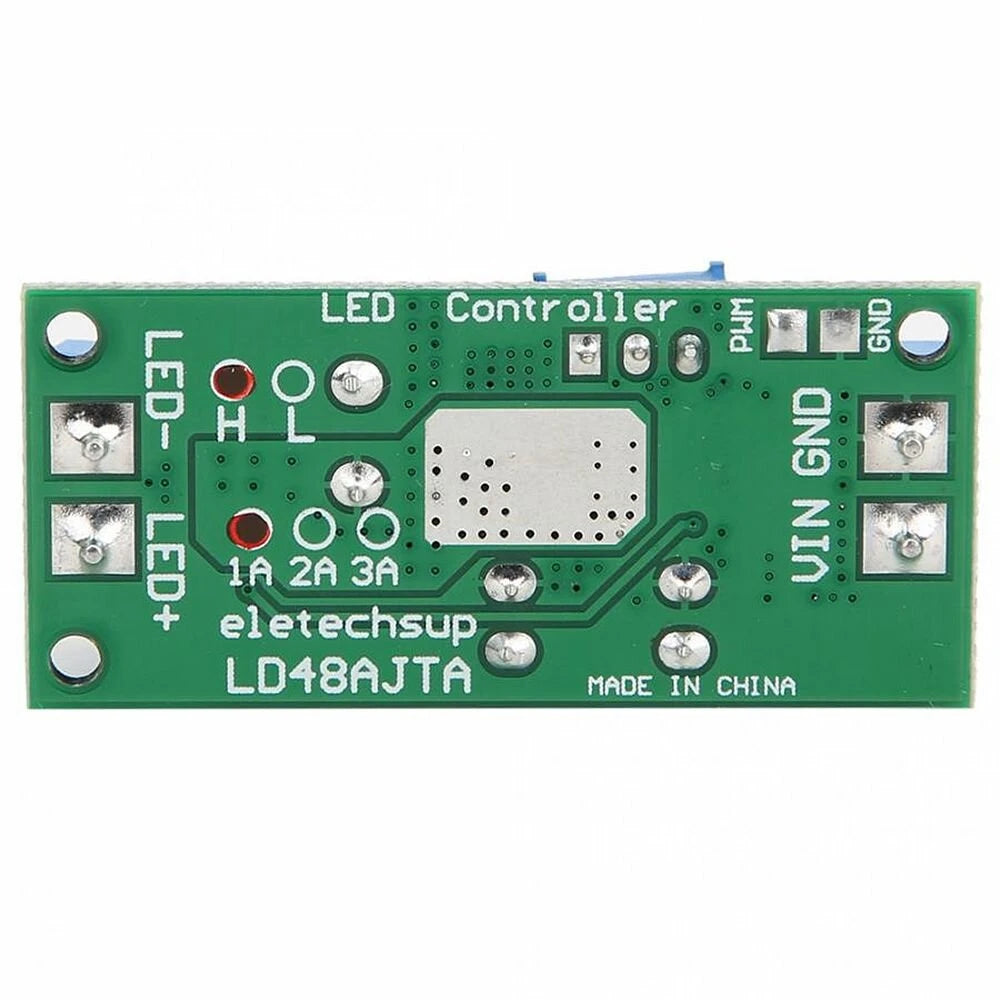

• 1 x LD48AJTA 3A LED Driver Module
