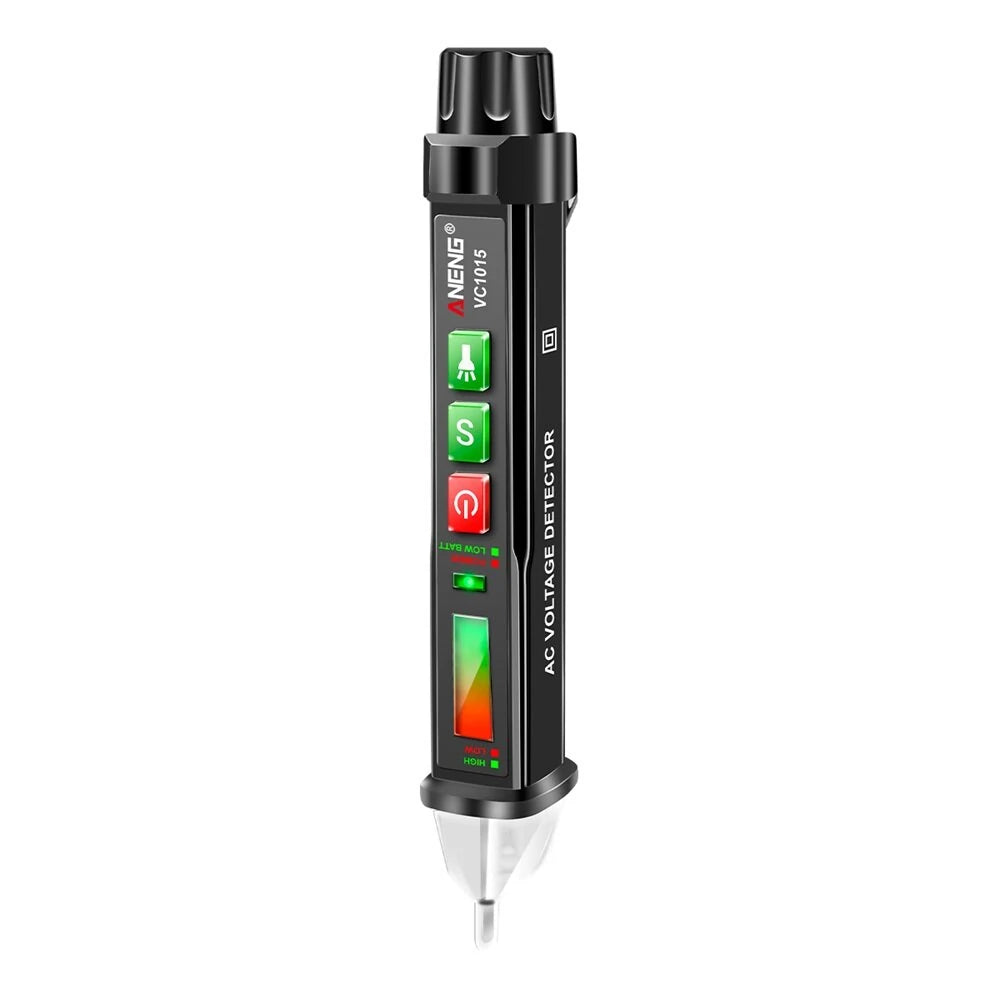

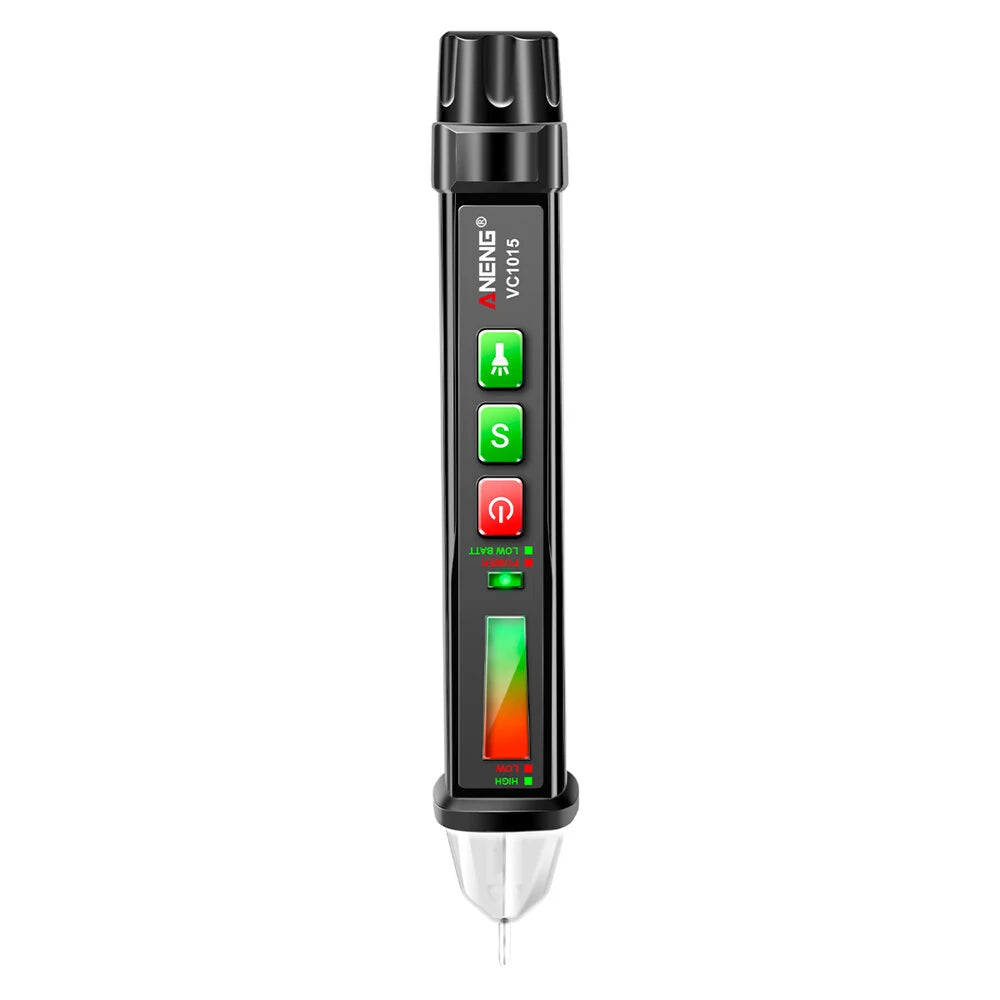

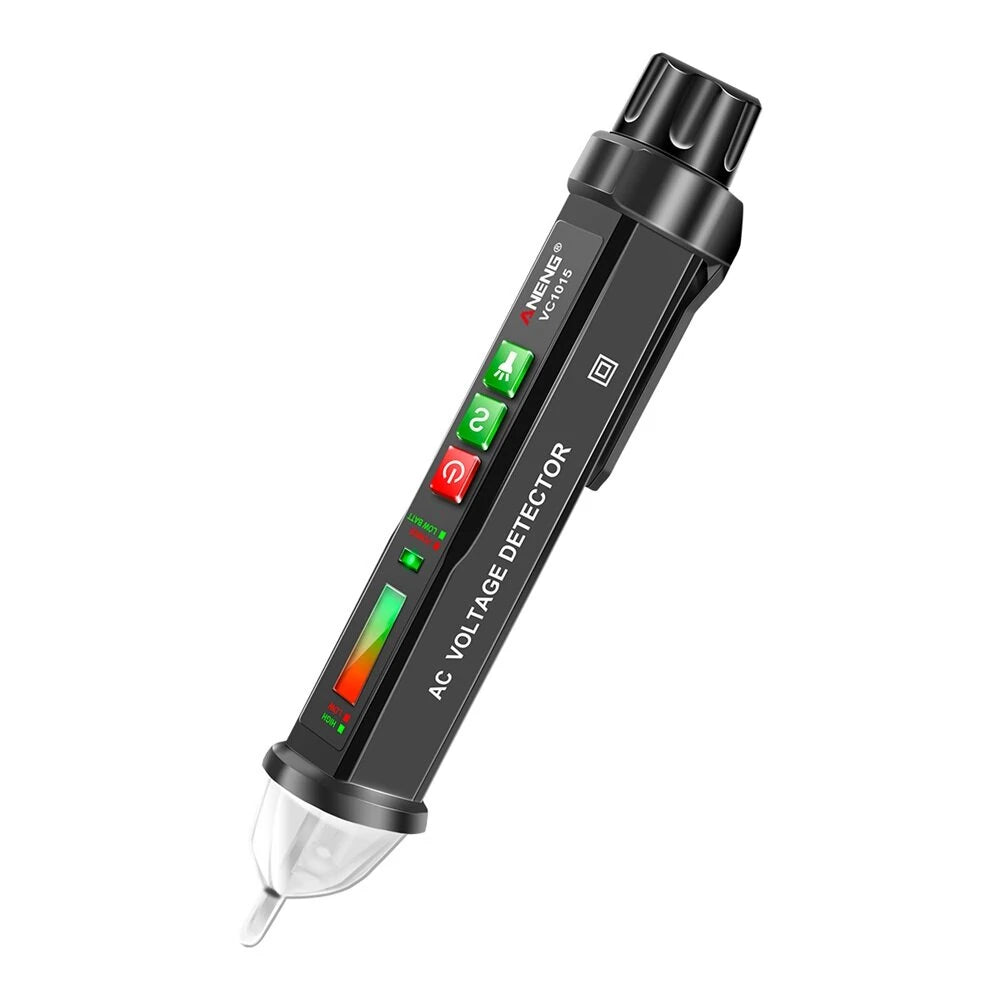

Smart Non-Contact AC Voltage Tester Pen - ANENG VC1015, 12-1000V Range, LED Indicator

Description:

This non-contact AC voltage detection pen is designed with dual sensitivity switching, sound and light alarms, and a built-in flashlight. It's an essential tool for electricians, ensuring safe and efficient checks and repairs.

Features:

• Portable Design: Compact, lightweight, and easy to carry, it allows for quick and convenient zero-fire line identification.
• Safe Testing: Conduct non-contact tests through partition walls for enhanced safety.
• Advanced Technology: Featuring a brand-new circuit board, this device is more sensitive, stable, and intelligent.
• LED Flashlight: The integrated flashlight enables accurate measurements in dim environments.
• Energy Efficient: Automatically shuts down after 5 minutes of inactivity when no AC voltage is detected, extending battery life.

Specifications:

• Product Name: Non-contact AC voltage tester
• Material: ABS
• Probe Shape: Flat
• AC Voltage Range: 12~1000V
• Frequency: 50/60HZ
• NCV Sensitivity: High, medium, low
• Alarm Mode: Sound and light
• Flashlight: White LED lighting
• Auto Shutdown: Yes
• Low Battery Indicator: Yes

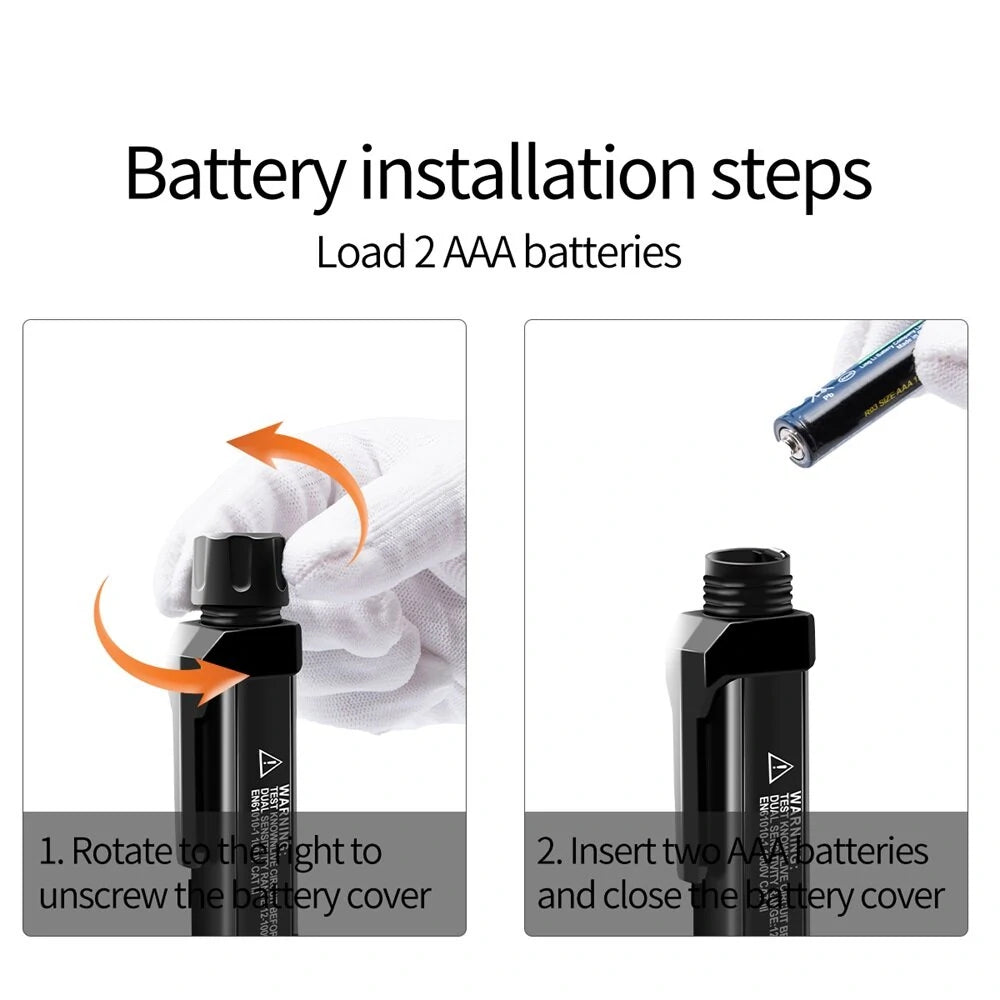

• Power Supply: 2 x 1.5V AAA batteries (not included)
• Working Temperature: 0~40°C
• Storage Temperature: -10~50°C
• Dimensions: 156 x 20 x 20mm
• Weight: Approx. 50g

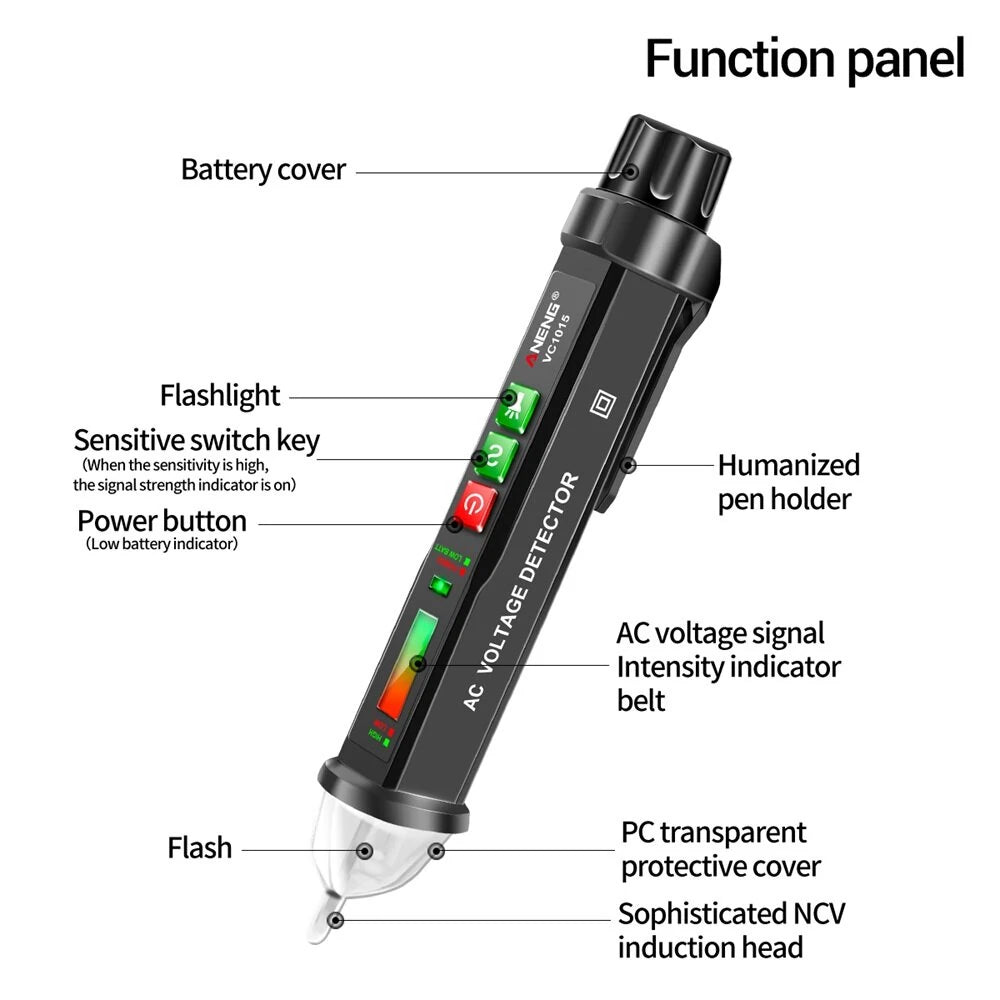

Usage Instructions:

AC Voltage Detection: Insert the probe into an outlet or near a live wire. The signal strength indicator will flash green for low voltage and red for high voltage, accompanied by a buzzer alarm.

On/Off Operation: Hold the power button for two seconds to turn on/off the device. In standby, a breathing indicator will show if no AC signal is detected.

Sensitivity Switch: Default is low (48-1000V). Press the "S" button to toggle high sensitivity (12-1000V).

Flashlight Control: Press the flashlight button to toggle on/off.

Automatic Power Off: The device powers off automatically when inactive or out of signal range.

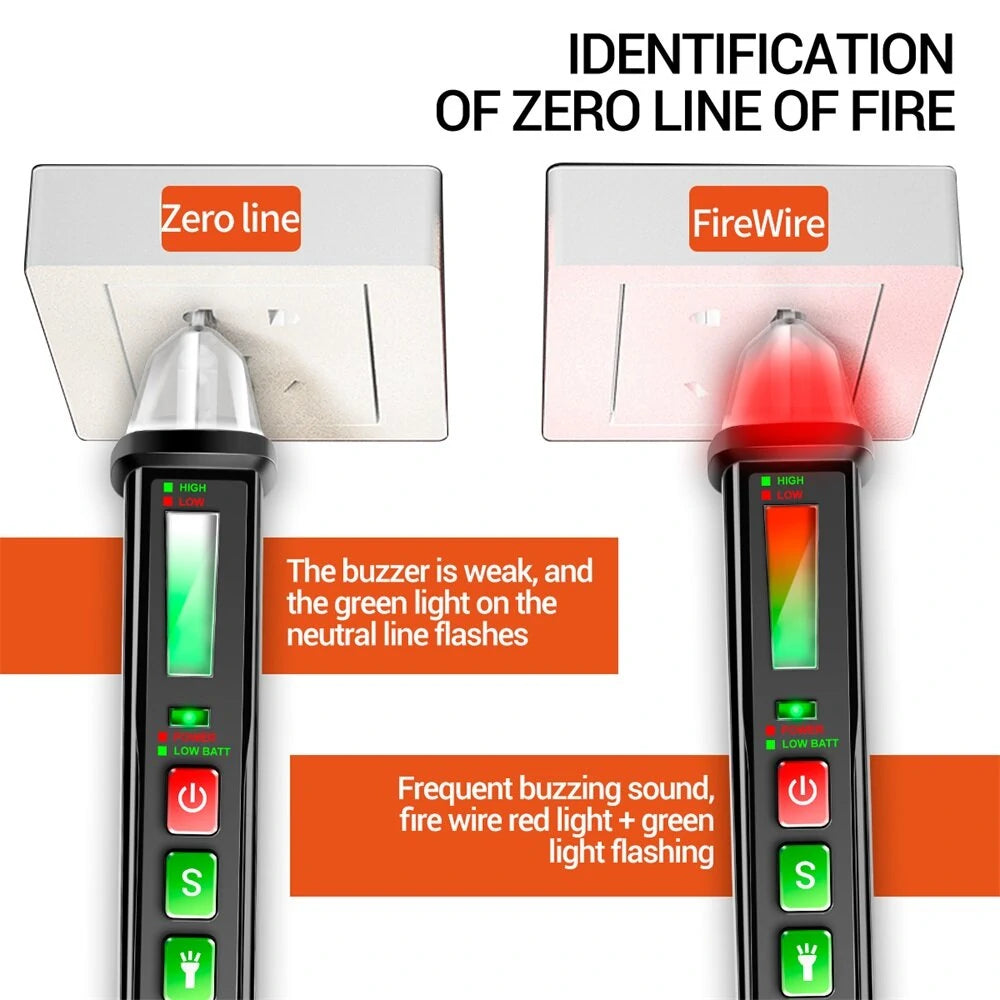

Neutral/Fire Line Judgment: Differentiate live and neutral wires using the probe; a strong signal indicates the live wire.

Battery Indicator: A steady red light alerts when battery replacement is needed.

Package Includes:

• 1 x Non-contact AC Voltage Tester (batteries not included)
• 1 x English User Manual
