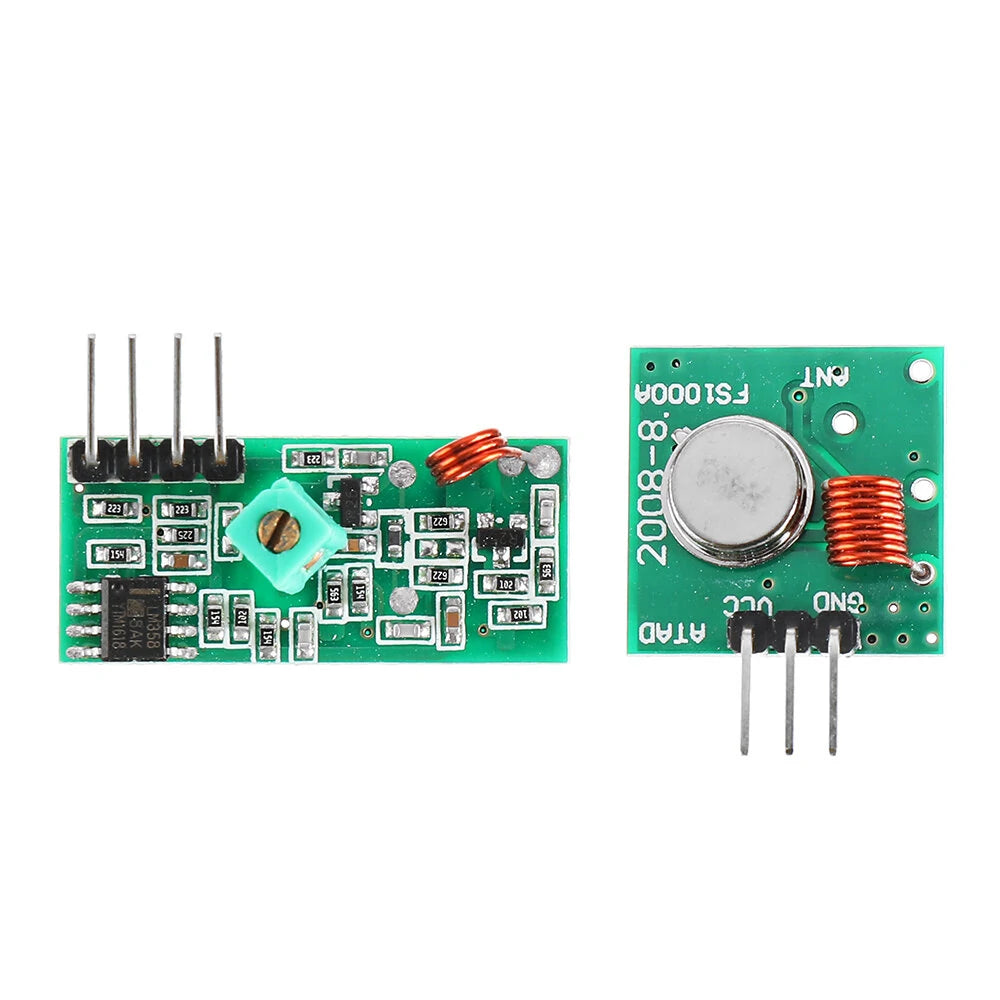

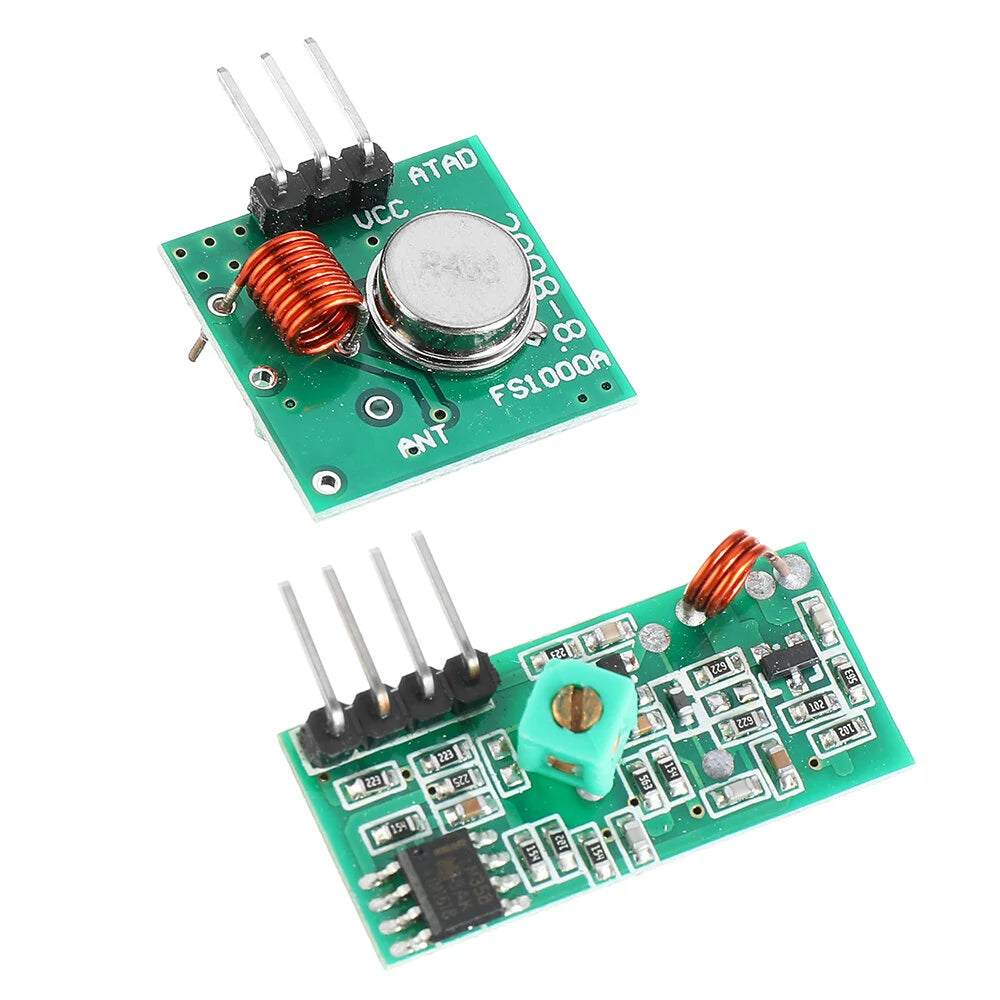

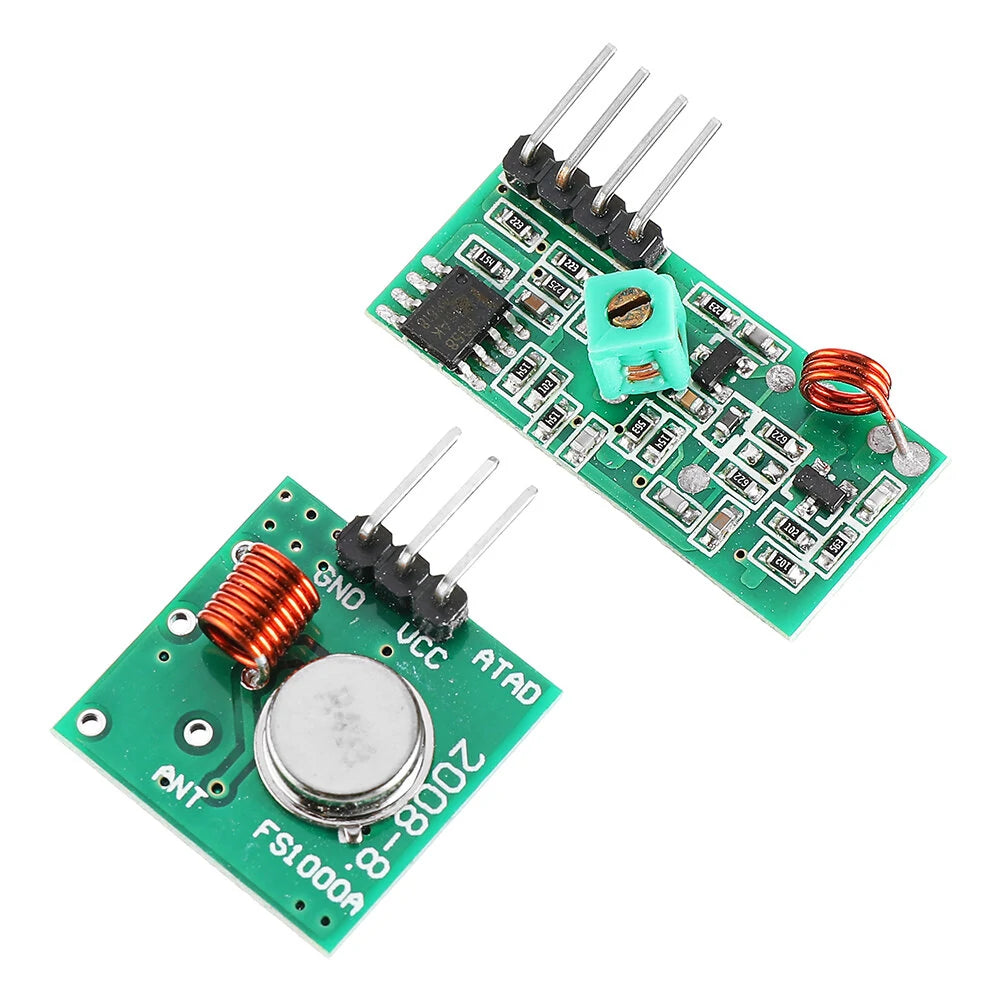

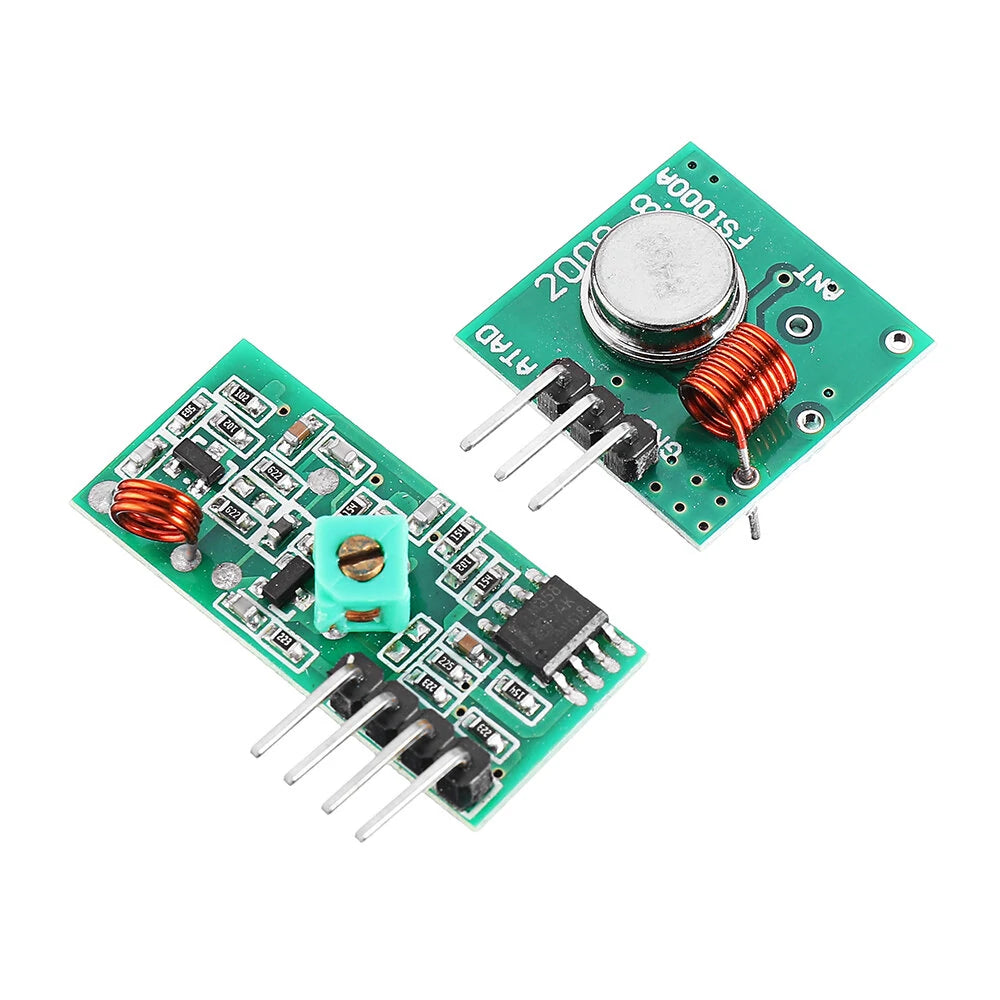

433Mhz RF Transmitter with Receiver Kit

Description

Introducing our 433Mhz RF Transmitter and Receiver Kit, designed for ARM MCU wireless applications. This versatile kit is suitable for a wide range of applications including remote controlled switches, home security systems, automotive anti-theft products, electric doors, windows, and much more.

Applications

• Remote control switches
• Receiver modules
• Motorcycles and automobiles
• Home security products
• Electric and shutter doors
• Remote control sockets and LEDs
• Garage door systems
• Alarm systems
• Remote control for MP3 players and audio equipment

Specifications

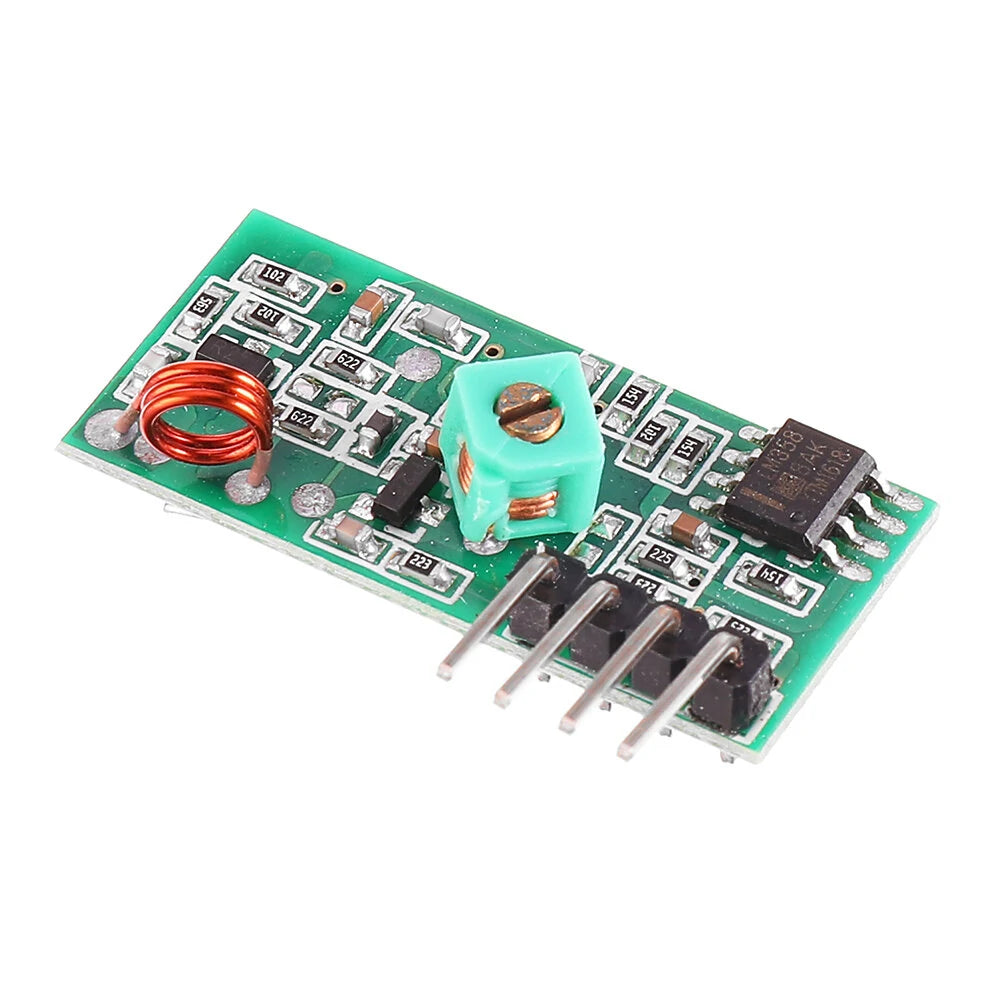

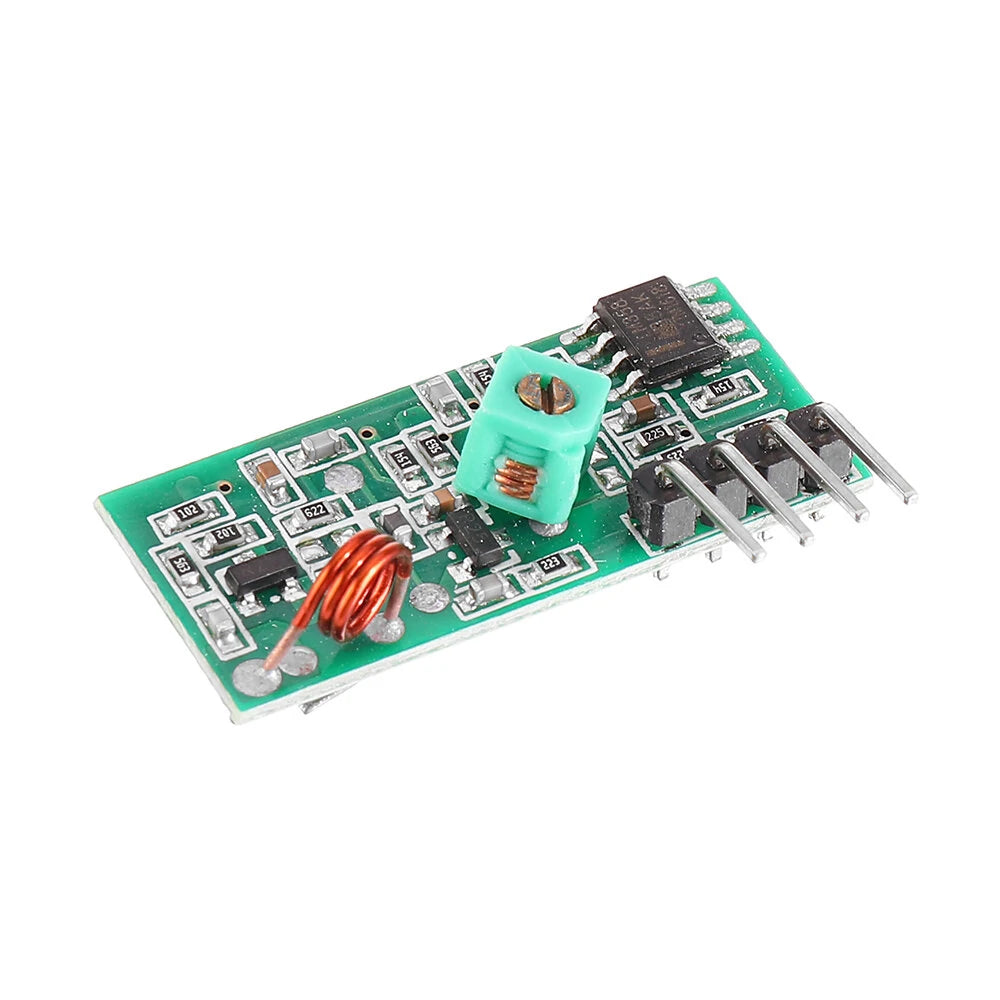

Receiver Module

• Product Model: XD-RF-5V
• Operating Voltage: DC 5V
• Quiescent Current: 4mA
• Receiving Frequency: 433.92 MHz
• Receiver Sensitivity: -105 dB
• Dimensions: 30 x 14 x 7 mm

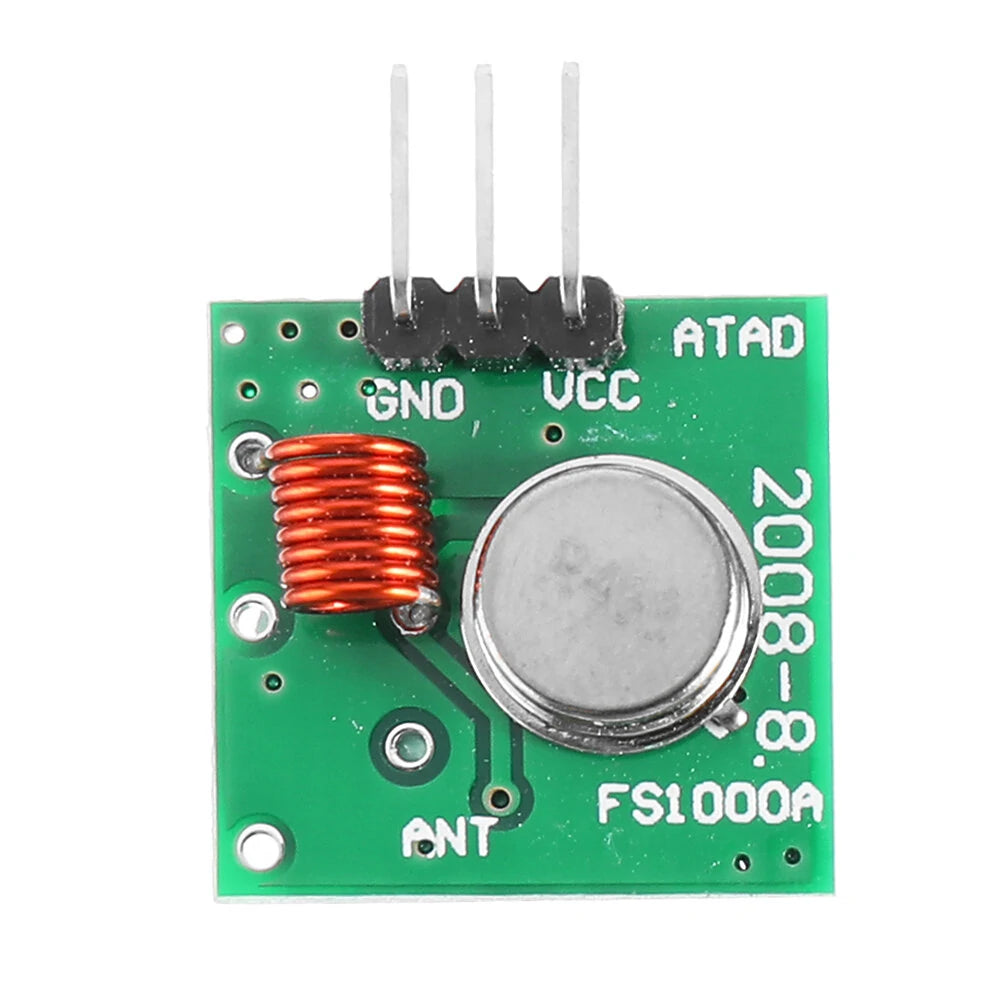

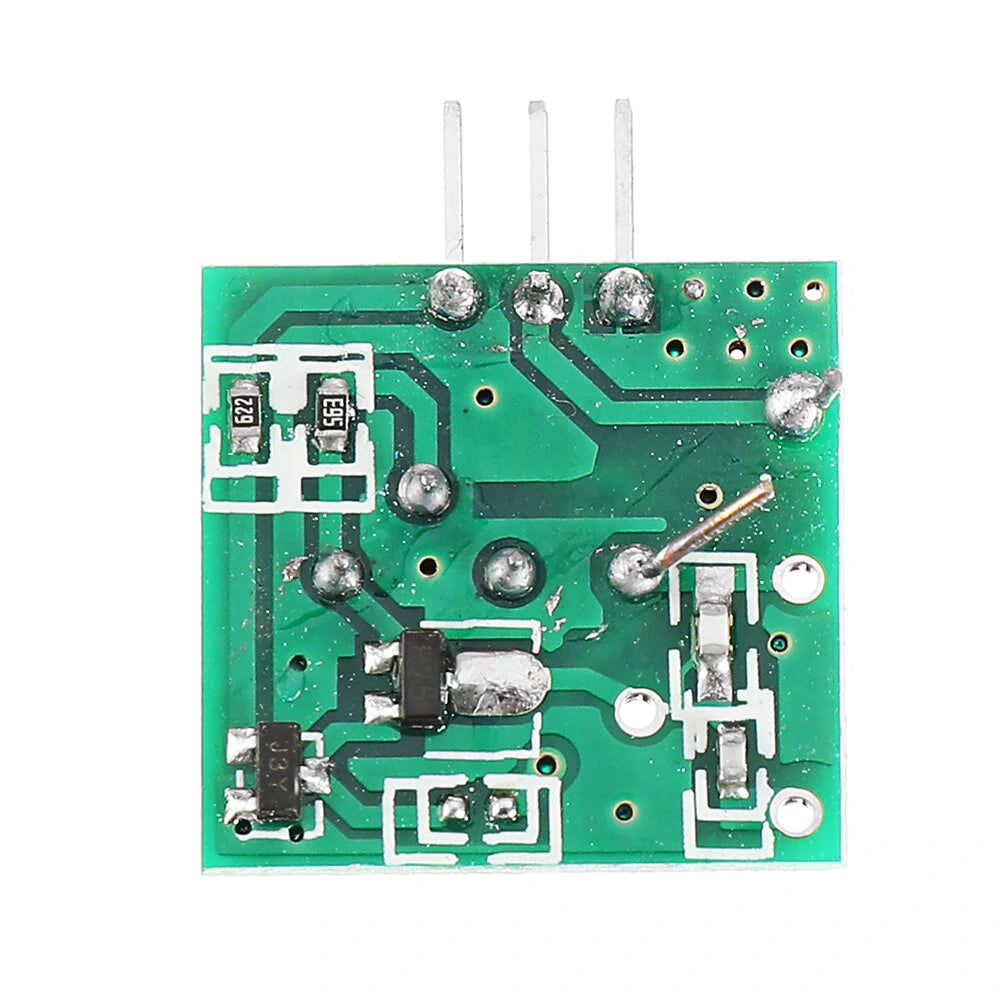

Transmitter

• Launch Distance: 20-200 meters (varies with voltage)
• Operating Voltage: 3.5-12V
• Dimensions: 19 x 19 mm
• Operating Mode: AM
• Transfer Rate: 4 KB/S
• Transmitting Power: 10 mW
• Transmitting Frequency: 433 MHz
• Pinout: DATA; VCC; GND

Package Includes

• 1 x Receiver Module
• 1 x Transmitter
