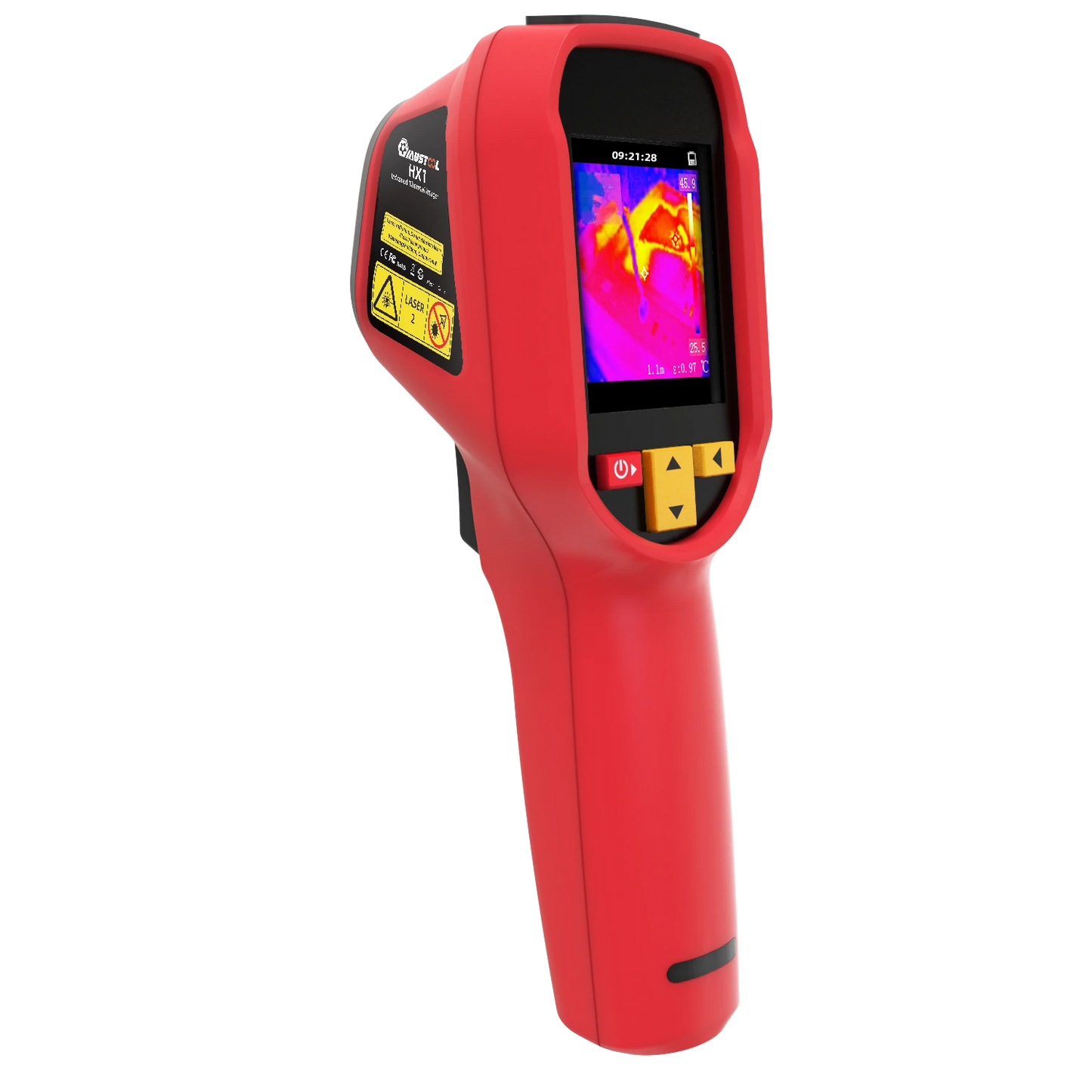

HX1 Infrared Thermal Imager, 240x240 Pixels, 2.4 LCD, IP54, -20°C to 550°C, 25Hz, 15 Color Modes, USB Charging

Note: This product is shipped with the latest version and does not require a firmware upgrade.

Features:

• High-Resolution Thermal Imaging: Experience detailed and clear thermal images with a resolution of 240x240 pixels. Benefit from built-in memory for extensive image storage. Ideal for various professional applications, this high resolution ensures precise temperature measurement and thorough thermal analysis.
• Versatile Temperature Measurement Range: Measure temperatures from -20°C to 550°C, making this thermal imager suitable for diverse environments and applications. With a high accuracy of 0.1°C resolution, it offers precise readings for both industrial and research settings.
• Advanced Display and Focus Options: The 2.4-inch TFT LCD screen with 240x240 display resolution provides clear thermal image assessment. Multiple color palettes like White Hot, Black Hot, Rainbow, and Iron Red cater to different measurement needs. Auto-focusing enhances usability, enabling quick and precise temperature diagnostics.
• Robust and Reliable Design: Built to meet demanding standards, this thermal imager complies with industry protocols like GB/T 2423.5-2019 for shock and vibration, and GB/T2423.10-2008 for electromagnetic compatibility (EMC). Rated IP54, it withstands harsh conditions, making it perfect for challenging environments.
• Long Battery Life and Quick Charging: Equipped with a rechargeable lithium battery (3.7V/2500mAh), the device operates for over 7 hours at 25°C, facilitating extended inspections without interruption. The battery charges fully in under 3 hours at 25°C. A Type-C USB interface provides versatile and easy charging options.
• Versatile Applications & Multi-Point Temperature Analysis: Suitable for fields like healthcare, firefighting, and archaeology, this device supports pinpoint temperature analysis with N points simultaneously. Adjustable emissivity (0.01-1.00) and single-light fusion mode provide accurate readings and detailed imagery for rapid fault detection and problem-solving.

Specifications:

• Sensor Type: Vanadium Oxide Microcalorimeter

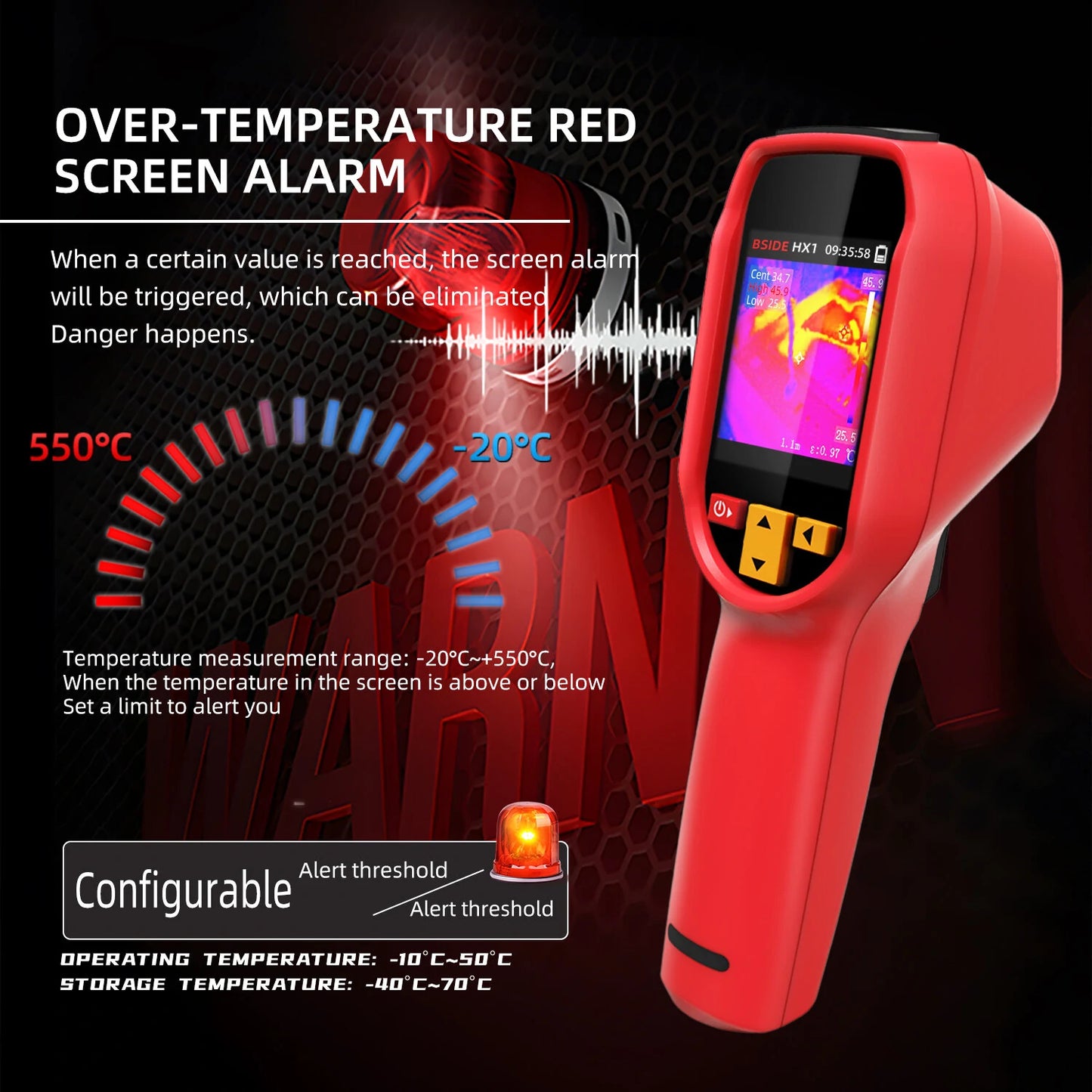

• Screen Font Color Alarm: Yes
• Response Bands: 8~14µm (Micrometers)
• Thermal Image Resolution: 240x240 Pixels

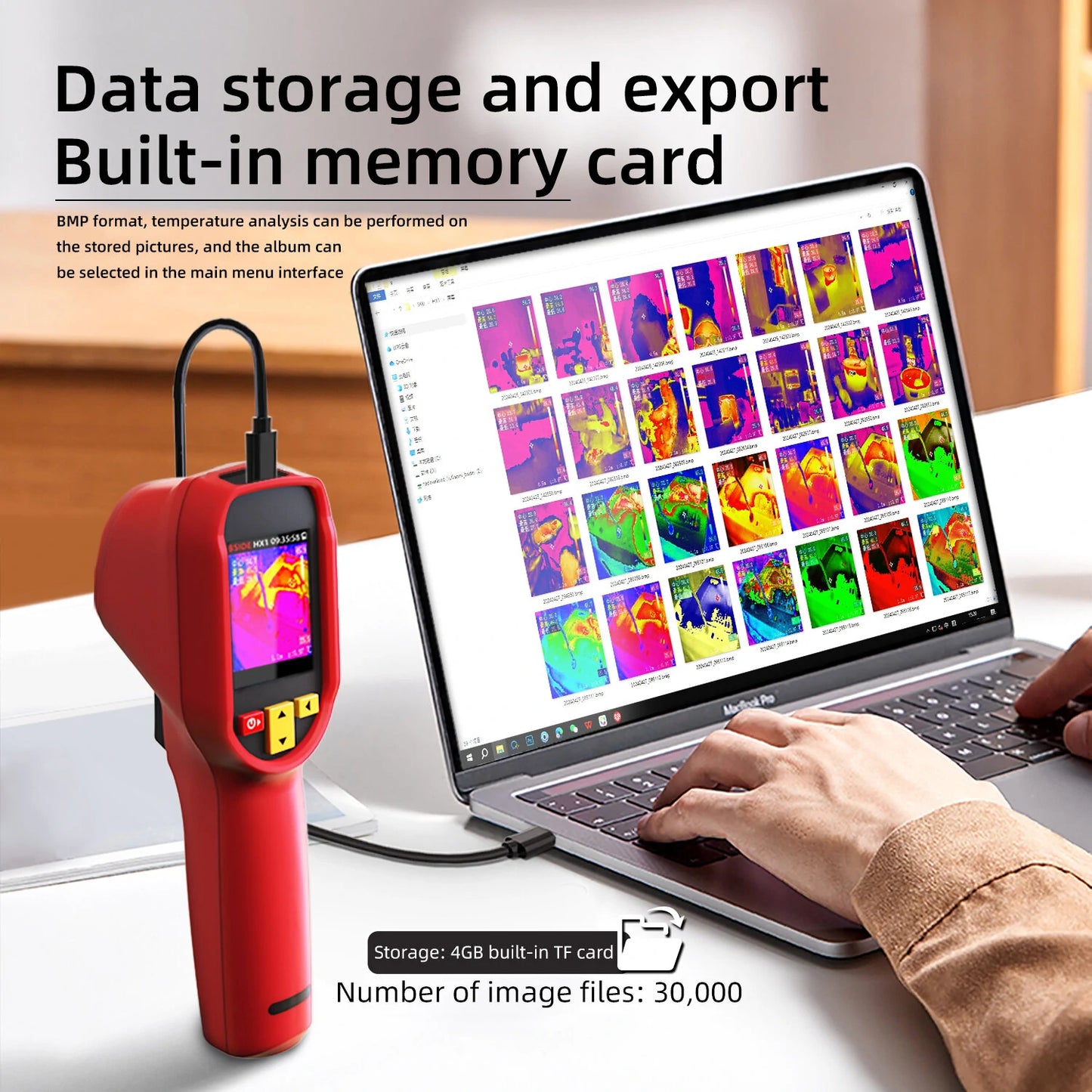

• Built-in Memory Card: Yes, can store 30,000 images
• Noise Equivalent Temperature Difference: ≤60mK at 30°C

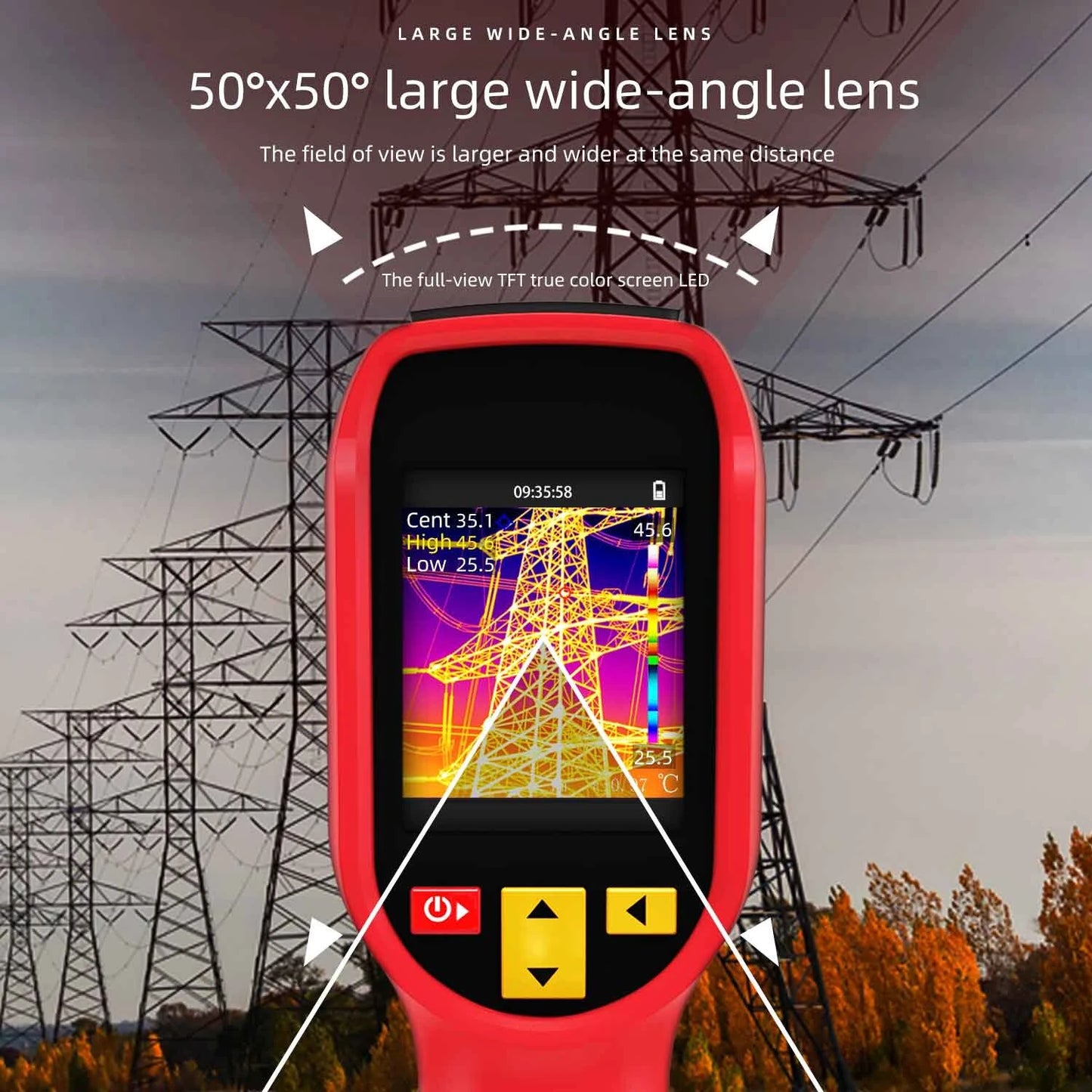

• Field of View (FOV): 50.0°(H) × 50.0°(V) / 72.1°(D)
• Spatial Resolution: 8.89 mrad
• Frame Rate: 25Hz
• Focal Length of the Imaging Lens: 1.35 mm
• Temperature Measurement Range: -20°C ~ 550°C
• Temperature Measurement Resolution: 0.1°C
• Temperature Measurement Focal Length: 0.3-3.0M
• Temperature Measurement Display: Center Point, Max/Min, and Adjustable Emissivity
• Display Screen: 2.4 inches TFT LCD, 240x240 Display Resolution
• Protection Level: IP54
• Battery Type: Rechargeable Lithium Battery (3.7V/2500mAh)
• Battery Working Hours: >7 hours @ 25°C
• Charging Time: Under 3 hours at 25°C
• Charging Voltage/Current: 5V/2A
• Boot Speed: ~3 seconds
• Automatic Shutdown: Configurable (default off)
• Color Palettes: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1 & 2, Bark Brown, Color 1 & 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue

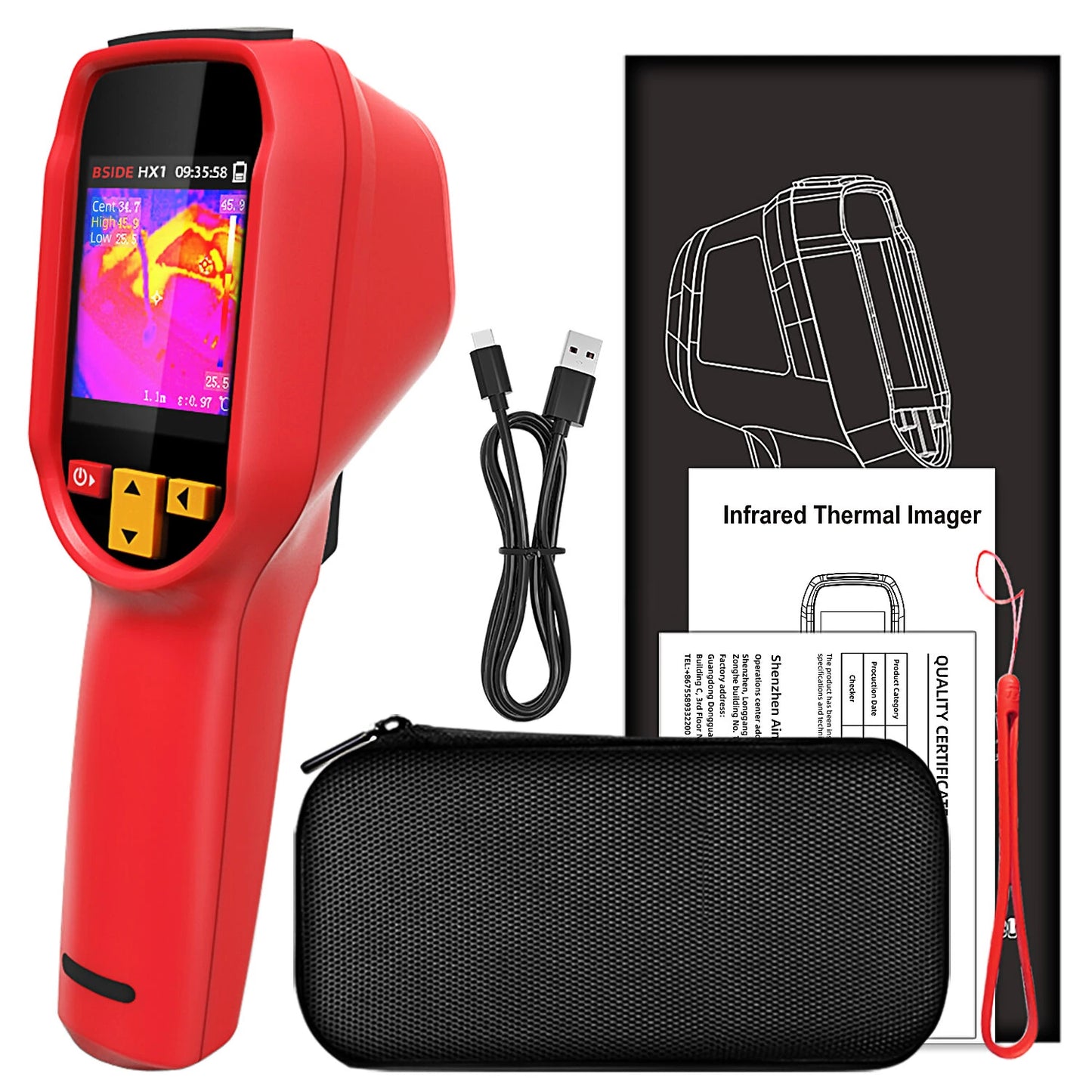

Package Includes:

• 1 x MUSTOOL Thermal Imager
• 1 x Type-C USB Cable
• 1 x Rechargeable Lithium Battery (3.7V/2500mAh)
• 1 x User Manual
• 1 x Warranty Card
