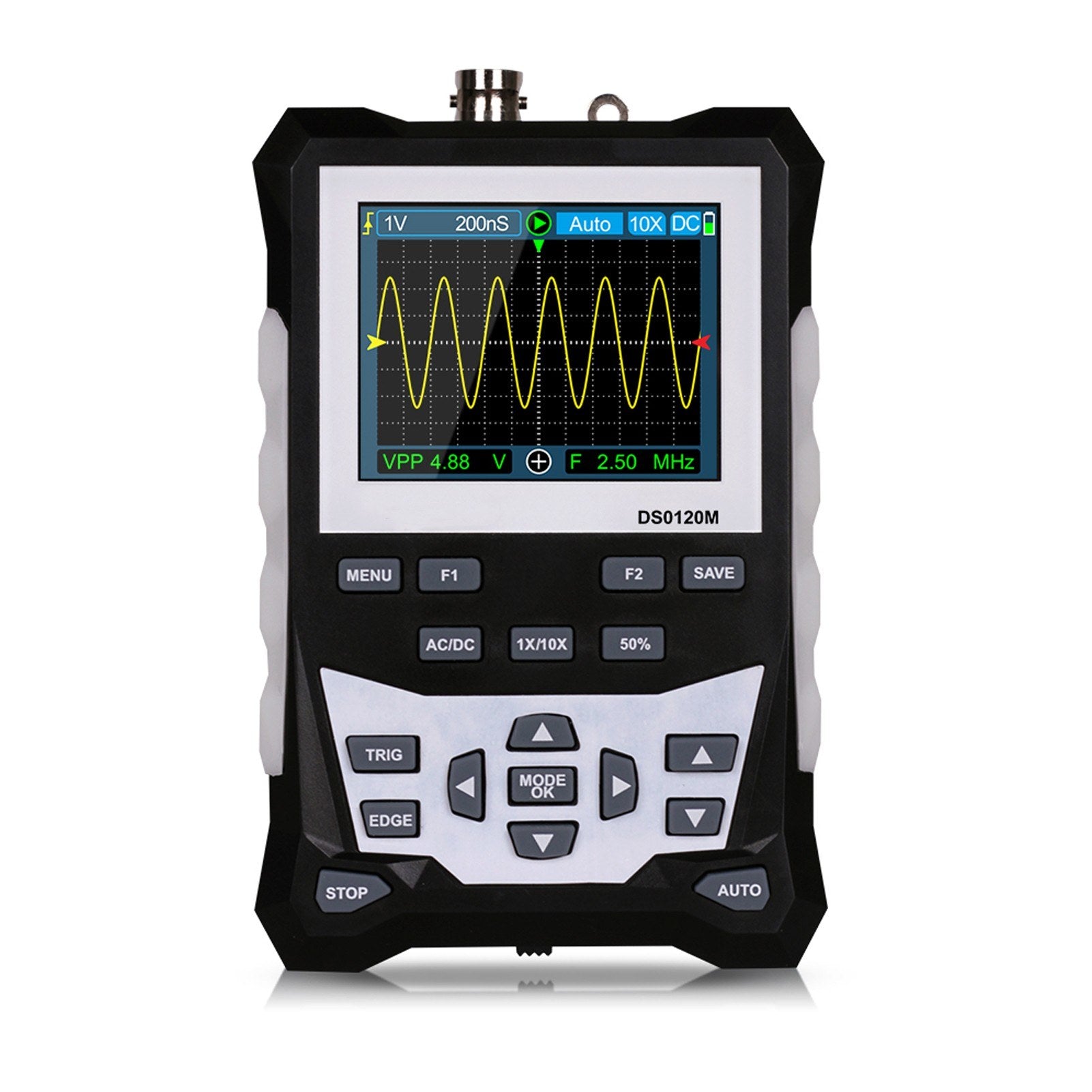

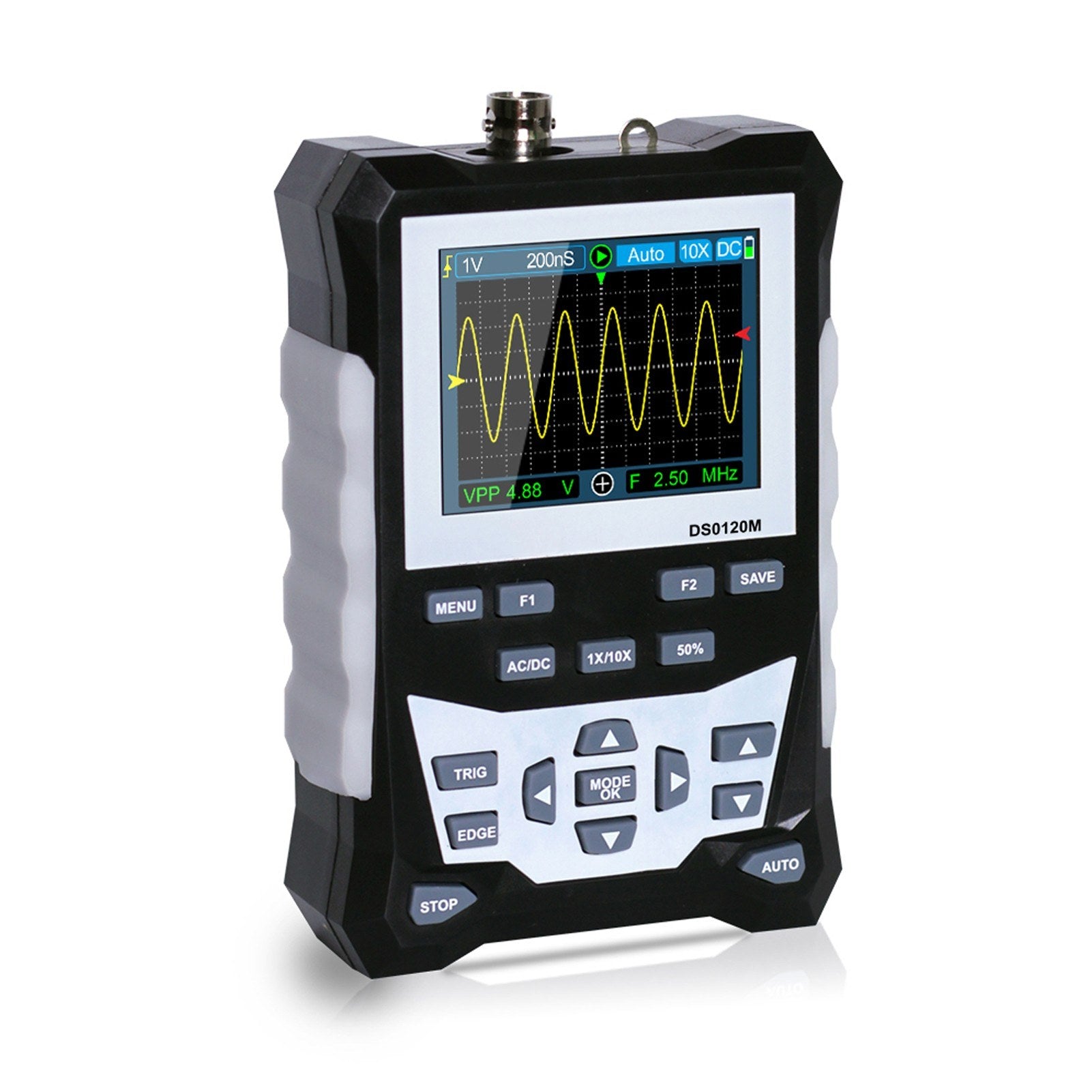

KKmoon DS0120M 120MHz 2.4 TFT Color Screen Digital Oscilloscope, 320x240 Resolution, 500MSa/s Sampling, Backlit Waveform Storage

Introducing the KKmoon Professional Oscilloscope, designed for precision and portability. Experience clear data visualization with a 320 x 240 LCD screen and an adjustable backlight to suit any condition. Compact in size, it's easy to carry and use wherever you go.

Key Features:

• Clear Display: 320 x 240 LCD screen for superior clarity.
• High Performance: 120MHz analog bandwidth and 500MS/s sampling rate.

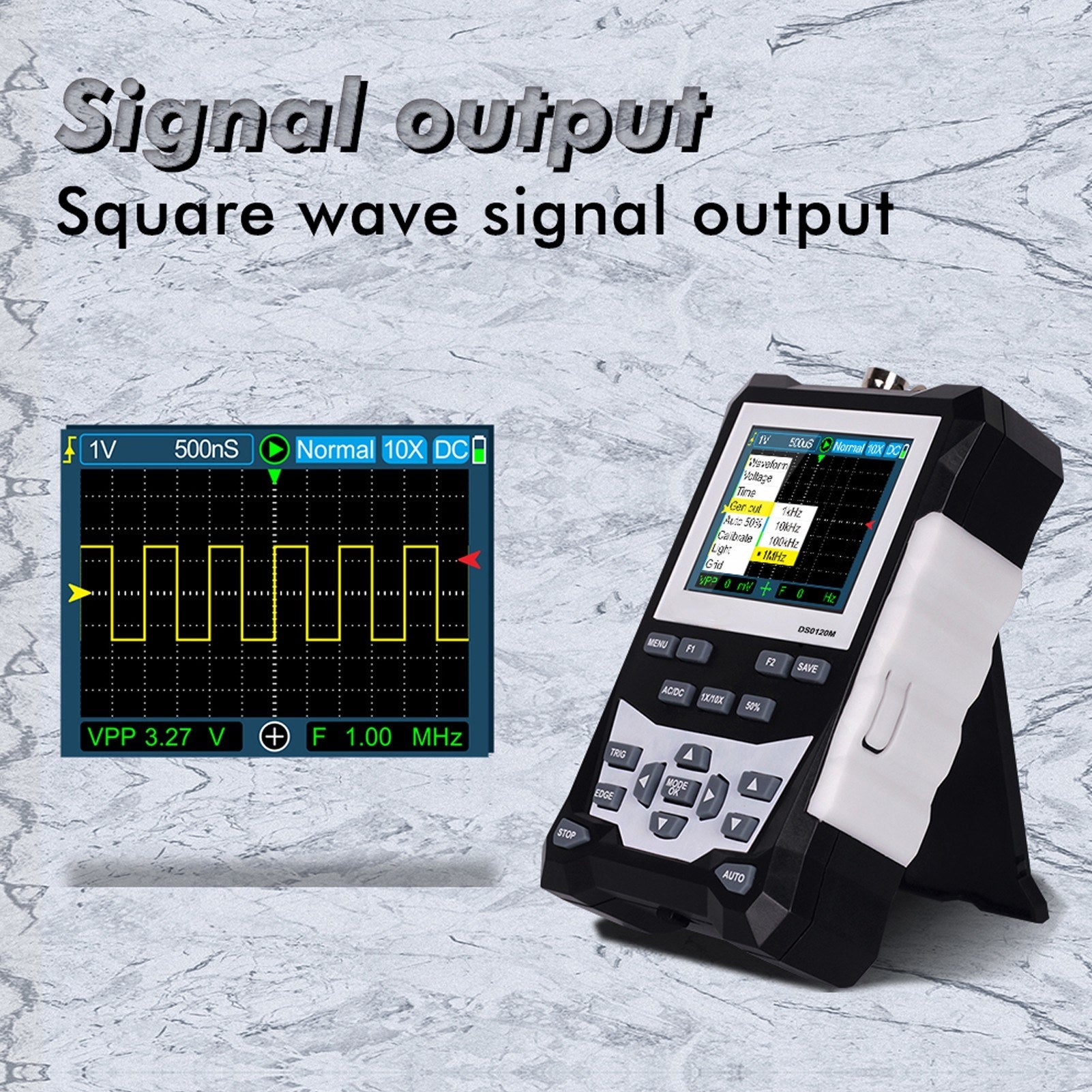

• Versatile Signal Output: Offers 4 speeds of square wave signal output: 1kHz, 10kHz, 100kHz, and 1MHz.

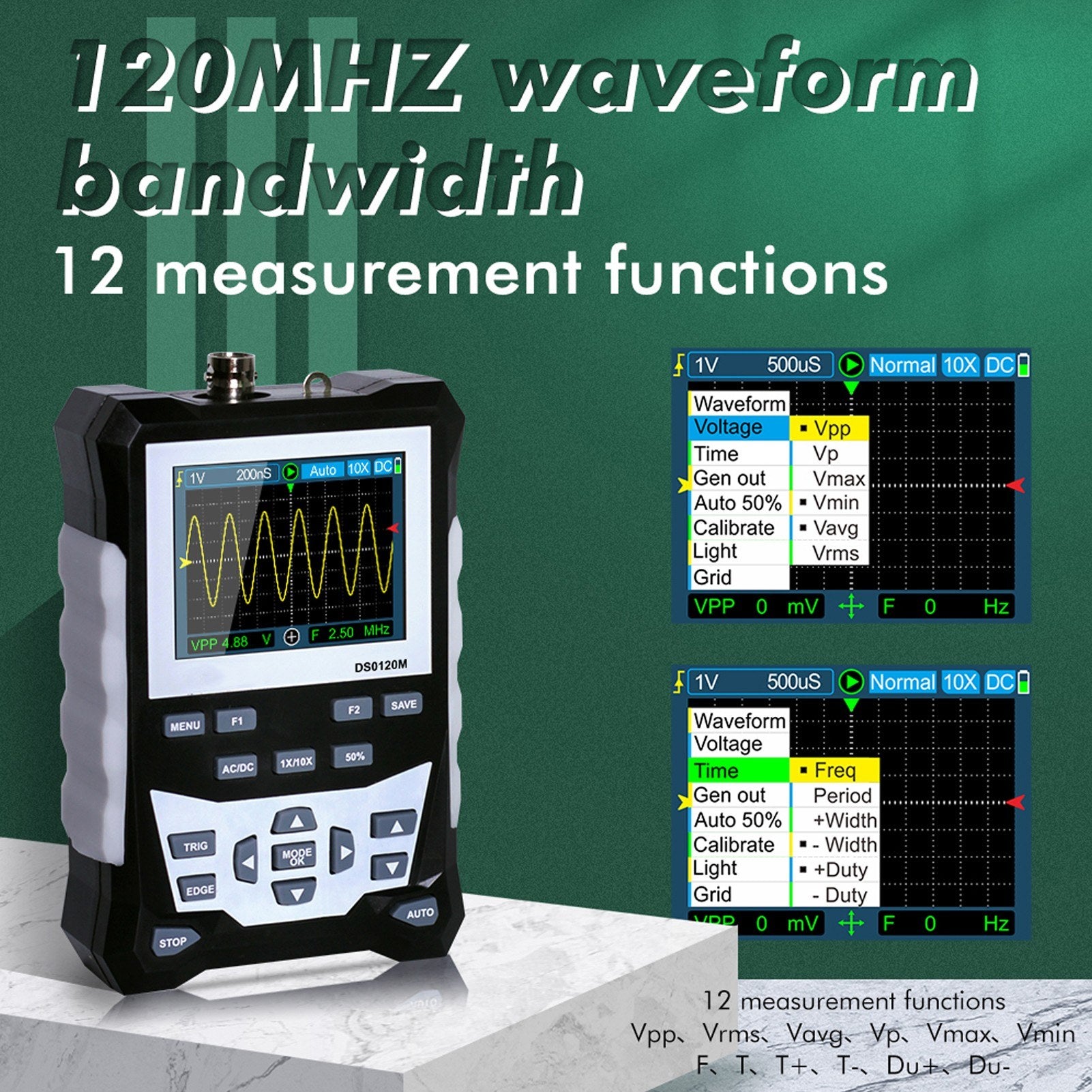

• Comprehensive Measurements: Capable of measuring 12 parameters, including Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, and Du-.

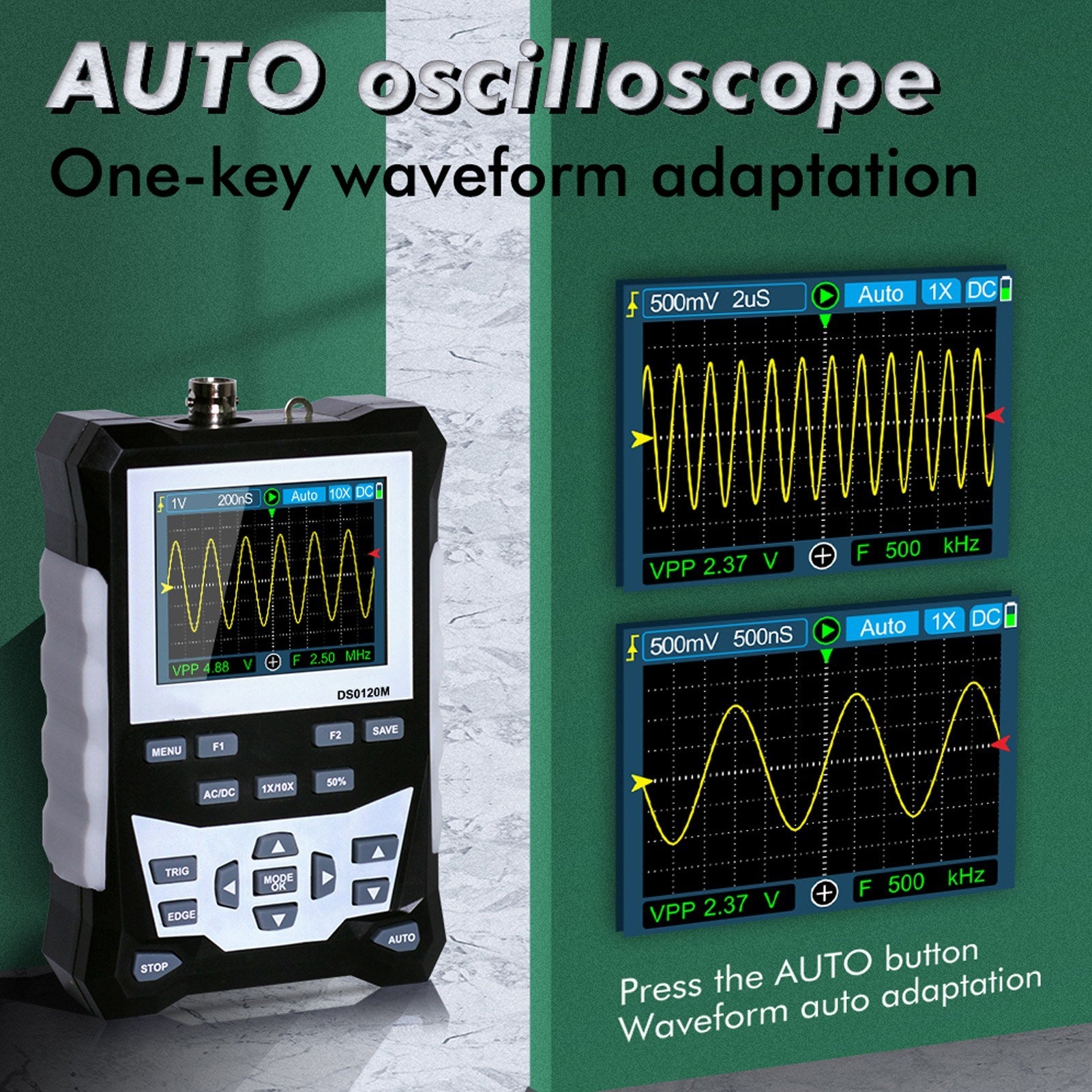

• Extensive Functionality: Supports one-key operation and three scan modes: auto, normal, and single. Can store up to 2500 waveforms and offers thumbnail browsing.
• Customizable Settings: Allows individual adjustment of waveform parameters such as time base, amplitude, and trigger slope.

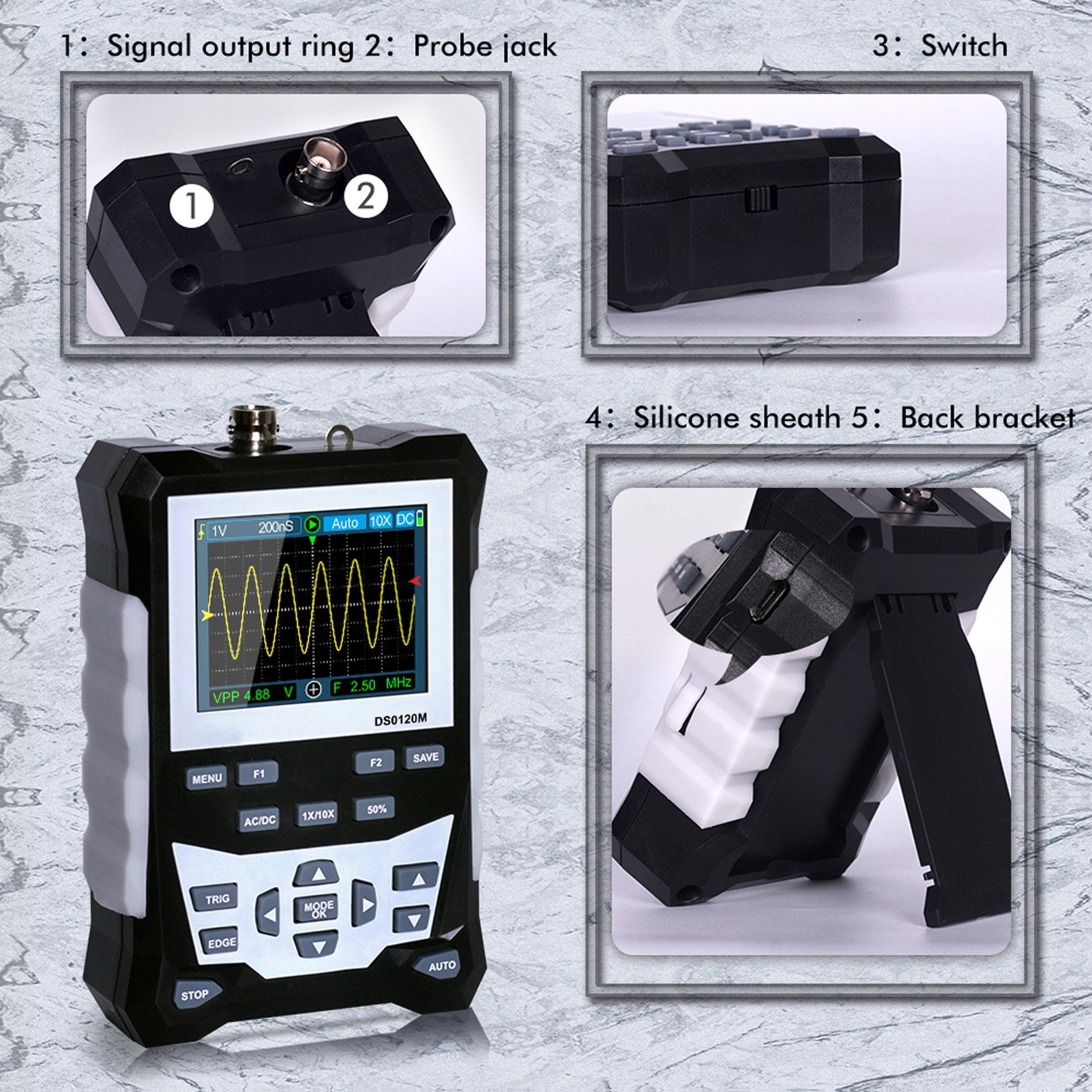

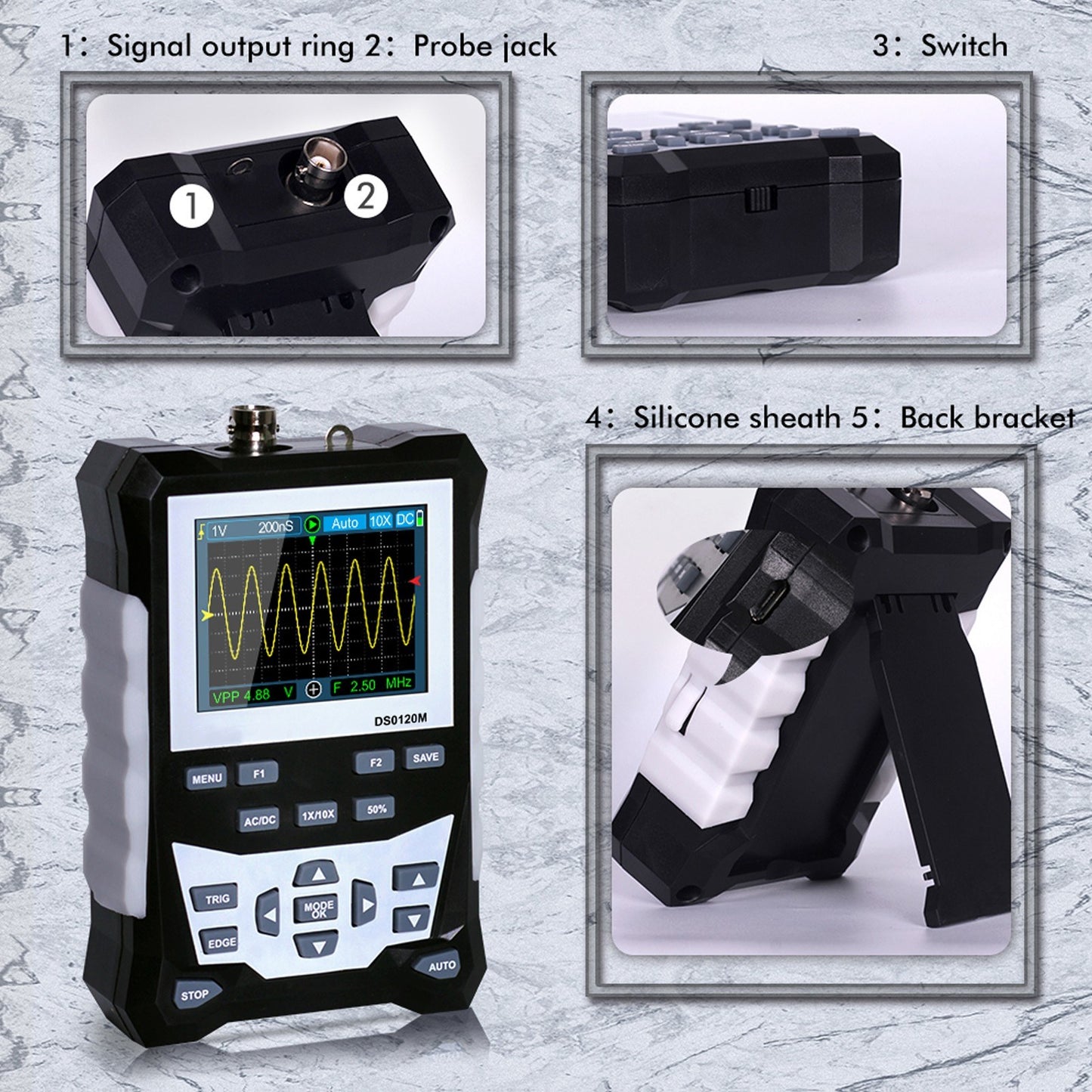

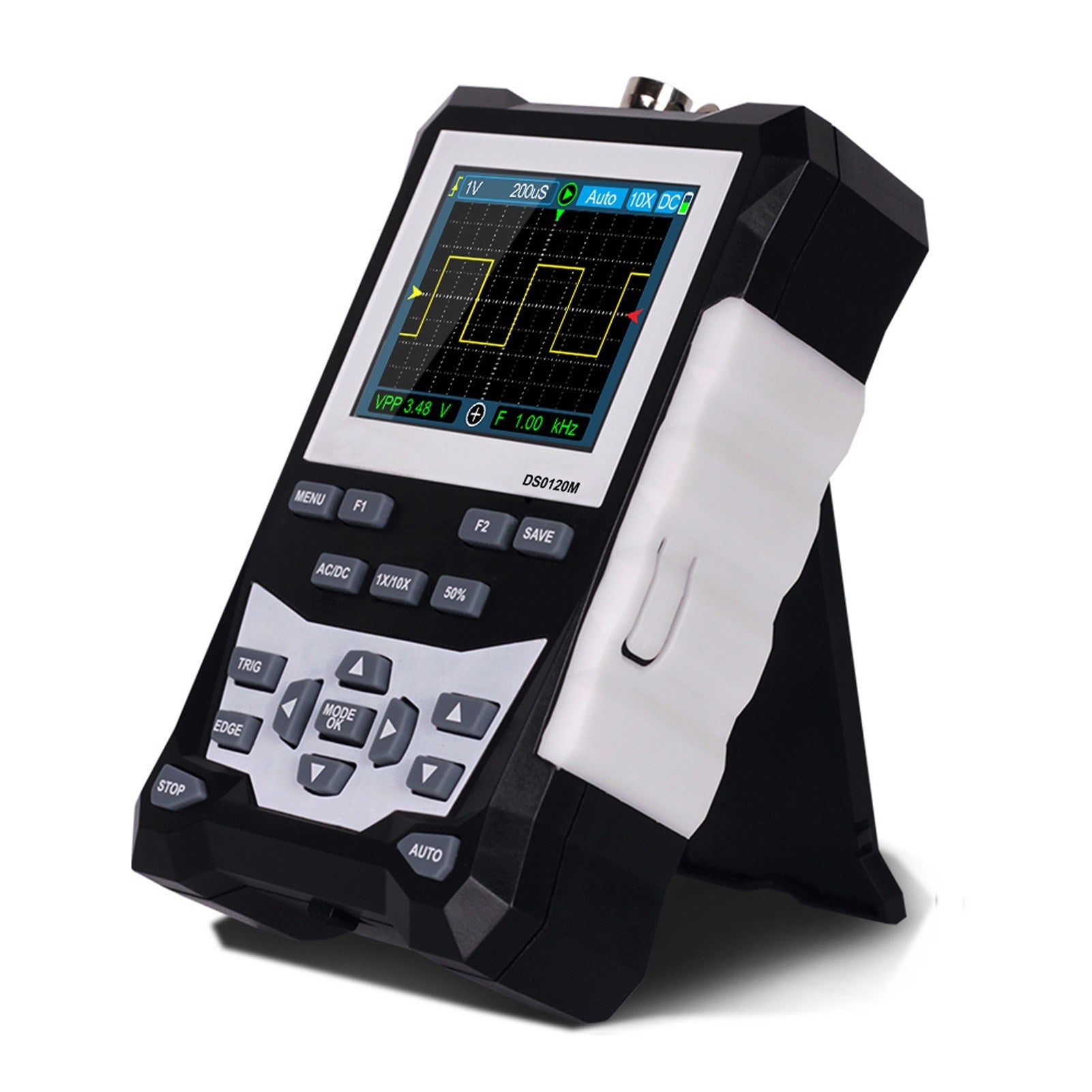

• Durable Design: Equipped with silicone protective covers for anti-slip, anti-fall, and shockproof protection, ensuring a comfortable grip.
• Portable: Lightweight and compact for easy transportation.

Specifications:

• Material: ABS
• Display: 320 x 240 LCD screen
• Impedance:
  • *1: 1MΩ
  • *10: 10MΩ
• Storage: Can hold 2500 DSO waveforms
• Operating Conditions: 0°C ~ +40°C, < 75%RH
• Storage Conditions: -10°C ~ +60°C, < 90%RH
• Vertical Resolution: 8 bits
• Vertical Accuracy: ± (5% + 0.2div)
• Voltage Accuracy: 10%
• Frequency Accuracy: 1%
• Trigger Level: ± 3.8div (0.1div per step)
• Trigger Position: ± 6div (0.1div per step)
• Time Base Range: 6ns/div ~ 50s/div
• Scan Mode: Auto, Single, Normal

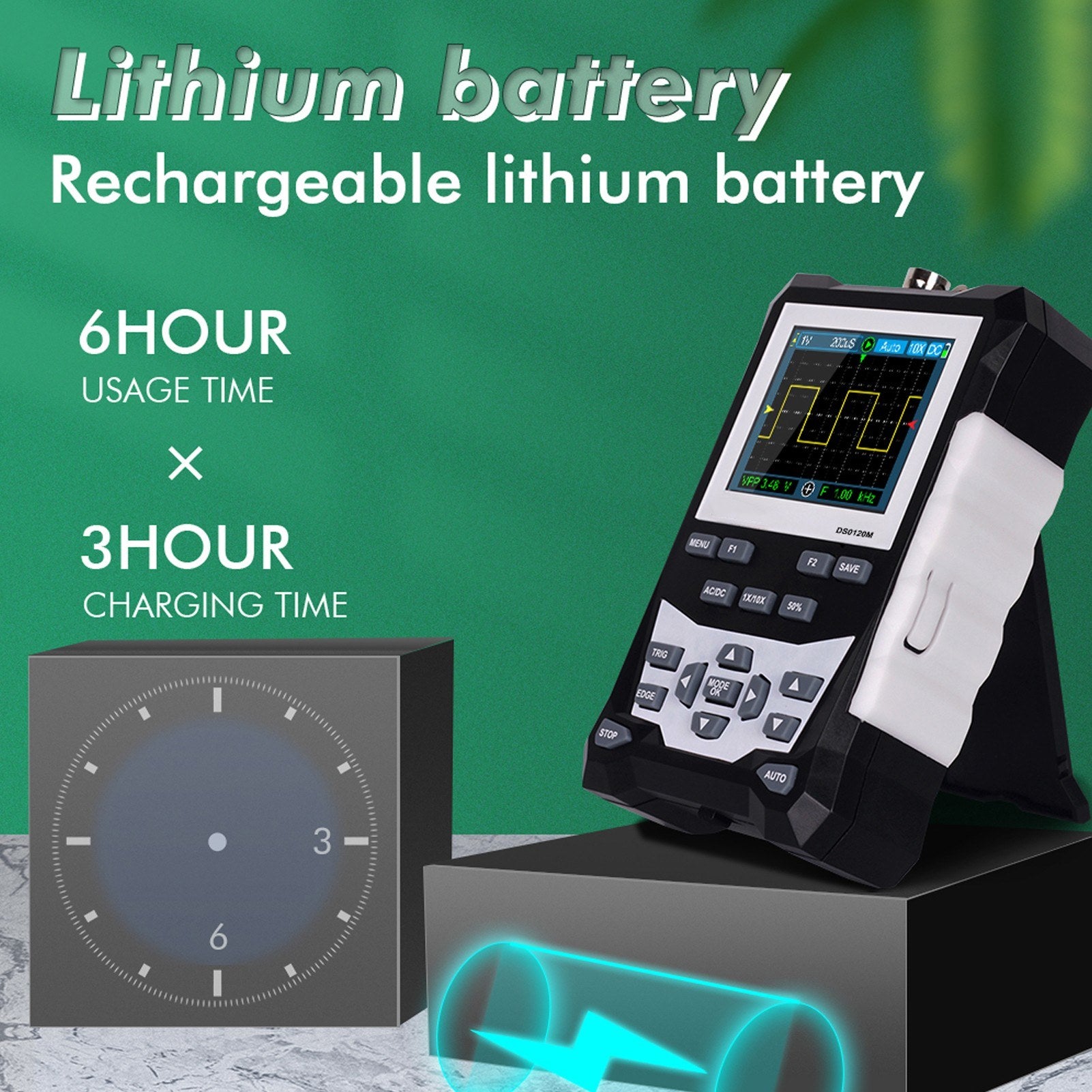

• Battery: 1 x 18650 lithium battery (included)
• Record Length: 12div
• Package Size: 190 x 140 x 45mm / 7.5 x 5.5 x 1.8in
• Package Weight: 390g / 13.8 ounces

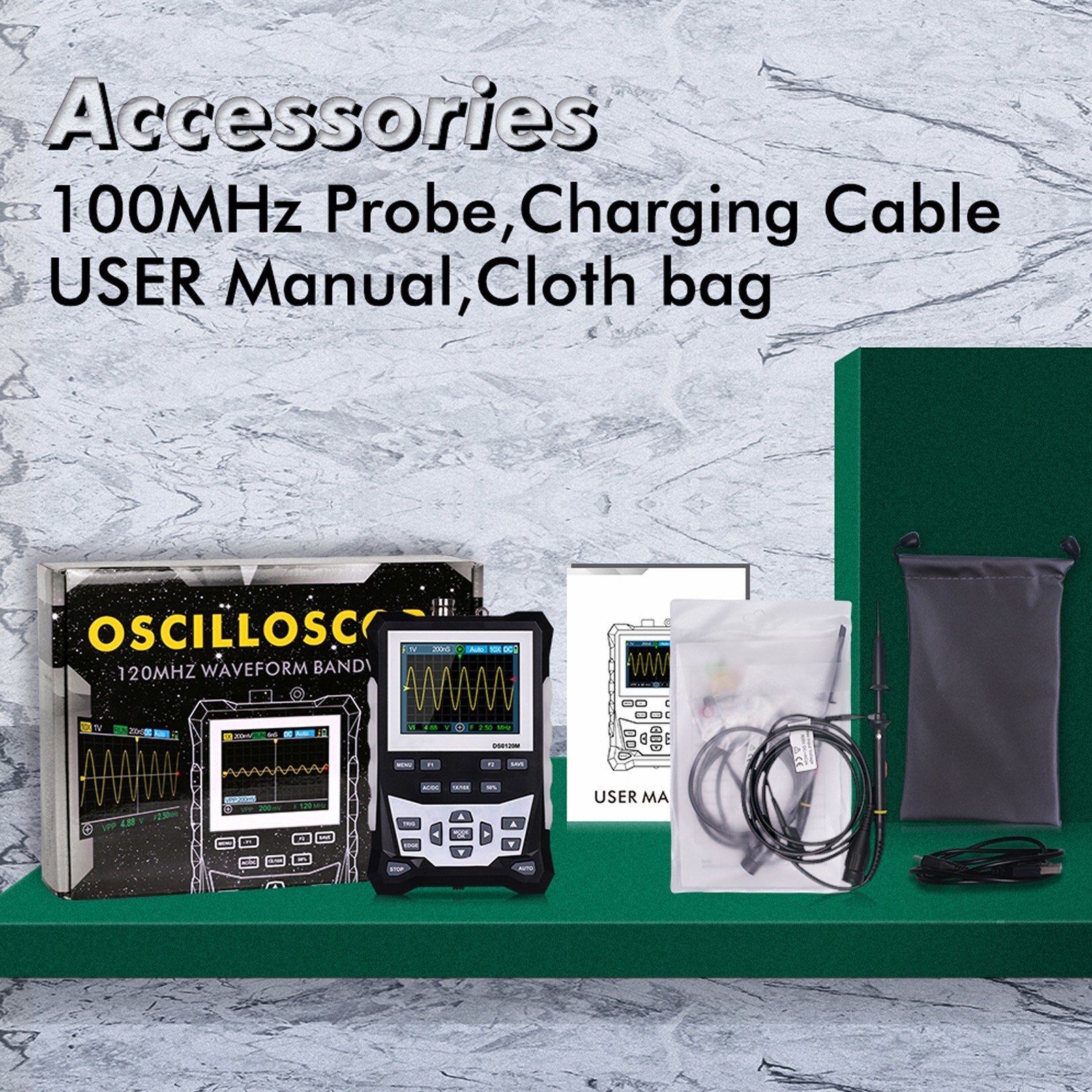

Packing List:

• 1 x Oscilloscope
• 1 x Probe
• 1 x User Manual
• 1 x USB Cable

Don't miss out on the opportunity to enhance your testing capabilities with this all-in-one oscilloscope. Try it today and experience the difference!
