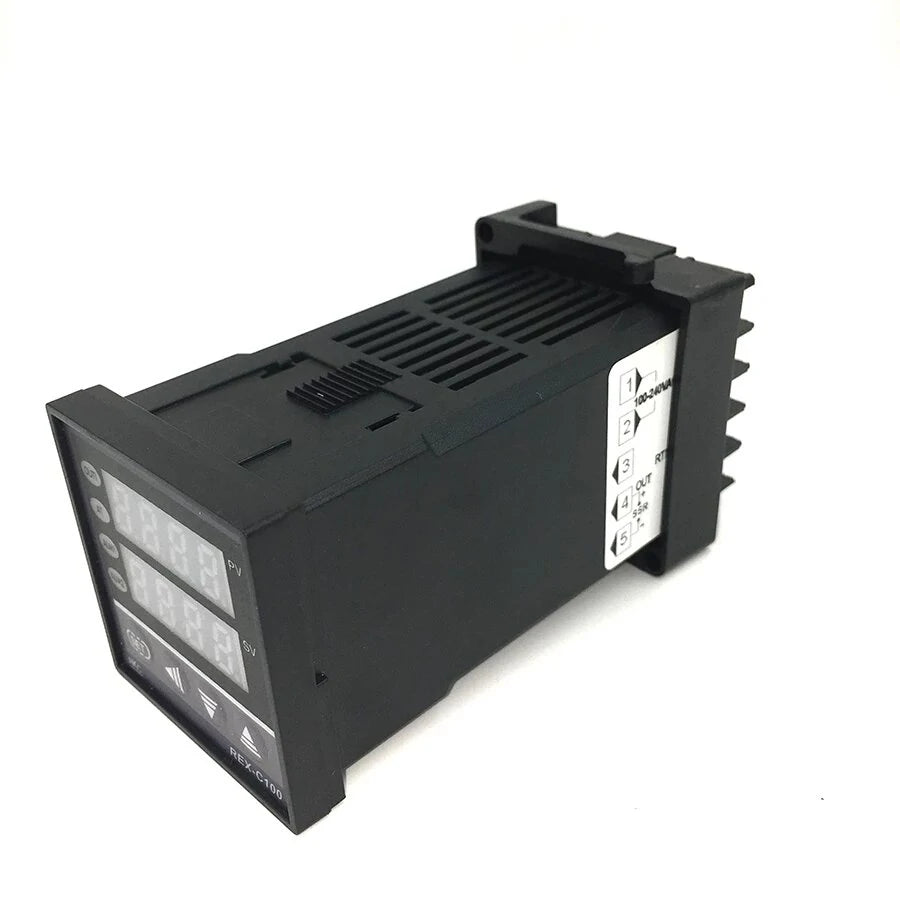

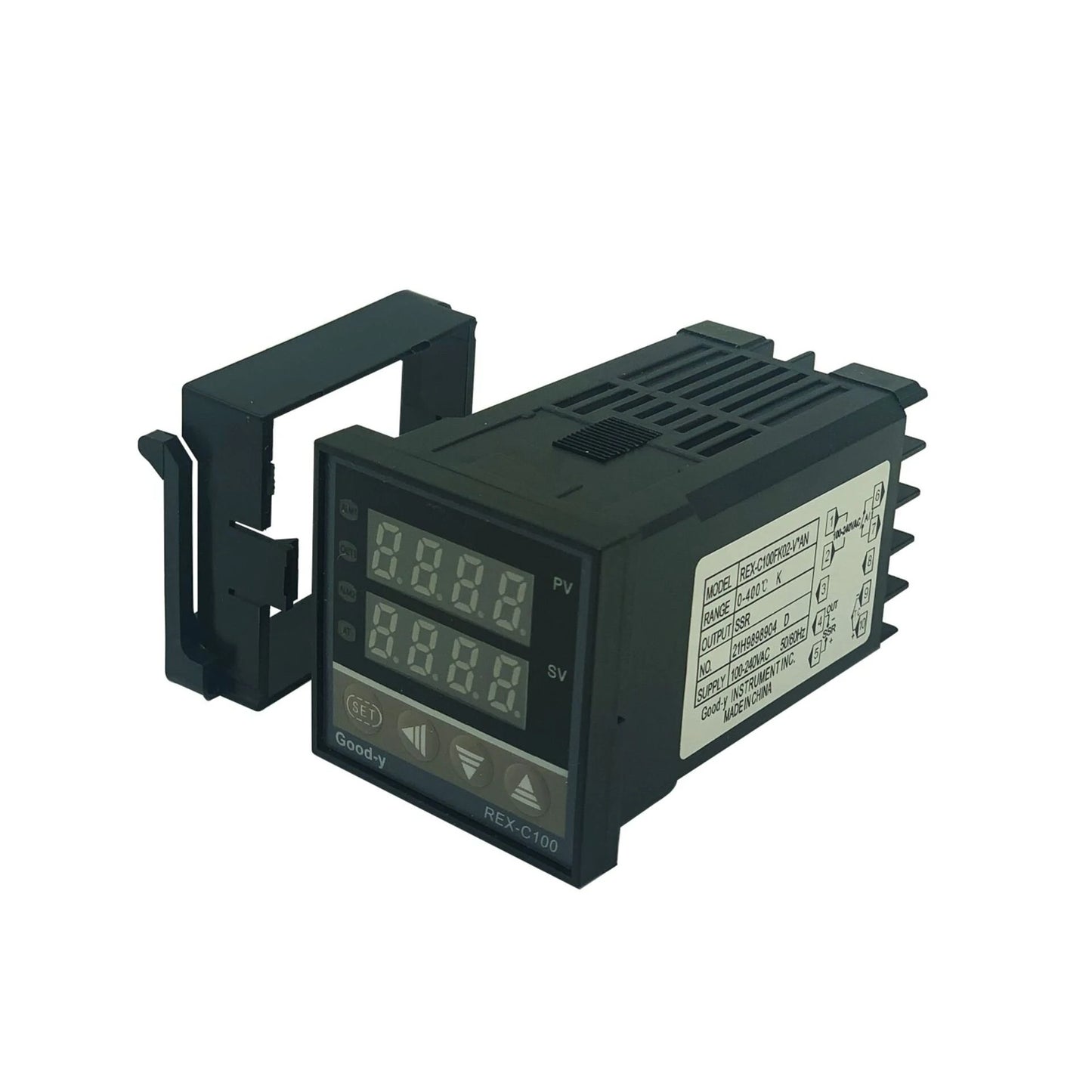

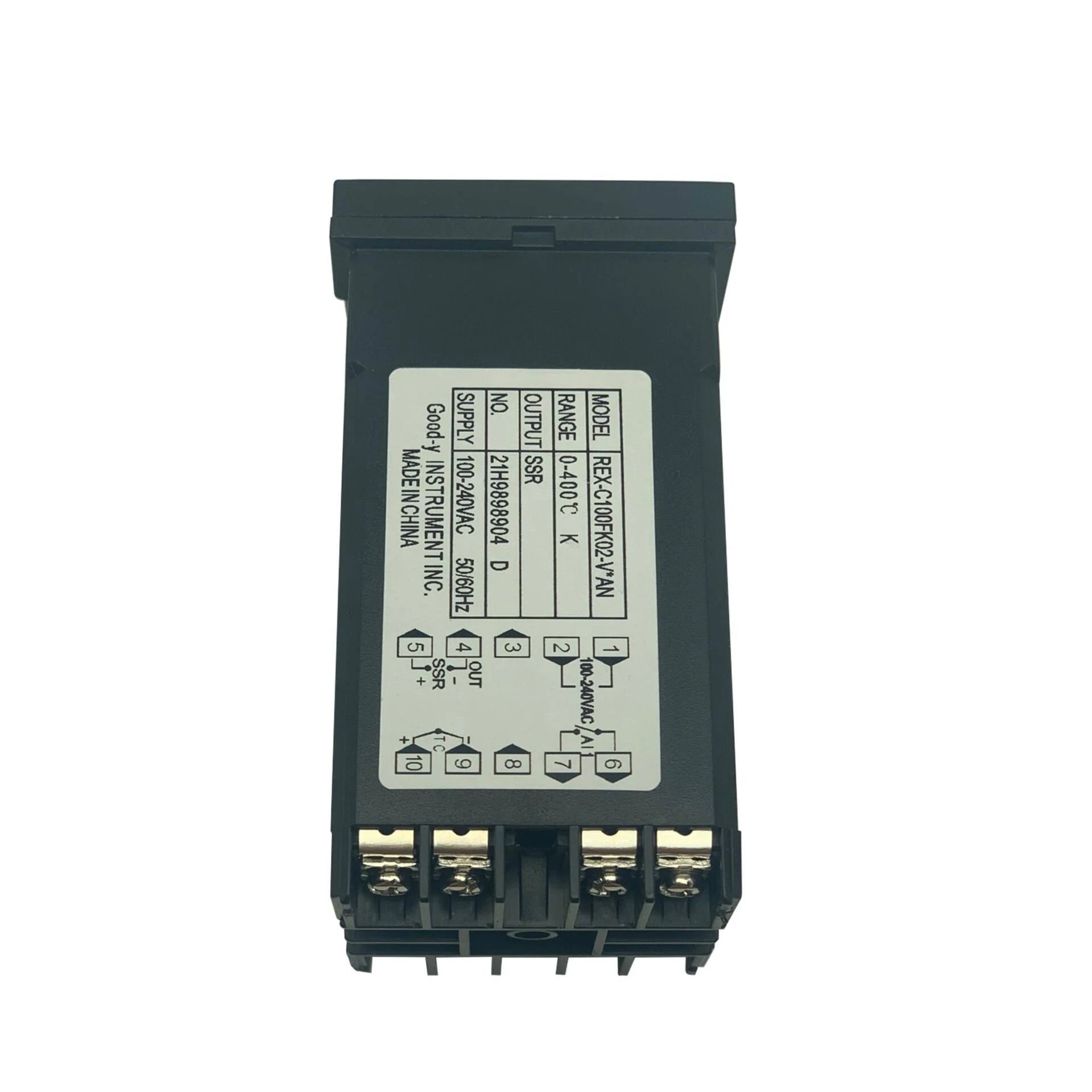

REX-C100 Digital PID Temperature Controller - SSR Output, Max 40A Relay, K Thermocouple Probe, High Quality

Description:
Experience precise temperature control with our 100-240V 40A Digital PID Temperature Controller, featuring an SSR K Thermocouple Sensor.

Features:

• Measuring Accuracy: ±0.5%FS
• Cold-End Compensation Tolerance: ±2℃ (modifiable via software from 0~50℃)
• Resolution: 14 bit
• Sampling Cycle: 0.5 Seconds
• Power: AC 100-240V, 50/60HZ
• Display: Process Value (PV) and Setting Value (SV)
• Indicators: Output and self-tuning are LED-indicated
• Control Modes: PIN control with ON/OFF, step-type PID, and continuous PID
• Self-Tuning: Yes
• Proportional Band (P): 0 to full range (ON/OFF control when set to 0)
• Detective Temperature Range: 0 to 999℃
• Insulation Resistance: >50M ohm at 500V DC
• Withstand Voltage: 1500V AC/min

Max. 40A SSR:

• Output Current: 40A
• Input Voltage: DC 3-32V
• Output Voltage: 24-380V AC
• Output Voltage Range: Standard Type

Package Includes:

• 1 x PID Temperature Controller

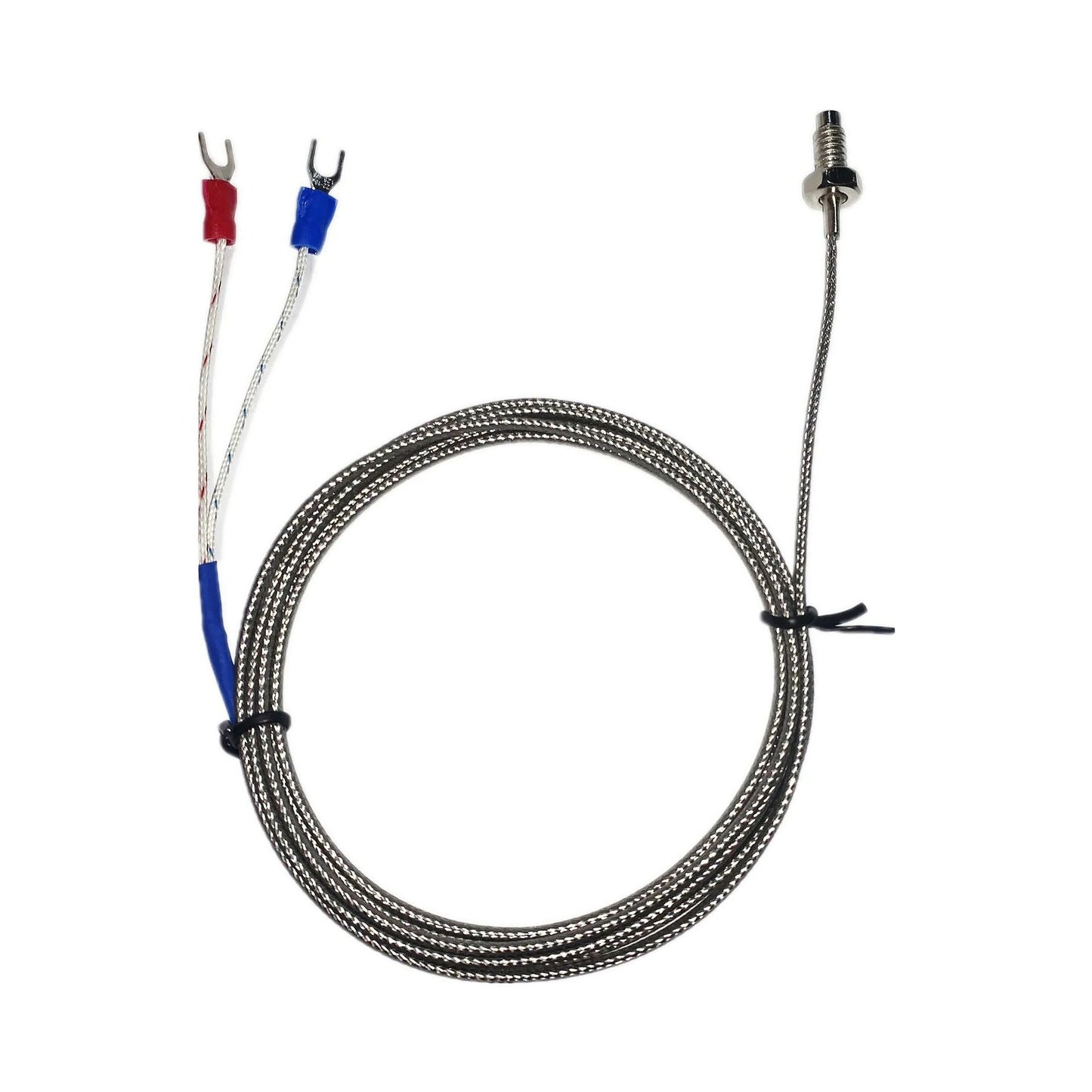

• 1 x K Type Probe Sensor
• 1 x Max. 40A SSR

Note: The heat sink is not included. Please purchase separately if required.
