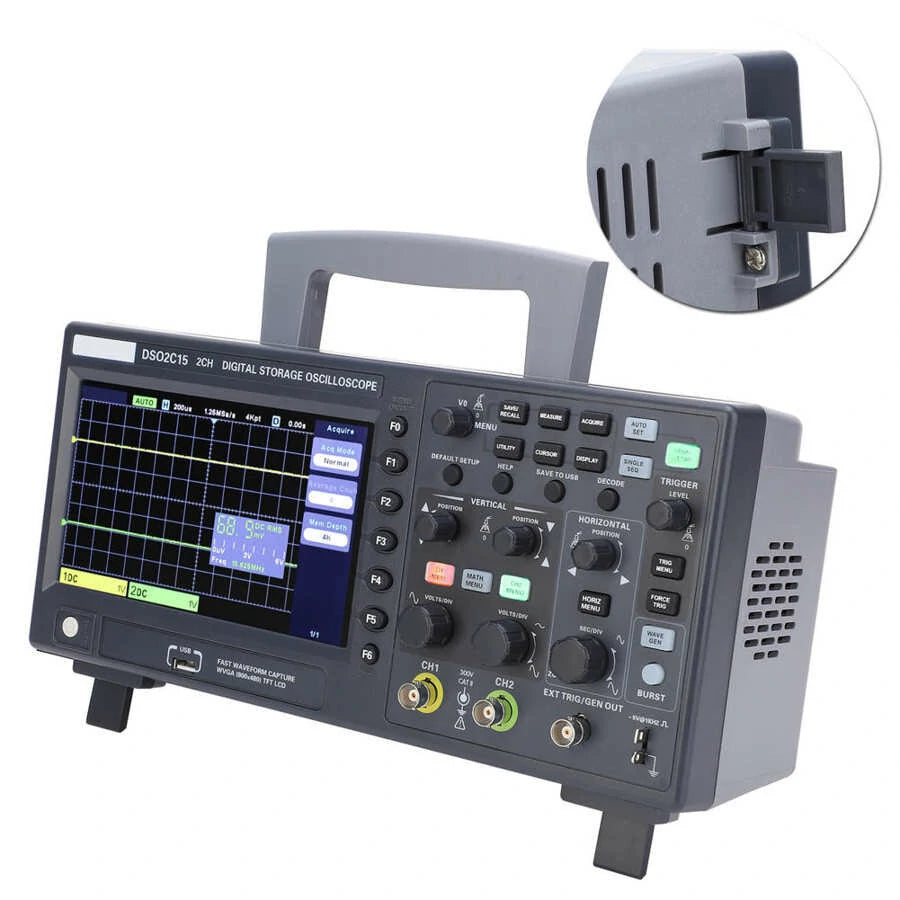

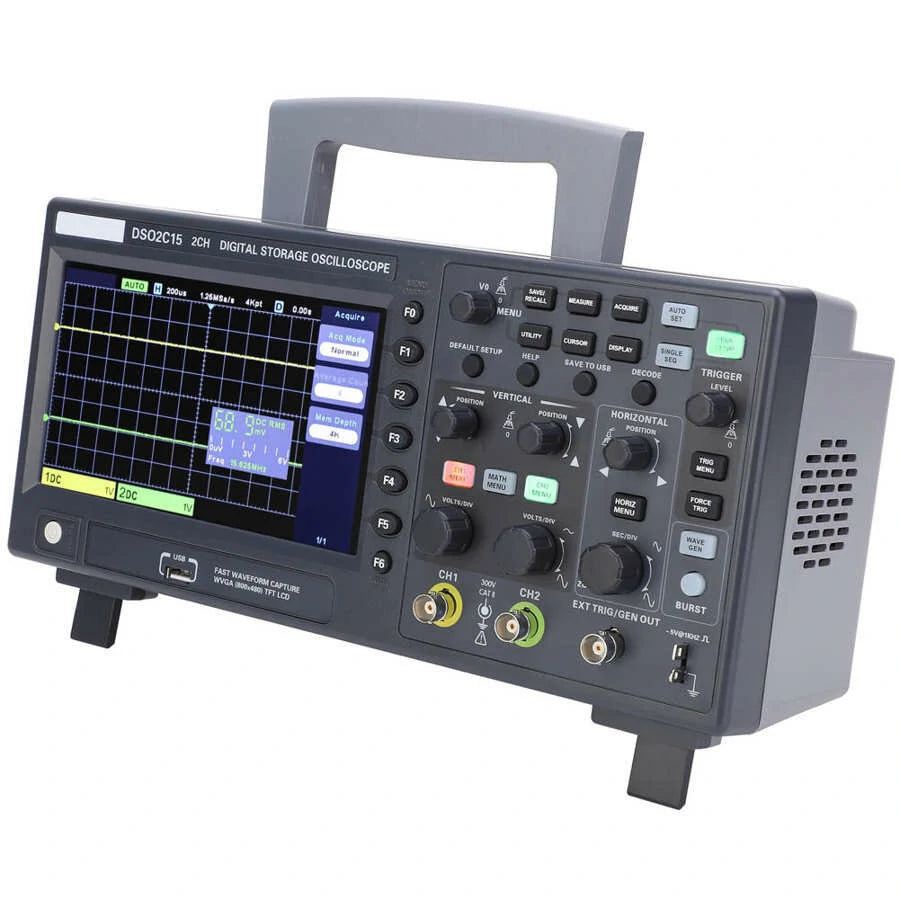

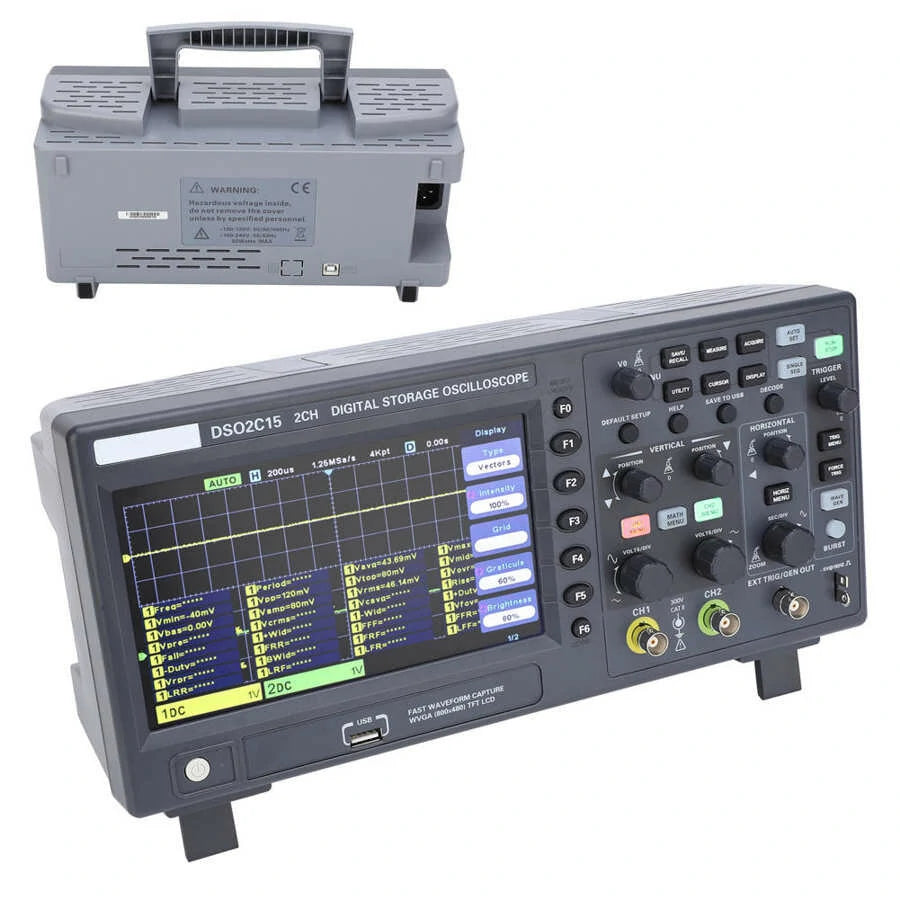

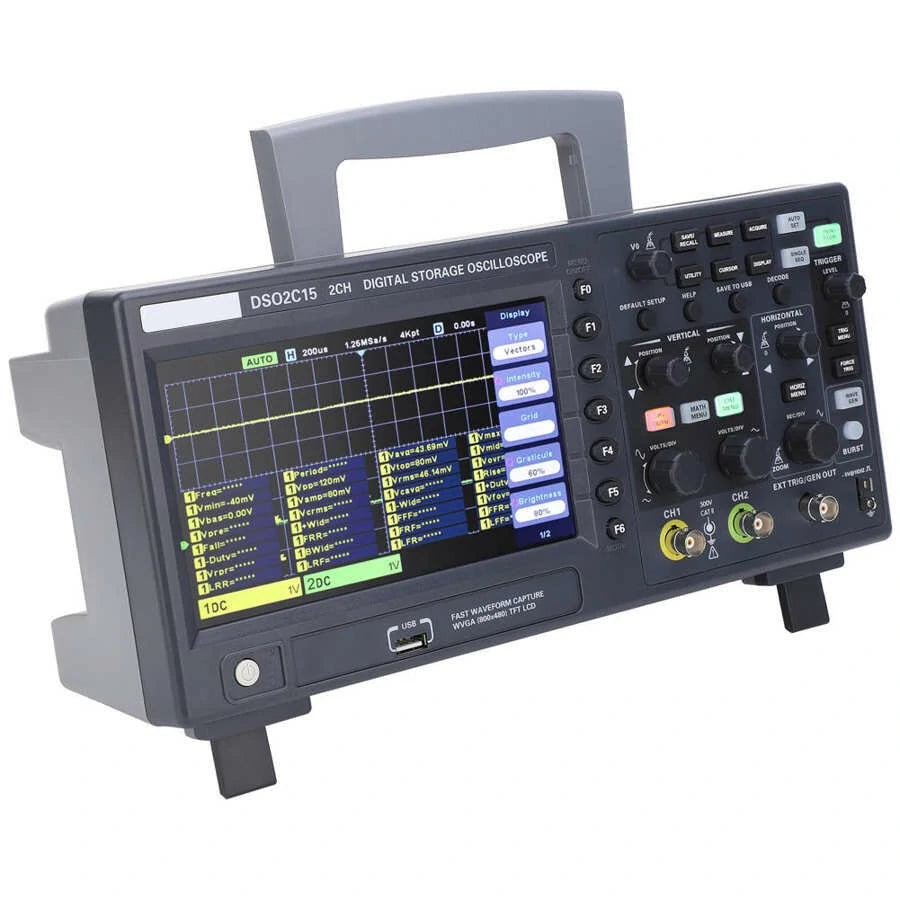

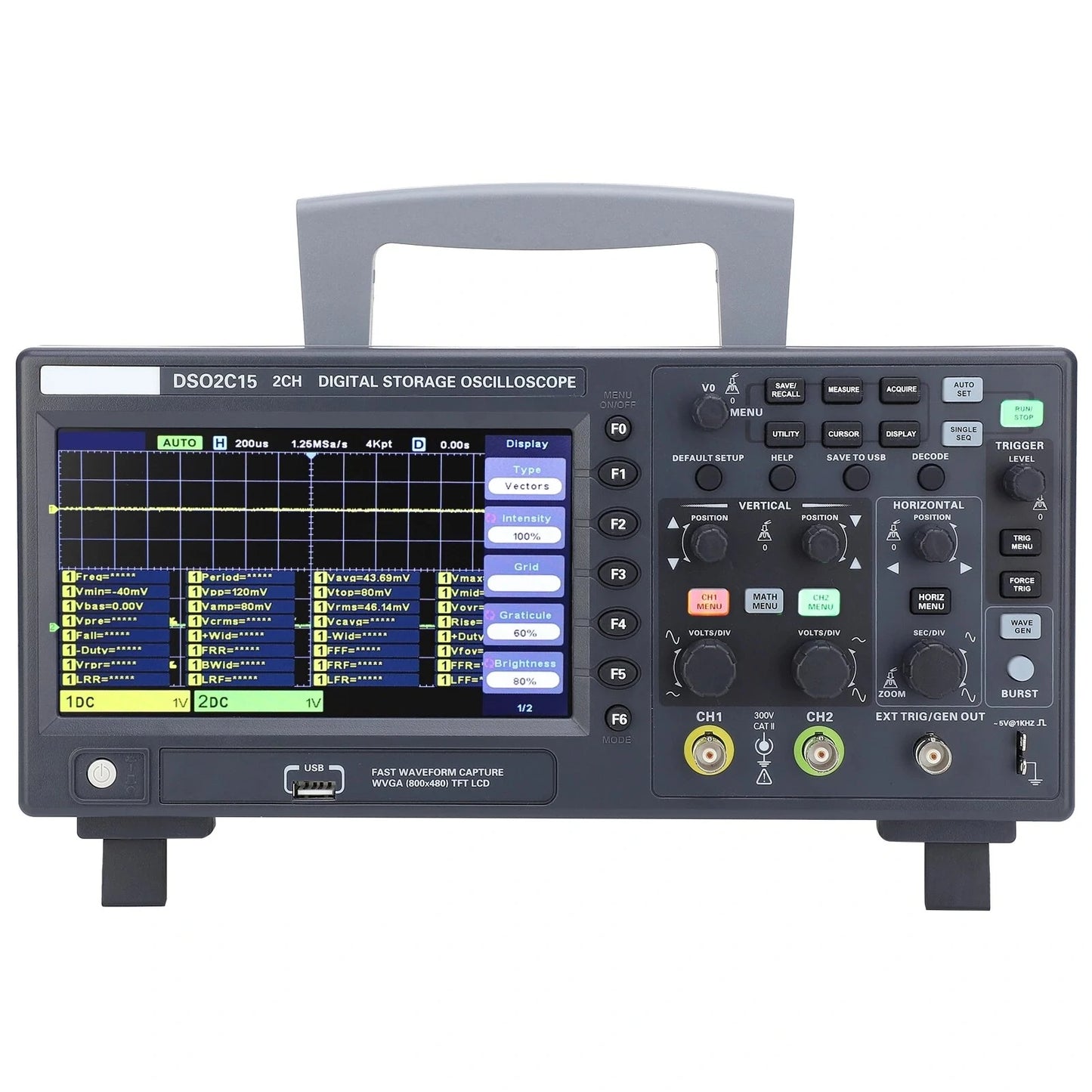

DSO2C15 Digital Oscilloscope

Product Model: DSO2C15

Note: Click on the model to reach the purchase link of the corresponding model.

• DSO2C10: 2CH, 100MHz, 1GSa/S, 8M
• DSO2C15: 2CH, 150MHz, 1GSa/S, 8M
• DSO2D10: 2CH + 1CH AWG, 100MHz, 1GSa/S, 8M
• DSO2D15: 2CH + 1CH AWG, 150MHz, 1GSa/S, 8M

Key Features

• Two channels, independently controlled by knobs
• 150MHz analog channel bandwidth for precise measurements
• 1GSa/s real-time sample rate for accurate data capture
• 8M memory depth for extensive data storage
• Vertical range from 2mV/div to 10V/div
• 8-bit vertical resolution
• Comprehensive trigger options: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC
• Supports CAN decode and protocol analysis including RS232/UART, I2C, SPI, CAN, LIN
• Multiple data format saving options: settings, waveforms, reference waveforms, CSV, pictures
• Equipped with a 5-digit digital voltmeter and 6-digit hardware frequency indicator
• 32 auto measurement types with real-time statistics on maximum, minimum, and standard deviation
• Supports SCPI remote command control
• Includes multiple external interfaces such as USB Host/Device

Specifications

General Specifications
