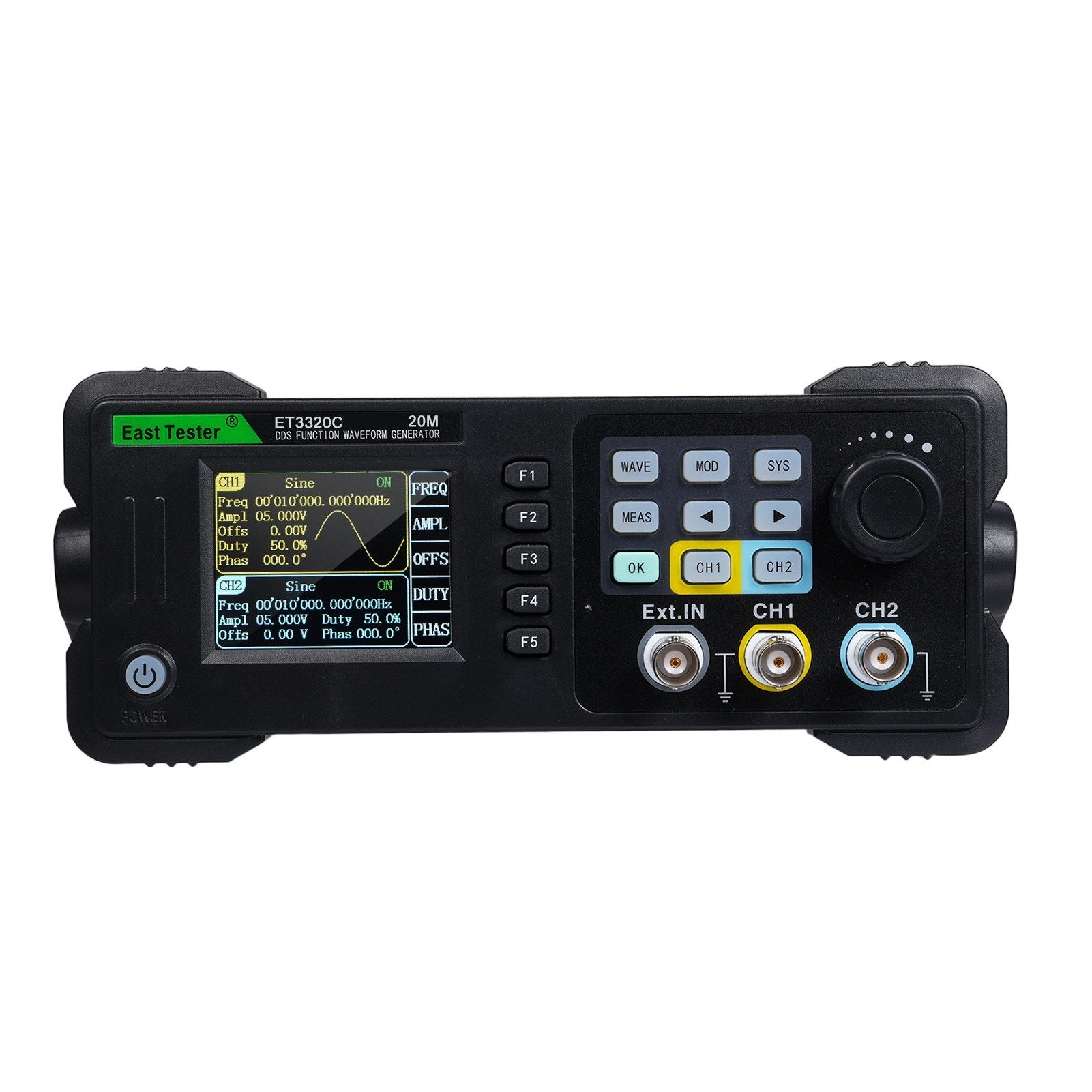

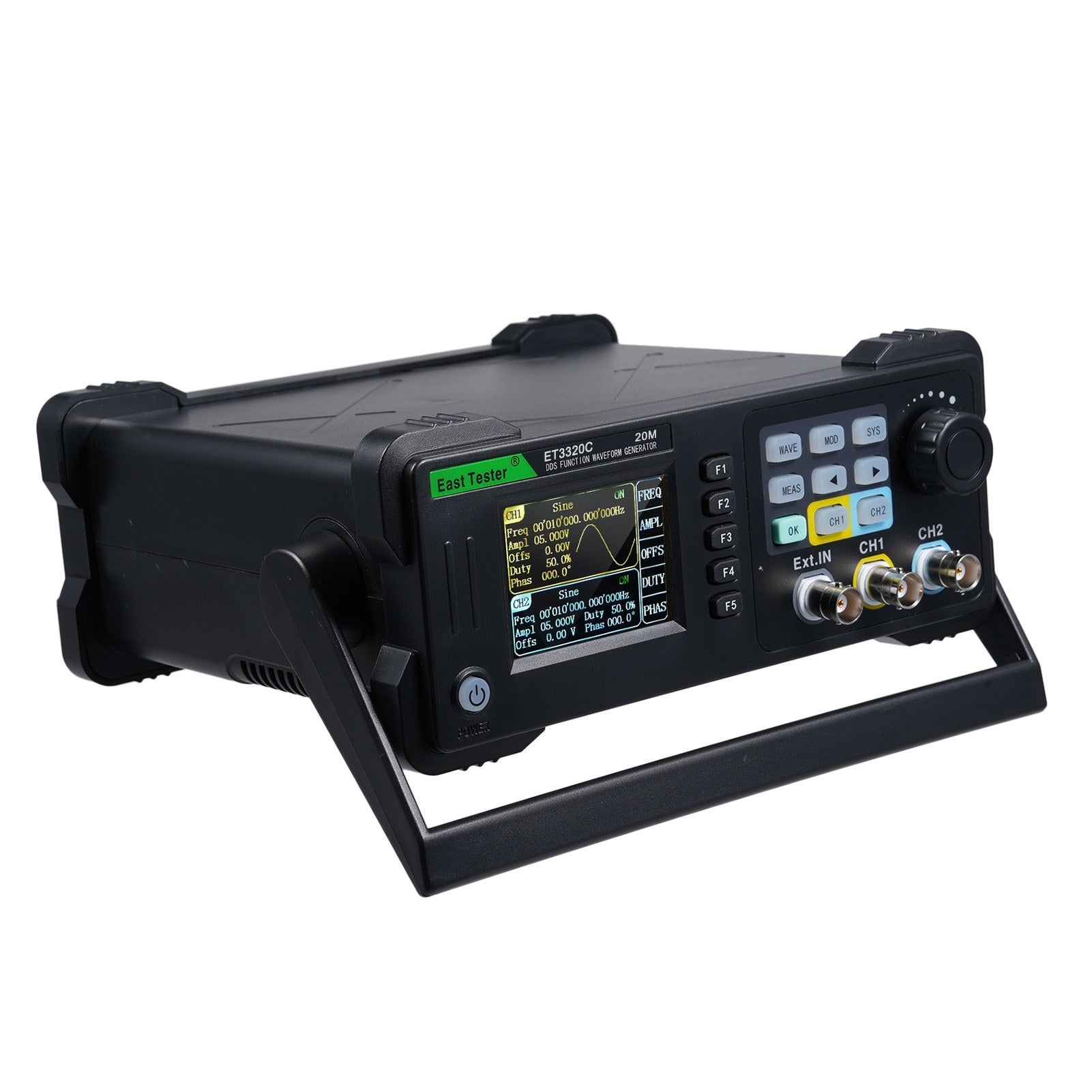

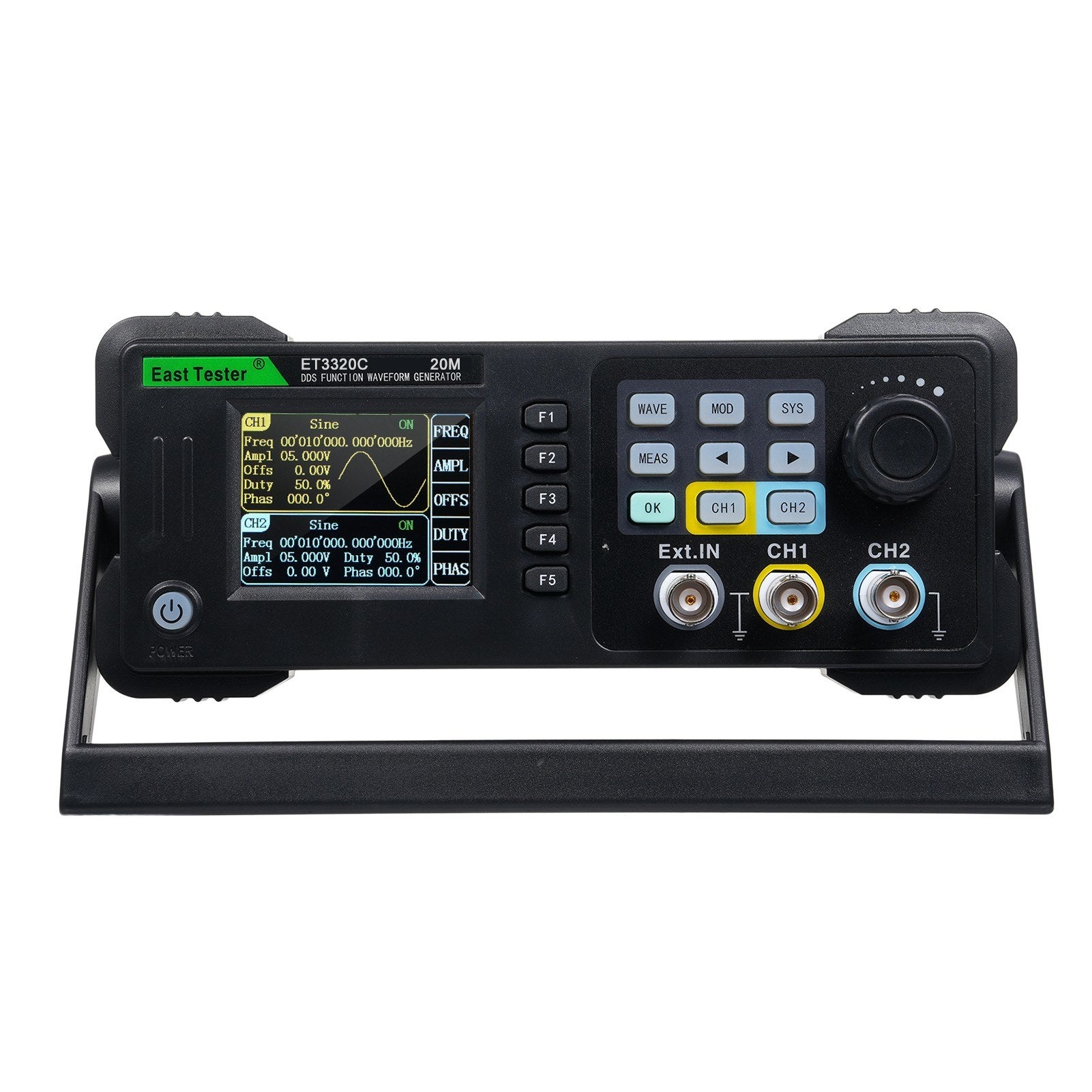

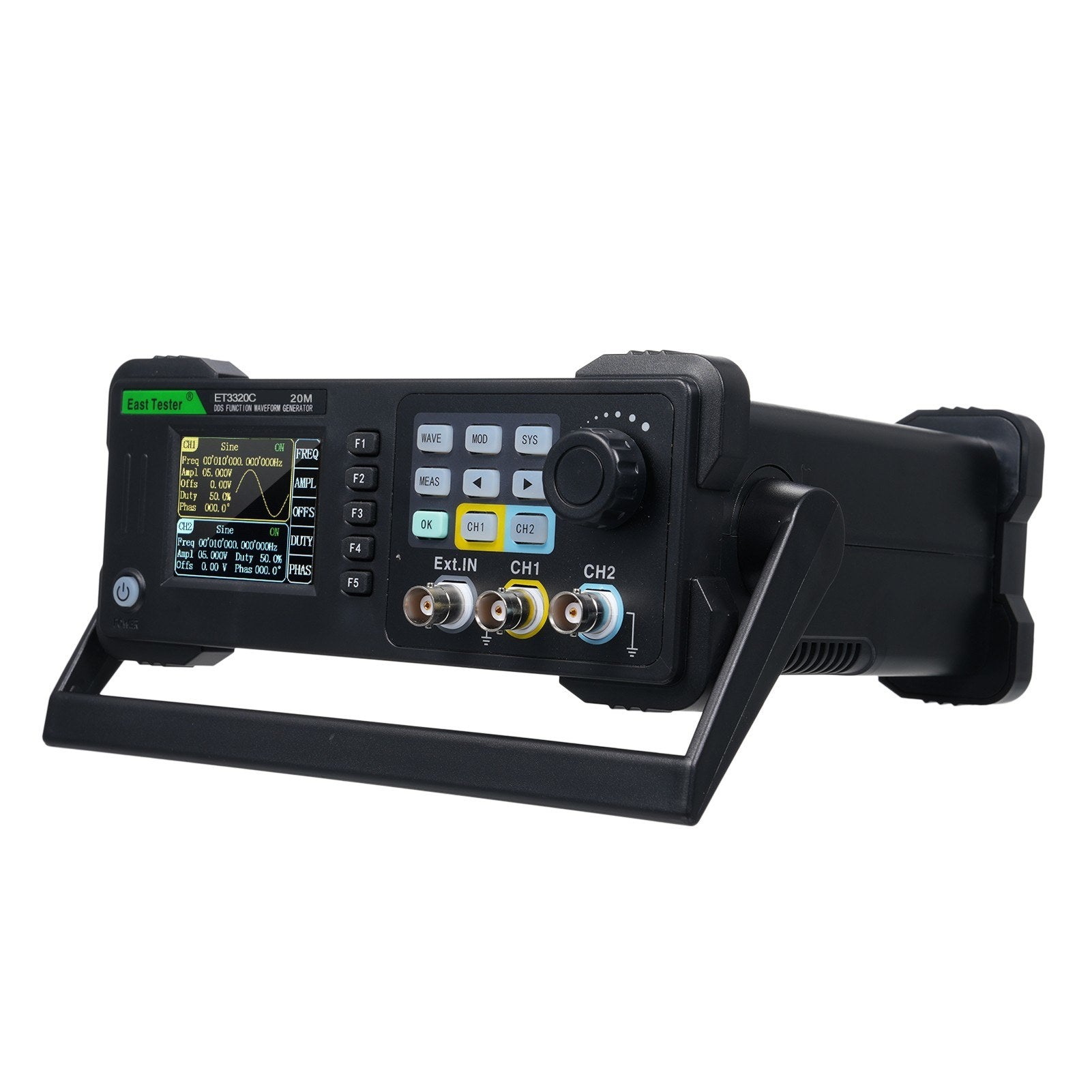

ET33C Series Two-Channel Function/Arbitrary Wave Generator

The ET33C series utilizes direct digital frequency synthesis technology to deliver signals with exceptional accuracy, stability, and minimal distortion.

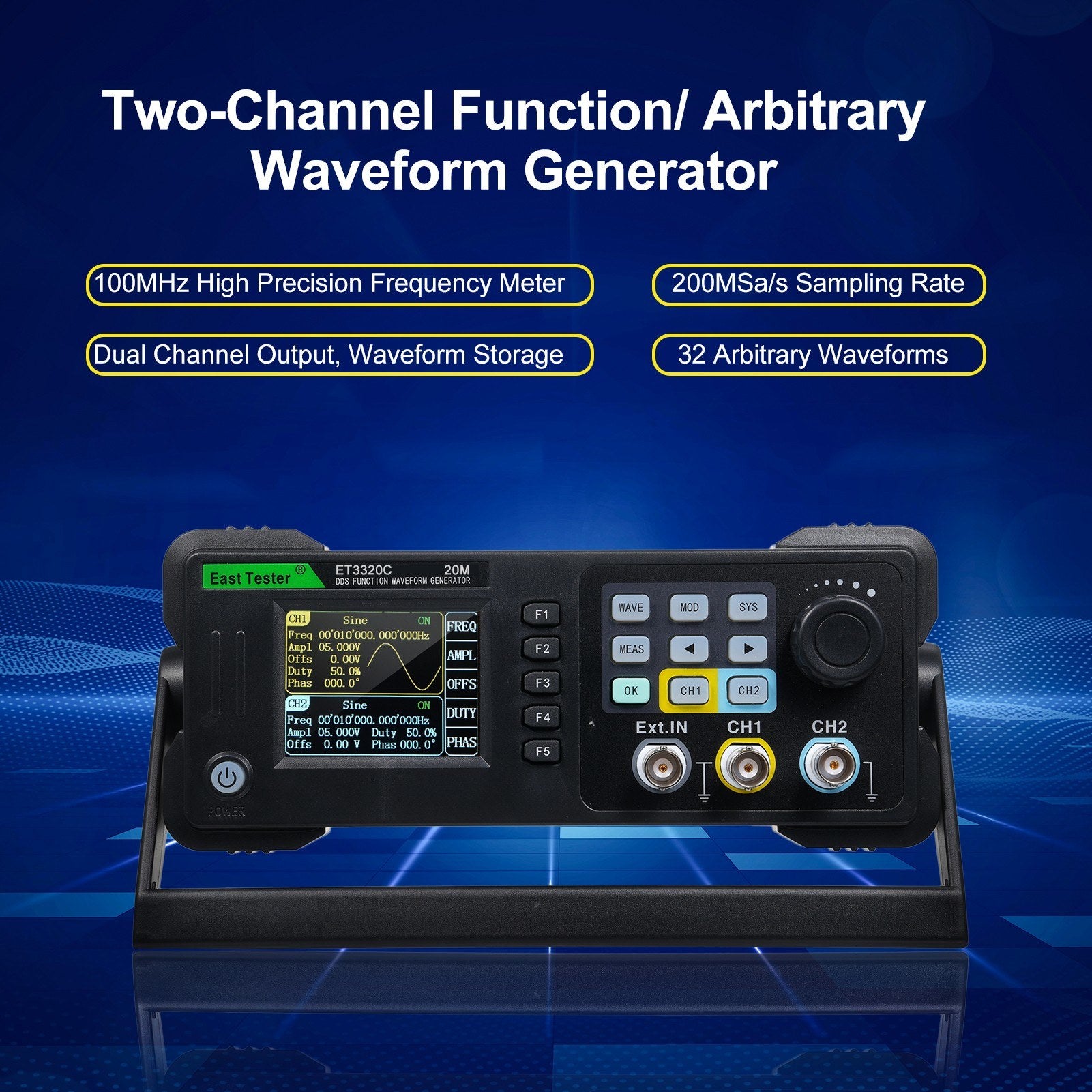

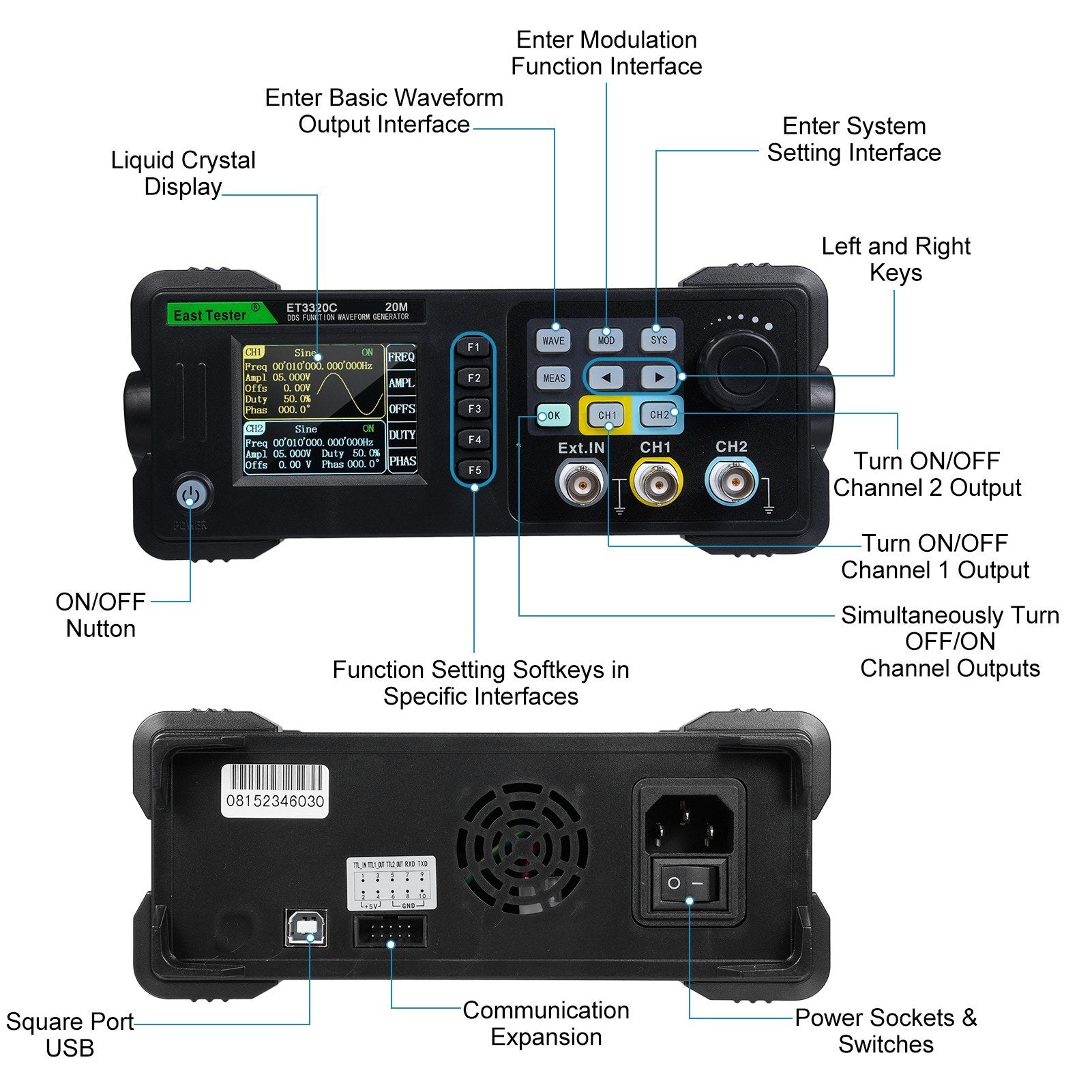

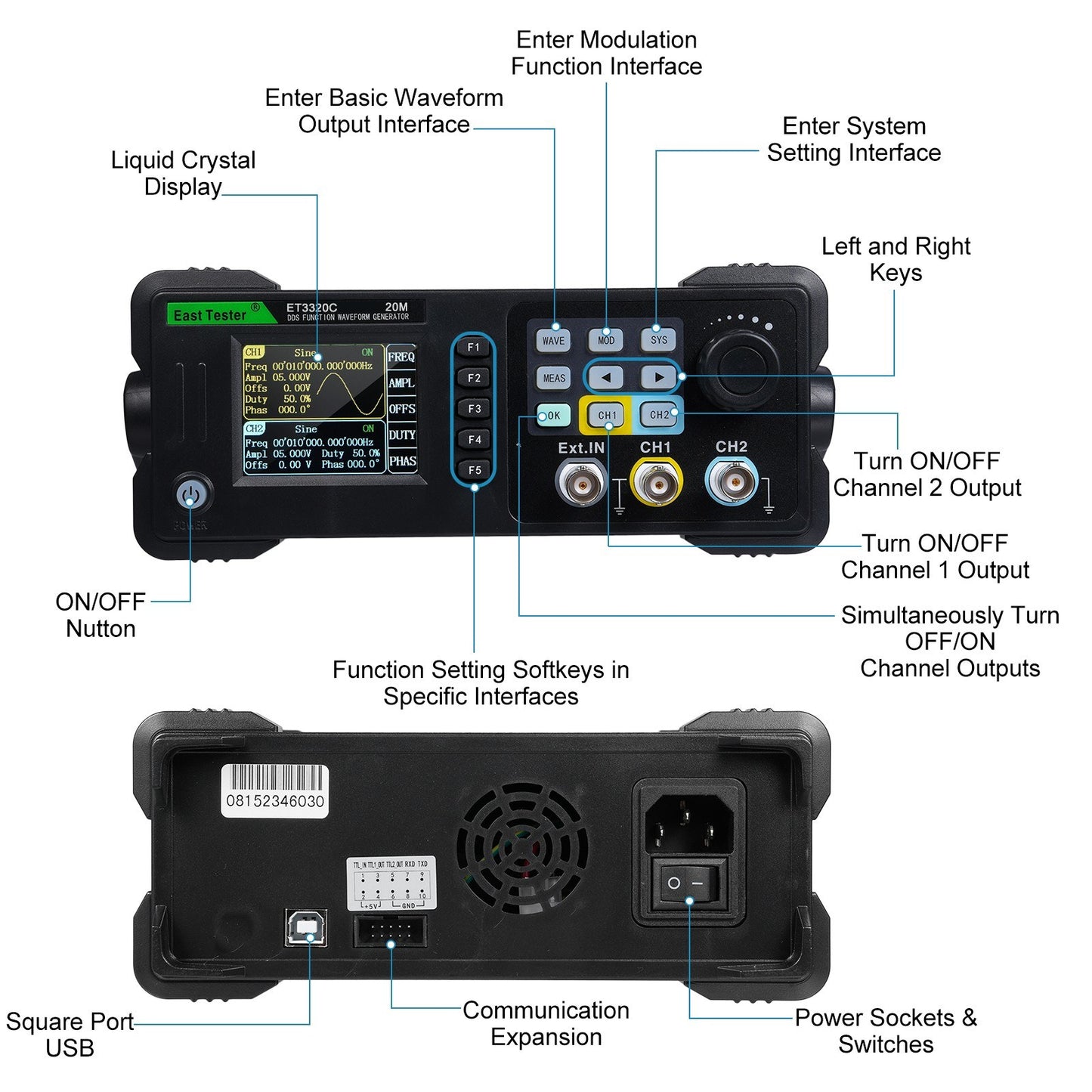

Features

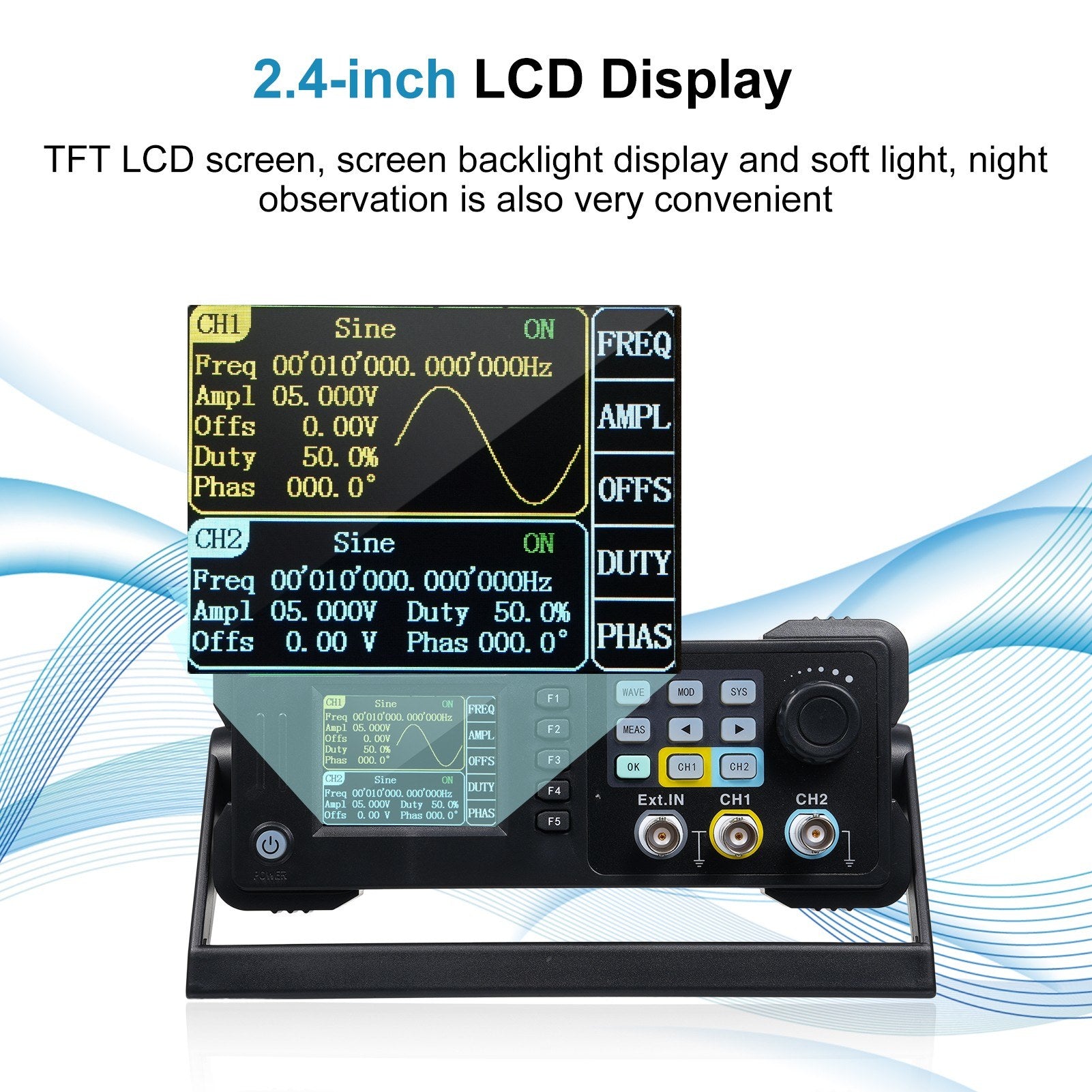

• 2.4-inch 320X240 TFT LCD with a clear graphical interface.
• Support for both Chinese and English menus.
• Independent dual channels with phase synchronization.
• Sampling rate: 200MSa/S, vertical resolution: 13-bit, storage depth: 8k.
• Includes 5 basic waveforms and 32 arbitrary waveforms.
• Waveform storage: Internal storage supports 50 user-defined waveforms.
• Pulse wave output can be set with edge time.
• Internal AM, FM, PM modulation; External modulation is optional.
• Support for internal/external ASK, FSK, PSK modulation.
• Dual channel output with max output frequency of 60M.
• Linear/logarithmic sweep and burst waveform output.
• 100MHz high precision frequency meter and 32-bit counter included.
• Standard USB Device interface; optional external analog modulation interface.
• Comes with multifunctional arbitrary waveform editing software.

Specifications

• Plug Type: EU / US / UK (Optional)
• Model: ET3320C
• Material: ABS
• Power Voltage: AC 110~240V, 50~60Hz
• Display: 2.4 inch TFT LED

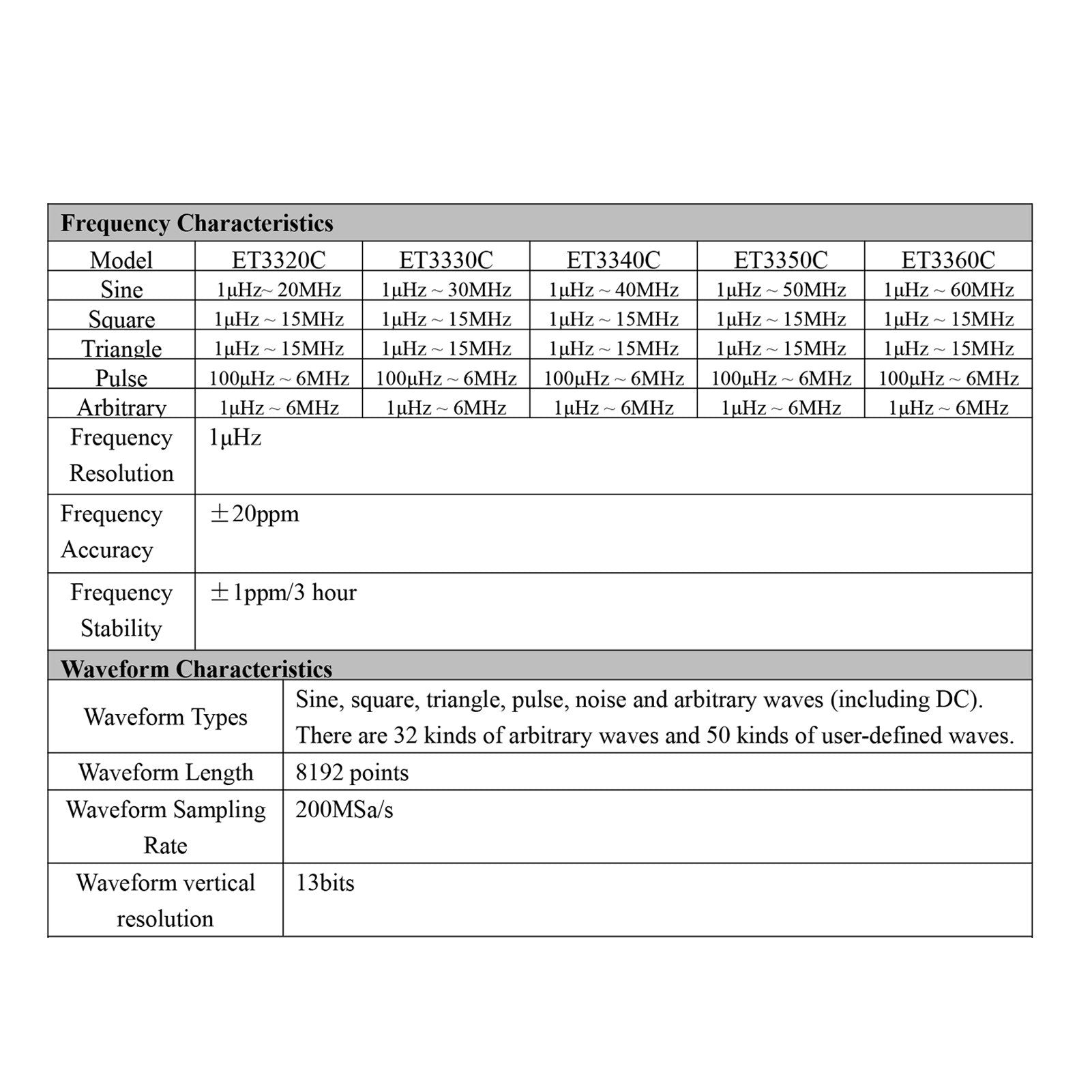

Frequency Characteristics

• Sine: 1μHz~20MHz
• Square: 1μHz~15MHz
• Triangle: 1μHz~15MHz
• Pulse: 100μHz~6MHz
• Arbitrary: 1μHz~6MHz
• Frequency Resolution: 1μHz
• Frequency Accuracy: ±20ppm
• Frequency Stability: ±1ppm / 3 hour

Waveform Characteristics

• Types: Sine, square, triangle, pulse, noise, and arbitrary waves (including DC)
• 32 kinds of arbitrary waves and 50 user-defined waveforms
• Waveform Length: 8192 points
• Waveform Sampling Rate: 200MSa/s
• Waveform Vertical Resolution: 13 bits

Sine Wave Characteristics

• Harmonic Suppression Degree: ≥45dBc (＜1MHz); ≥40dBc (1MHz~20MHz)
• Total Harmonic Distortion: ＜0.8% (20Hz~20kHz, 0dBM)

Square Wave Signal Characteristics

• Rise/Fall: ＜20ns
• Overshoot: ＜5%
• Duty Cycle:
  • freq＜100kHz: 1%~99%
  • 100kHz≤freq＜5MHz: 20%~80%
  • 5MHz≤freq: 40%~60% (0.1% resolution)

Pulse Wave Characteristics

• Pulse Width: Min 20ns; 1ns resolution
• Edge jump time: Min 20ns
• Overshoot: ＜5%
• Jitter: 6ns+0.1%Period

Sawtooth Wave Characteristics

• Linearity Degree: ≥98% (0.01Hz~10kHz)
• Symmetry: 0.0~100.0% (resolution 0.1%)

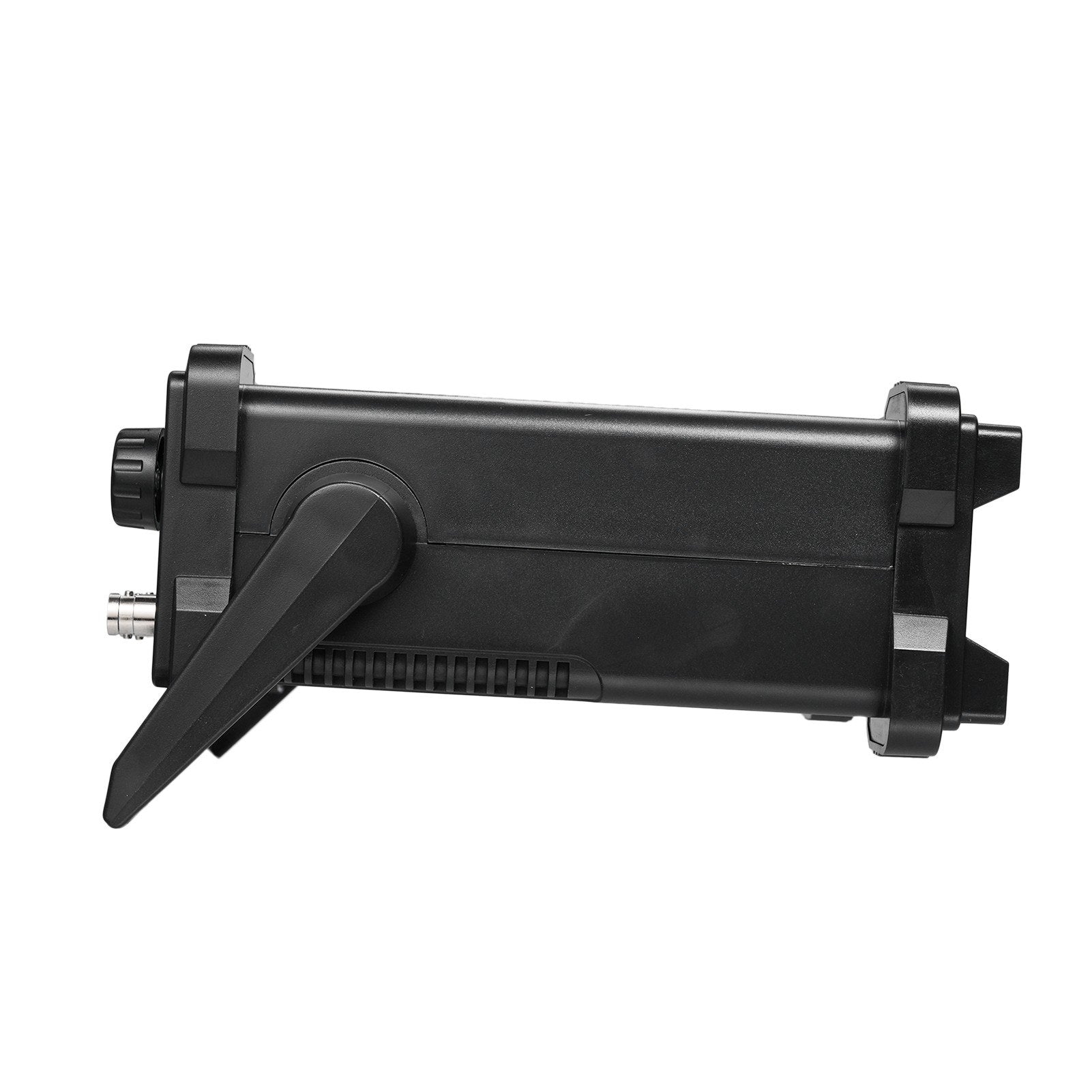

Dimensions

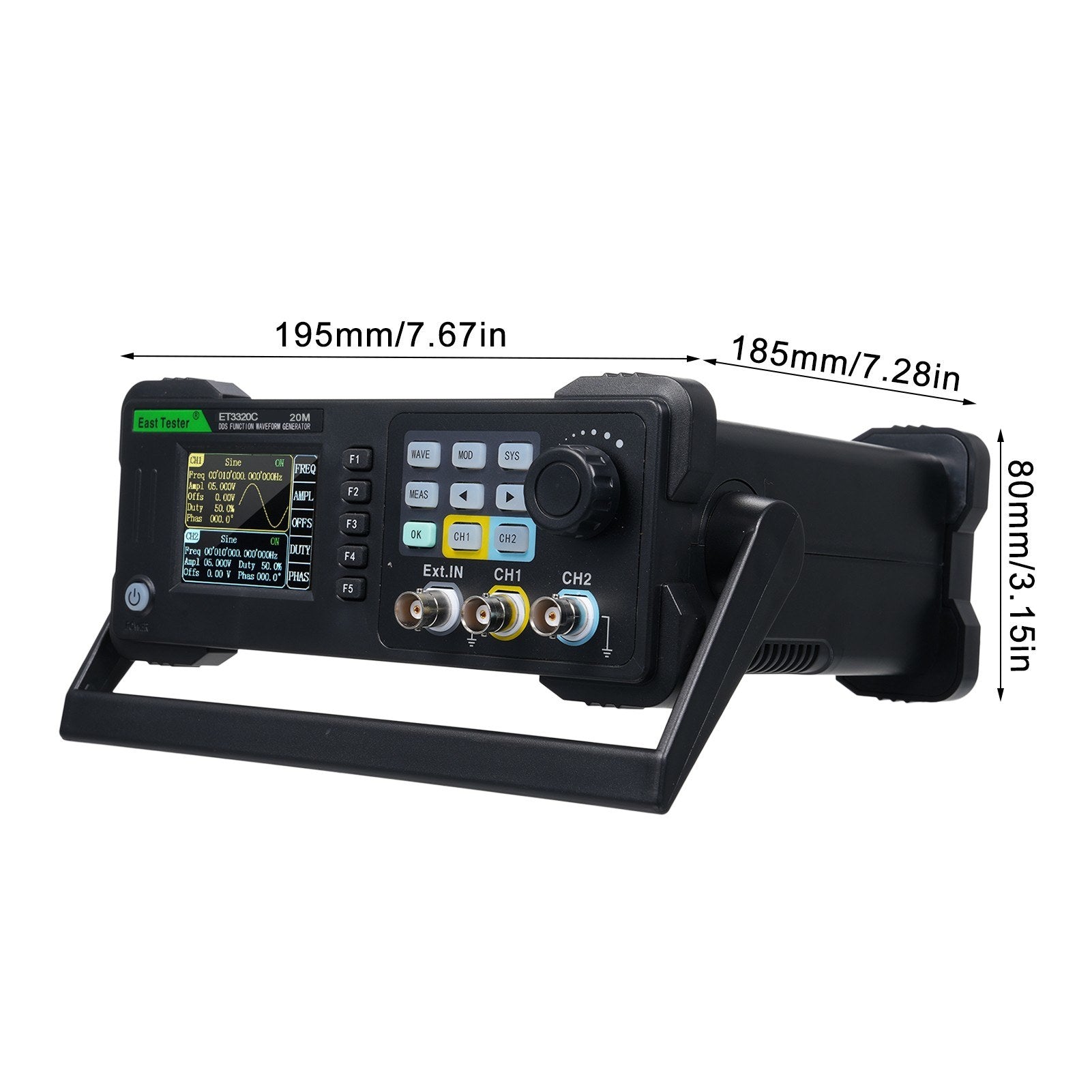

• Item Size: 195 * 185 * 80mm / 7.67 * 7.28 * 3.15in
• Item Weight: 598g / 1.32lb
• Package Weight: 1152g / 2.54lb
• Package Size: 27.5 * 23.5 * 12cm / 10.82 * 9.25 * 4.72in

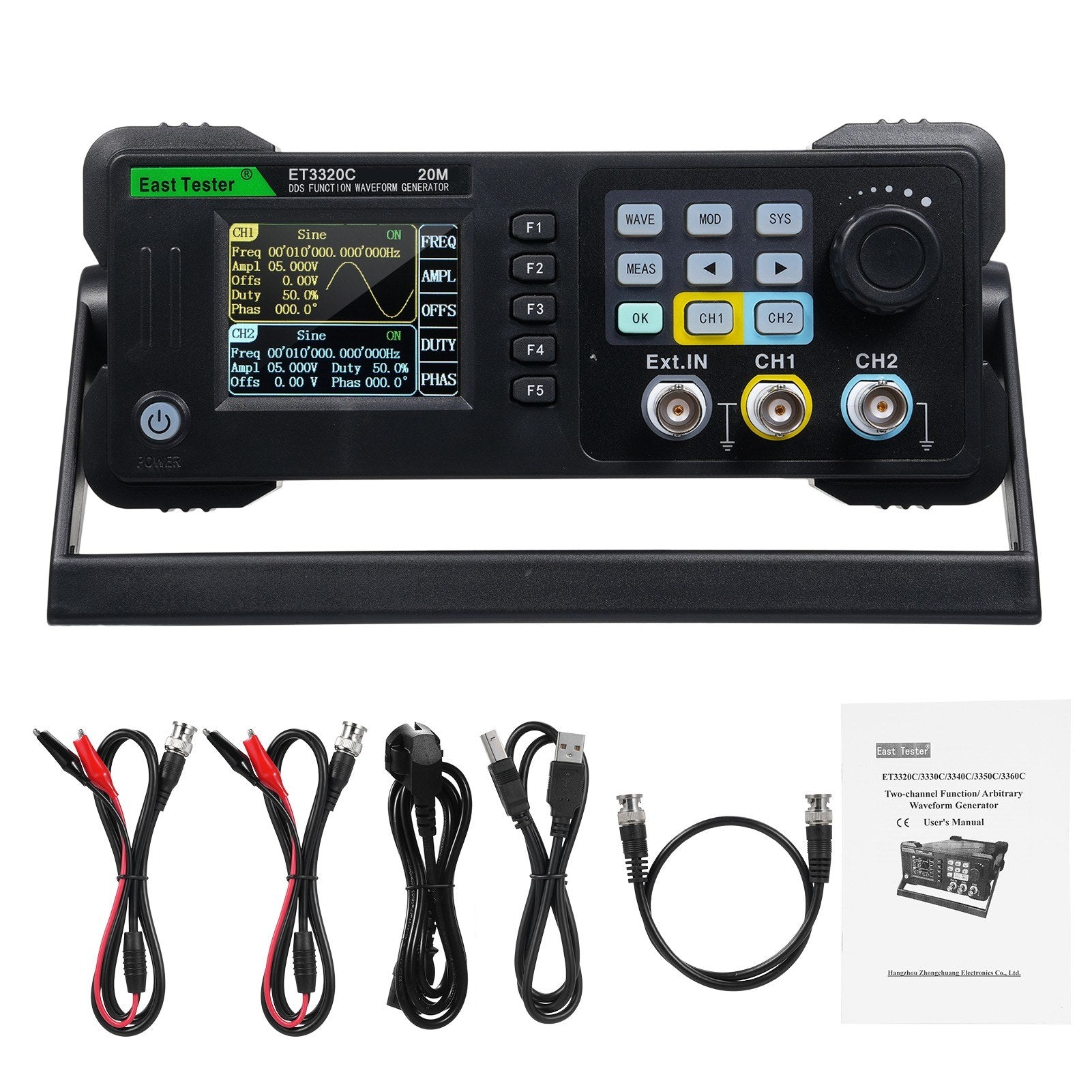

Package List

• 1 Signal Generator
• 1 Power Cable
• 2 BNC Coaxial Cables
• 1 USB Data Cable
• 1 Straight Signal Cable
• 1 User Manual (English)
