YIHAOGD LCD 2/3 Axis CNC Digital Readout Display DRO with KA300 5μm TTL Linear Scale Encoders 70-970mm for Milling & Lathe

Description

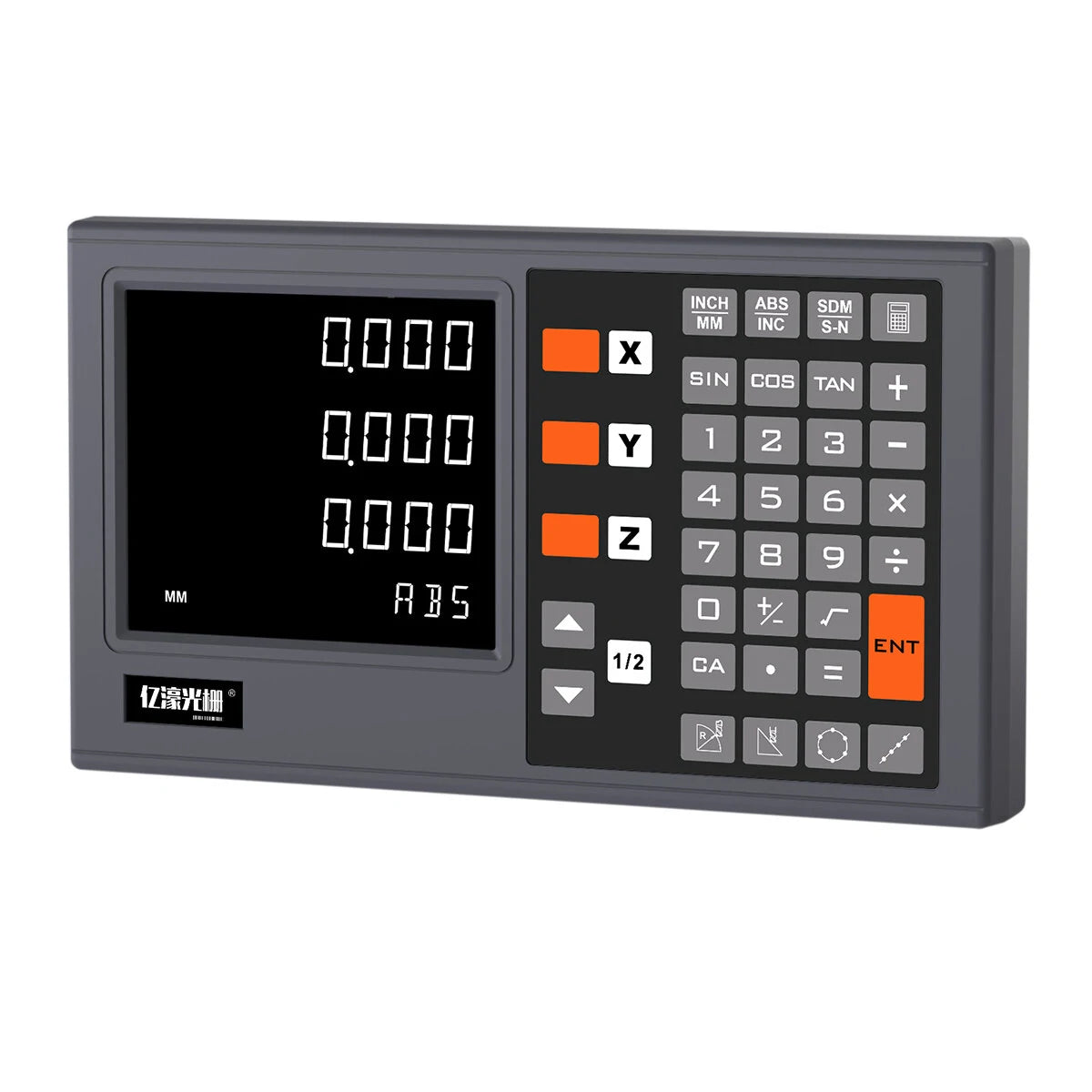

Introducing the YIHAOGD YH LCD Digital Readout for CNC Milling – a versatile solution for enhancing precision and productivity in your CNC operations. Compatible with both KA300 and YE linear scales, this digital readout display is designed to meet various linear scale requirements, offering better performance with a large LCD screen.

Key Features

• High-visibility LCD screen providing a clearer display than traditional digital tubes.
• Compatible with a wide range of YIHAOGD linear scales, ensuring flexibility and ease of use.

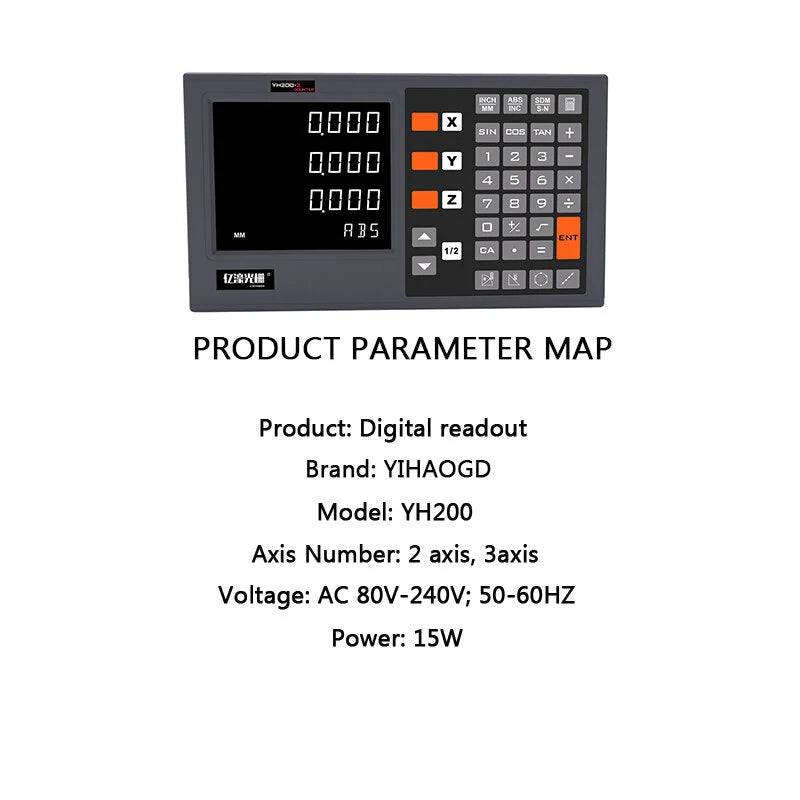

Specifications

• Model Options: 2 Axis / 3 Axis
• Voltage Range: AC 100V~240V / 50Hz~60Hz
• Signal Compatibility: TTL

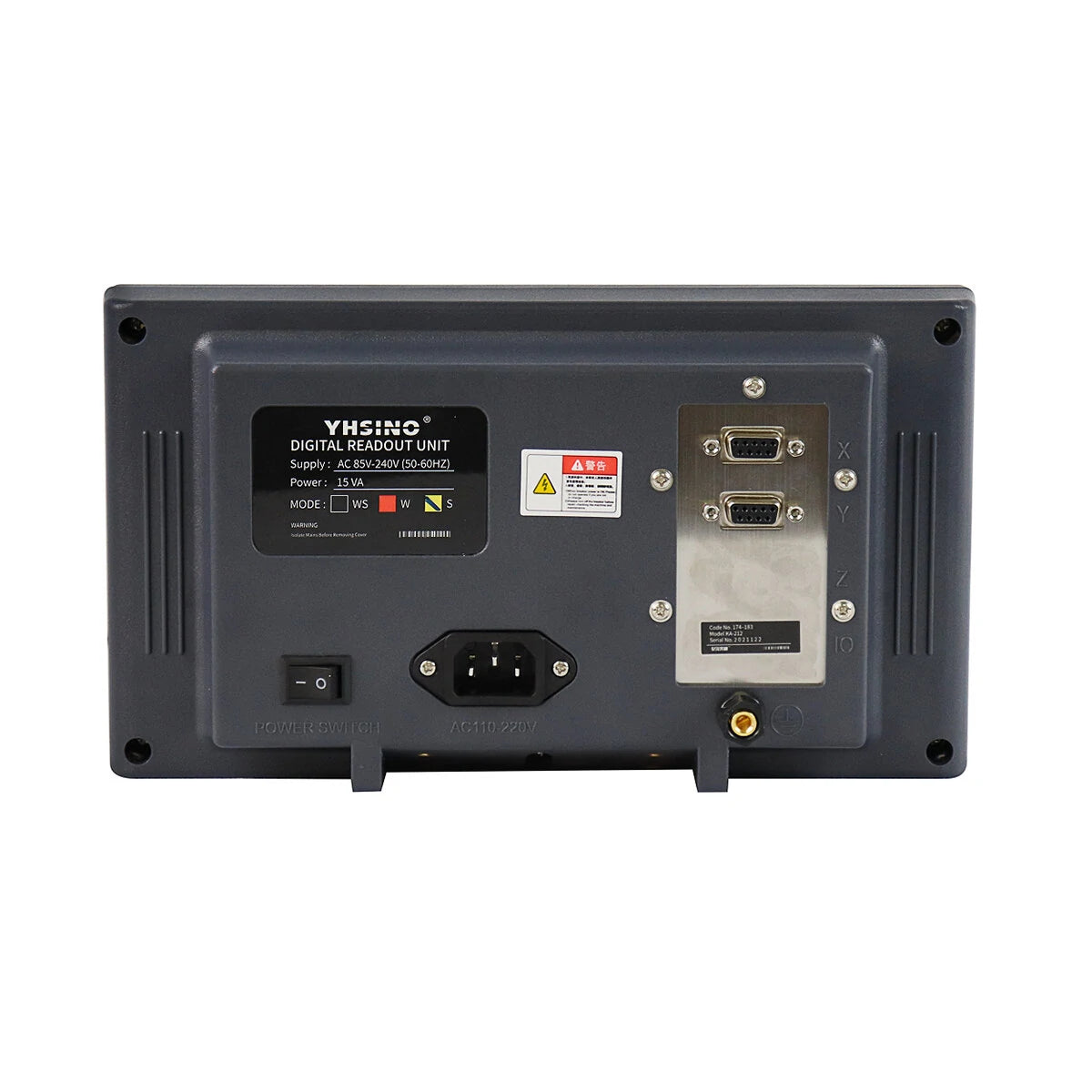

• Plug Type: DB9
• Resolution Acceptance: 10μm, 5μm, 2μm, 1μm, 0.5μm

DRO System Functions

• Zero clearing and reset functions
• Switch between mm/inch measurement modes
• ABS/INC coordinate conversion
• Memory for 200 sub datum sets
• Power-off memory and center-finding functionality
• Error compensation and sleep mode
• Built-in calculator and various machining functions (drilling, inclined plane machining, circular arc machining)
• Lathe function support and vibration filtering

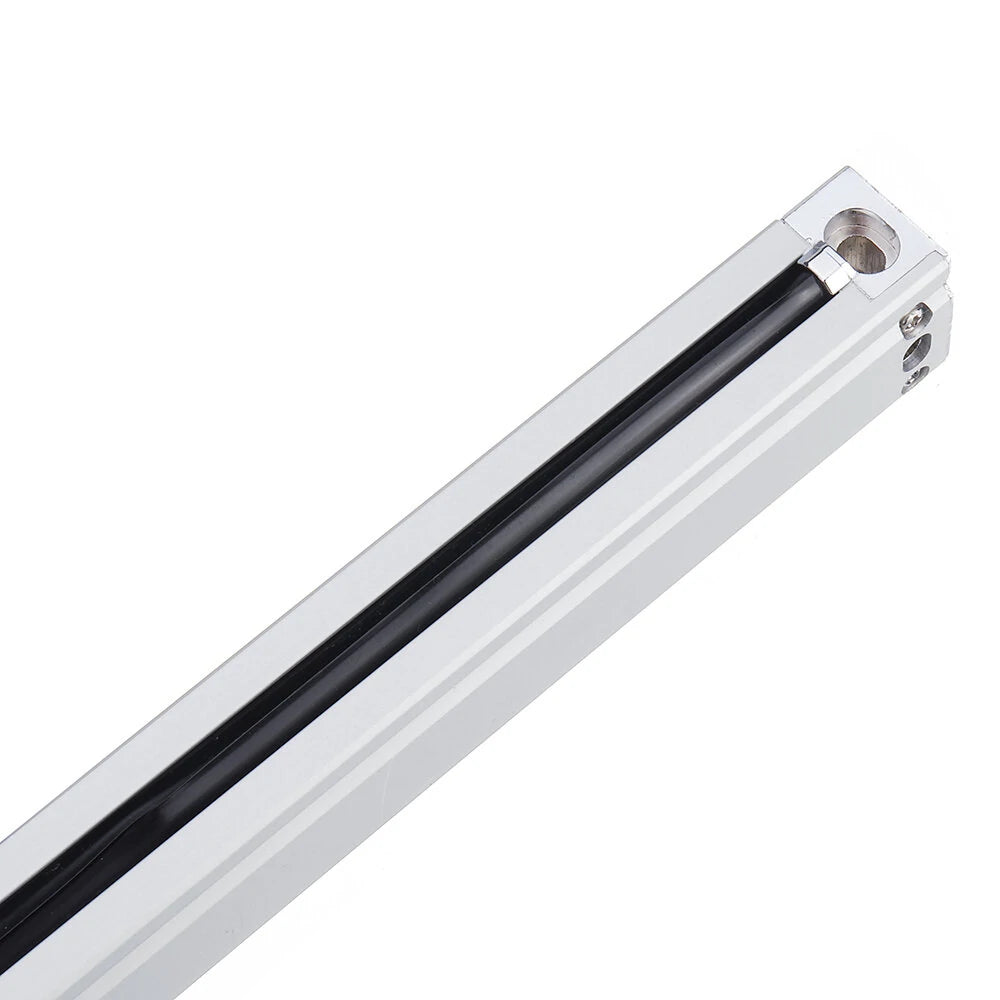

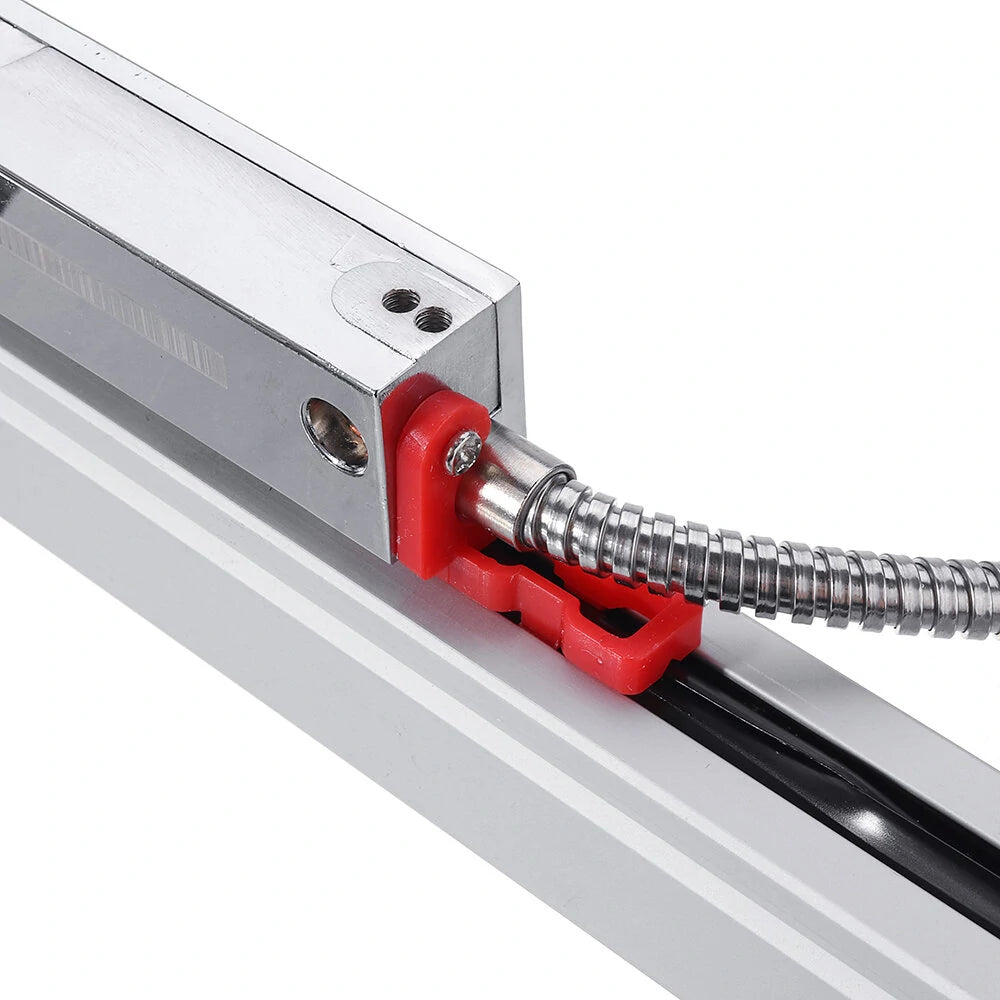

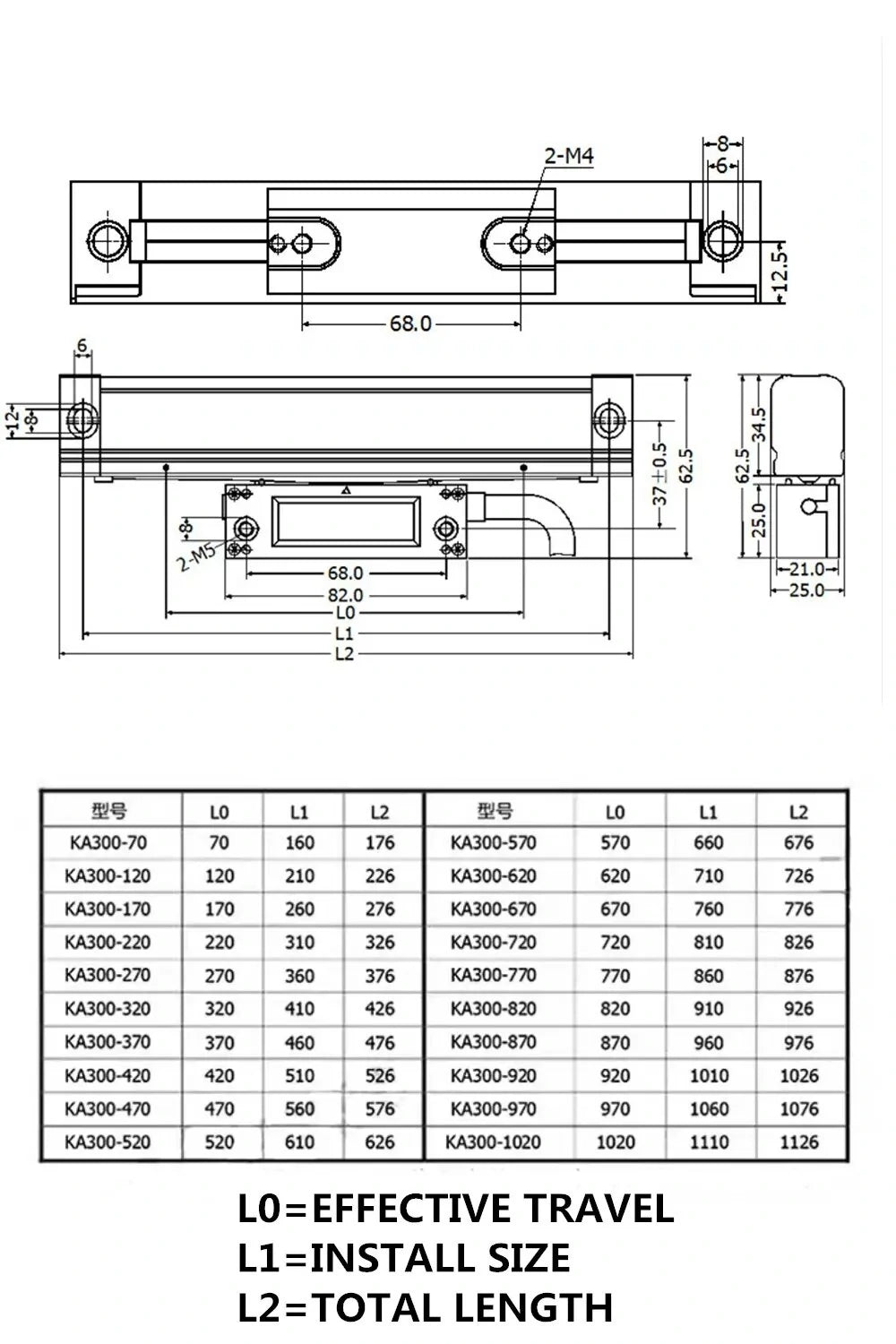

5U TTL Linear Encoder Features

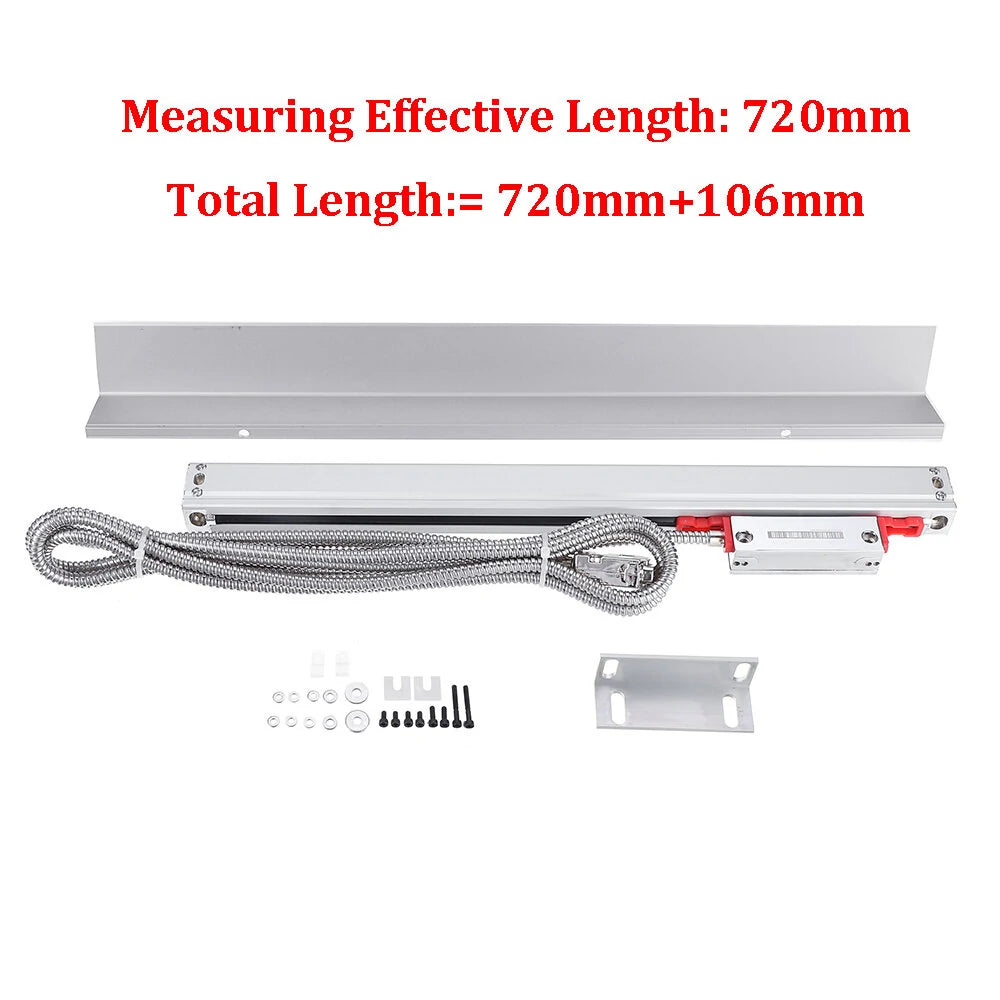

• Travel measuring length from 0 to 970mm
• Resolution of 0.005mm (5μ) and input voltage of 5V
• High quality bearing, dustproof, and IP54 waterproof design
• Eliminates errors from thermal expansion and mechanical deformation
• Compact, lightweight, and easy installation

Package Options

LCD 3 Axis Digital Readout Package:

• 1 x 3 Axis Digital Readout
• 1 x Power Cable with plug adapter

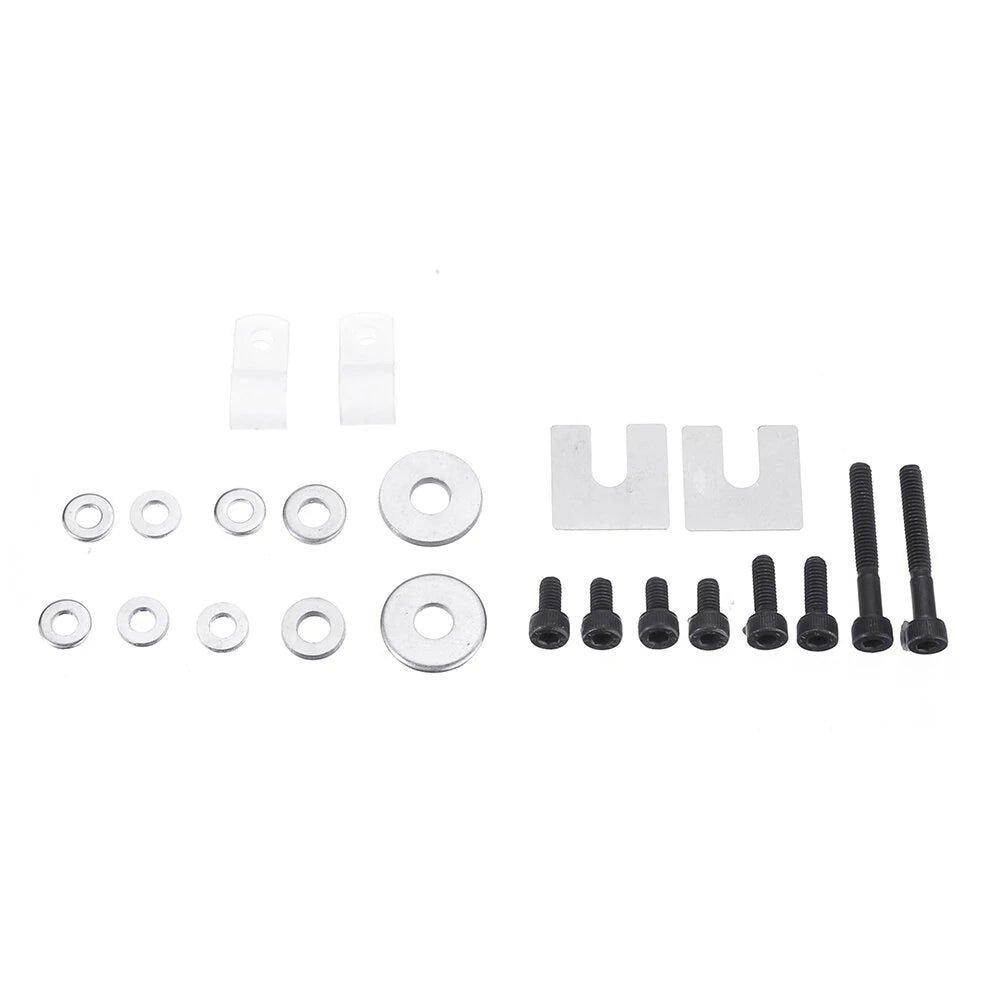

• 1 Set of Bracket and Accessories
• 1 x Manual

LCD 2 Axis Digital Readout Package:

• 1 x 2 Axis Digital Readout
• 1 x Power Cable
• 1 Set of Bracket and Accessories
• 1 x Manual

Note:

Please note that the digital readout and linear scale are optional. Only one type is included in the package.
