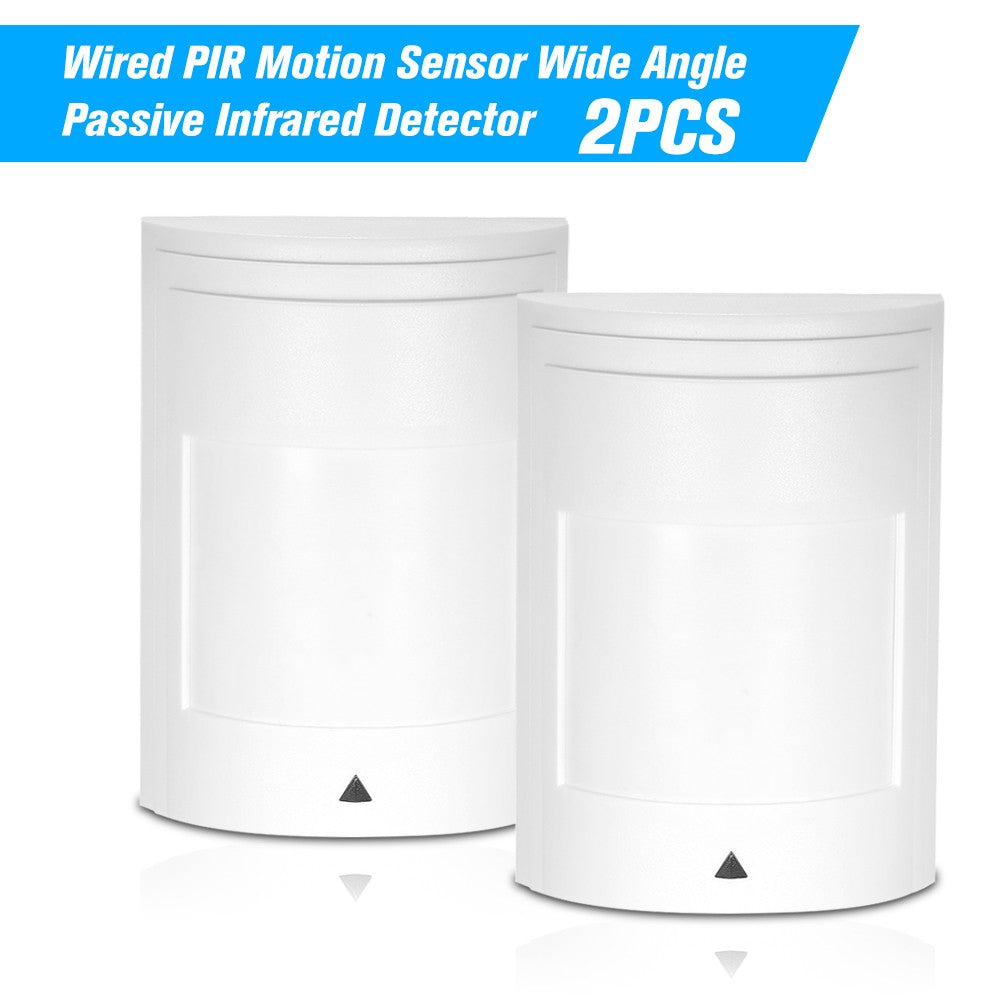

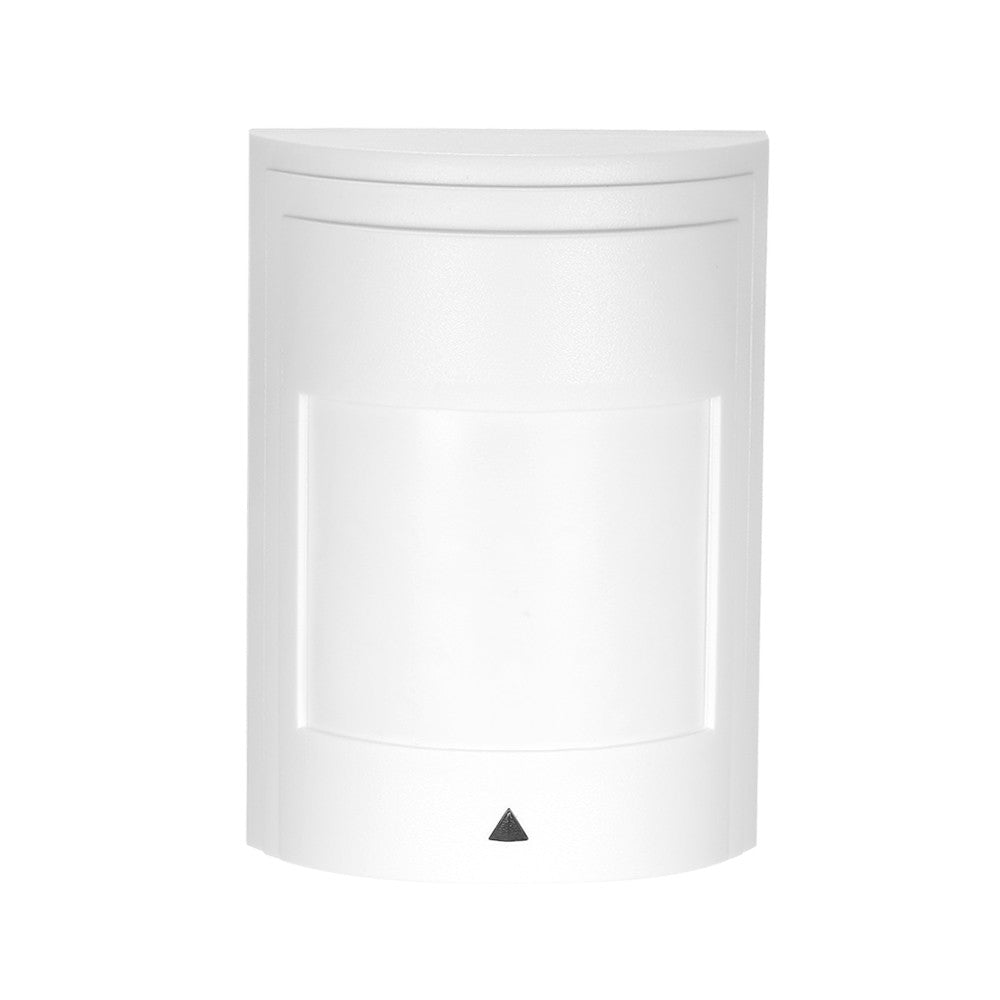

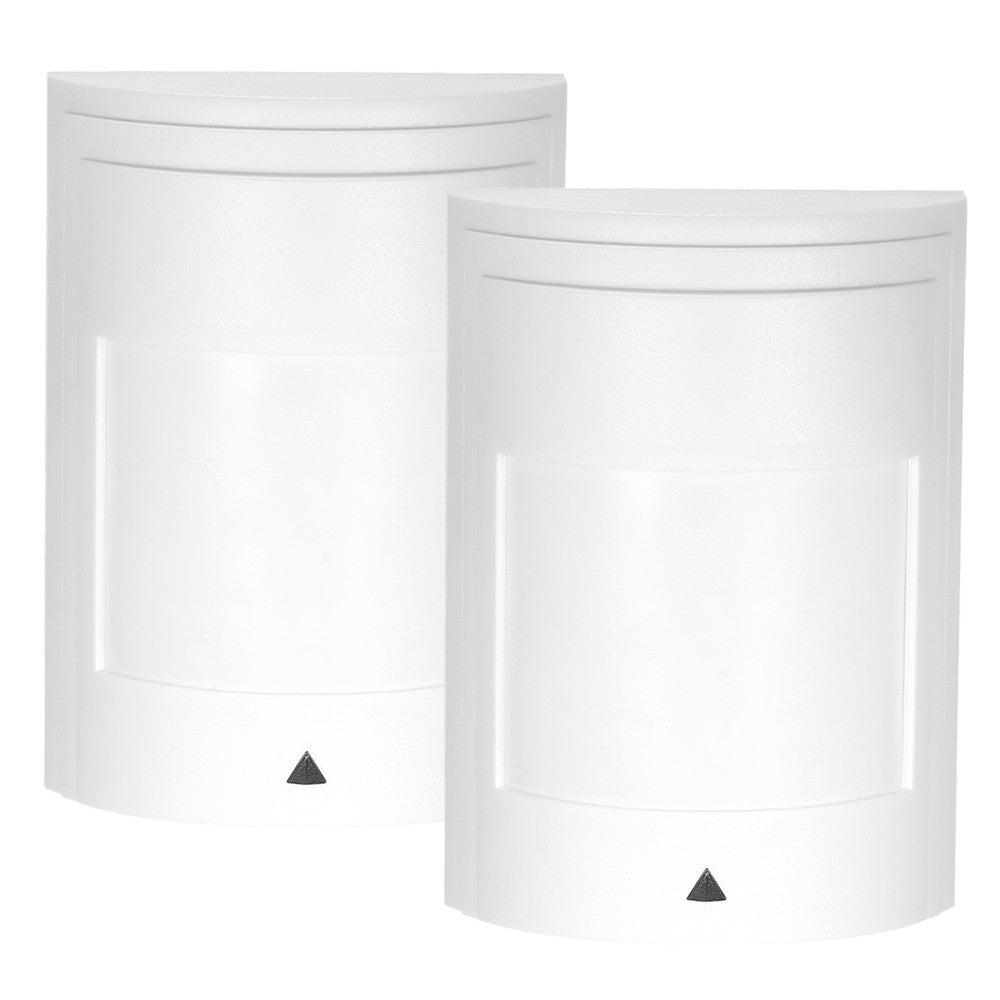

Passive Infrared Wired Motion Sensor Detector

Note: Do not mount the unit in direct sunlight or near heat sources.

Overview:

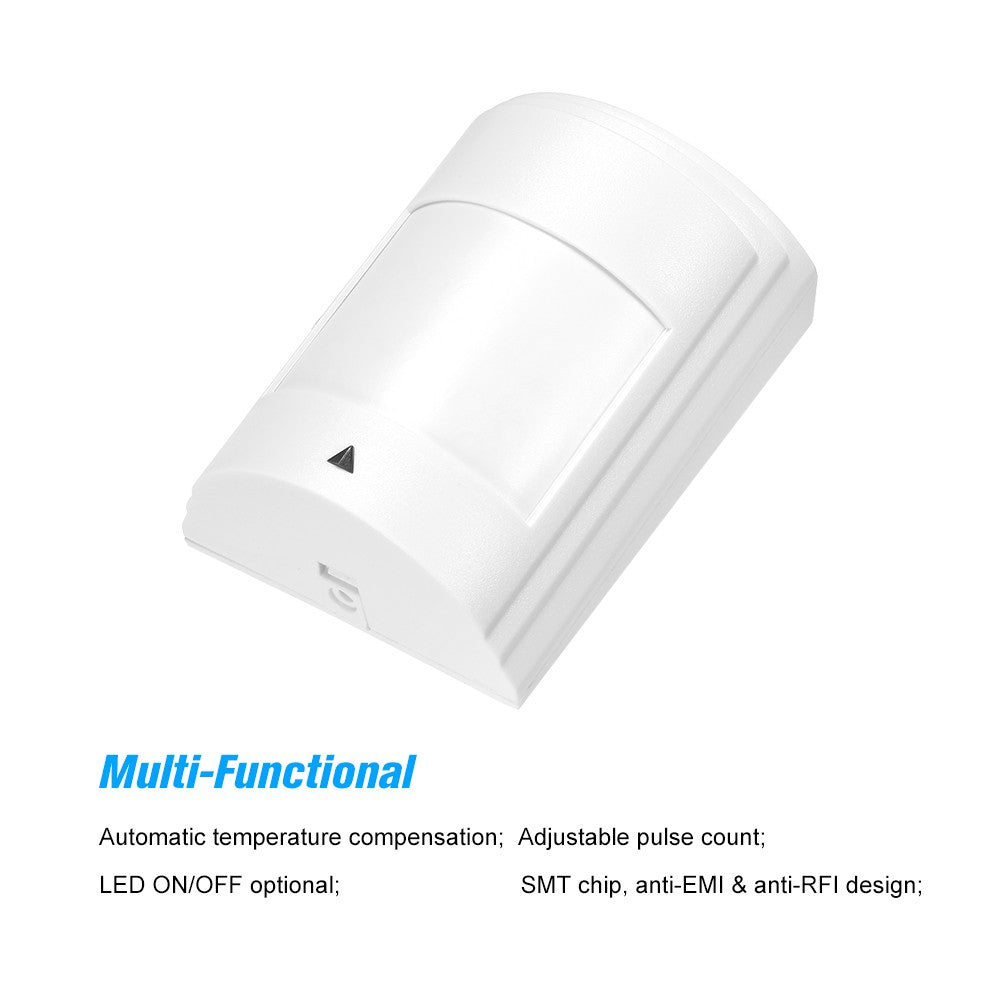

This wide-angle passive infrared detector boasts an exquisite design and easy installation, ideal for balconies, windows, doors, corridors, and more. With its imported high-end infrared sensor and SMT chip technology, the device offers advanced features such as anti-EMI & anti-RFI design, temperature compensation, adjustable pulse count, and an optional LED switch. These selectable functions integrate seamlessly with wired alarm hosts.

Features:

• MCU technology ensures the prevention of false alarms.

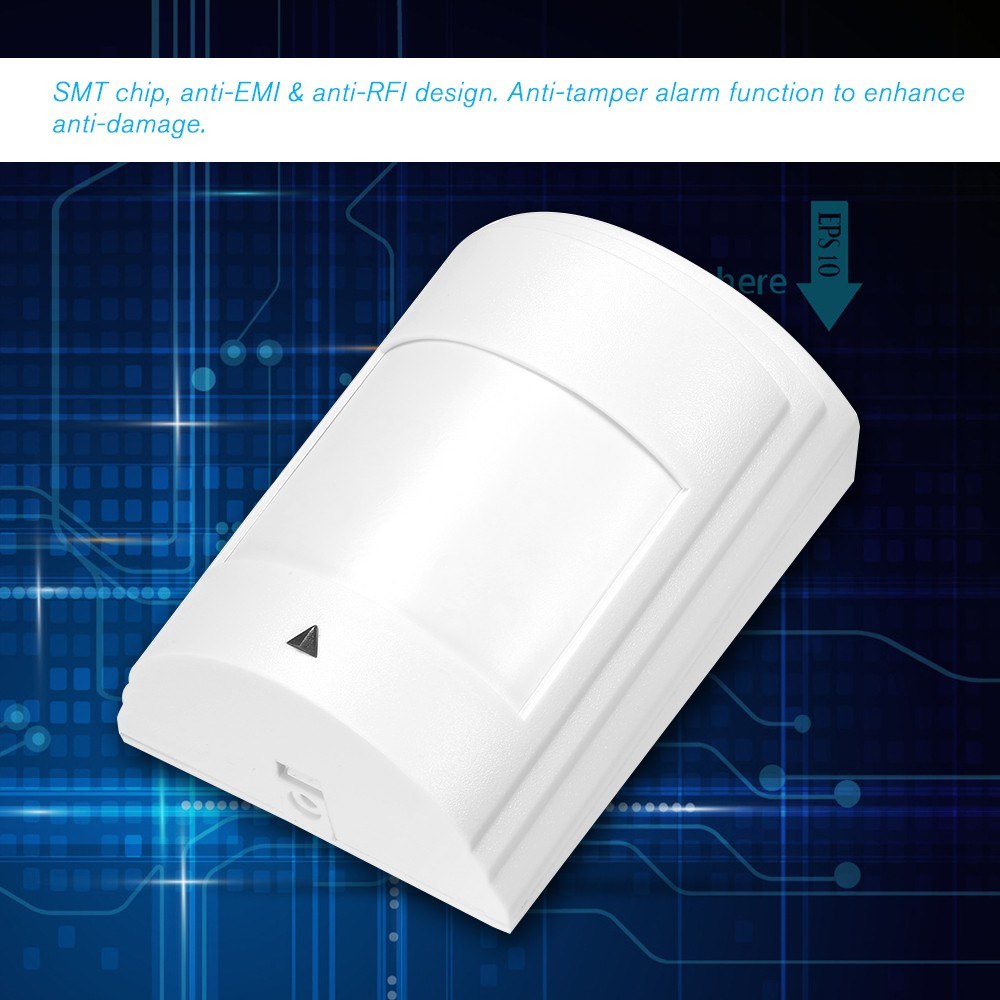

• SMT chip with anti-EMI & anti-RFI design, and anti-tamper alarm feature for enhanced durability.
• Wide-angle PIR sensor measuring 10.6m x 10.6m ensures high catch performance and immunity to false alarms.
• Automatic temperature compensation and adjustable pulse count offer customizable sensitivity.
• Optional LED ON/OFF provides better concealment and discreet operation.

Specifications:

• Working Voltage: 9V-16V
• Standby Current: 18mA
• Alarm Current: 20mA
• Wide Detector Angle: 110° (10.6m x 10.6m)
• Detection Distance: 12m (25°C)
• Detection Speed: 0.2-7m/s
• Sensitivity: Level 2 adjustable
• Installation Method: Wall Hanging
• Installation Height: 1.1m-3.1m Adjustable
• Alarm Output: NC
• LED Indicator Light: ON/OFF Optional
• Operating Temperature: -10°C to 50°C

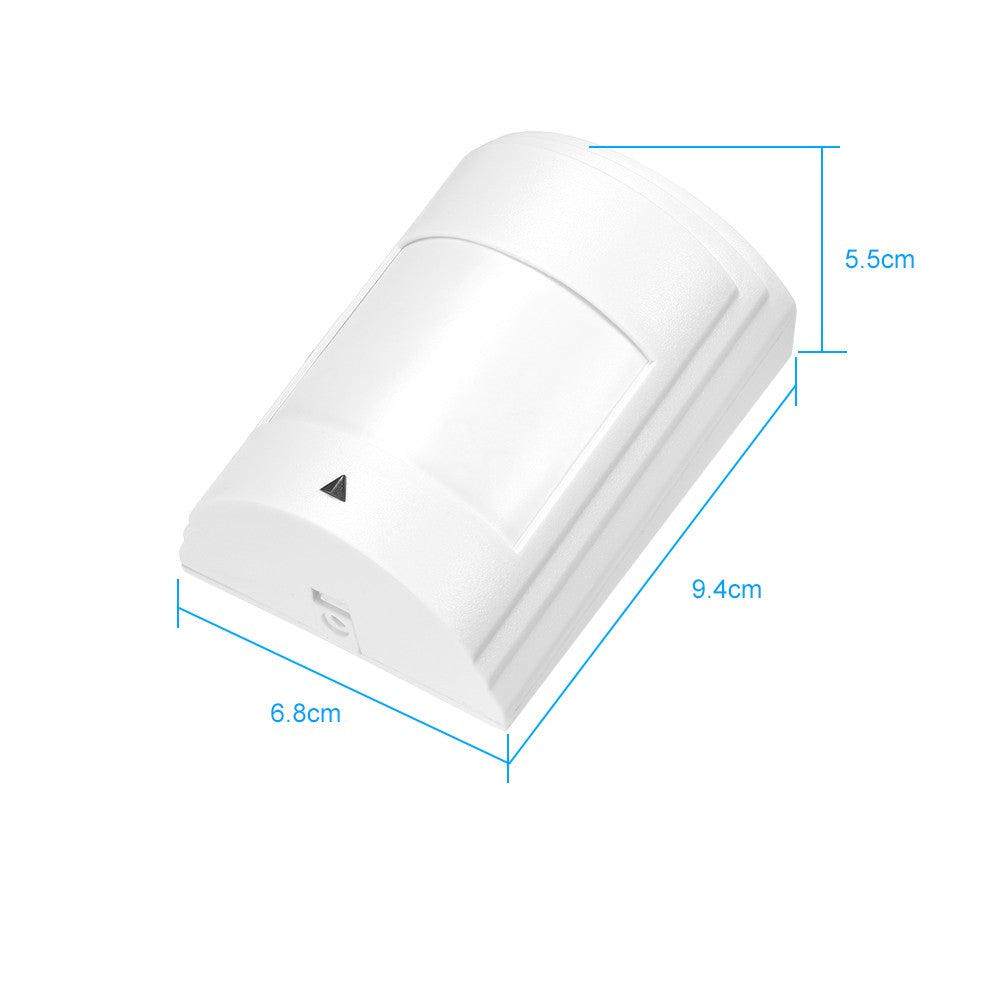

• Item Size: Approx. 9.4 x 6.8 x 5.5cm (L x W x H)
• Item Weight: Approx. 76g / 2.7oz

Package Information:

• Package Size: Approx. 9.8 x 6.8 x 5.6cm / 3.8 x 2.7 x 2.2in
• Package Weight: Approx. 89g / 3.1oz

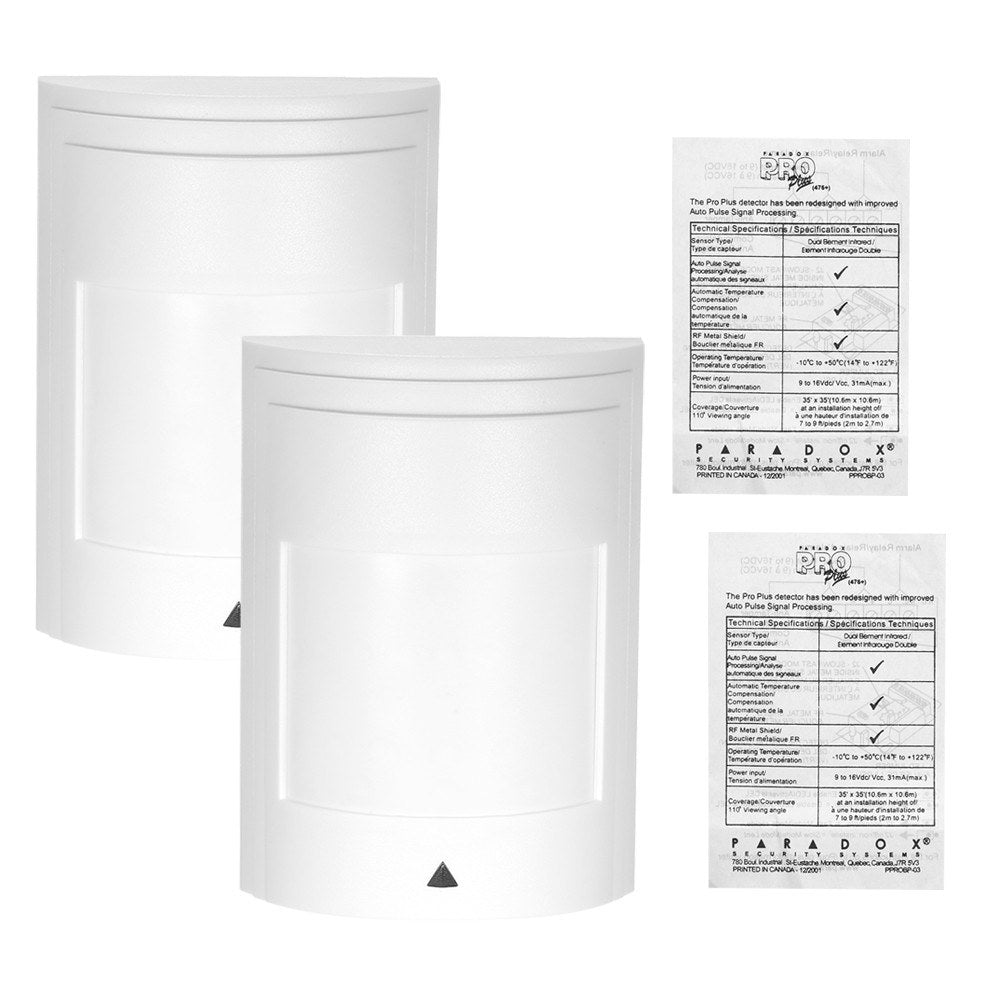

Package List:

• 1 x Wired PIR Motion Sensor
• 1 x User Manual
