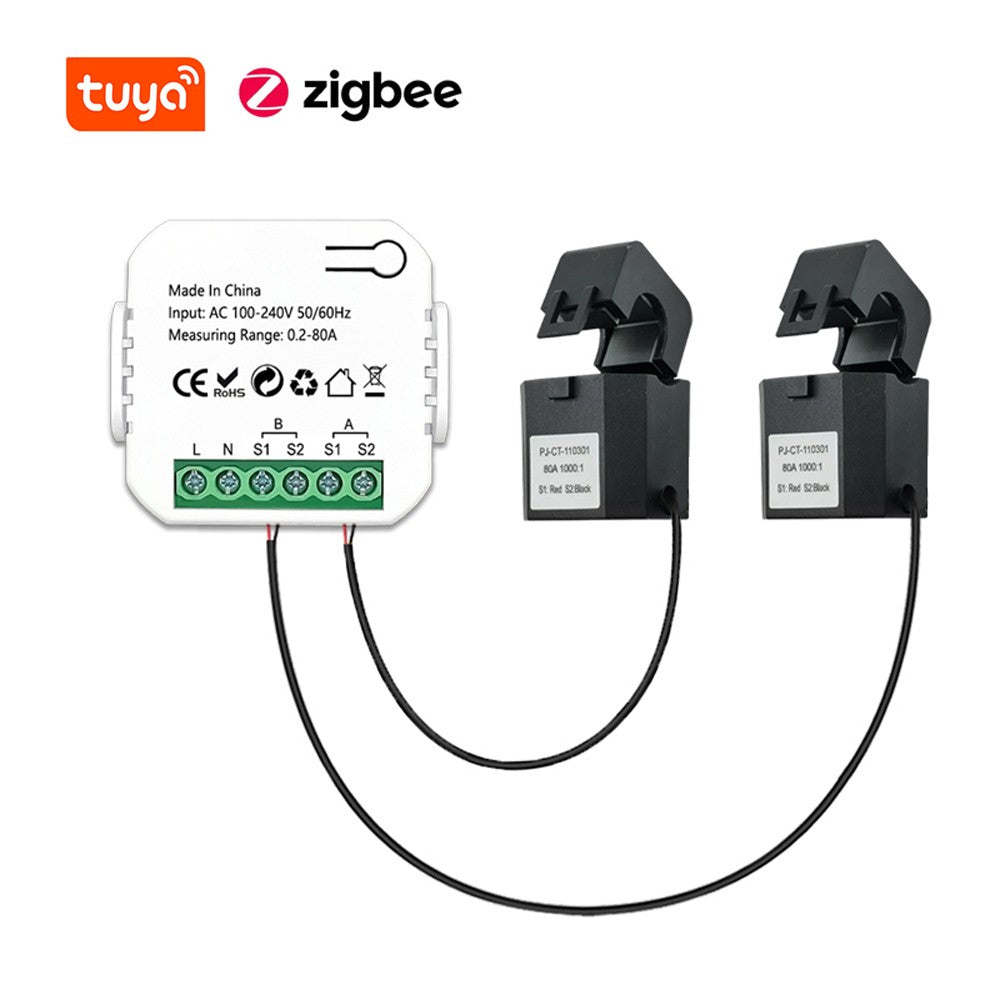

Tuya ZigBee Solar PV Energy Meter: Bidirectional Monitoring & Mobile App Control with CT

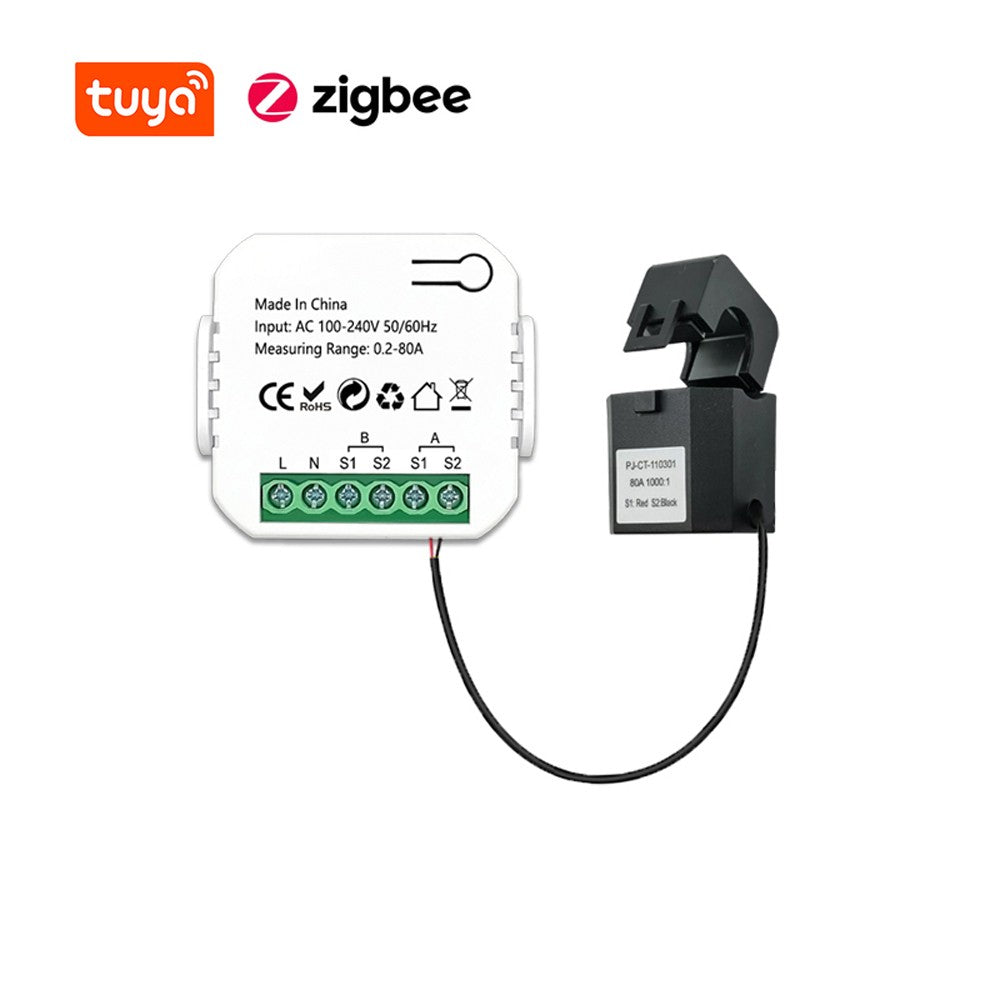

Introducing the Tuya ZigBee Intelligent Energy Meter

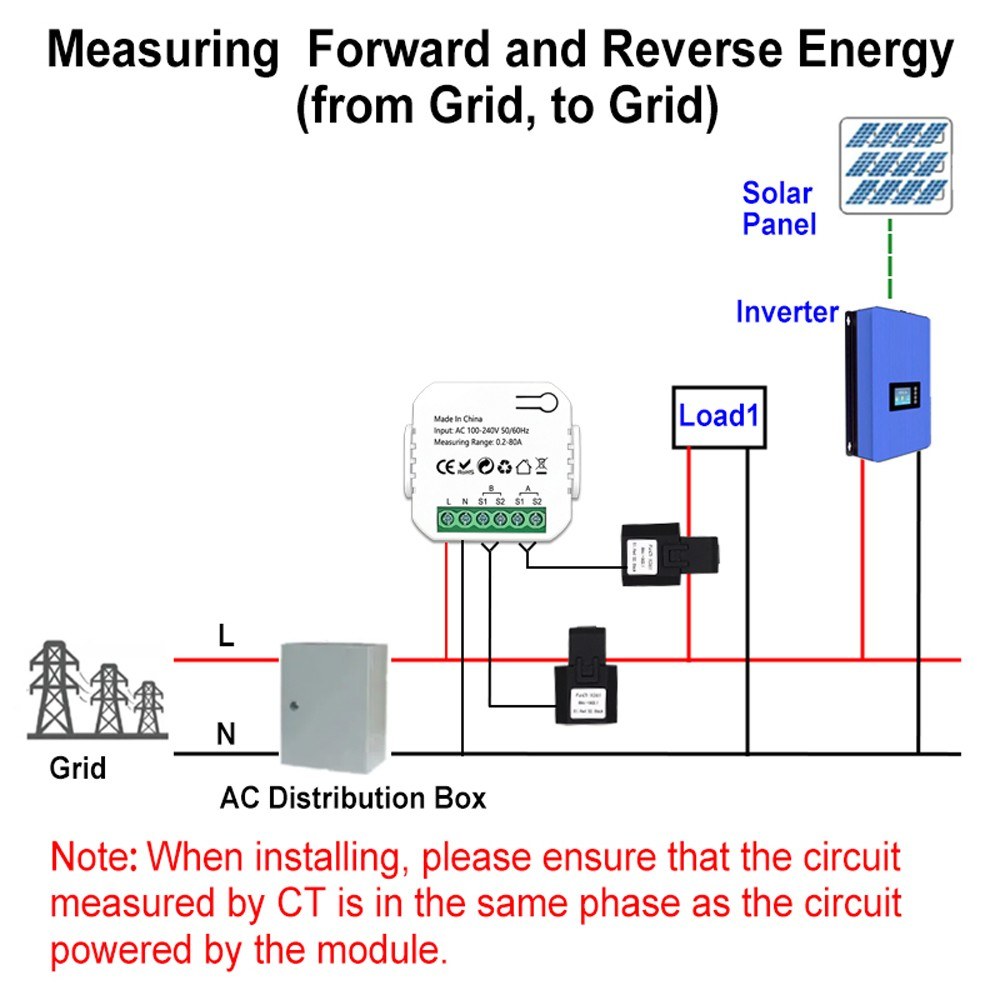

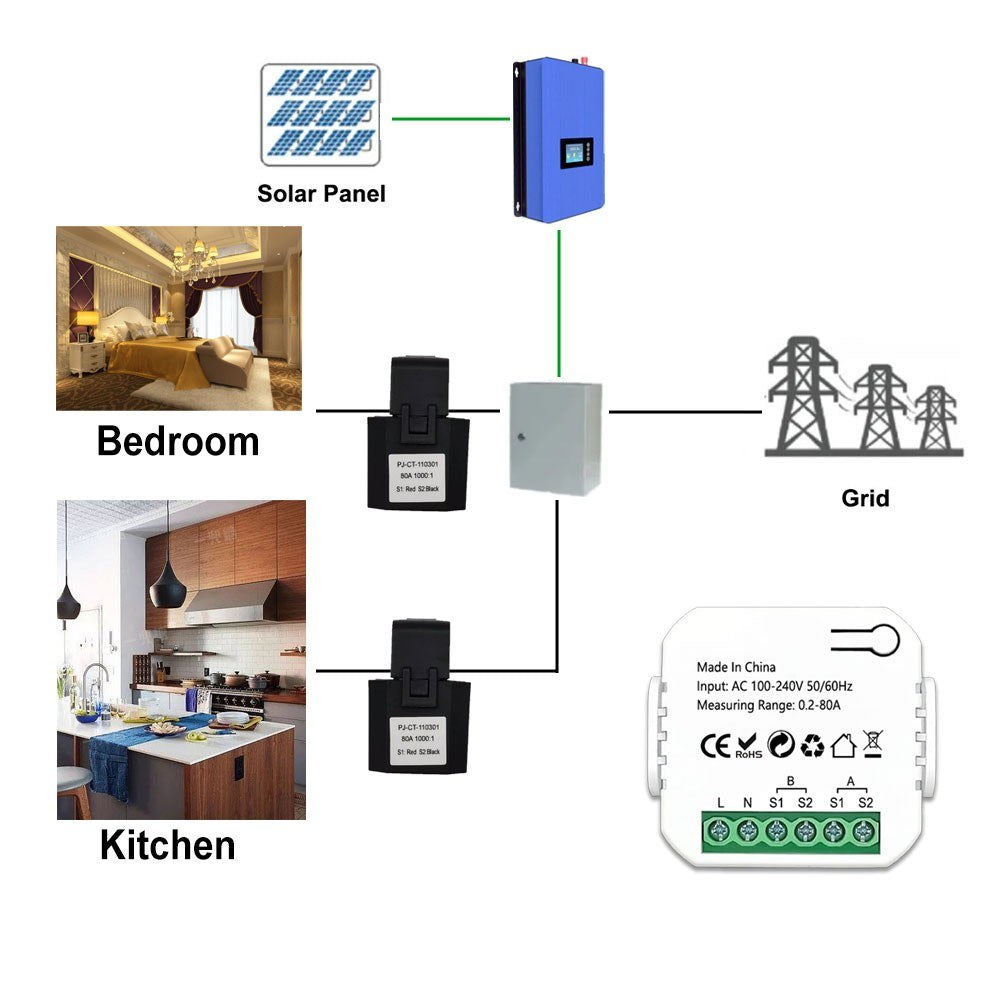

Track energy production and consumption effortlessly with the Tuya ZigBee Intelligent Energy Meter. Designed to monitor solar and photovoltaic systems, this device provides real-time insights via the Tuya APP. Control and measure your energy usage with precision, ensuring optimal efficiency and performance.

Key Features:

• Powerful Functionality: Achieve high-precision measurement with real-time monitoring of voltage, current, and power across channels during energy generation and consumption.

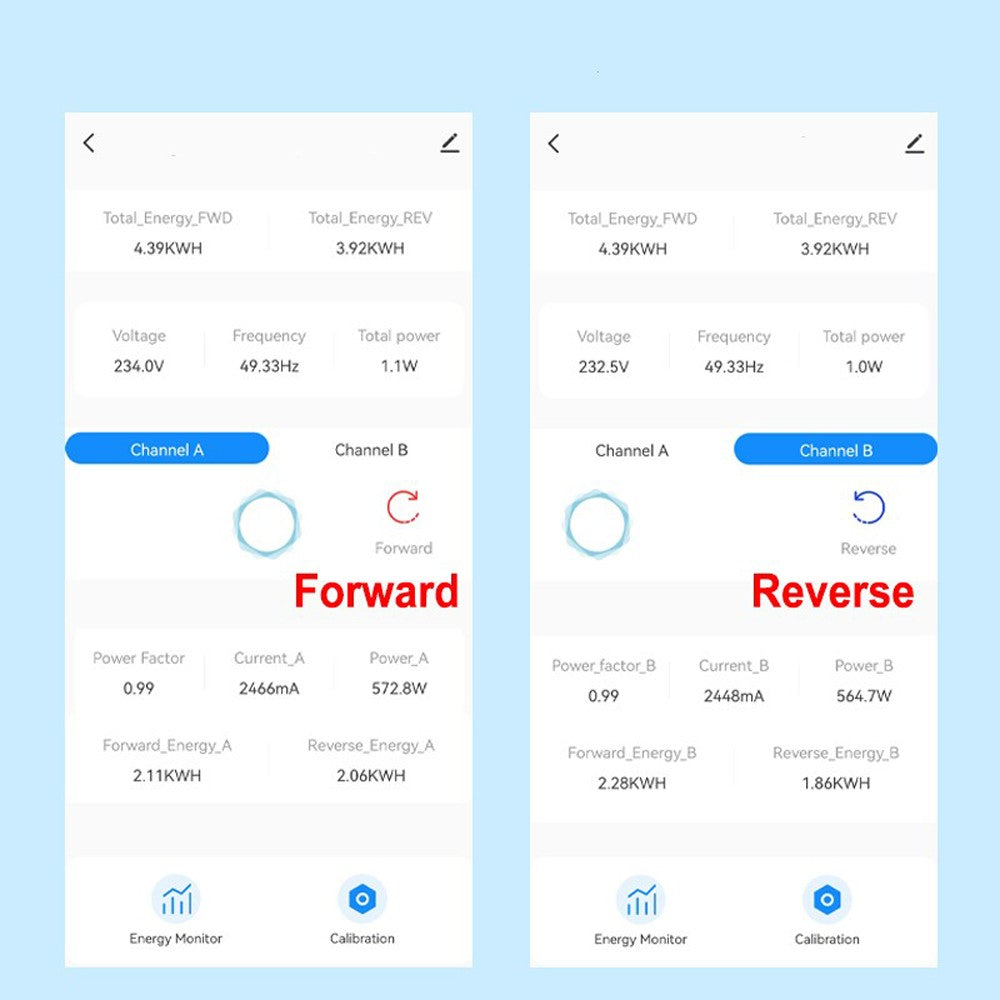

• Mobile App Control: Use the Tuya APP to view real-time data on power, current, voltage, power factor, and frequency, all for both forward and reverse channels.

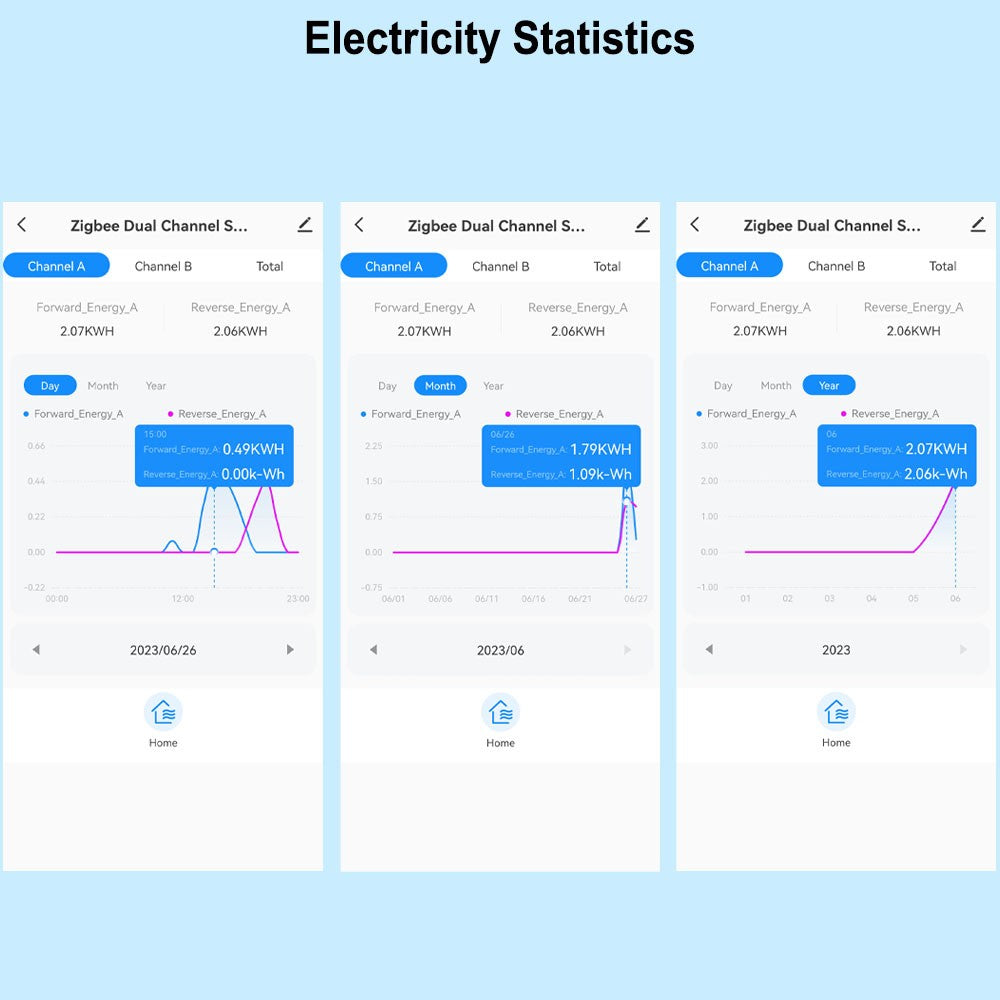

• Comprehensive Power Statistics: The app displays daily, monthly, and yearly power statistics. Monitor reverse and forward channel totals individually and manage your energy use efficiently to avoid abnormalities.

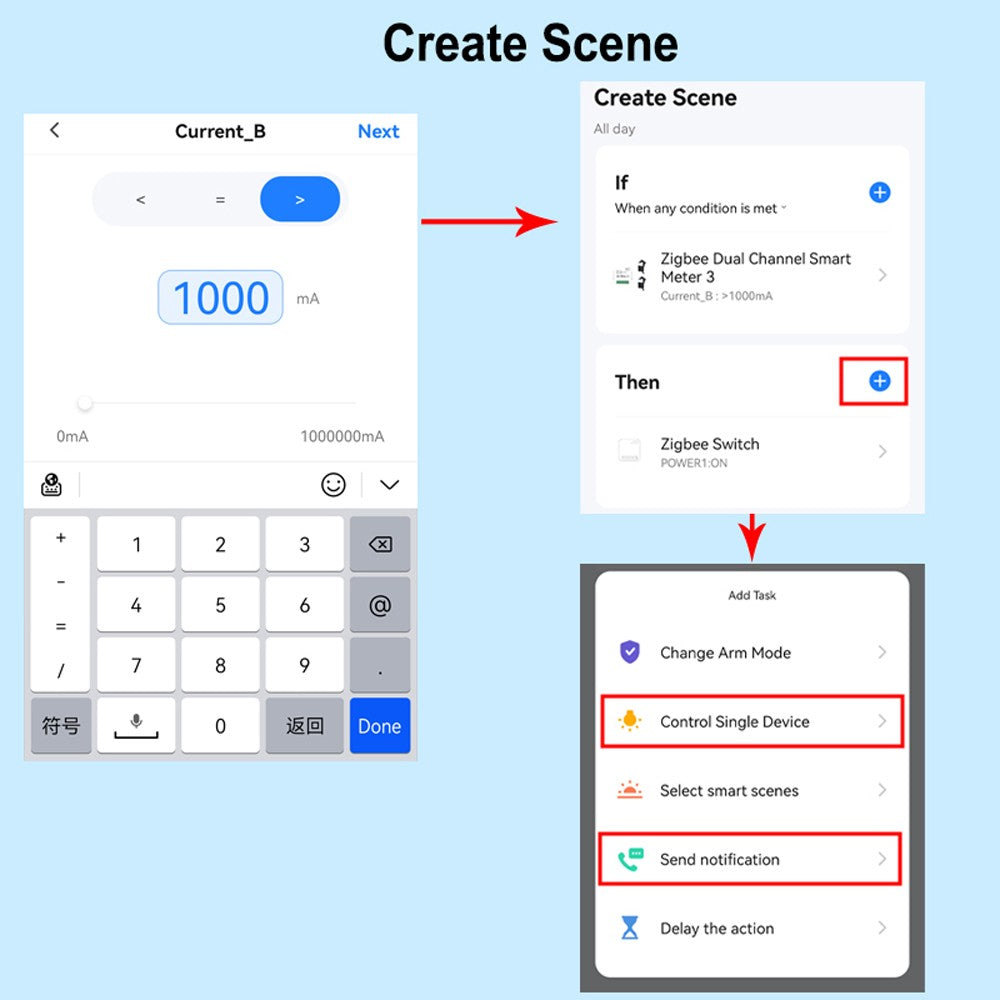

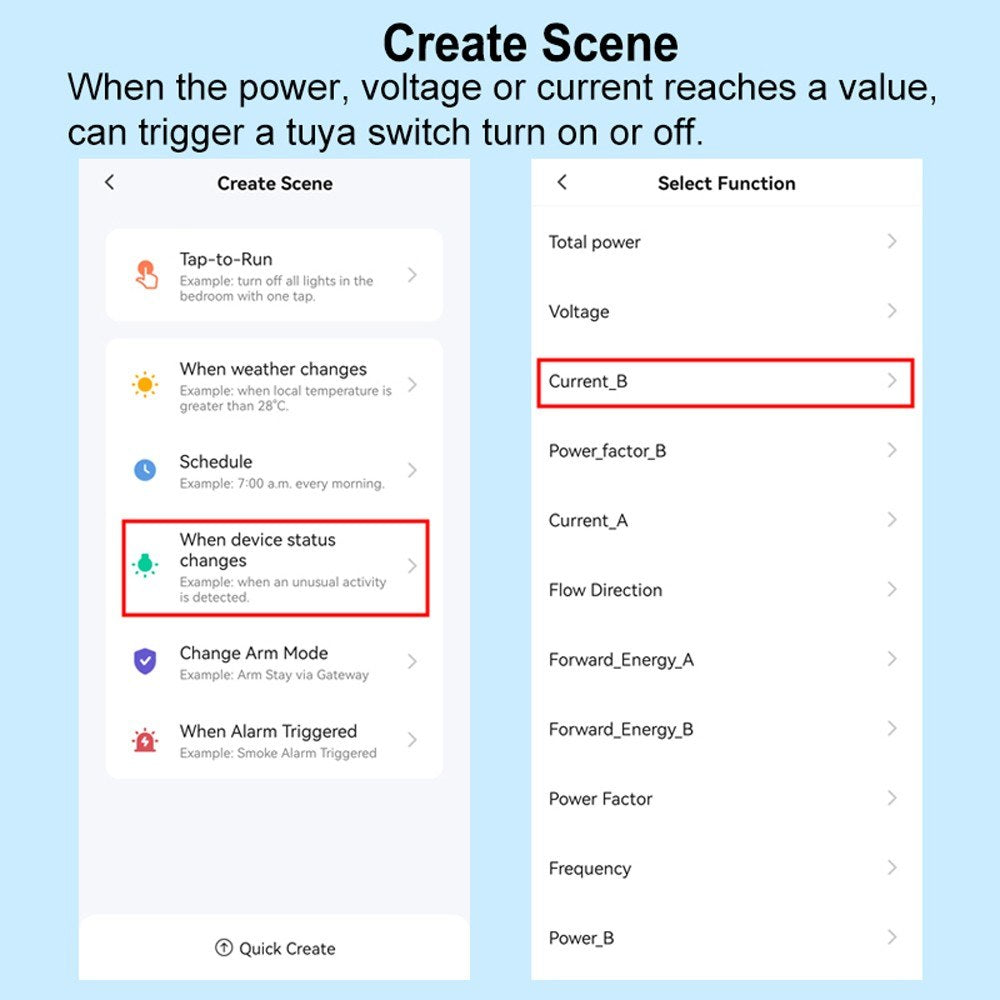

• Advanced Automation: Set power or current thresholds in the APP to activate the device only when these values are exceeded, optimizing your energy usage.
• Feature-Rich Design: Utilize automated valve-settings, receive push notifications, and easily calibrate the device by adjusting percentages if needed.

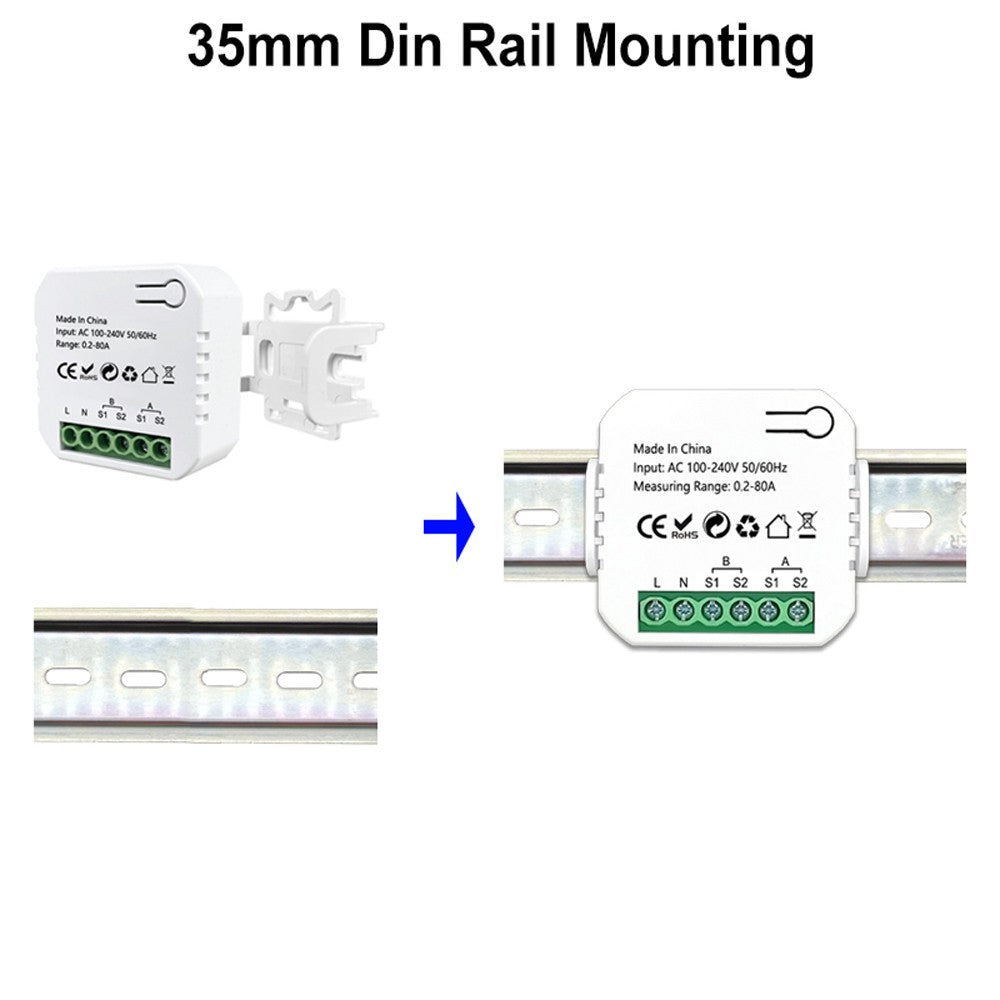

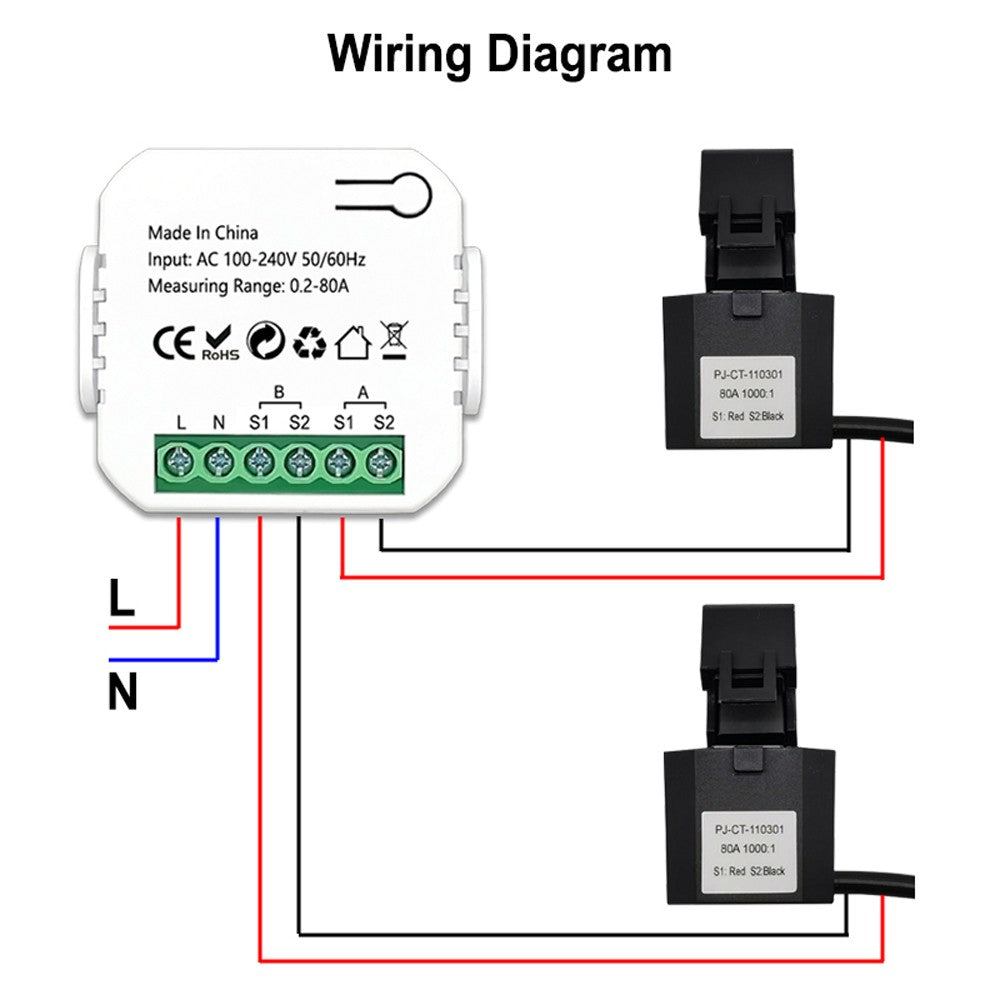

• Easy Installation: Mounts easily on a 35mm rail without replacing existing wires. Simply clip the wires in for a safe and accurate measurement.

Note: ZigBee products require a gateway for operation.

Specifications:

• Name: Tuya ZigBee Energy Meter
• Material: PC
• Type: 1CT, 2CT (optional)
• Current: 0.2-80A
• Input Voltage: 110-240 V, 50/60Hz
• Accuracy Grade: 1.0
• Working Temperature: -10℃ to 55℃
• Wireless Type: 2.4GHz
• Item Size: 47 x 47 x 18mm / 1.85 x 1.85 x 0.71in
• Package Size: 1CT: 100 x 100 x 30mm / 3.94 x 3.94 x 1.18in, 2CT: 115 x 115 x 40mm / 4.53 x 4.53 x 1.57in
• Package Weight: 1CT: 150g / 5.29 ounces, 2CT: 200g / 7.05 ounces

Packing List:

(1CT):

• 1 x Tuya ZigBee Energy Meter
• 1 x CT

(2CT):

• 1 x Tuya ZigBee Energy Meter
• 2 x CT
