ANENG SZ302 Digital Multimeter - AC/DC Voltage & Current Tester, NCV Detector, Ohmmeter, Ammeter & Capacitance Meter

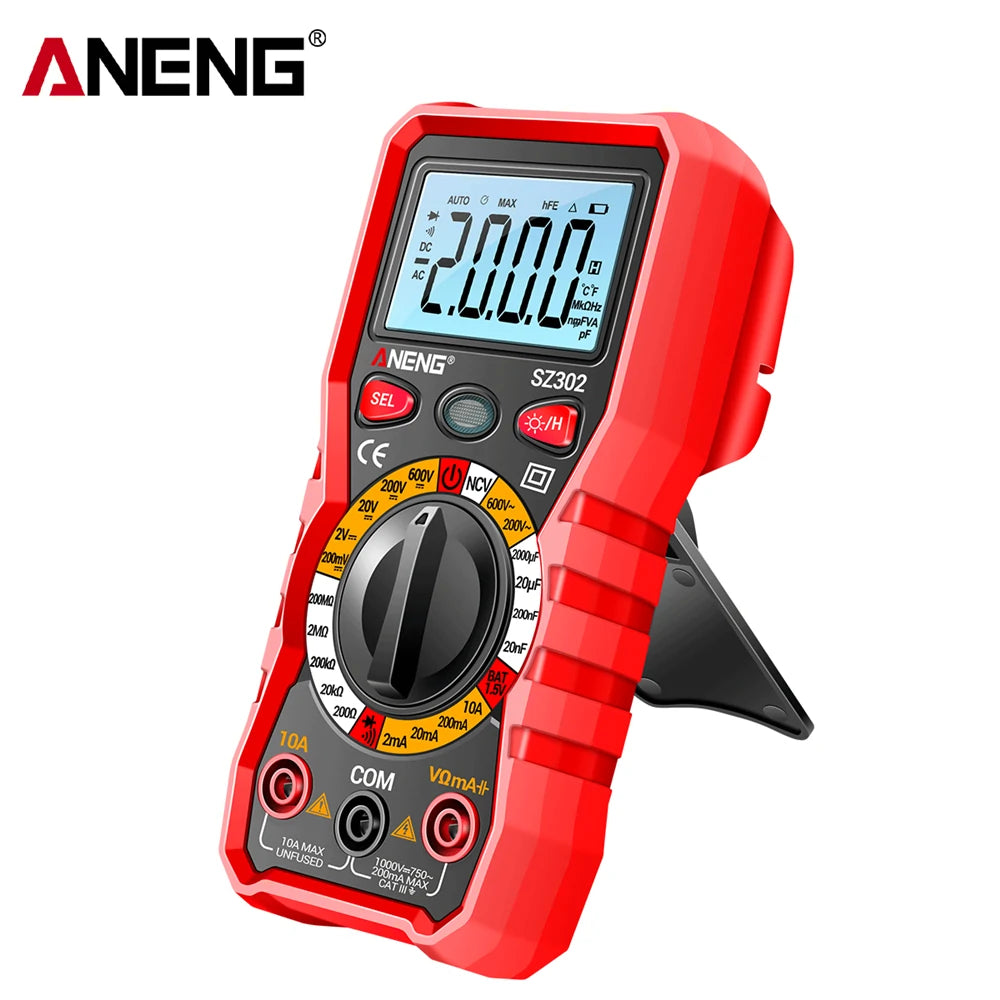

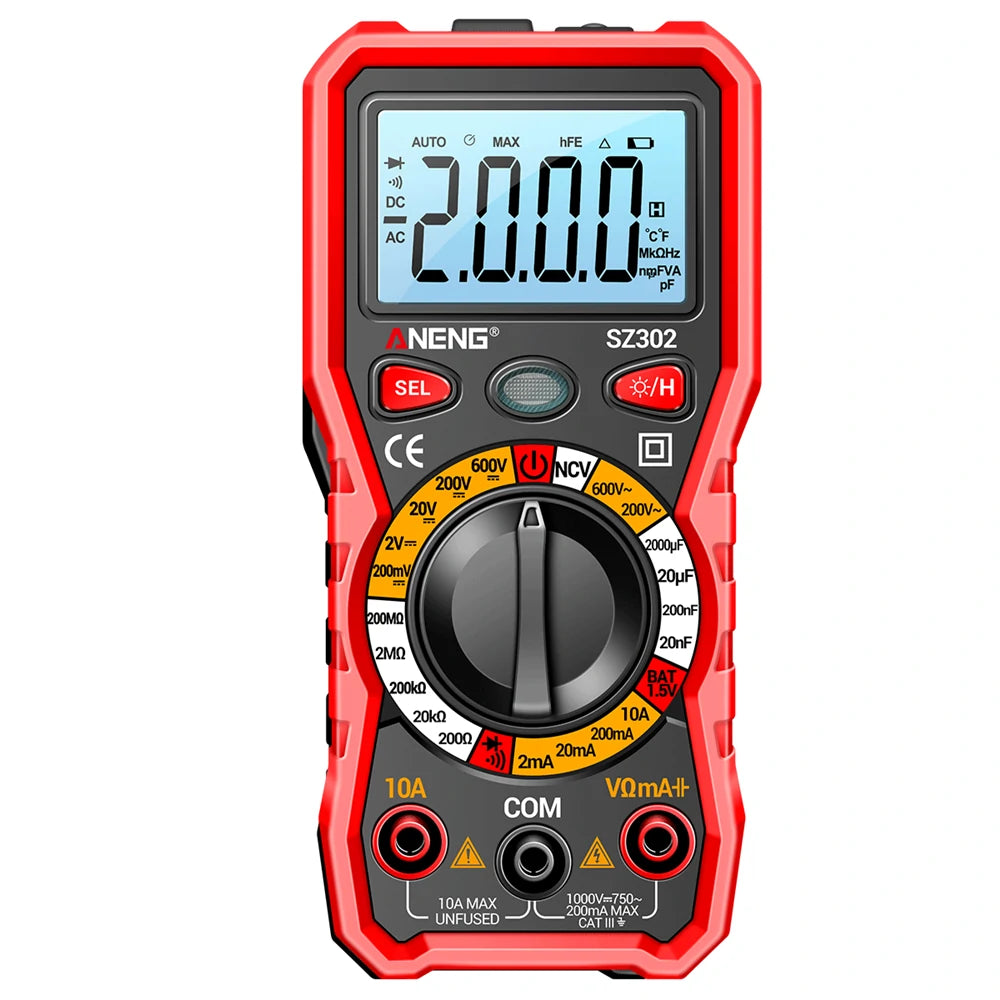

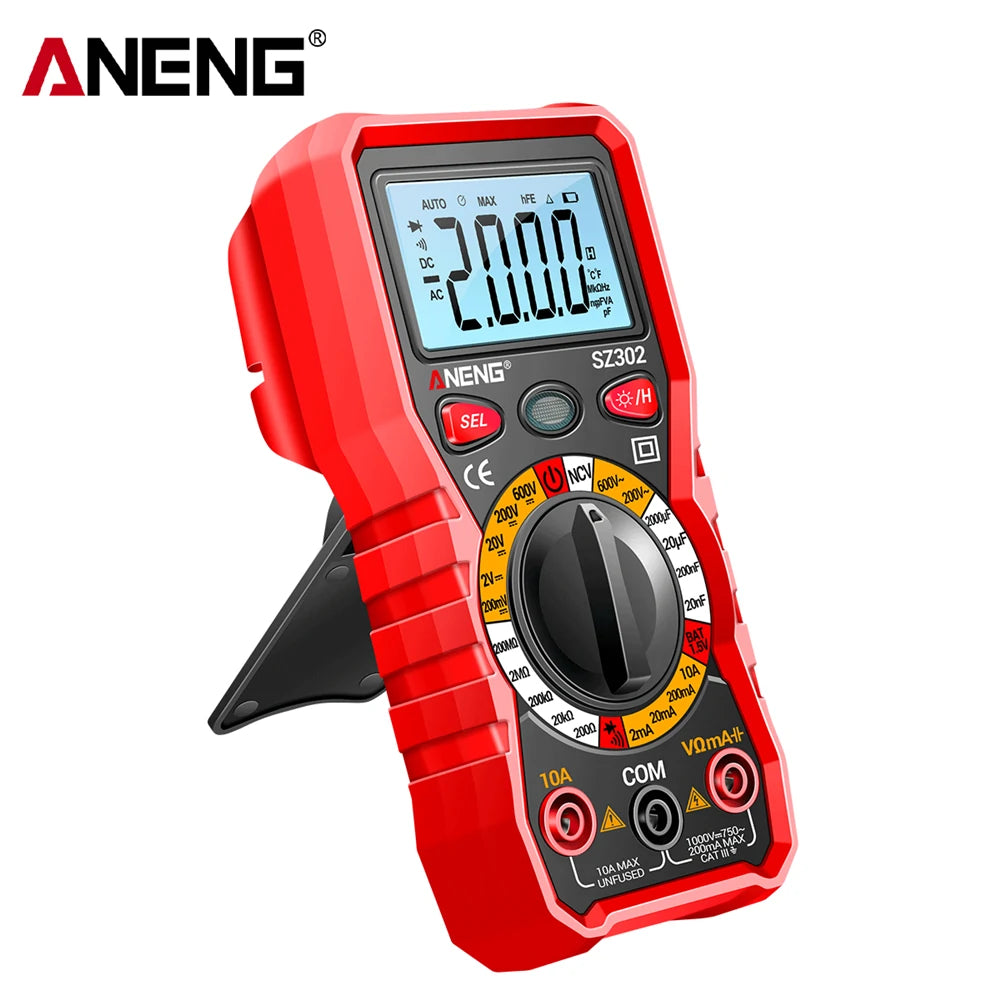

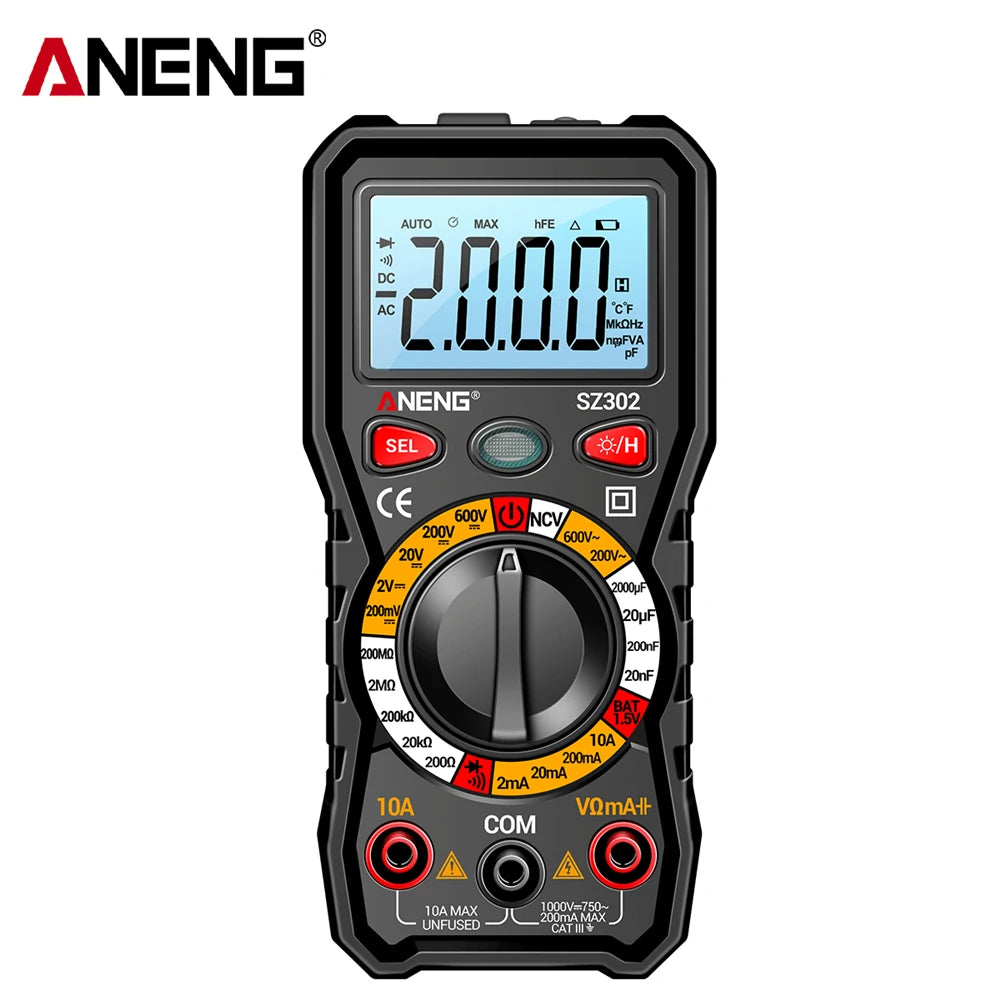

ANENG SZ302 Digital Multimeter

Introducing the ANENG SZ302 - a versatile, handheld digital multimeter designed according to international electrical safety standards. Perfect for electricians, technicians, and DIY enthusiasts, this multimeter can measure a variety of functions including AC/DC voltage, AC/DC current, resistance, capacitance, diodes, and NCV.

Key Features:

• Comprehensive measurement capabilities: AC/DC voltage, AC/DC current, resistance, capacitance, diode, and NCV
• Data retention for recording important measurements
• Bright, easy-to-read screen for clear visibility
• Automatic shut-down to conserve battery life
• In-built flashlight for working in low-light conditions
• Durable test leads with an overall length of 74MM

Measurement Specifications:

Function	Range	Resolution	Accuracy
DC Voltage	200mV/2V/20V/200V/600V	0.1mV/1mV/10mV/0.1V/1V	±(0.5%+5)
AC Voltage	200V/600V	100mV/1V	±(1%+5)
DC Current	2mA/20mA/200mA/10.00A	0.001mA/0.01mA/0.1mA/0.01A	±(1.5%+8)
AC Current	2mA/20mA/200mA/10.00A	0.001mA/0.01mA/0.1mA/0.01A	±(1.5%+8)
Resistance	200Ω/20kΩ/200kΩ/2MΩ/200MΩ	0.1Ω/10Ω/100Ω/1kΩ/100kΩ	±(4.0%+10)
Capacitance	20nF/200nF/20uF/2000uF	0.01nF/0.1nF/0.01uF/1uF	±(5.0%+10)

Additional Features:

• Diode testing
• On and off beep indicator
• NCV induction with indicator light
• Maximum count: 2000 counts

Specifications:

• Model: SZ302
• Pen Material: PVC/Brass
• Battery: No.5 AA battery x 2 (BAT 1.5V)

Package Includes:

• 1 x Multimeter (battery not included)
• 1 x Test lead
• 1 x User Manual

Experience precision and reliability with the ANENG SZ302 digital multimeter – an essential tool for accurate electrical measurements.
