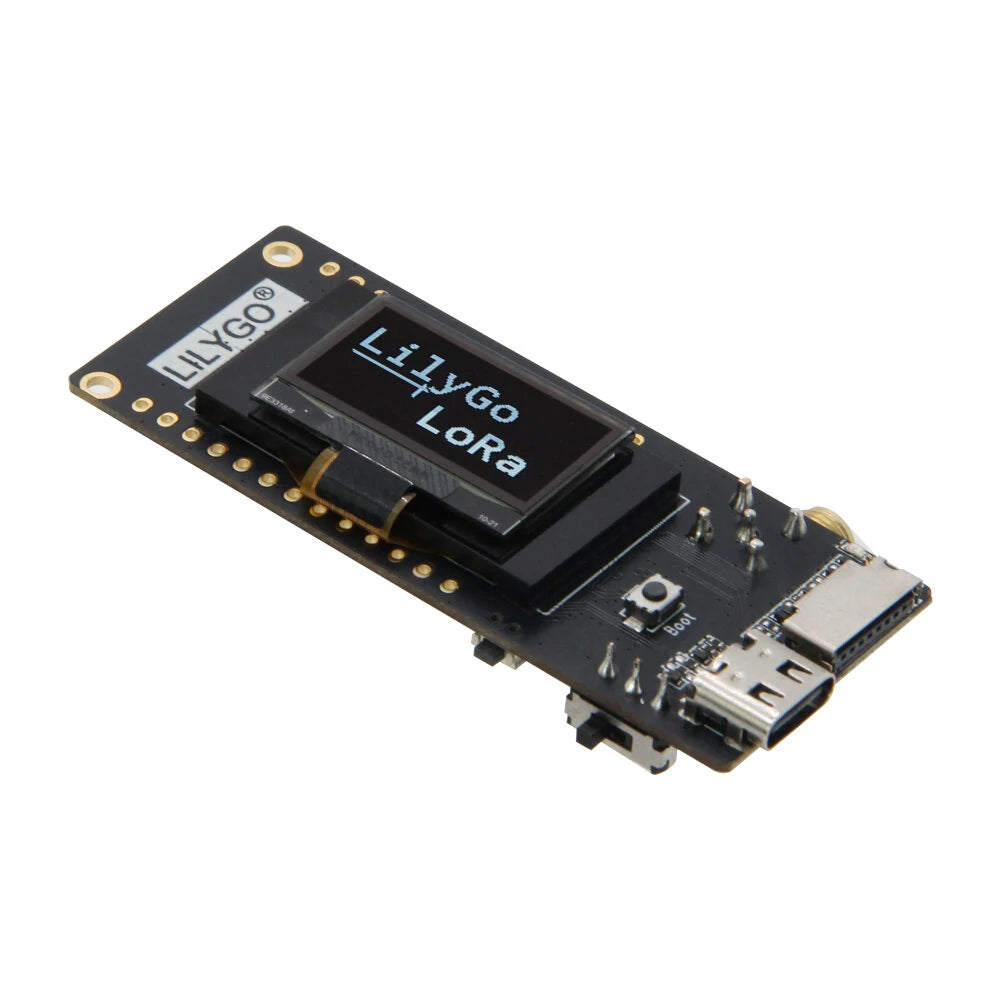

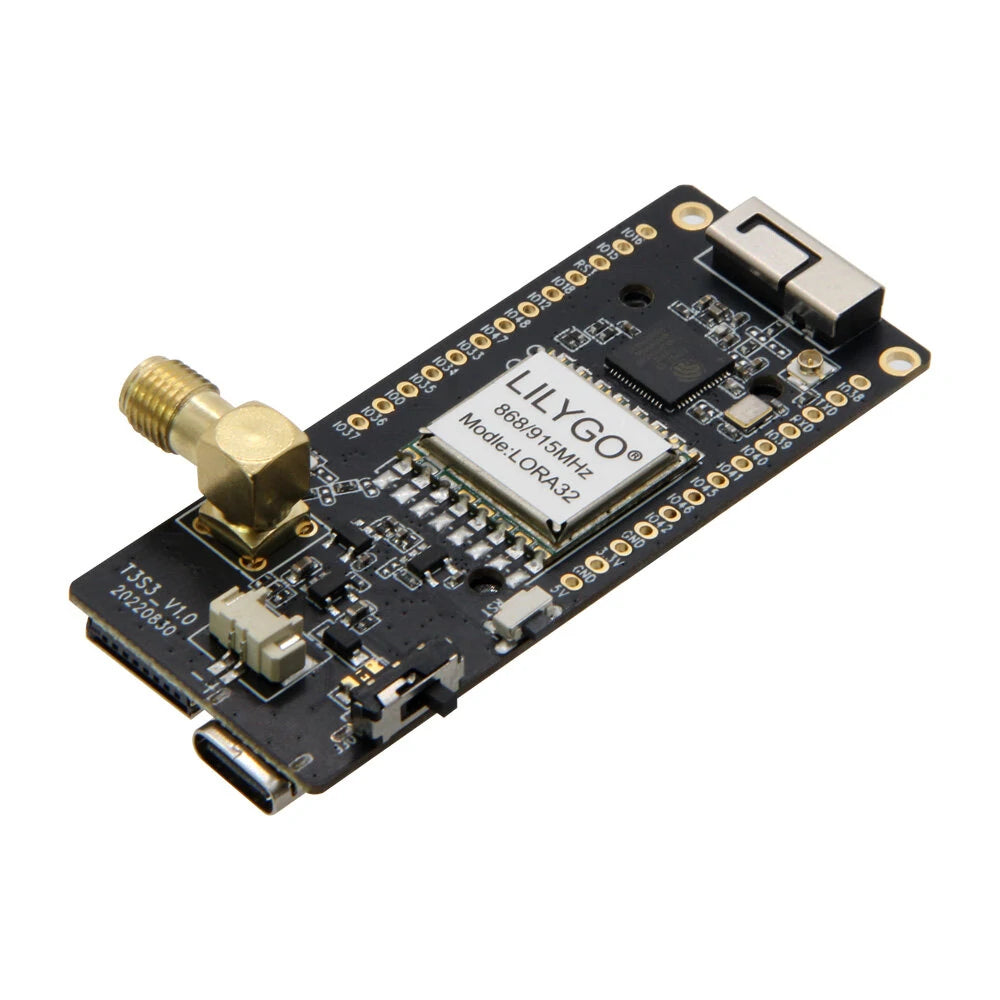

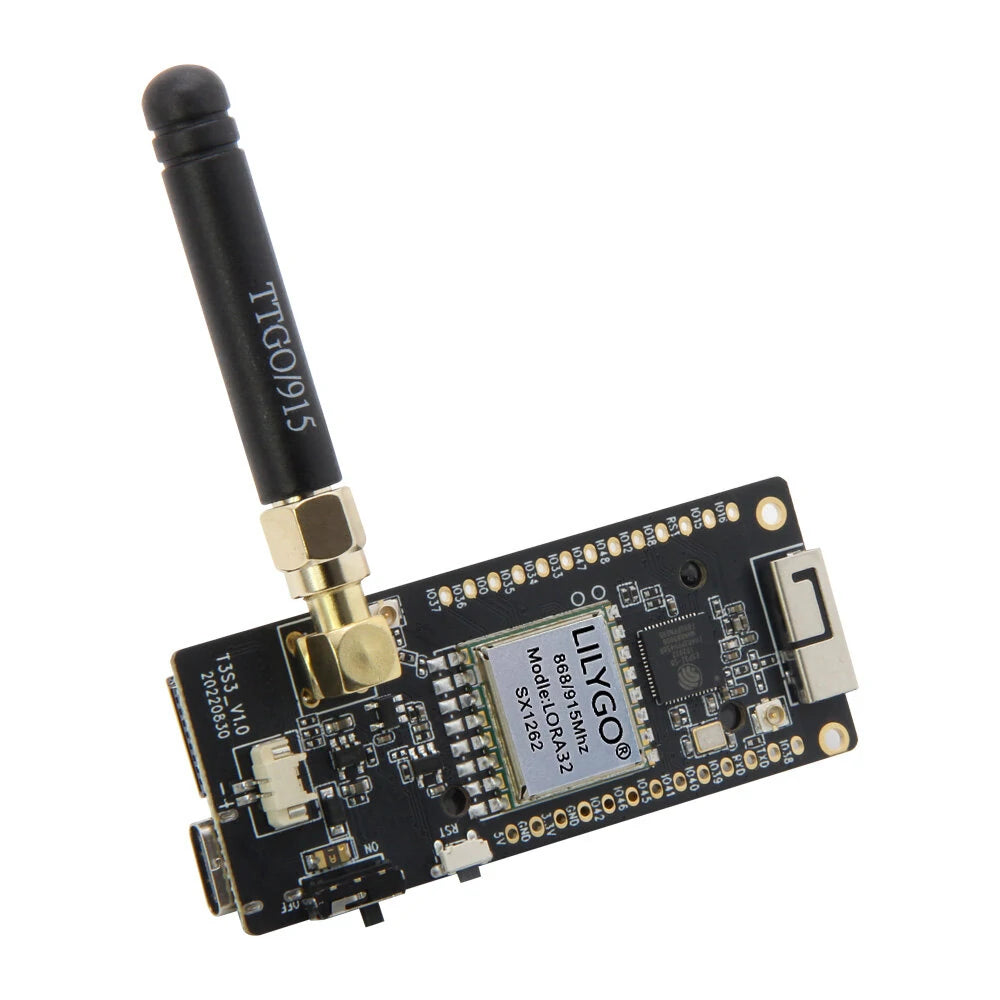

LILYGO® T3S3 ESP32-S3 LoRa Development Board - SX1262/SX1276/SX1280 2.4GHz, WiFi Bluetooth Module, 0.96 OLED, Type-C

Introduction

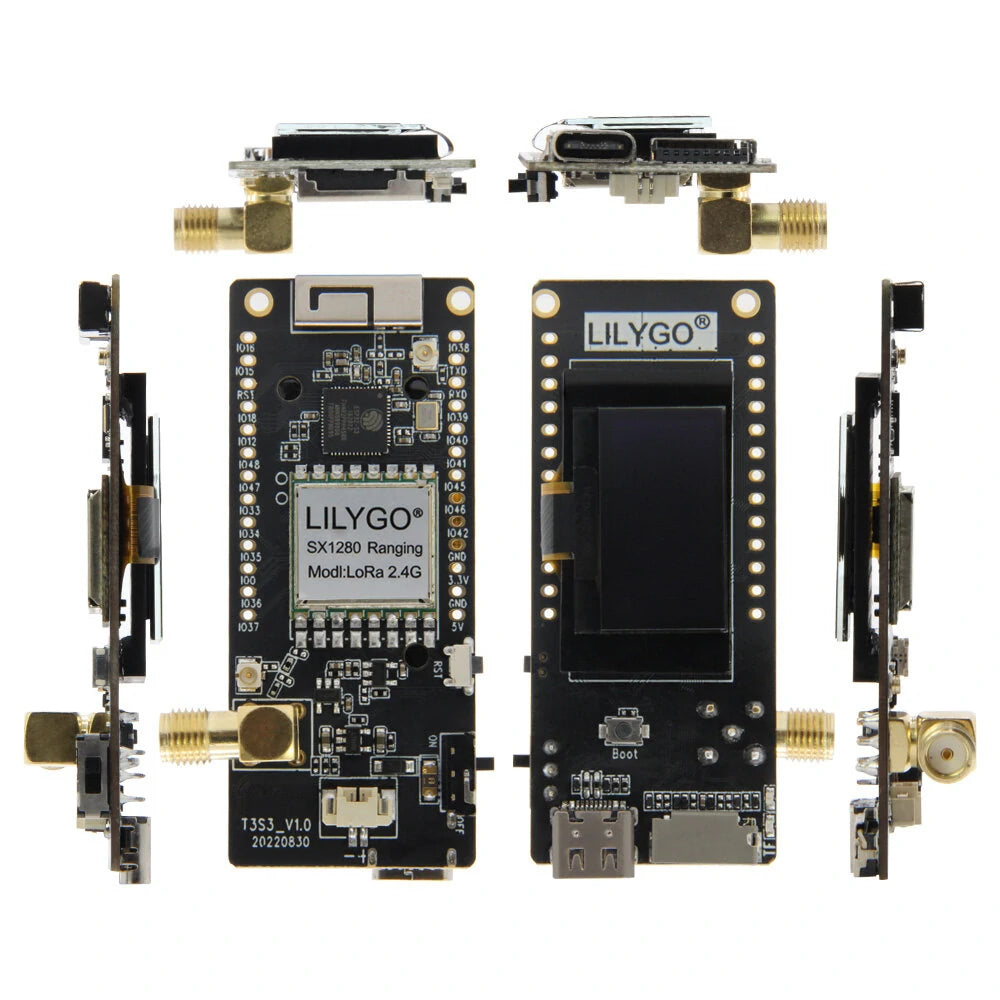

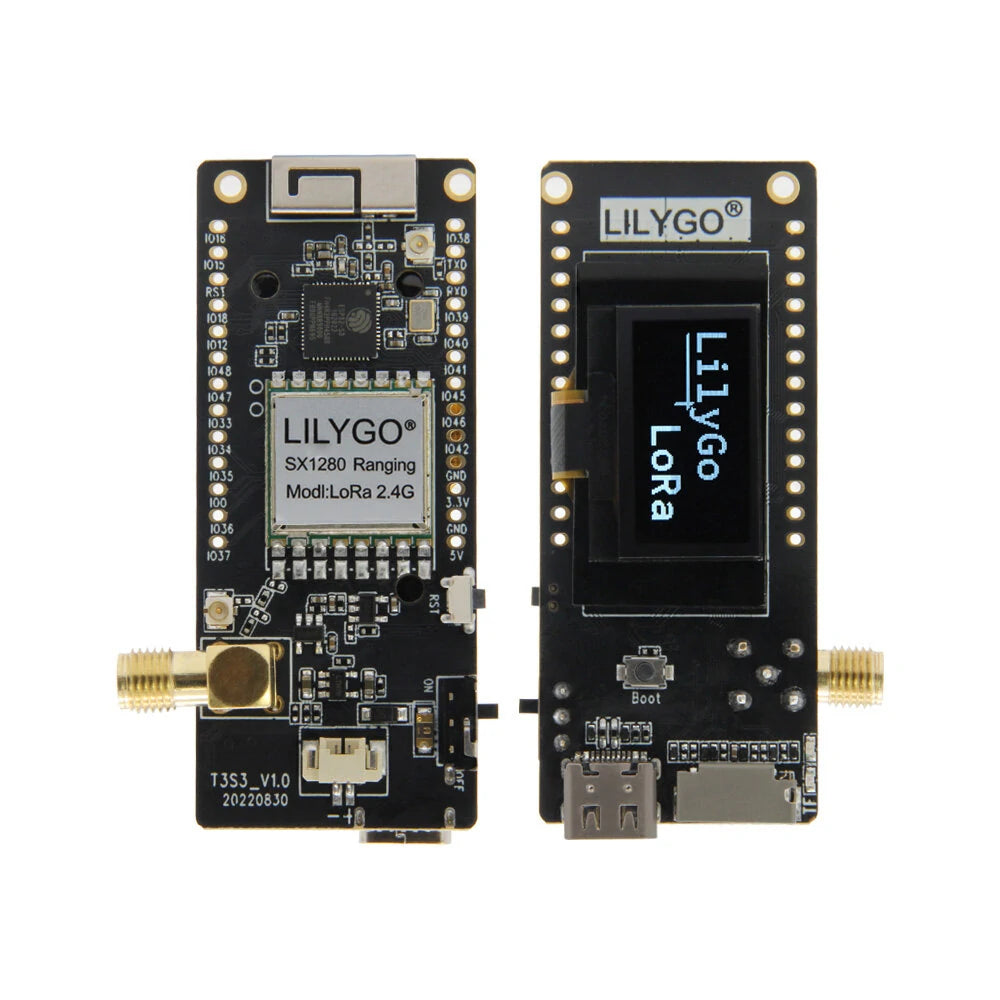

The T3S3 is the latest iteration in the LoRa series, featuring the SX1280 LoRa module. This module supports the 2.4GHz frequency band and can be used globally. It is powered by the ESP32 main control chip and supports TF cards for additional storage.

Important: When using the SX1280 PA module, it is recommended to control the output power of the SX1280 chip between 2-5 dBm to ensure that the module outputs a power of 20 dBm. Exceeding 5 dBm may damage the FEM chip. Setting the output power to 3 dBm is optimal for maintaining an output power of 20 dBm.

Specifications

• MCU: ESP32S3
• Flash: 4MB
• PSRAM: 2MB
• Communication Protocols: Wi-Fi, Bluetooth 5.0, BLE (Bluetooth Low Energy)
• Onboard Functions: Reset, BOOT button, TF card support, built-in/external antenna switchable
• Power Supply Modes: USB power supply, 3.7V lithium battery power supply, battery power switch
• Screen: 0.96 inches SSD1306 Driver I2C OLED
• Resolution: 128x64
• I2C Interface: SDA-IO18 SCL-IO17

Model Comparison

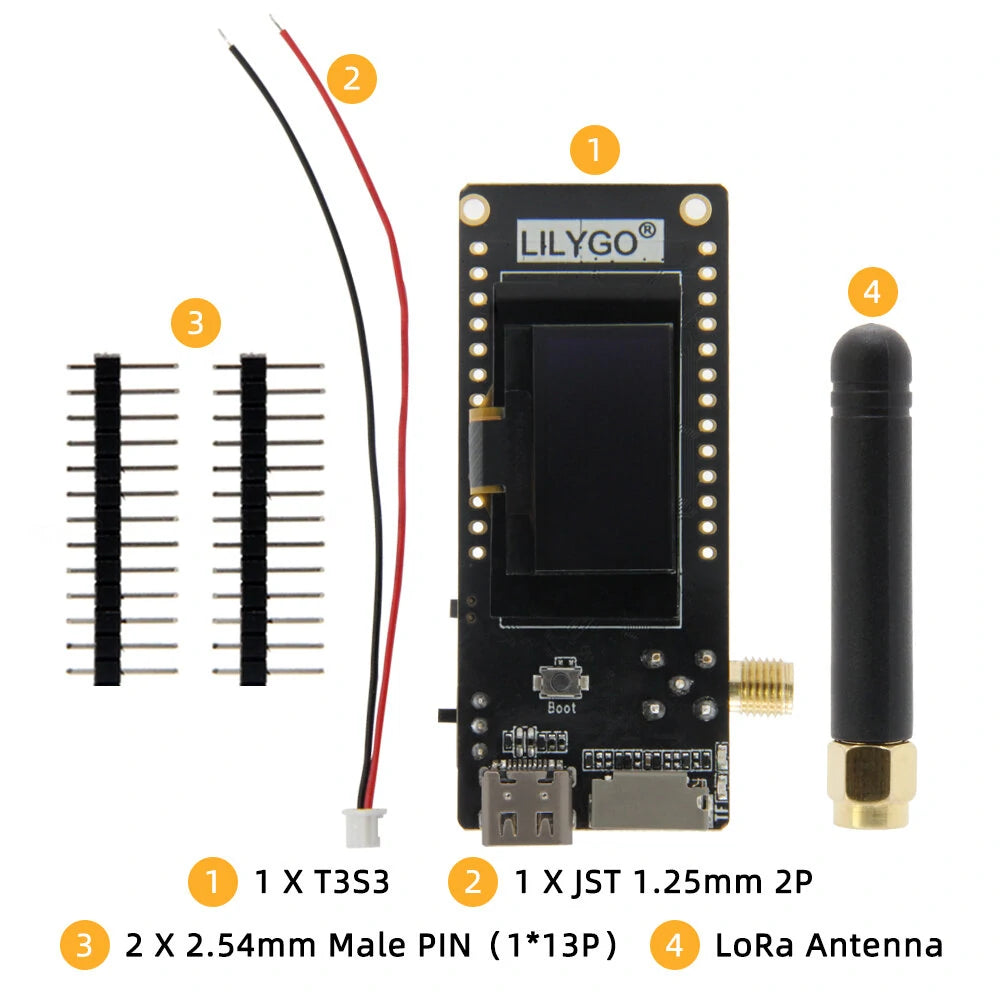

Package Includes

• 1 x T3S3
• 2 x 2.54mm Male PIN (1*13P)
• 1 x Battery Cable
• 1 x LoRa Antenna (optional)
