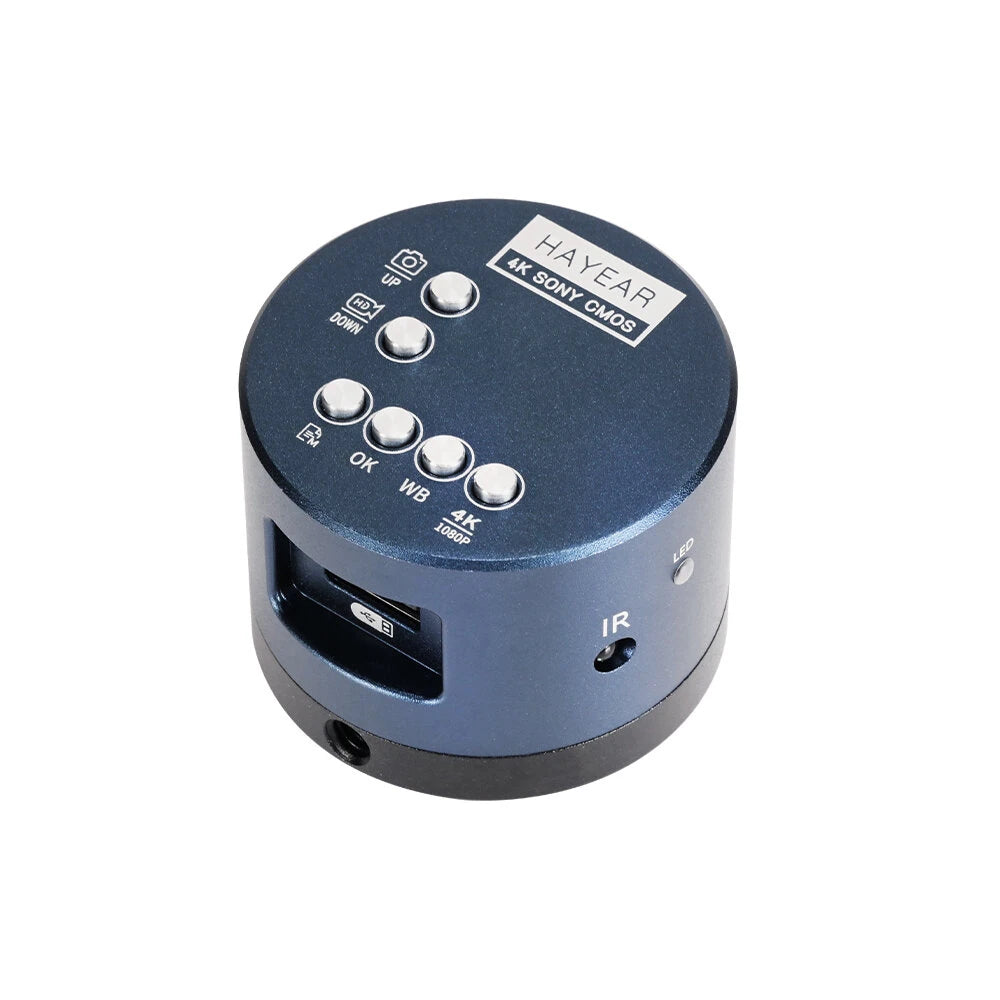

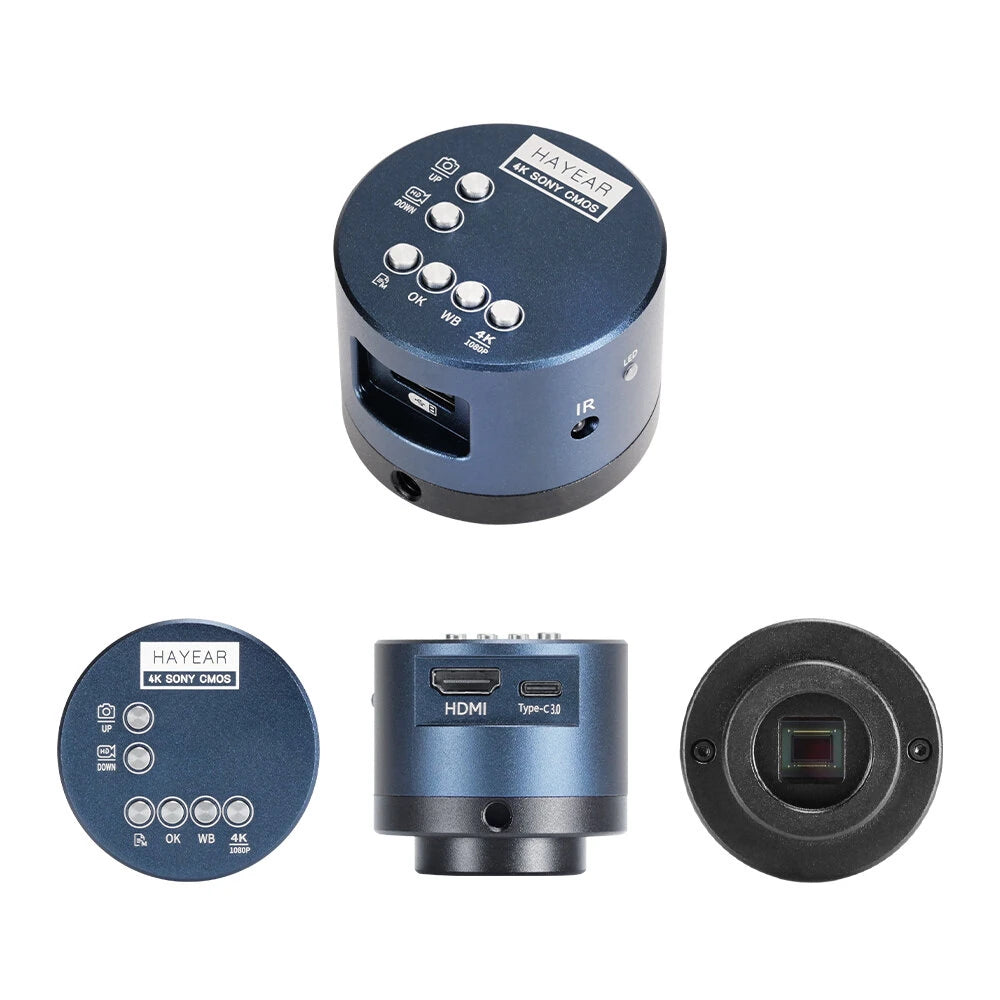

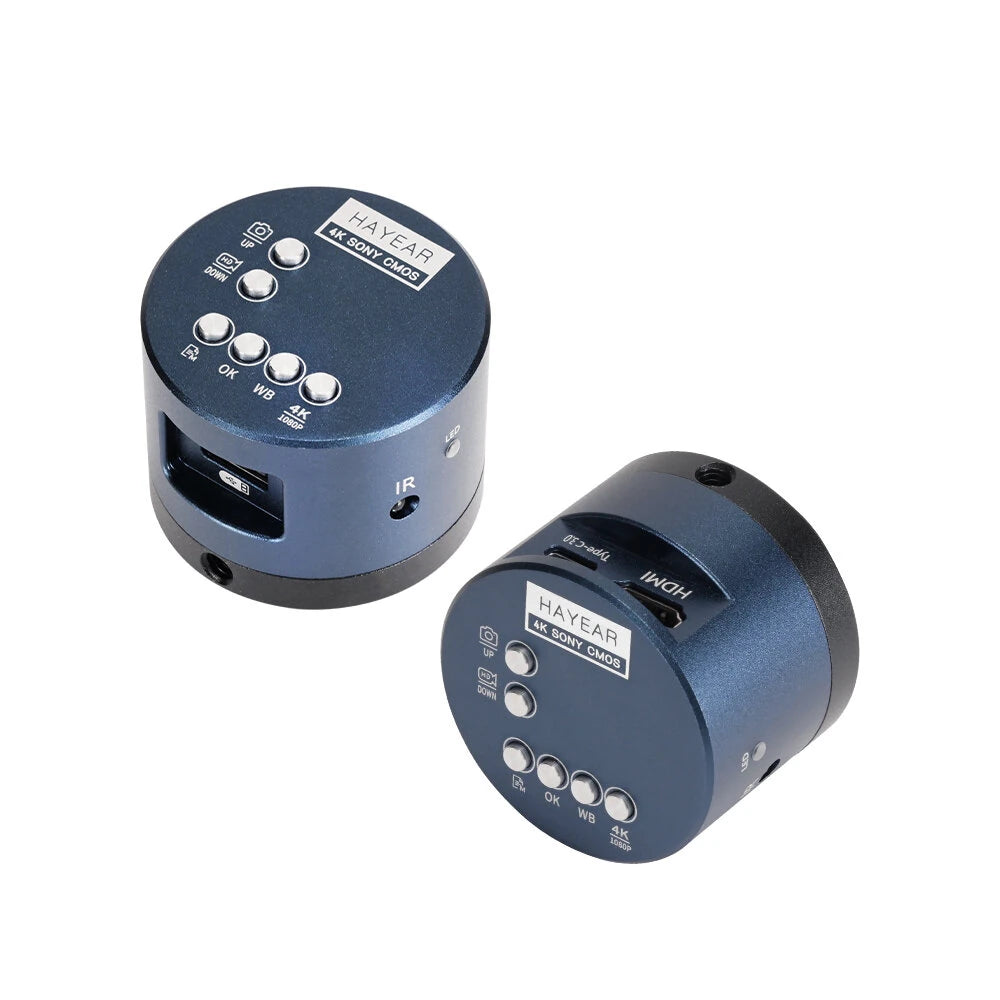

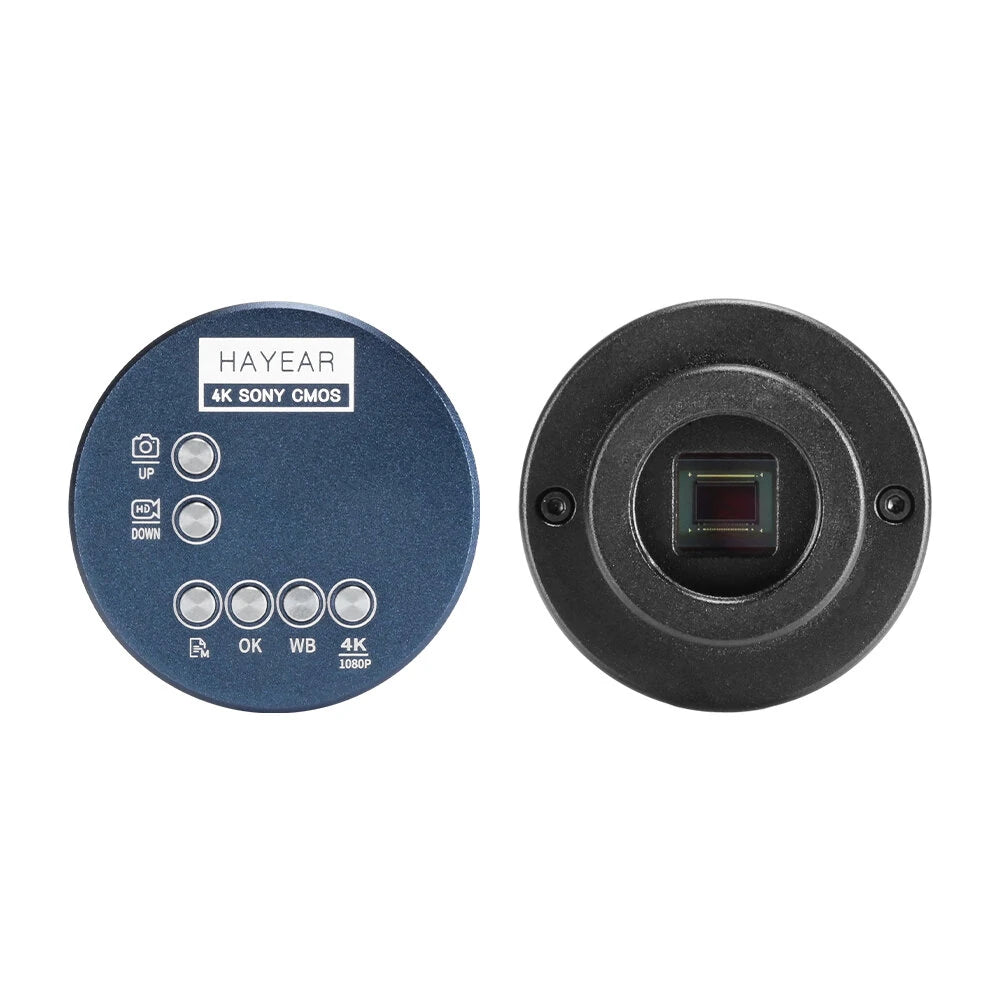

4K UHD Type-C HDMI Microscope Camera - IMX678 Sensor for HD Industrial Soldering & Phone Repair

Product Specifications:

• Model: HY-6700
• Sensor: CMOS IMX 678
• Optical Format: 1/1.8 inch
• Pixel Size: 2.0μm x 2.0μm
• Interface:
  • HDMI (Type A)
  • Type-C (Type B)
  • Small memory card
• HDMI Image Resolution: 8MP
• HDMI Video Resolution: 4K: 3840x2160P, 2K: 1920x1080P
• HDMI Scale: Supports 4:3, 16:9 screen
• Type-C (Drive-Free): 4K: 3840x2160P, 2K: 1920x1080P
• Small Memory Card: Up to 512GB (not included)
• AWB: AWB color correction/automatic/manual
• R.G.B Value Setting: Independent
• Exposure: Automatic/manual, AE value can be set
• Cross Line: 8 lines, color, width, and position can be set
• Scale Line: 2 lines
• Dotted Line: 2 lines, color, width, and position can be set
• Sharpness, Contrast, Color Gain: Supported
• Mono Negative Film: Supported
• Mirror: Supports horizontal and vertical mirror
• Languages: English, Simplified Chinese, French, Spanish, Japanese, German, and more
• Digital Zoom: Supported
• Infrared Remote Control: Supported
• Voltage Input: DC 5V
• Power Supply Voltage:
  • Input: AC100-240V
  • Output: DC5V
• Power Consumption: Maximum 0.15W 12V, 0.12A
• Lens Interface: C/CS port
• Remote Control Battery: 1 x 2302 button battery (delivered without battery)
• Package Size: 160x100x80MM (LxWxH)

Key Features:

• Widely used in microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
• Perfect for observing the surface microstructure of large objects.
• Constructed from high-quality materials for durability and long service life.
• Equipped with an HD camera and an 8-megapixel CMOS sensor (1/1.8 inch) featuring HDMI Type-C port.
• Underwent strict quality control and assurances for high safety, providing peace of mind during use.

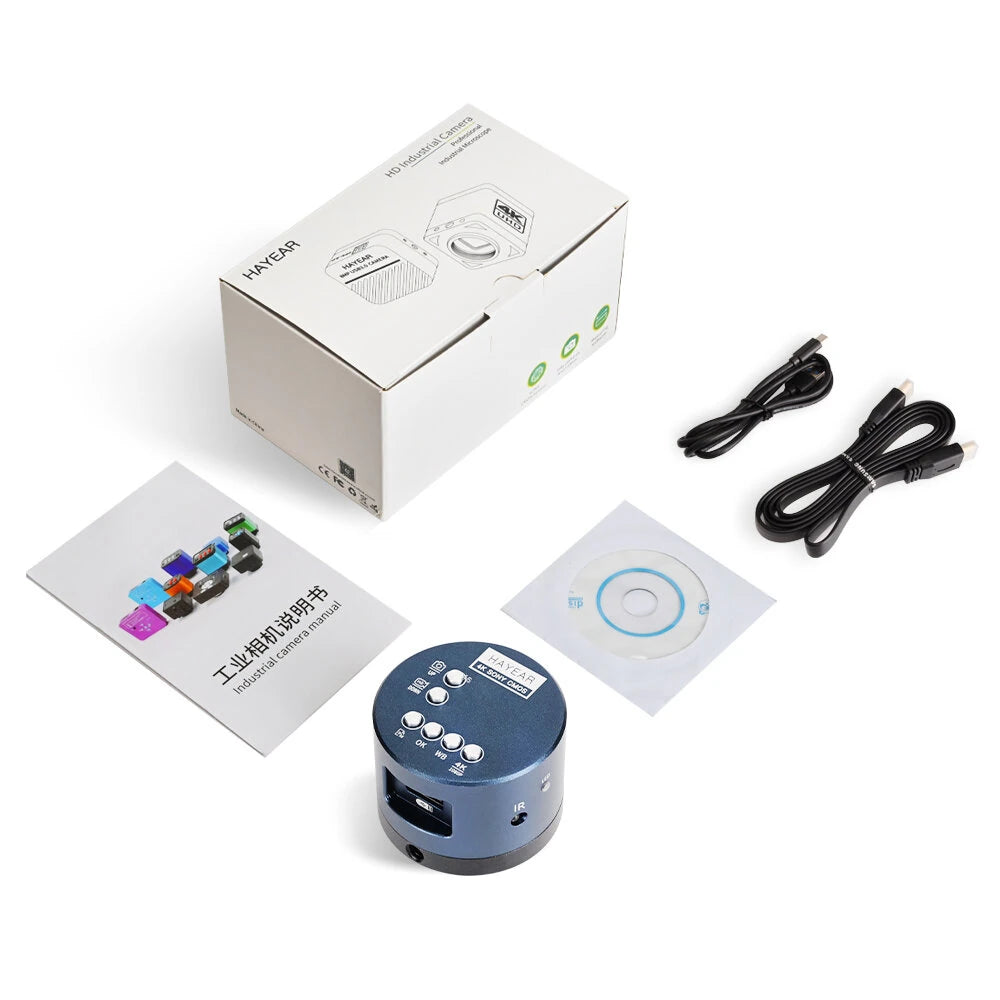

Package Included:

• 1 x Microscope Camera
• 1 x Power Supply
• 1 x Remote Control
• 1 x USB Cable
• 1 x HDMI Cable
