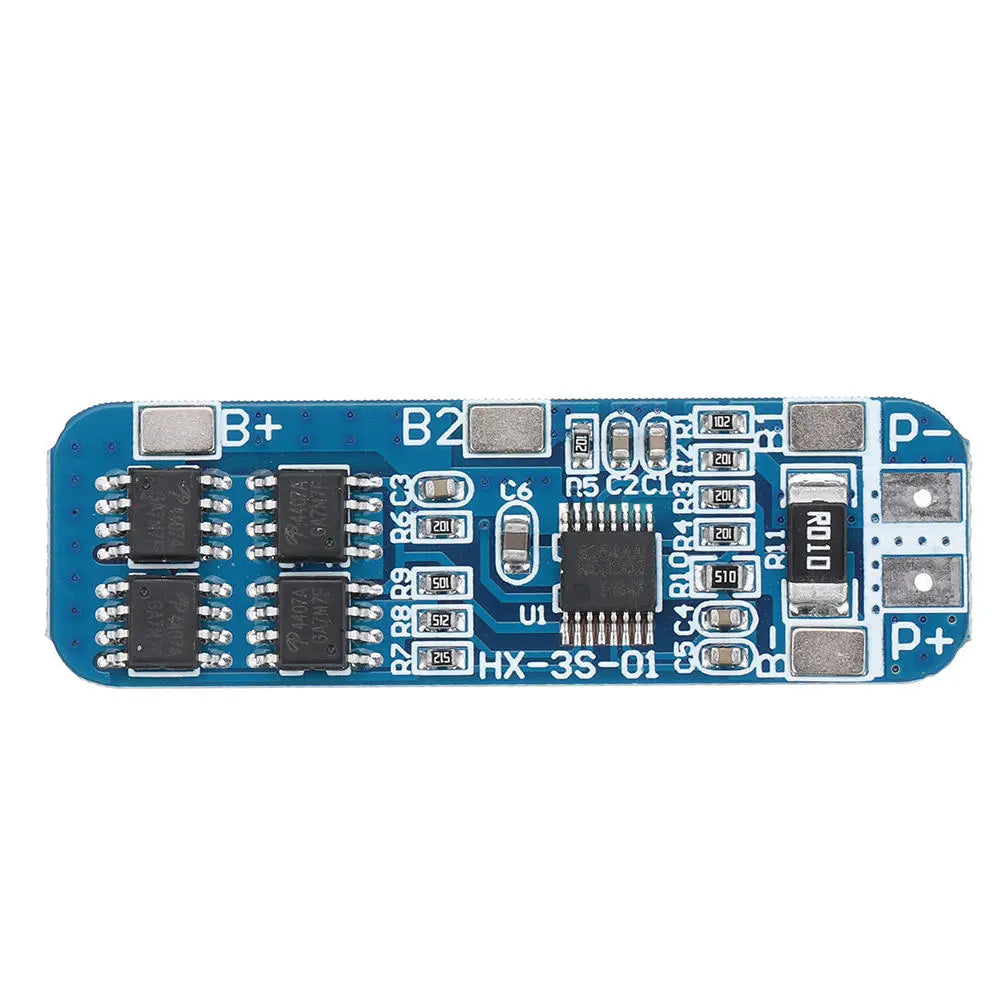

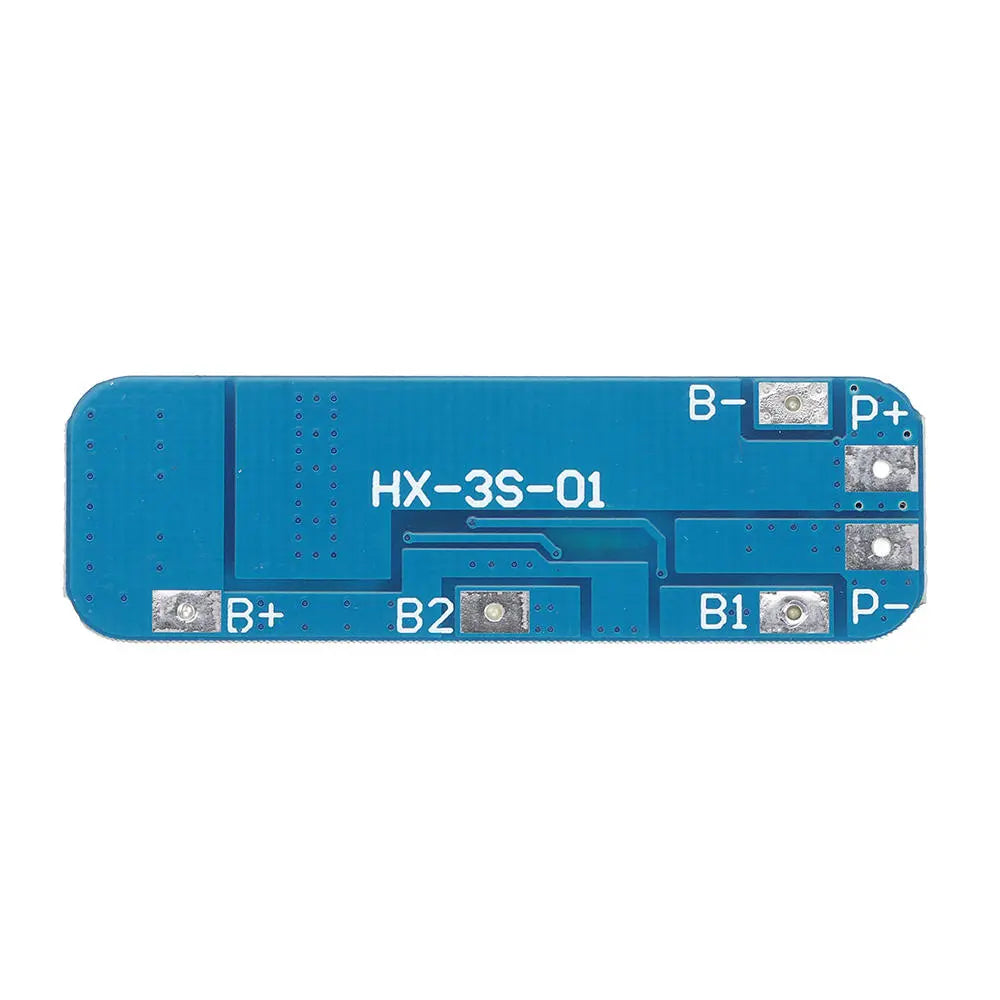

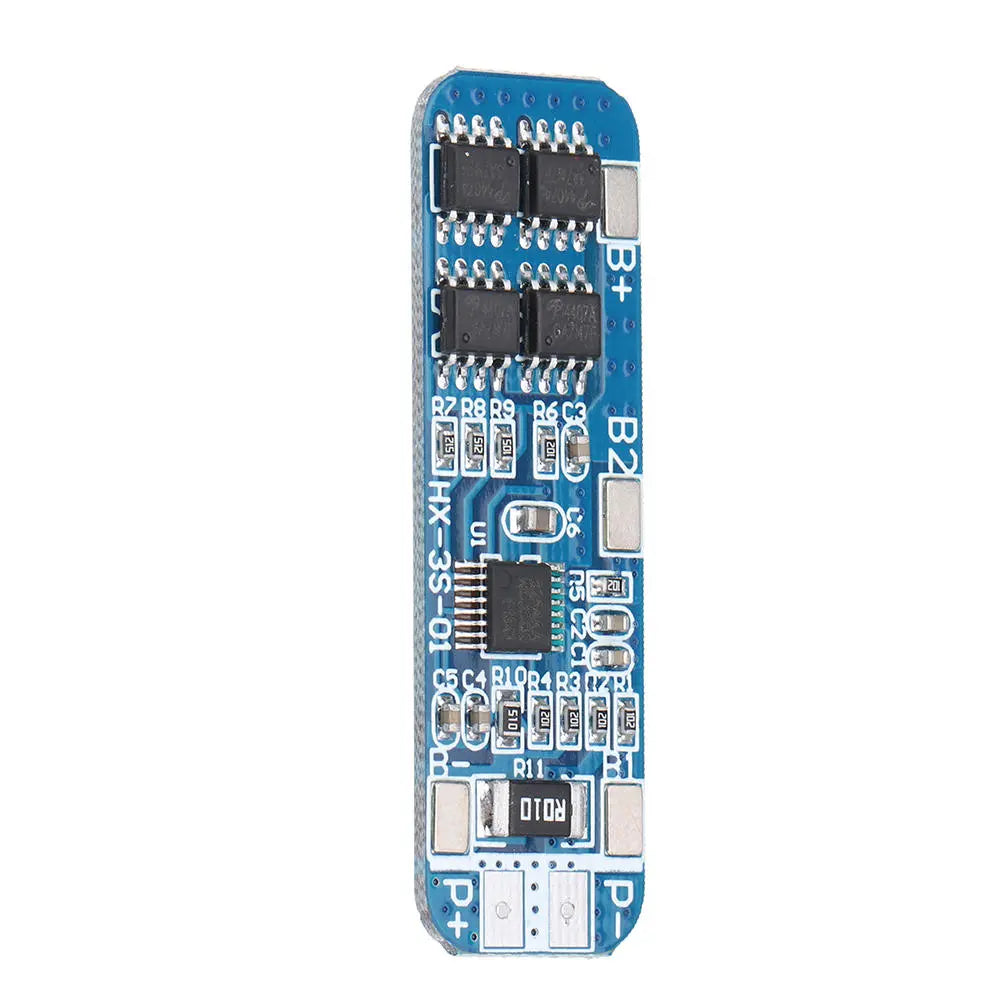

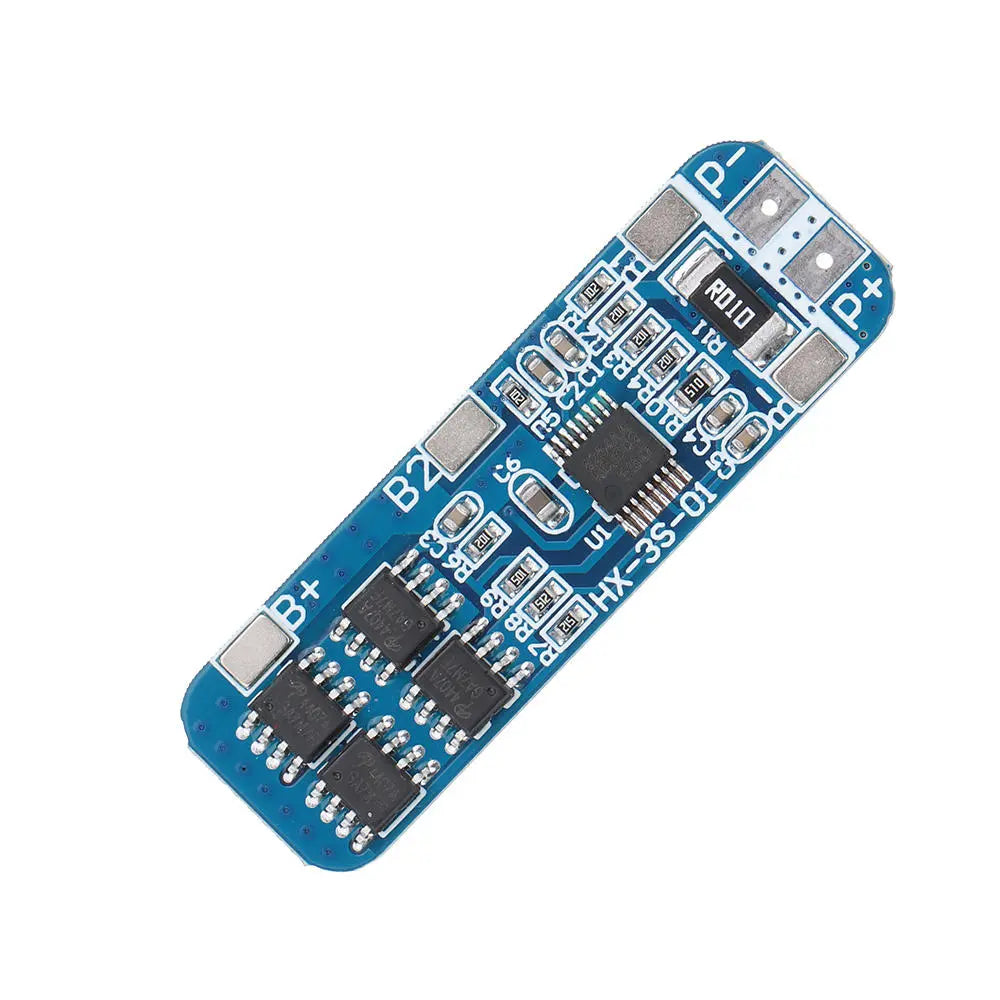

3S 12V 18650 Li-ion Battery BMS Charger Protection Board - 10pcs (10A, 10.8V/11.1V/12.6V)

Product Compatibility

To ensure this part fits your vehicle, please provide your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s).

Show all compatible vehicles

This part is compatible with 1 vehicle(s) matching

This part is not compatible with

Recent Searches

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Specifications

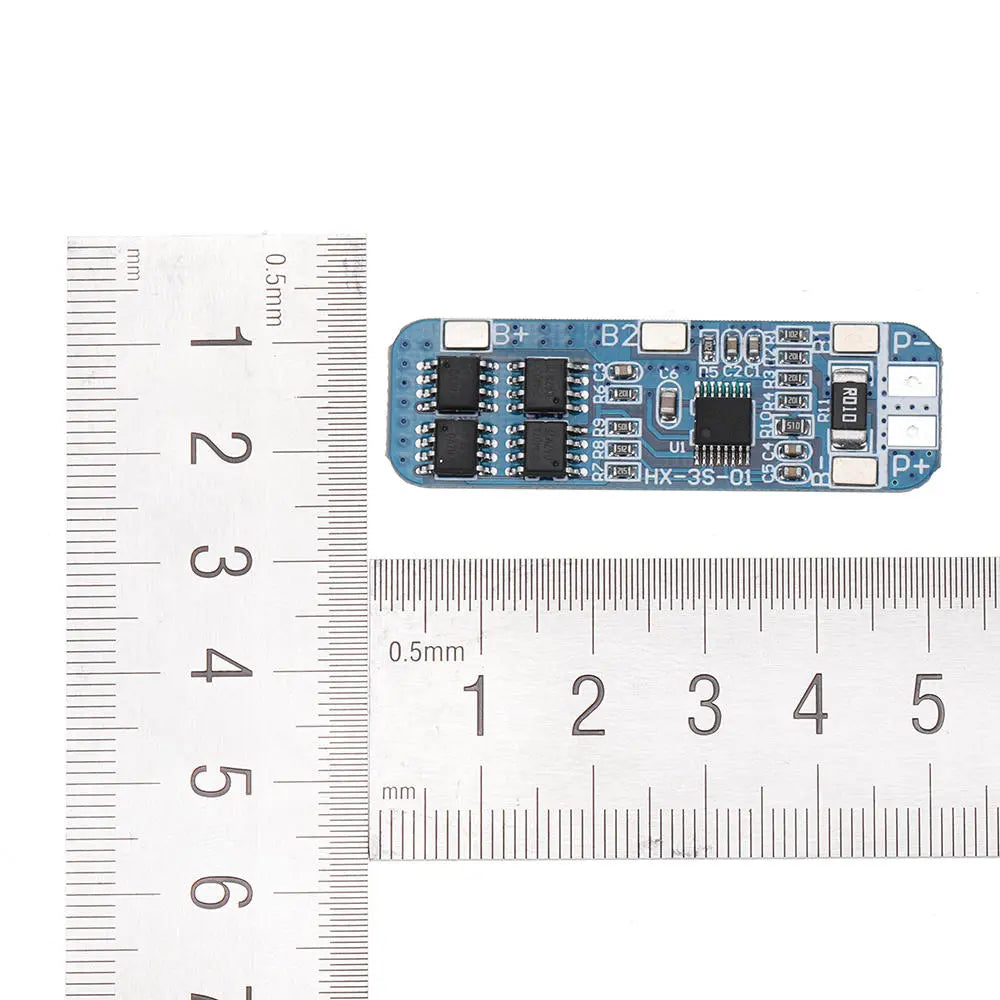

• Size: Approx. 50x16x1 mm
• Maximum discharge current: 10A
• Overcharge detection voltage: 4.25-4.35V ± 0.05V
• Over-discharge detection voltage: 2.3-3.0V ± 0.05V
• Maximum working current: 5A-8A
• Transient current: 9A-10A
• Operating temperature: -40 to 50°C
• Storage temperature: -40 to 80°C
• Quiescent current:
• Internal resistance:

Features

• Short circuit protection
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Suitable for various 3.7V lithium cores
• Compact size and lightweight
• High-quality workmanship and durability
• Battery pack security assurance

Applications

• 10.8V (Rated voltage of polymer battery)
• 11.1V (18650 or 3.7V lithium battery rated voltage)
• 12.6V (Lithium battery full charge voltage)

Package Includes

10 x 3S 12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board
