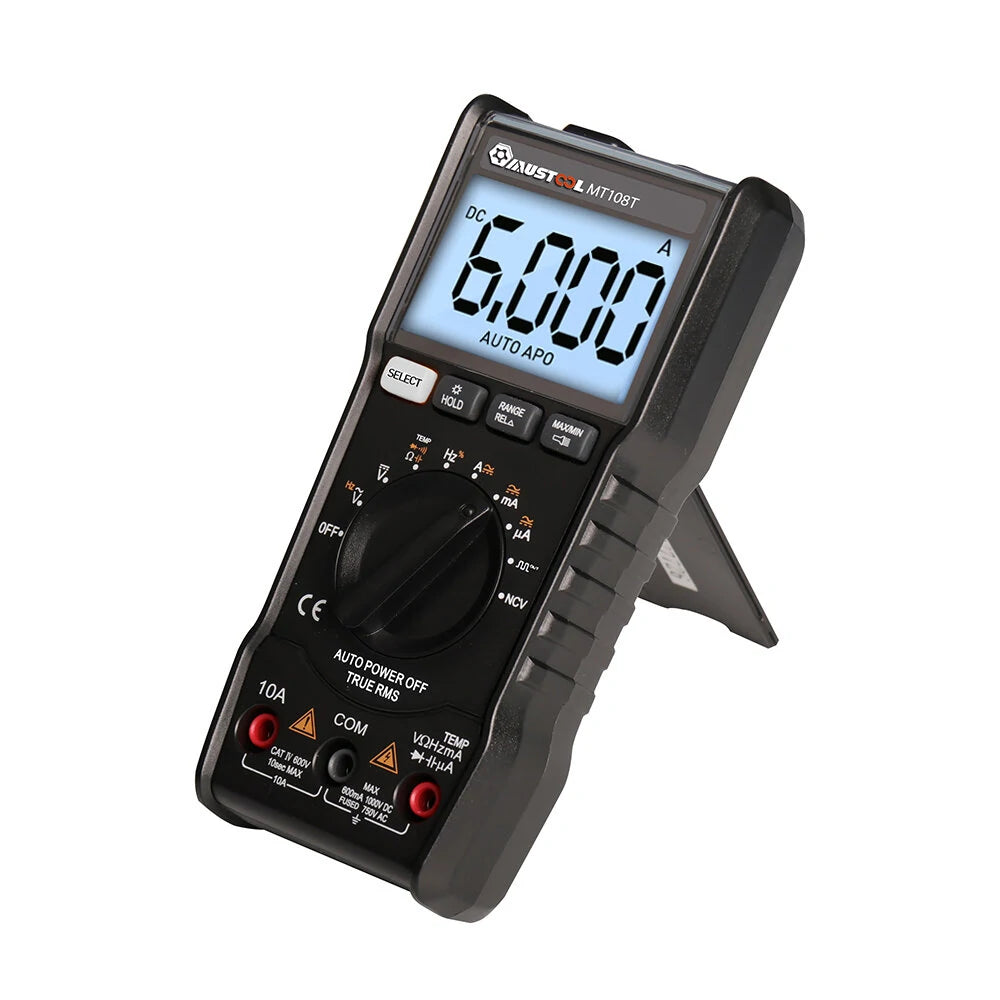

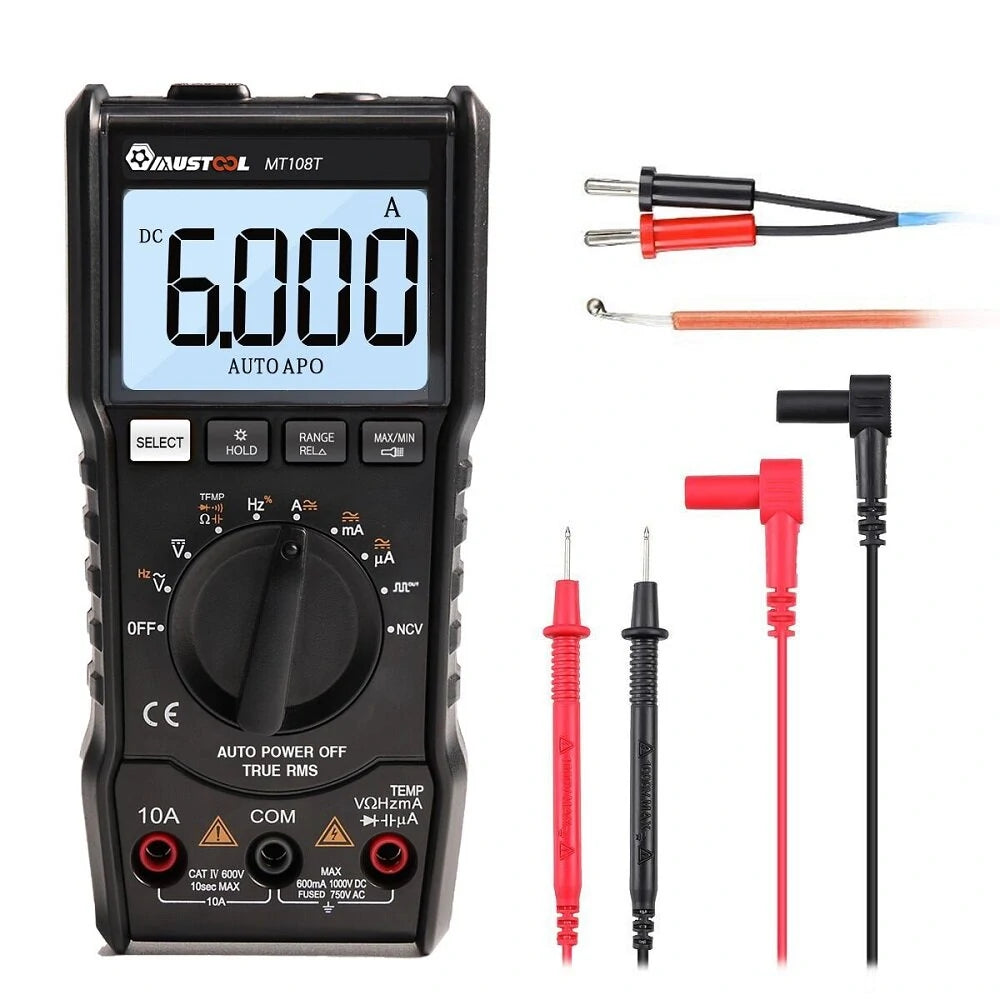

MUSTOOL MT108T True RMS Digital Multimeter - 6000 Counts, NCV, Temperature, AC/DC Current & Voltage, Resistance, Frequency, Capacitance with Backlight

From 2022.12.26, the old and new versions are randomly shipped.

Description:

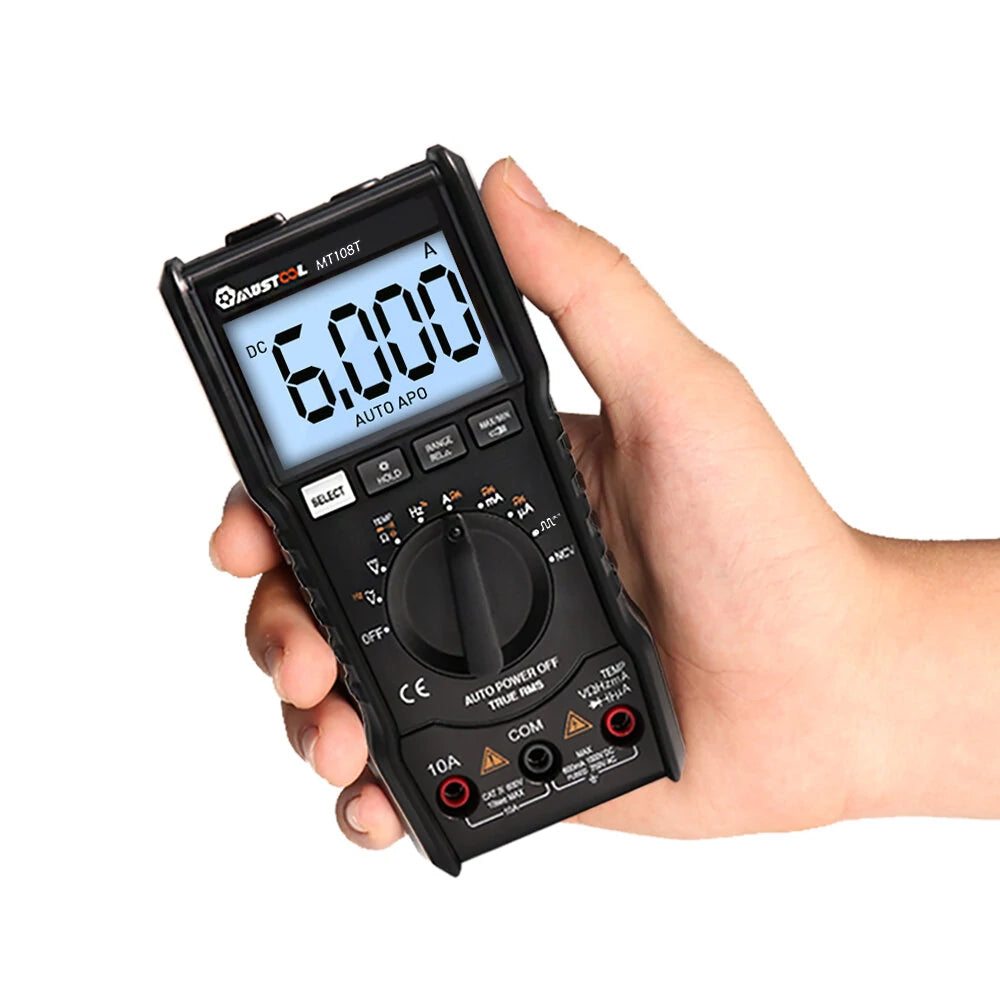

The MUSTOOL MT108T is a pocket-sized, 6000-count automatic digital multimeter, designed for stability, precision, and reliability. It features clear readings and overload protection. The large-screen LCD display, with a boost power supply, ensures high brightness even at a low battery level of 2.3V. Its compact size makes it highly portable, making it a favorite among users. The backlight, which can be manually controlled, automatically turns off after 15 seconds. Perfect for laboratories, factories, radio enthusiasts, and home use.

Features:

• 50Hz-5000Hz Square Waves output. (Only available in the old version)
• Auto Power-off
• Auto Range (Option for manual operation)
• HD LCD screen display with backlight
• Diode 4.2V high voltage output
• 10A large current measurement, UA-level small current measurement

Main Measurements: AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, duty cycle, continuity, buzzer

Special Functions: Square waves output, NCV (Non-contact voltage), temperature measurement, flashlight, True RMS measurement

Specifications:

• Symbol Functions
• DC voltage (DCV) Range: 6V - 1000V, Accuracy: ± (0.5% to 0.8%)
• AC voltage (ACV) Range: 6V - 750V, Accuracy: ± (0.8% to 1.2%)
• DC Current (DC mA/uA) Range: 60mA - 6000uA, Accuracy: ± (1.2%)
• AC Current (AC mA/uA) Range: 60mA - 6000uA, Accuracy: ± (1.2%)
• Resistance: Range: 600Ω - 40MΩ, Accuracy: ± (0.8% to 2.5%)
• Capacitance: Range: 60nF - 30mF, Accuracy: ± (3.5% to 5%)
• Frequency measurement: Range: 10Hz - 20MHz, Accuracy: ± (0.1%)
• Temperature measurement: Range: (-20 to 1000)℃, Accuracy: ± (1.0%)
• Square Waves Output: 50Hz - 5000Hz
• Maximum display: 6000 (3 5/6) bits automatic polarity display

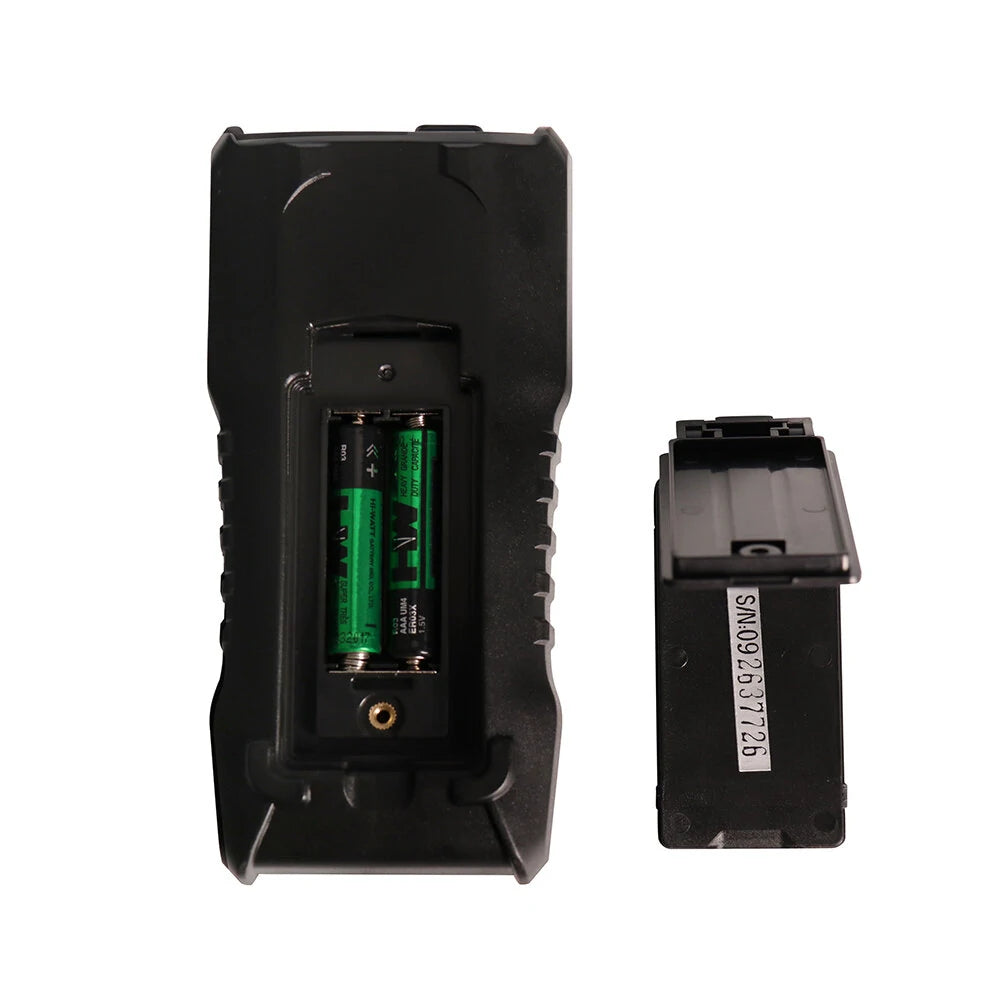

• Power supply: AAA 1.5V battery (Not included)
• Dimensions: 142×70×32mm (L×W×H), Weight: 200g

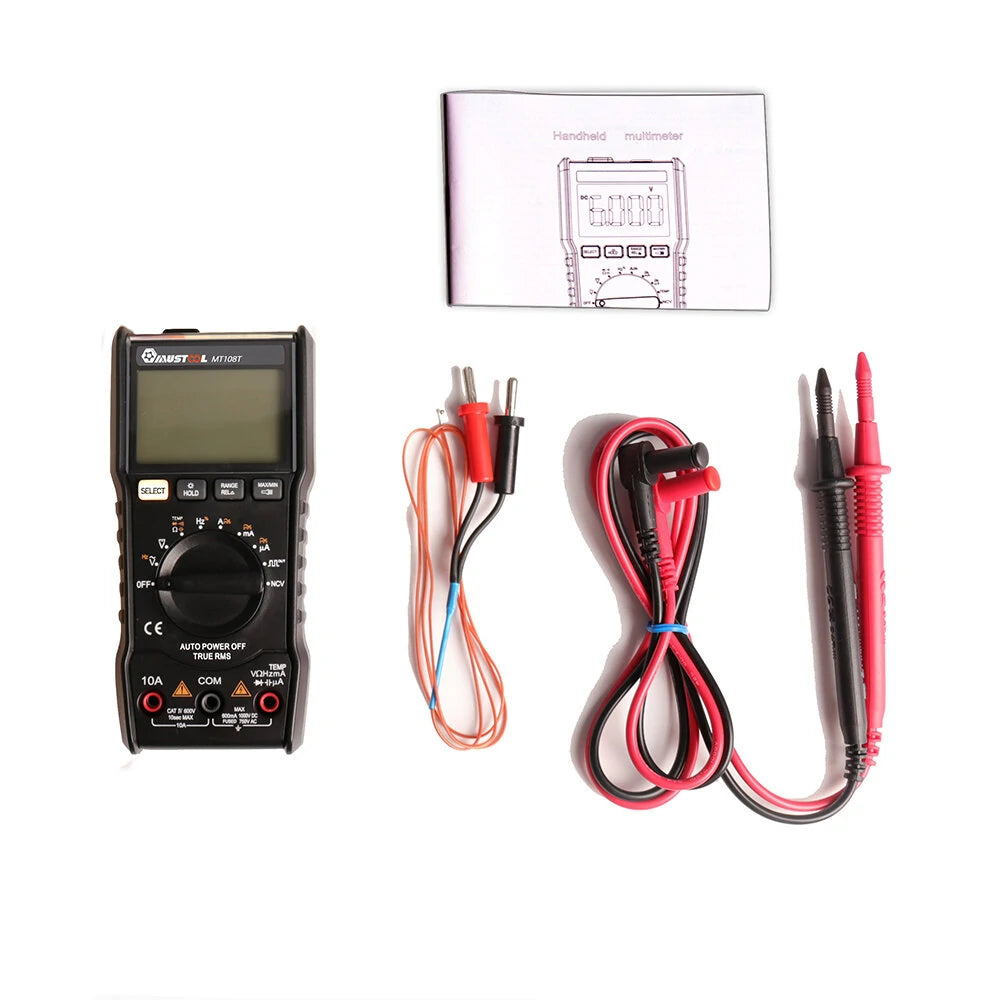

Package Includes:

• 1 x MUSTOOL MT108T True RMS Multimeter

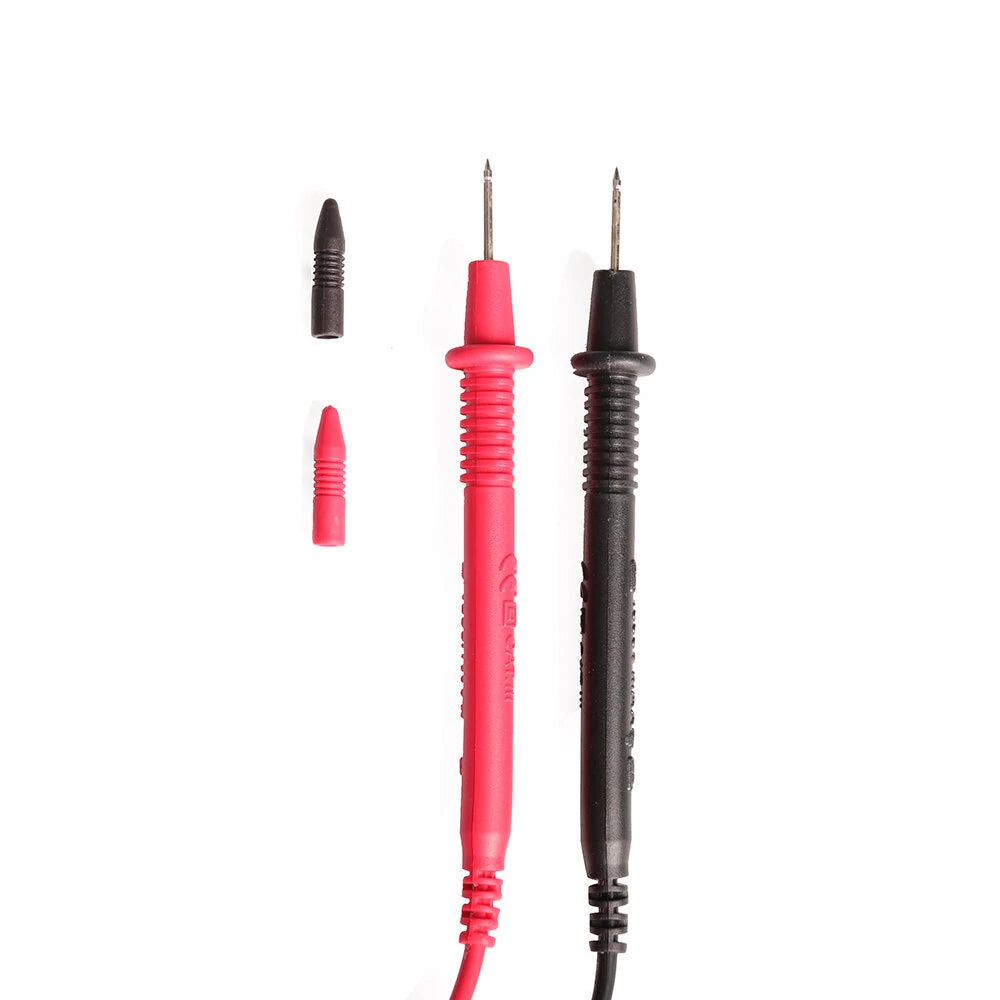

• 2 x Test Lead Set
• 1 x Temperature Sensing Cable
• 1 x English User Manual
