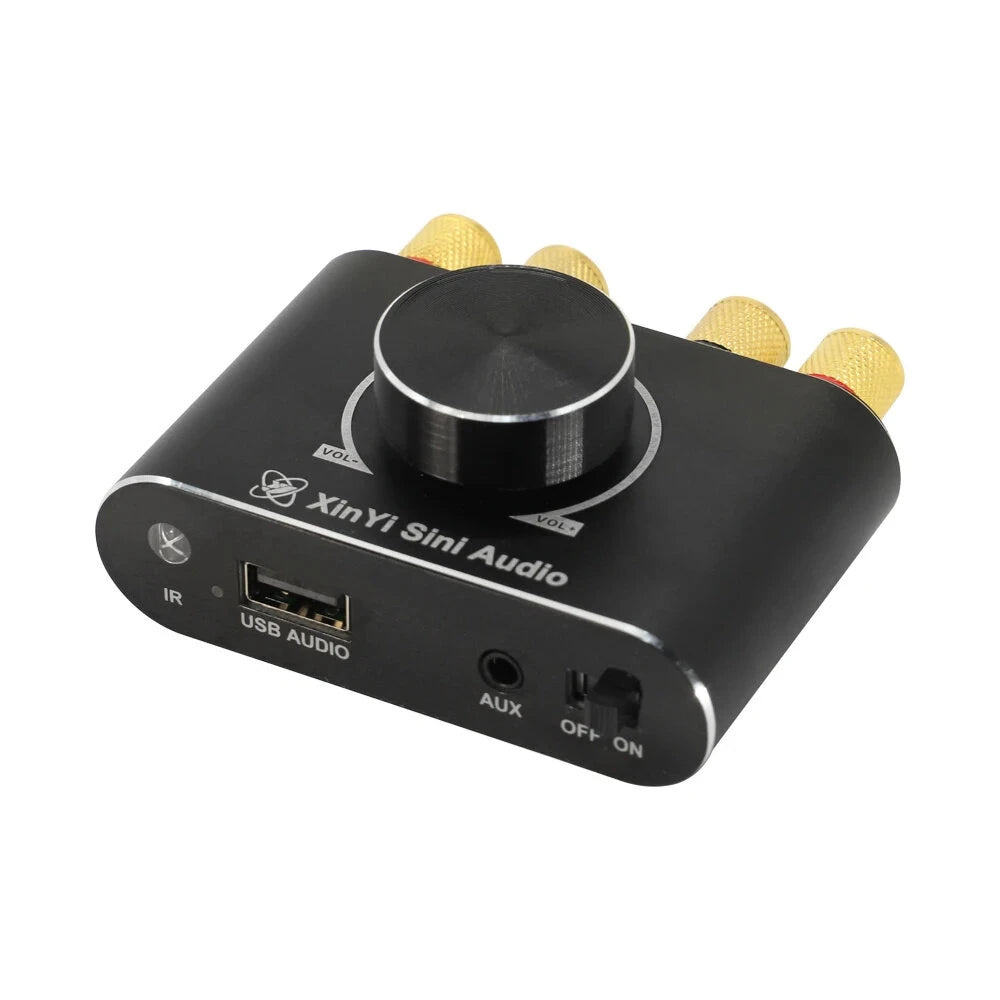

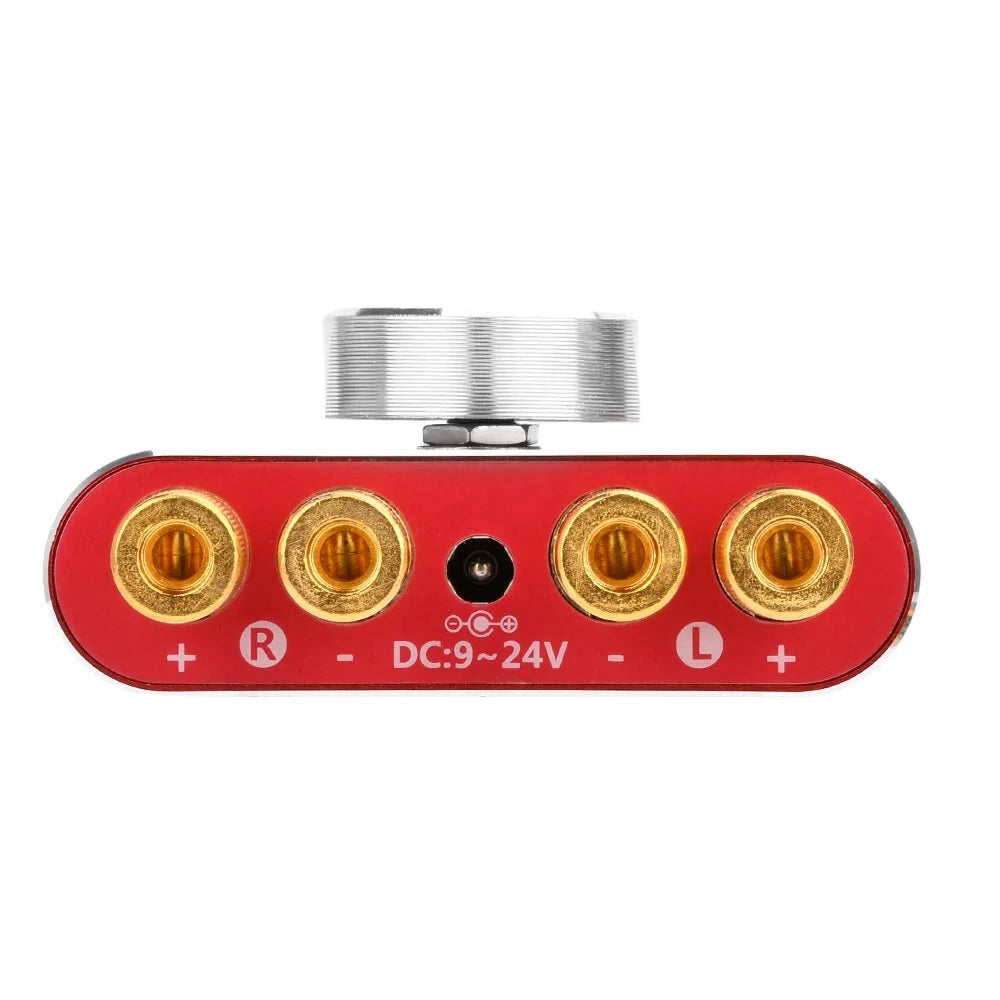

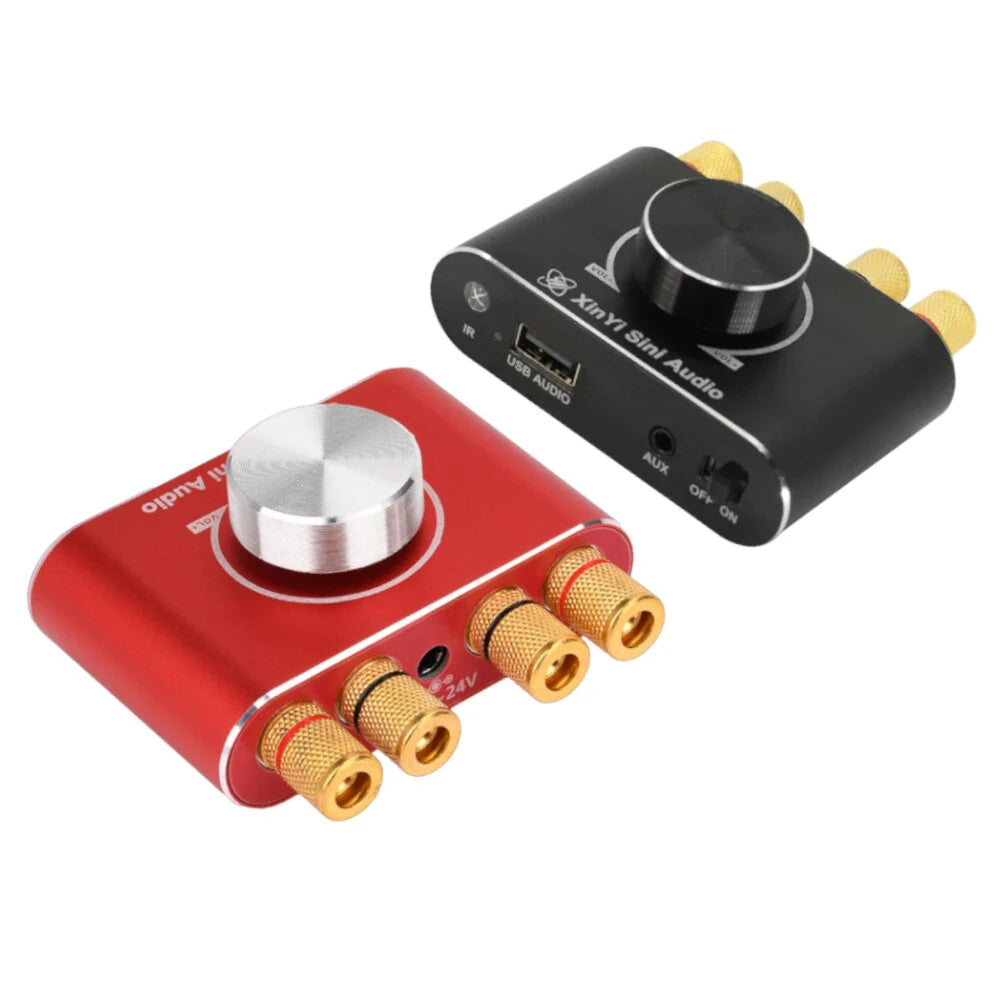

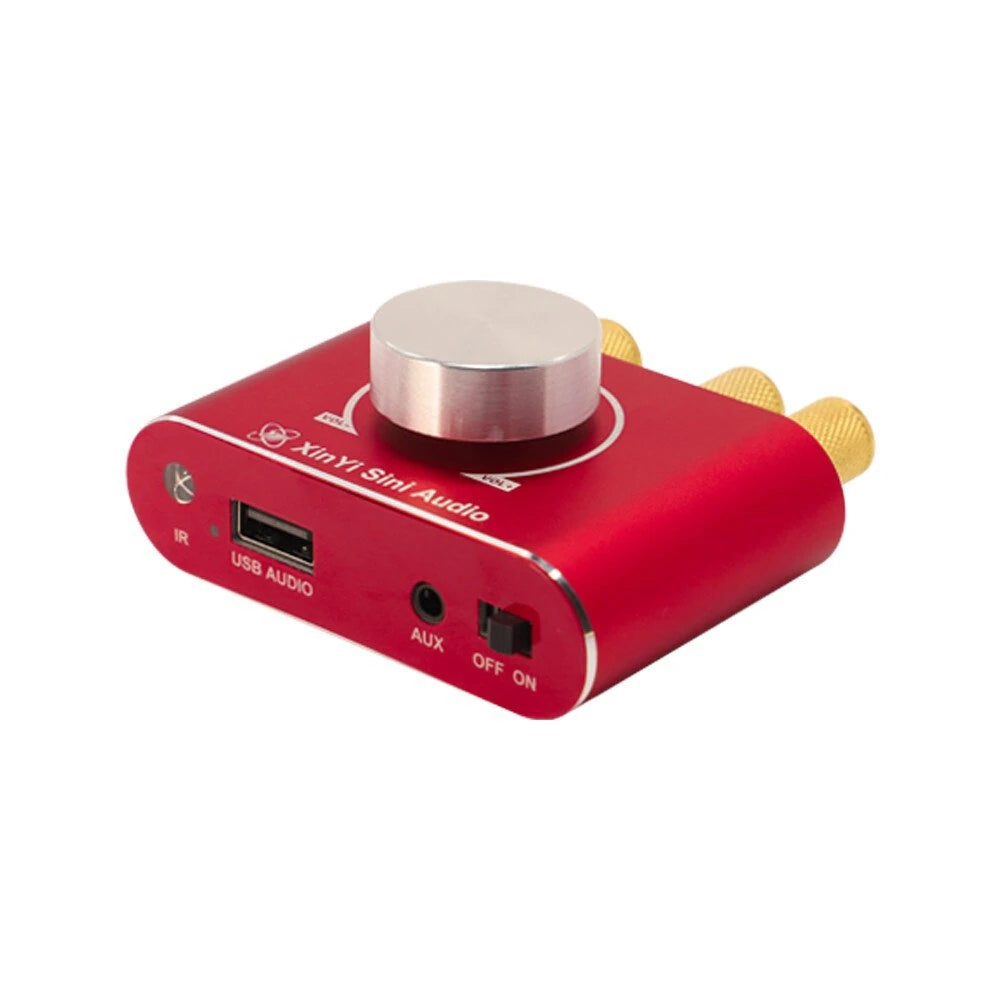

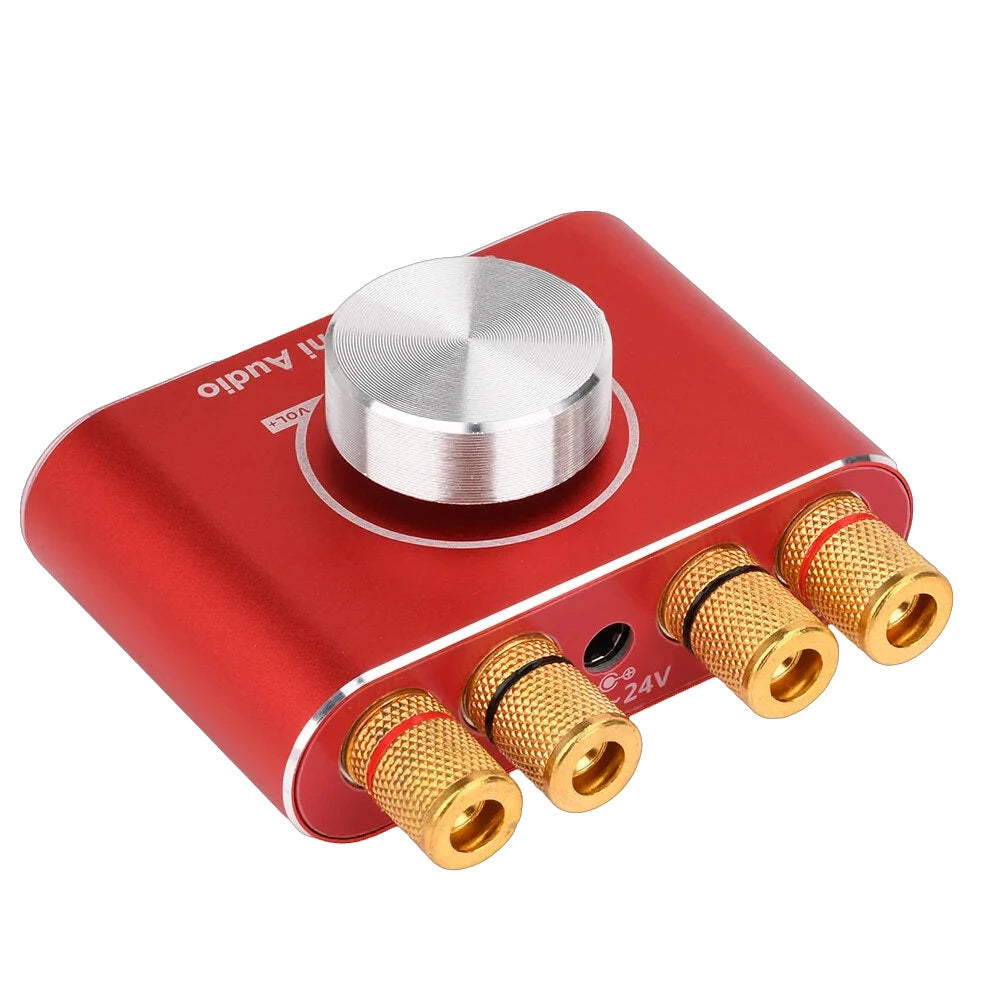

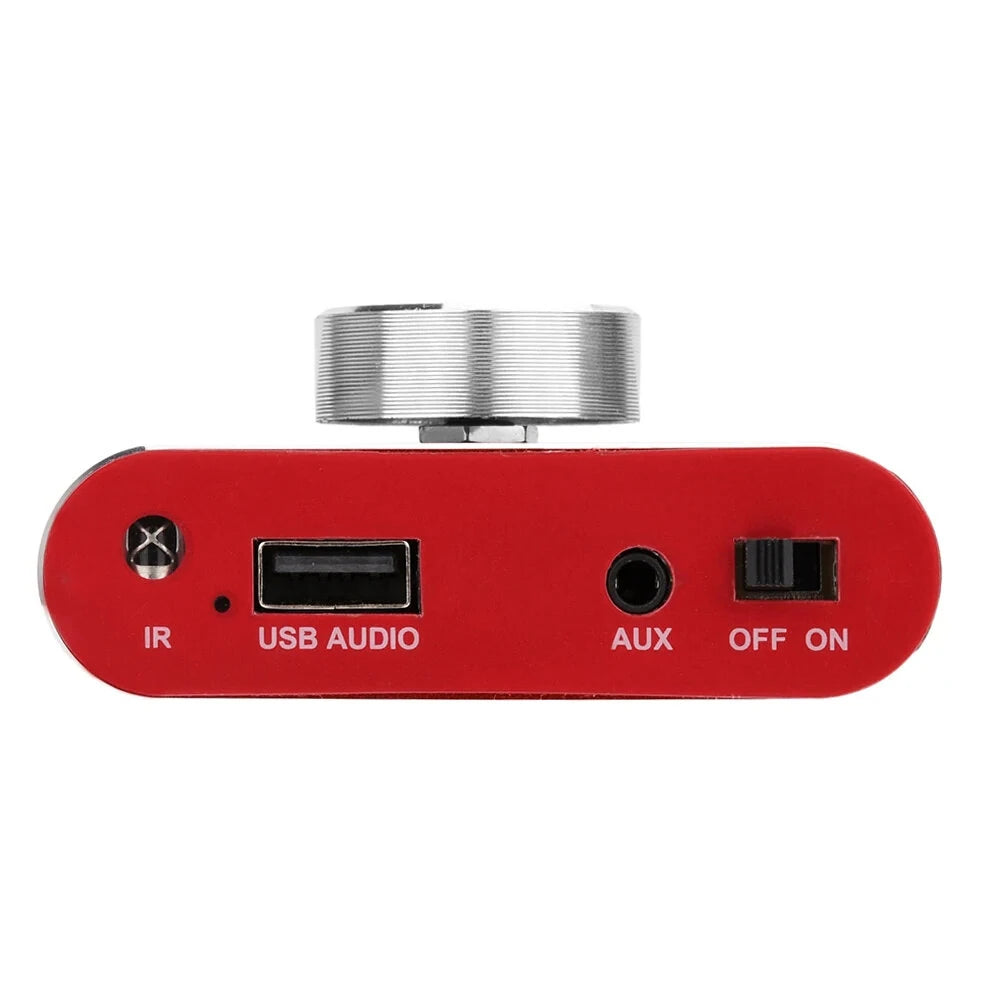

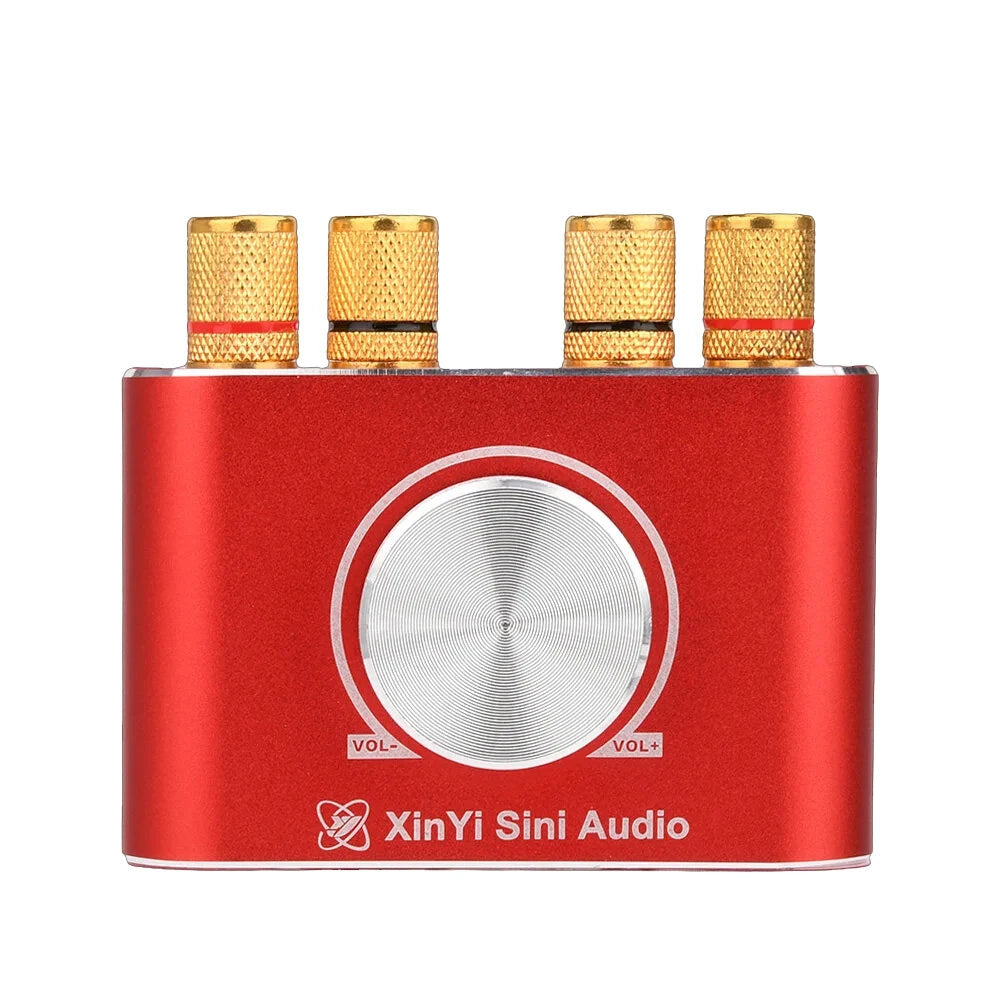

15W X100H Stereo Amplifier Board | Bluetooth, 3.5mm AUX, USB Input | 12/24V Speaker Audio | APP Control

Product Name: Stereo BT Audio Amplifier Board

Product Model: XY-X100H

Color Options: Red, Black

Bluetooth Version: 5.1

Audio Inputs:

• Bluetooth
• AUX
• USB flash drive

Power Supply: DC 9-24V/5A or above

USB Decoding Supported Formats: WAV, FLAC, APE, MP3 (up to 32G in FAT32 format)

Output Power:

• 2 x 10W @ 8Ω/12V
• 2 x 30W @ 8Ω/24V
• 2 x 50W @ 4Ω/21V
• 2 x 100W @ 2Ω/21V

Protection Mechanisms: Overvoltage, overcurrent, undervoltage, clipping, short circuit, overheating

Remote Control Options:

• Xinyilian APP
• Infrared remote control

Product Dimensions: 78mm x 52mm x 35mm

Features:

1. High Efficiency with D-Class Amplification: Utilizes TPA3116 D-class amplification technology for efficient power conversion, ensuring lower power consumption and reduced heat generation.
2. Low Distortion for HiFi Quality: Designed to maintain low distortion levels for accurate sound reproduction, ideal for HiFi audio applications.
3. Multi-Format Audio Support: USB port supports WAV, FLAC, APE, and MP3, offering versatility and high-quality audio from multiple sources.
4. Comprehensive Protection: Features extensive protection mechanisms like short circuit, overheating, undervoltage, and overvoltage protections for stability and reliability.
5. Flexible Wide Voltage Range: Compatible with a wide voltage range from 9V to 24V for varied power supply conditions and applications.

Package Includes:

Type Without Power Cord:

• 1 x Power Amplifier Board
• 1 x Remote Control
• 1 x AUX Cable
• 1 x RCA to AUX Cable

Type With Power Cord:

• 1 x Power Amplifier Board
• 1 x Remote Control
• 1 x AUX Cable
• 1 x RCA to AUX Cable
• 1 x Power Cord
