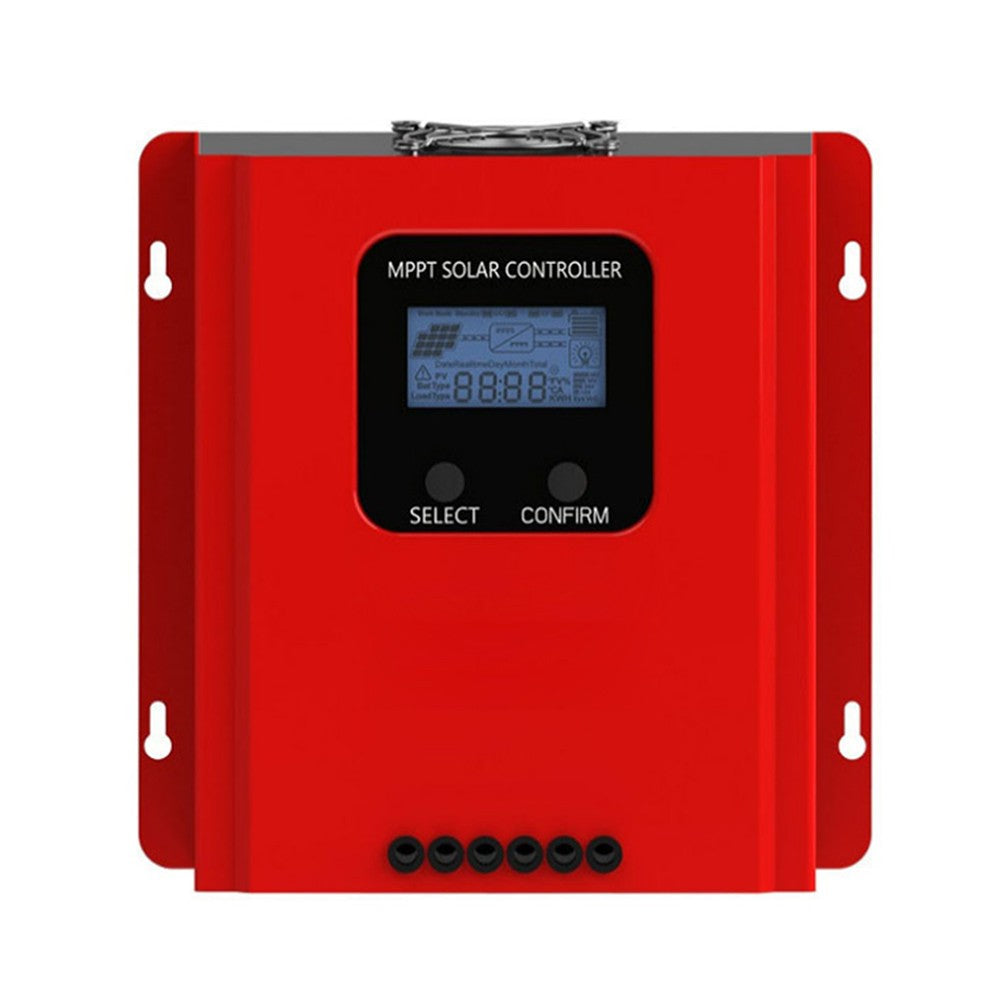

MPPT Solar Charge Controller 60A 12V-48V Auto Recognition with LCD & RS485 for Sealed, Gel, Flooded Batteries

Features:

• Efficient MPPT Solar Charge Controller: Achieve unmatched efficiency with MPPT at 99.5% and conversion effectiveness up to 98%. Features a 60amp rate charging current.

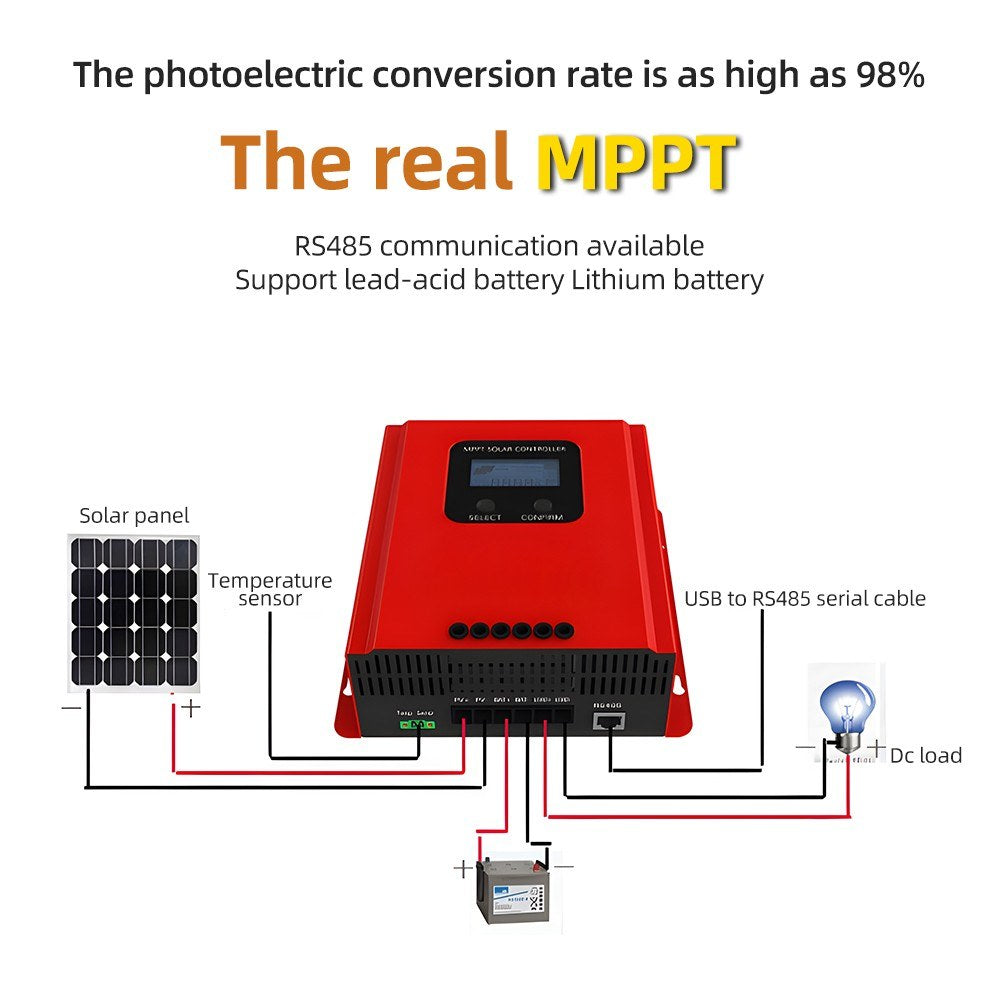

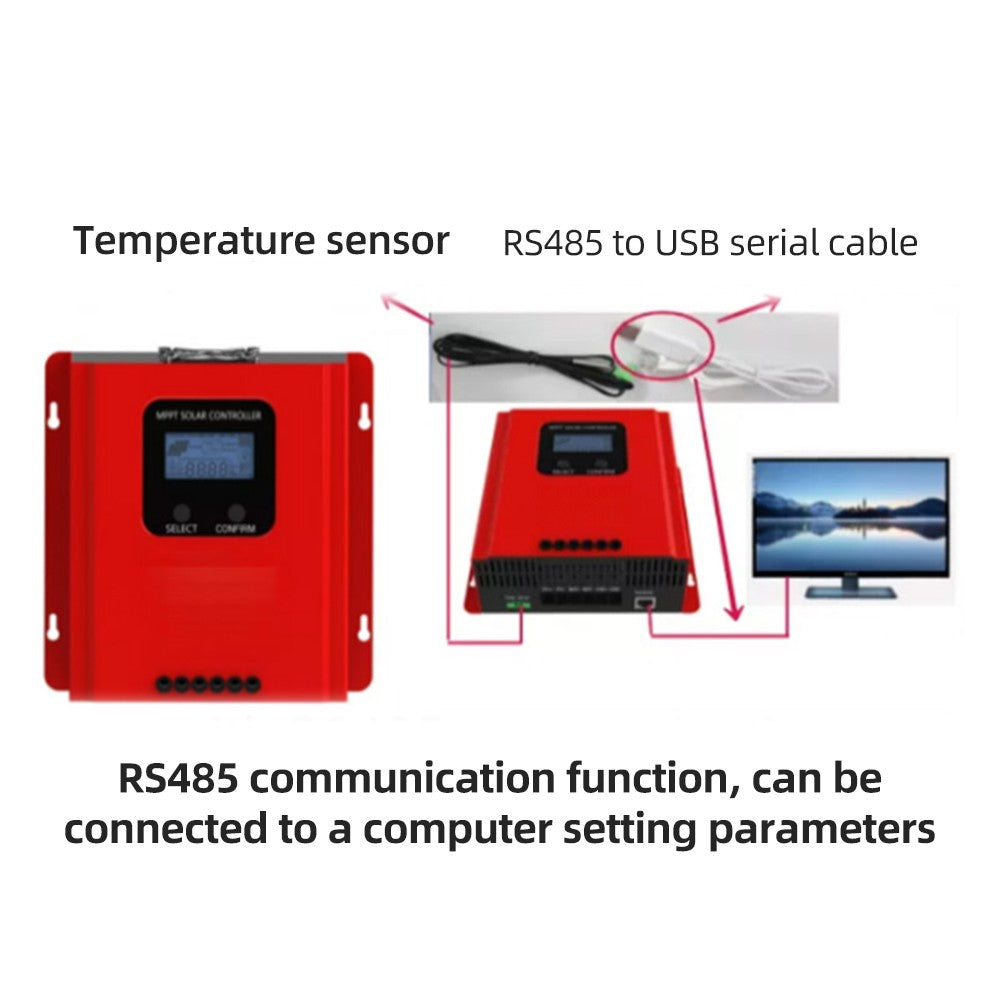

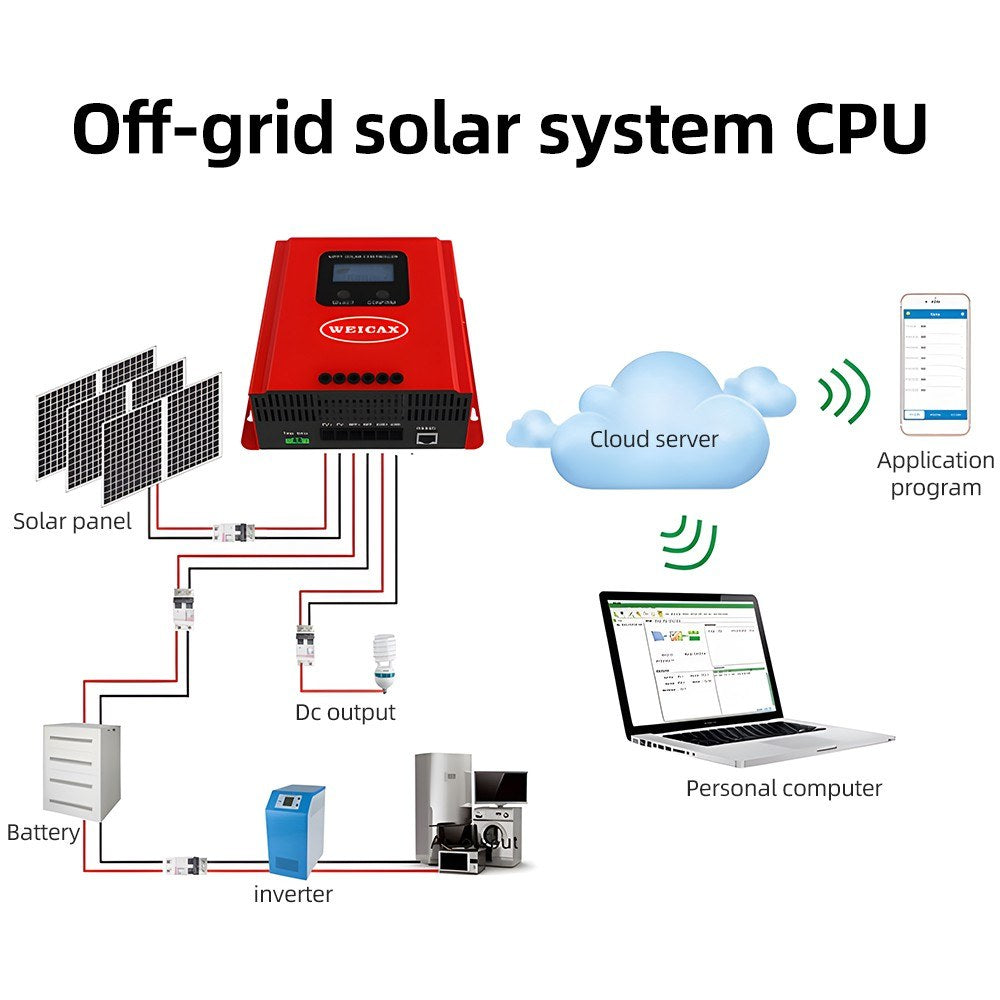

• RS485 Communication: Comes with a communication protocol for seamless integrated management and secondary development. Supports app cloud monitoring via host computer software and Wi-Fi module expansion.

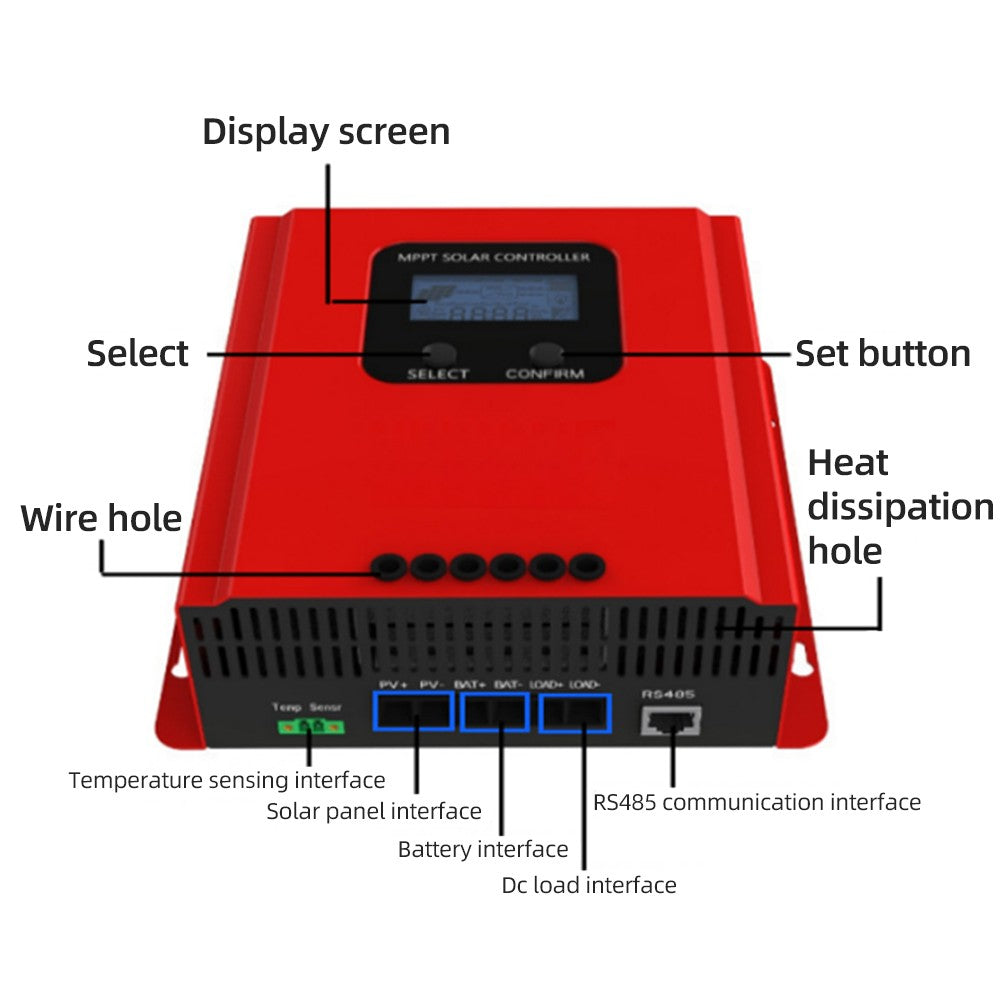

• Easy to Use: Equipped with a high-definition LCD display for clear visualization of operating data and status. Allows modification of controller display parameters. Detailed instructions included.
• Wide Range Solar Voltage/Power Support: Automatically identifies battery voltage, compatible with sealed, gel, flooded batteries, with customizable parameters for other battery types.
• 4 Load Modes: Supports modes such as normally open/normally off, PV voltage, dual time period control, and PV + time control.
• Safe Charging: Utilizes a 3-stage charging process: constant current, constant voltage, and float charging, extending battery life. Features ultra-low power chips to minimize standby energy consumption.

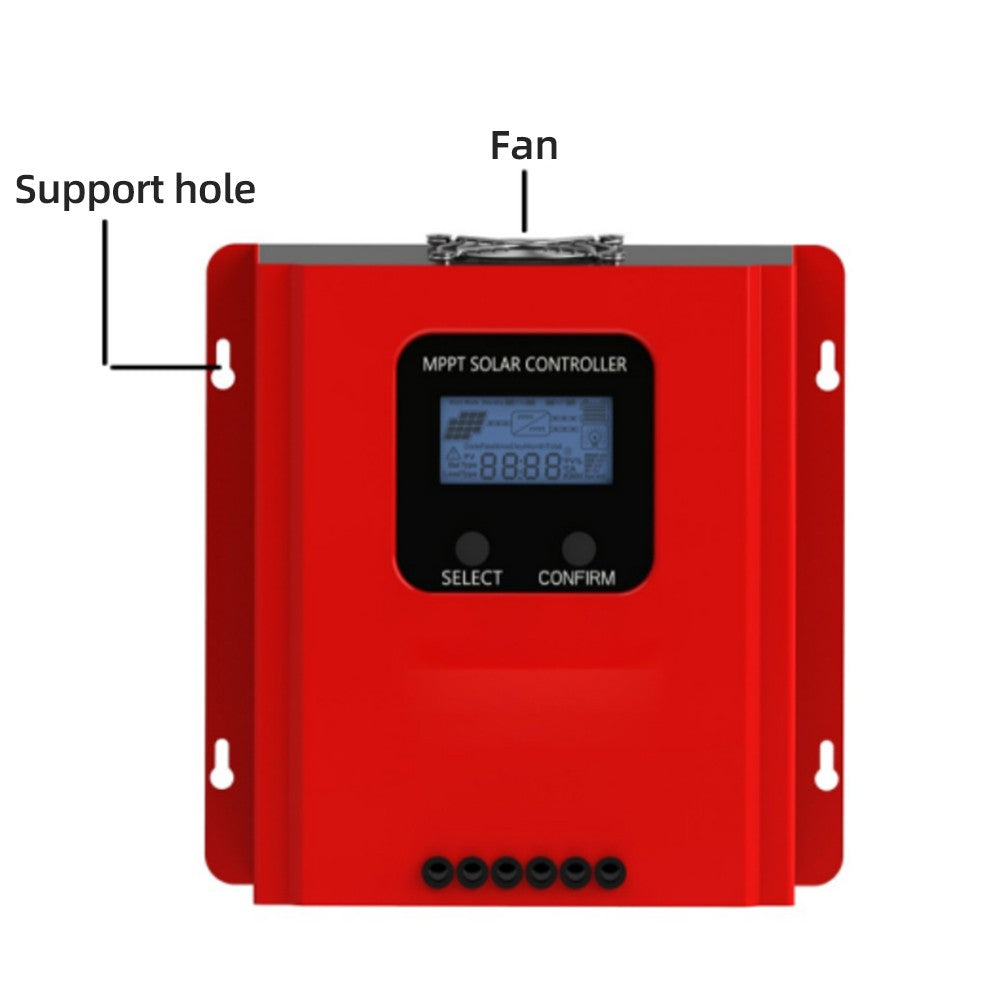

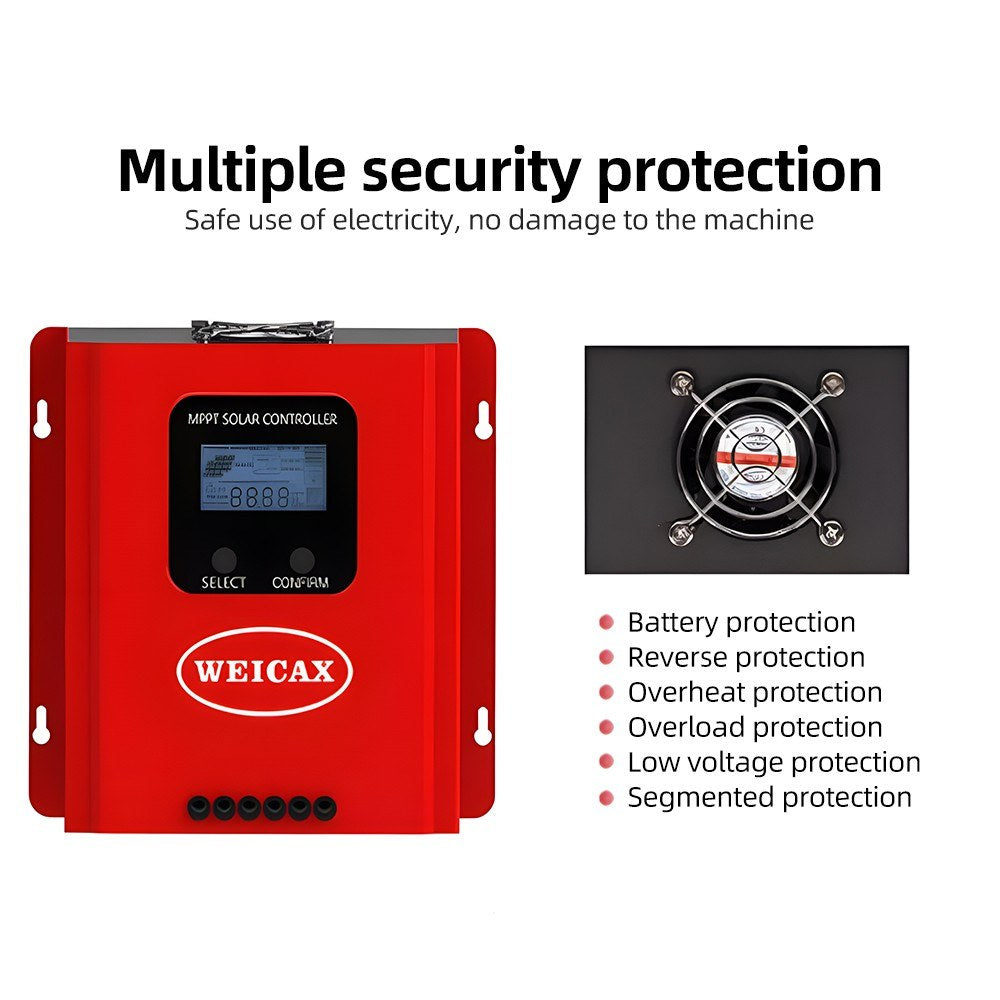

• Full Protection: Offers protection against battery drop, reverse connection, overheating, overload, low voltage, and more. Designed with an air cooling fan and heat dissipation vents for optimal safety.

Specifications:

• Color: Red
• Material: Iron
• Voltage/Power Support:
  • 12V: DC9V~DC15V, 780W
  • 24V: DC18V~DC30V, 1560W
  • 36V: DC32V~DC40V, 2340W
  • 48V: DC42V~DC60V, 3120W
• No-load static loss: 0.5W~1.2W
• PV open circuit voltage (VOC): DC150V
• Start charging voltage: 3V higher than battery voltage
• Input low voltage protection: 2V higher than battery voltage
• Input overvoltage protection: DC150V
• Input overvoltage recovery: DC145V
• Temperature compensation: -3mV/℃/2v (default)
• Output voltage regulation accuracy: ≤±1.5%
• Rated load current: 60A
• Working temperature: -20℃~+50℃
• Storage temperature: -40℃~+75℃
• IP Protection: IP21
• Noise: ≤40dB
• Altitude: 0~3000m
• Max. connection size: 30mm²

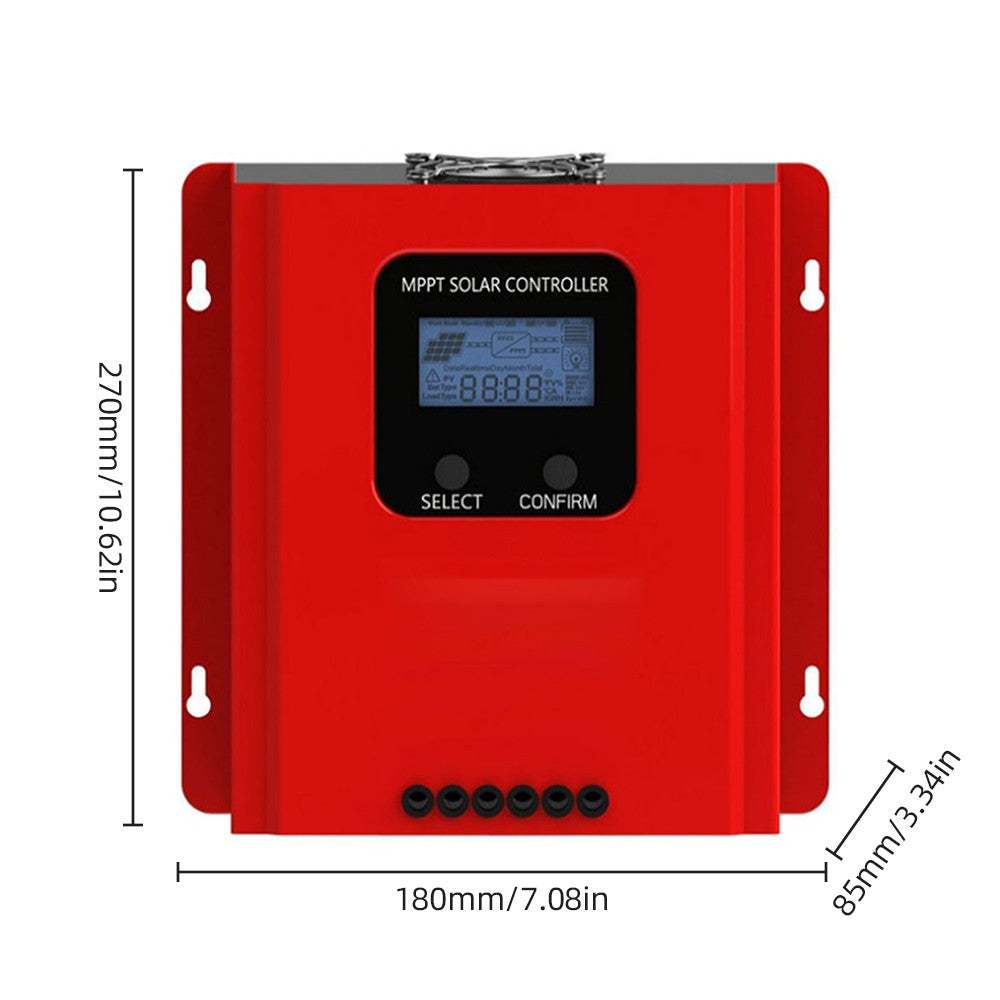

• Size: 27 x 18 x 8.5cm / 10.6 x 7.1 x 3.3in
• Weight: 2.6kg / 91.7oz
• Package size: 30.6 x 21.6 x 12.2cm / 12 x 8.5 x 4.8in
• Package weight: 2.9kg / 102.3oz

Packing List:

• 1 x Controller
• 2 x Brackets
• 1 x Temperature sensing wire
• 1 x Screwdriver
• 1 x Instruction manual
