800pc Solder Sleeve Heat Shrink Wire Butt Splice Connector Waterproof Terminal

Features

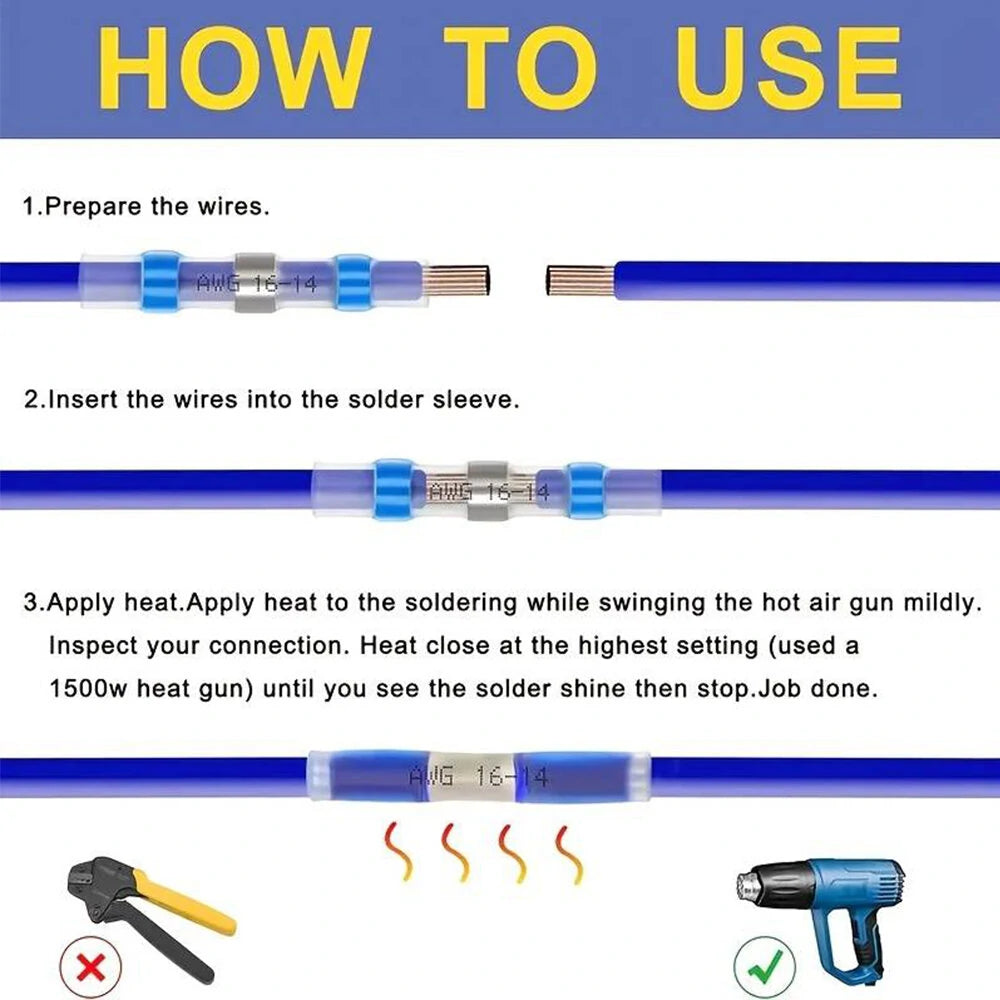

• Safe & Easy to Operate: Preciva solder seal wire connectors comply with all relevant European standards. No crimping needed—simply insert the stripped wires into the solder sleeve and apply heat evenly to complete the connection.

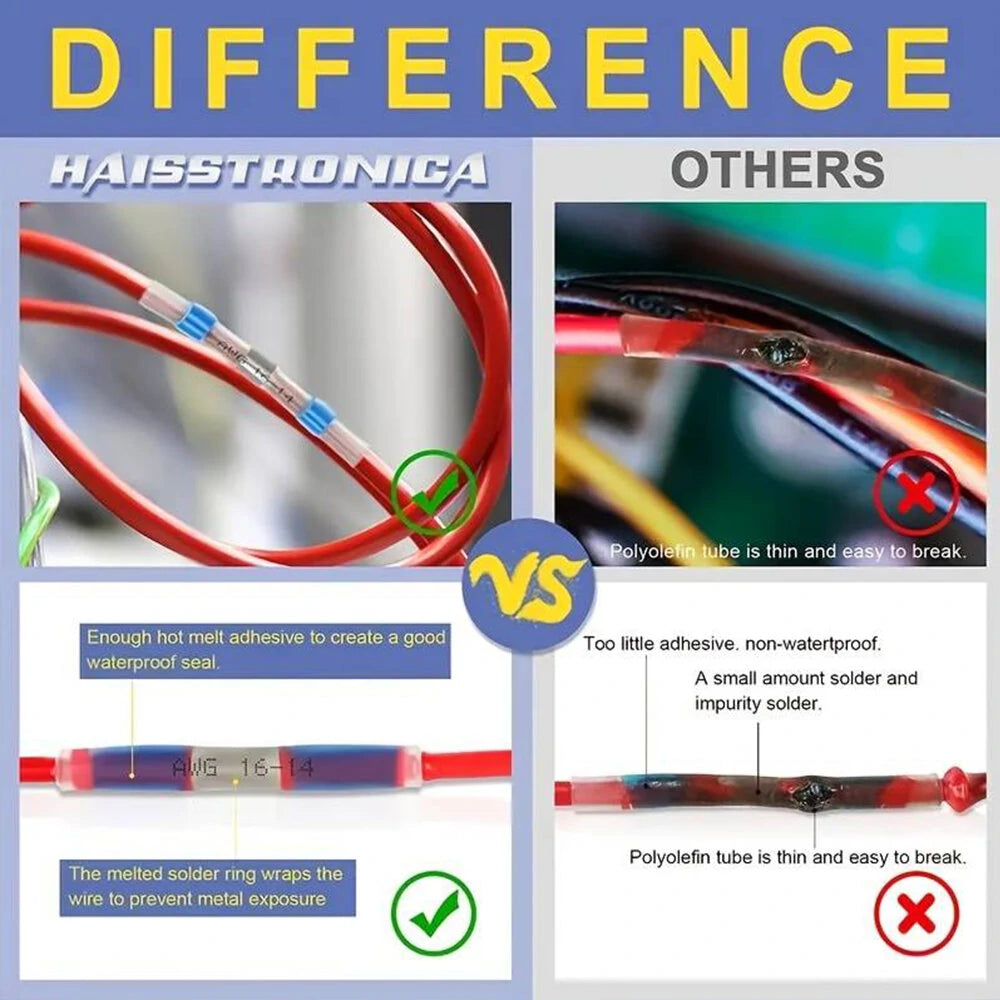

• Waterproof, Insulation, and Anti-corrosion: The dual-walled design (polyolefin tubing outside, hot melt adhesive, and solder inside) guarantees excellent insulation and waterproofing, preventing wire corrosion even in humid conditions.
• No Slip Wire Connect: The hot melt characteristics of the internal solder ensure strong tensile strength and tear resistance. Once heated, the solder securely holds the wire, preventing any slips from the connector.
• Ample Quantity & Superior Quality: This set includes 800 pieces of high-quality heat shrink sleeves: 70 Red (0.5-1 mm²), 60 Blue (1.5-2.5 mm²), 50 White (0.25-0.34 mm²), 20 Yellow (4-6 mm²), and 600 Black (1.5-2.5 mm²). The transparent sleeves provide clear visual inspection during use, with a shrinkage ratio of 2:1.
• Wide Applications: Ideal for secure and waterproof soldering on boats, vehicles, airplanes, home projects, or science experiments. The included storage case with compartments ensures easy organization and portability.

Specifications

• Type: Heat shrink sleeve
• Operating Temperature: >160°C
• Solder Melting Range: 111-138°C
• Shrink Ratio: 2:1
• Compatible Wire Gauge: 10-26 AWG
• Electrical Rating: 600V
• Quantity: 800 pieces
• Colors: Red, Blue, White, Yellow, Black (Assorted)

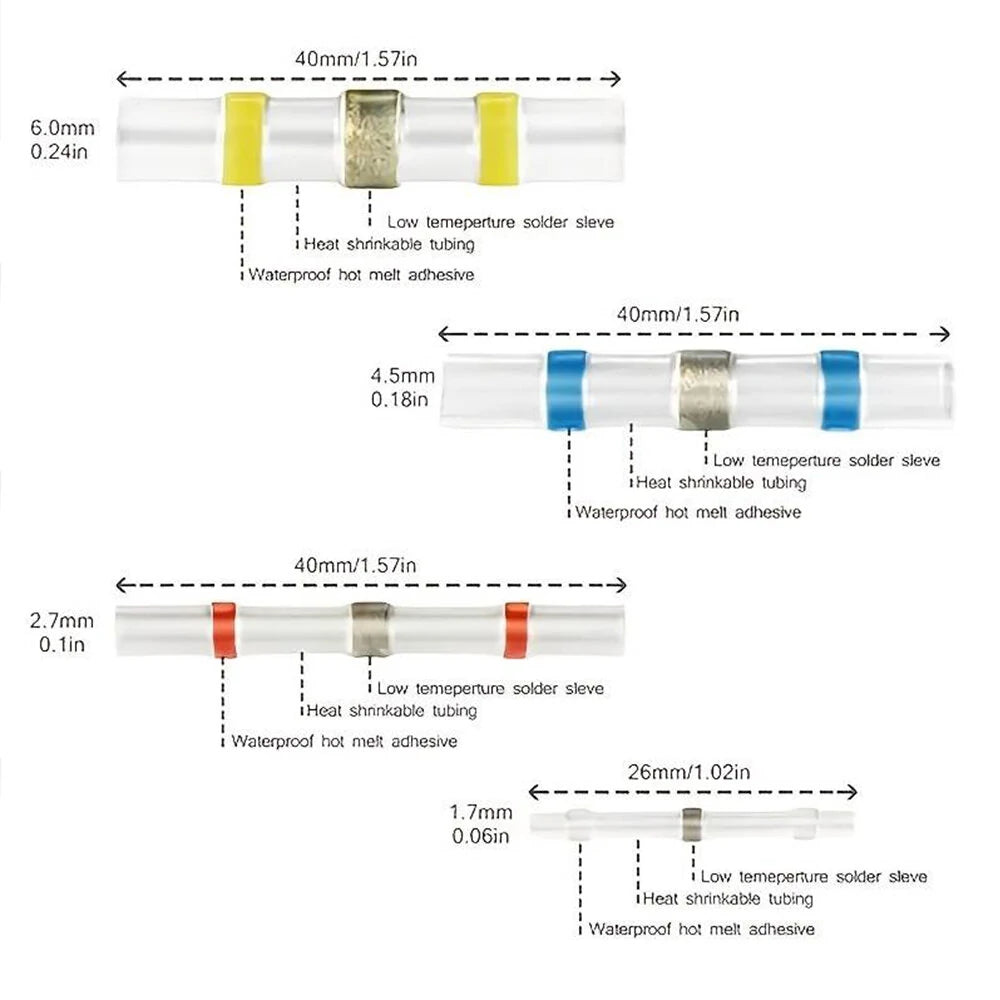

• Sizes: Red (0.5-1 mm²), Blue (1.5-2.5 mm²), White (0.25-0.34 mm²), Yellow (4-6 mm²), Black (1.5-2.5 mm²)

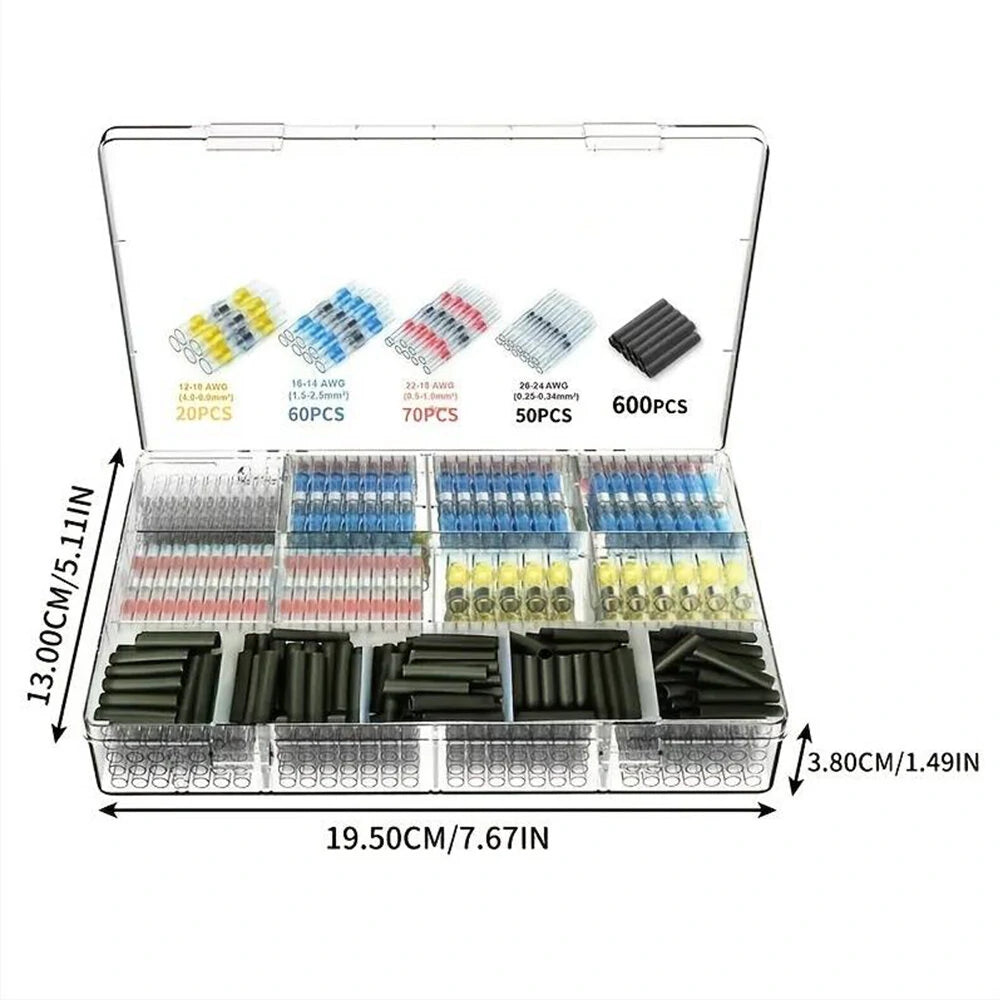

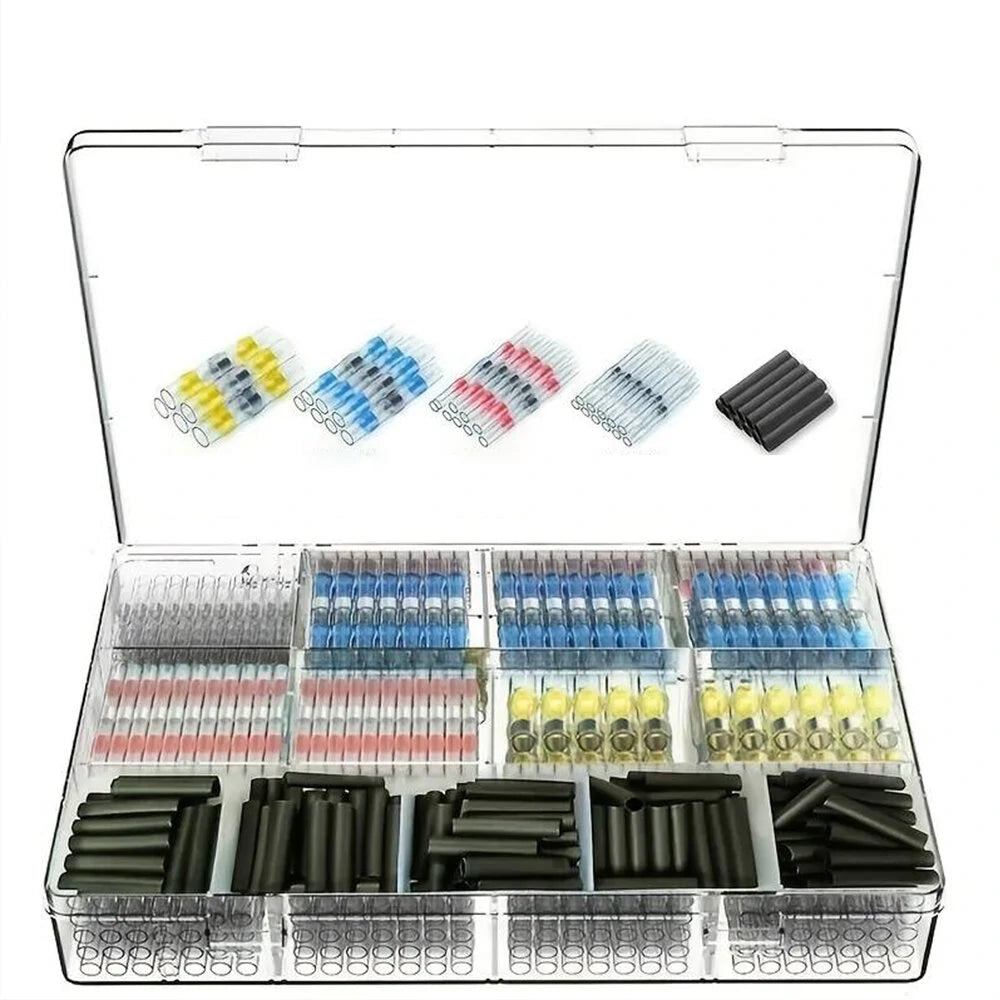

Package Includes

• 50 x White Heat Shrink Sleeve
• 70 x Red Heat Shrink Sleeve
• 60 x Blue Heat Shrink Sleeve
• 20 x Yellow Heat Shrink Sleeve
• 600 x Black Heat Shrink Sleeve
• 1 x Transparent Storage Case
