Digital LCD Car Paint Thickness Gauge - High Precision with Multi-Point & Zeroing Calibration

Description:

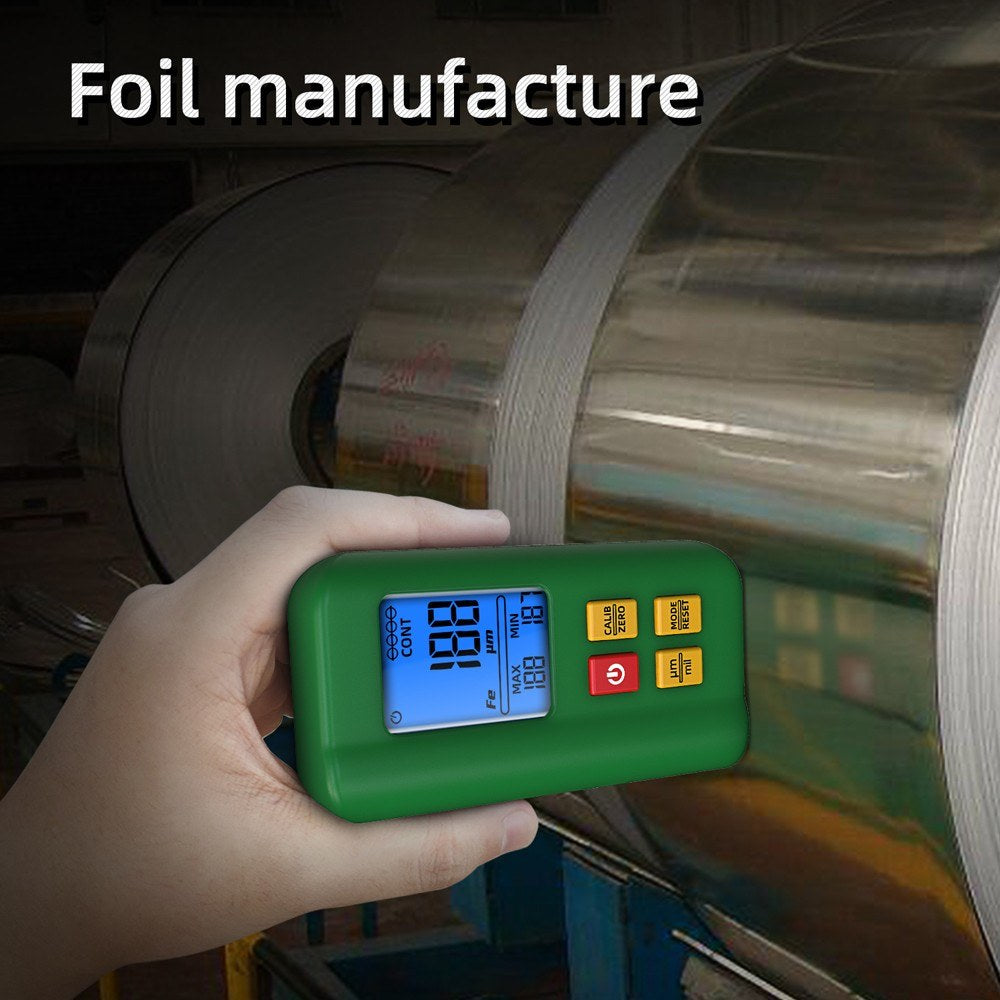

The Thickness Gauge is an essential tool for measuring metal plating and coating thicknesses, including paint, enamel, and chrome on various metal surfaces. It automatically detects the substrate's attributes and assesses coating thickness non-destructively. This device is ideal for the manufacturing, metal processing, chemical industry, commercial inspection, and is versatile for use in laboratories, workshops, and outdoor environments.

Key Features:

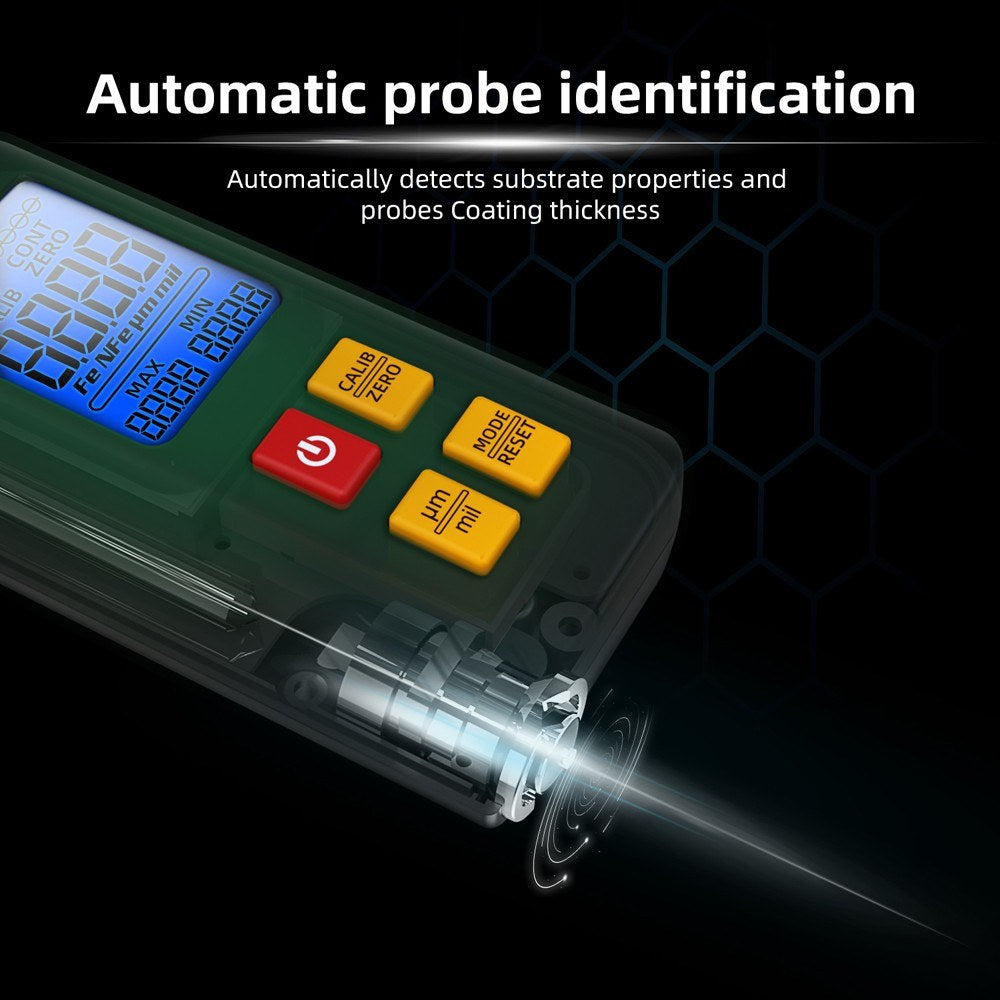

• High Sensitivity Probe: Automatically recognizes substrate attributes and calculates coating thickness with ease by placing the probe directly on the surface.

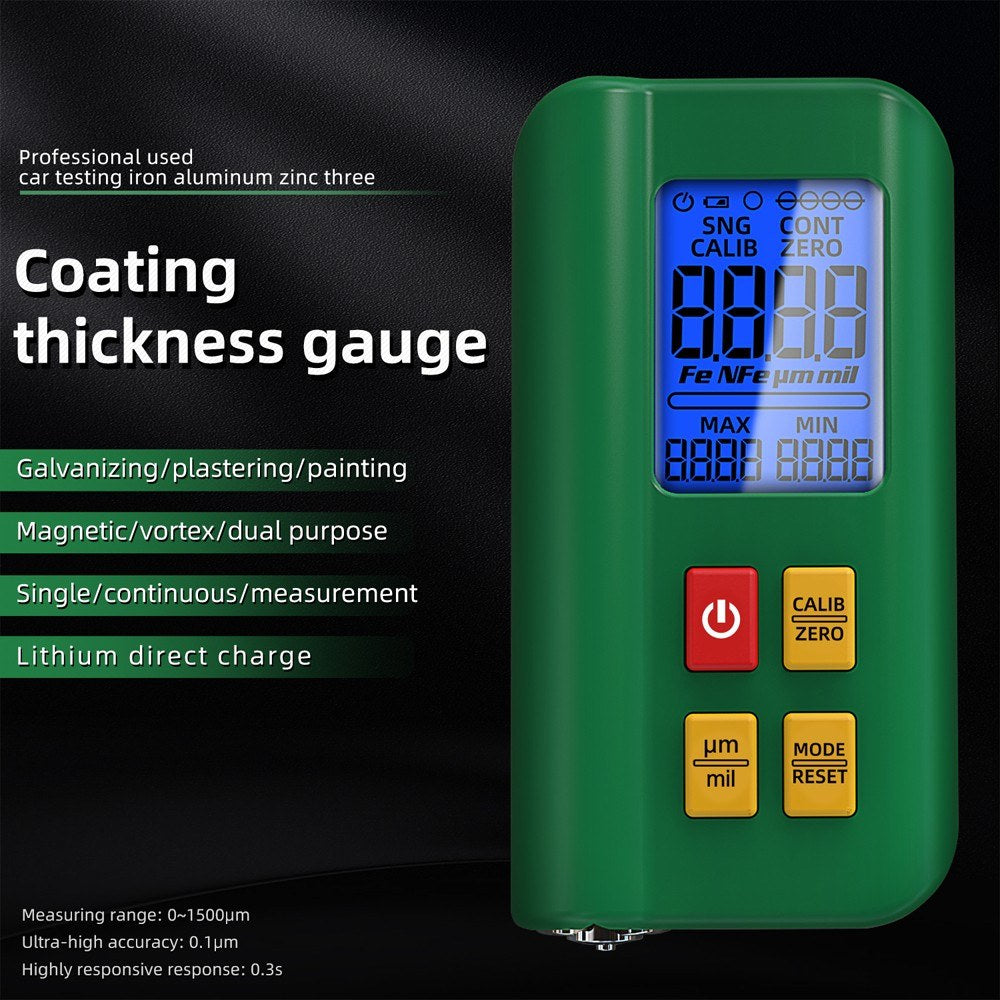

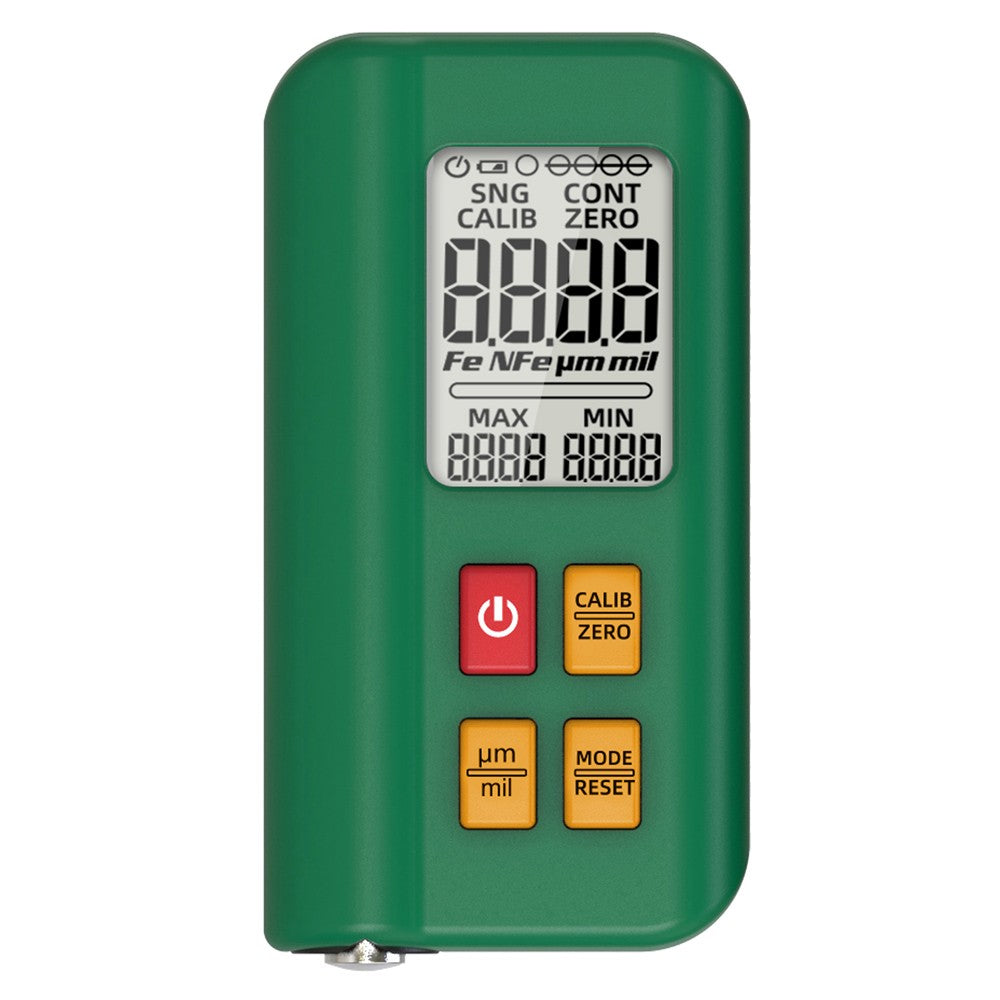

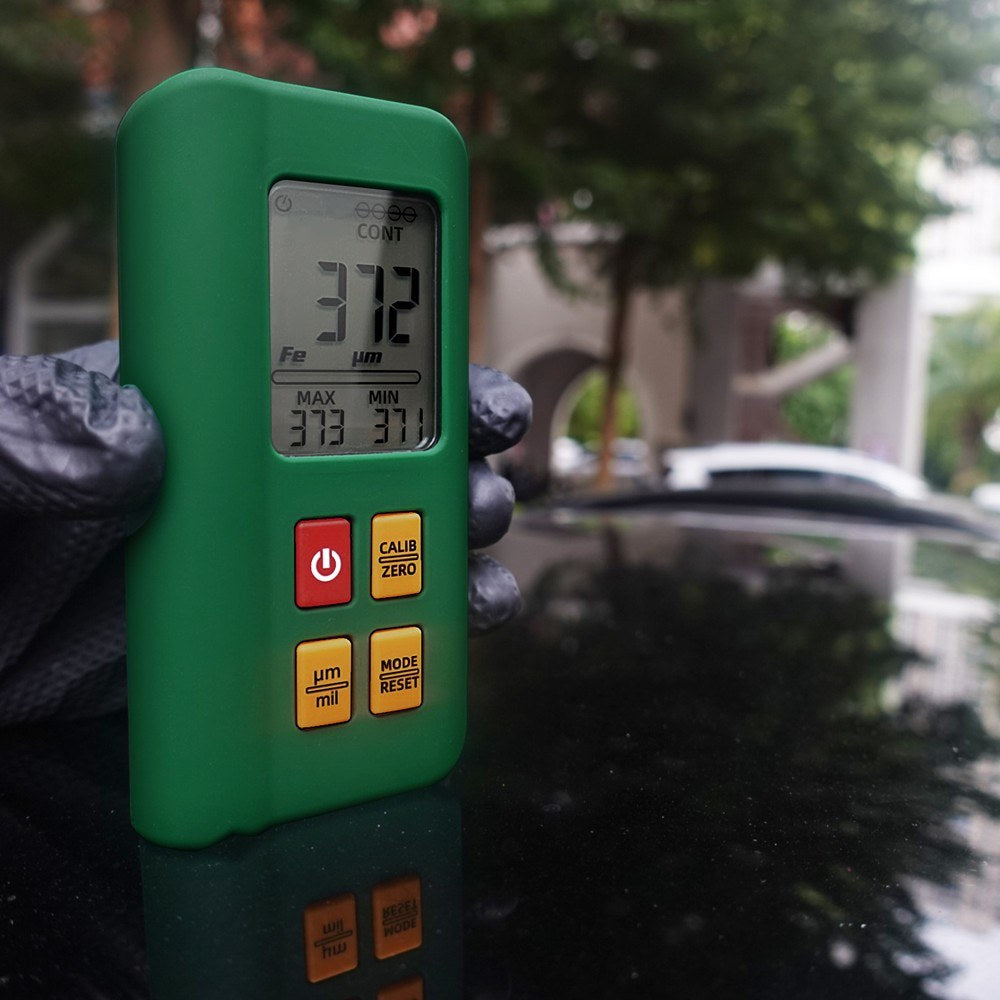

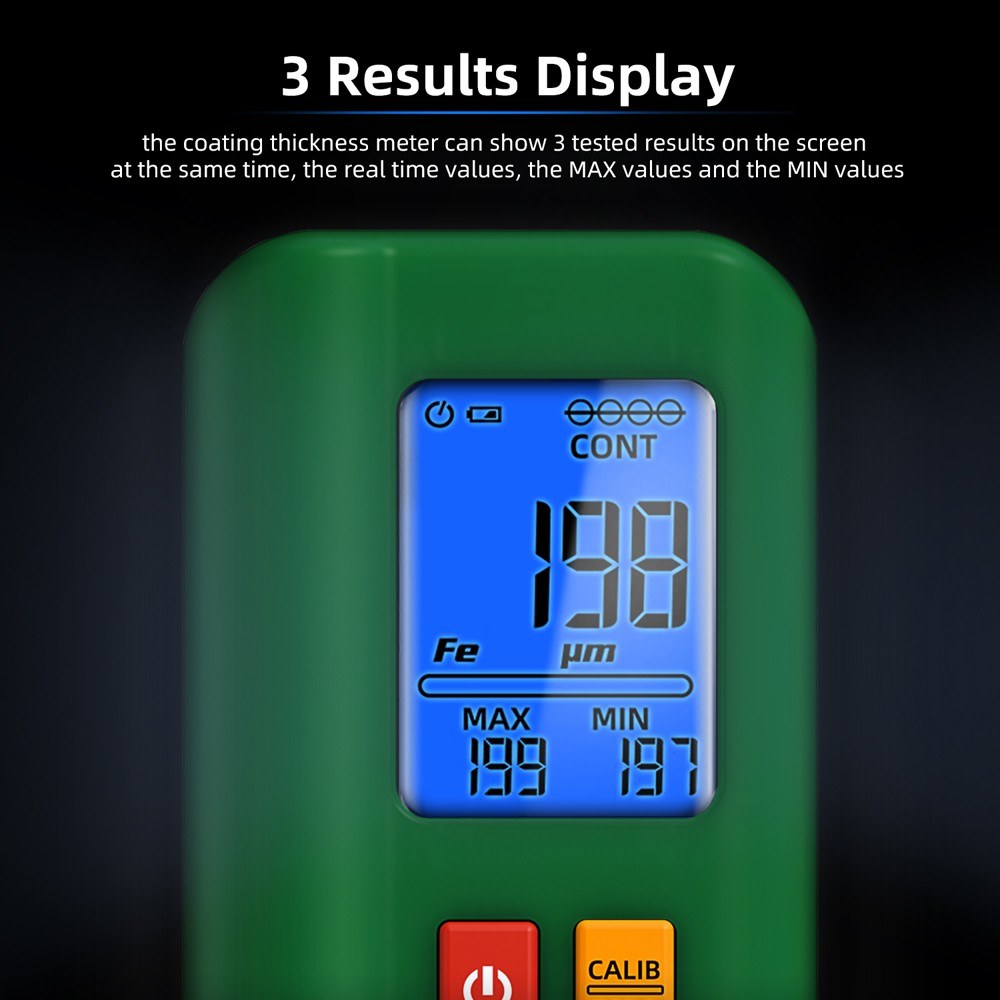

• Digital LCD Display: The blue backlight LCD screen displays real-time, maximum, and minimum values for easy reading.
• Advanced Measurement Principles: Utilizes electromagnetic and vortex induction principles for non-destructive coating thickness measurement.
• Dual Measurement Modes: Offers single and continuous measurement modes to adapt to various application needs.
• Fe Iron Base Mode: Assesses thickness through magnetic circuit changes when in contact with magnetic substrates.
• NFe Non-ferrous Mode: Evaluates thickness using vortex feedback effects on non-magnetic substrates.

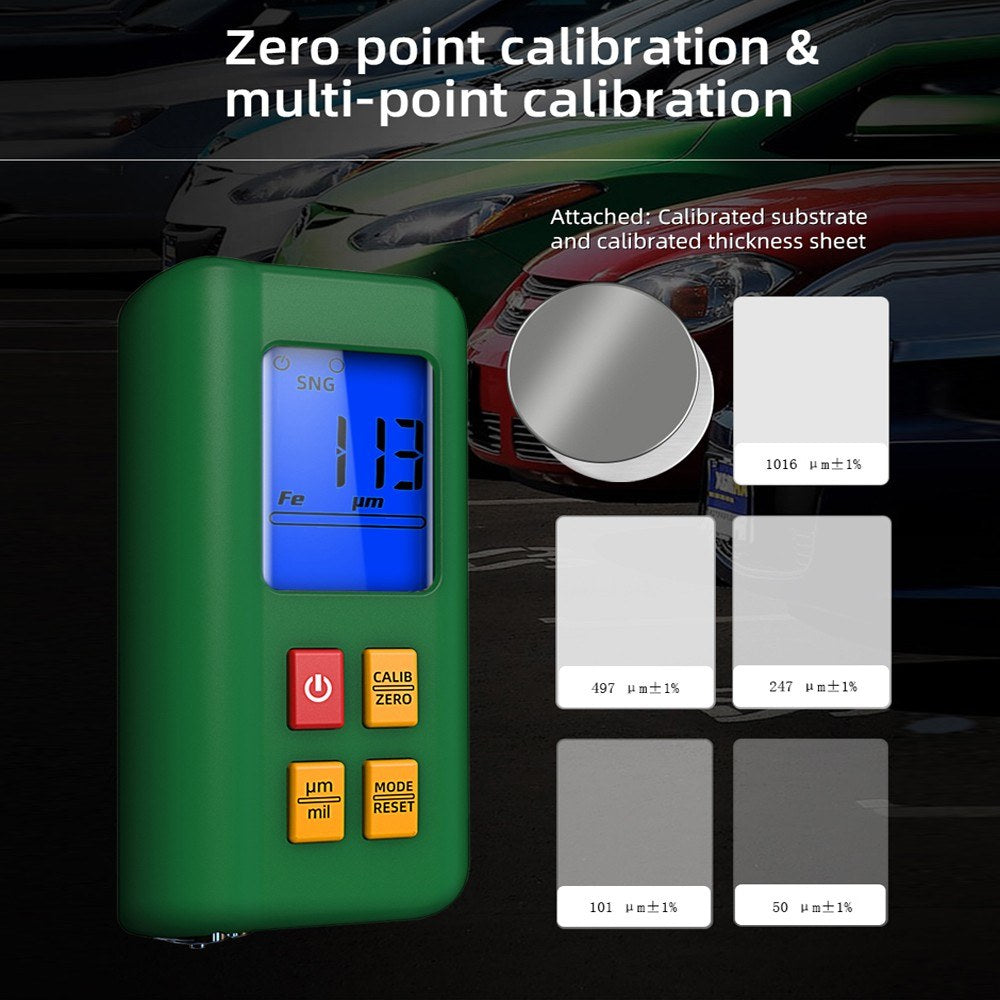

• Multi-functional Design: Features auto-calibration, beeping reminders, data storage, and automatic shutdown to enhance user experience.

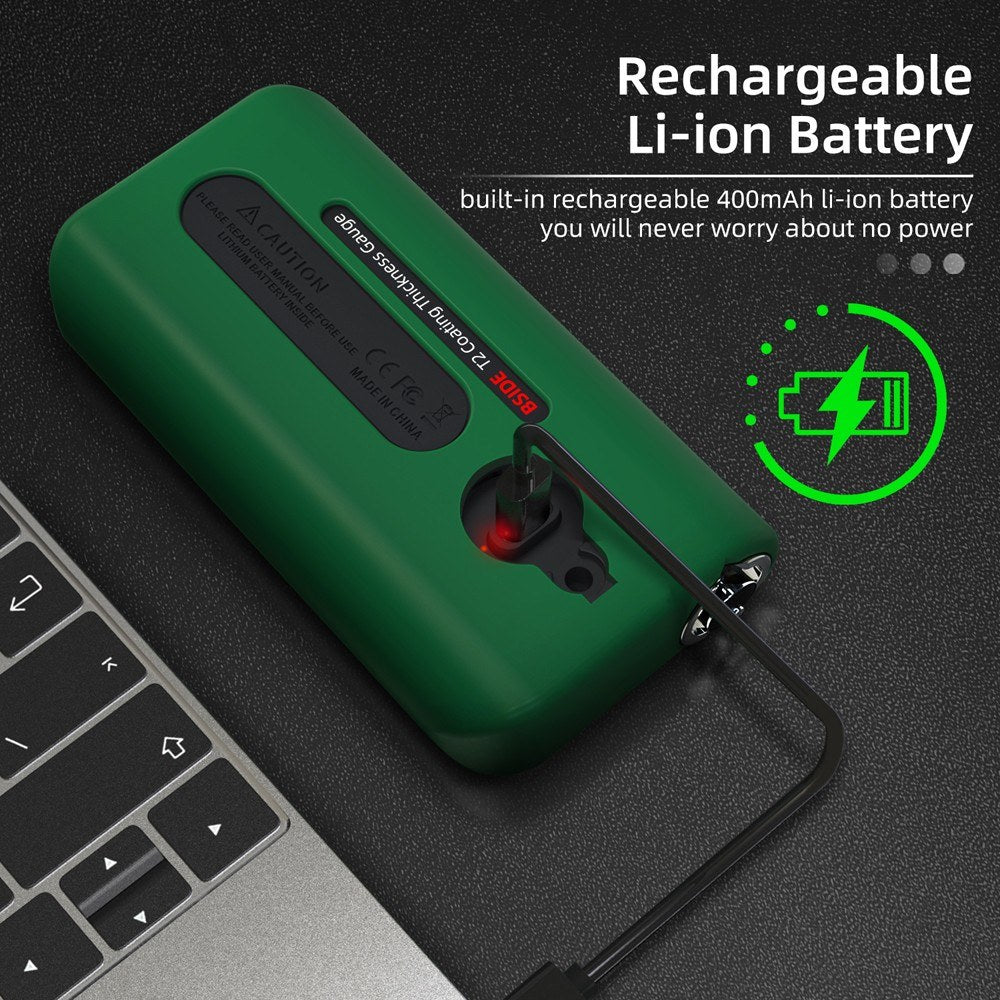

• Rechargeable Battery: Equipped with a long-lasting 3.7V 400mAh lithium battery, supporting USB direct charging.

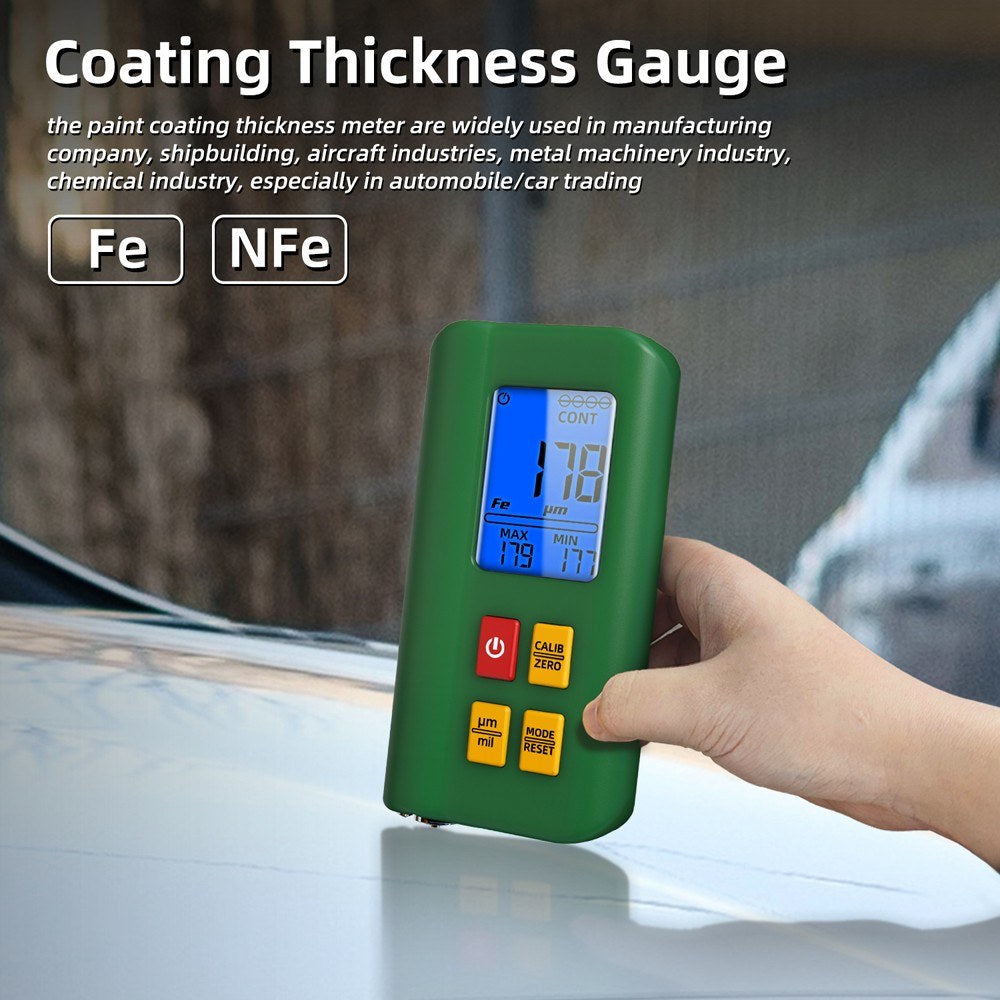

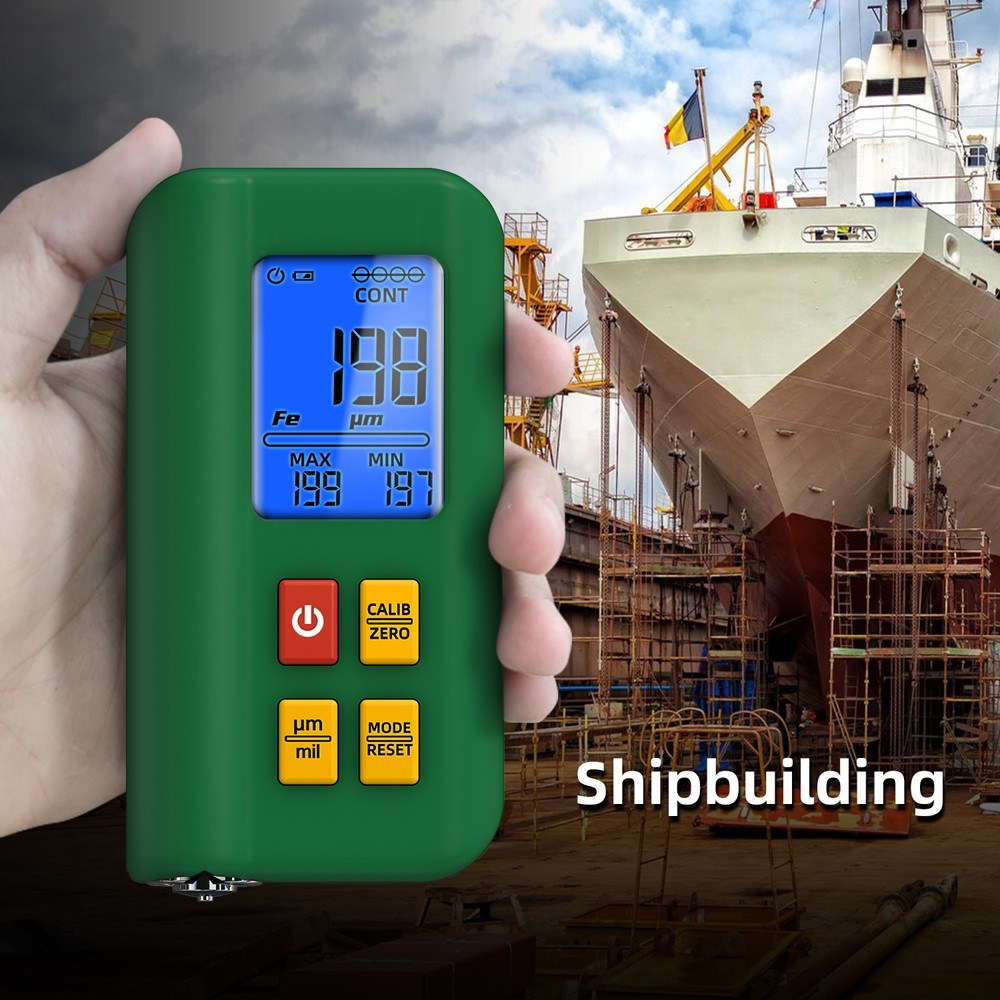

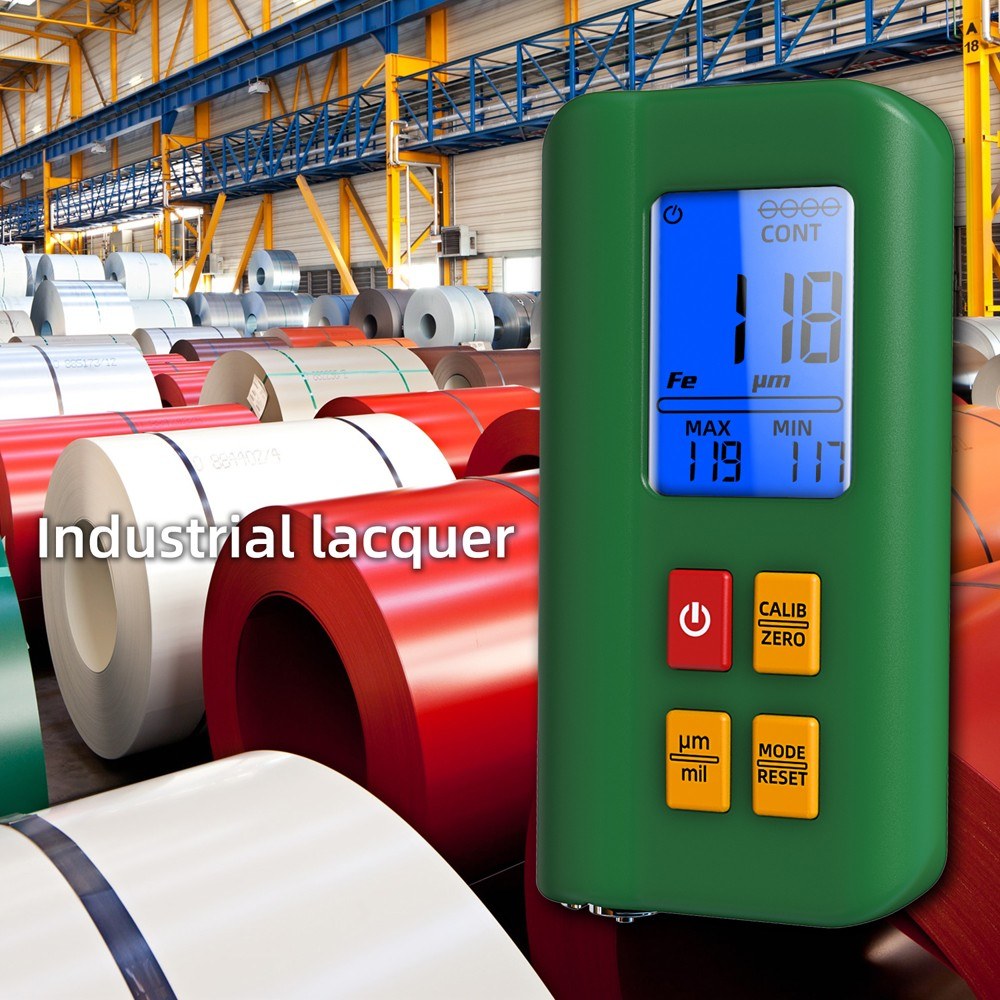

• Versatile Applications: Suitable for automotive ink inspection, electroplating, pipeline anti-corrosion, mechanical surface protection, chemical equipment testing, quality control, and more.

Specifications:

• Name: Thickness Gauge
• Material: ABS
• Battery: Built-in 3.7V 400mAh (included)
• Testing Range: 0-1500μm
• Accuracy: ±(3% + 2μm)
• Resolution Ratio: 0.1μm
• Minimum Substrate Thickness: 0.5mm
• Units: μm, mil
• Minimum Convex Surface Rate Radius: 1.5mm
• Minimum Concave Surface Rate Radius: 25mm
• Minimum Measuring Surface Diameter: 6mm
• Operating Temperature: 0-40℃ (32-104℉)
• Operating Humidity: 20%-90% RH, free from strong magnetic fields

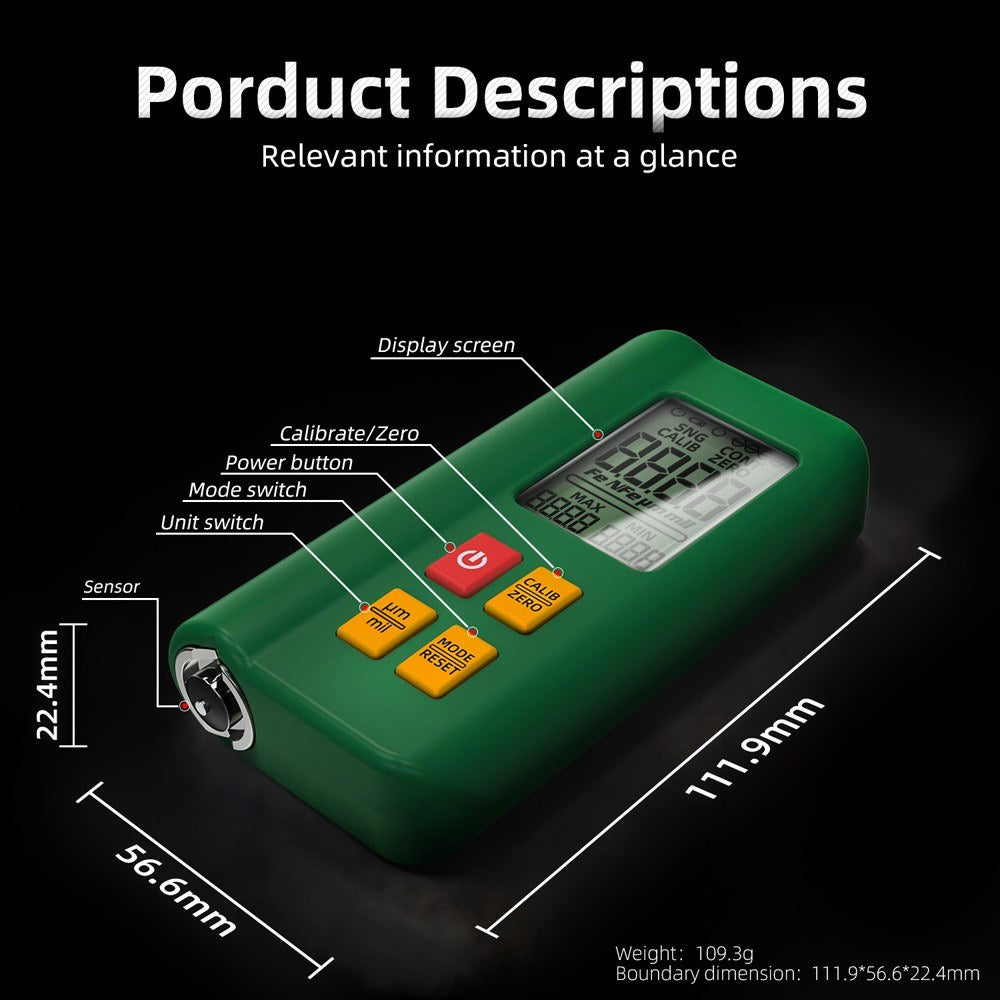

• Item Size: 111.9 x 56.6 x 22.4mm / 4.41 x 2.23 x 0.88in
• Item Weight: 109.3g / 3.86oz
• Package Size: 115 x 70 x 28mm / 4.53 x 2.76 x 1.10in
• Package Weight: 200g / 7.05oz

Packing List:

• 1 x Thickness Gauge
