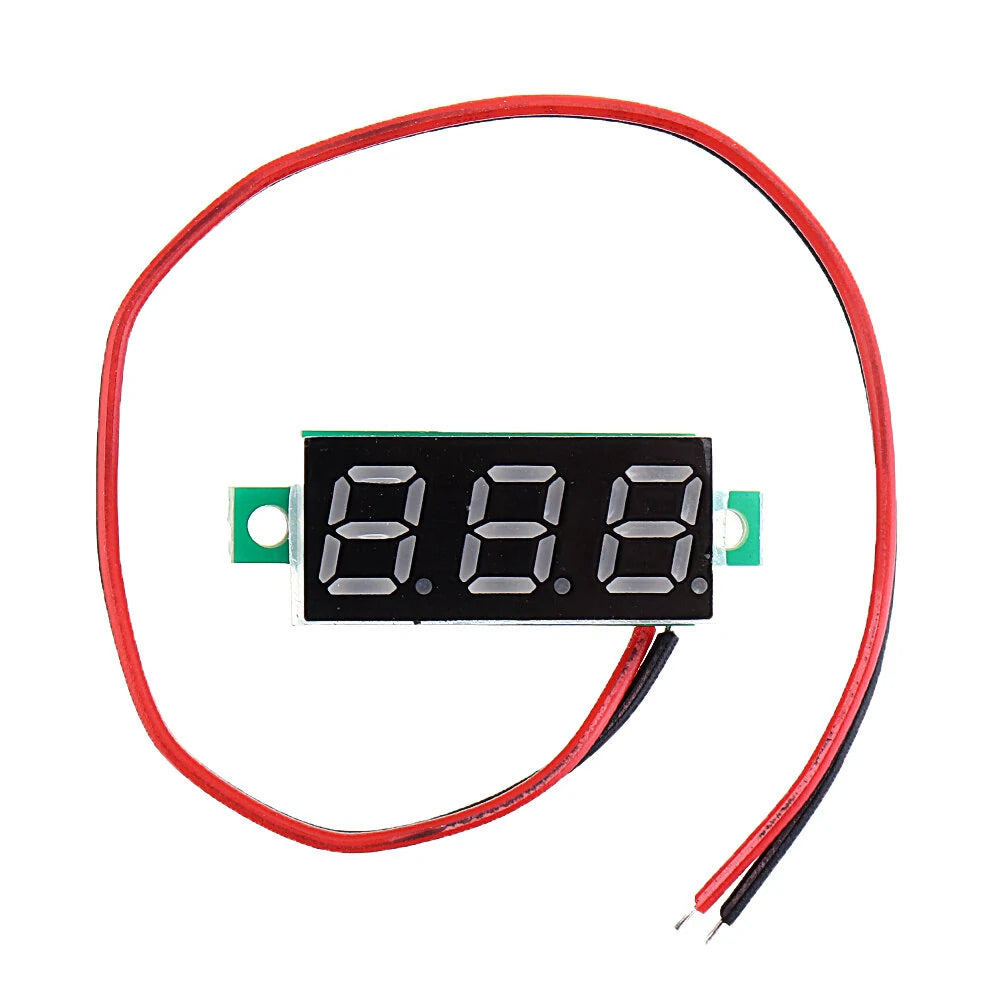

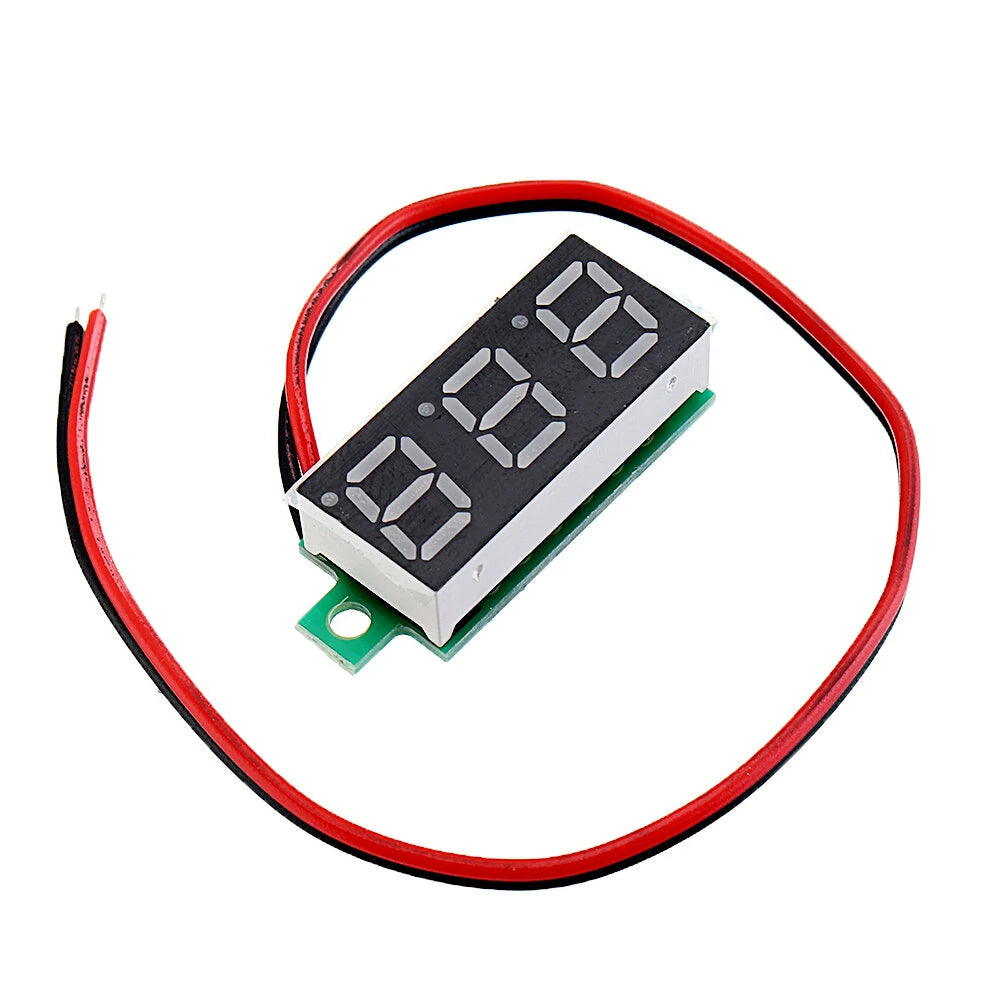

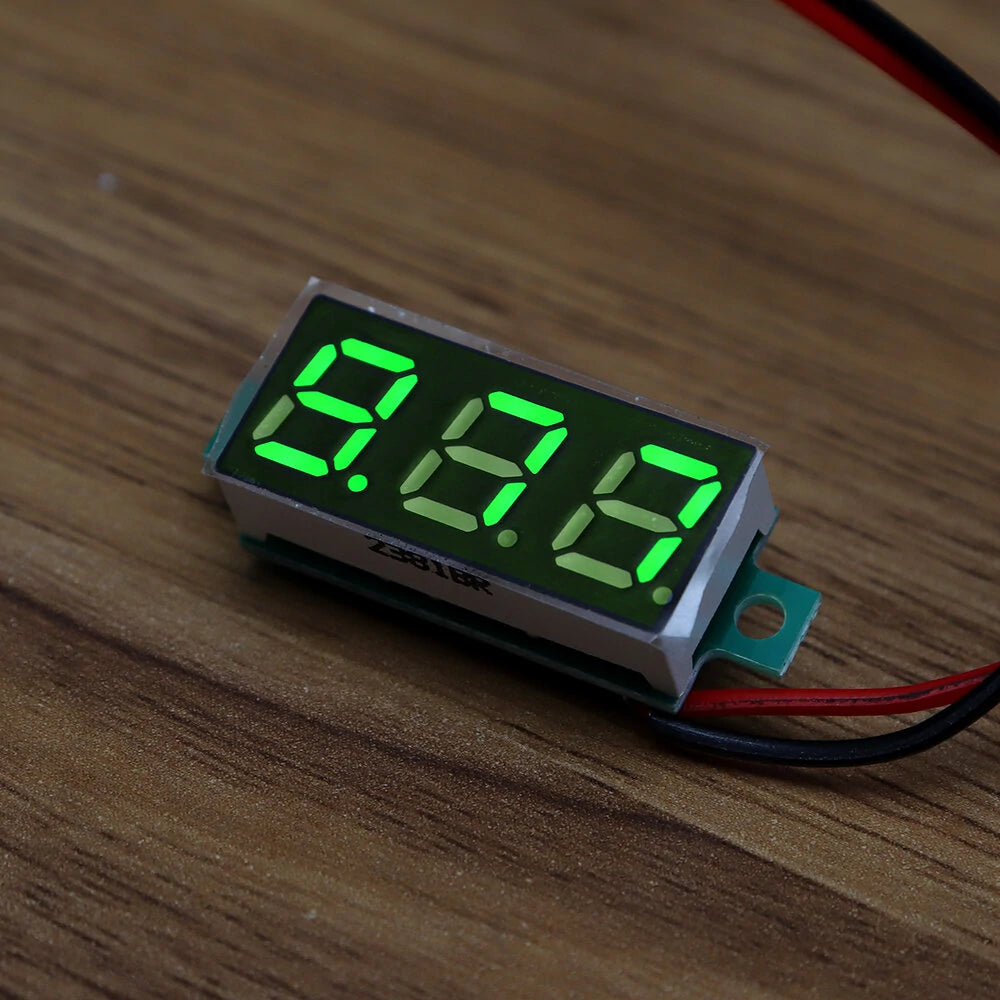

5pcs 0.28 Digital Green Display DC Voltmeter 2.5-30V Adjustable Voltage Meter

5pcs 0.28 Digital Green Display DC Voltmeter 2.5-30V Adjustable Voltage Meter

Regular price $6.99 USD
Regular price $0.00 USD Sale price $6.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Product Features:

  • Simple Wiring: Easy two-wire system with red for positive, black for negative. Reverse connection protection included.
  • No External Power Needed: Operates directly with measuring voltage. Suitable for a range of 2.50-30V.
  • Wide Voltage Operation: Handles from 2.50V up to a maximum of 40V. Exceeding 40V can cause damage.
  • Precision Display: Displays two decimal points for voltages below 10V and one decimal point for voltages above 10V.

Specifications:

  • Measuring Range: DC 2.50~32.0V
  • Power Supply: Not required
  • Test Accuracy: ±1%. Error of ±0.1V for voltages over 10V
  • Input Resistance: >50KΩ
  • Working Current: Refresh rate approximately 100ms
  • Display: Three-digit 0.28 LED digital tubes
  • Lead Length: Default 20 cm

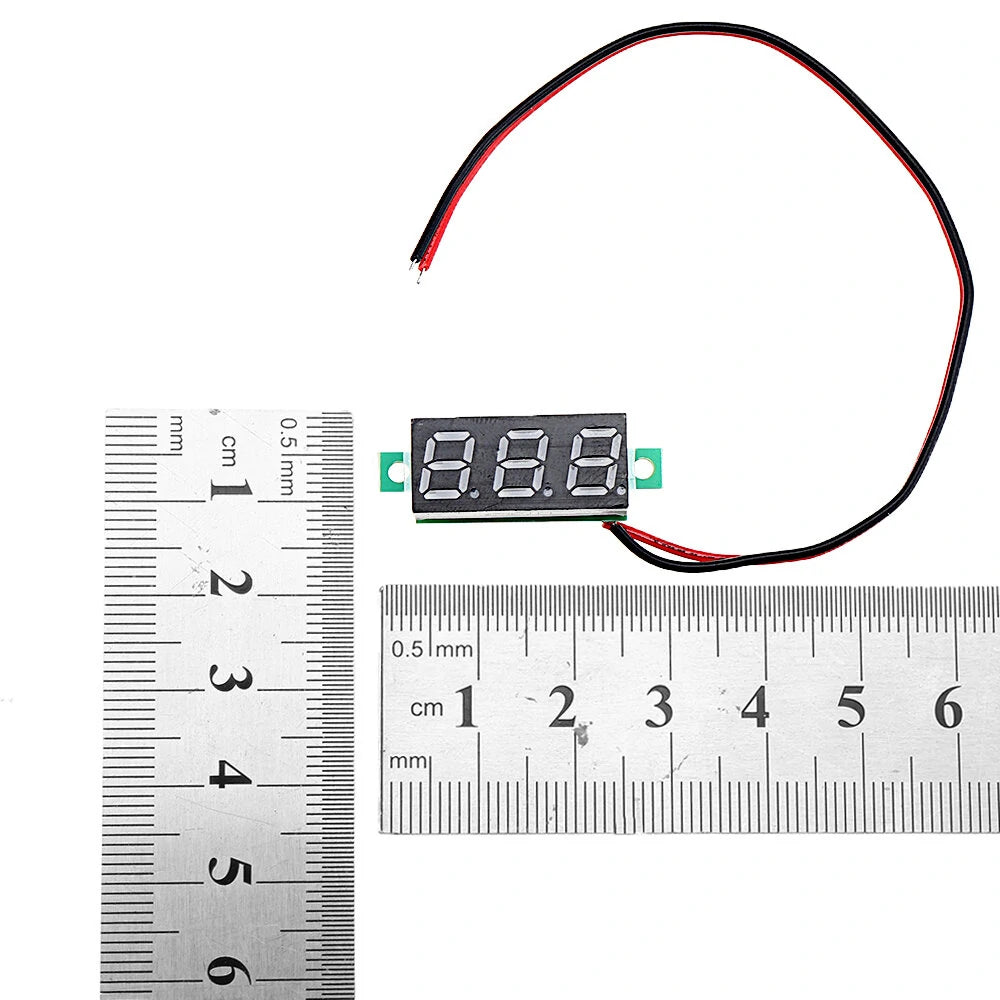

  • Dimensions: 30 x 11.5 x 9 mm
  • Hole Size: Pitch 26 mm, Aperture 2.4 mm
  • Net Weight: 4 g
  • Operating Temperature: -10 to +80 °C
  • Working Humidity: 10 to 80%
  • Working Pressure: 80 to 106 kPa

Package Includes:

  • 5 x Voltage Meter
