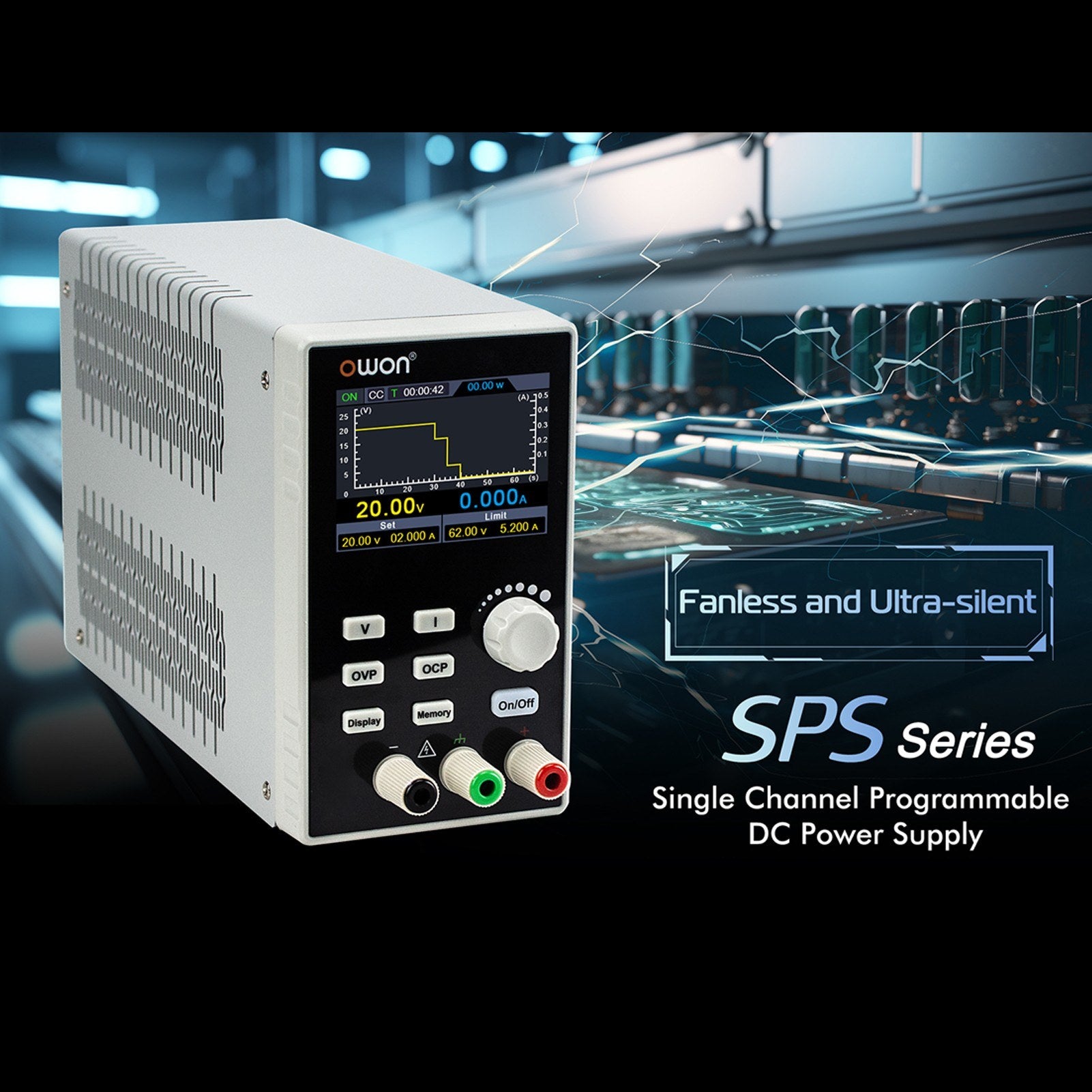

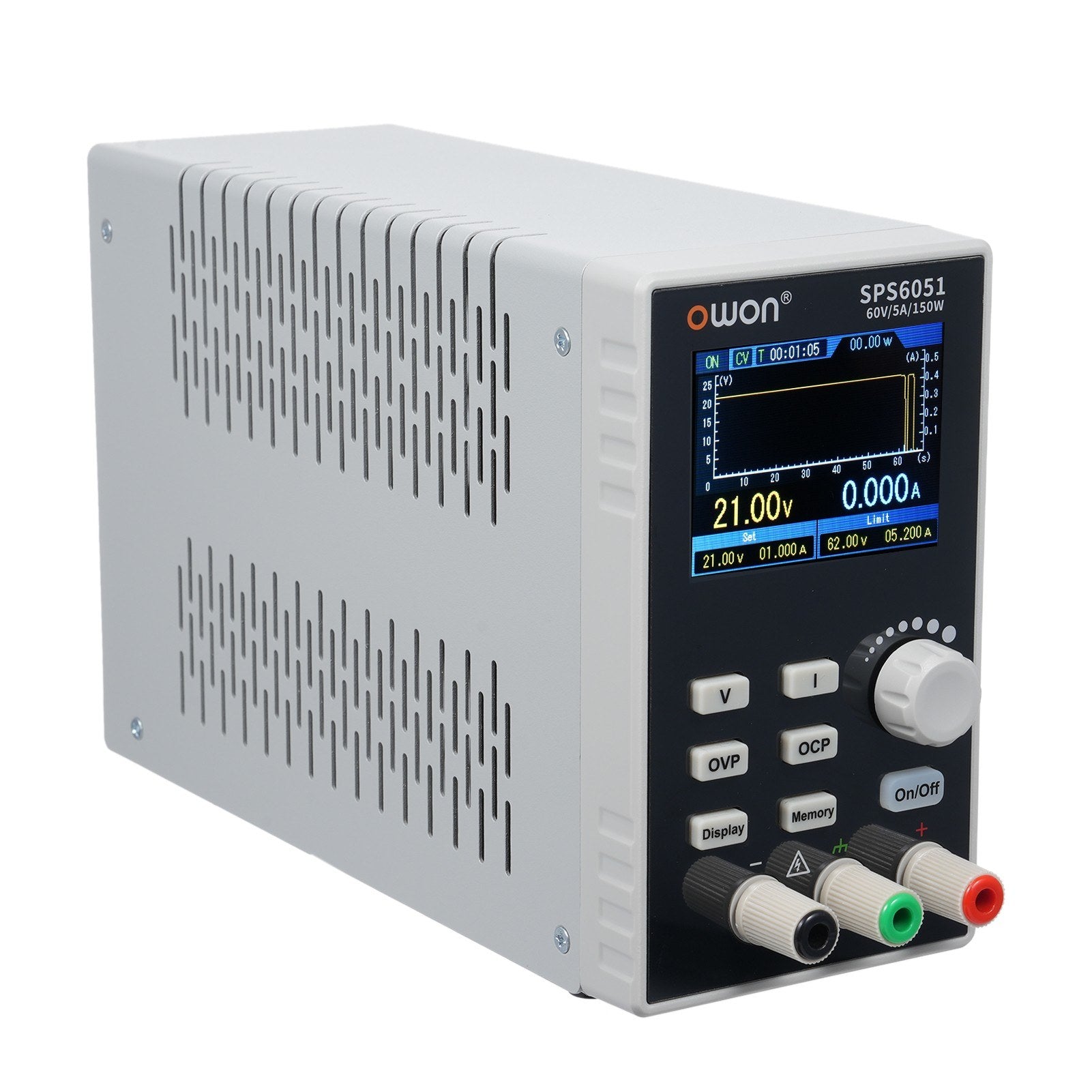

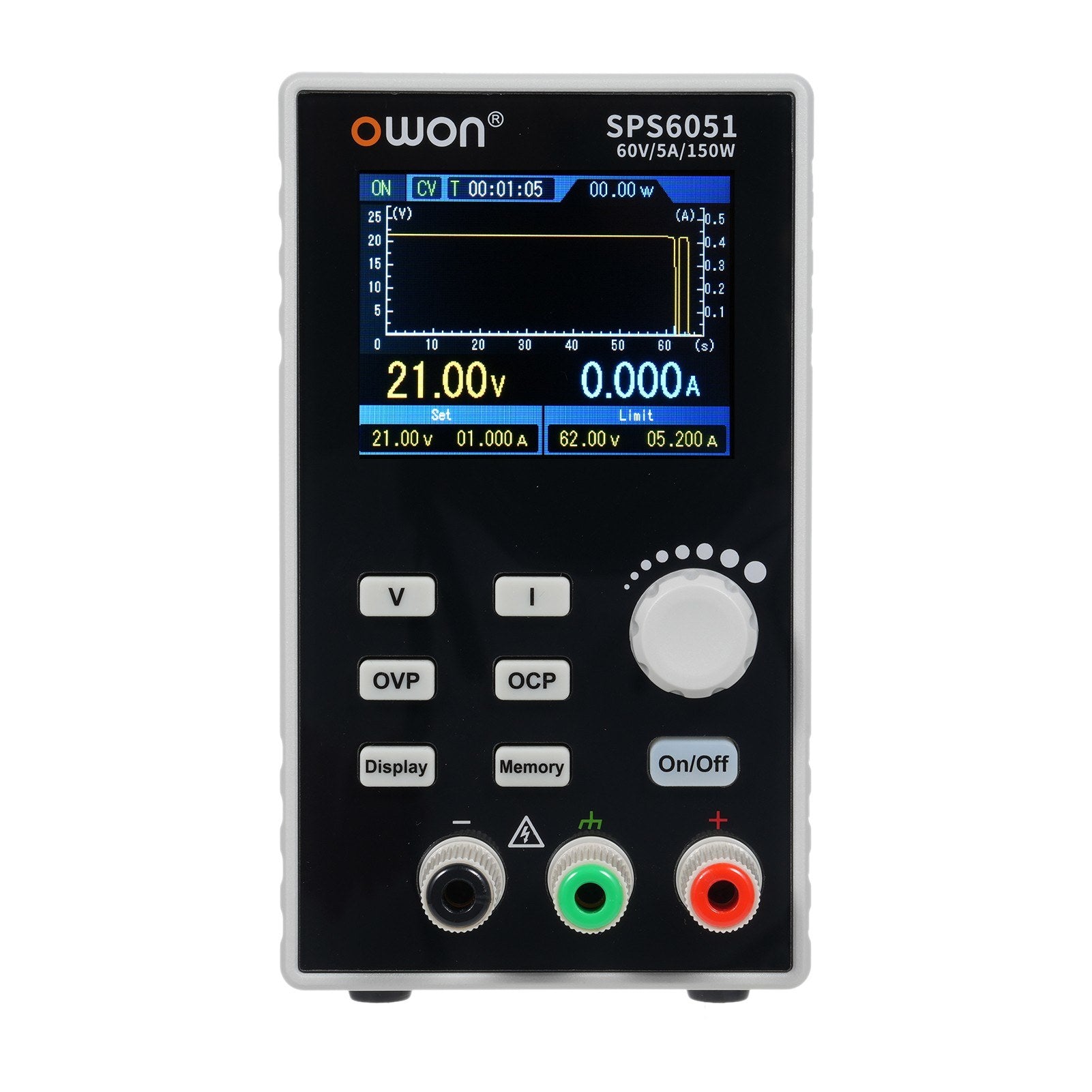

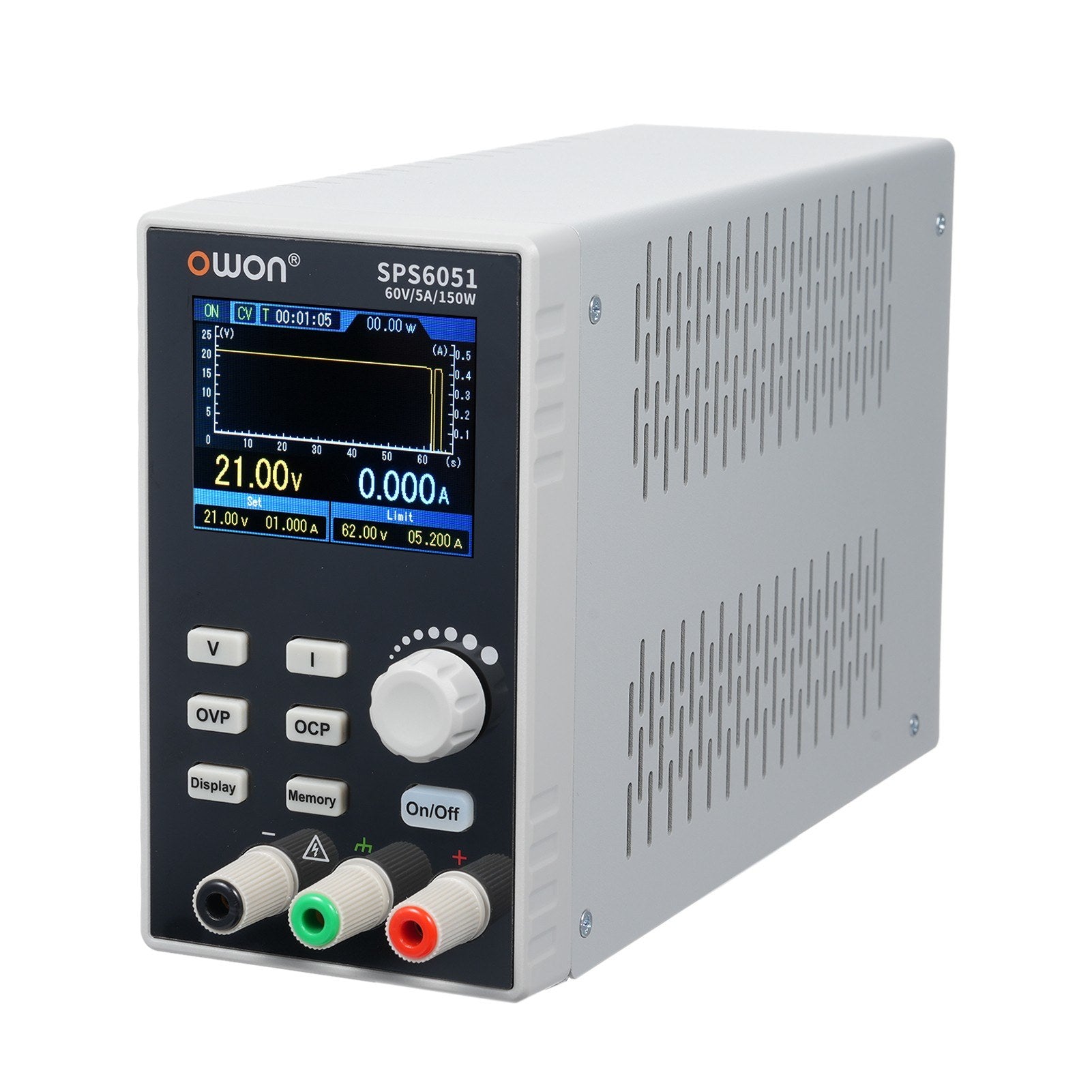

OWON SPS6051 Programmable Linear DC Power Supply with Silent Fanless Design & 2.8 TFT LCD
OWON SPS6051 Programmable Linear DC Power Supply with Silent Fanless Design & 2.8 TFT LCD
Regular price
$162.99 USD
Regular price
$0.00 USD
Sale price
$162.99 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.

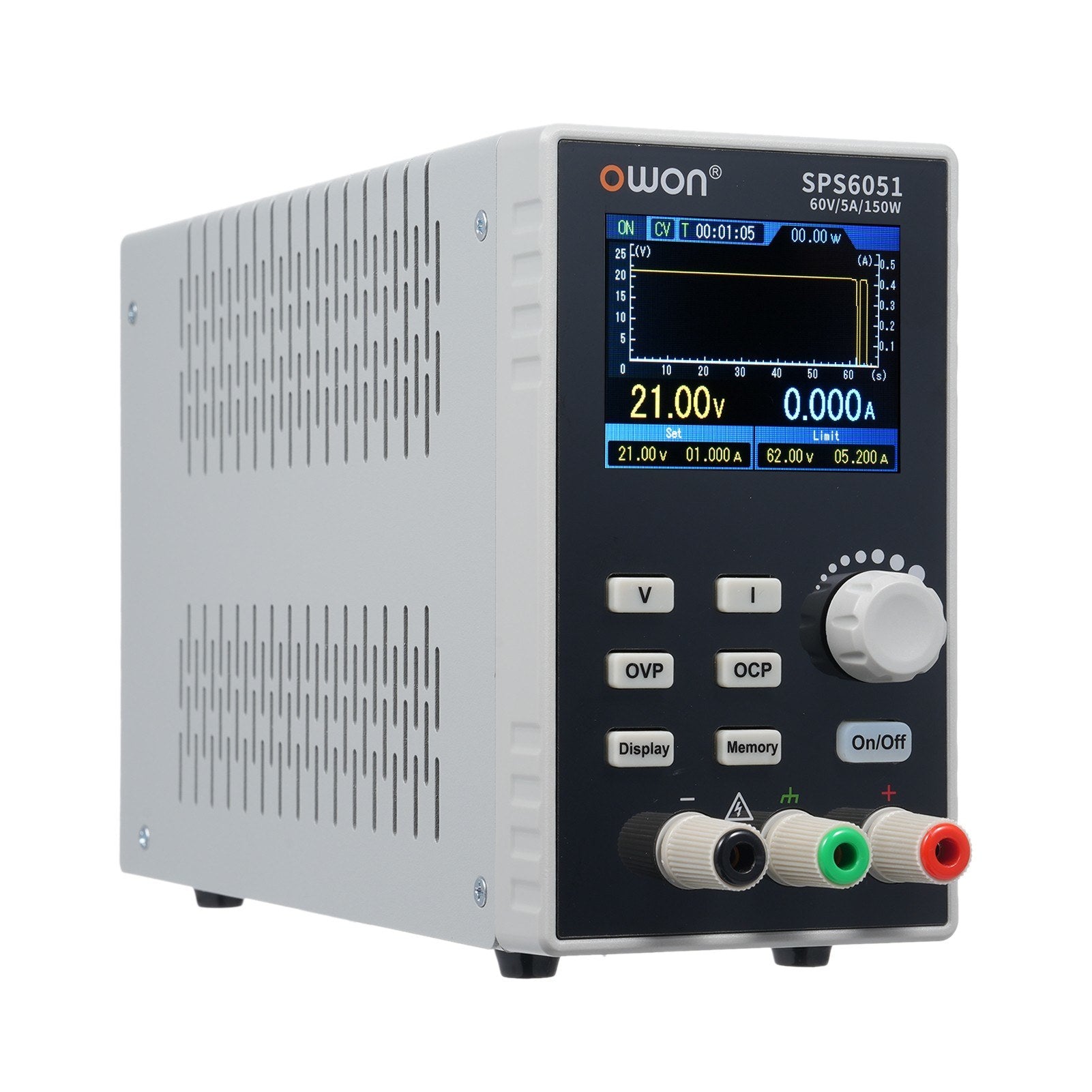

OWON SPS6051 Programmable Linear DC Power Supply

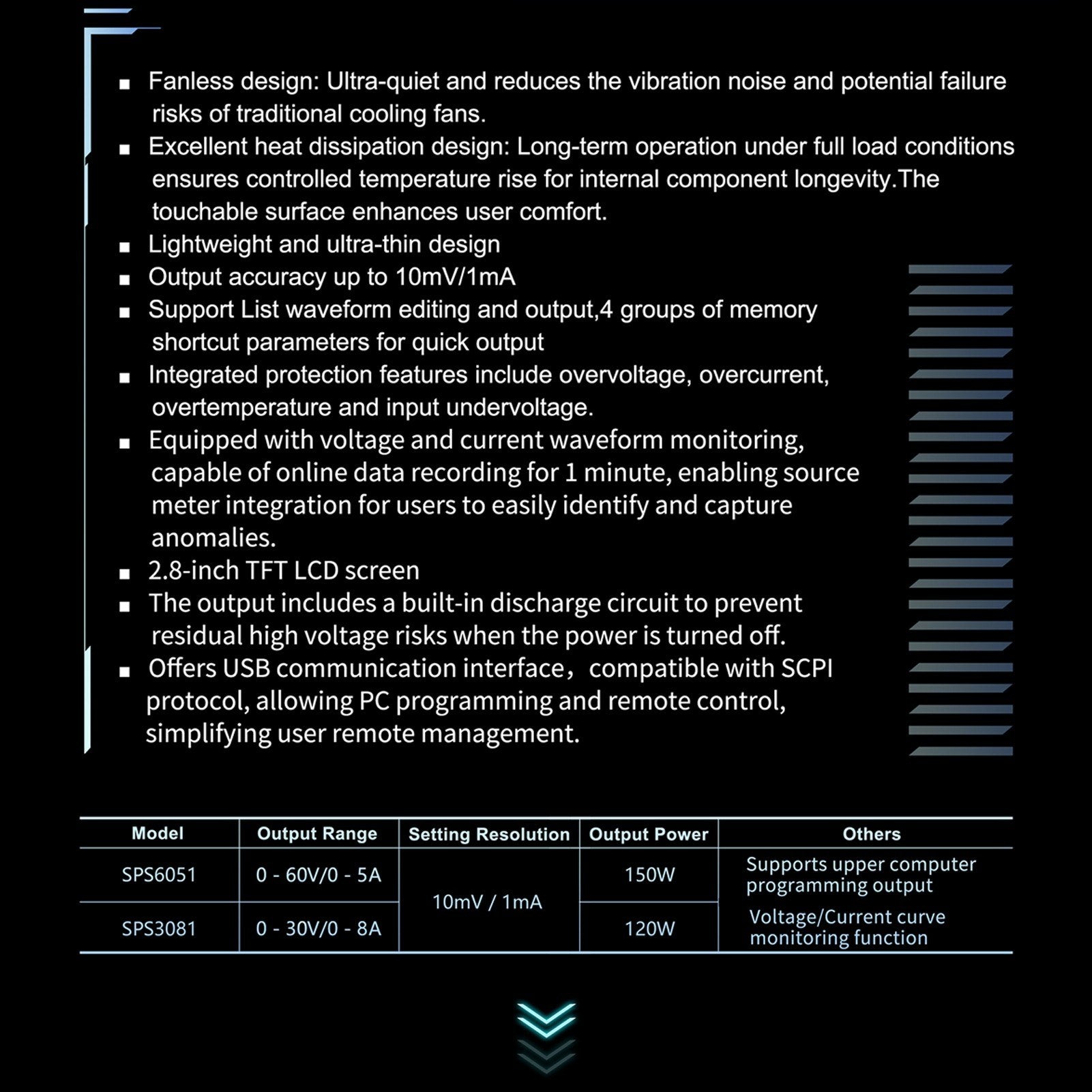

Key Features

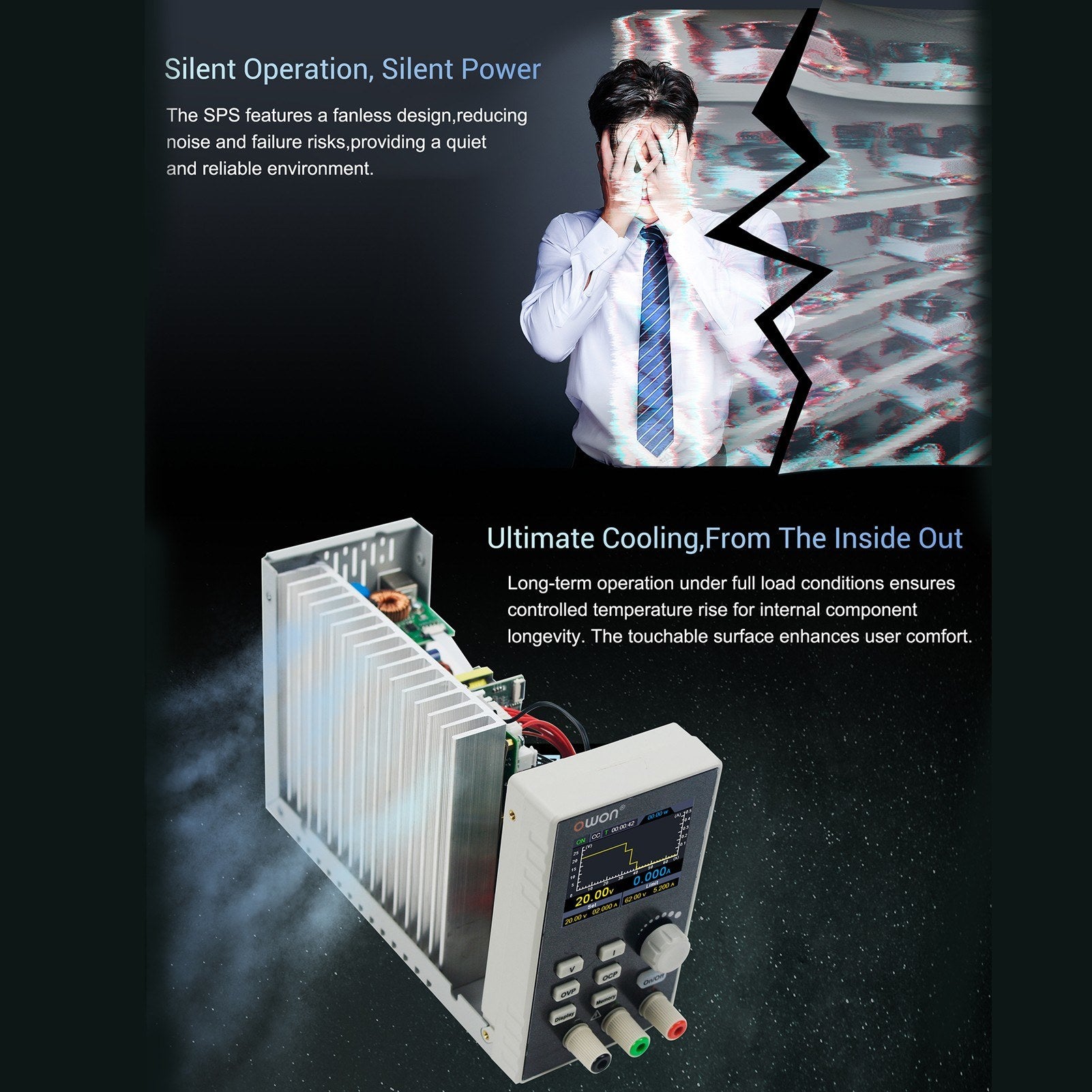

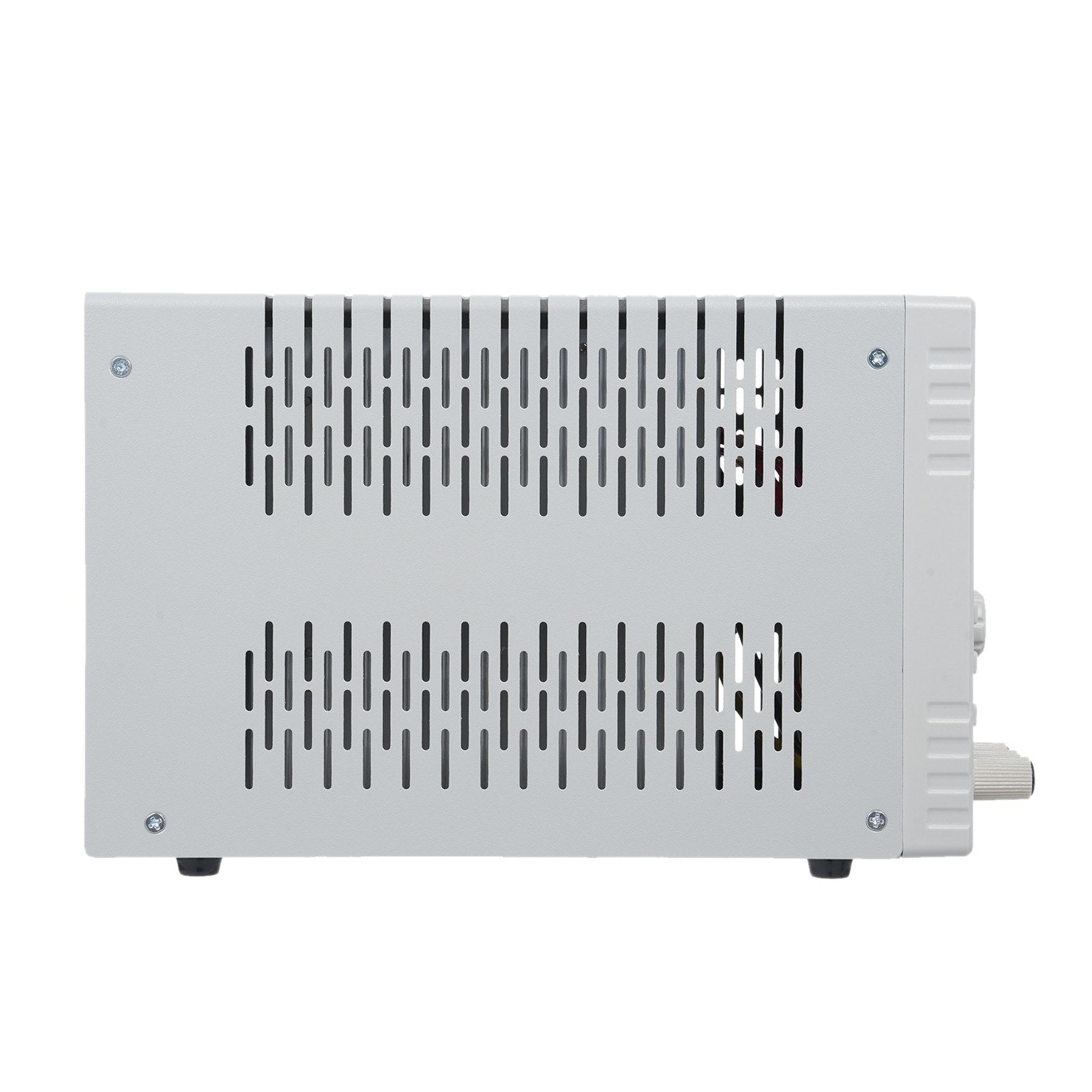

- Silent Fanless Design: Enjoy ultra-quiet operation, perfect for noise-sensitive environments.
- High Resolution Display: Experience precise voltage and current monitoring with a 2.8-inch TFT LCD.
- Programmable Capability: Offers versatile voltage and current control specific to your needs.
- Advanced Protection: Features over voltage/current protection for enhanced safety and longevity.
- USB Communication: Supports SCPI for seamless data transfer and remote control access.

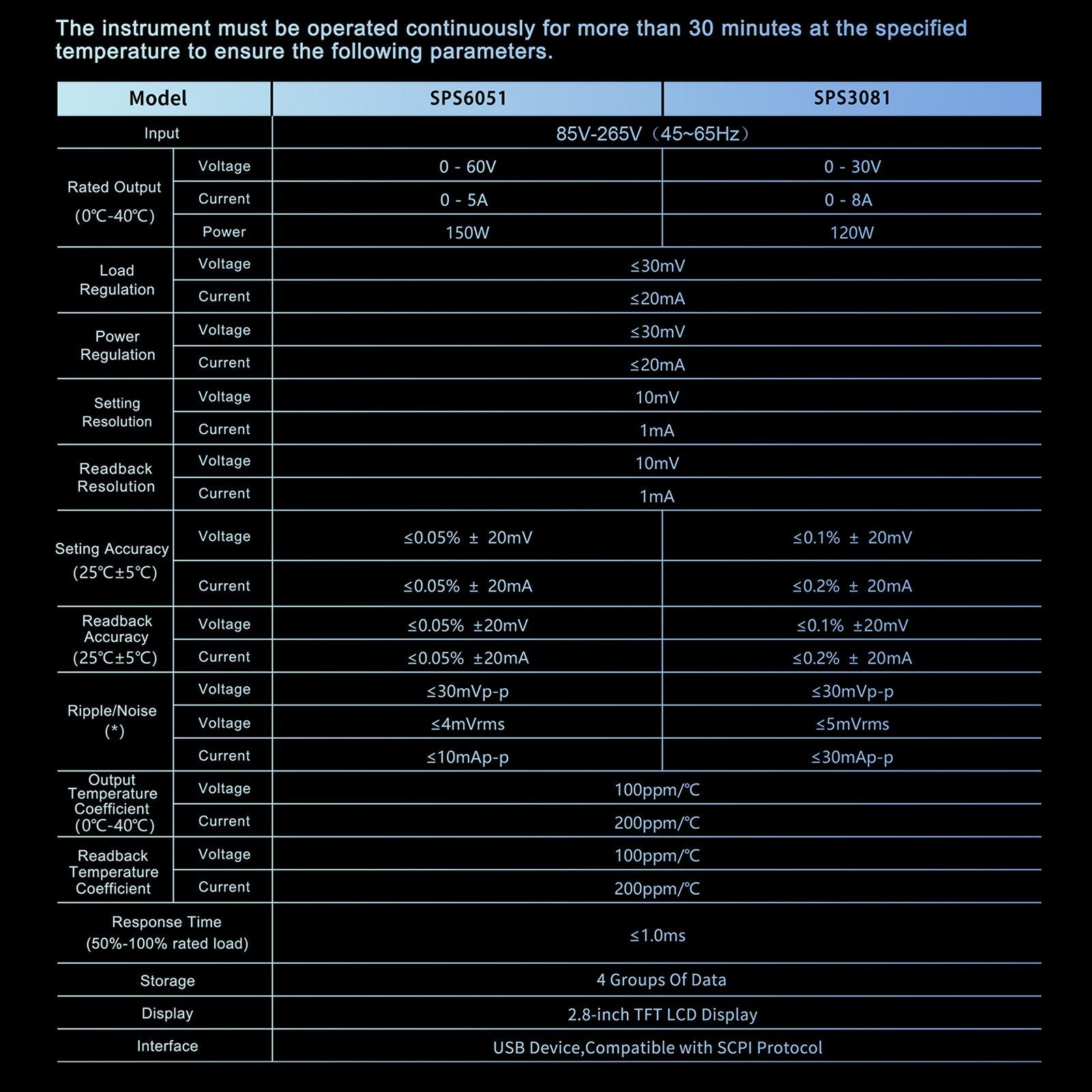

Specifications
- Plug Options: EU / US / UK (Optional)
- Model: SPS6051
- Material: Aluminum alloy
- Input: 85V-265V (45~65Hz)
-
Rated Output:
- Voltage: 0-60V
- Current: 0-5A
- Power: 150W
-
Load Regulation:
- Voltage: ≤30mV
- Current: ≤20mA
-
Power Regulation:
- Voltage: ≤30mV
- Current: ≤20mA
-
Setting Regulation:
- Voltage: 10mV
- Current: 1mA
-
Readback Resolution:
- Voltage: 10mV
- Current: 1mA
-
Accuracy (25℃±5℃):
- Setting Accuracy - Voltage: ≤0.05% ±20mV, Current: ≤0.05% ±20mA
- Readback Accuracy - Voltage: ≤0.05% ±20mV, Current: ≤0.05% ±20mA
-
Ripple/Noise:
- Voltage: ≤30mVp-p, ≤4mVrms
- Current: ≤10mAp-p
-
Temperature Coefficient (0℃-40℃):
- Output - Voltage: 100ppm/℃, Current: 200ppm/℃
- Readback - Voltage: 100ppm/℃, Current: 200ppm/℃
- Response Time: ≤1.0ms (50%-100% rated load)
- Storage: 4 Groups of Data
- Display: 2.8-inch TFT LCD Display
- Interface: USB device, compatible with SCPI protocol
-

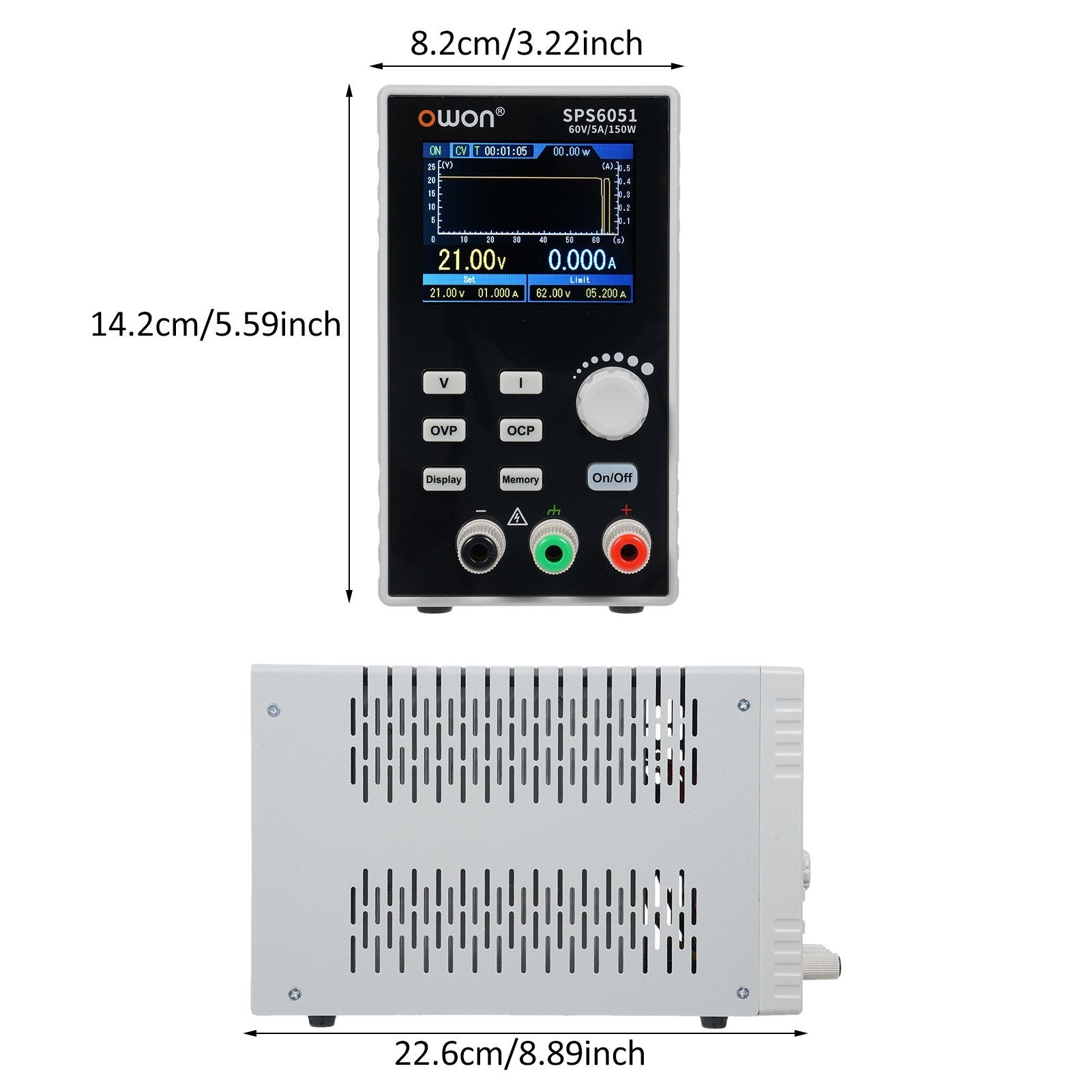

Dimensions:
- Item Size: 82 x 142 x 226mm / 3.22 x 5.59 x 8.89in
- Item Weight: 1922g / 4.23lb
-
Package:
- Weight: 2408g / 5.31lb
- Size: 34 x 19.7 x 10.3cm / 13.38 x 7.75 x 4.05in

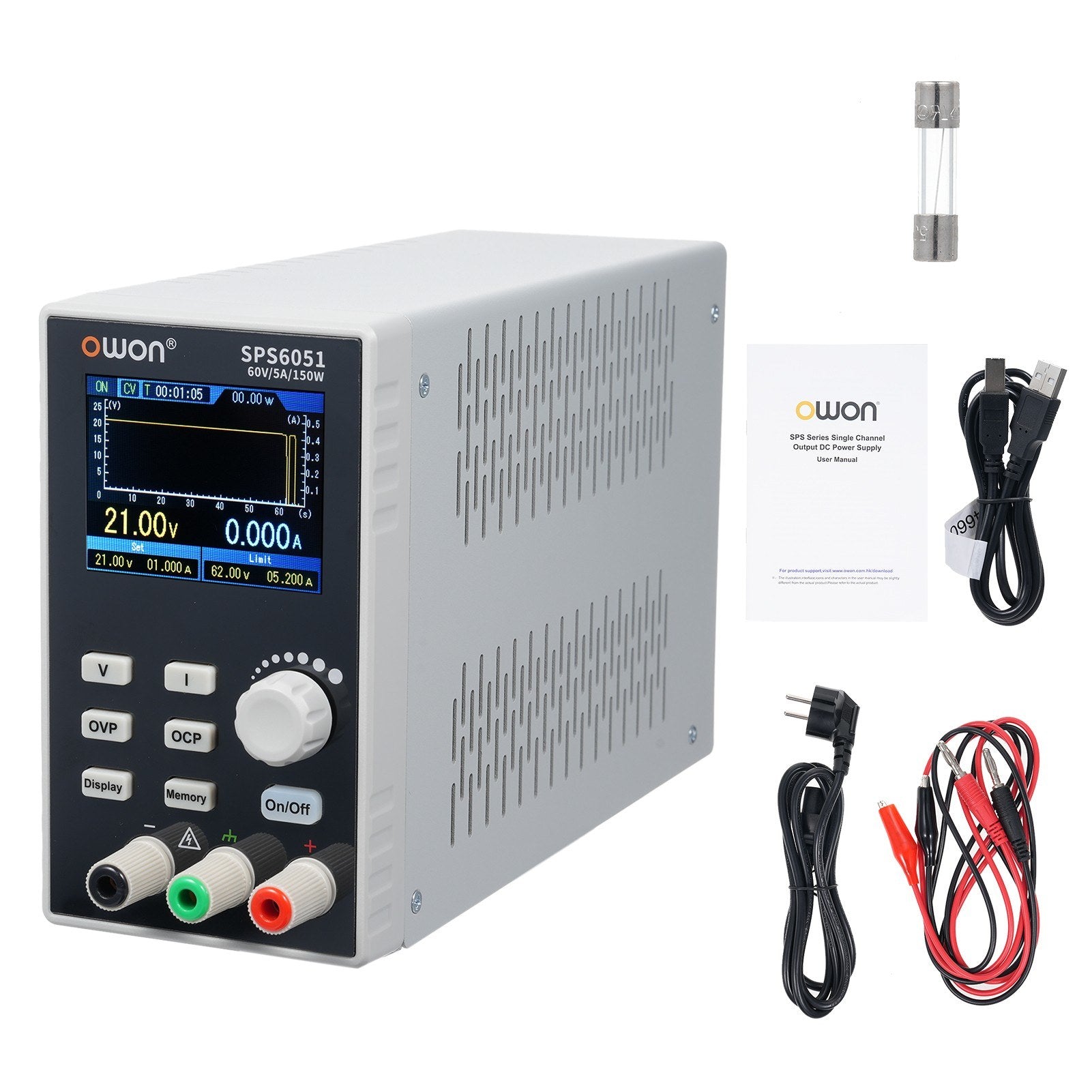

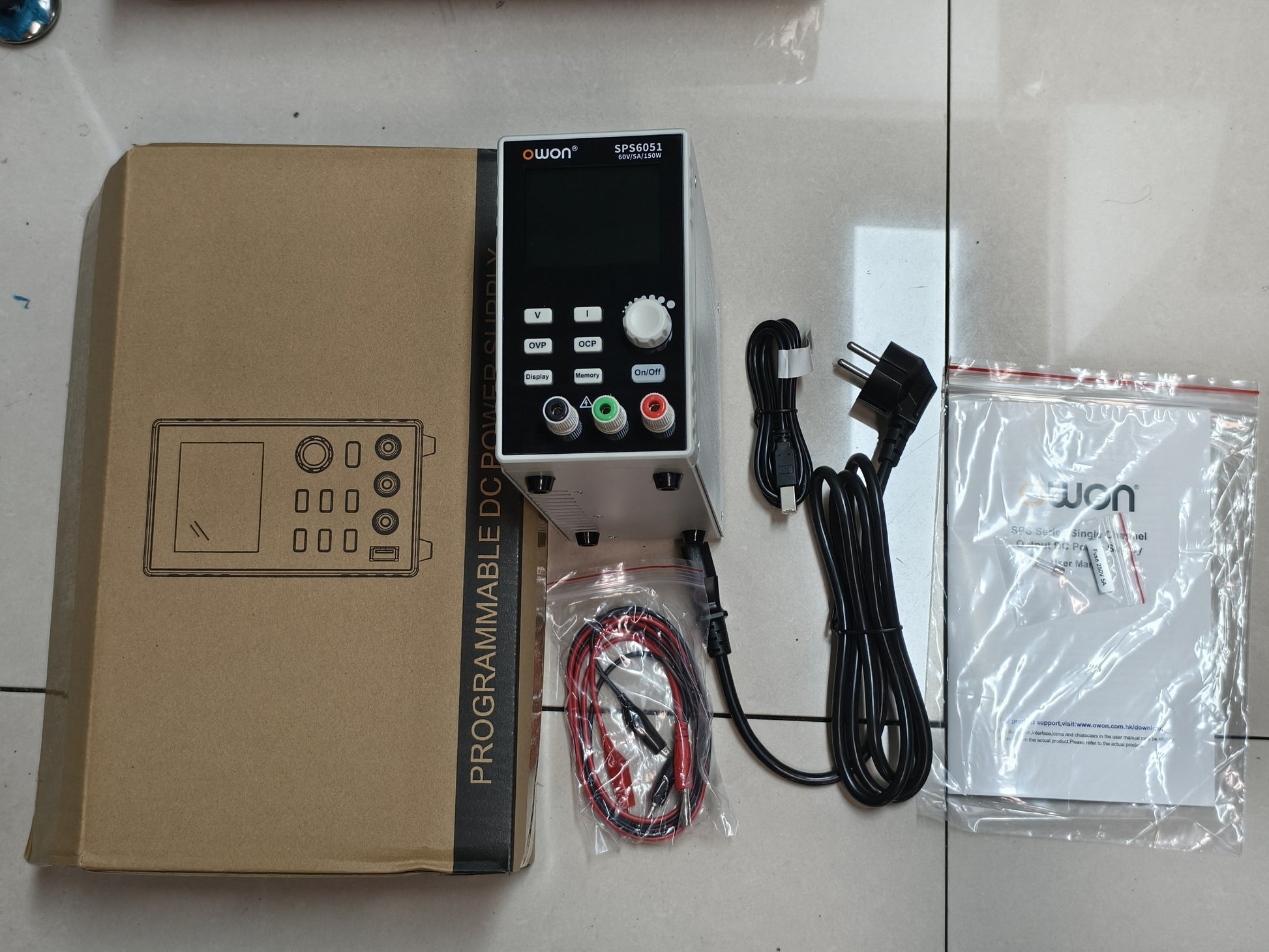

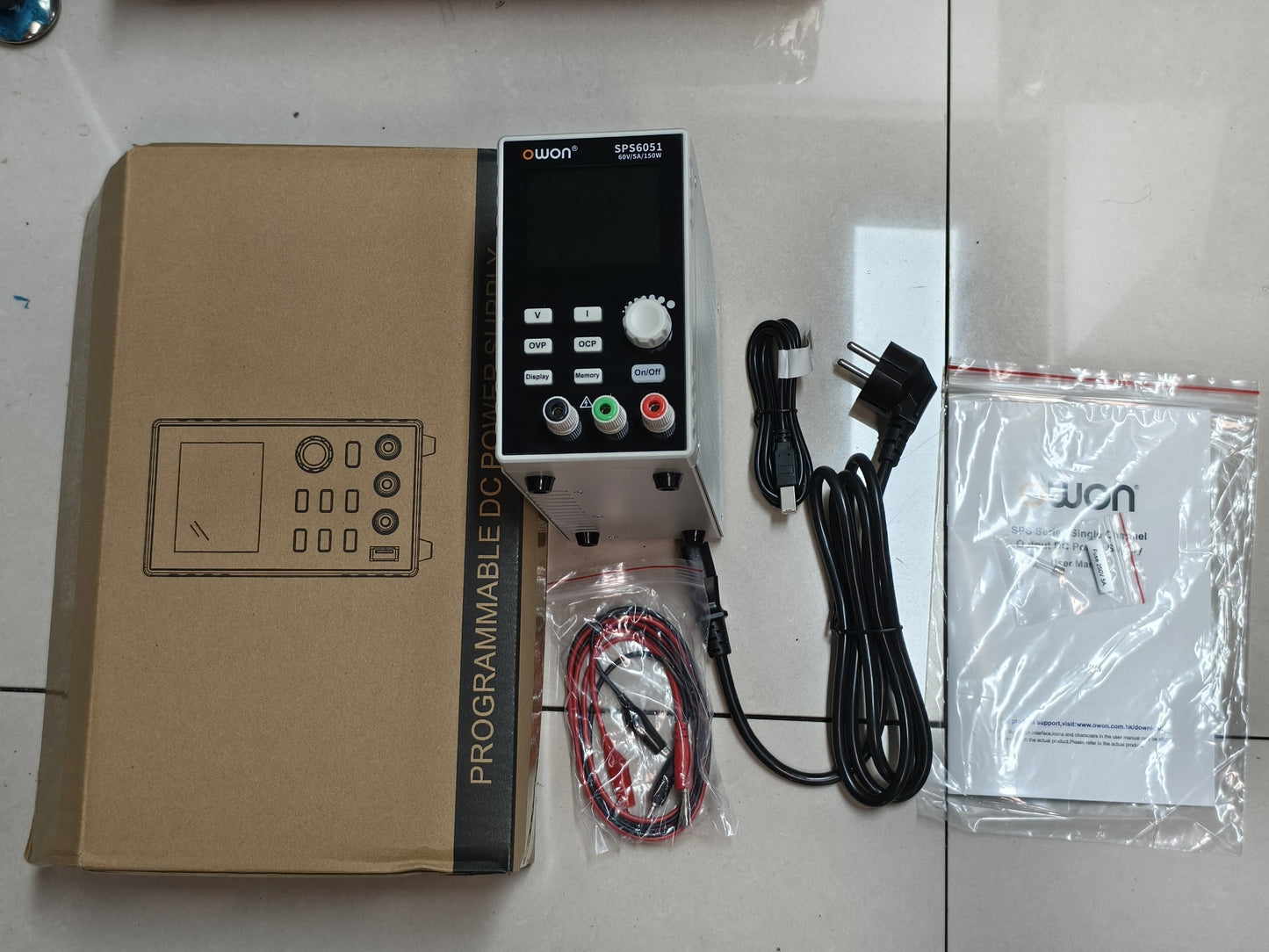

Package Includes
- 1 x Programmable DC Power Supply
- 1 x Power Cord
- 1 x Fuse
- 1 x USB Cable
- 1 x Test Leads
- 1 x User Manual (English)
