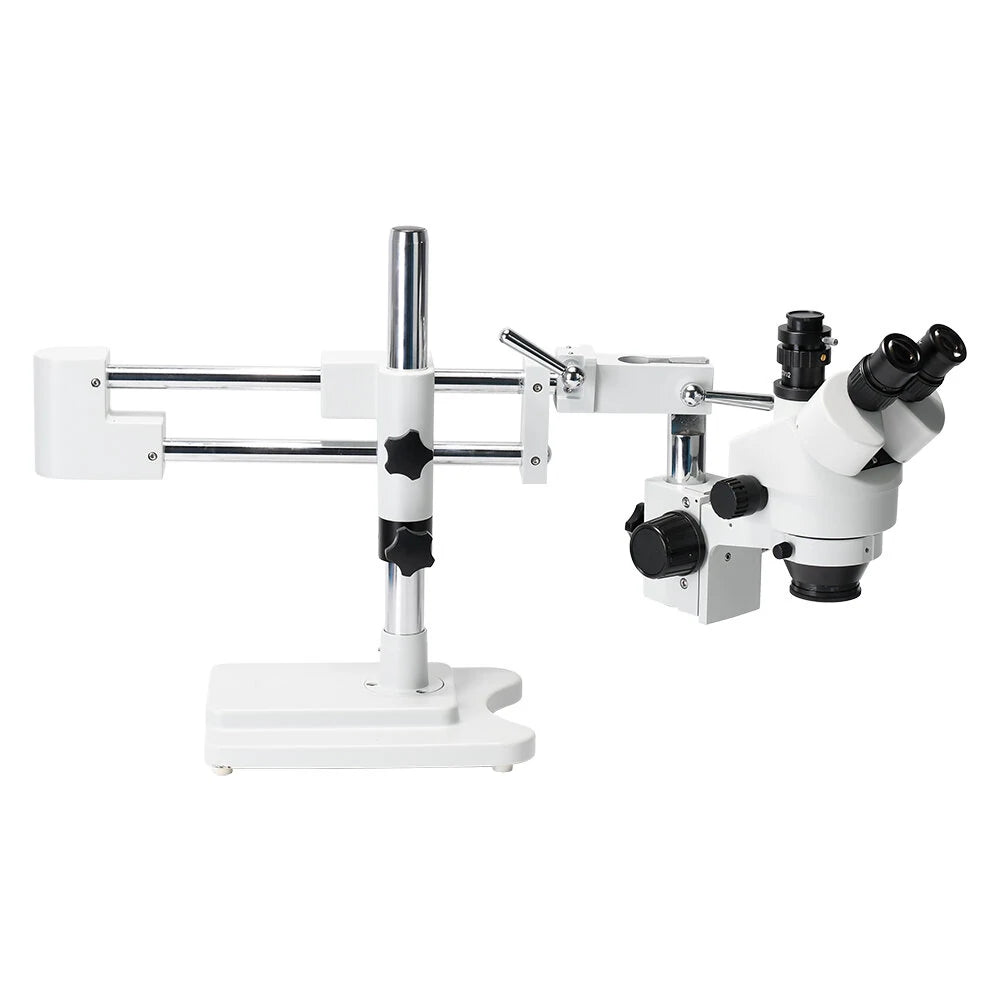

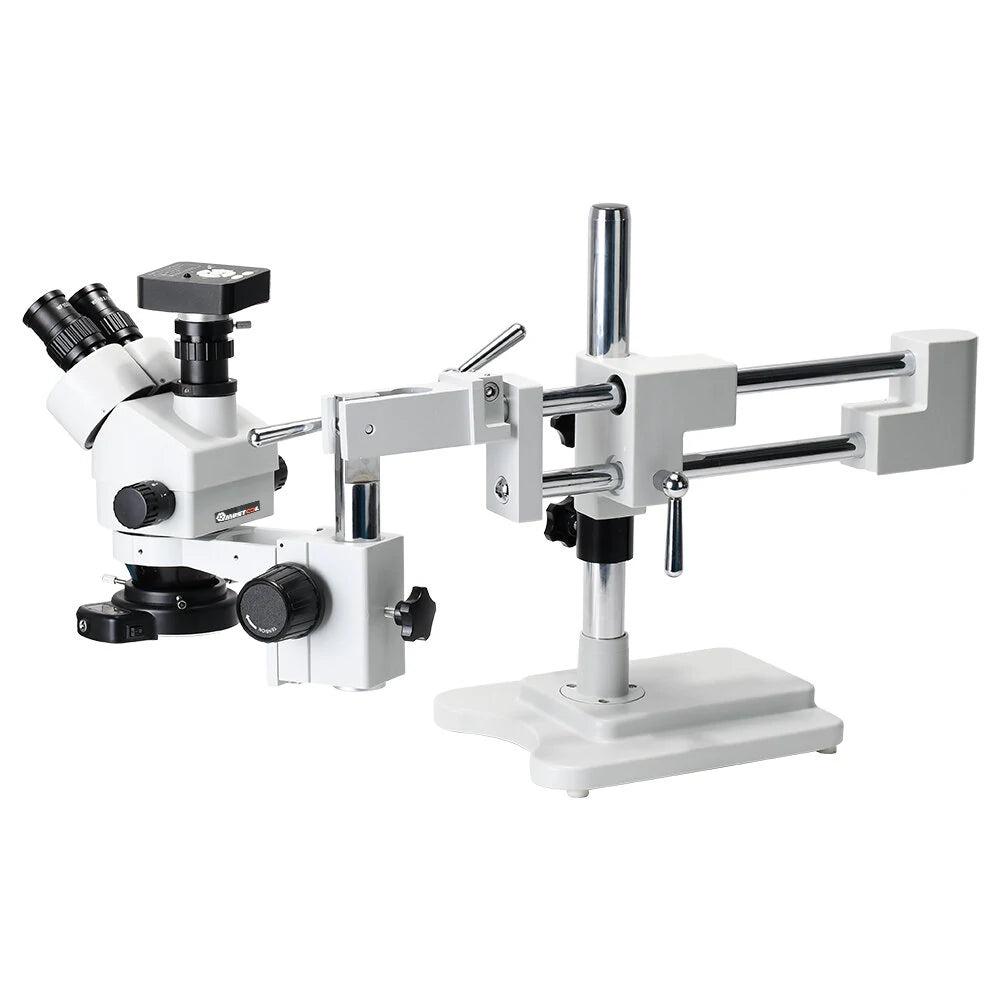

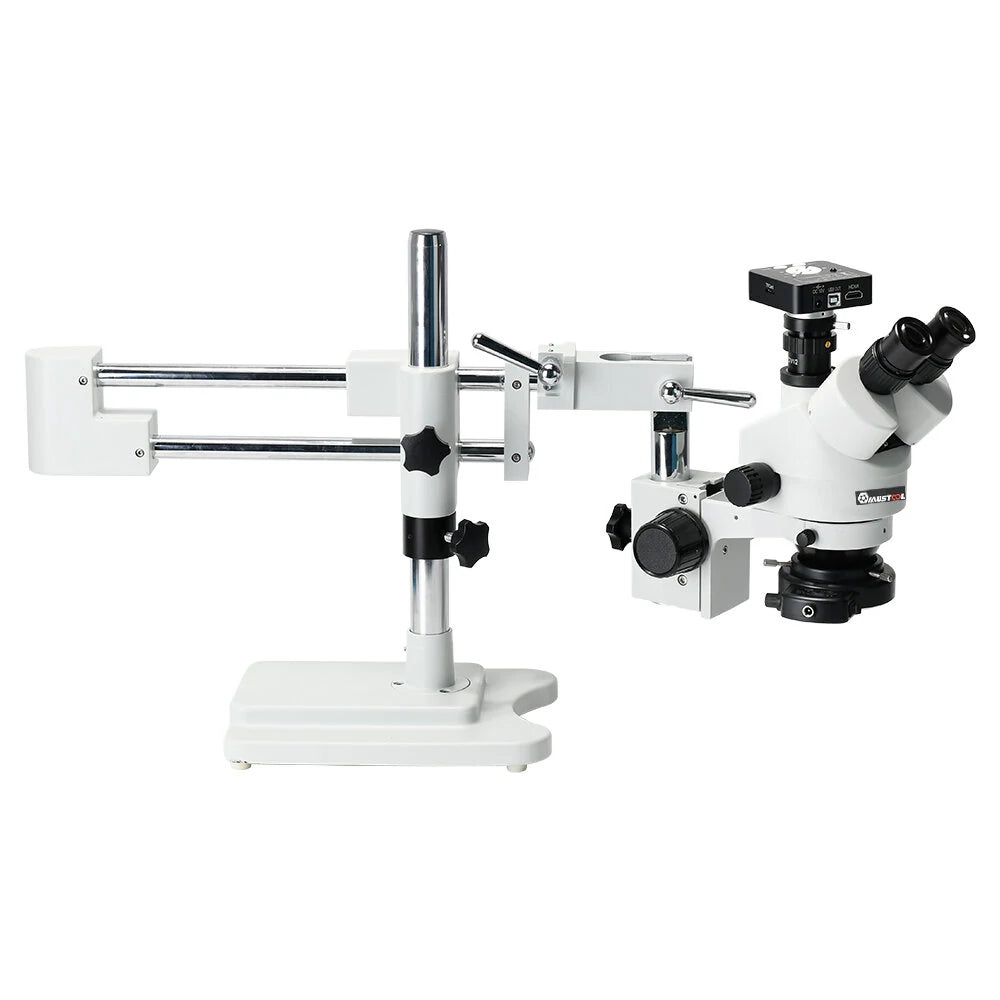

MUSTOOL Stereo Trinocular Microscope with 41MP Camera, 3.5X-90X Zoom, Double Boom Stand for Industrial PCB Repair

Features:

• Excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
• 7x-45x super wide zoom magnification power
• Bright, cool light 56-LED illumination system
• High resolution with great flatness and contrast for sharp and clear images
• Binocular head with 45-degree inclined, 360-degree swiveling eye tubes
• Sharp stereo erect images with a wide field of view
• Crystal clear, true-color microscope images
• Dual eye tubes with adjustable diopters
• Large working distance
• Sturdy all-metal table stand
• Accurate alignment reduces eye strain for longer periods of viewing
• Full optical glass elements and precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance and included rubber eye-guards
• Allows observation from any orientation and angle

Specifications:

• Vertical Pillar: 380mm height, 32mm diameter
• Horizontal moving: 235mm
• Base size: 210x260x40mm, featuring steel gears on focusing holder
• Standard size focusing holder for scope heads with 76mm diameter

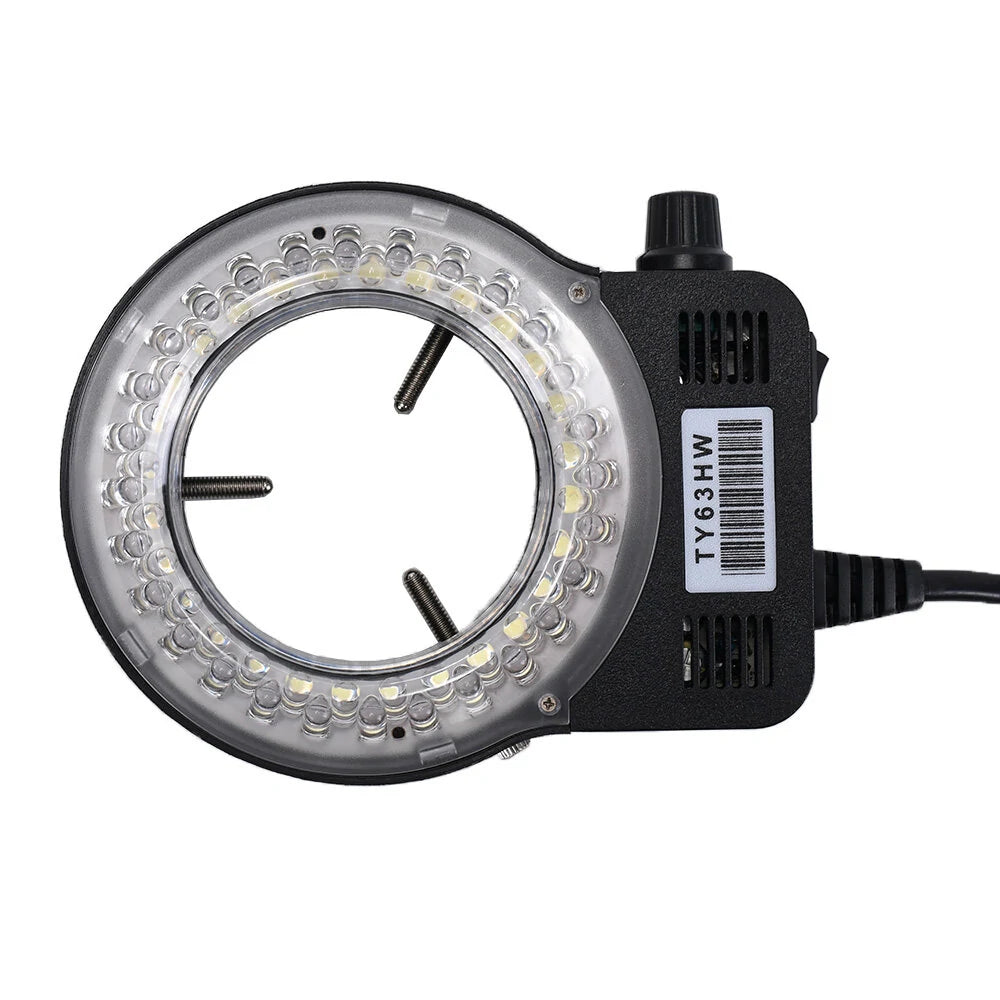

• 56 bright white LED bulbs with 100,000 hours of life for intense, shadow-free illumination
• Brightness adjustable from 0-100%
• Variable intensity control with power input: 100-240V, 50-60HZ
• Suitability for lens diameters of 30mm-63mm

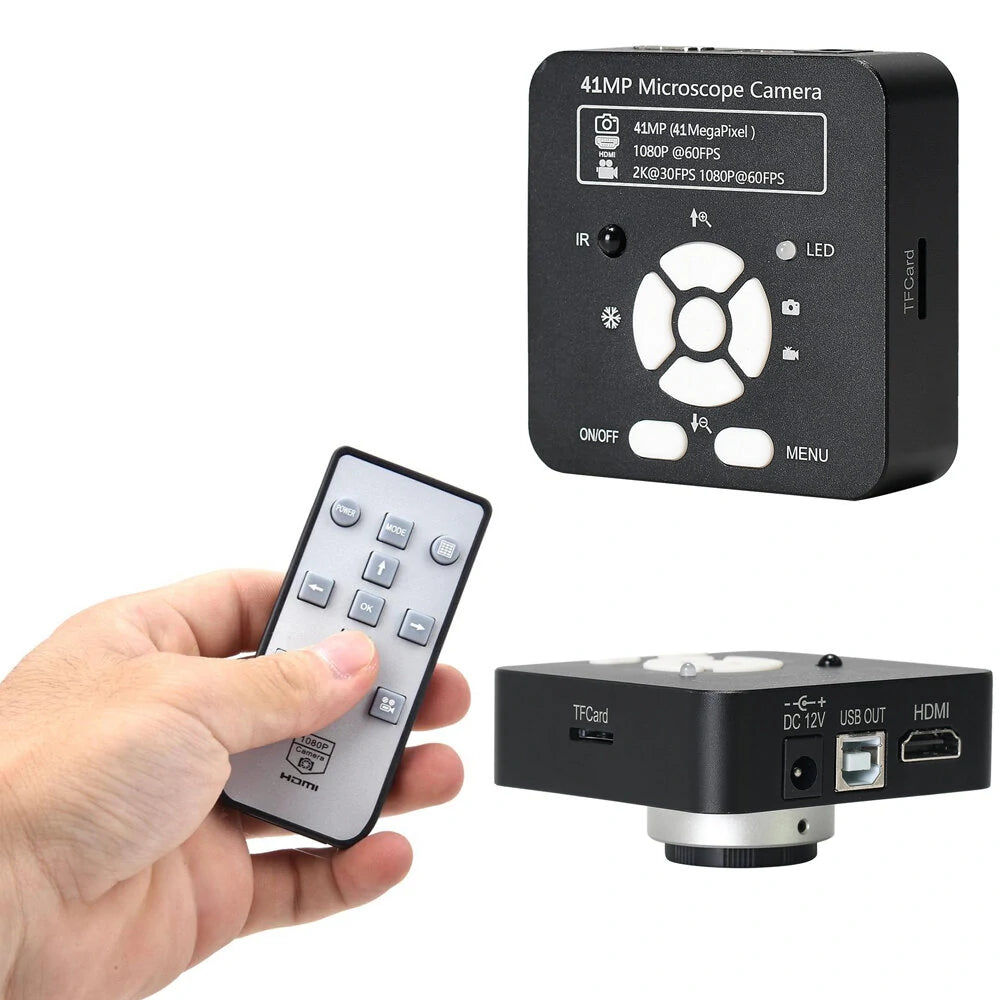

• Module: FHD216 with Panasonic sensor: 41 MegaPixel, 21 million pixels CMOS
• Optical format: 1/2.3 inch with pixel size: 1.335μm x1.335μm
• Interface: HDMI(Type A).USB(Type B).TF Card
• Image resolution: 41 MegaPixel; Video resolution: 1080p@60FPS
• HDMI resolution: 1920x1080p 60FPS, supports output with USB simultaneously
• Supported HDMI scale: 4:3, 16:9, 16:10
• USB2.0 (driver-free): 1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS
• TF card support up to 64GB
• AWiB with color correction options: Auto/Manual, R.G.B value setting
• Exposure settings: Auto/Manual, AE value adjustable
• Cross lines: 8 lines, customizable color, width, and position
• Scale mark lines: 2 lines; Dotted lines: 2 lines, customizable
• Supports sharpness, contrast, color gain, Mono Negative, and mirroring (horizontal and vertical)
• Language options: English/simplified Chinese
• Digital zoom and IR remote supported
• Voltage input: DC 12V 55-21mm size with max power consumption of 0.15W
• Lens interface: C/CS
• Net weight: 180g, Gross weight: 400g
• Camera size: 74x74x35mm; Packaging size: 160x100x80mm

Troubleshooting:

• LCD no video or flicker:
  1. Check power supply and ensure the green LED is on. Press Power Key to restart.
  2. Check lens cover and increase lighting.
• LCD black bar or image warp:
  1. Change LCD resolution.
  2. Change camera resolution.
• Dirty spots:
  1. Check camera and lens for dust, clean using absolute ethyl cleanser.

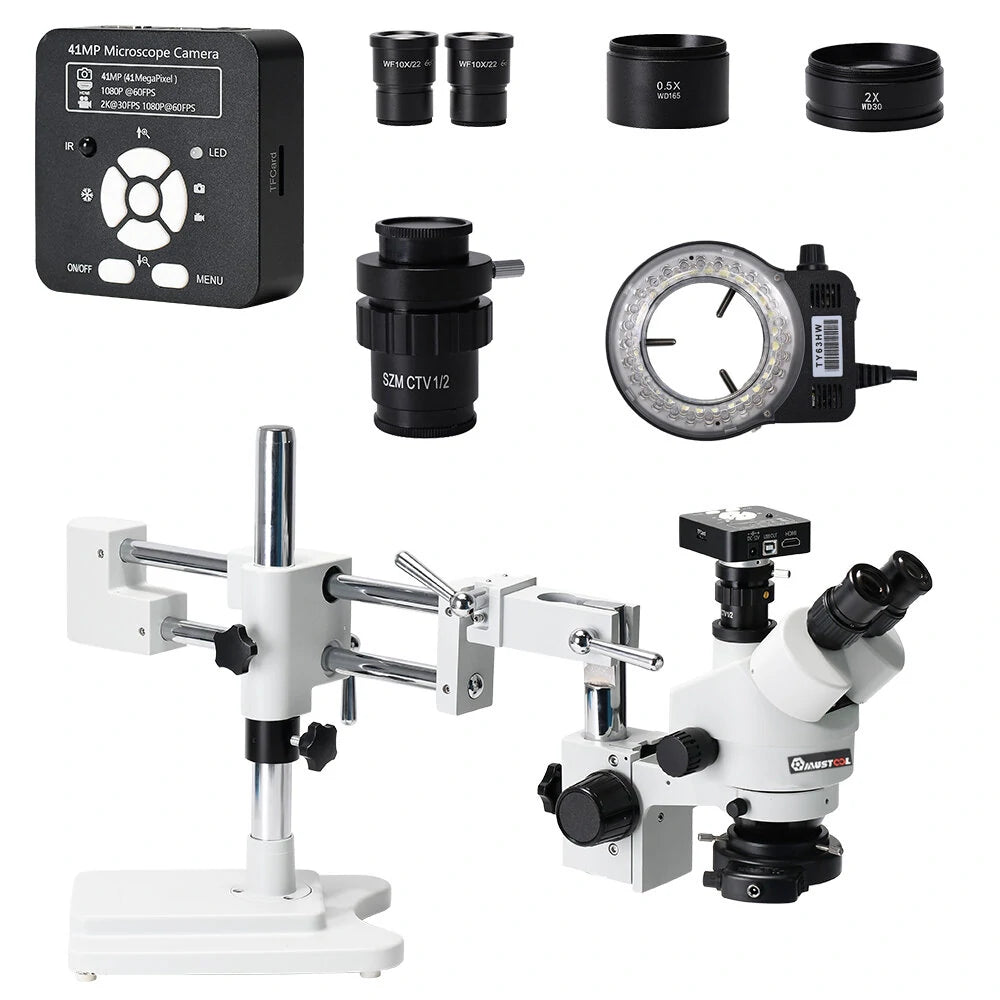

Package Includes:

• 1 x Trinocular Stereo Zoom Head
• 1 x Pair of Super Widefield 10X20MM Eyepieces
• 1 x 56-LED Ring Light

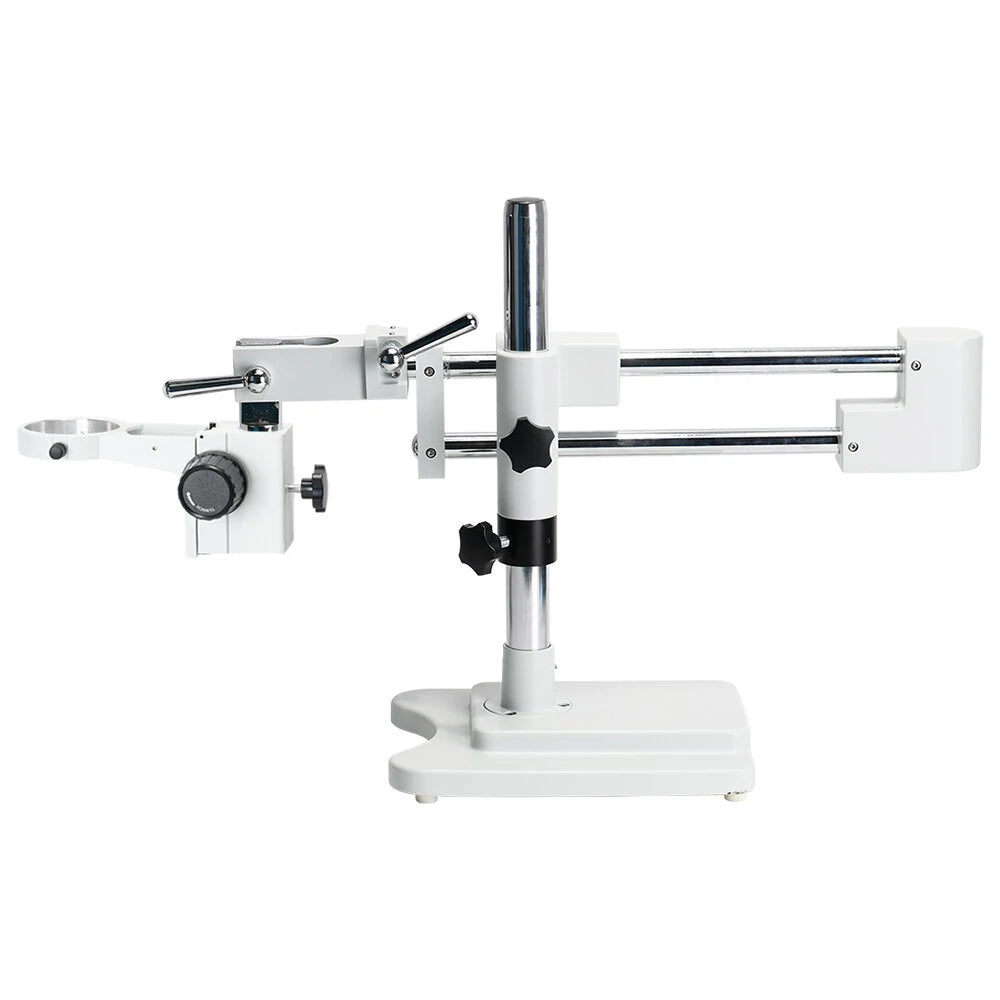

• 1 x Double Boom Microscope Bracket
• 1 x Focusing Rack
• 1 x C-mount Adapter
• 1 x Pair of Eye-Guards
• 1 x Dust Cover
• 1 x Microscope Camera
• 1 x Power Adapter (US plug + EU adapter)
• 1 x IR Remote
• 1 x USB Cable
• 1 x HDMI Cable
• 1 x Paper Manual

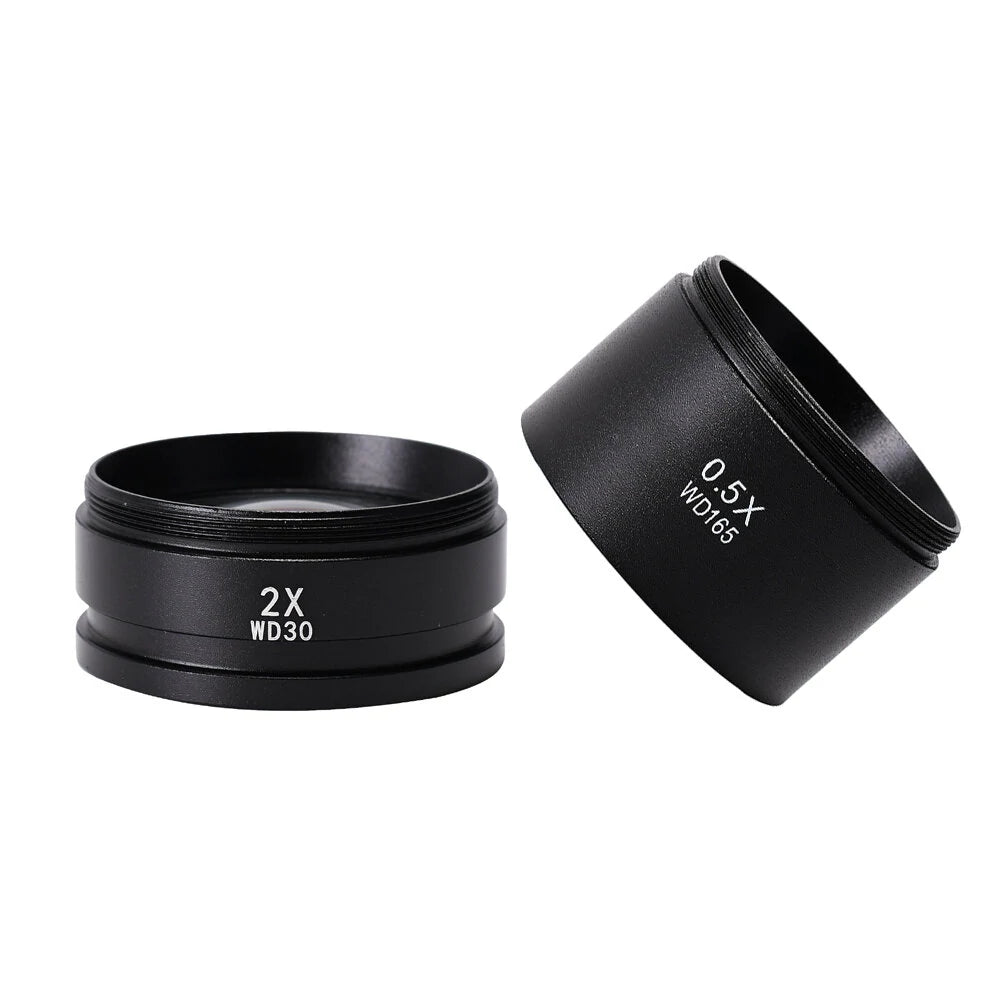

• 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance: 165 mm)
• 1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance: 40 mm)

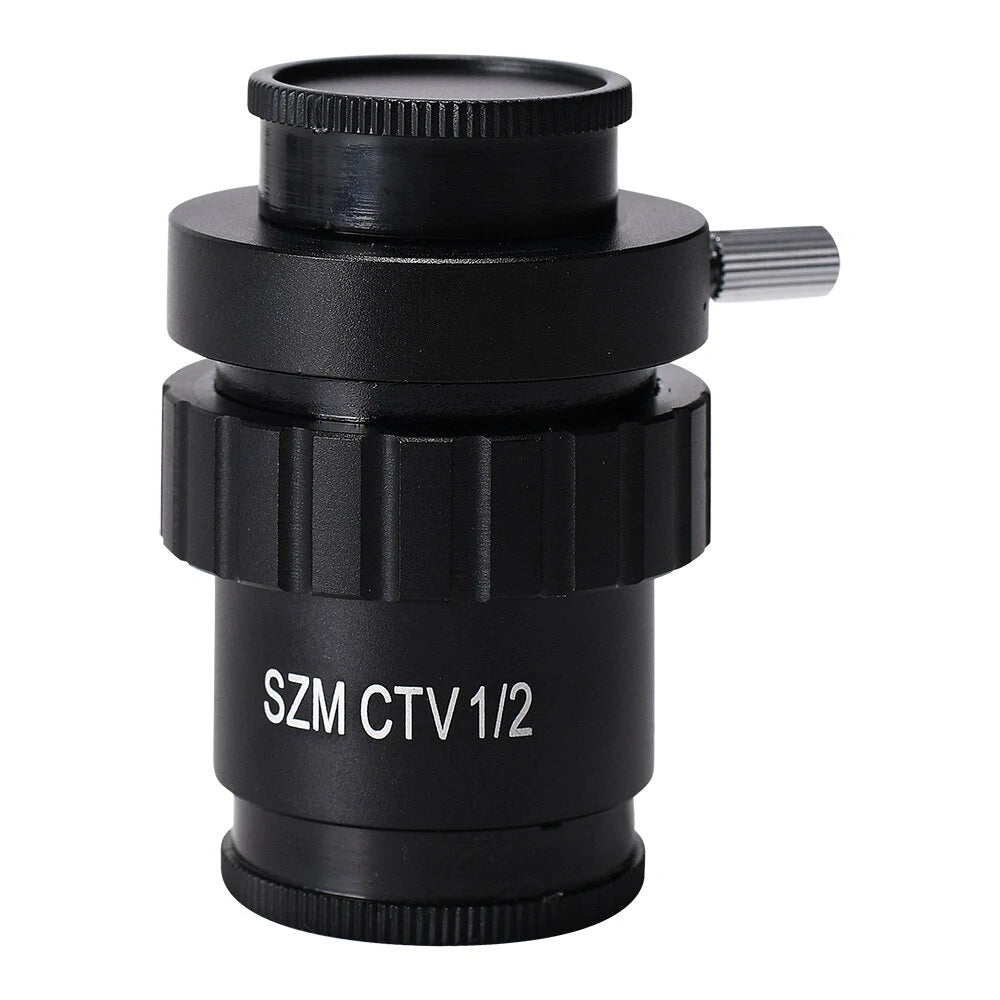

• 1 x SZMCTV 1/2 Lens
