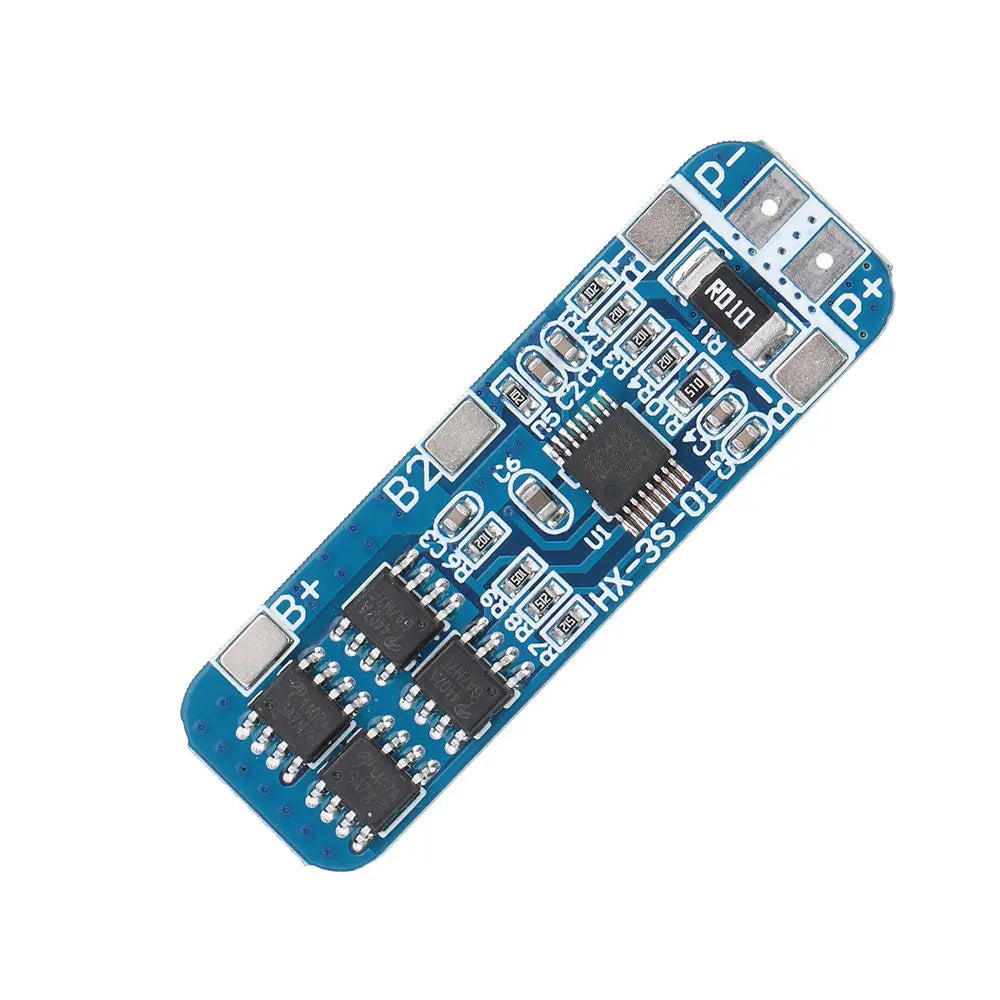

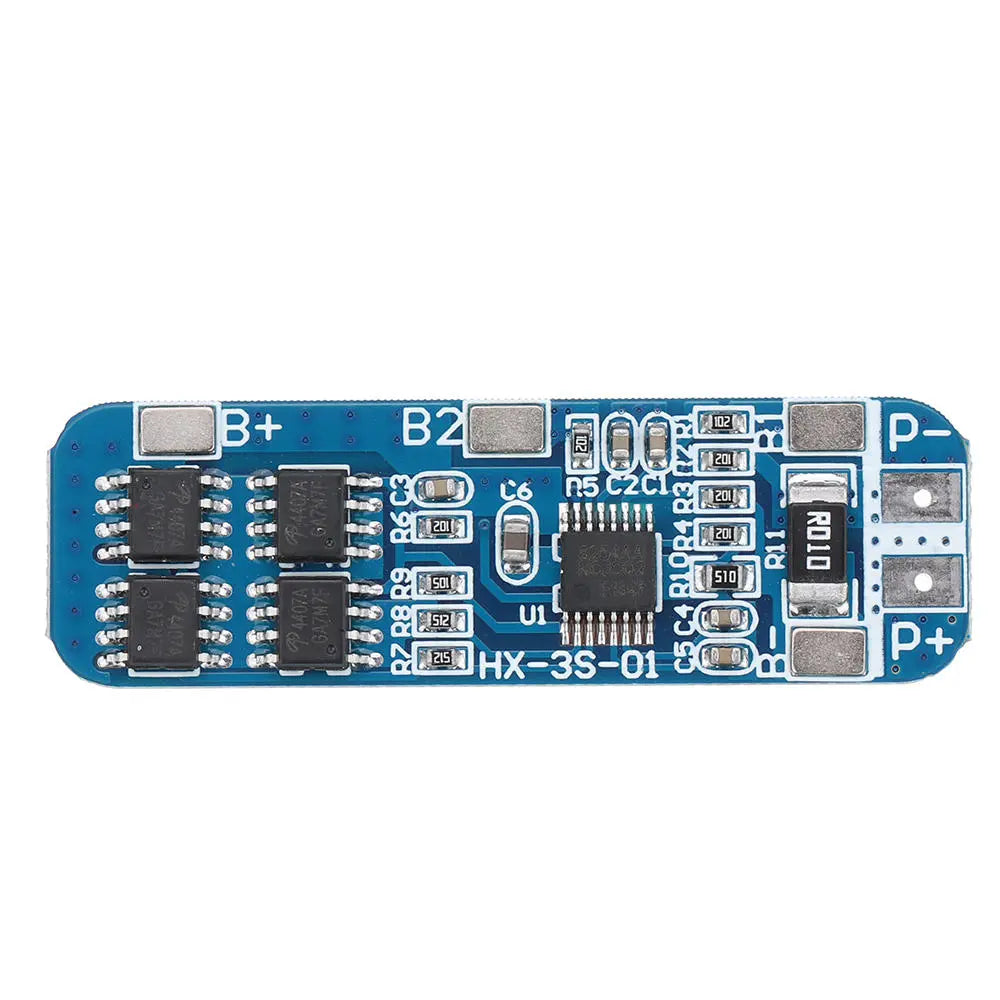

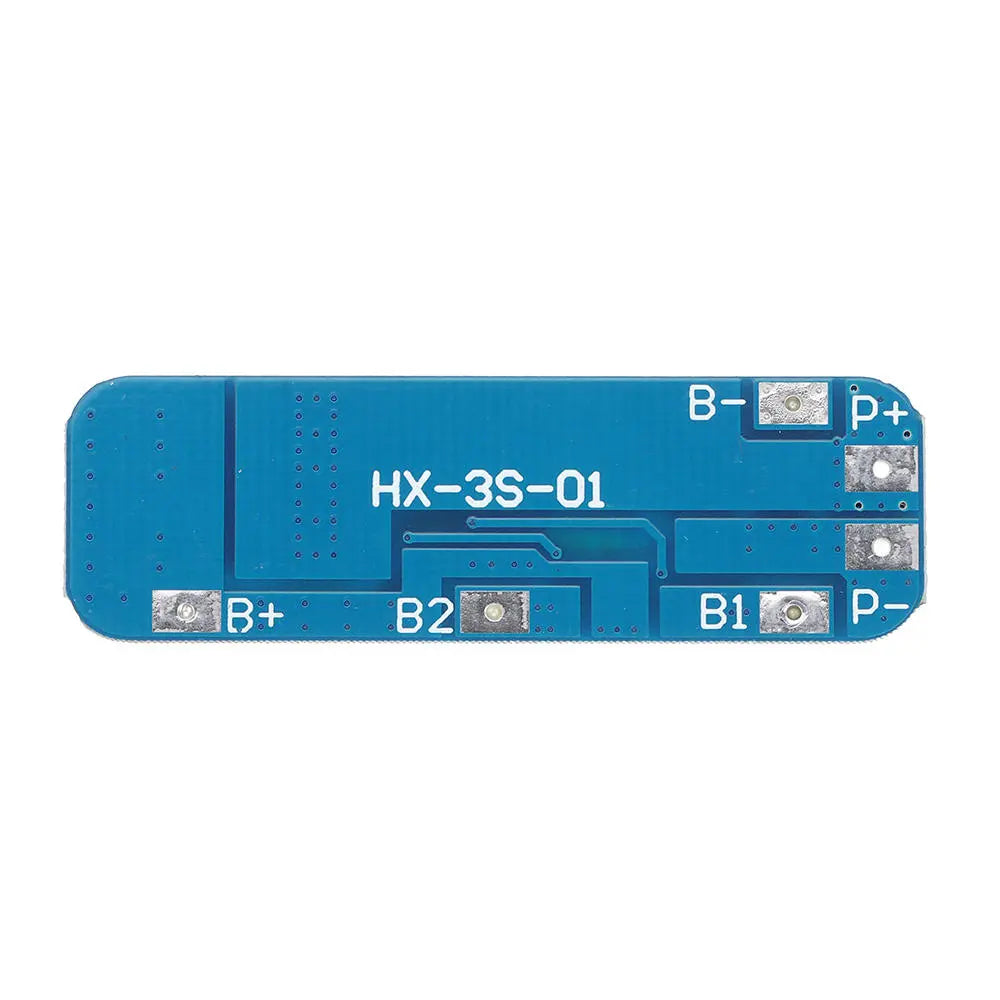

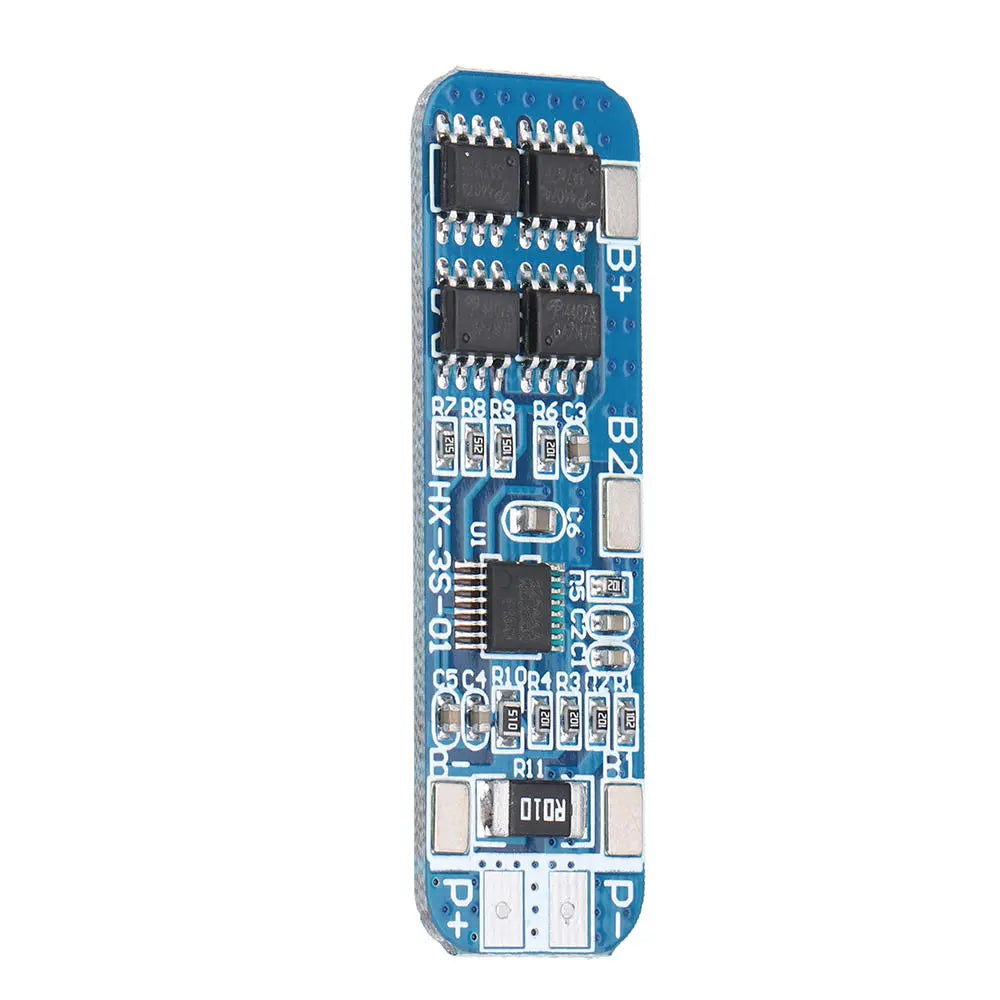

5-Pack 3S 12V 18650 10A BMS Li-ion Lithium Battery Protection Circuit Board (10.8V/11.1V/12.6V)

Compatibility

To ensure this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s).

Show all compatible vehicles

This part is compatible with 1 vehicle(s) matching your criteria.

This part is not compatible with any recent searches.

Specification:

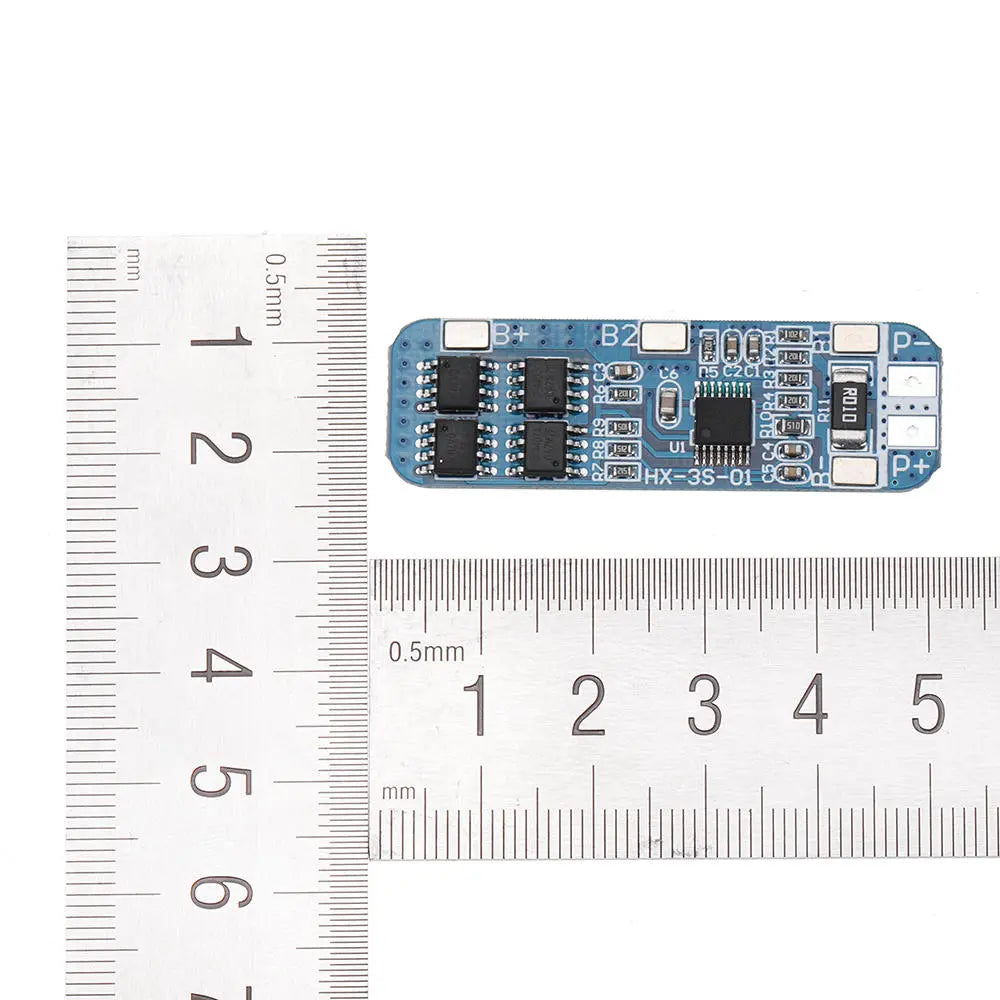

• Size: Approx. 50x16x1mm
• Maximum Discharge Current: 10A
• Overcharge Detection Voltage: 4.25-4.35V±0.05V
• Over-discharge Detection Voltage: 2.3-3.0V±0.05V
• Maximum Working Current: 5A-8A
• Transient Current: 9A-10A
• Operating Temperature: -40~50℃
• Storage Temperature: -40~80℃
• Quiescent Current: Information not available
• Internal Resistance: Information not available

Features:

• Short circuit protection.
• Overcharge protection.
• Over-discharge protection.
• Overcurrent protection.
• Applicable to various 3.7V lithium cores.
• Compact size and lightweight.
• High-quality workmanship and durability.
• Ensures the security of battery pack.

Suitable for:

• 10.8V (Rated voltage of polymer battery)
• 11.1V (18650 or 3.7V lithium battery rated voltage)
• 12.6V (Lithium battery full charge voltage)

Package Included:

• 5 x 3S 12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board
