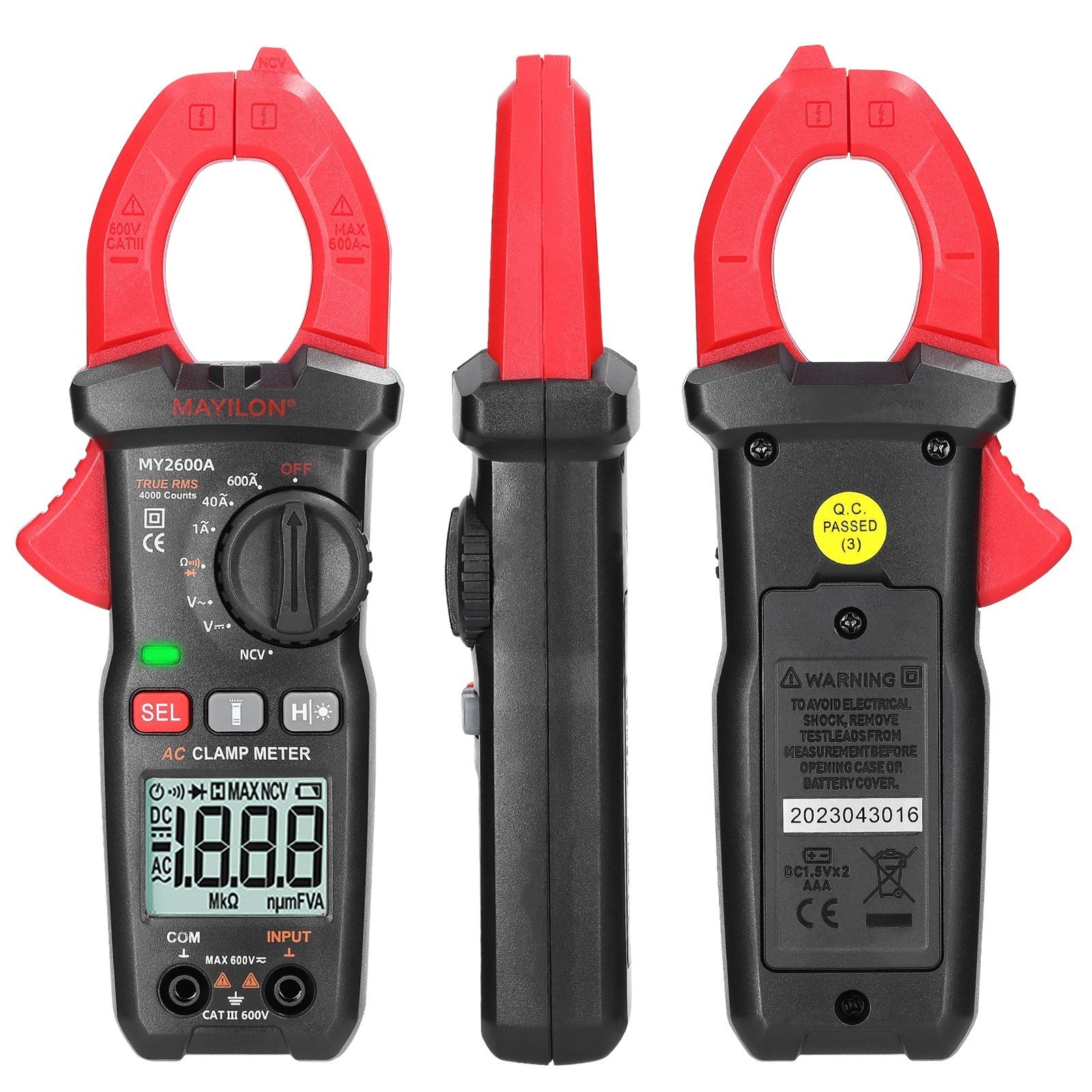

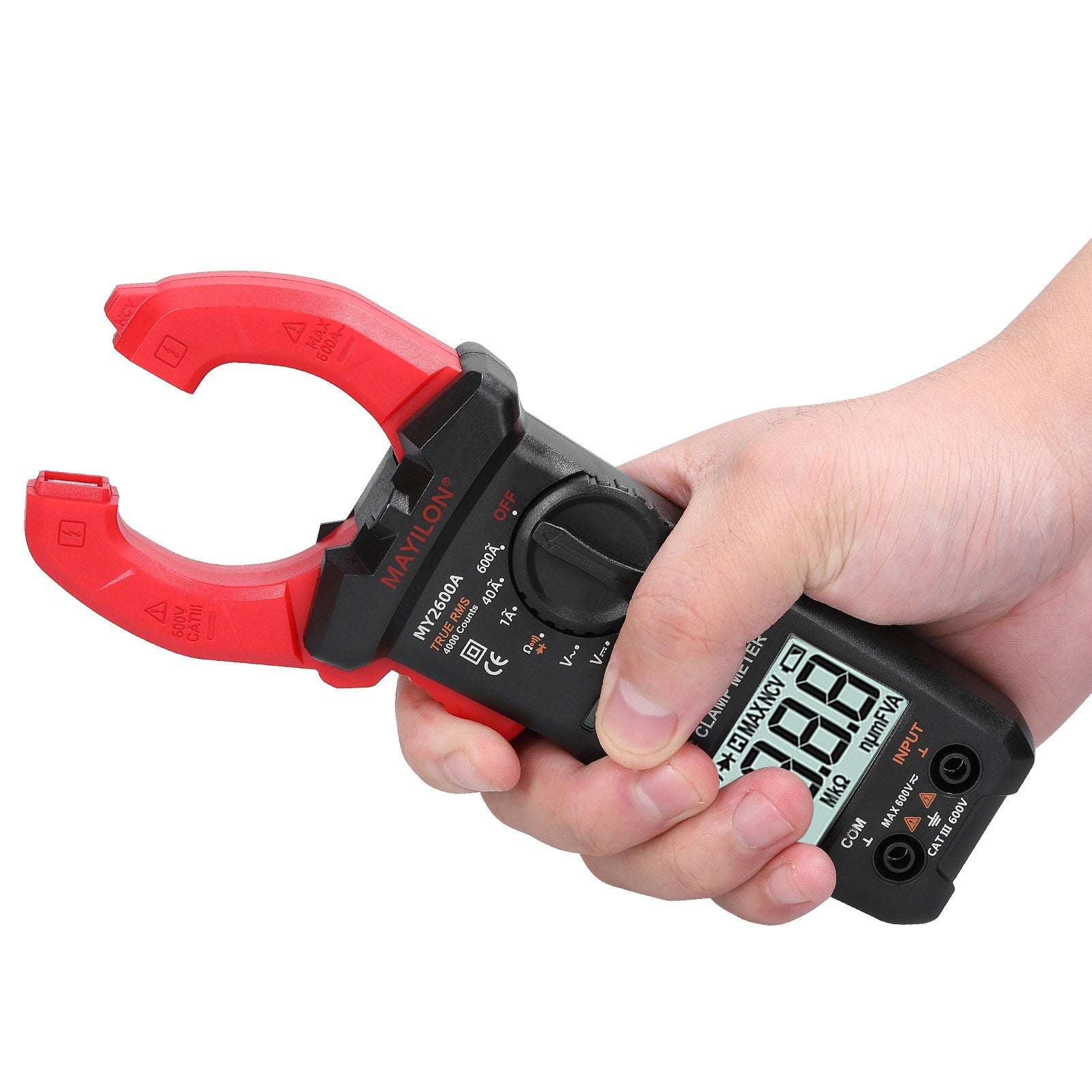

Multifunction Digital Clamp Meter 600V Voltmeter Tester - Amp, Volt, NCV, Current, Resistance, Diode & Continuity Measurement

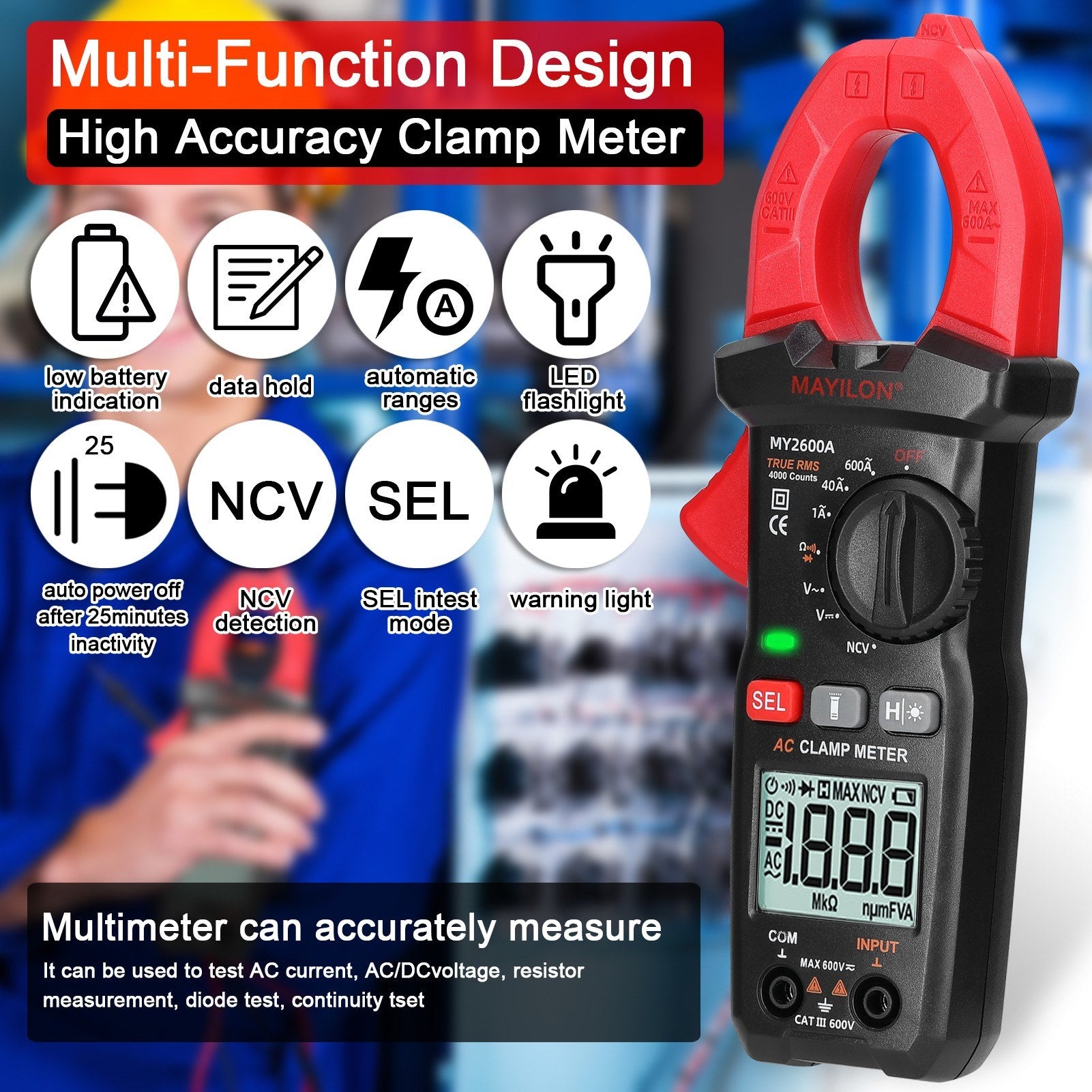

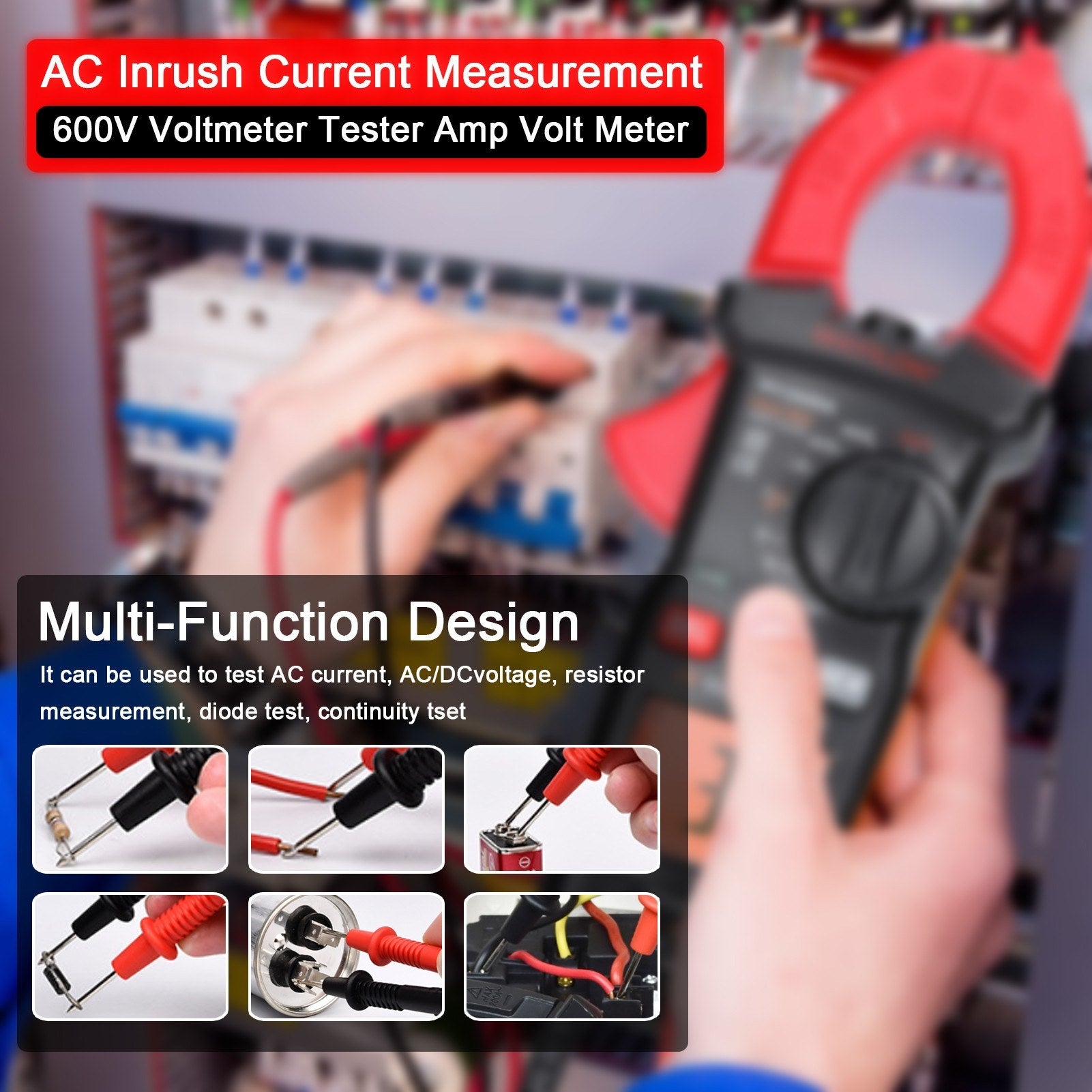

This digital AC clamp meter is a stable and reliable instrument, featuring an IC and dual integral AD transformer, complete with full-range overload protection circuits. It's ideal for measuring AC current, AC/DC voltage, resistance, diode testing, and circuit continuity. A perfect troubleshooting tool for quickly and safely resolving electrical issues in vehicles, industrial settings, or at home. It is widely applicable for detecting electrical equipment parameters such as current and voltage, troubleshooting circuit faults, and verifying proper equipment operation.

Features:

• High Accuracy Clamp Meter: This digital clamp meter offers stability and reliability, equipped with an IC and dual integral AD transformer, along with full-range overload protection circuits. It's capable of testing AC current, AC/DC voltage, resistance, diode testing, and circuit continuity.

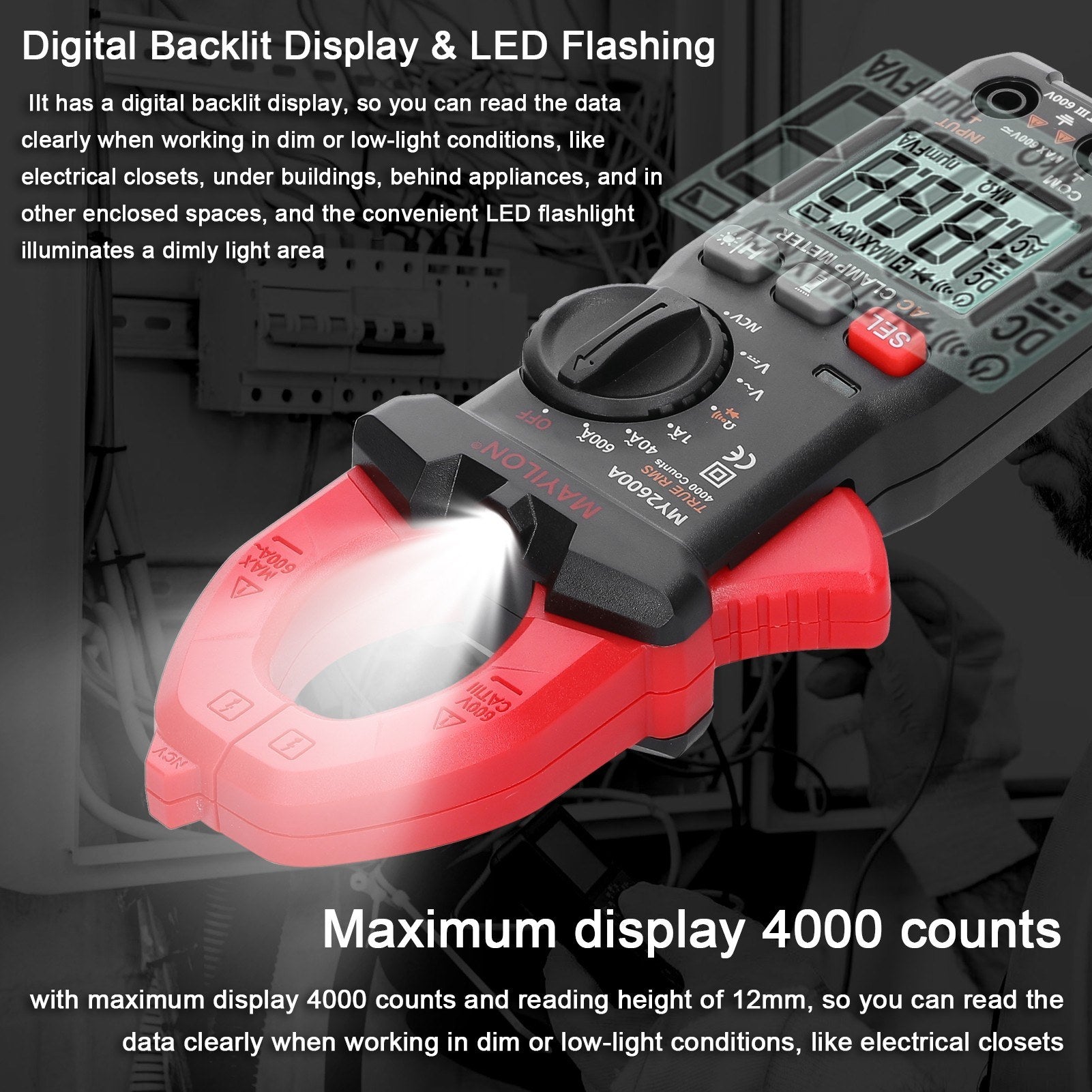

• Digital LCD Display with Backlight: The device includes a backlit digital LCD display with a maximum reading of 4000 counts and a 12mm reading height, ensuring clarity in dim or low-light conditions, such as electrical closets, under buildings, or behind appliances. A convenient LED flashlight is also available for illuminating dark areas.
• Multi-Function Design: This auto-ranging clamp meter combines multiple functions, including a data hold feature, LED flashlight, auto power-off after 25 minutes of inactivity, warning light, and SEL test mode (select between diode, resistor, and continuity).

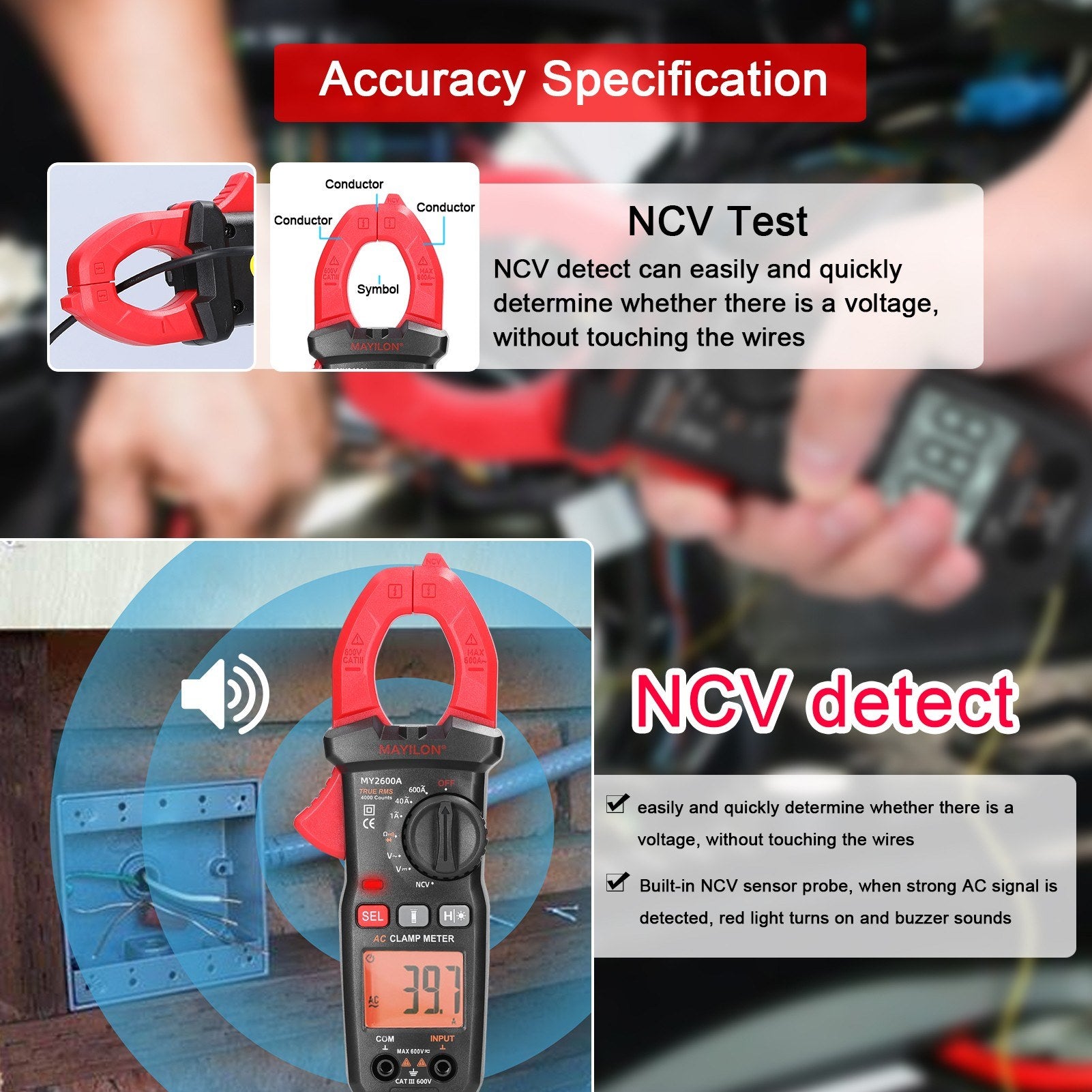

• NCV Test: The NCV detection feature allows voltage determination without wire contact. The built-in NCV sensor probe activates a red light and buzzer upon detecting a strong AC signal.
• Multipurpose Design: This tool is perfect for troubleshooting electrical issues in vehicles, industrial settings, or home environments. It's versatile for detecting electrical equipment parameters like current and voltage, diagnosing circuit faults, and verifying equipment functionality.

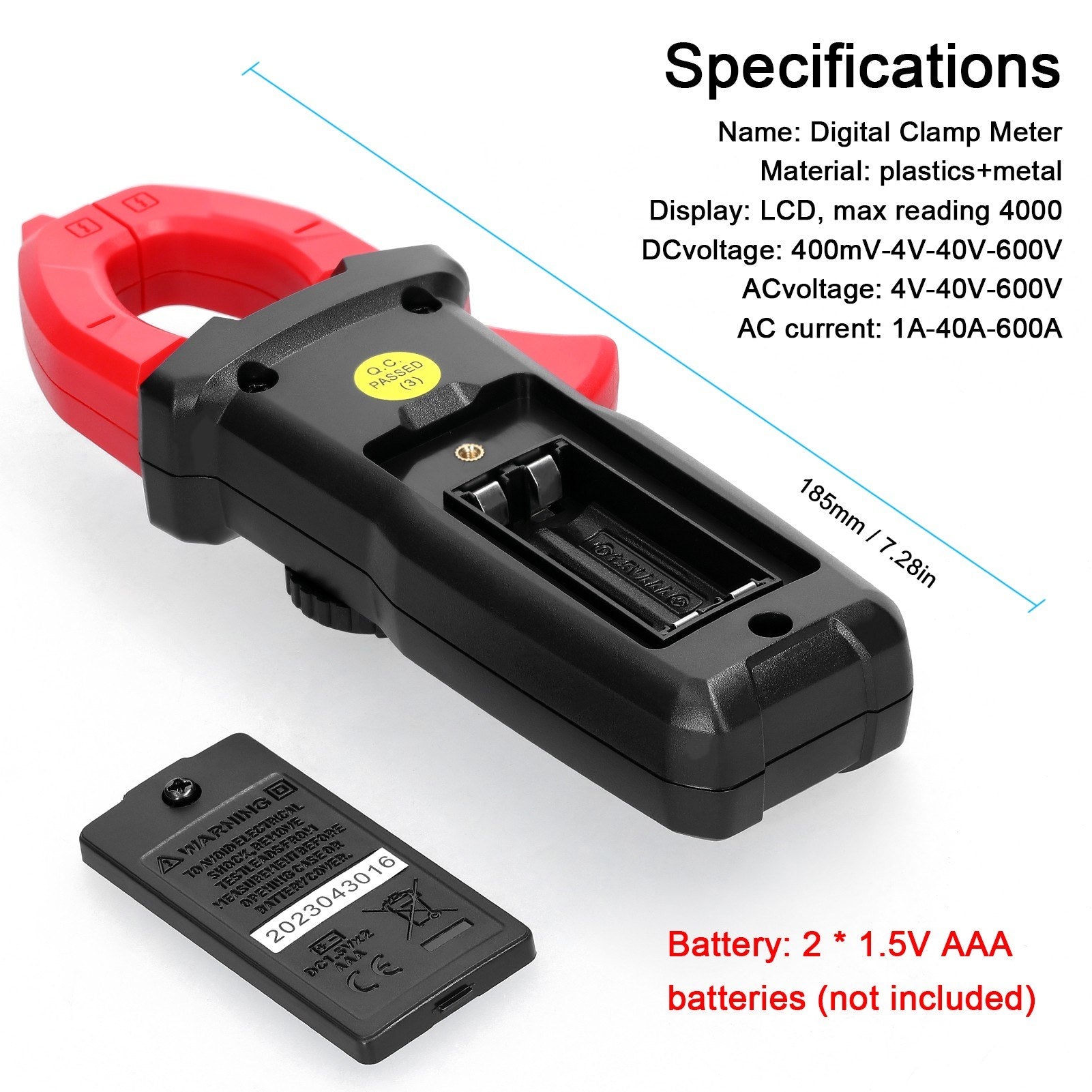

Specifications:

• Name: Digital Clamp Meter
• Material: Plastic + Metal
• Battery: 2 * 1.5V AAA batteries (not included)
• Display: LCD, max reading 4000
• DC Voltage: 400mV-4V-40V-600V
• AC Voltage: 4V-40V-600V
• AC Current: 1A-40A-600A
• Resistance: 400Ω-4KΩ-40KΩ-400KΩ-4MΩ-40MΩ
• Diode Resolution: 1mV
• Continuity Resolution: 0.1Ω
• Measuring Frequency: 3 times/second
• Max. Jaw Opening Size: 26mm
• Working Temperature: 5-35℃
• Storage Temperature: -10℃ to 35℃
• Item Size: 185 * 71 * 35mm / 7.28 * 2.80 * 1.38 in
• Item Weight: 256g / 9.03 oz
• Package Size: 214 * 93 * 55mm / 8.43 * 3.66 * 2.17 in
• Package Weight: 326g / 11.50 oz

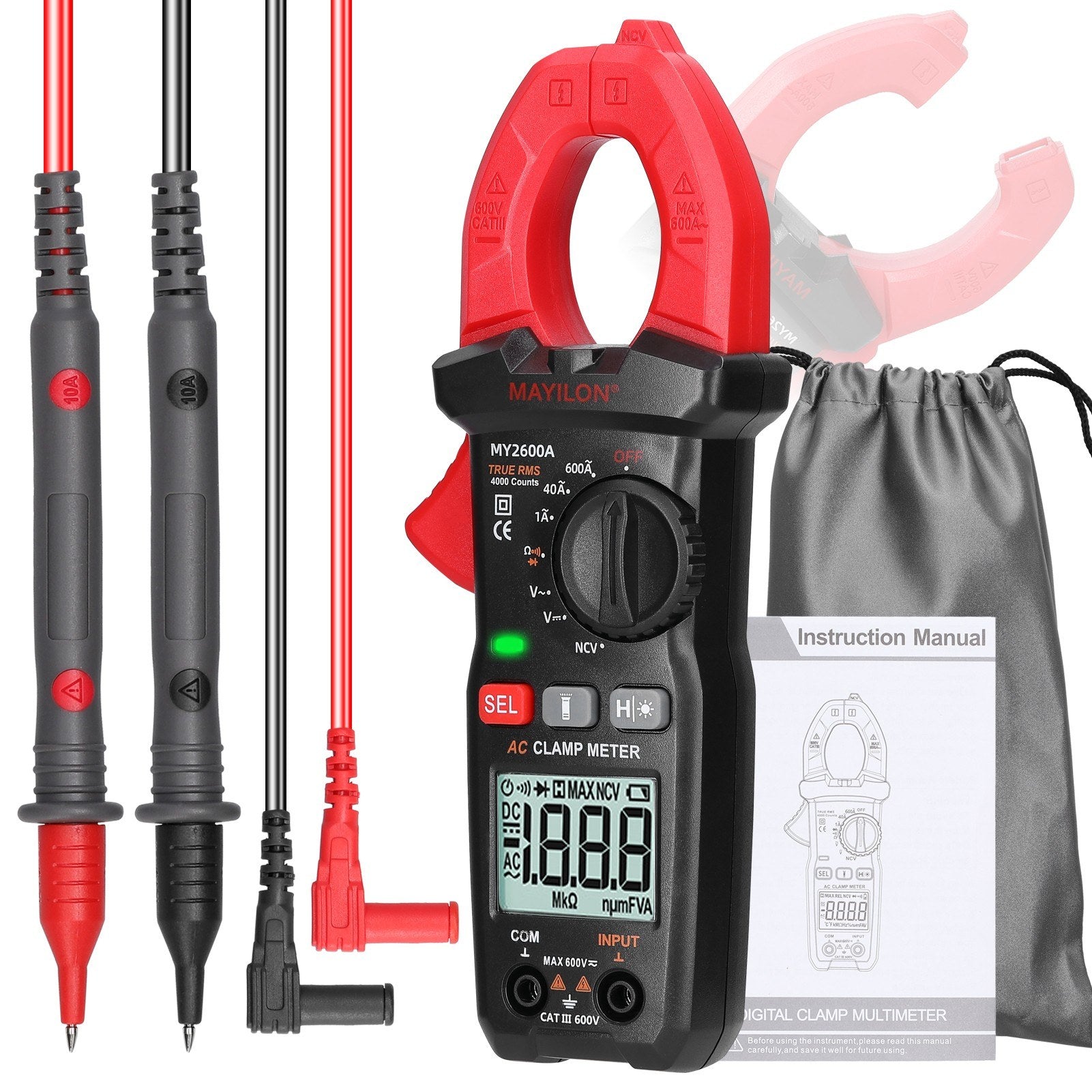

Packing List:

• 1 * Digital Clamp Meter
• 2 * Test Pen
• 1 * User Manual
• 1 * Carrying Bag
