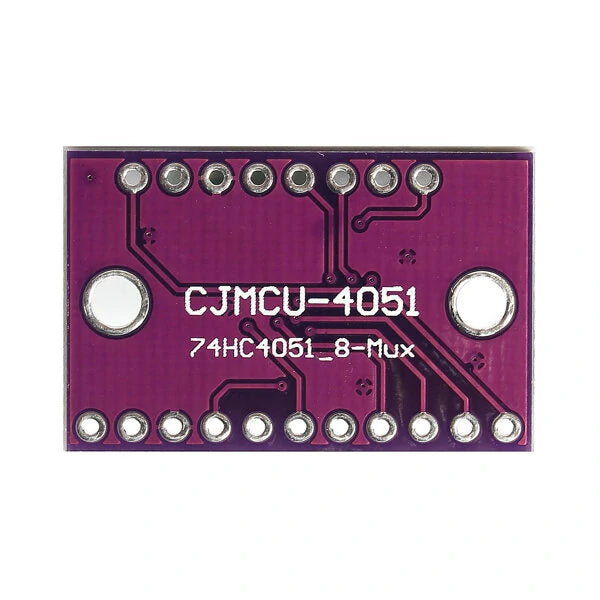

8-Channel Analog Multiplexer Module CJMCU-4051 Sensor Board 74HC4051

Product Overview

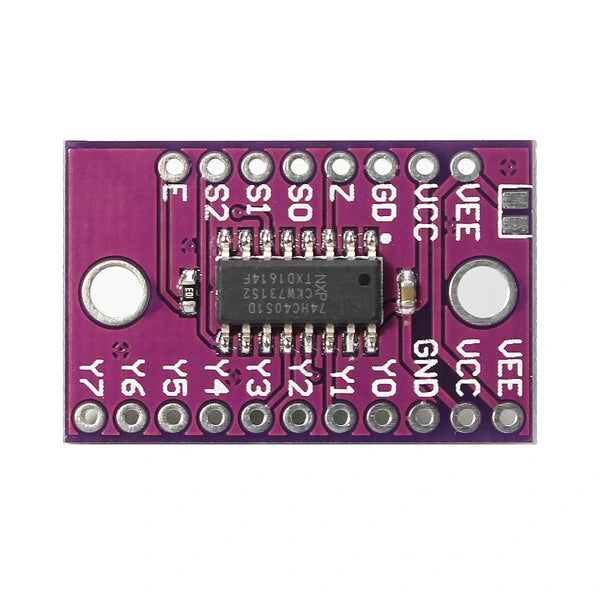

The 74HCT4051 is a single-pole octal-throw analog switch (SP8T) perfect for use in either analog or digital 8:1 multiplexer/demultiplexer applications. This versatile switch includes:

• Three digital select inputs (S0, S1, and S2)
• Eight independent inputs/outputs (Yn)
• A common input/output (Z)
• A digital enable input (E)

When the enable input (E) is HIGH, the switches are turned off. The inputs also feature clamp diodes, allowing for the use of current limiting resistors to interface with inputs that exceed VCC voltage levels.

Key Features

• Wide analog input voltage range from -5 V to +5 V
• Compliant with JEDEC standard no. 7A
• Low ON resistance:
• 80 ohm (typical) at VCC - VEE = 4.5 V
• 70 ohm (typical) at VCC - VEE = 6.0 V
• 60 ohm (typical) at VCC - VEE = 9.0 V
• Logic level translation for enabling 5 V logic to communicate with ±5 V analog signals
• Typical ‘break before make’ configuration
• ESD protection levels:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• CDM JESD22-C101E exceeds 1000 V
• Available in multiple package options
• Specified operating temperature ranges: -40°C to +85°C and -40°C to +125°C

Package Includes

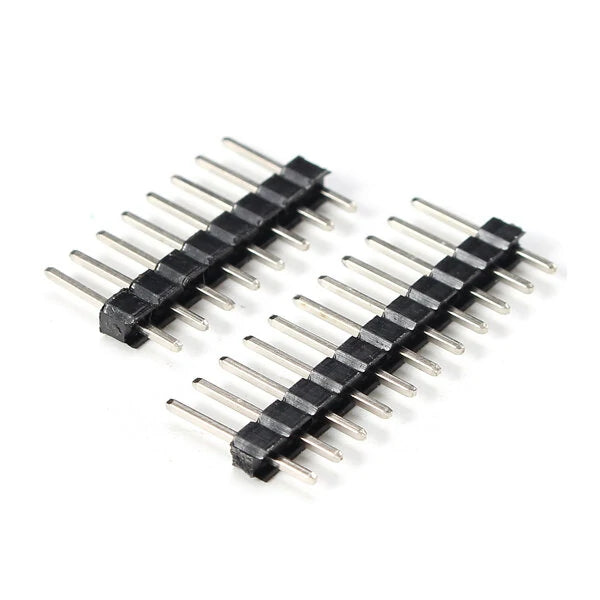

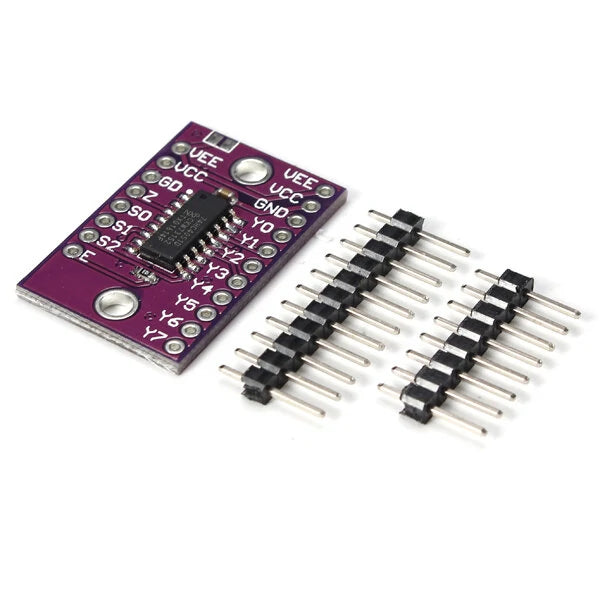

• 1 x CJMCU-4051 74HC4051 8 Channel Analog Multiplexer Module
