Anson TA500C Professional Laser Digital Tachometer & Speedometer - High Performance, Accurate Speed Measurement

Anson TA500C Professional Laser Digital Tachometer & Speedometer - High Performance, Accurate Speed Measurement

Regular price $22.99 USD
Regular price $0.00 USD Sale price $22.99 USD
Sale Sold out
Shipping calculated at checkout.
Model

Shipping Icon Estimated Delivery: -

TA500 Series Digital Tachometer

Measure rotational speed, surface speed, and distance with the TA500 series digital tachometer. Ideal for industries such as electric power, steel, petrochemical, aviation, fan manufacturing, pipeline ventilation systems, and underground storage.

Features:

  • Accurate RPM Meter: This handheld, highly accurate, non-contact tachometer offers a wide measuring range from 3RPM to 100,000 RPM with high resolution, providing precise rotational speed readings from a distance.
  • Contact & Non-contact Tachometer: Our digital tachometer supports both contact and photoelectric laser non-contact methods, allowing photoelectric speed measurement, light source flicker frequency measurement, contact RPM measurement, and contact line speed measurement.
  • Wide Speed Range: The digital non-contact tachometer displays rotation speeds from 3-100,000 RPM, while contact type tachometers can measure 3-19,999 RPM, 0-99,999m, 0-1999.9m/min, and 0-9999.9ft/min.
  • Multi-Functionality: This tachometer records maximum and minimum values and includes features such as data hold and automatic shutdown.
  • HD Backlit Display: Equipped with a high-definition LCD backlit display for easy reading in low-light conditions.
  • Wide Application: Suitable for use in manufacturing industries like motors, fans, paper, plastic, chemical fiber, washing machines, automobiles, aircraft, and ships.

Specifications:

  • Model Options: TA500A, TA500B, TA500C
  • Measurement Methods: Non-contact / Contact / Combined
  • Material: ABS
  • Range:
    • TA500A: Non-contact: 3~100,000RPM
    • TA500B: Contact: 3~19,999RPM, 0~99,999m, 0~1999.9m/min, 0~9999.9ft/min
    • TA500C: Non-contact: 3~100,000RPM; Contact: 3~19,999RPM, 0~99,999m, 0~1999.9m/min, 0~9999.9ft/min
  • Accuracy:
    • TA500A: ±(0.05%FS+1RPM)
    • TA500B: ±(0.1%FS+1RPM), ±(0.1%FS+0.2m), ±(0.1%FS+0.2m/min), ±(0.1%FS+0.6ft/min)
    • TA500C: Non-contact: ±(0.05%FS+1RPM); Contact: ±(0.1%FS+1RPM)
  • Resolution:
    • TA500A: RPM: <10,000: 0.1, RPM: ≥10,000: 1
    • TA500B and TA500C: RPM: <10,000: 0.1, RPM: ≥10,000: 1, m: <10,000: 0.1, m: ≥10,000: 1, m/min: <200: 0.1, ft/min: <1000: 0.1
  • Display: 6 digits, max 99,999
  • Effective Measuring Distance: 50mm~500mm
  • Sampling Time: 0.8s (above 60 rpm)
  • Operating Environment: -10~50°C, max 80%RH, indoor altitude <2000m
  • Storage Environment: -10~50°C, max 70%RH (battery removed)
  • Power: 2 x 1.5V AAA (R03 / LR03) (Not included)
  • Item Size: 146 x 59 x 29mm / 5.75 x 2.32 x 1.14in
  • Item Weight: 120g / 4.23oz
  • Package Weight: 188g / 6.63oz
  • Package Size: 20 x 7.5 x 4cm / 7.87 x 2.95 x 1.57in

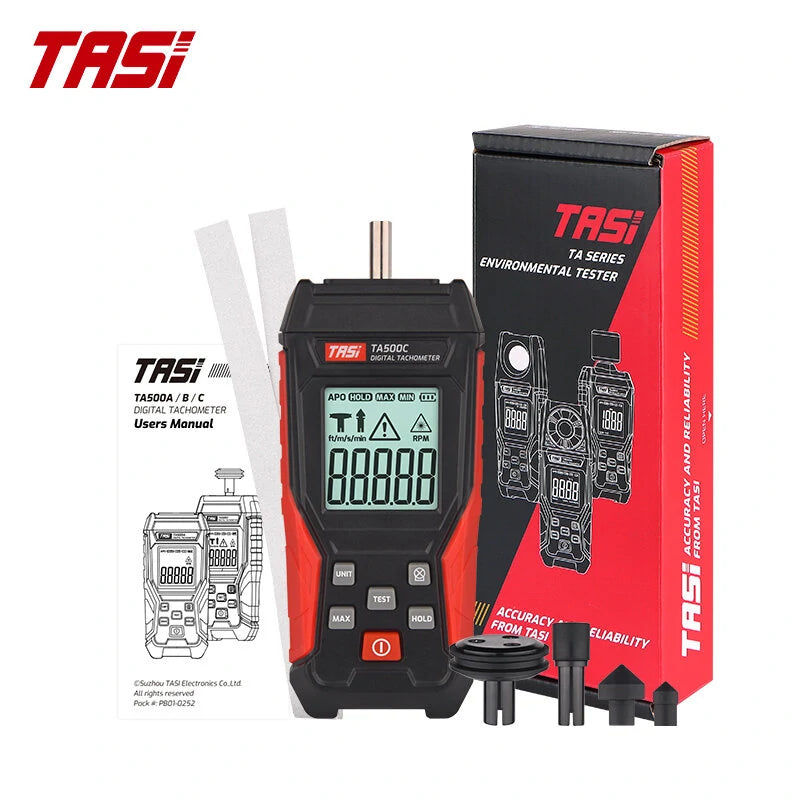

Package List:

  • 1 x Digital Tachometer
  • 2 x Reflective Tape
  • 4 x Accessories
  • 1 x User Manual (English)
