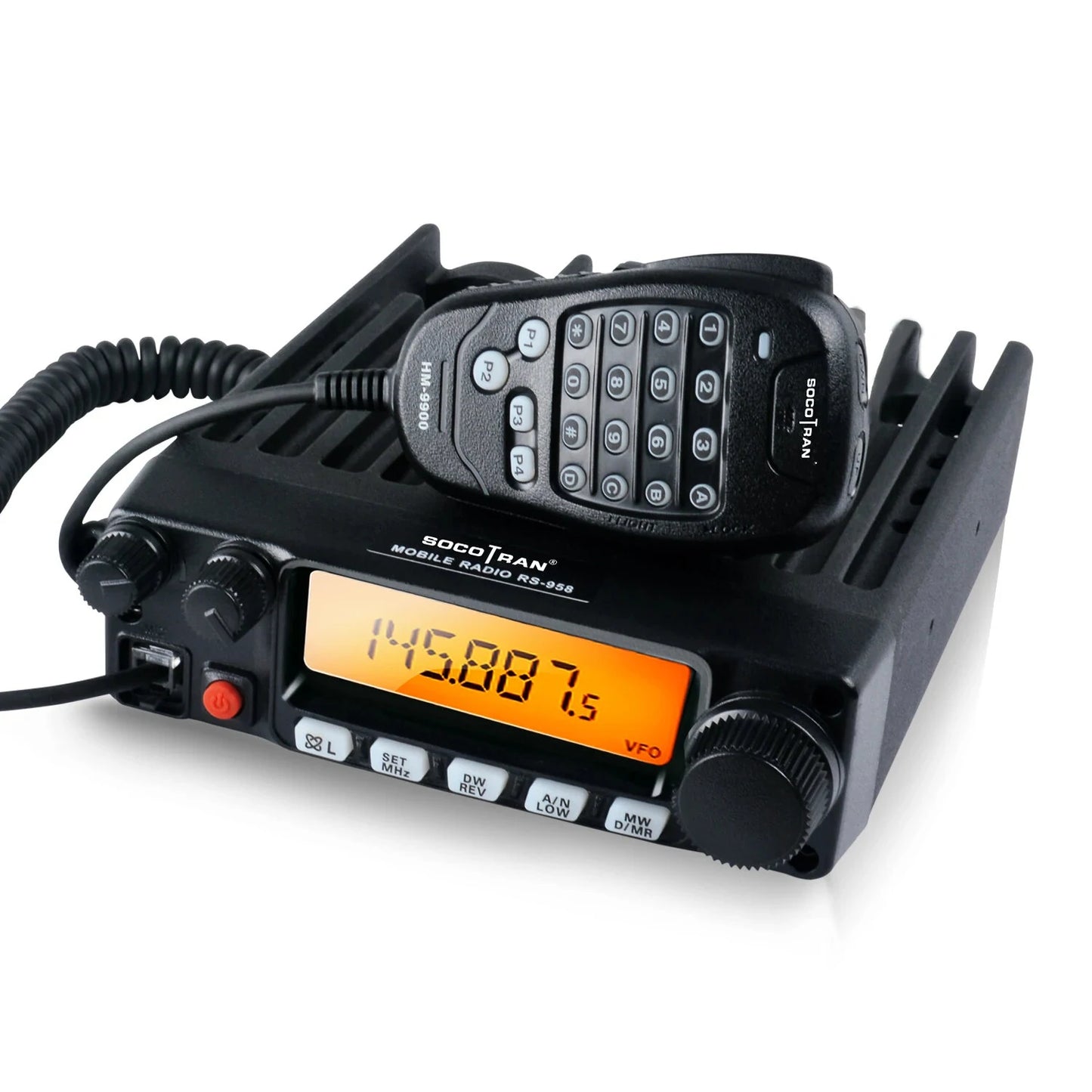

80W Mobile FM Radio with LCD, 200 Channels, Weather Alerts, 136-174MHz, CTCSS/DCS, Microphone & Mounts

Features:

• High Power Output and Efficient Cooling: This mobile FM radio features an impressive 80W transmit power, perfect for robust, long-range communications. It includes a built-in cooling fan and a forced cooling control circuit that ensure excellent heat dissipation, facilitating sustained high-power operations without overheating risks. This capability is crucial for optimal performance in demanding environments.
• Comprehensive Weather Features: Stay informed with real-time weather broadcasts and emergency warnings. This radio offers critical updates that can be lifesaving, especially when travelling or during outdoor activities.
• Advanced Communication Codes: The radio supports CTCSS, DCS, and DTMF codes for secure and efficient communications. Whether working with a team or solo, these features maintain clear, uninterrupted channels, ideal for professional and amateur radio users alike.
• Multi-Scan and Guard Functions: Easily monitor various frequencies with multiple scan and guard functions. Automatic communication identification and smart search features simplify active channel detection, enhancing your listening experience.
• Superior Audio and Modulation Quality: Enjoy a clear and loud audio output of up to 3W, even in noisy environments. It offers modulation distortion under 3% and maximum modulation frequency offsets of ±5kHz for wide-band and ±2.5kHz for narrowband, ensuring high-quality transmission and reception for reliable communication.

Specifications:

General Specification

• Frequency Range: 136-174MHz
• Number of Channels: 200
• Frequency Stepping: 5/10/12.5/15/20/25/50/100KHz
• Modulation Mode: F2D/F3E
• Antenna Impedance: 50Ω, unbalanced
• Frequency Stability: ±5ppm
• Operating Temperature Range: -20℃~+60℃
• Current Consumption:
  • Receiving: ≤0.7A
  • Transmit: 15A (80W) / 9A (30W) / 5A (10W) / 4A (5W)

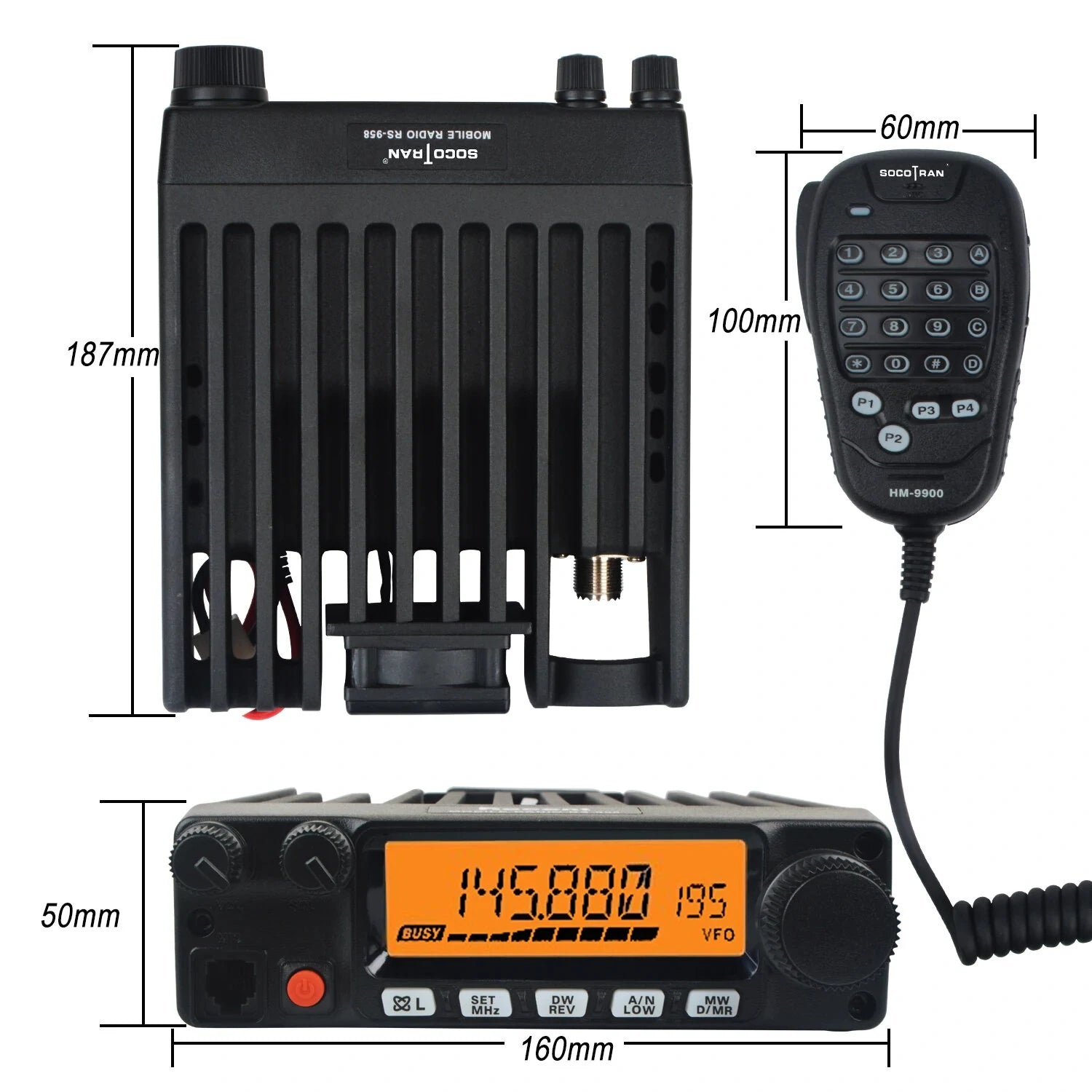

• Dimensions (L x W x H): 187mm x 160mm x 50mm
• Weight (without microphone): 2.1kg

Transmitter Specification

• Output Power: 80/30/10/5W
• Max Modulation Frequency Offset: ±5kHz (wide-band); ±2.5kHz (narrowband)
• Spurious Radiation: ≤-60dB
• Modulation Distortion
• Microphone Impedance: 2KΩ

Receiver Specification

• Circuit Type: Second frequency conversion superheterodyne
• IF Frequency: 21.7MHz/450kHz
• Receiving Sensitivity: ≤0.2uV (12db SINAD)
• Adjacent Channel Selectivity: 12kHz/30kHz
• Maximum Audio Power: ≤3W (8Ω)

Package Included:

• 1 x FM Mobile Radio

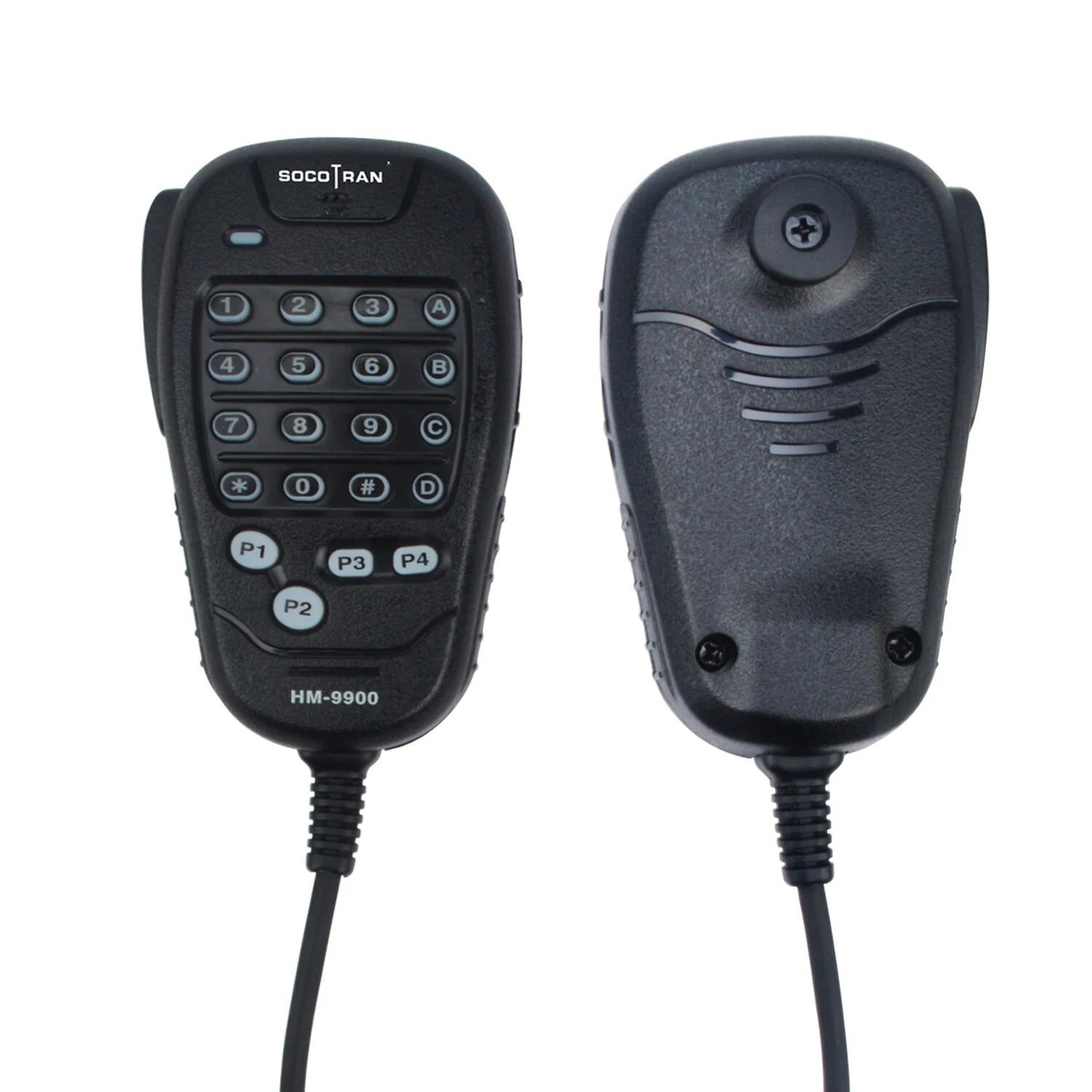

• 1 x Microphone (if applicable)
• 2 x Mounting Brackets
• 1 x Power Cable
• 1 x User Manual
• 1 x Warranty Card
• Assorted Screws and Accessories
