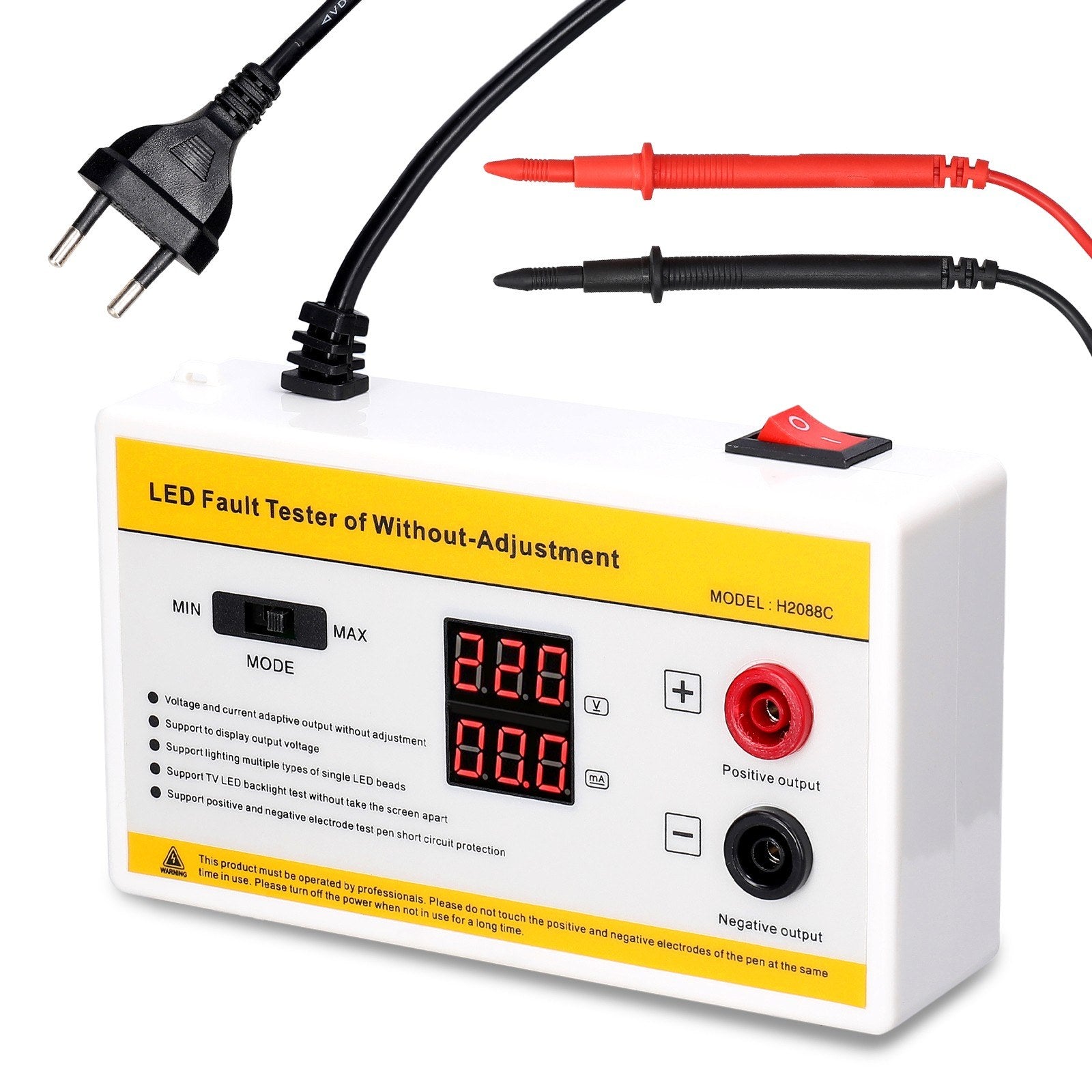

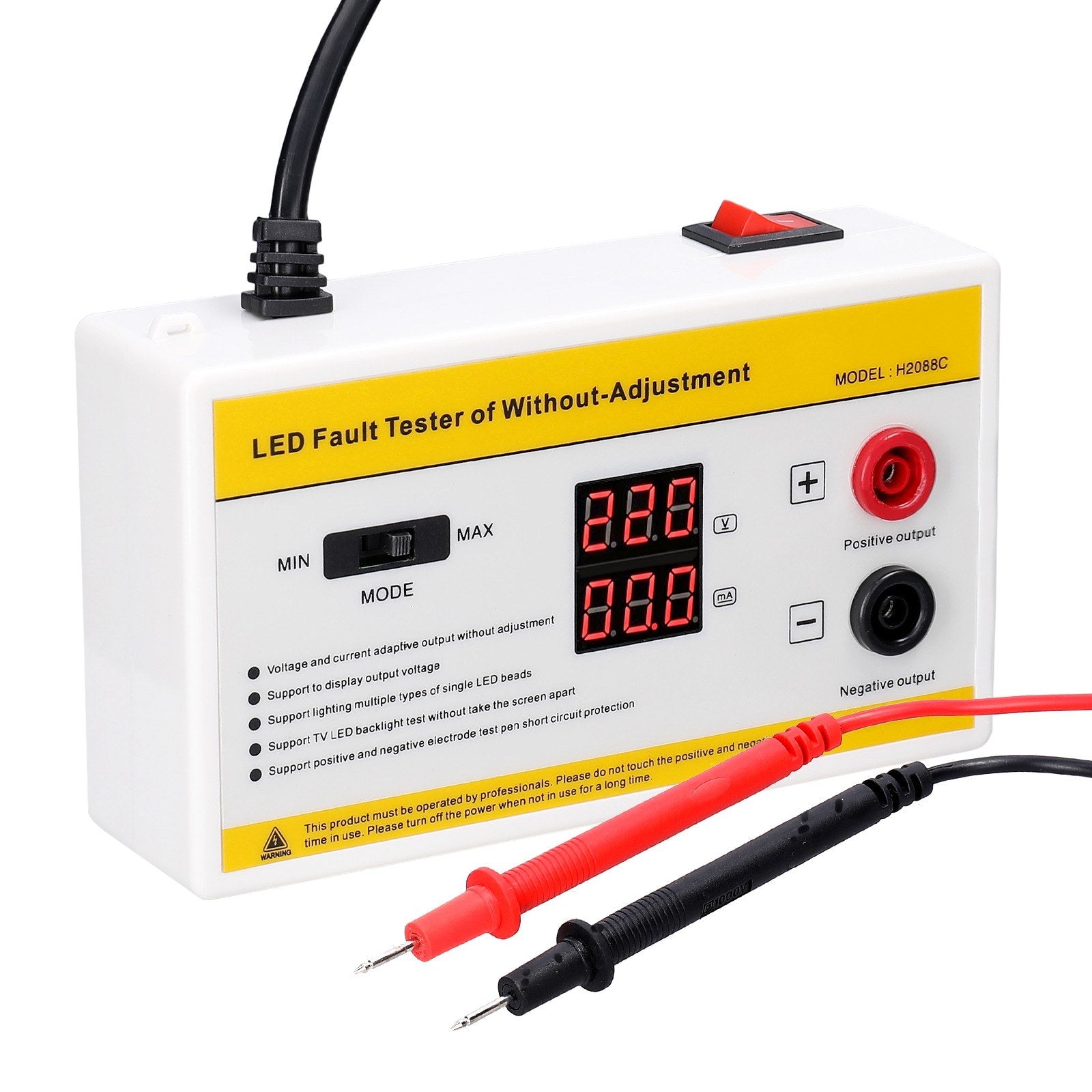

LED Tester

Our LED Tester is designed for maintaining and detecting various LCD TV LED backlights, LED light fixtures, and LED advertising light boxes.

Features

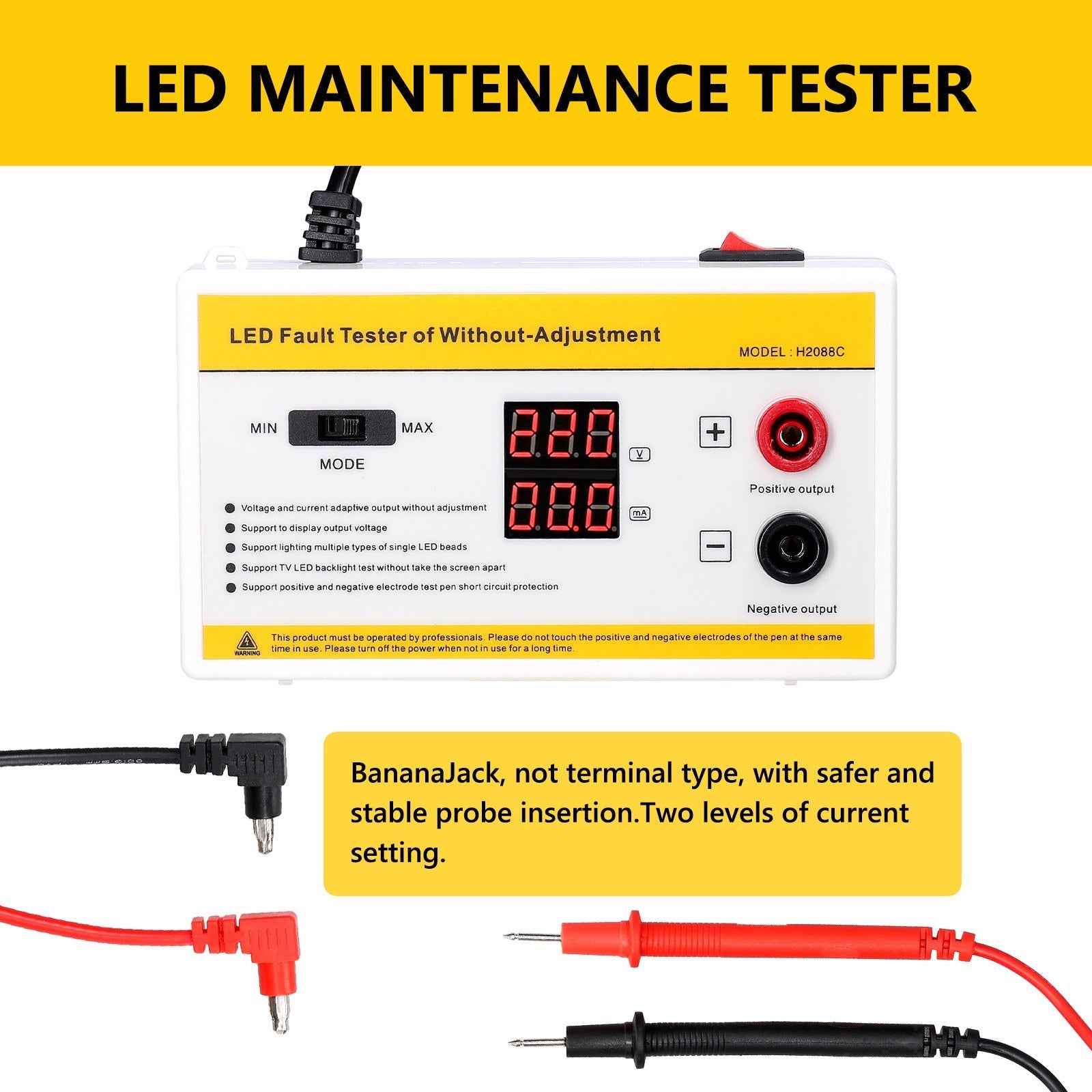

• Banana Jack Design: Safer and more stable probe insertion compared to terminal types.
• Dual Current Settings: Use MIN MODE for testing a small number of light beads.

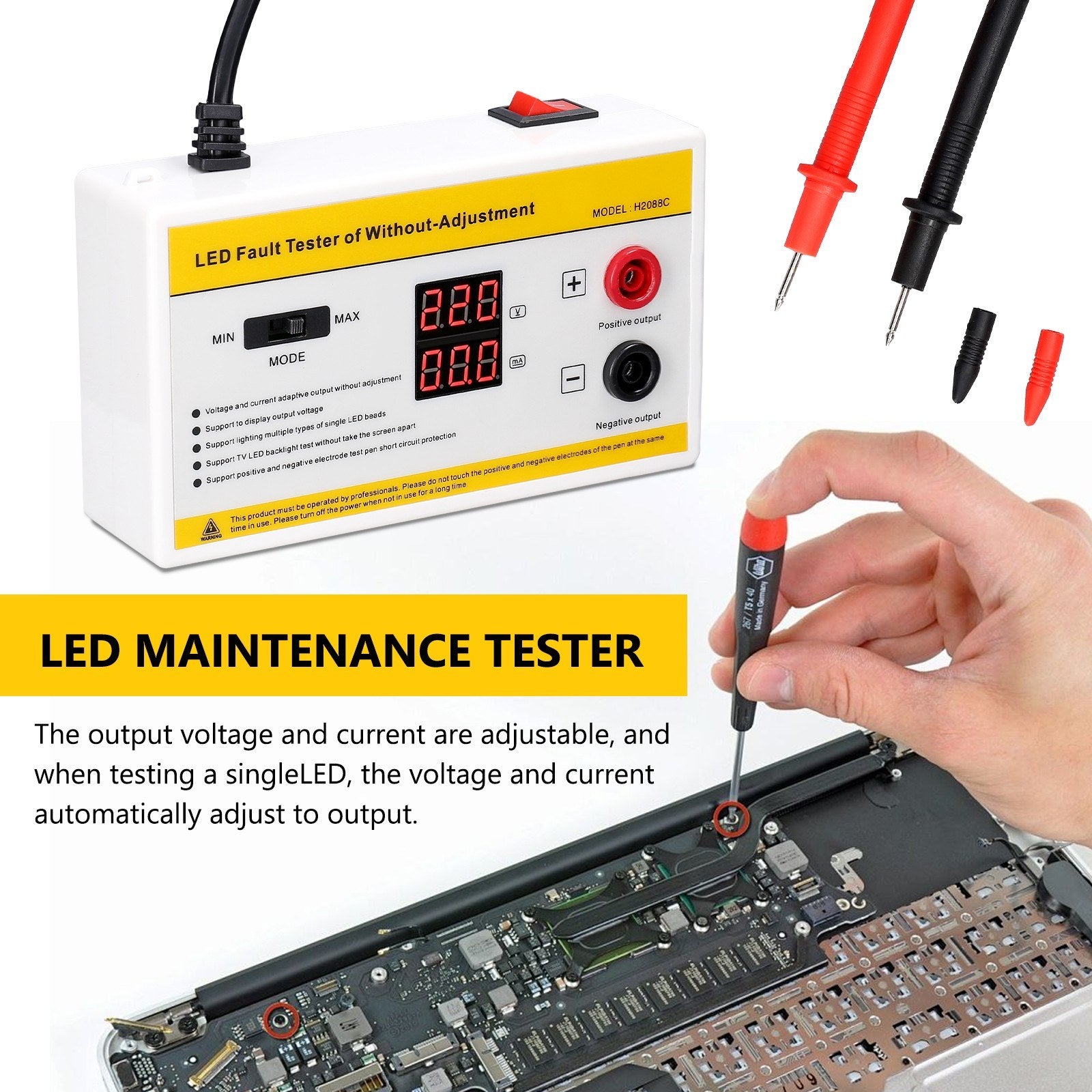

• Adjustable Output: Automatically adjusts voltage and current when testing a single LED.
• Convenience: Test TV LED backlights without disassembling the screen.

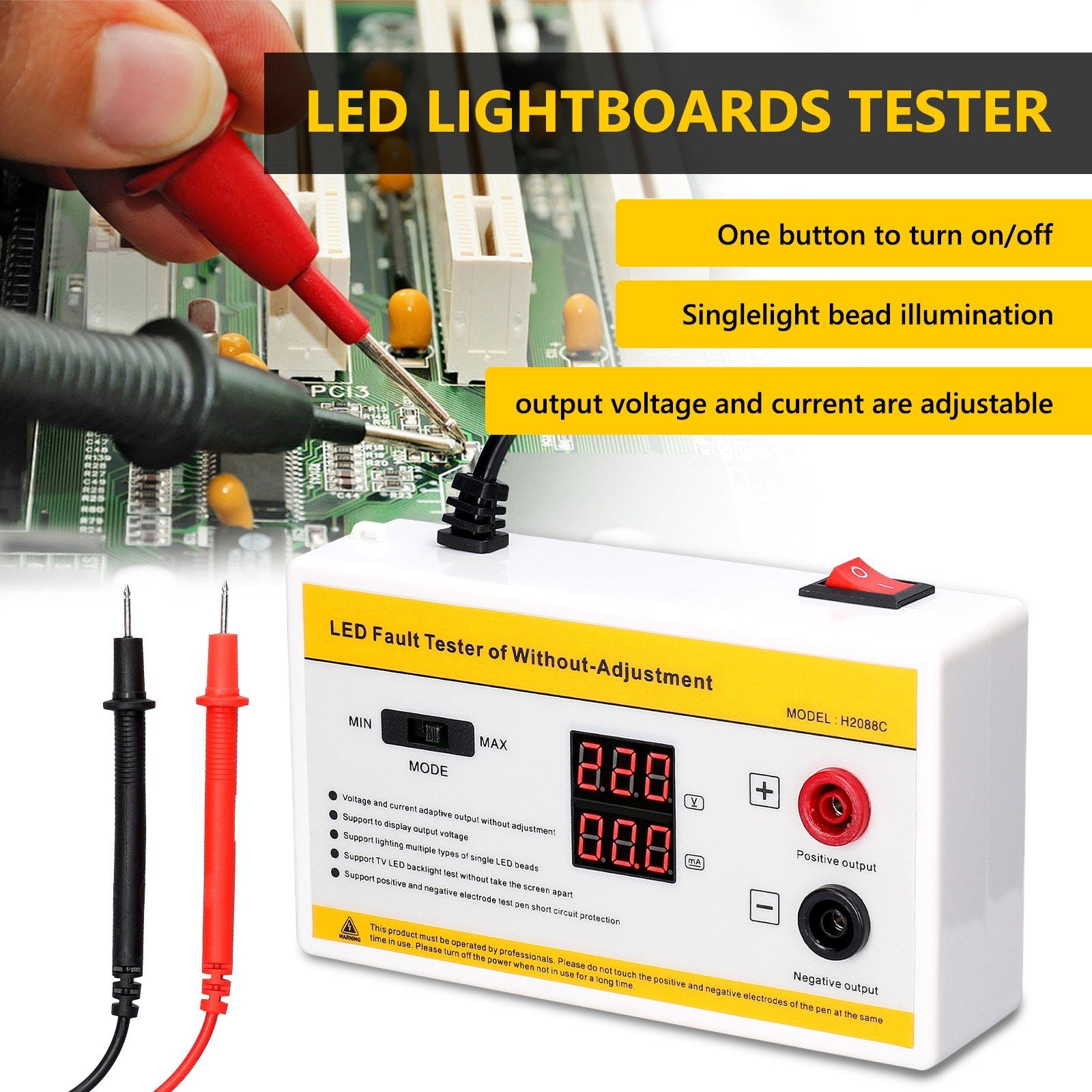

• Easy Operation: One-button on/off function with a user-friendly design.
• Single Light Bead Functionality: Includes slow-start feature.
• Built-In Safety: Features an isolation transformer to prevent electric shock and avoids burning lamp beads on reverse connection.
• Protective State: Automatically shifts to a protective state during probe short circuits or lamp bead failure and resumes normal operation once resolved.
• Data Display: Dual display for output voltage and current.

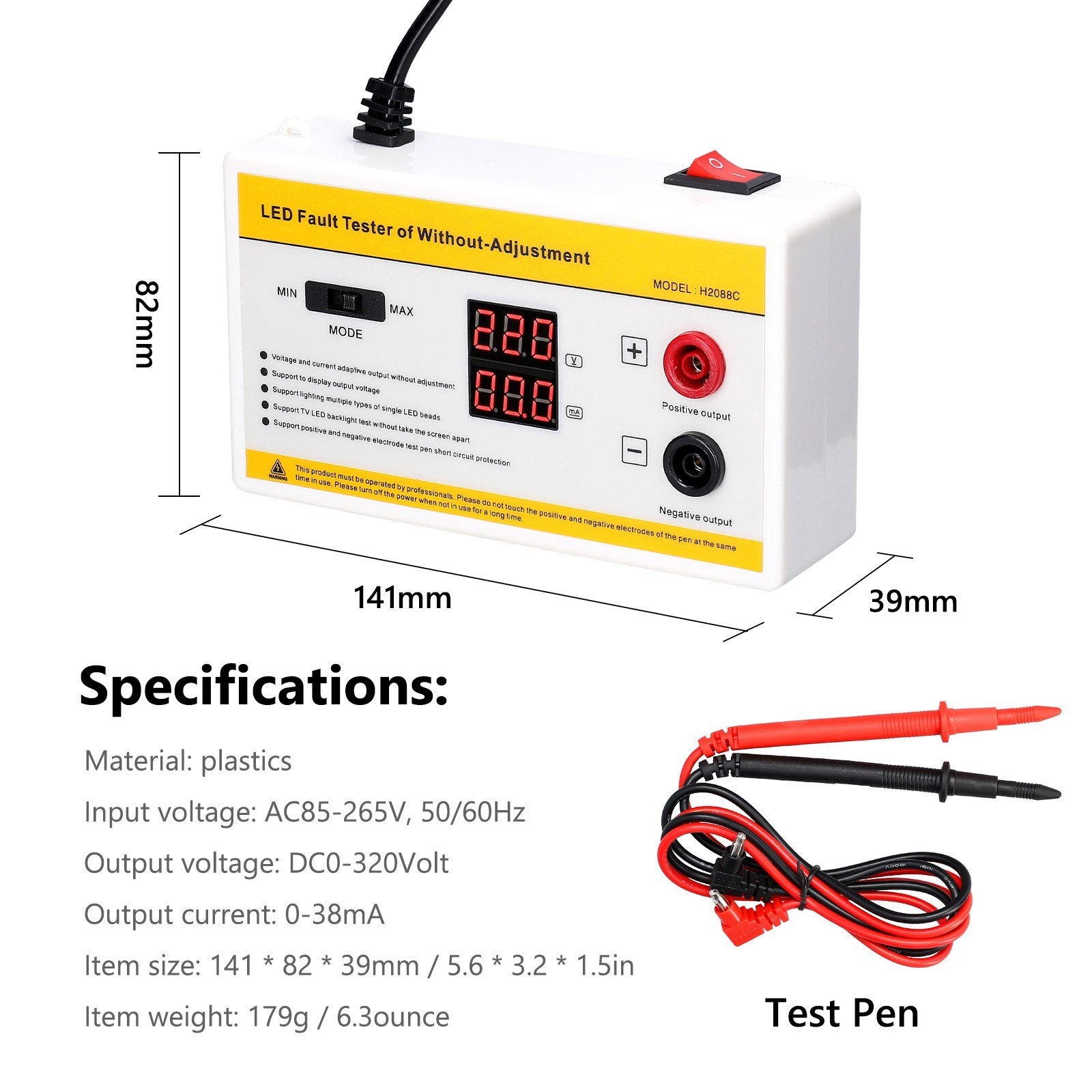

Specifications

• Material: Plastic
• Input Voltage: AC 85-265V, 50/60Hz
• Output Voltage: DC 0-320 Volt
• Output Current: 0-38 mA
• Item Size: 141 x 82 x 39 mm / 5.6 x 3.2 x 1.5 in
• Item Weight: 179 g / 6.3 oz
• Package Size: 175 x 120 x 60 mm / 6.9 x 4.7 x 2.4 in
• Package Weight: 290 g / 10.2 oz

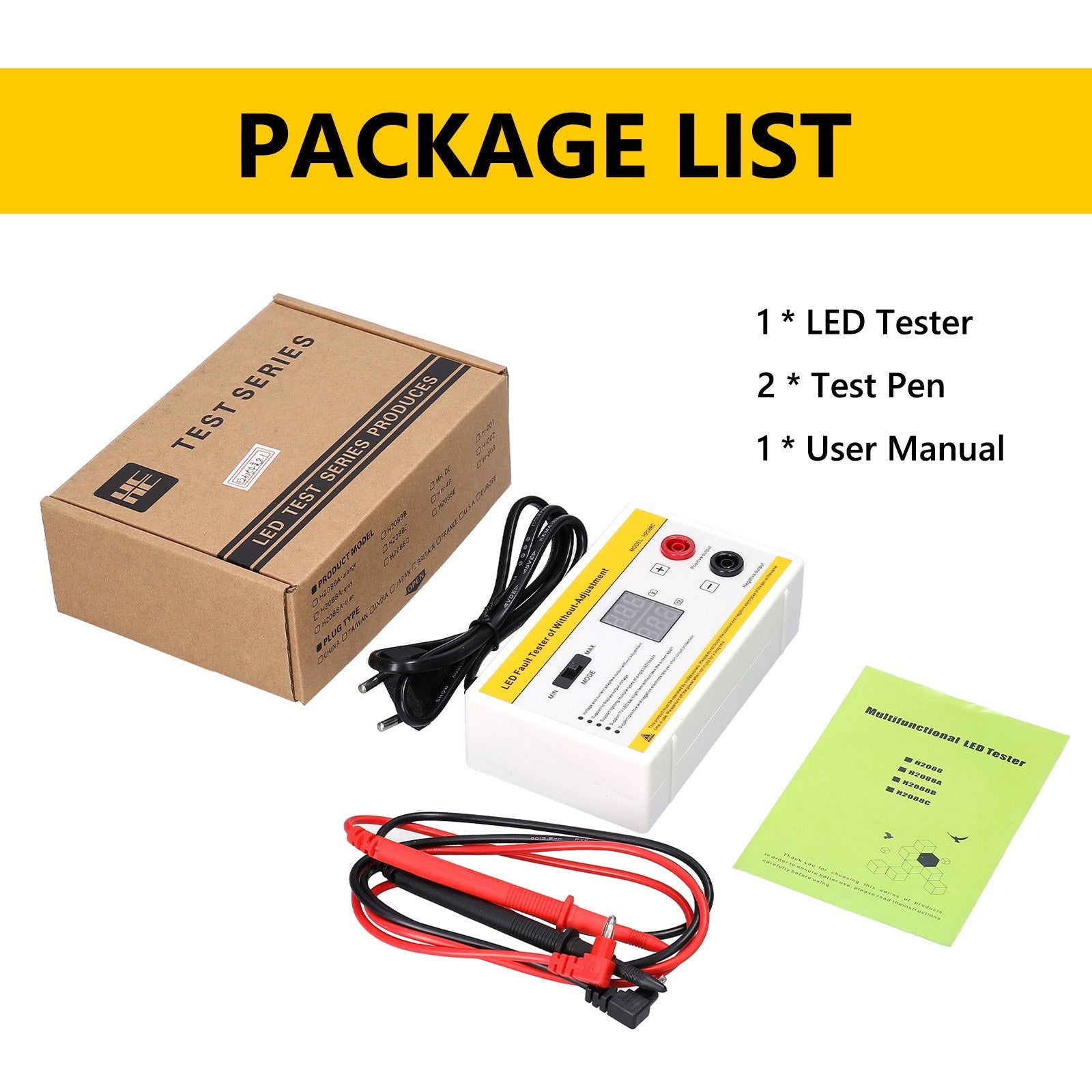

Package List

• 1 x LED Tester
• 2 x Test Pen
• 1 x User Manual
