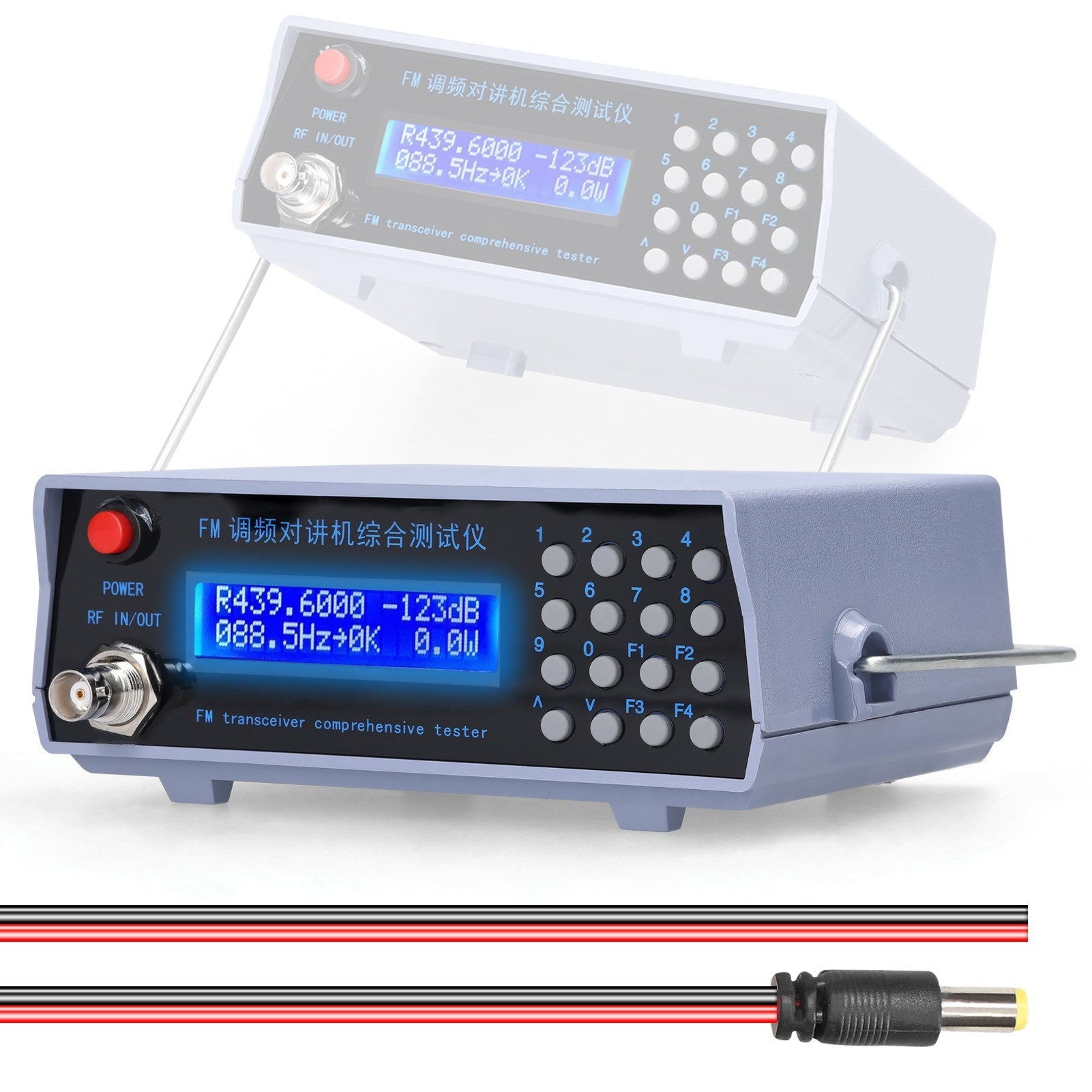

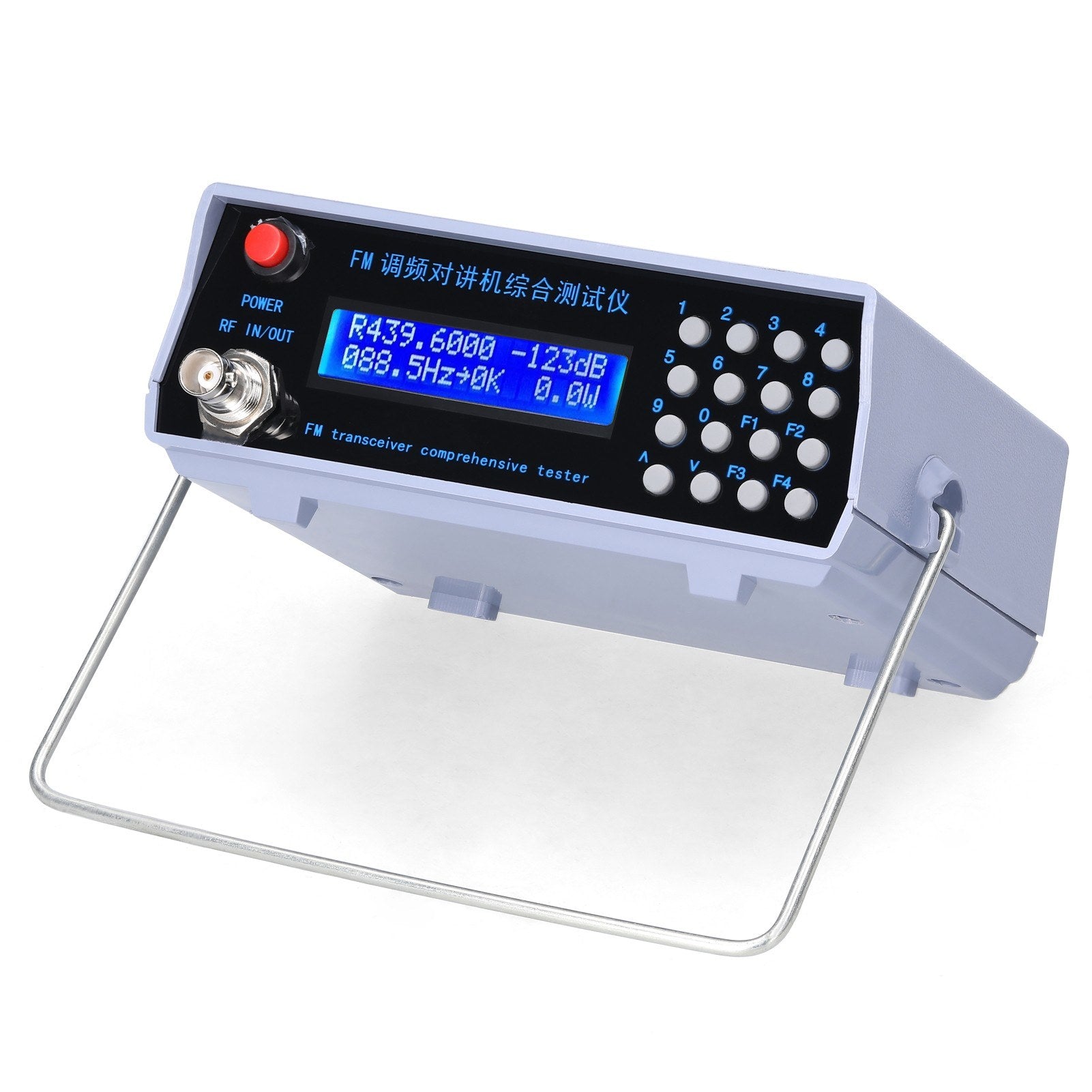

Multi-Functional VHF UHF Test Meter: Signal Generator, Frequency Modulation, and Transceiver Tester for Handheld Radio

Product Description:

Experience top-of-the-line debugging and measurement capabilities with our Comprehensive Signal Generator, expertly designed for U/V repeaters and frequency modulation radios. This versatile device supports duplex mode operation, ensuring seamless functionality even when your test equipment is transmitting. It's also perfect for engagements in the repeater state.

The generator boasts dual working modes, enabling switches between signal source and frequency meter modes. It covers comprehensive frequency measurement ranges from 10M to 900M for transmission and 1MHz to 470MHz for receiving frequencies. Supporting both analogue and standard digital subtones (50Hz to 260Hz), it facilitates extensive testing for all types of high-frequency handheld interphones.

Features:

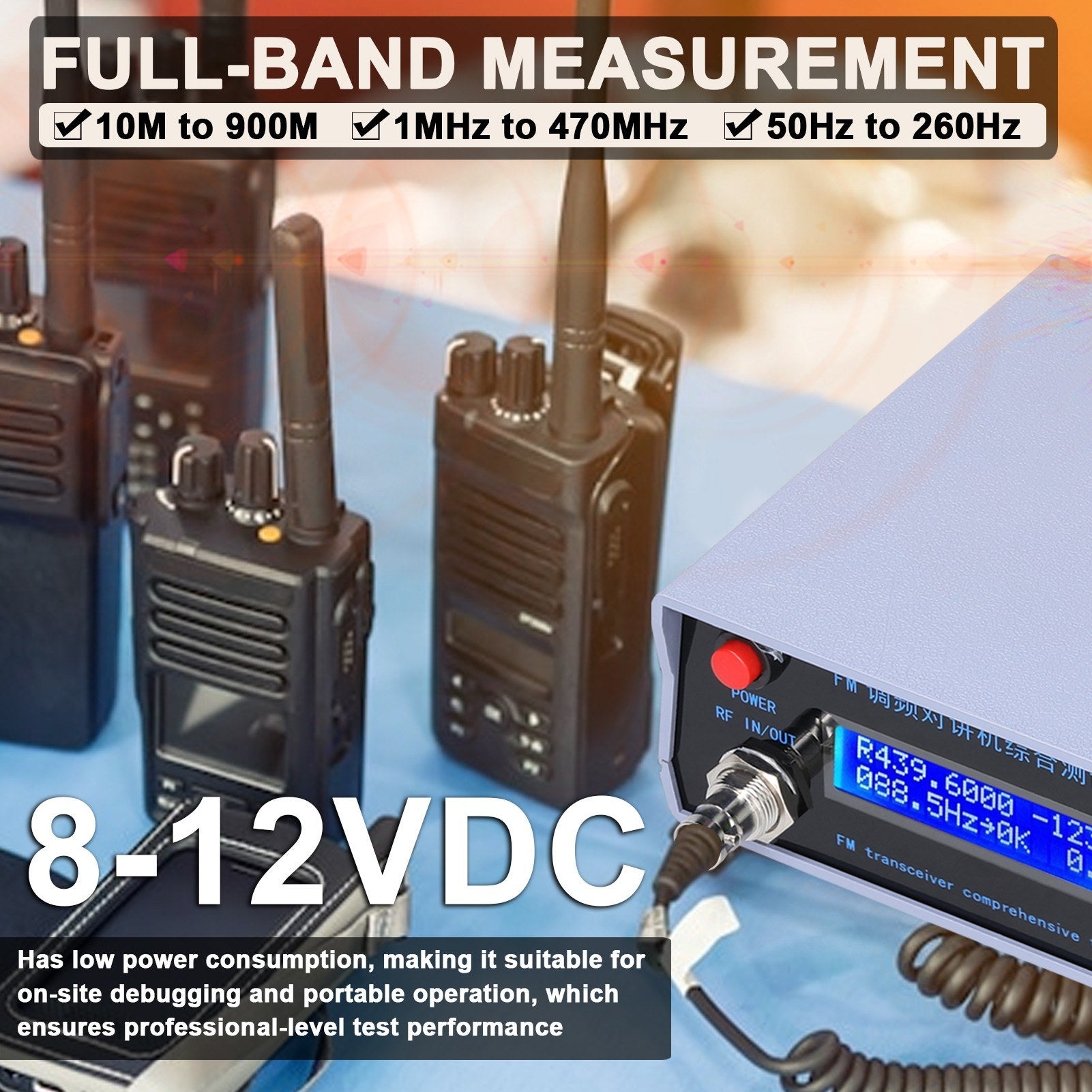

• Full-band Measurement: Broad frequency ranges empower complete debugging for high and ultra-high frequency radios.
• Duplex Mode & Repeater Test Optimization: Maintain seamless testing operations in duplex modes or under repeater conditions.
• High Precision & Multifunctional Interface: Features an intuitive display and controls for fine-tuned adjustments across frequency, power, sub-tones, and modulations.

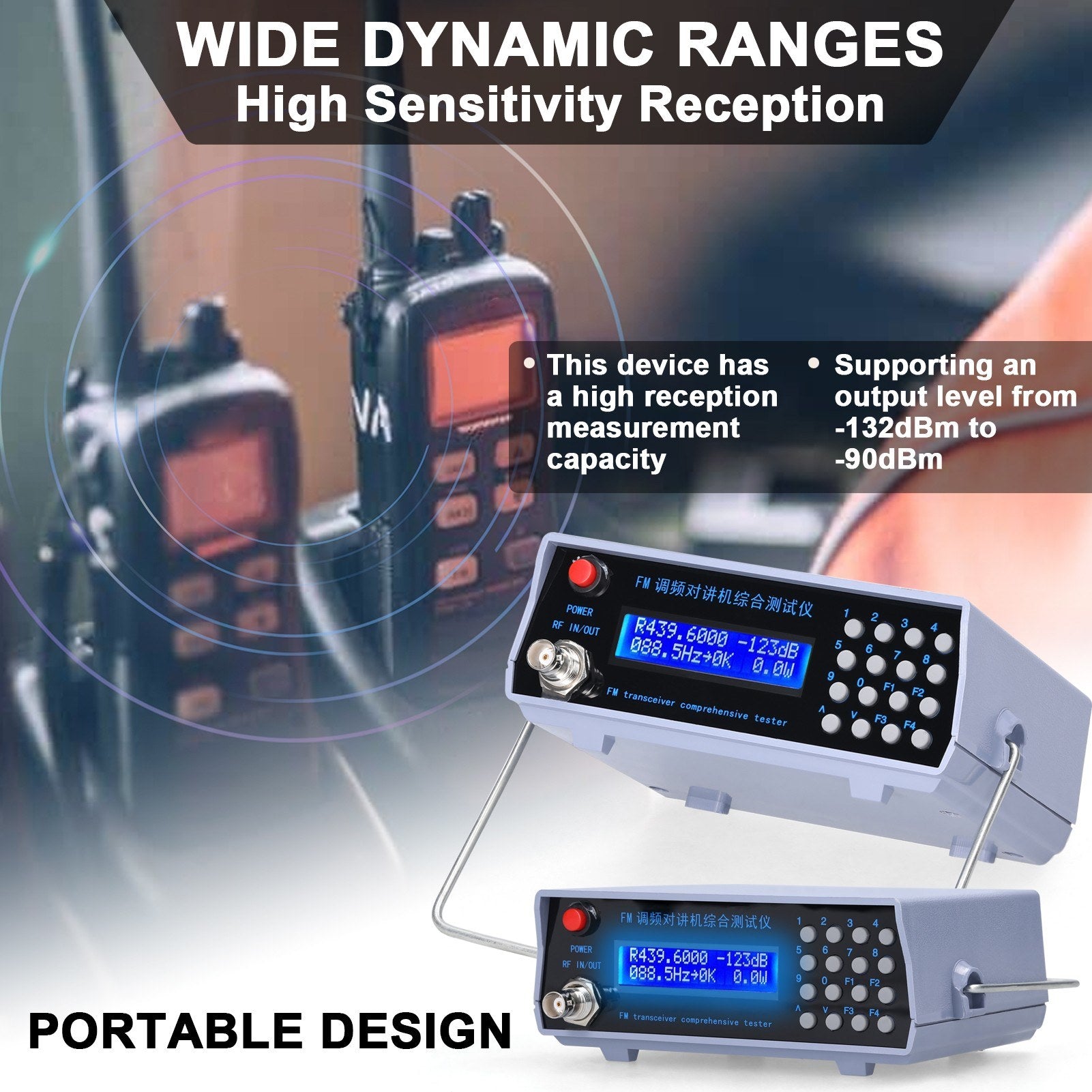

• Wide Dynamic Range & High Sensitivity: Supports an output from -132dBm to -90dBm with selectable tone modulation, perfect for diverse signal strengths.

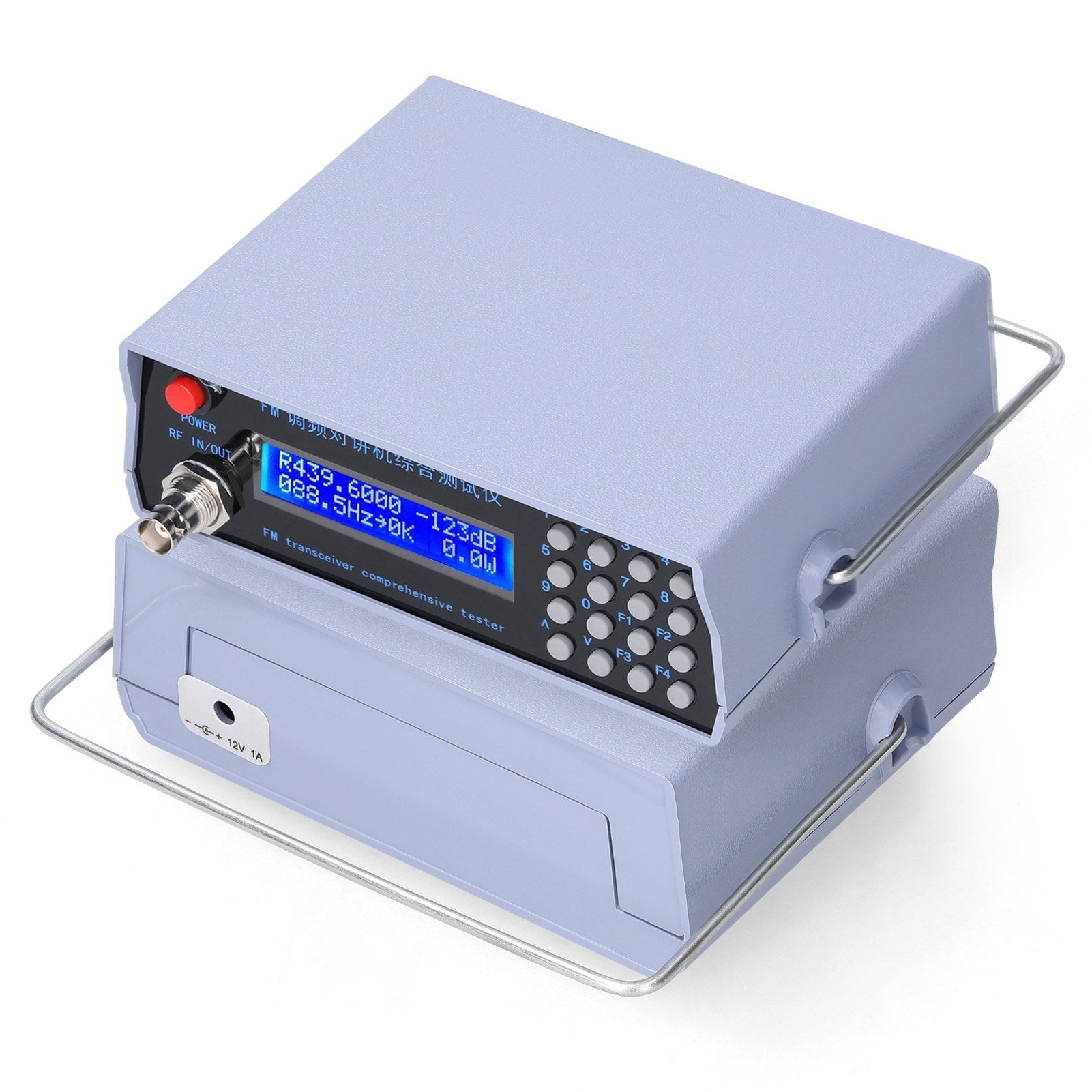

• Portable Design: Lightweight and equipped with a detachable handle for easy portability and installation. Operates efficiently on 8-12VDC.

Specifications:

• Name: Comprehensive Tester
• Material: Plastic
• Item Size: 163 x 134 x 59mm / 6.42 x 5.28 x 2.32 inches
• Item Weight: 389g / 0.86 lb
• Package Size: 205 x 137 x 110mm / 8.07 x 5.39 x 4.33 inches
• Package Weight: 470g / 1.04 lb

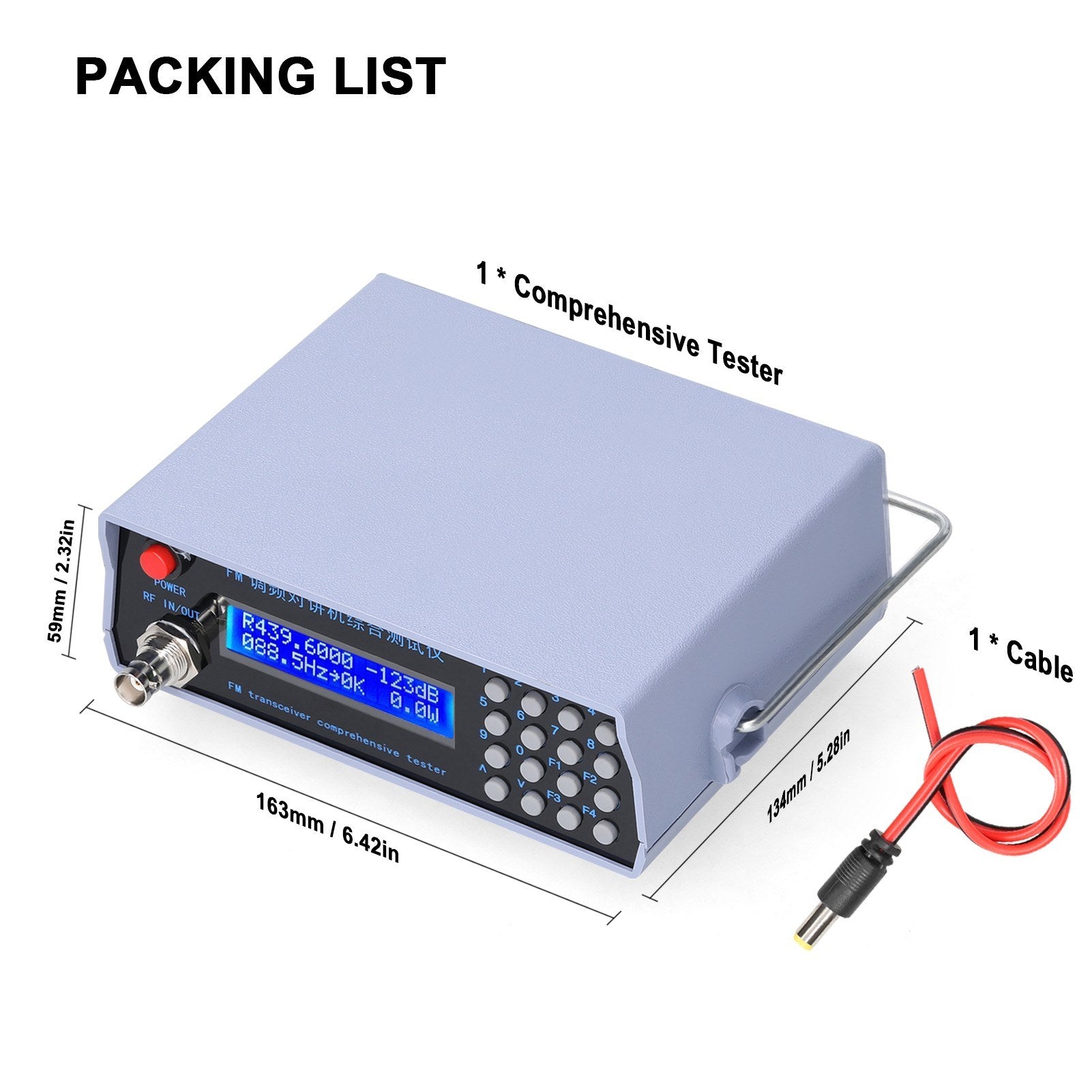

Packing List:

• 1 x Comprehensive Tester
• 1 x Cable
• 1 x Metal Handle

Optimize your testing operations with our state-of-the-art signal generator and experience unparalleled precision and flexibility in all your measurement needs.
