Machifit ER11 Chuck CNC 500W Spindle Motor

Product Overview

Experience enhanced performance with the Machifit ER11 Chuck CNC 500W Spindle Motor, now with an upgraded AC 110-220V power supply. This high-quality spindle motor comes with 52mm clamps and a speed governor, perfect for CNC machine applications.

Key Features

• Supports AC 110-220V±10% 50/60Hz power supply
• 500W spindle motor with variable speeds from 3,000 to 12,000 RPM
• High precision with a spindle runout of 0.01-0.03
• High-grade 45 carbon steel chuck for durability

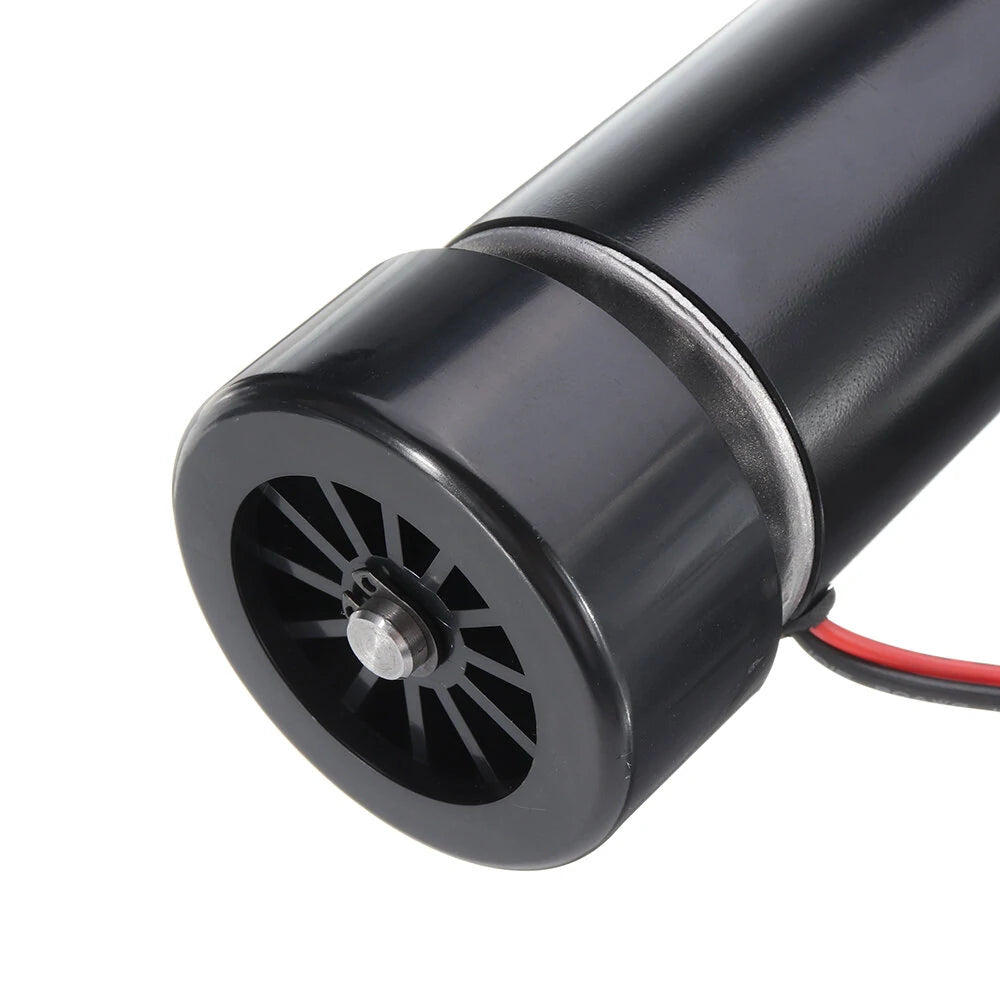

• Compact design with a motor diameter of 52mm and length of 208mm

Specifications

• Brand: Machifit
• Dimensions: 130mm × 100mm × 50mm (L×W×H)
• Input Voltage: AC110-220V±10% 50/60Hz
• Spindle Motor Power: 500W
• Motor Diameter: 52mm
• Operating Voltage (Output): 100V DC
• Current: 6A
• Torque: 5000G/CM
• Insulation Resistance: > 2 megohms
• Dielectric Strength: 400V

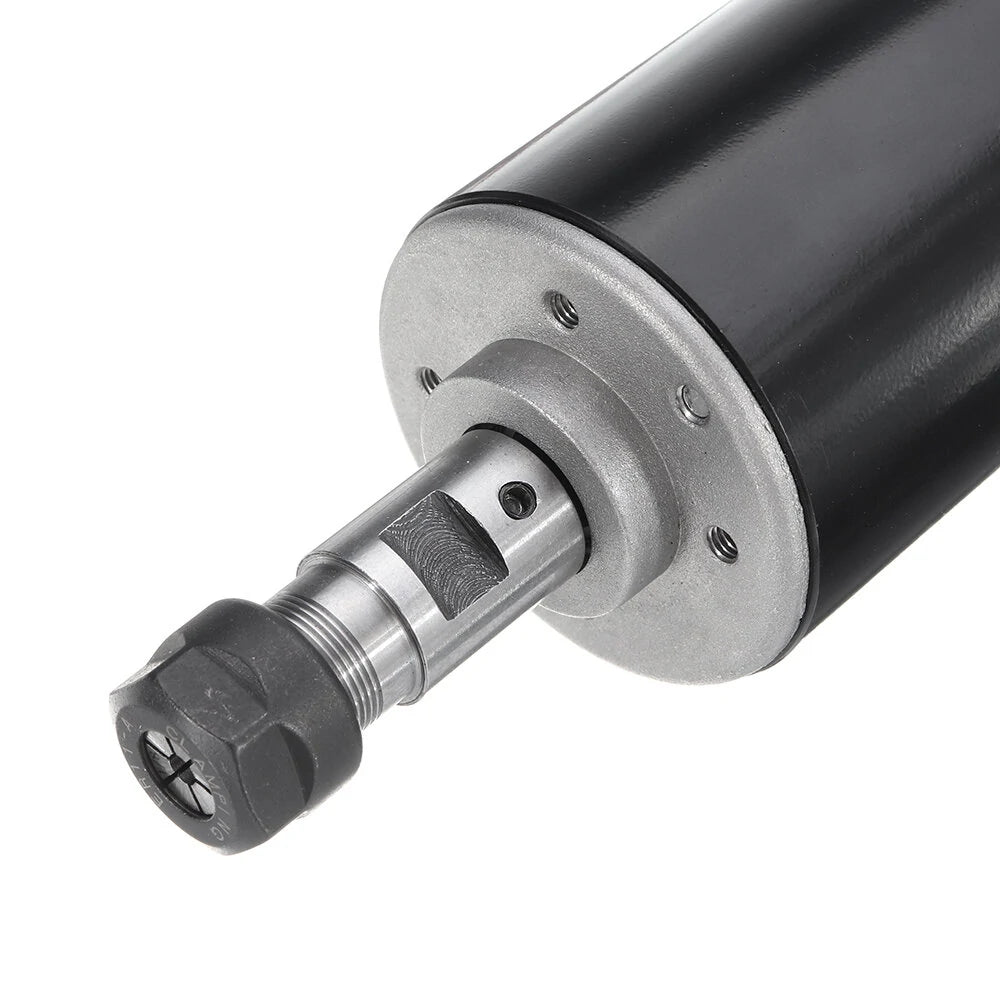

Chuck Specifications

• Style: ER11
• Size: 1/8"
• Material: High Grade 45 Carbon Steel
• Total Height: 18mm
• Outer Diameter (Max): 11.5mm
• Gripping Range: 3mm
• Nut Size: 8.7mm ID, 17mm Diameter, 19mm Outer Diameter, 13mm Height

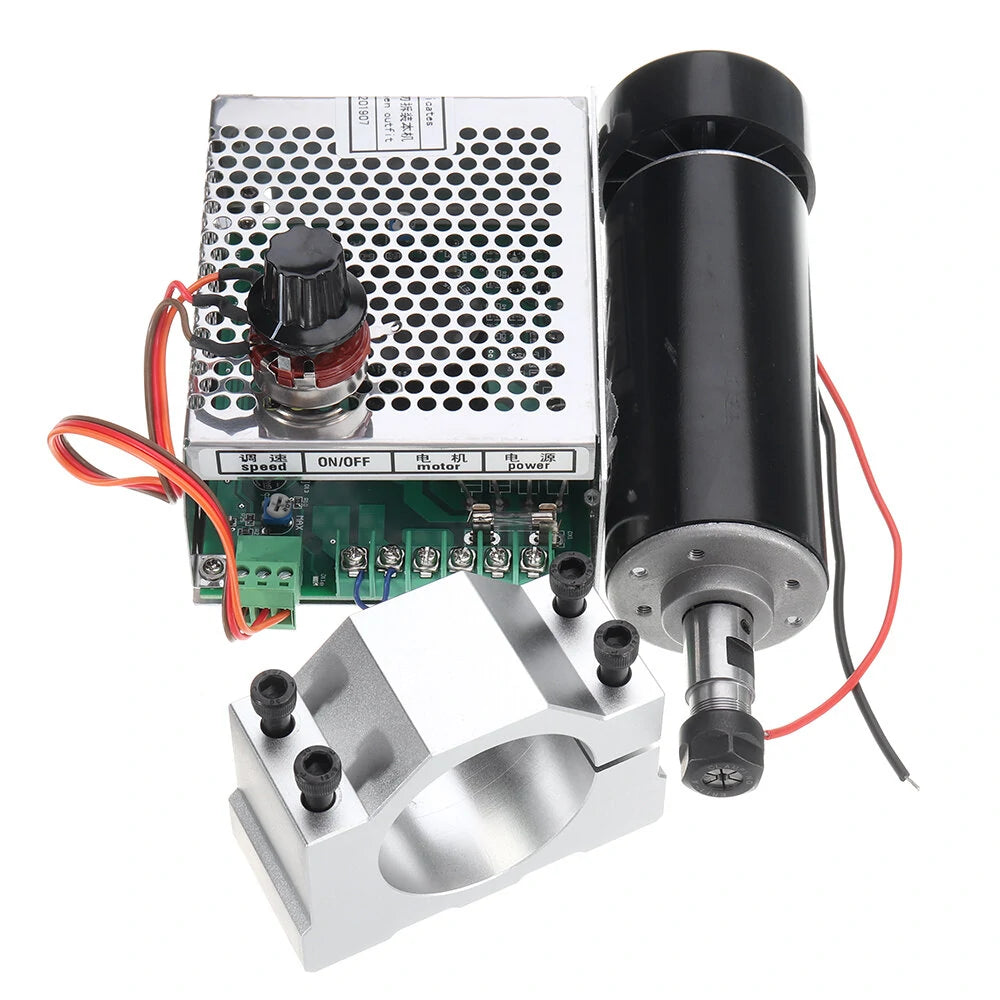

Package Includes

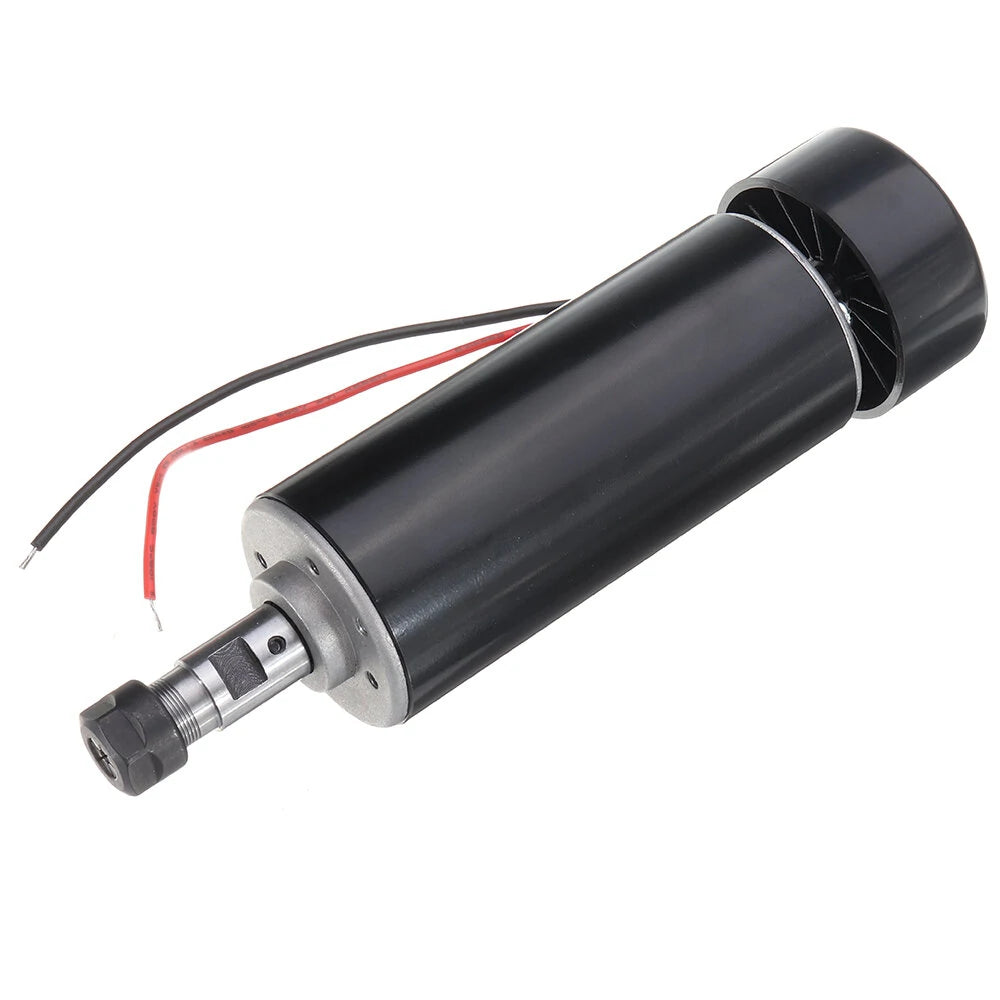

• 1 x 500W Spindle Motor

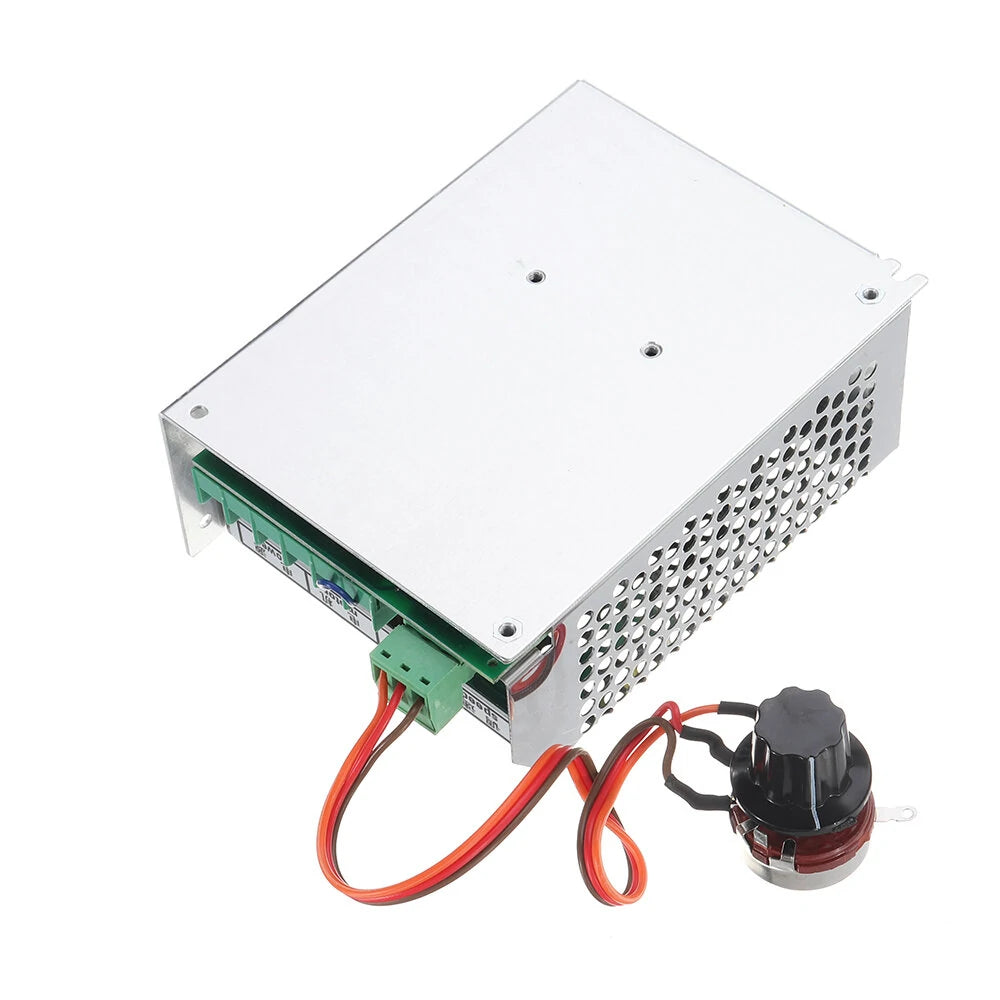

• 1 x Power Supply

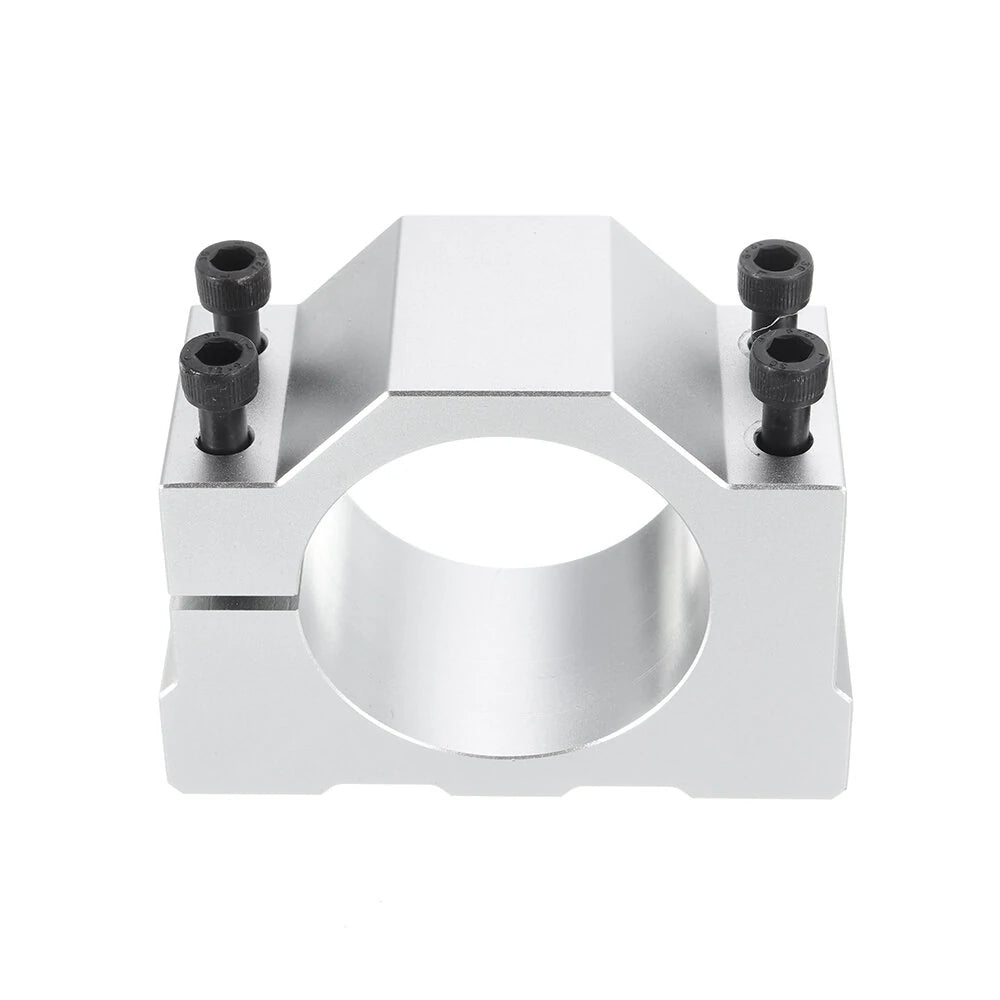

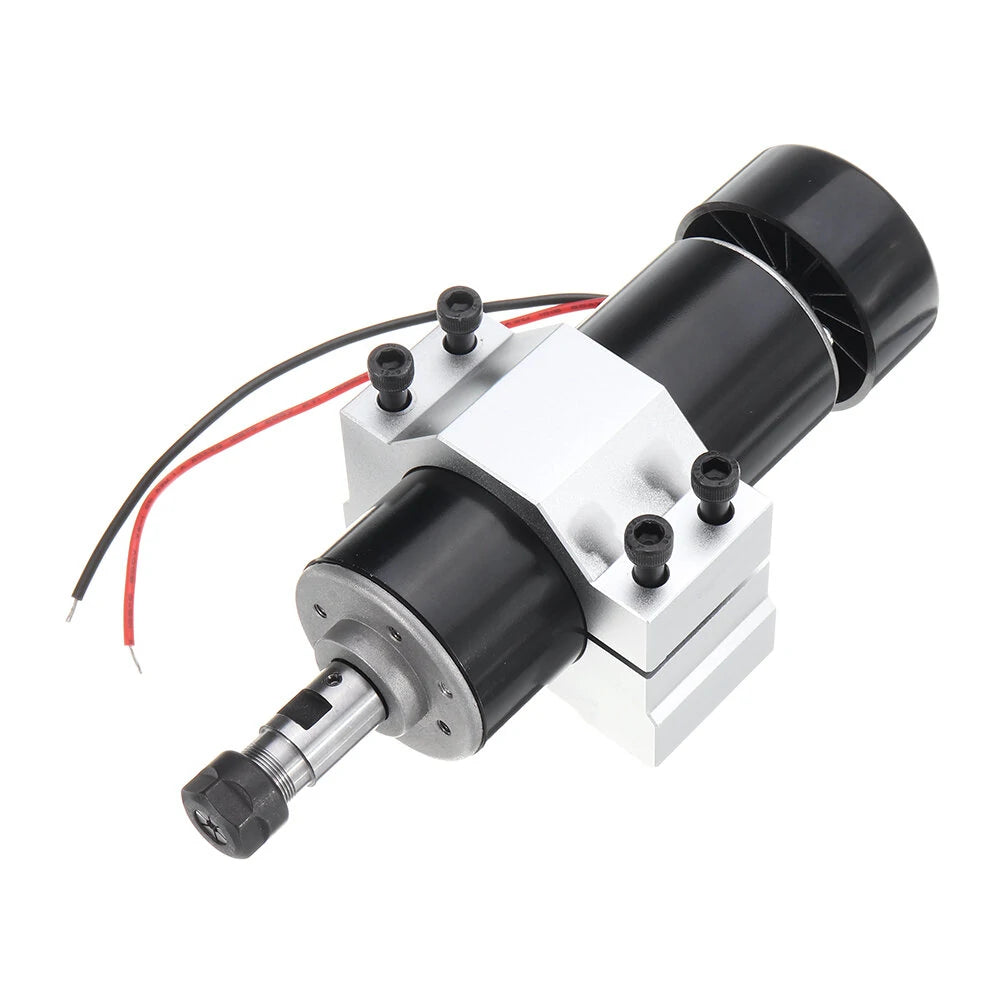

• 1 x 52mm Mount Bracket
• 1 x ER11 Collet
• 4 x Screws

Important Note

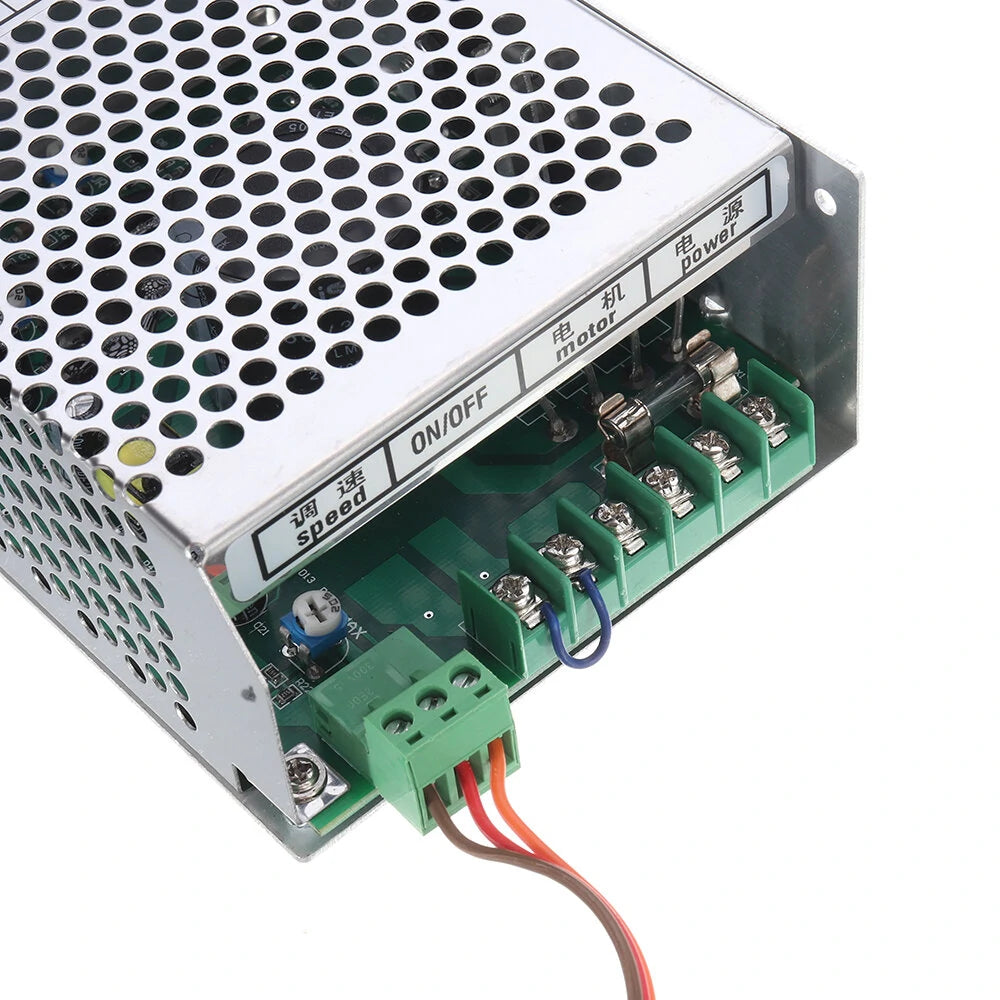

Ensure the output and input voltage positions are correctly connected. The wire and connections can be adjusted as needed for proper setup.
