ATORCH AT085C PD3.1 600W Digital Voltage Ammeter Type-C Power Bank Mobile Charger Tester

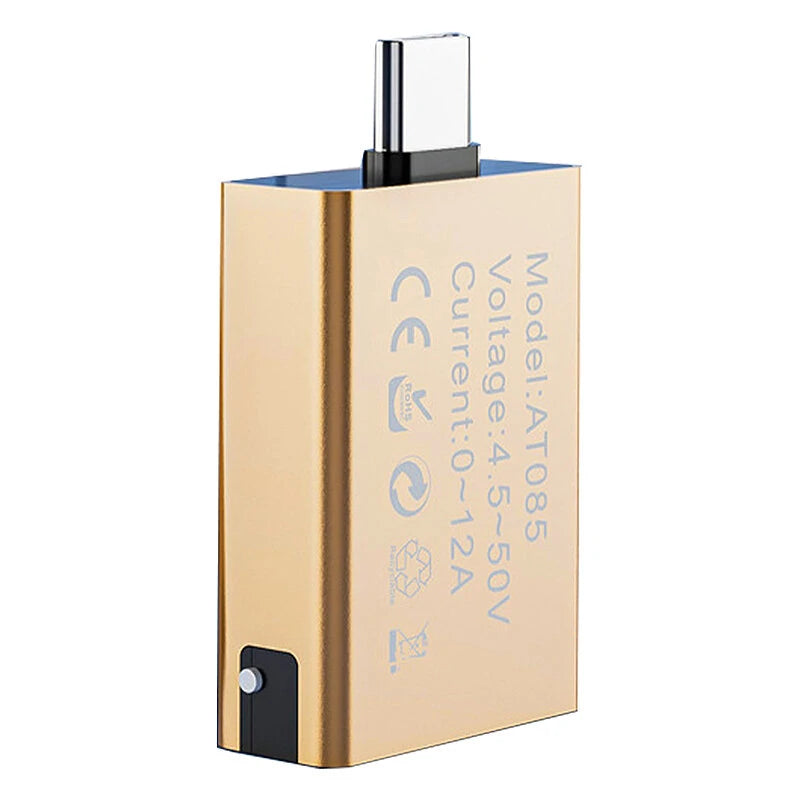

Type-C Detector (Model: AT085)

Precise Details:

• LCD Screen: IPS HD Colorful
• Power Supply Mode: 48V Full Voltage Supply
• Working Voltage: DC 4.5-50V
• Working Current: 0-6A (Short-term Peak 12A)
• Bidirectional Current: 12A in Both Directions
• Power Display: 0-600W
• Battery Display: 0-9999Wh
• Capacity Display: 0-99999mAh
• Working Temperature: 0-45°C (32-113°F)
• Sampling Resistance: 0.001Ω

Key Features:

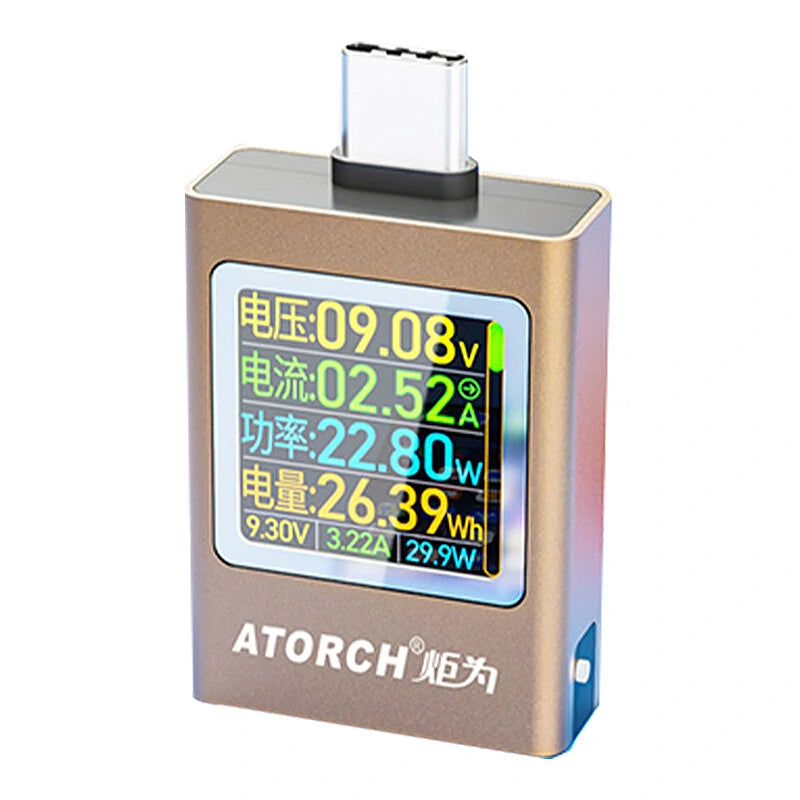

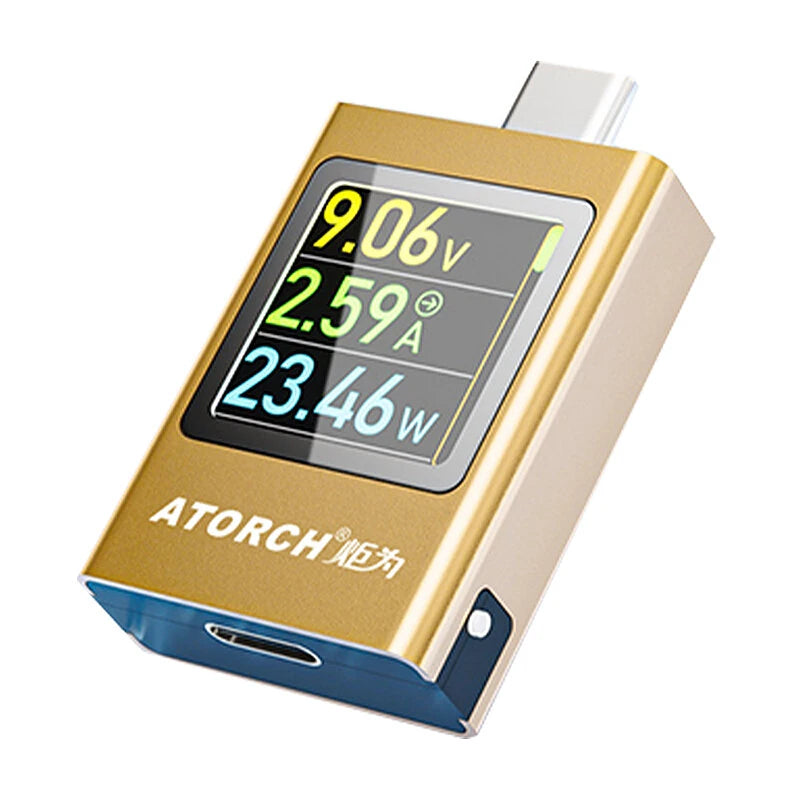

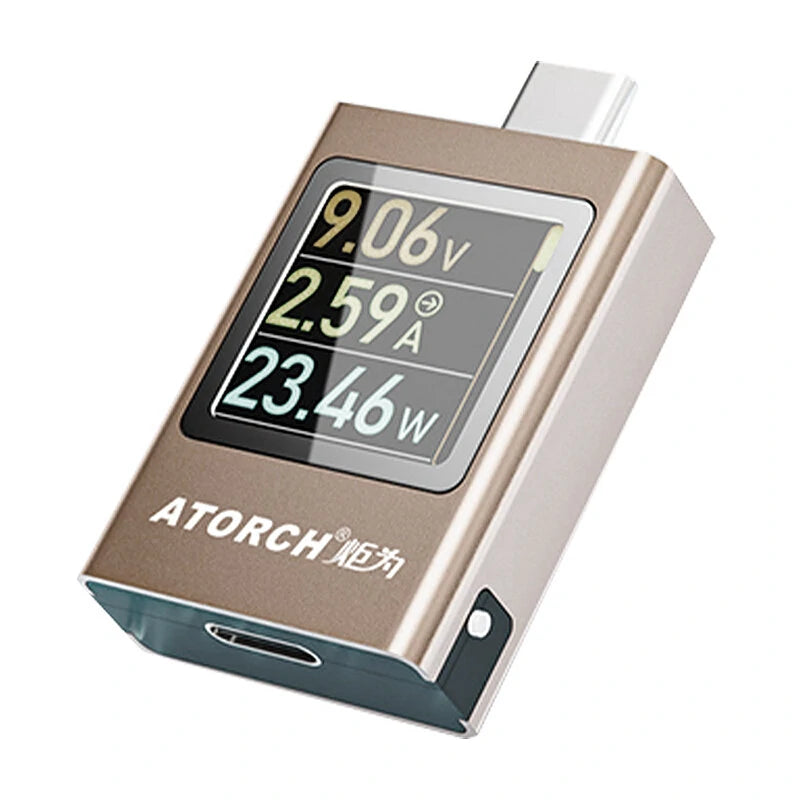

• Real-time display of voltage, current, power, battery capacity, temperature, timing, and more.
• Supports multiple fast charging protocols with a high-definition color screen displaying multiple parameters.
• Includes real-time voltage and current curve display for analyzing charging process fluctuations.
• Bidirectional current measurement with zero load current clearing function for precision.
• Equipped with power-off memory and data storage for efficient data accumulation.
• PD protocol charger automatically turns off the screen when idle, conserving energy and extending screen life.
• Utilizes a DC-DC switching power supply chip, offering wide input voltage range and high efficiency.

Functional Operation:

Up/Enter/Back Key:
Short press to turn up a page or dial a number. Long press to enter or return. Note: The screen turns white on the first two pages when pressing this button.

Down/Clear/Confirm Key:
Short press to turn down a page or adjust a number. Long press to clear the power capacity, pause curves, and confirm or clear no-load current. Quickly press five times to lock/unlock display direction.

Frequently Asked Questions:

Question 1: Why is the product not displayed when plugged into the charger alone?

Answer: Many Type-C ports on chargers have no default voltage output. The product displays only when a load agreement is detected, activating voltage output from the charger.

Question 2: My charger is marked with 10A or 120W. Why can't the meter detect these levels?

Answer: The device measures real-time charging parameters. The markings on the charger indicate maximum potential output, which might not be reached constantly.

Question 3: Why does the output show a current of 0.01-0.02A with no load?

Answer: Due to bidirectional current detection, small no-load currents are normal. These can be cleared by pressing the function key quickly in the current clearing interface.

Package Includes:

• 1x Power Meter
