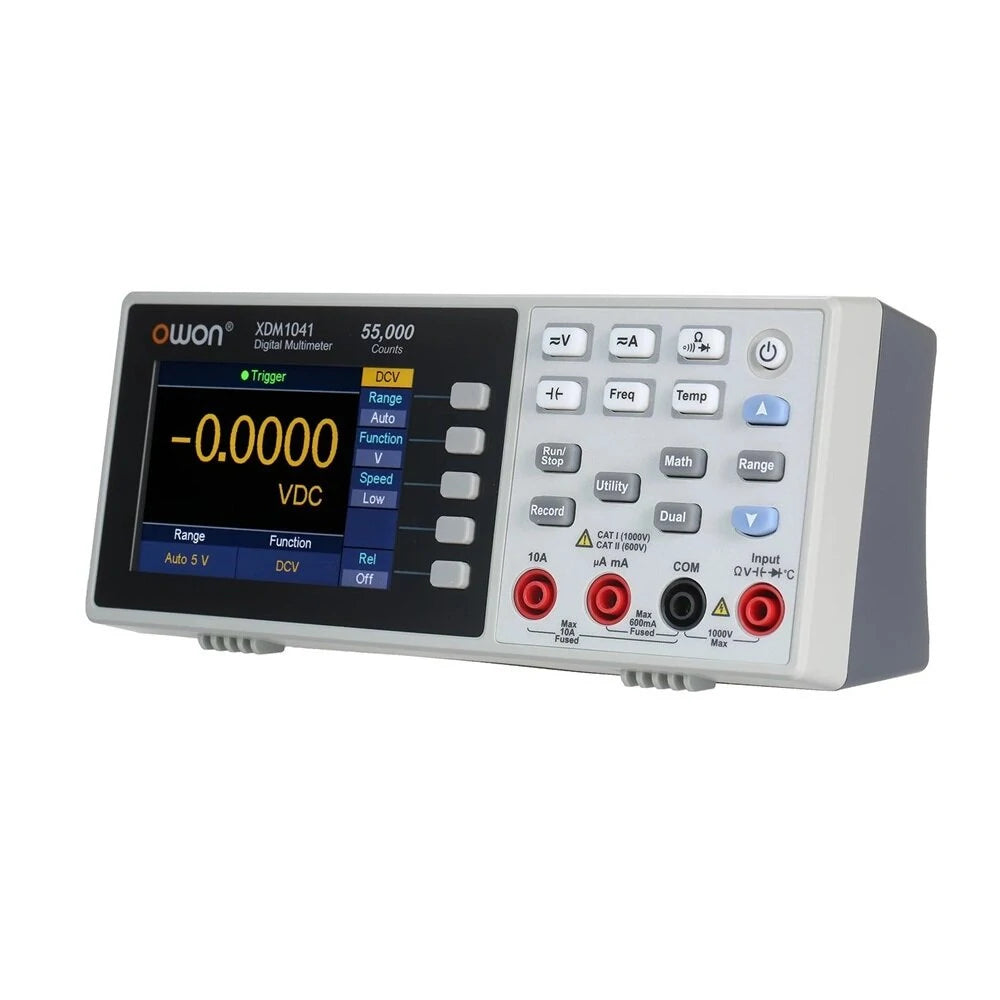

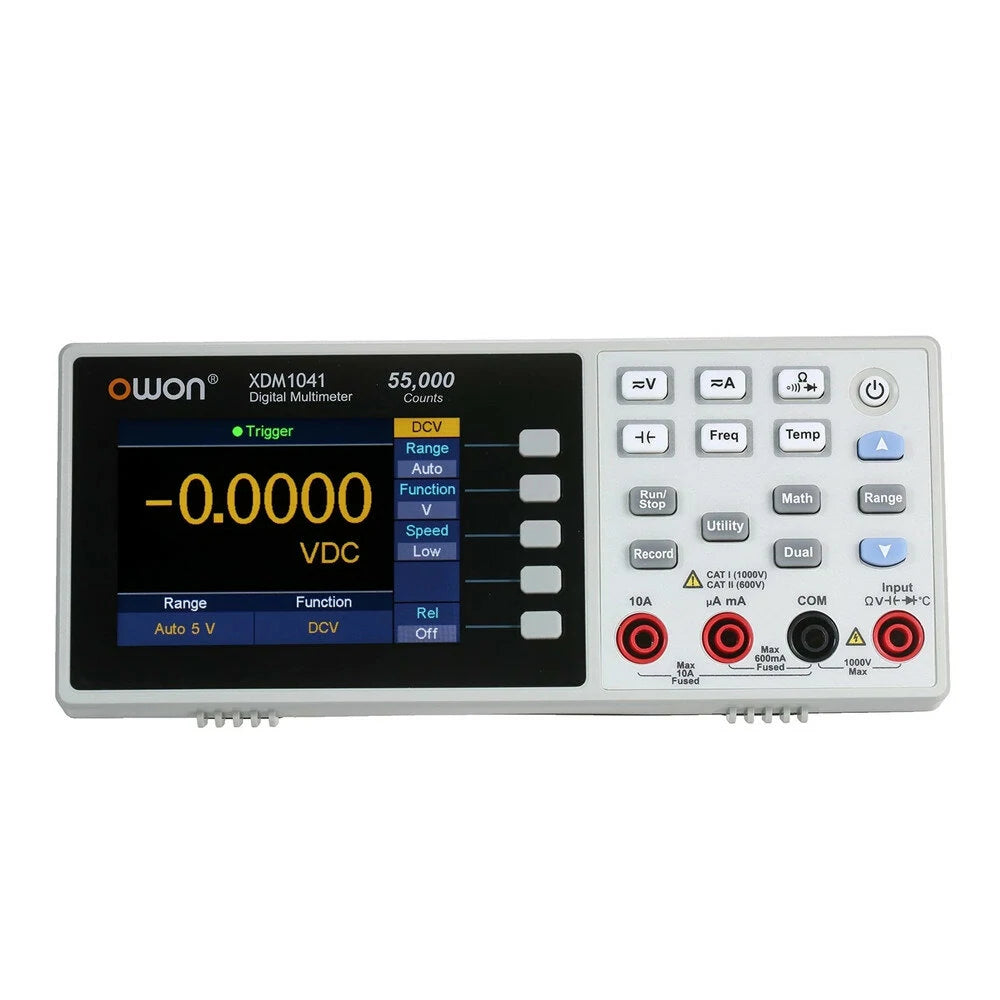

Owon XDM1041 High Accuracy USB Digital Multimeter, 55000 Counts, 3.5-inch TFT LCD

Owon XDM1041 High Accuracy USB Digital Multimeter, 55000 Counts, 3.5-inch TFT LCD

Regular price $113.99 USD
Regular price $0.00 USD Sale price $113.99 USD
Sale Sold out
Shipping calculated at checkout.
Plug

Shipping Icon Estimated Delivery: -

Features:

  • TFT LCD Screen: 3.5-inch 480x320 high-resolution screen with backlight. Displays up to 55,000 counts with DC voltage accuracy up to 0.05%. Dual line display for clarity and precision.
  • Fast Measurement: Capable of up to 65 readings per second, ensuring both speed and accuracy.
  • User-Friendly Interface: Easy-to-use table format to access, store, process, and manage your data.
  • Data Record Function: Supports manual and auto recording. Store up to 1,000 data points in internal storage, export to your computer for further analysis.
  • Temperature Measurement: Compatible with K-type temperature probes (not included).

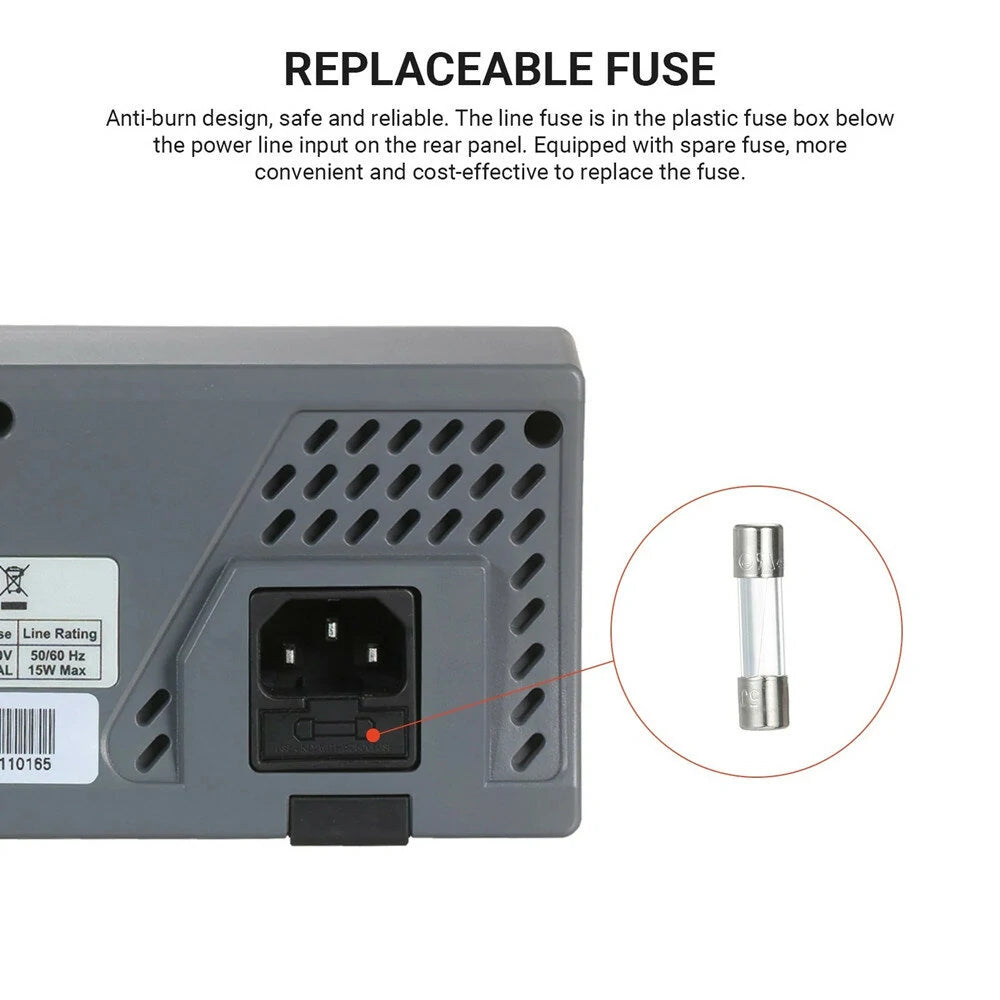

  • Replaceable Fuse: Features an anti-burn design. Includes a spare fuse for easy replacement.

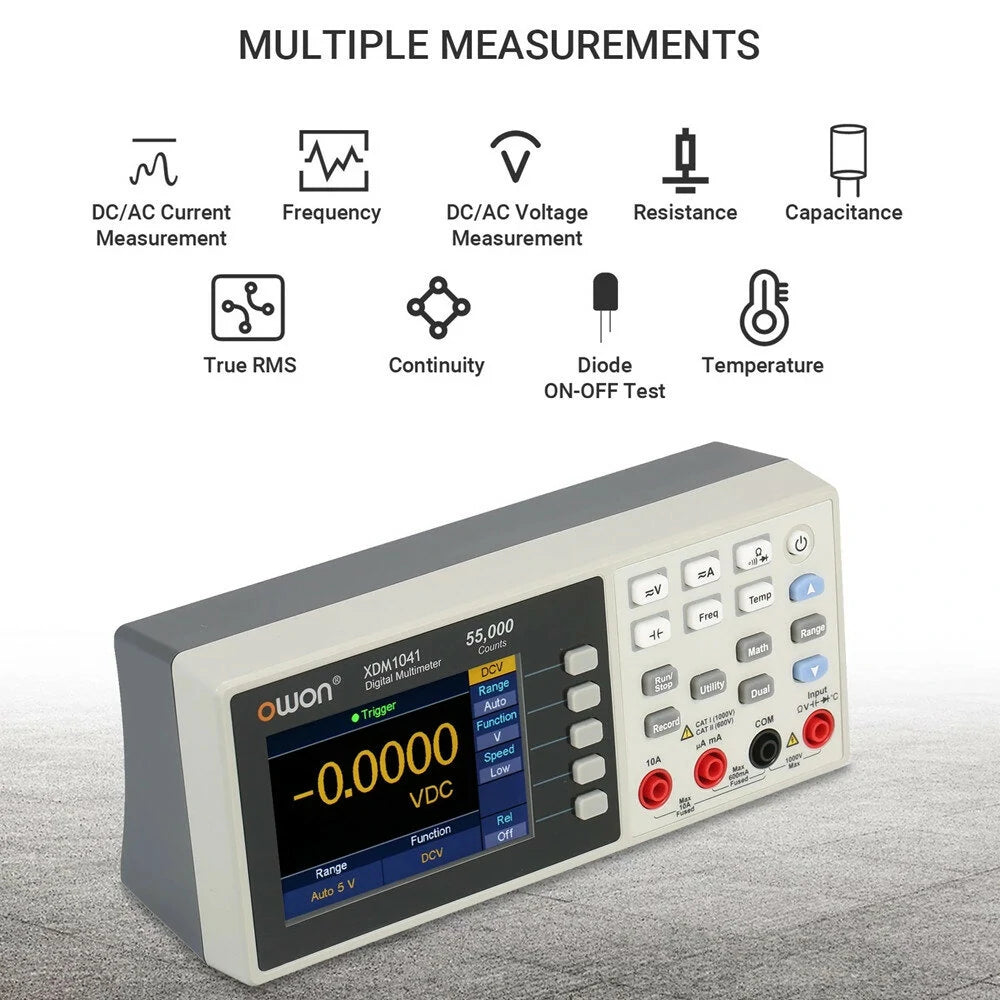

  • Multiple Measurements: DC/AC voltage and current measurement, frequency, resistance, capacitance, True RMS, diode and continuity tests, and temperature.

Specifications:

  • Material: ABS
  • Color: White
  • Plug: EU / US (Optional)
  • Display: 3.5-inch TFT LCD (480x320 resolution)
  • Max. Display: 55,000 counts
  • DC Voltage: 50mV~1000V
  • AC Voltage: 500mV~750V
  • DC Current: 500μA~10A
  • AC Current: 500μA~10A
  • Resistance: 500Ω~50MΩ
  • Frequency: 10Hz~60MHz
  • Capacitance: 50nF~50mF
  • Diode: 3.000V
  • Continuity: 1000Ω
  • Temperature: K type, PT100 (K-type probe not included)
  • Data Logging Duration: 15ms~9999.999s
  • Data Logging Length: 1,000 points
  • Warm-up Time: 30 minutes
  • Programmer Language: Standard SCPI, compatible with mainstream multimeters
  • Item Size: Approx. 20x8.8x6.5cm / 7.87x3.46x2.56in
  • Item Weight: Approx. 405g / 14.29oz
  • Package Size: Approx. 24.5x17x8cm / 9.65x6.69x3.15in
  • Package Weight: Approx. 869g / 30.65oz

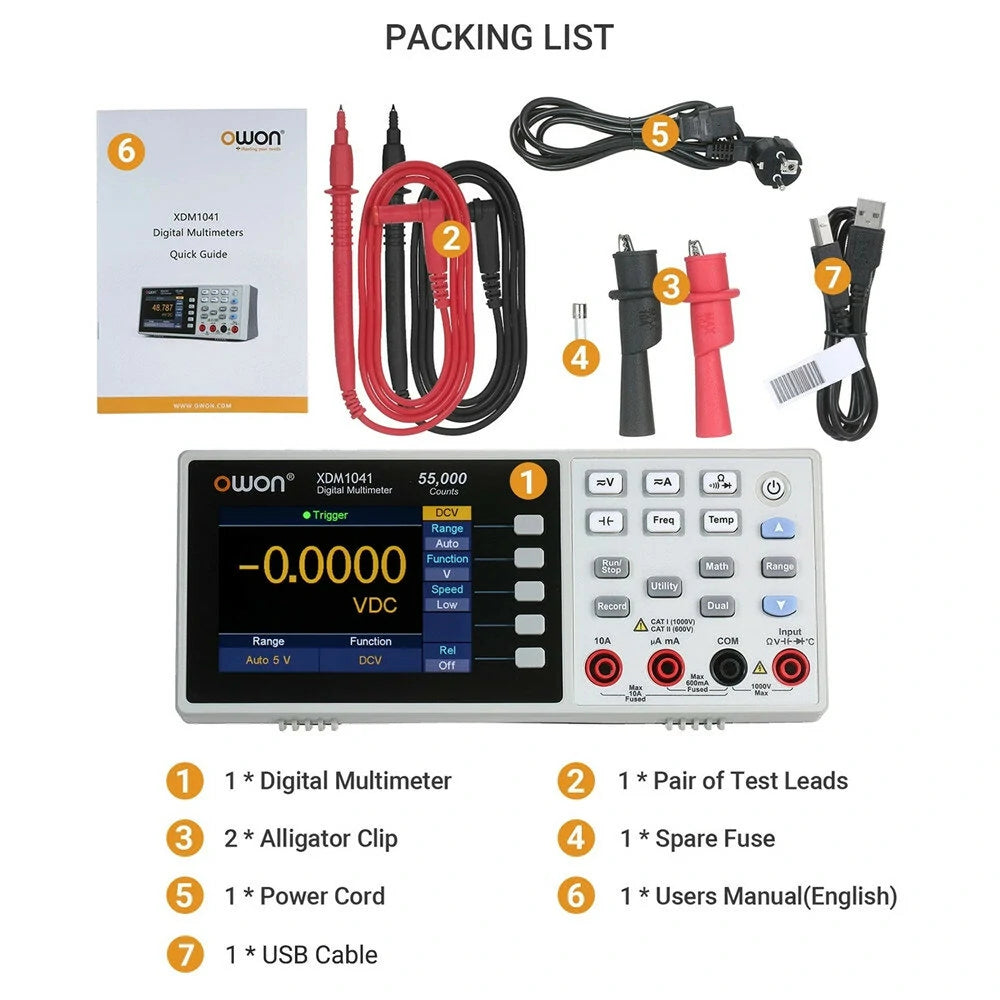

Package Includes:

  • 1 Digital Multimeter
  • 1 Pair of Test Leads
  • 2 Alligator Clips
  • 1 Spare Fuse
  • 1 Power Cord

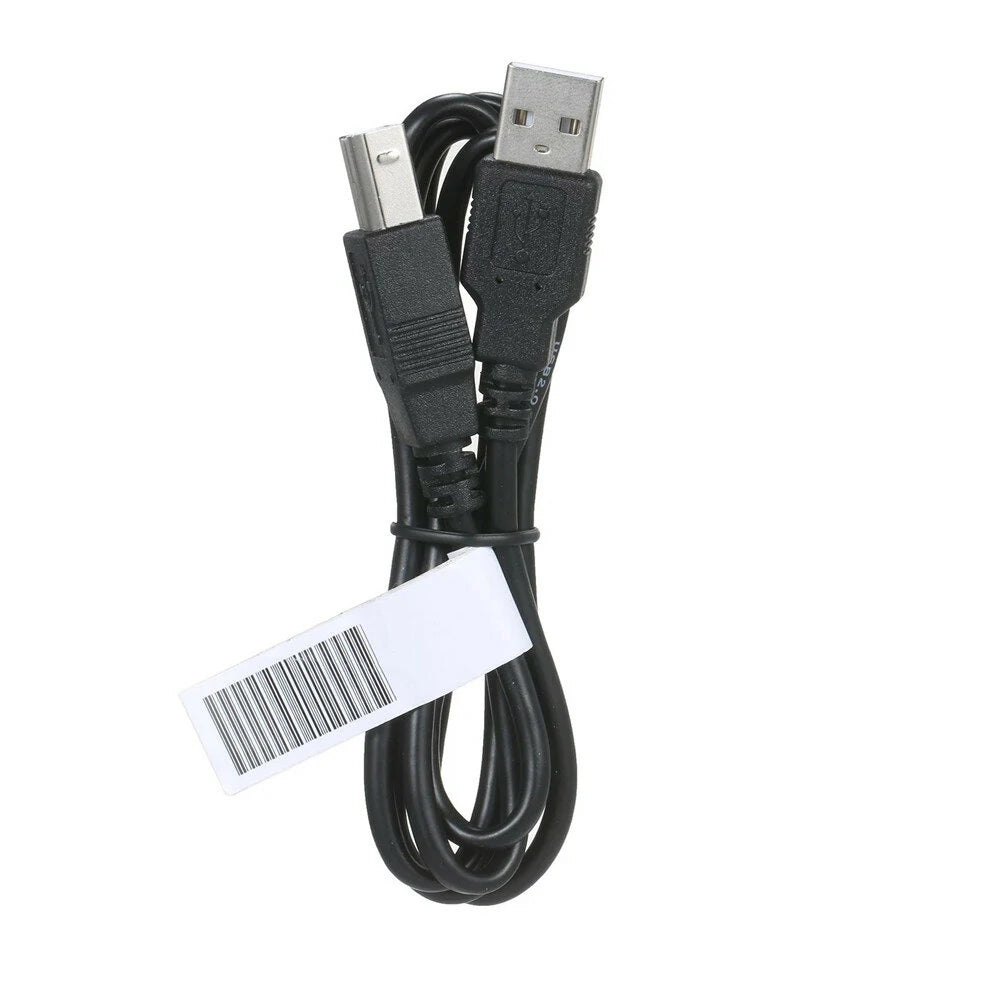

  • 1 USB Cable
  • 1 User Manual (English)

Please read the User Manual carefully to avoid injury and damage to this product.
