FLUKE 301 Series Mini Digital AC Clamp Meter (F301A / F301A+ / F301B / F301C / F301D)

$78.69 USD

~~$0.00 USD~~ $78.69 USD

Sale Sold out

Shipping calculated at checkout.

Model F301A F301A+ F301B F301C F301D

Estimated Delivery: -

FLUKE 301 Series Mini Digital Clamp Meter (F301A / F301A+ / F301B / F301C / F301D)

The FLUKE 301 Series pocket-sized AC clamp meter features an ultra-compact body and a slim 10mm jaw design, ideal for testing tightly packed wires in cramped electrical panels. Designed for portability, precision, and versatility.

Available Models

F301A
F301A+
F301B
F301C
F301D

Key Features

Lightweight & Portable: Weighs only 132g with a ultra-slim 16mm body, easily fitting into your pocket.
Slim Jaw Design: 10mm thin clamp jaws allow easy access to densely packed cables.
High Precision: Up to 400A AC range with high 0.01A resolution.
Multifunctional Testing: Measures AC/DC voltage, resistance, continuity, capacitance, frequency, and diode tests.

Specifications

AC Current (45-400 Hz)	40.00 A / 400.0 A (Resolution: 0.01 A / 0.1 A, Accuracy: ±2%)
AC Voltage (45-400 Hz)	600.0 V (Resolution: 0.1 V, Accuracy: ±1.5%)
DC Voltage	600.0 V (Resolution: 0.1 V, Accuracy: ±1%)
Resistance	600.0 Ω / 6.000 kΩ / 60.00 kΩ (Accuracy: ±1%)
Frequency Range	9.999 Hz to 99.99 kHz (Accuracy: ±0.1%)
Capacitance	9.999 µF / 99.99 µF / 999.9 µF (Accuracy: ±2% / ±5%)
Diode Test	3.000 V (Accuracy: ±10%)
Safety Rating	CAT III 300V

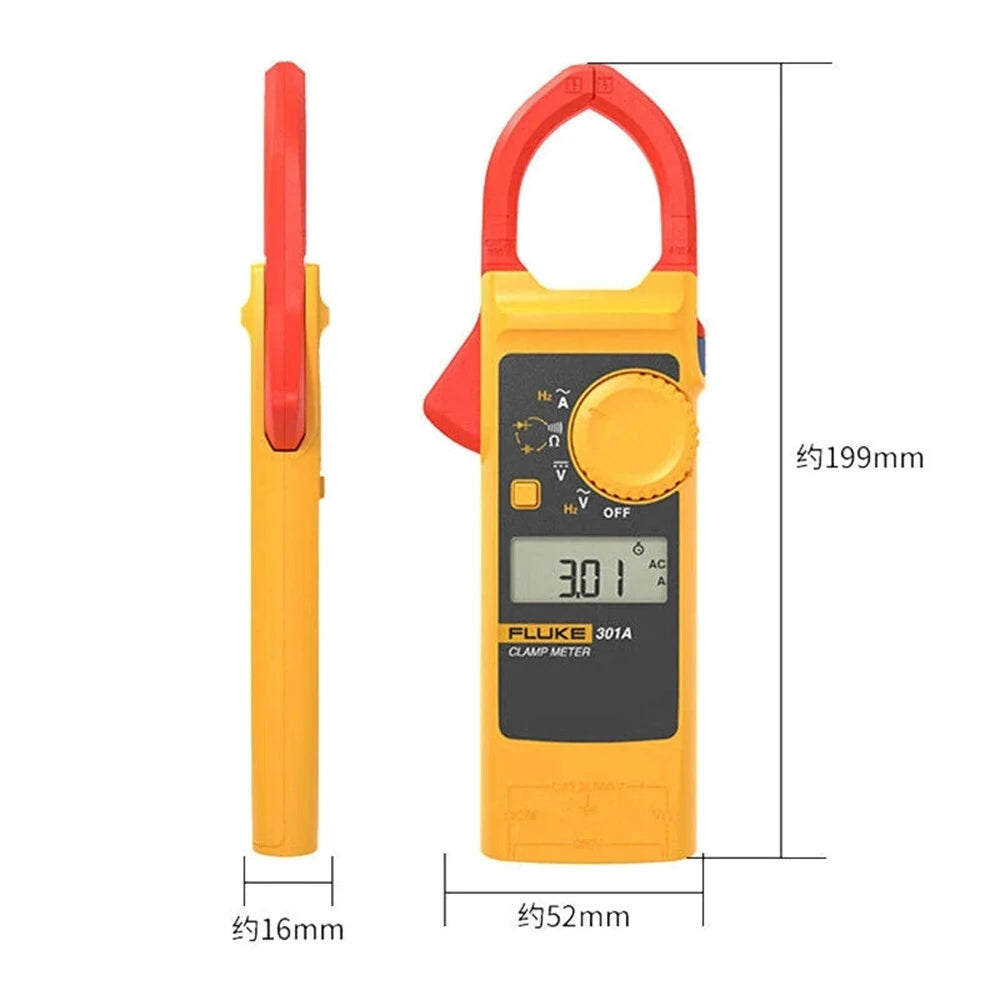

Dimensions & Weight	190 mm x 52 mm x 16 mm \| 132 g
Jaw Opening & Size	34 mm Opening \| 10 mm x 10 mm Clamp Arm
Power Supply	2 x AAA Batteries
Warranty	1 Year
