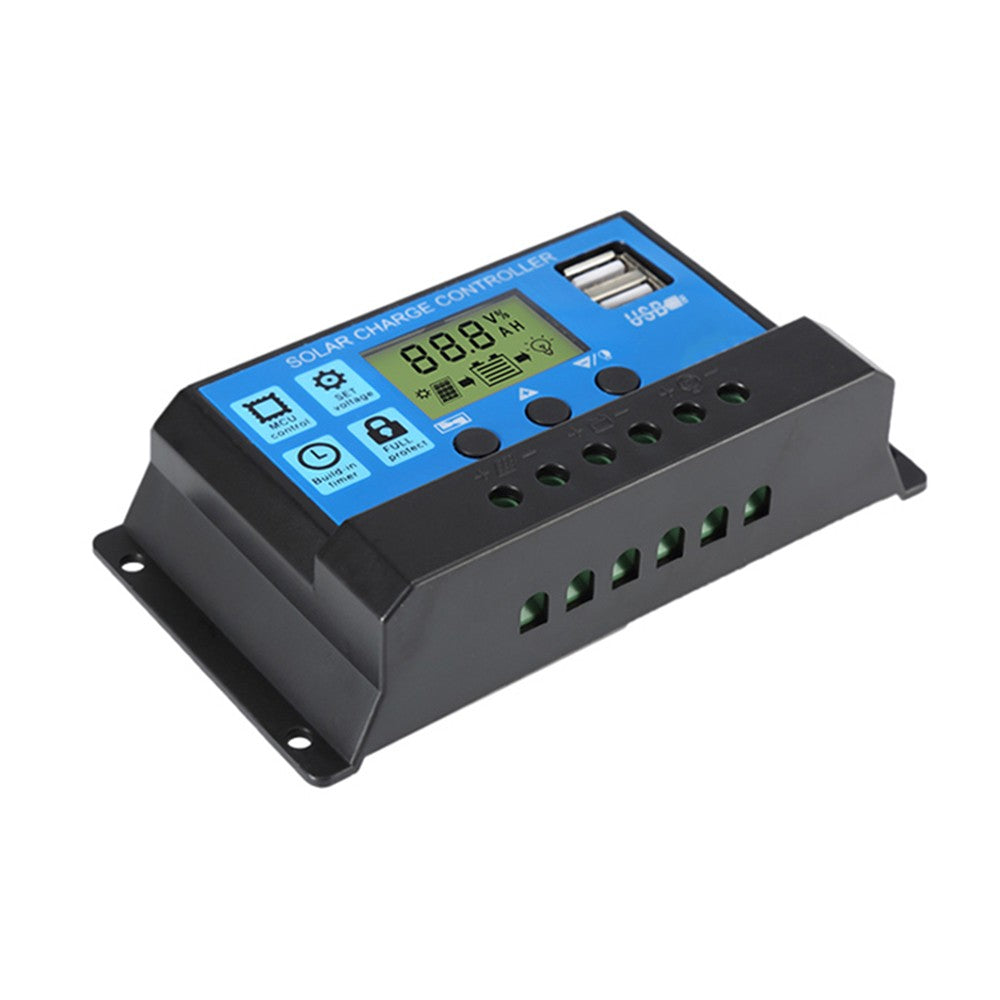

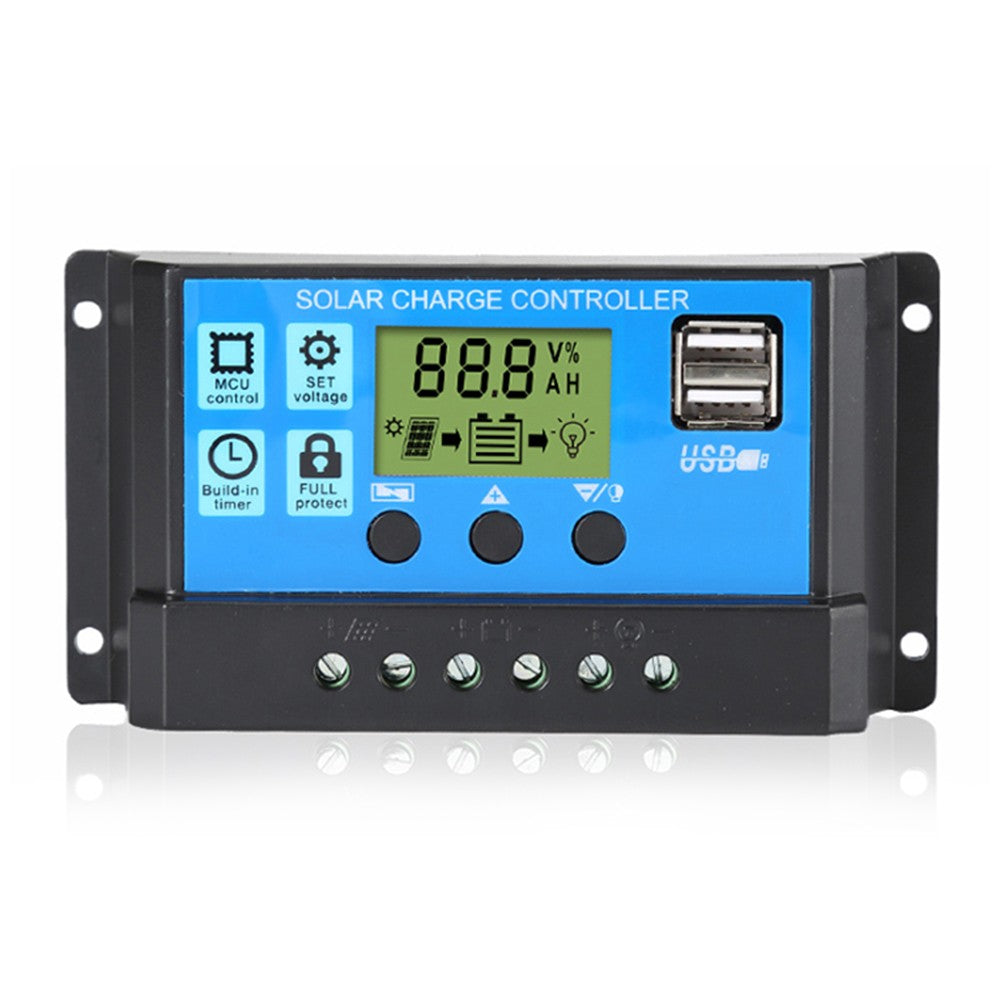

Solar Charge Controller

Features:

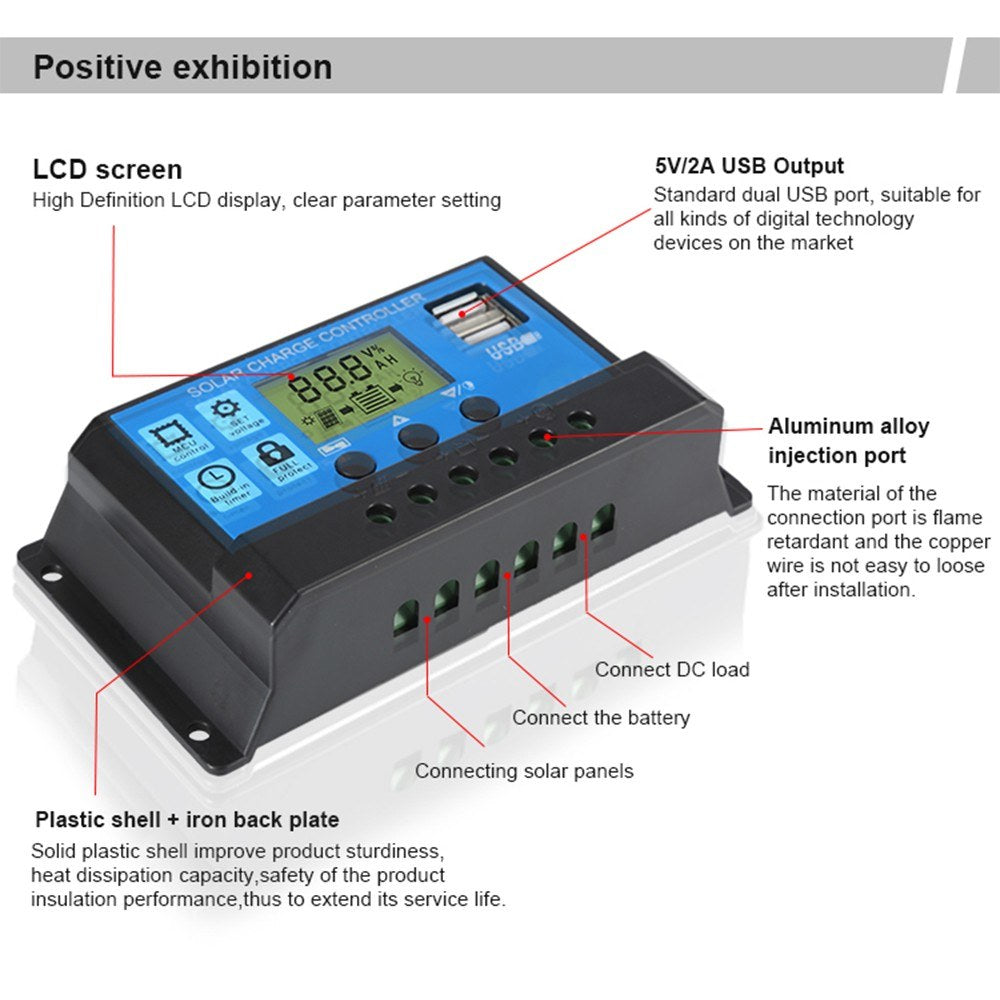

High-quality Solar Charge Controller: Our product is powered by an industrial-grade main control chip, ensuring efficient and reliable performance for your solar power system. The large LCD display allows for easy adjustment of charging and discharging parameters to suit your needs.

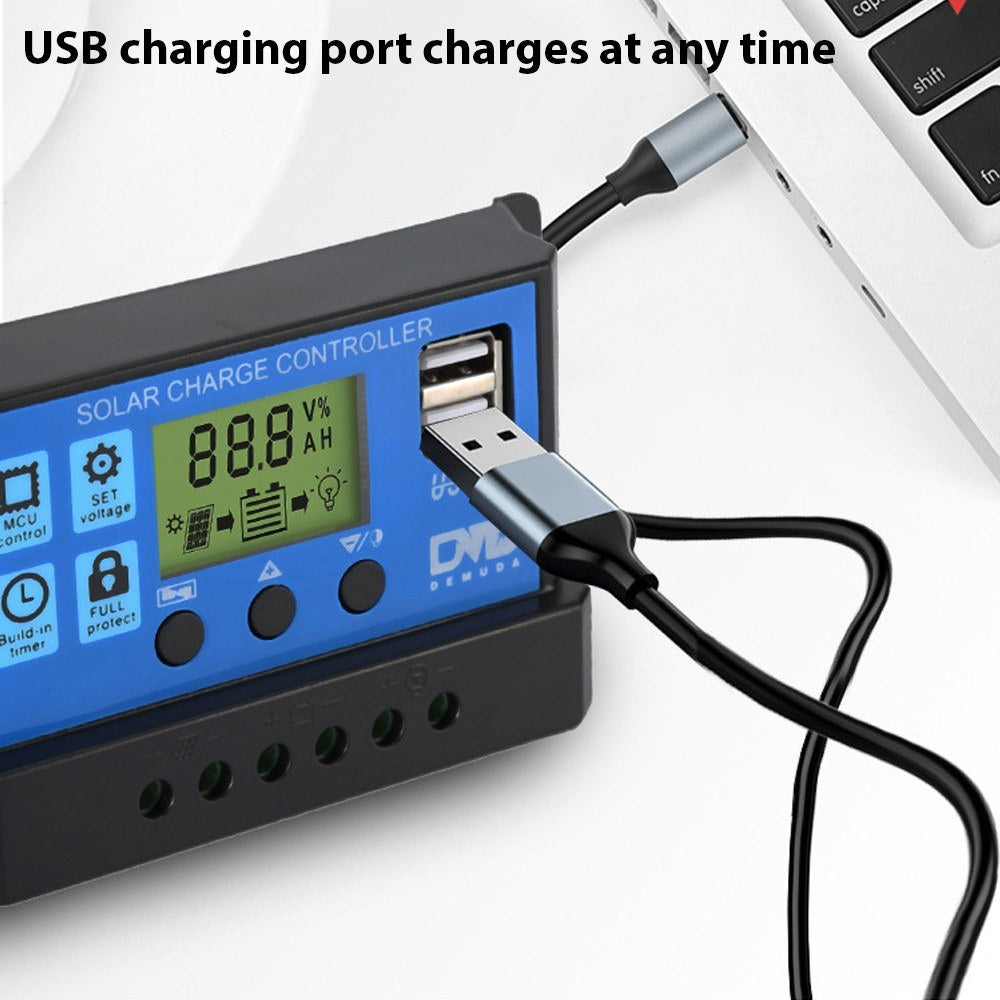

Versatile Compatibility: With standard double USB ports, this solar charge controller is compatible with numerous digital devices that require a USB interface. Charge smartphones, tablets, and other gadgets conveniently and reliably.

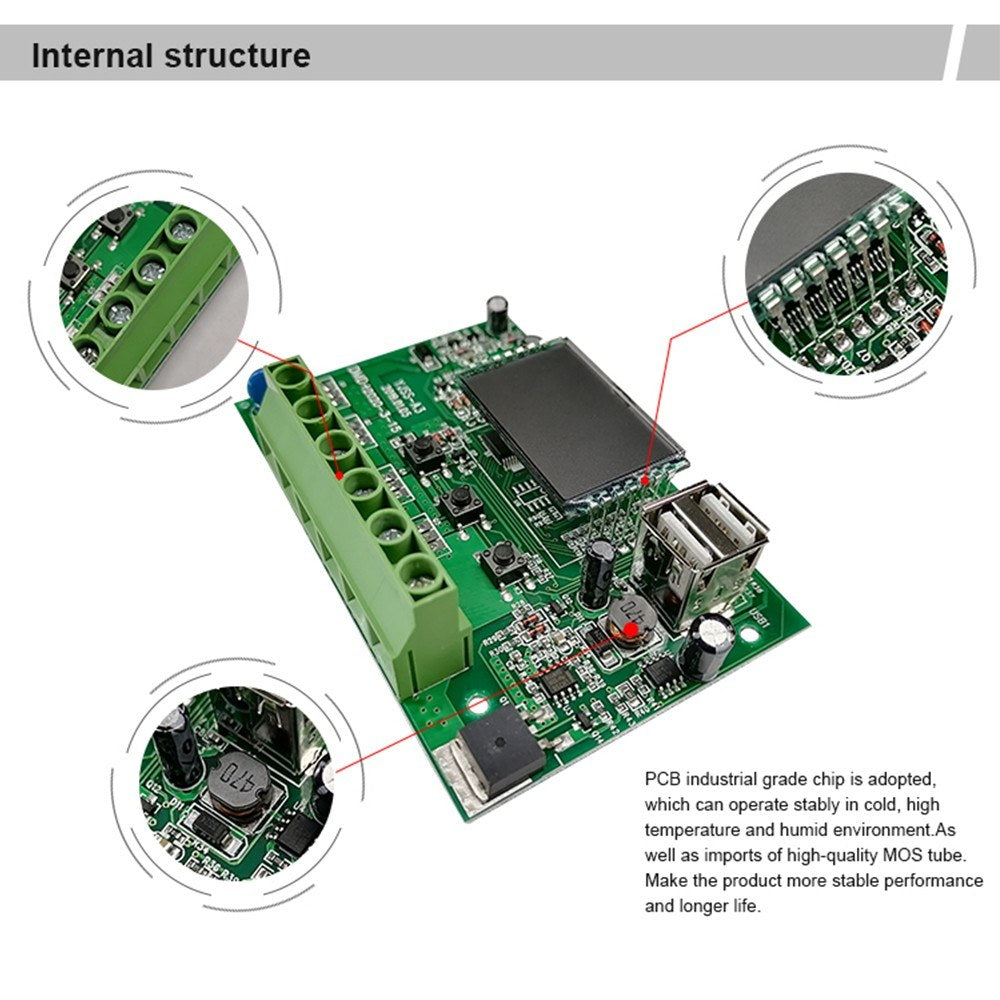

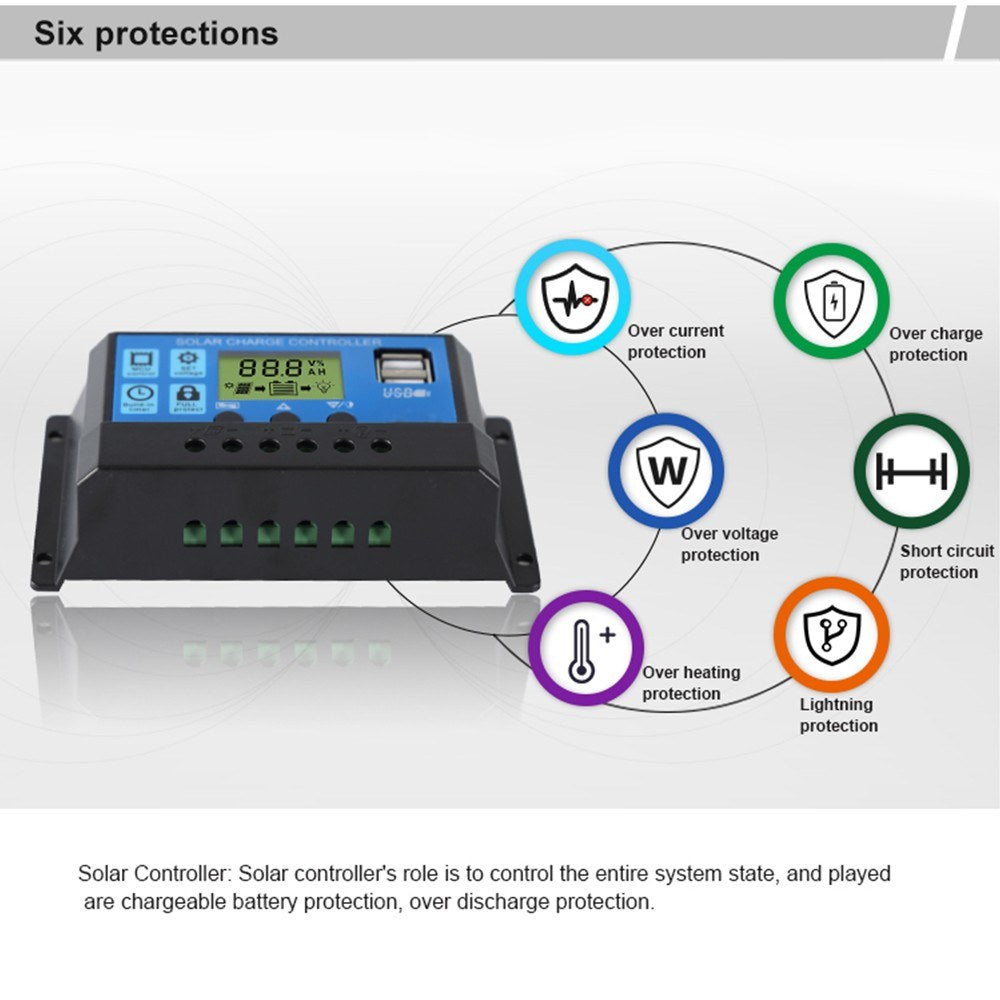

Robust and Durable Design: Crafted with a sturdy plastic casing, our charge controller enhances durability, heat dissipation, and safety insulation. High-quality wiring terminals ensure secure connections, and the built-in protections—overcurrent, short circuit, open circuit, and reverse connection—are self-recovering, guaranteeing long-lasting performance.

Intelligent and Efficient Charging Management: The solar charge controller incorporates a complete 3-stage PWM charging management system for optimal battery efficiency. With a light control delay mode for added convenience and a dual MOS anti-backflow circuit, enjoy extremely low heat generation.

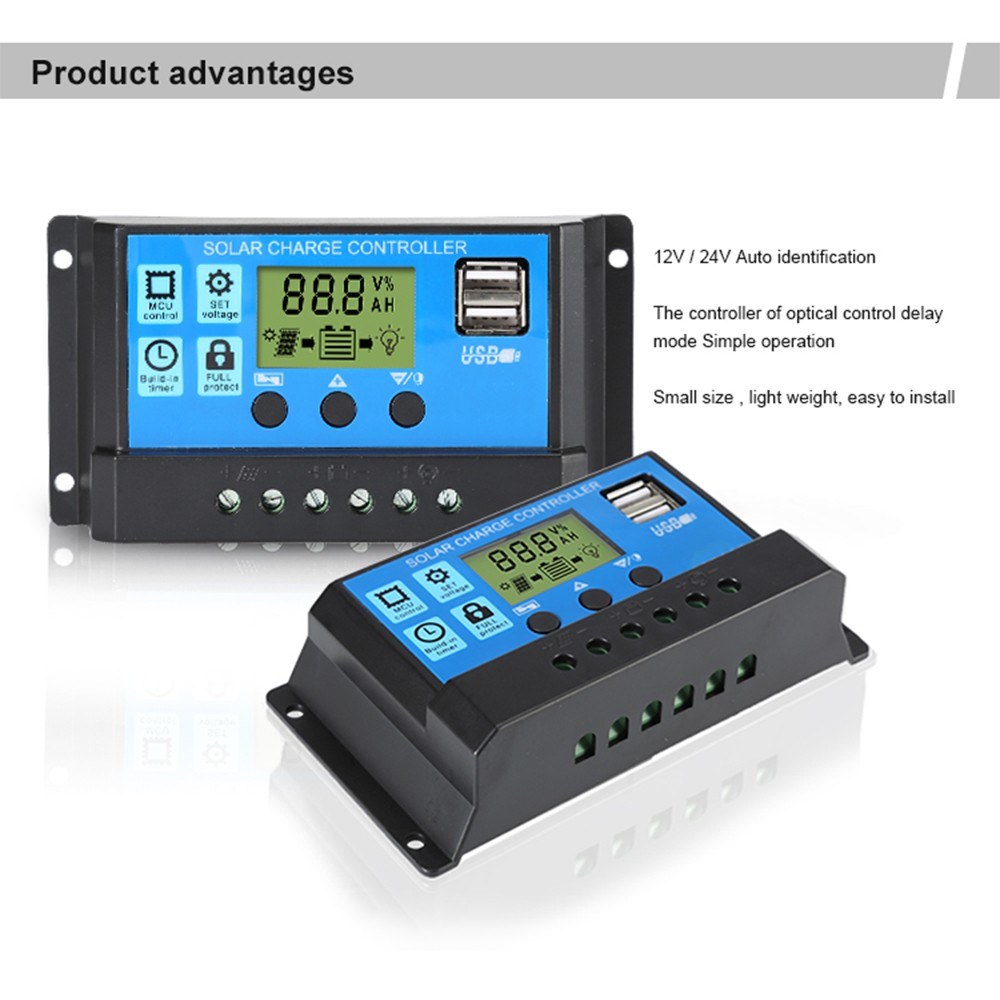

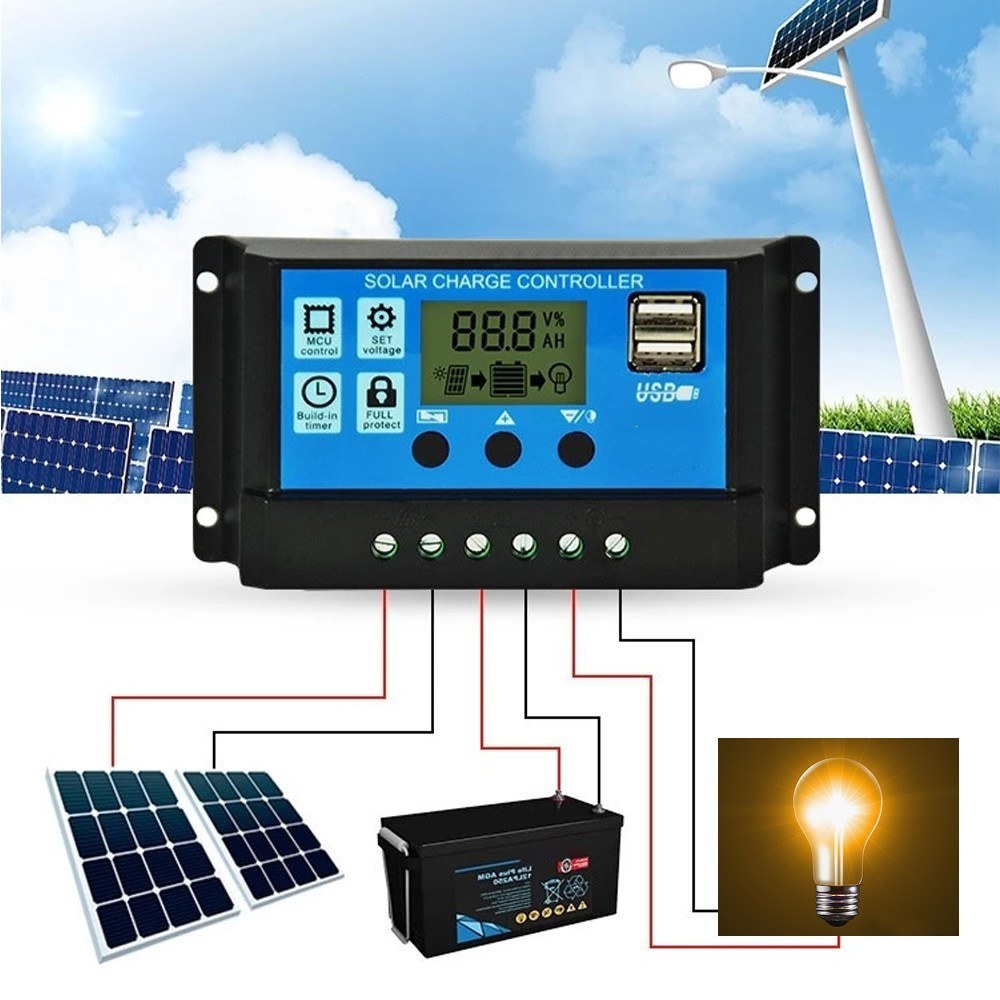

Wide Range of Applications: Suitable for solar power systems, smart homes, solar-powered devices, and more, this controller automatically recognizes 12V/24V system voltages for versatile usage. Its one-click operation allows hassle-free use, automatically disconnecting when fully charged and storing data for future reference.

Specifications:

• System Voltage: 12V and 24V automatic identification
• Rated Charging Current: 30A
• Rated Discharge Current: 10A
• Maximum Voltage: 12V system <23V/24V system <46V
• Float Charging Voltage: 13.7V (adjustable range 12.7-15V)
• Discharge Recovery Voltage: 12.6V
• Standby Current: ≤ 10mA
• USB Output: 5V 2A max
• Working Temperature: -35~+60 °C
• Package Weight: 160g / 5.6oz
• Package Size: 13.3 x 7 x 3.5cm / 5.2 x 2.8 x 1.4inch

Note:

1. Ensure your battery has sufficient voltage for the controller to identify the battery type before the initial installation.
2. Install the controller close to the battery to prevent voltage drops caused by excessive wiring length, which could affect voltage judgment.
3. This controller is designed for lead-acid batteries only (including open, sealed, and colloidal types). Do not use it for other batteries such as NiMH or lithium.
4. Use photovoltaic panels as the charging power source—do not apply DC or other power sources.

Packing List:

• 1 x Solar Controller
• 1 x Instructions
