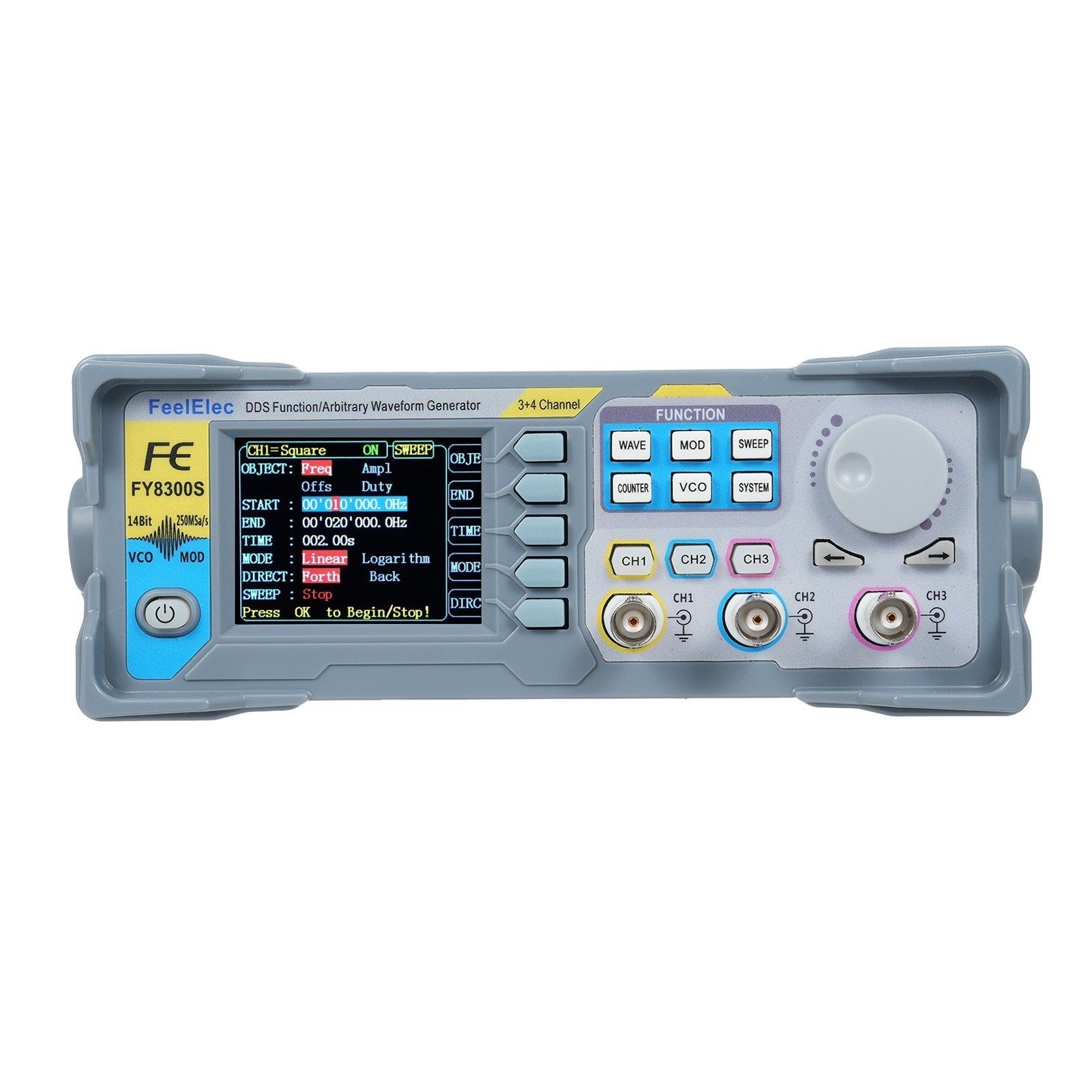

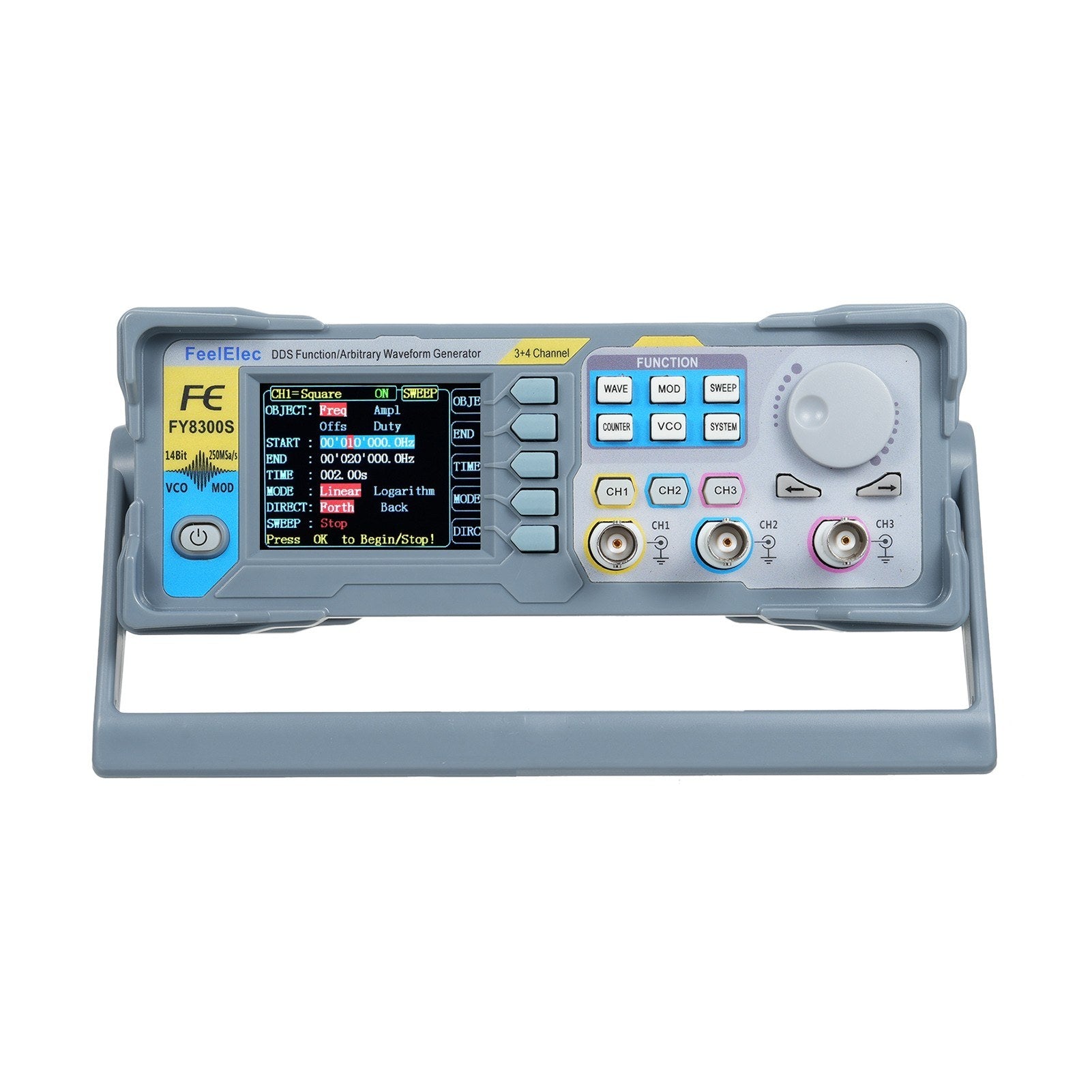

FeelElec FY8300S-20M 20MHz 3-Channel Function/Arbitrary Waveform Signal Generator with 4 TTL Outputs & DC Bias

Introducing the FY8300S Series Dual-Channel Function/Arbitrary Waveform Generator

The FY8300S series is a high-performance, cost-effective signal generator that combines versatility with precision. Perfect for electronic enthusiasts, scientific research institutions, and high-tech enterprises, this generator is an essential tool in fields such as automotive repair and beyond.

Features:

• Versatile Functionality: Access 98 groups of functions and waveforms, tailored for both preset and custom needs, fulfilling diverse waveform requirements.
• Accurate Output Signals: Employing direct digital synthesis (DDS) technology, the generator ensures stable, low-distortion signals for precise measurements.
• Enhanced Operability: Streamline operations with intuitive keyboard shortcuts and software control, enhancing overall user experience.
• All-in-One Utility: The FY8300S series acts as a function generator, arbitrary waveform generator, VCO, and more, offering comprehensive functionality.
• Advanced Measurement: Featuring a 100M frequency meter function with a variety of measurement methods, it enables thorough analysis.

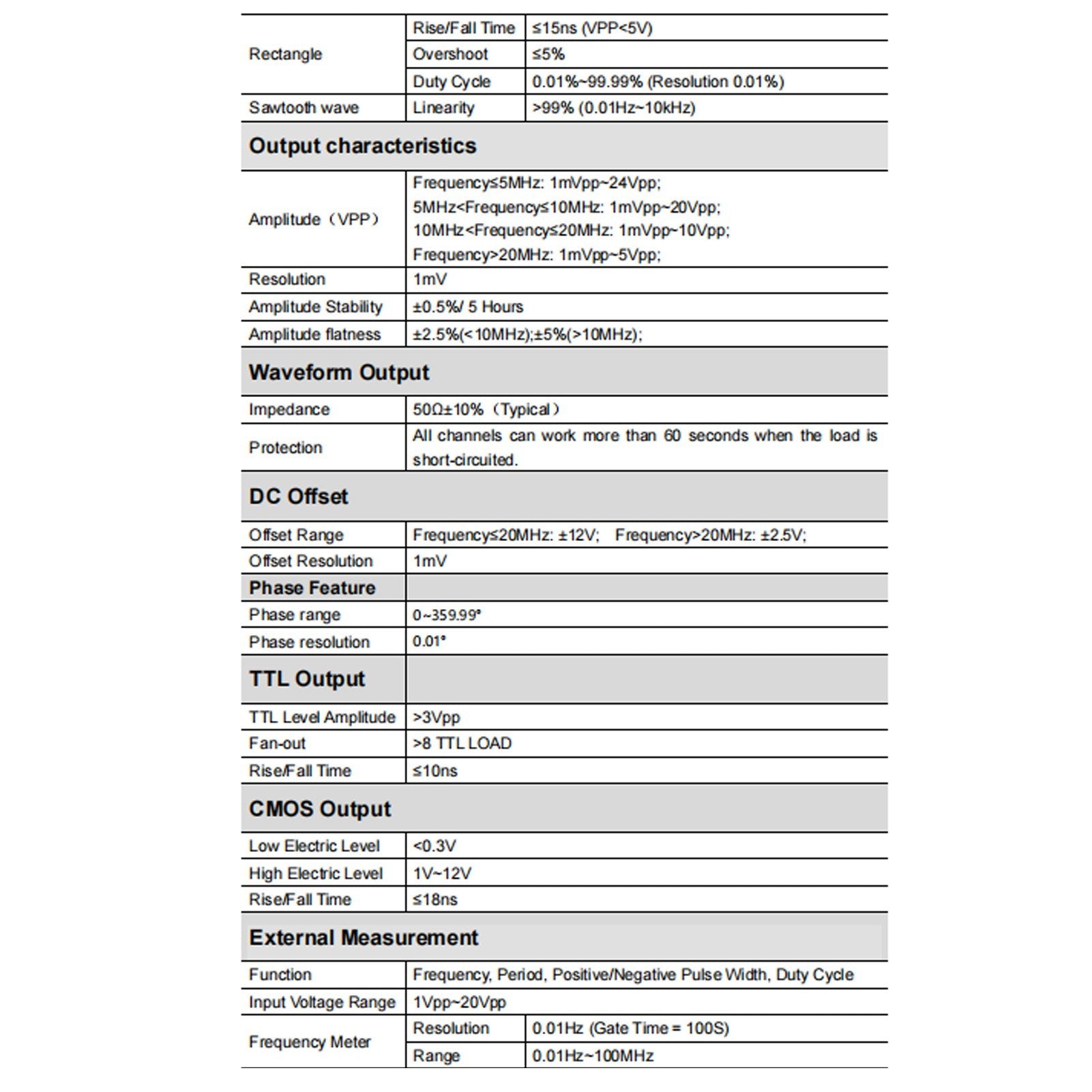

Specifications:

• Plug Options: EU / US / UK / AU
• Model: FY8300S-20M
• Material: ABS

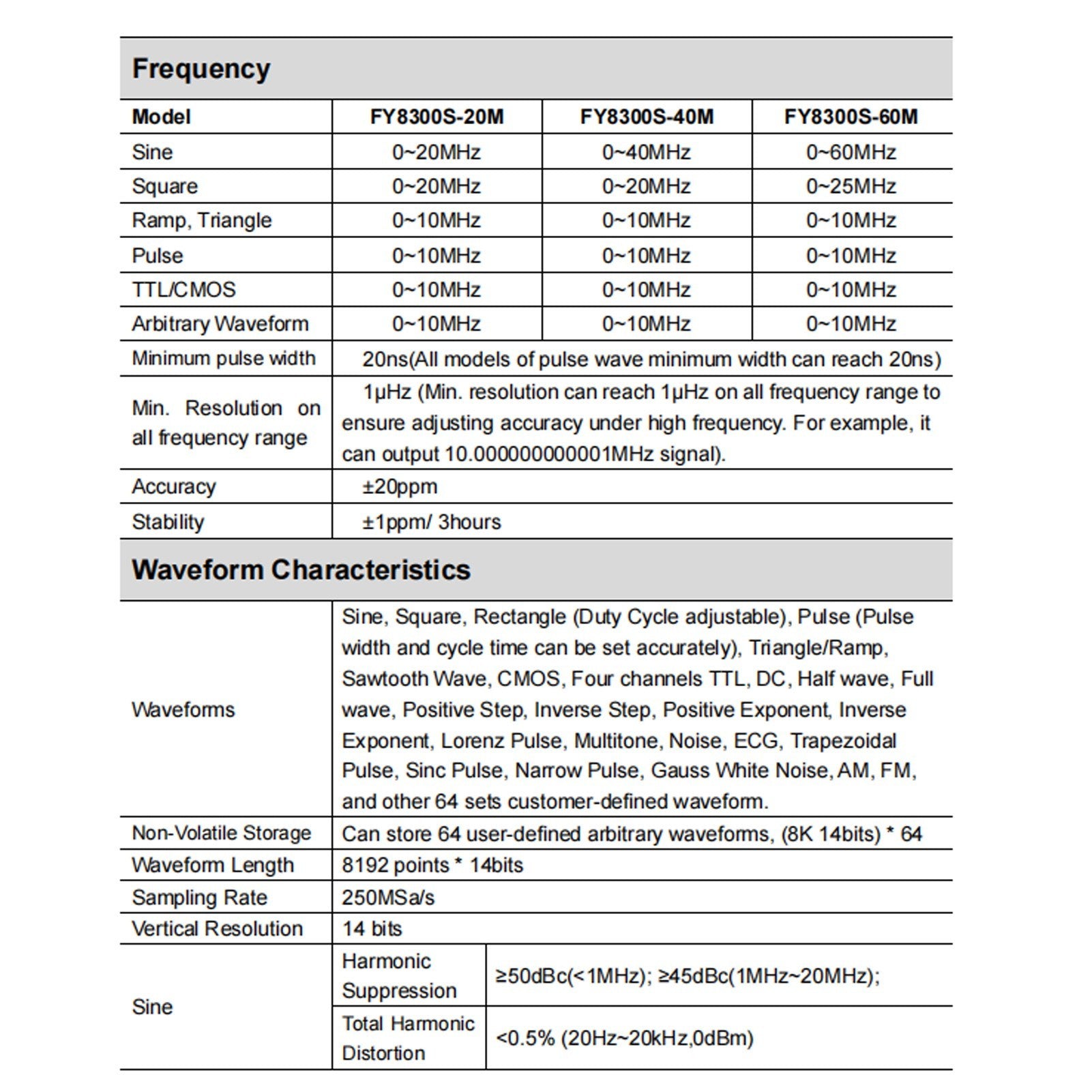

• Sine: 0~20MHz
• Square: 0~20MHz
• Ramp, Triangle: 0~10MHz
• Pulse: 0~10MHz
• TTL/CMOS: 0~10MHz
• Arbitrary Waveform: 0~10MHz
• Minimum Pulse Width: 20ns
• Min. Resolution Across All Frequencies: 1μHz
• Accuracy: ±20ppm
• Stability: ±1ppm/3 hours

Waveform Characteristics:

• Waveforms: Sine, Square, Rectangle, Pulse, Triangle/Ramp, Sawtooth, CMOS, TTL, DC, and more.
• Non-Volatile Storage for 64 user-defined arbitrary waveforms.
• Waveform Length: 8192 points * 14 bits
• Sampling Rate: 250MSa/s
• Vertical Resolution: 14 bits
• Sine Harmonic Suppression: ≥50dBc; Total Harmonic Distortion: <0.5%
• Rectangle Rise/Fall Time: ≤15ns; Duty Cycle: 0.01%~99.99%
• Sawtooth Linearity: >995

Display and Interface:

• 2.4-inch TFT Color Display
• USB to Serial Interface with 115200bps communication speed

Power and Technical Details:

• Voltage Range: AC 100V~240V
• Technics: SMD, LSI; Reliable and Durable
• Operating Temperature: 0~40℃, Humidity: <80%

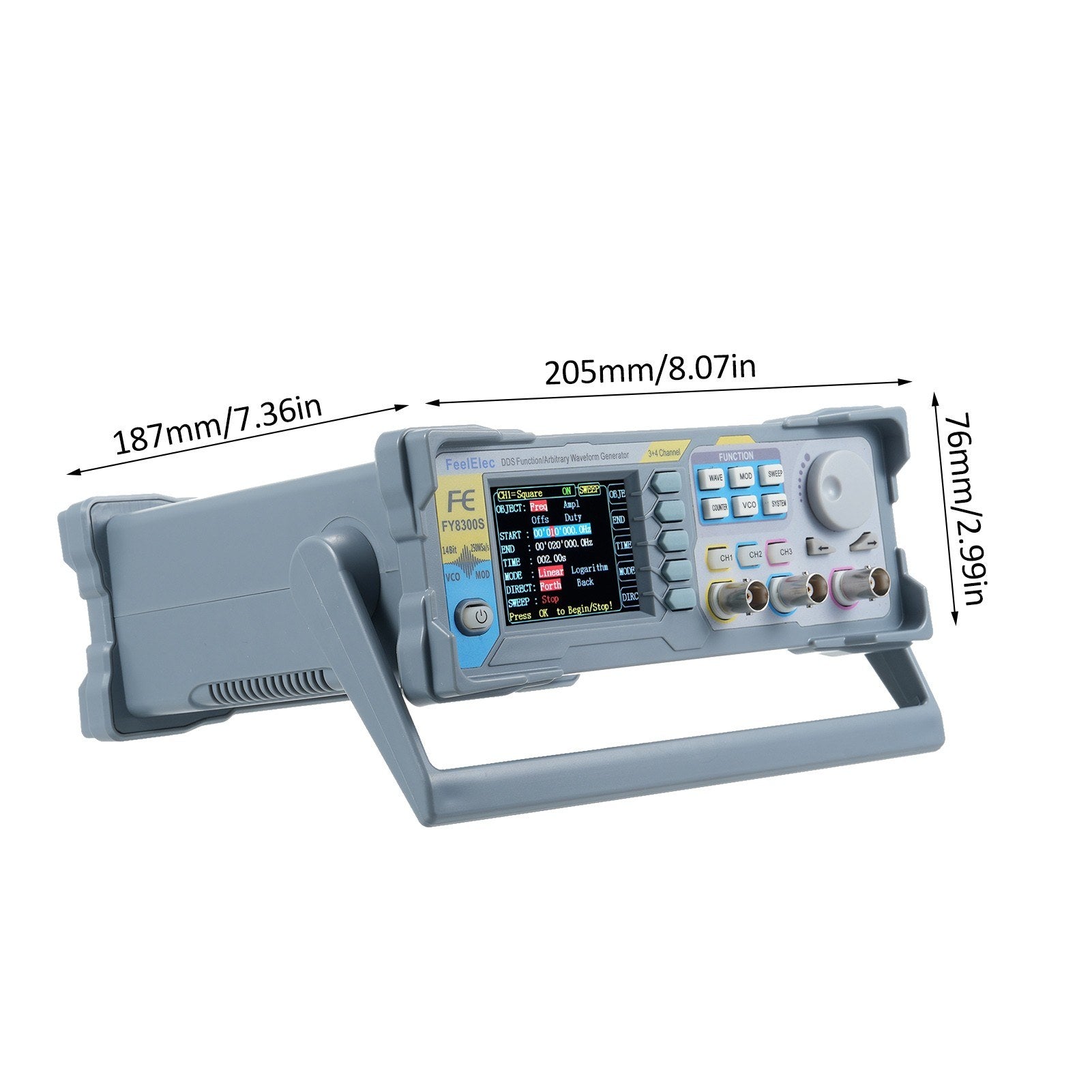

• Dimensions: 205 * 187 * 76mm
• Weight: 621g
• Package Weight: 1207g
• Package Size: 27.5 * 21 * 9.5cm

Package Includes:

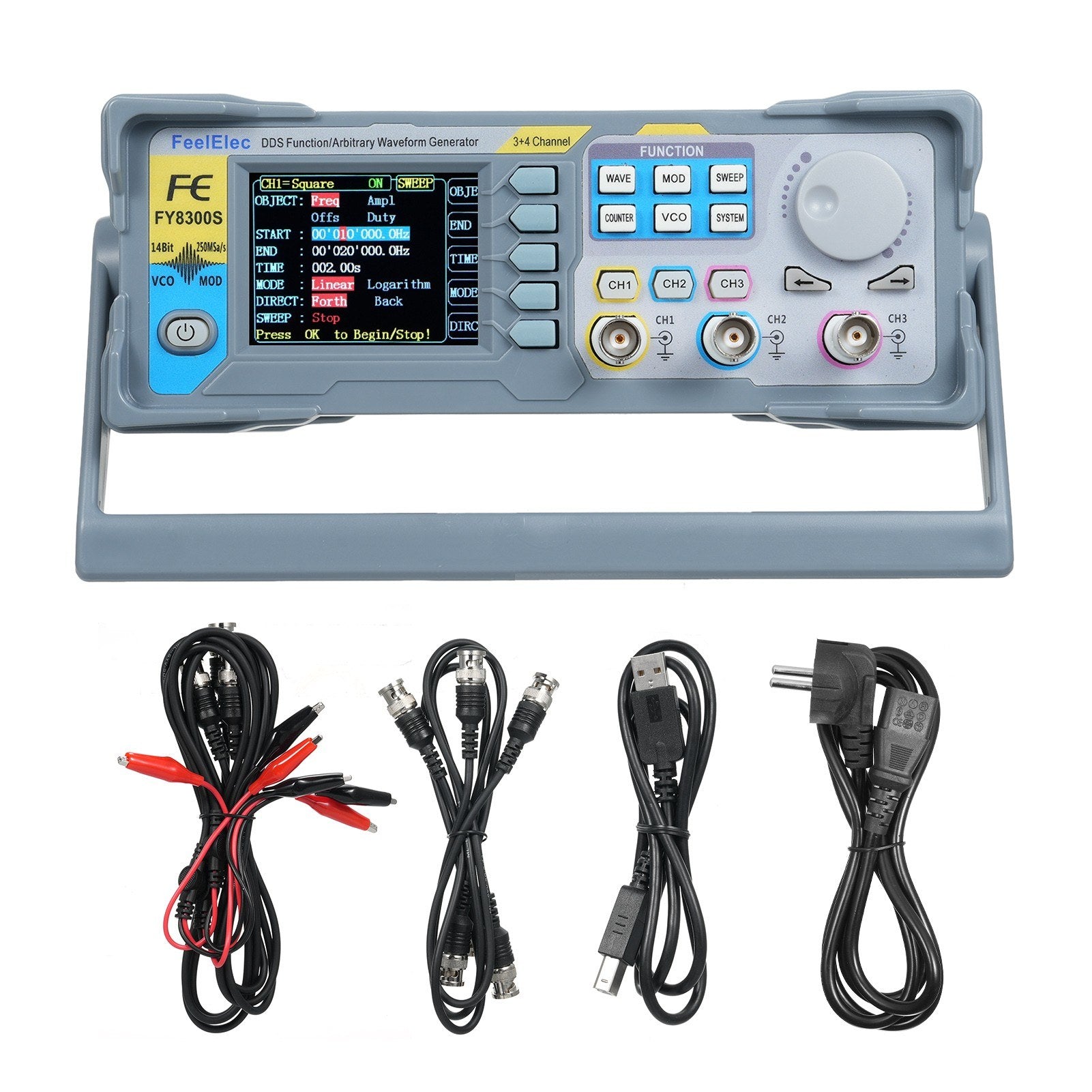

• 1 Signal Generator
• 1 Power Cord
• 1 USB Data Cable
• 1 BNC-BNC Cable
• 3 Q9 Clip Cables
