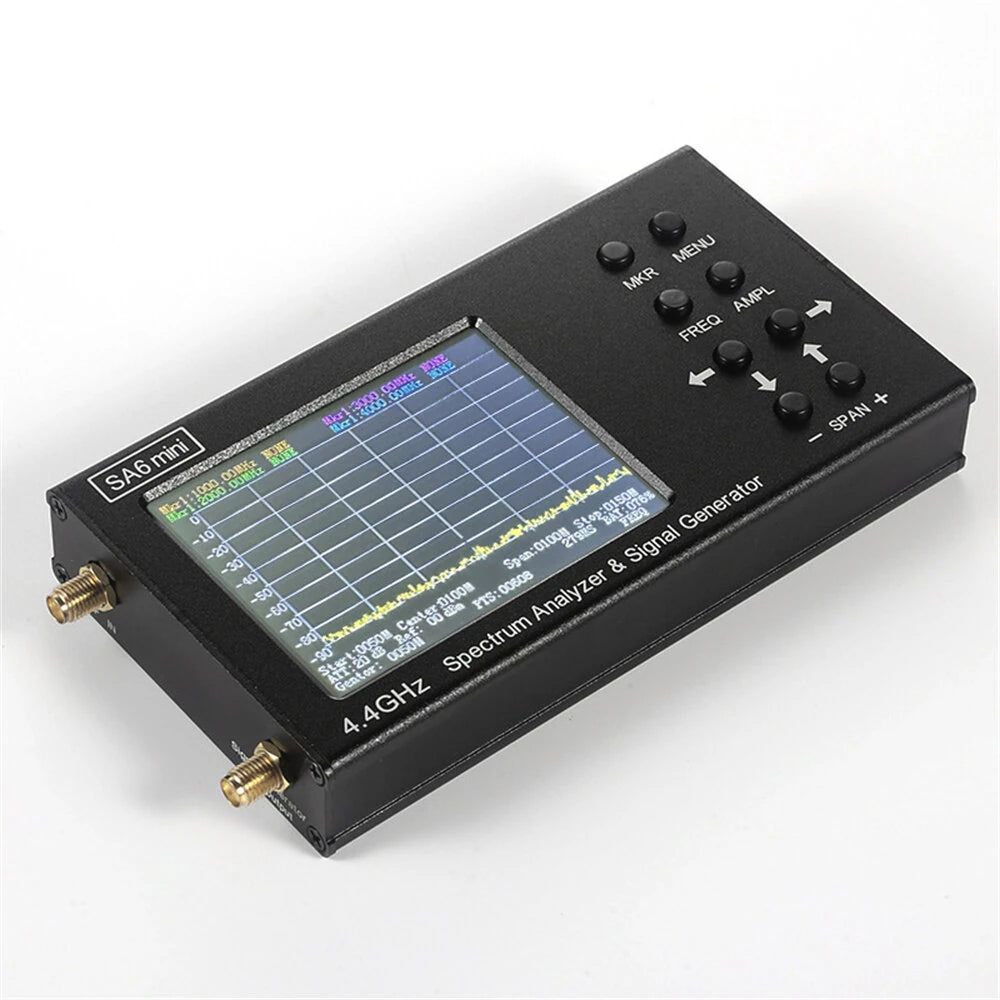

SA6 Mini Spectrum Analyzer 35-4400MHz Signal Tester, Fast Scan, 75dB Range, 4355MHz Bandwidth, 3000mAh Battery

Specifications:

• Model: SA6 Mini
• Frequency Range Displayed: 35-4400MHz
• Measurement Frequency Range: 45-4400MHz
• Dynamic Range (45-3000MHz): 75dB
• Dynamic Range (3000-4400MHz): 70dB
• Maximum Bandwidth: 4355 MHz
• Intermediate Frequency Bandwidth: 200 kHz (fixed)
• Scanning Speed (>100MHz): 600MHz/s
• Minimum Detectable Signal Duration (10MHz Span): 20ms
• Input Impedance: 50 ohms
• Internal Attenuator: 0-30dB
• Up to 10dB: ±2dB
• 10-20dB: ±5dB
• 20-30dB: ±8dB
• Built-in Tracking Generator Frequency Range: 35-6200MHz
• Tracking Generator Output Power: -15 to -25dBm
• Signal Display Accuracy within Dynamic Range: ±2dB

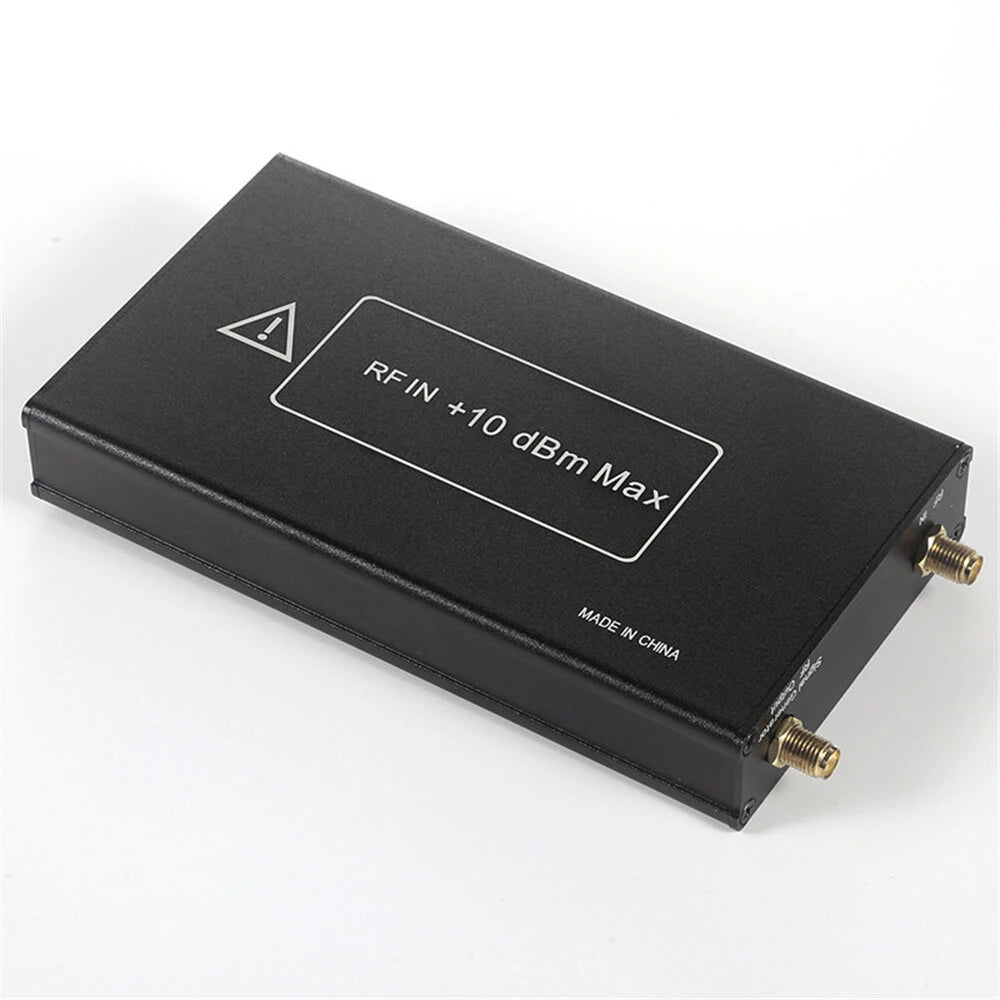

• Maximum Input Power (0dB Attenuator): +10dBm
• Maximum Input Power (>20dB Attenuator): +20dBm
• Maximum RF Input DC Voltage: 5V
• Battery Capacity: 3000mAh
• Continuous Operation Time: 3 hours
• Battery Charging Time: ~4 hours
• Dimensions: 155 x 81 x 27mm
• Weight: 0.49kg

Features:

• Wide Frequency Range: Covers 35-4400MHz for comprehensive signal testing and analysis.
• Fast Scanning Speed: Over 600MHz/s scanning speed for efficient signal detection.
• High Dynamic Range: Provides 75dB dynamic range up to 3000MHz and 70dB for 3000-4400MHz.
• Built-in Tracking Generator: Enables detailed signal tracing and analysis up to 6200MHz.
• Portable Design: Compact dimensions and lightweight make it ideal for field testing.

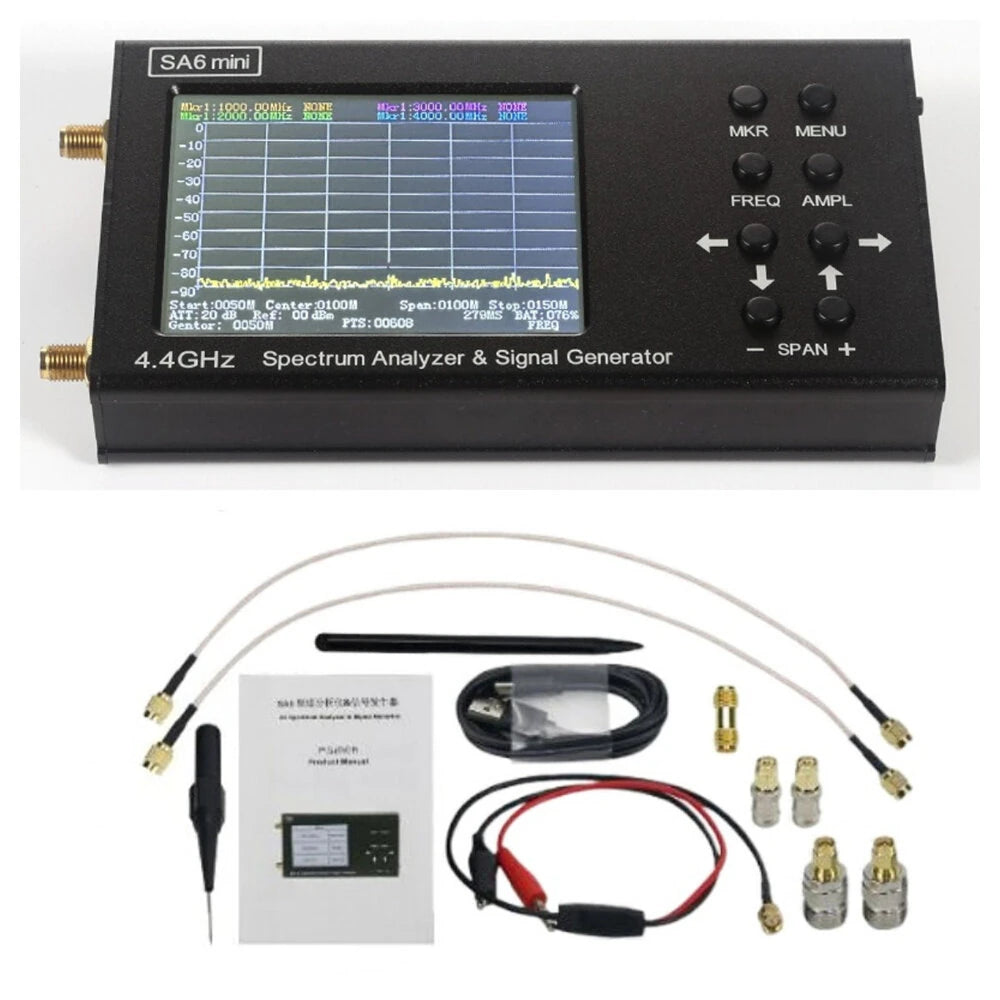

Package Included:

Type A:

• 1 x SA6 Mini Spectrum Analyzer
• 1 x USB Cable
• 1 x SMA Male to SMA Male Adapter
• 1 x User Manual Support Guide

Type B:

• 1 x SA6 Mini Spectrum Analyzer
• 2 x SMA-SMA Extension Cable
• 1 x Stylus
• 1 x SMA-KK Passed
• 1 x USB Cable
• 1 x SMA Male to SMA Male Adapter
• 1 x User Manual Support Guide
