TL631 PRO Universal Laptop Motherboard Diagnostic Tester - PCI, PCI-E, Mini LPC Debug Analyzer Card

Discover the TL631 PRO Diagnose Card

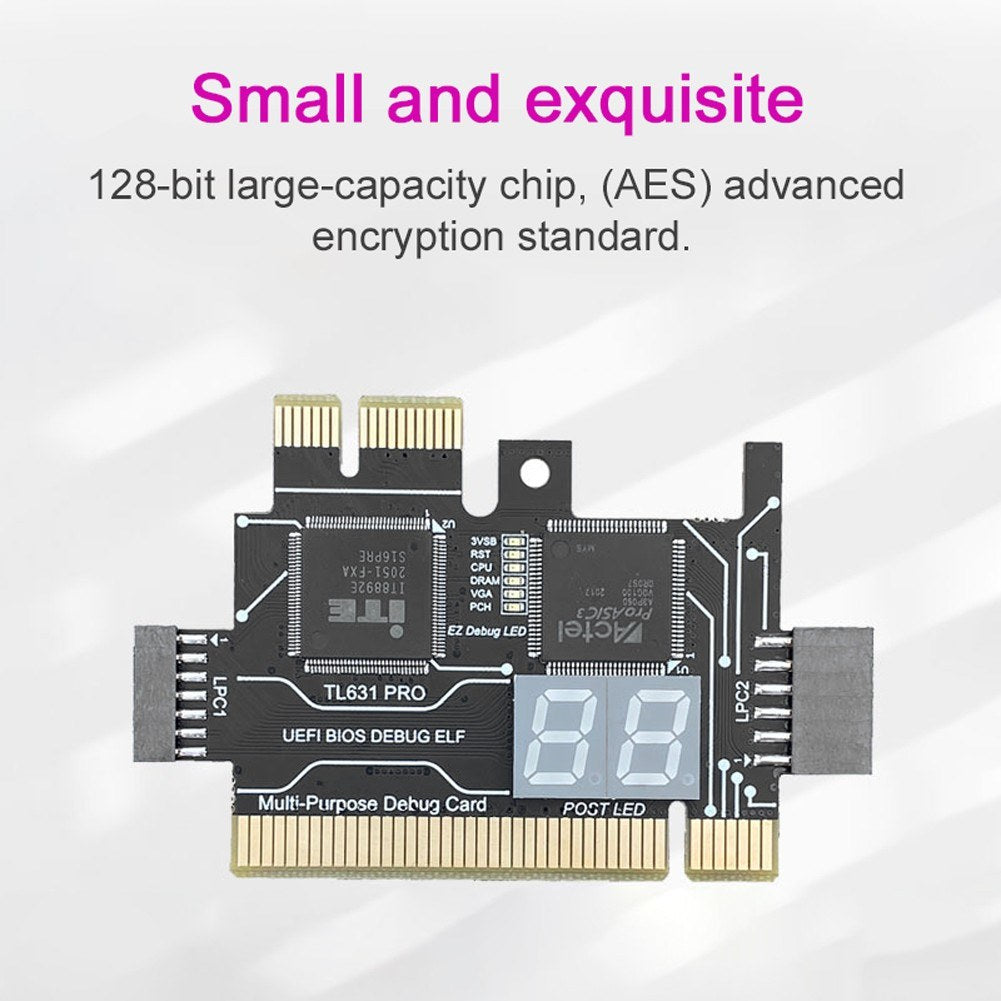

The TL631 PRO Diagnose Card combines cutting-edge technology with sleek design to offer unmatched diagnostics. Crafted for precision, this card is equipped with a 128-bit large-capacity chip and employs the advanced encryption standard for secure operations.

Featuring our innovative BGA type driver module, it not only prevents drop parts but also ensures a seamless and elegant appearance, promising a liberating usage experience. Our exclusive self-developed binding digital tube incorporates a high-quality LED core for a bright, comfortable display that is both thin and sophisticated.

Configuration Options

Choose the configuration that suits your needs:

• TL631 PRO Only
• TL631 PRO Full Set

Key Features

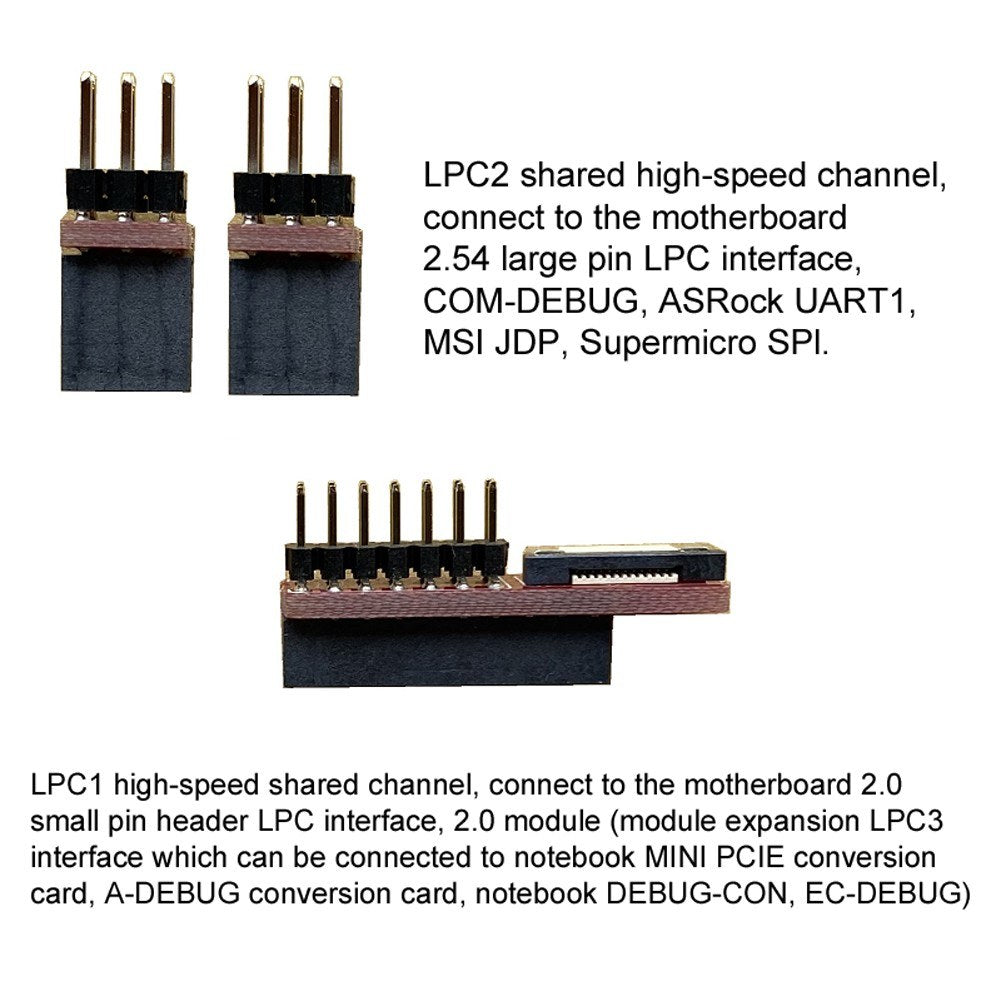

• Utilizes LPC1 high-speed shared channel for versatile motherboard connectivity.
• PCI high-speed channel compatibility with all PCI slots.
• Includes LPC2 shared high-speed channel for diverse interfacing with key motherboard models.
• PCIE X1 high-speed channel, exclusively supports Gigabyte no PCI motherboards.
• 3VSB Power Indicator to monitor power status.
• Indicators to verify normal operation of CPU, DRAM, VGA, and PCH modules.
• Displays both CLK signal and FRAME frame signal for comprehensive diagnostics.

Specifications
Name: Diagnose Card
Material: Printed Circuit Board
Types: TL631 PRO Only, TL631 PRO Full Set (optional)
Item Size: 78 x 52mm (3.07 x 2.05in)
Package Size: 150 x 100 x 100mm (5.91 x 3.94 x 3.94in)
Package weight:

• TL631 PRO Card Only: 150g (5.29 oz)
• TL631 PRO Full Set: 170g (6.00 oz)

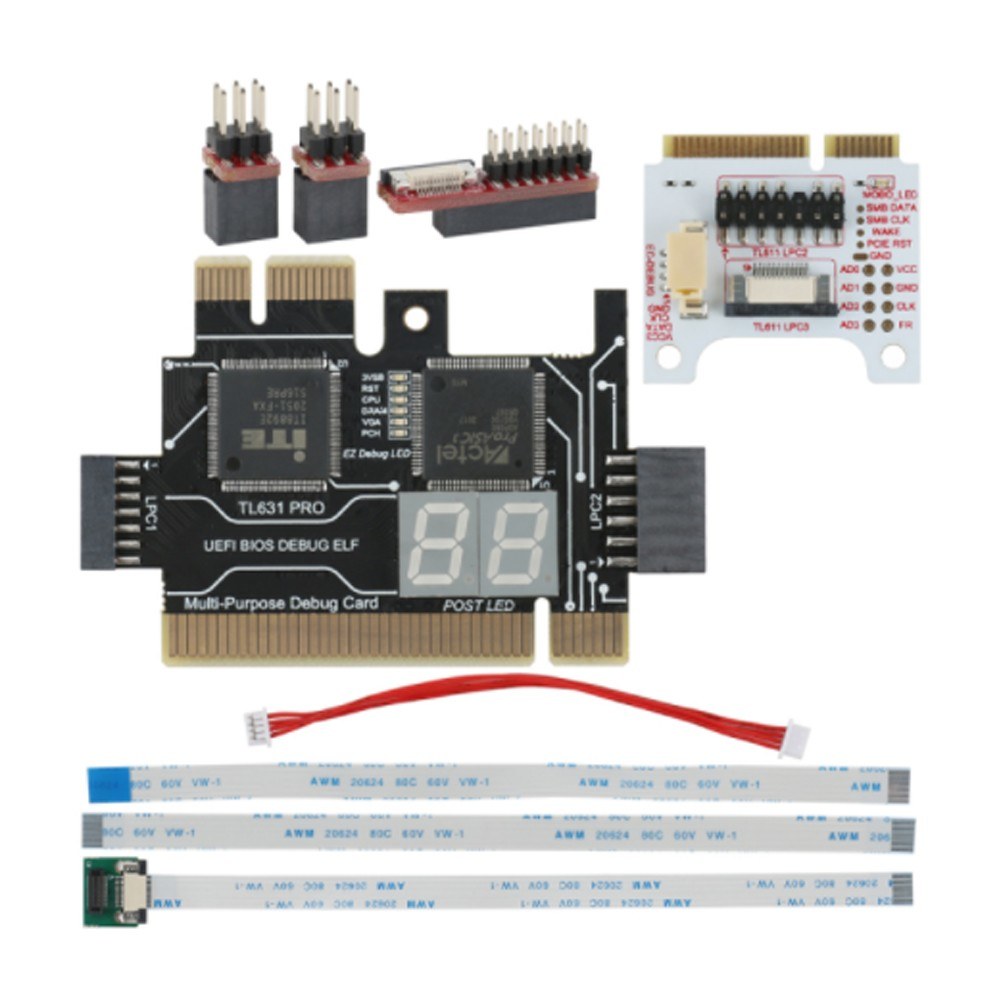

Packing List

TL631 PRO Only:

• 1 x TL631 PRO Diagnose Card

TL631 PRO Full Set:

• 1 x TL631 PRO Diagnose Card
• 1 x MINI PCIE Conversion Card
• 1 x A-DEBUG Conversion Card
• 4 x Wires
