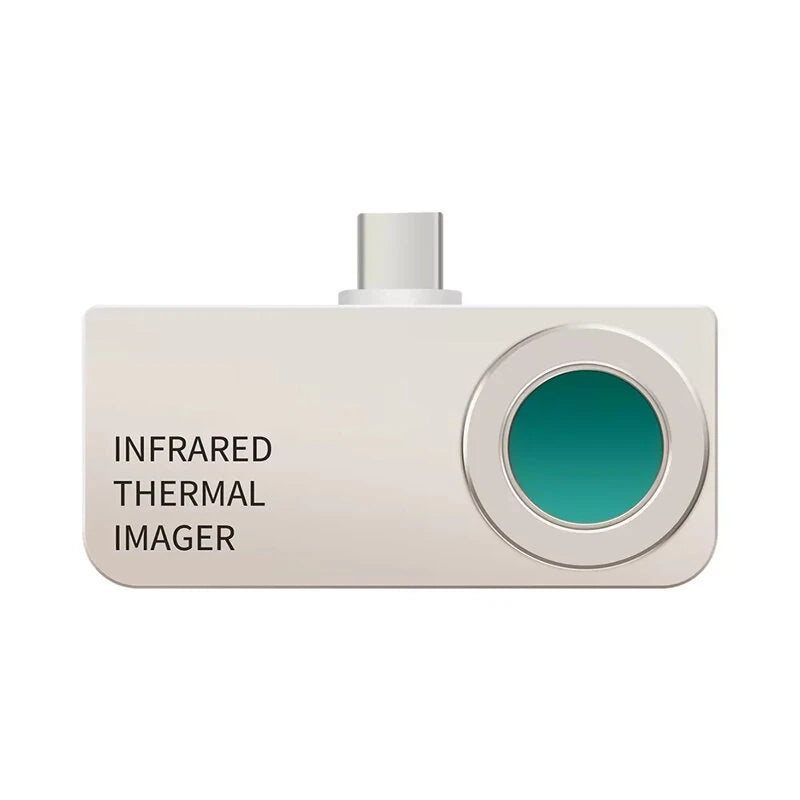

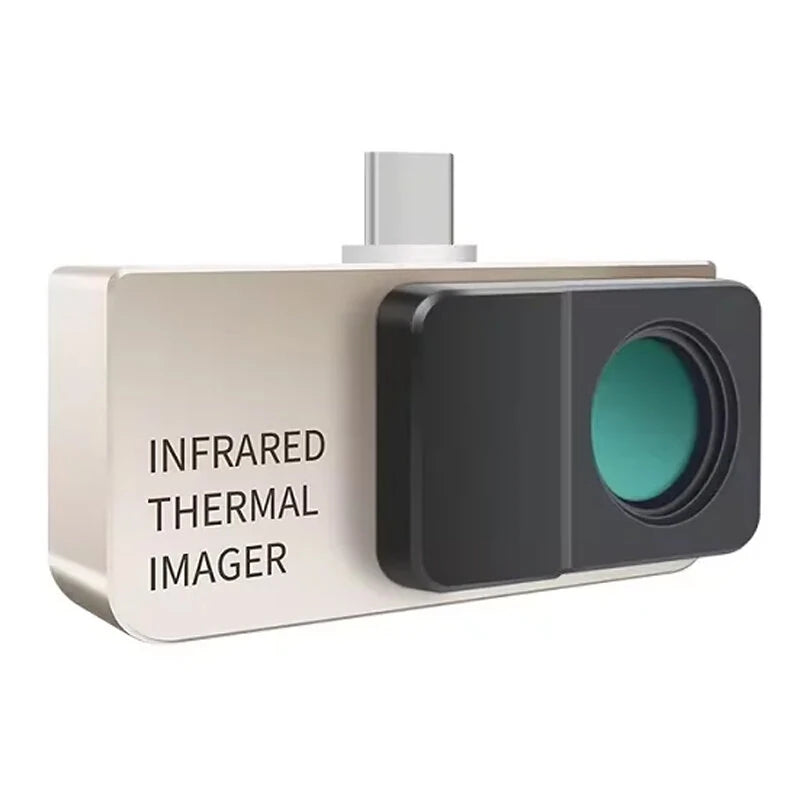

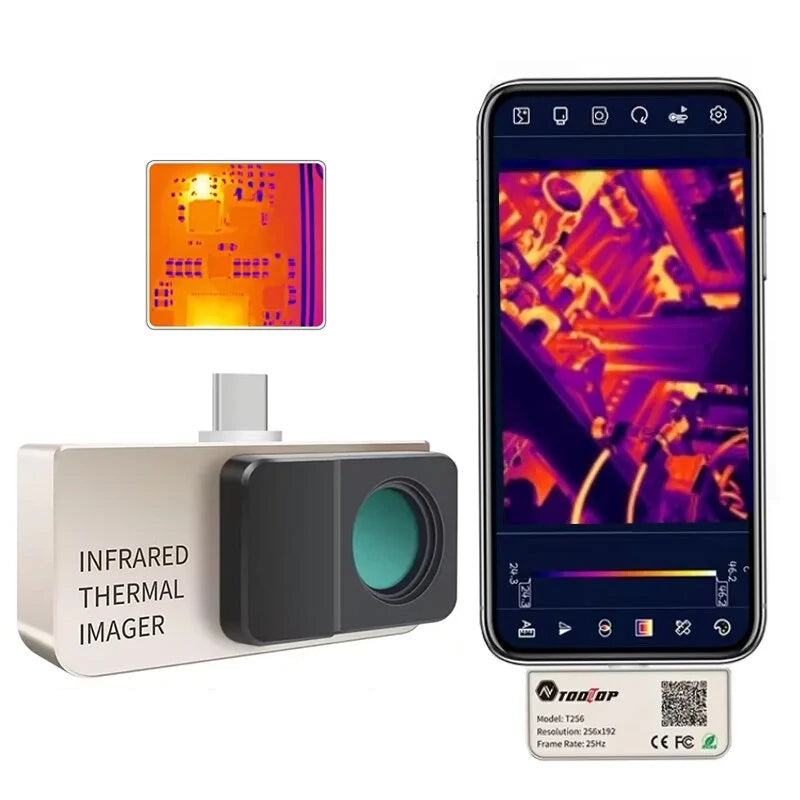

AV TOOLTOP Thermal Imager

Specifications

Brand: AV TOOLTOP

Available Models: T256/T256

Resolution: 256x192

Wavelength Range: 8-14μm

Frame Rate: 25Hz

Field of View (FOV): 56° x 42°

Lens: 3.2mm

Temperature Measurement Range: -15℃ to 600℃

Measurement Accuracy: ± 2℃ or 2%

Measurement Types: Maximum, Minimum, Center Point, and Area Temperature Measurement

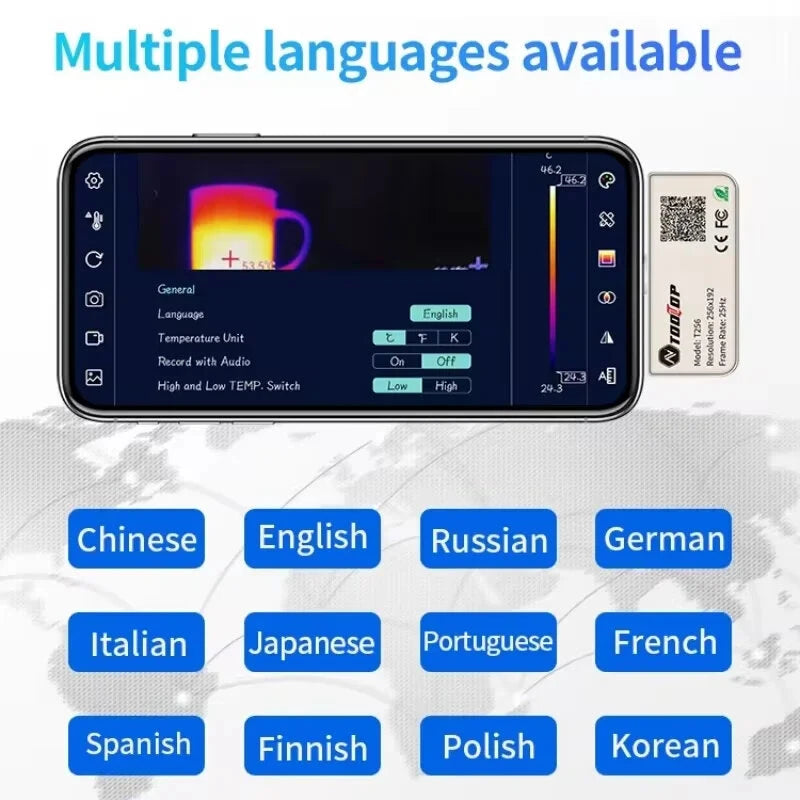

Language Support: Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish

Operating Temperature: -10℃ to 75℃

Storage Temperature: -45℃ to 85℃

IP Rating: IP54

Dimensions: 25mm x 40mm x 14mm

Net Weight: 22g

Features

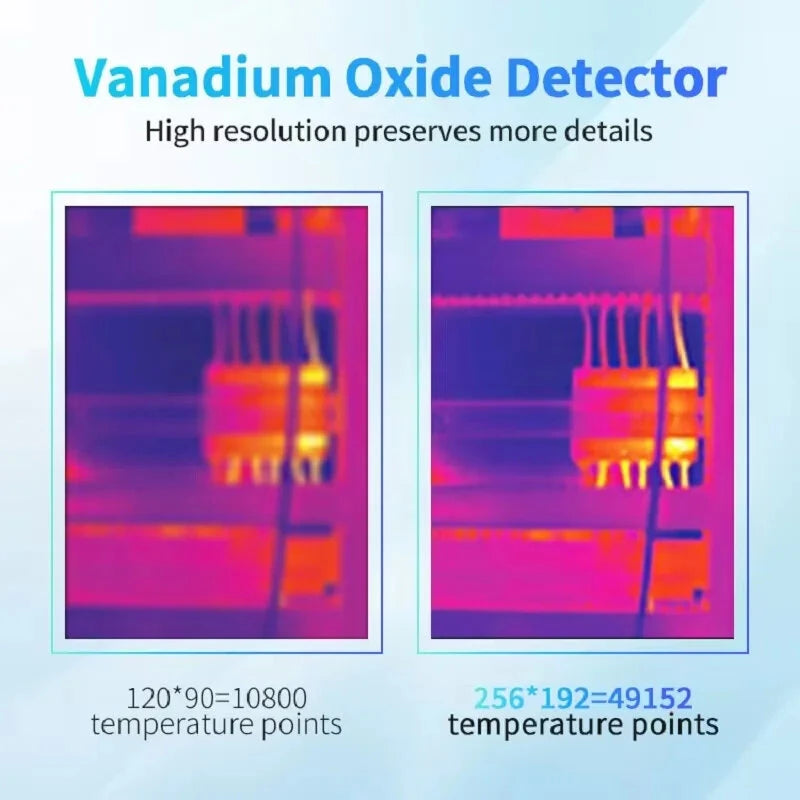

High-Resolution Imaging: Equipped with a 256x192 IR resolution and high-quality optical lens, ensuring excellent image clarity and detail for professional use.

Lightweight and Portable: Weighing only 22g and with a compact design, it is plug-and-play with a robust aluminum alloy shell, making it easy to carry and handle.

Wide Temperature Range: Capable of measuring temperatures from -15℃ to 600℃, offering versatility for various applications.

Temperature Alarm and Tracking: Supports high-temperature alarms and customizable alerts for both high and low temperatures, enhancing safety and monitoring capabilities.

User-Defined Measurements: Customize temperature scales, add points, lines, and rectangles for detailed regional temperature measurement, ensuring accuracy for specific applications.

Package Included

Type A:

• 1 x Thermal Imager
• 1 x Cloth
• 1 x Cloth Bag
• 1 x User Manual
• 1 x Box

Type B:

• 1 x Thermal Imager

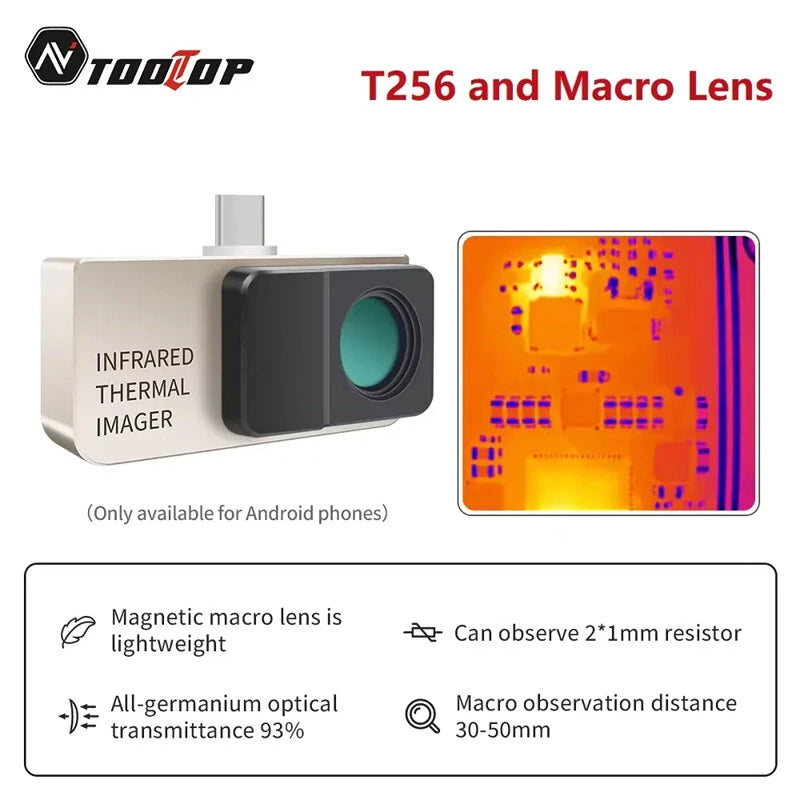

• 1 x Macro Lens
• 1 x Cloth
• 1 x Cloth Bag
• 1 x User Manual
• 1 x Box
